Truck Type : Full Response®, Pumpers, Sourcewell Deliveries
Cab Type : Enclosed Top Mount, Full Response Cab
Deployed : February, 2026

Chassis Model

Freightliner M2 106
Cummins L9 360hp Engine
Allison 3000 EVS Transmission
49,000 lbs GVWR

Cab Details

Full Response® Cab

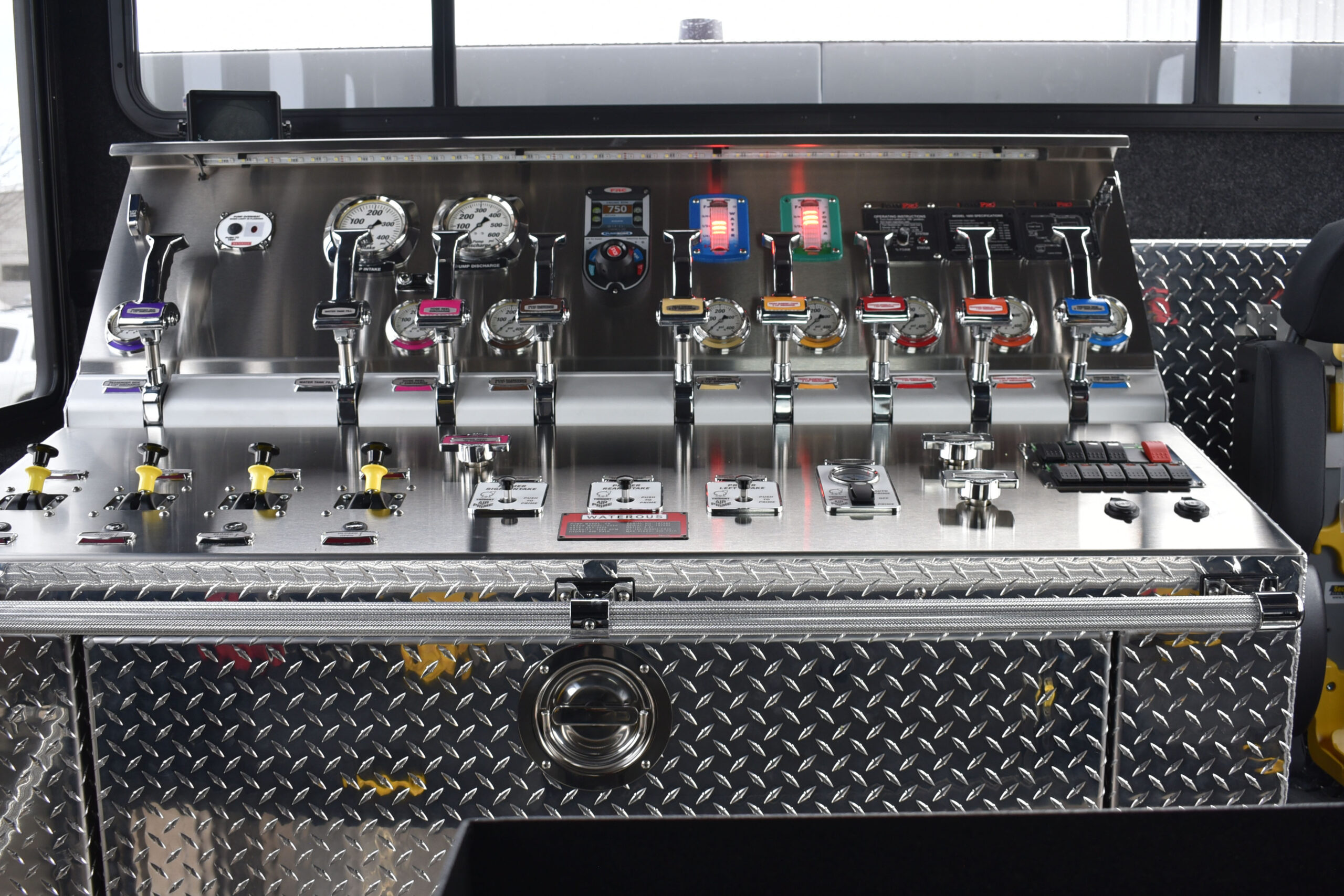

Enclosed Top-Control Pump Panel

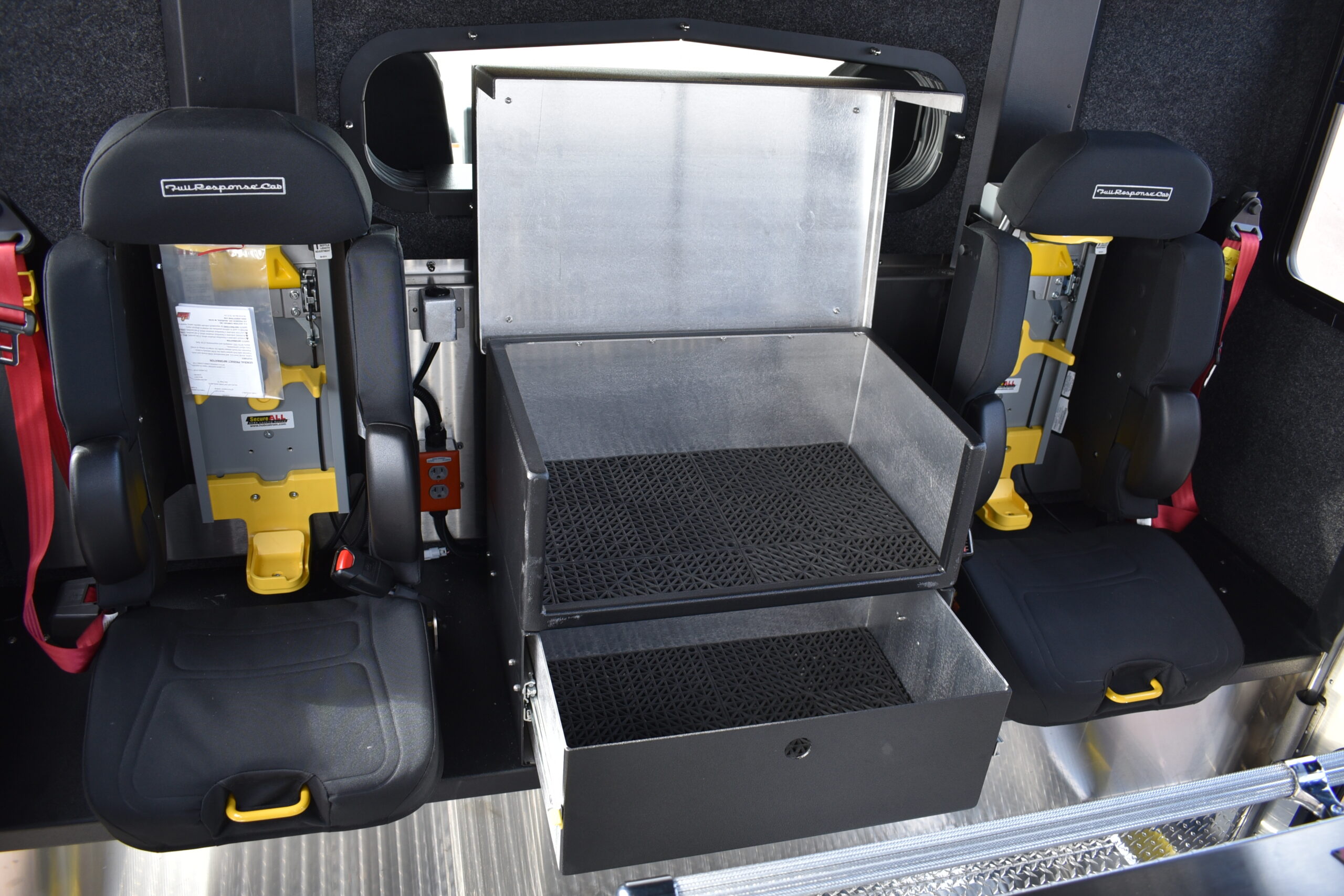

(2) Rear Facing SCBA Seating
(1) Forward Facing SCBA Seat
Rear Facing Storage Cabinet w/ Drawer
Command Desk

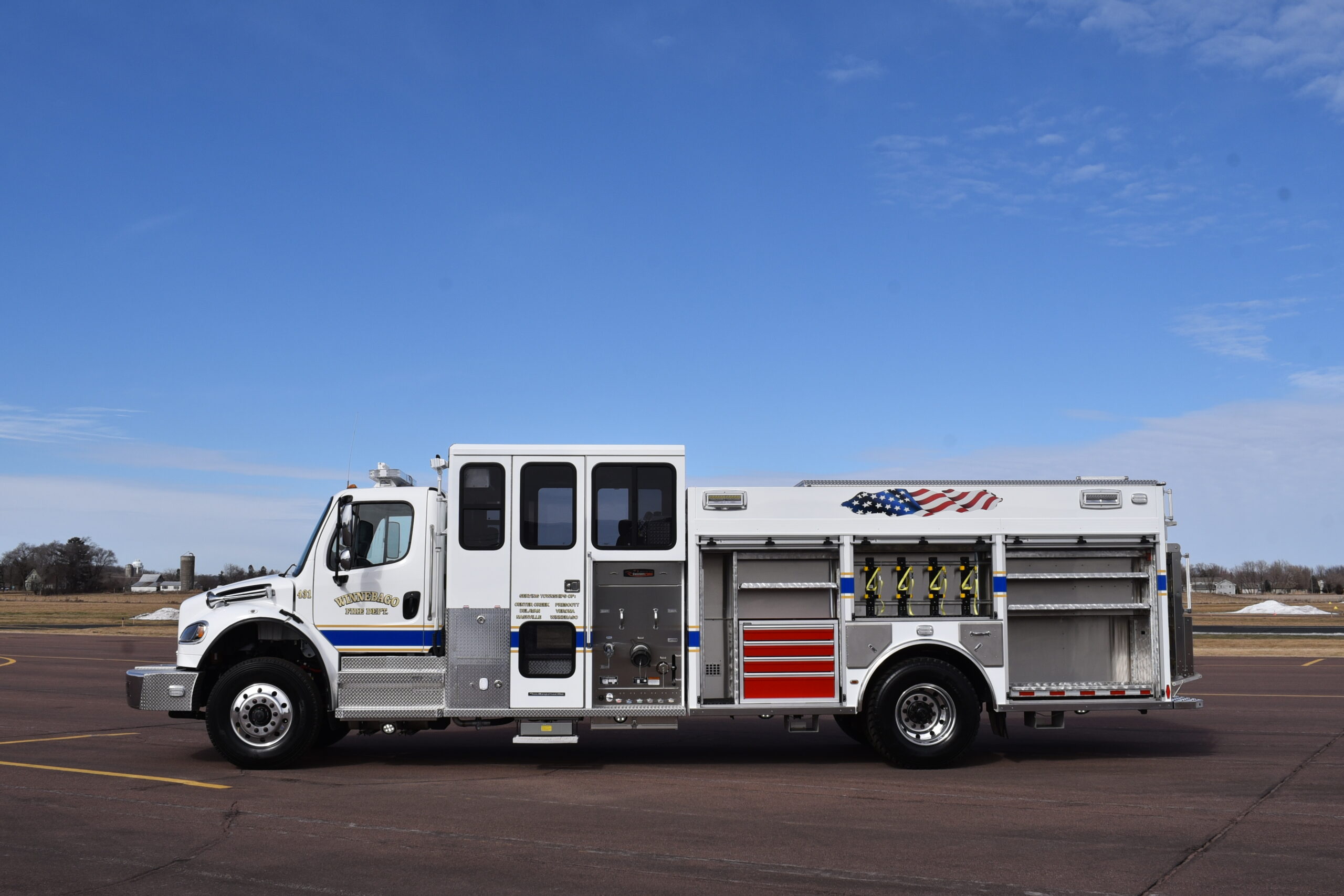

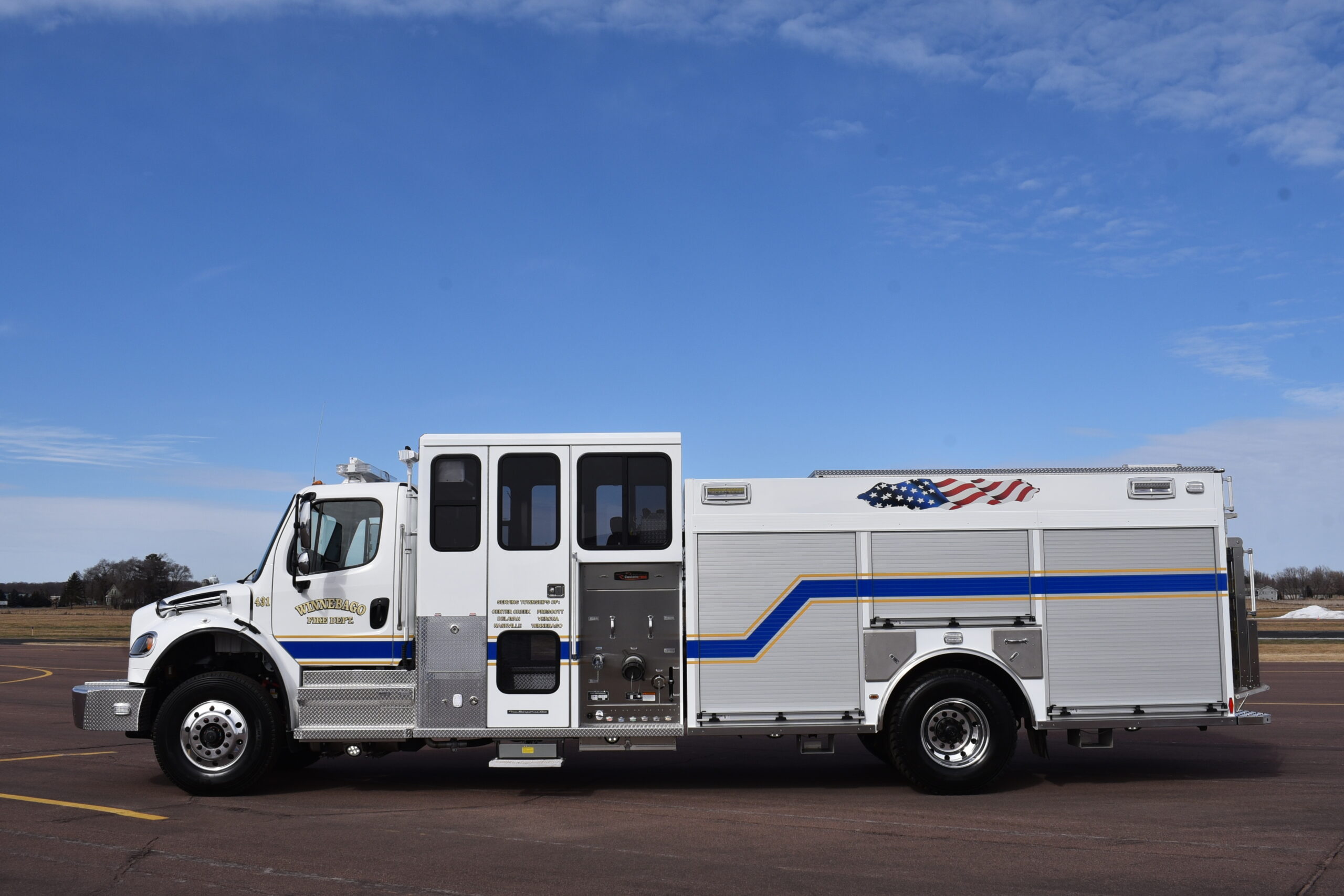

Apparatus Body

Concealed Bolted Construction
Stainless Steel Sub Frame
Stainless Steel Body Material
Roll-Up Compartment Doors

Fire Pump System

Waterous CSC22 1250gpm Fire Pump
FoamPro 1600 Class A Foam System
Trident Automatic Air Pump Primer
Fire Research PumpBoss Pressure Governor
Gated Suction Pre-Primes
Passenger Side 6" Suction
Rear 6" Suction
Drivers Side 6" Suction
Drivers Side 2.5" Suction
Passenger Side 2.5" Discharge
(2) Rear 2.5" Discharges
Driver Side 2.5" Discharge
Hose Reel 1" Discharge
Front Bumper 2.5" Discharge
(2) 2" Speedlay Discharges

Booster Tank

1200-Gallon Poly Water Tank
20-Gallon Foam Cell

Special Features

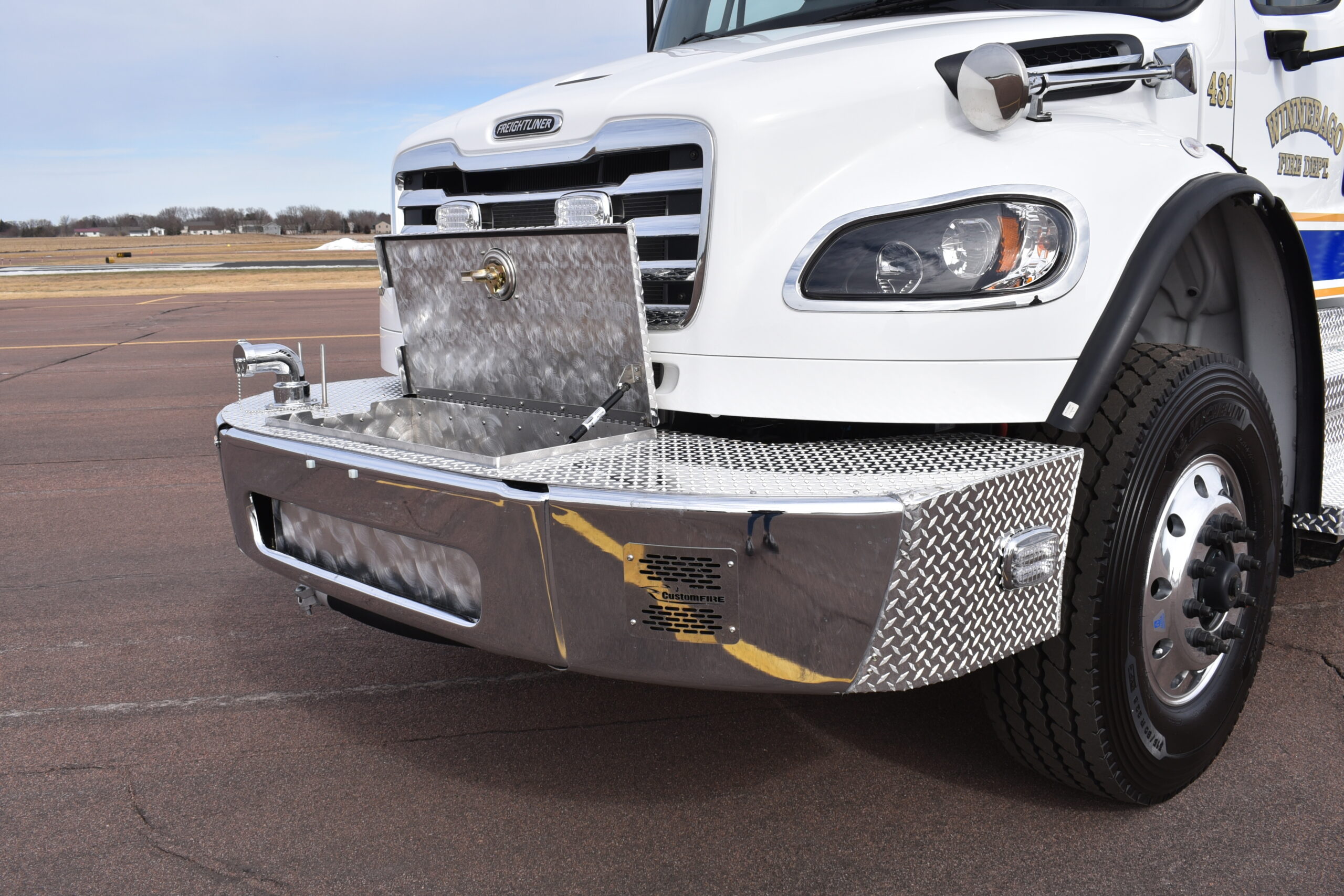

Front Bumper Extension w/ Hose Well & Cover
Encapsulated Roll-Up Door Protection

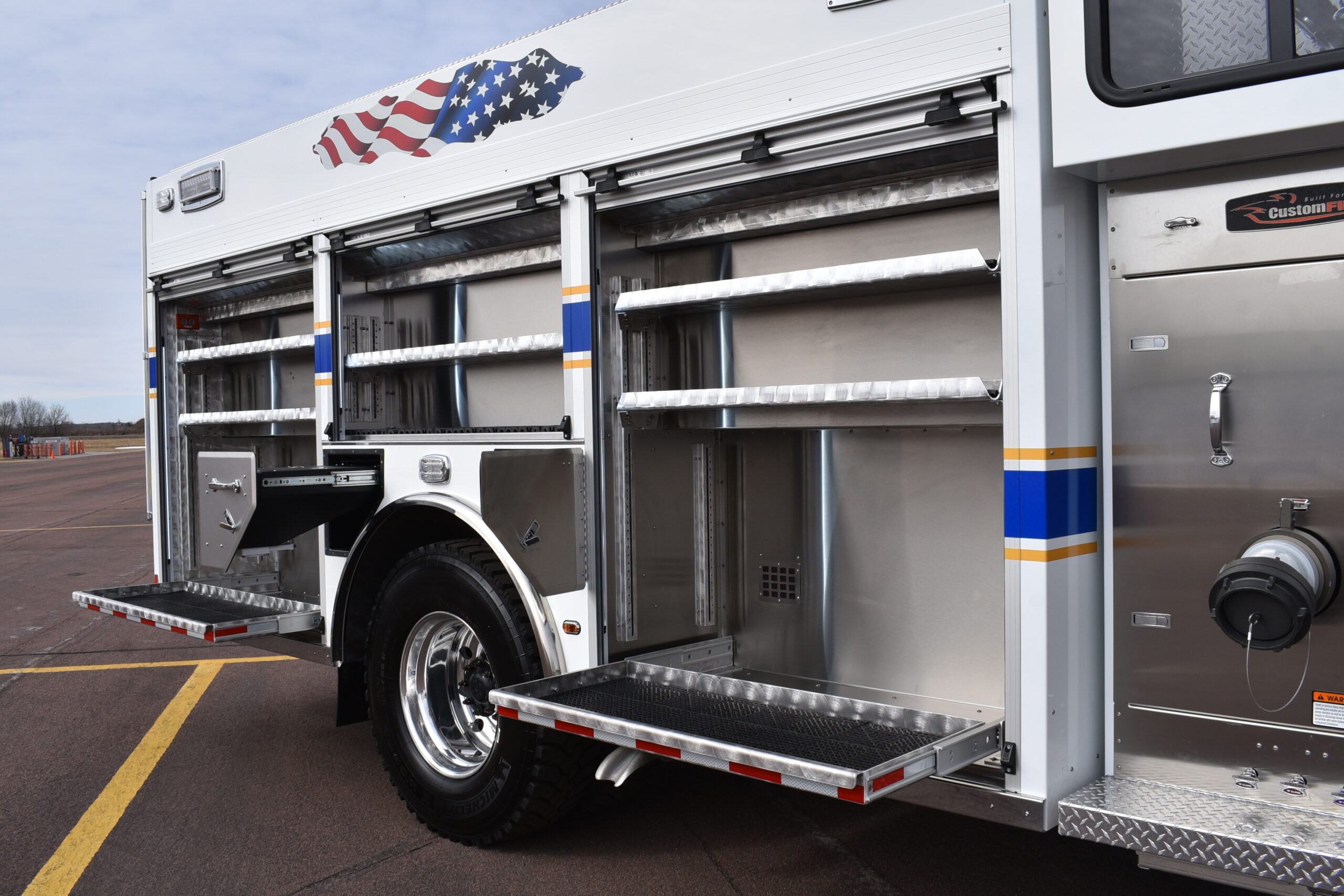

Adjustable Compartment Shelving
Pull-Out Compartment Trays

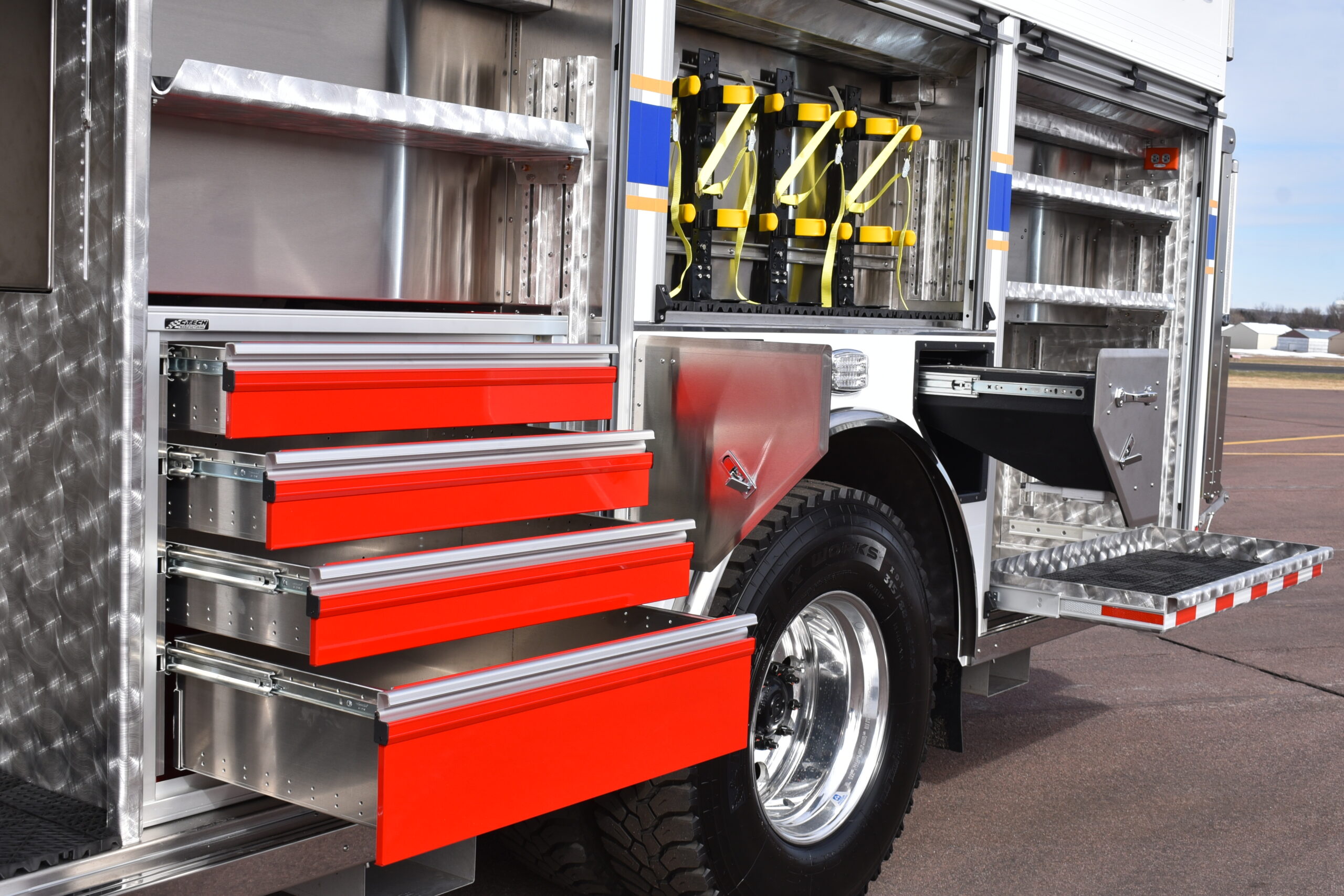

5-Drawer CTECH Toolbox
Wheel Well SCBA Cylinder Storage
Slide-In Ladder & Pike Pole Storage

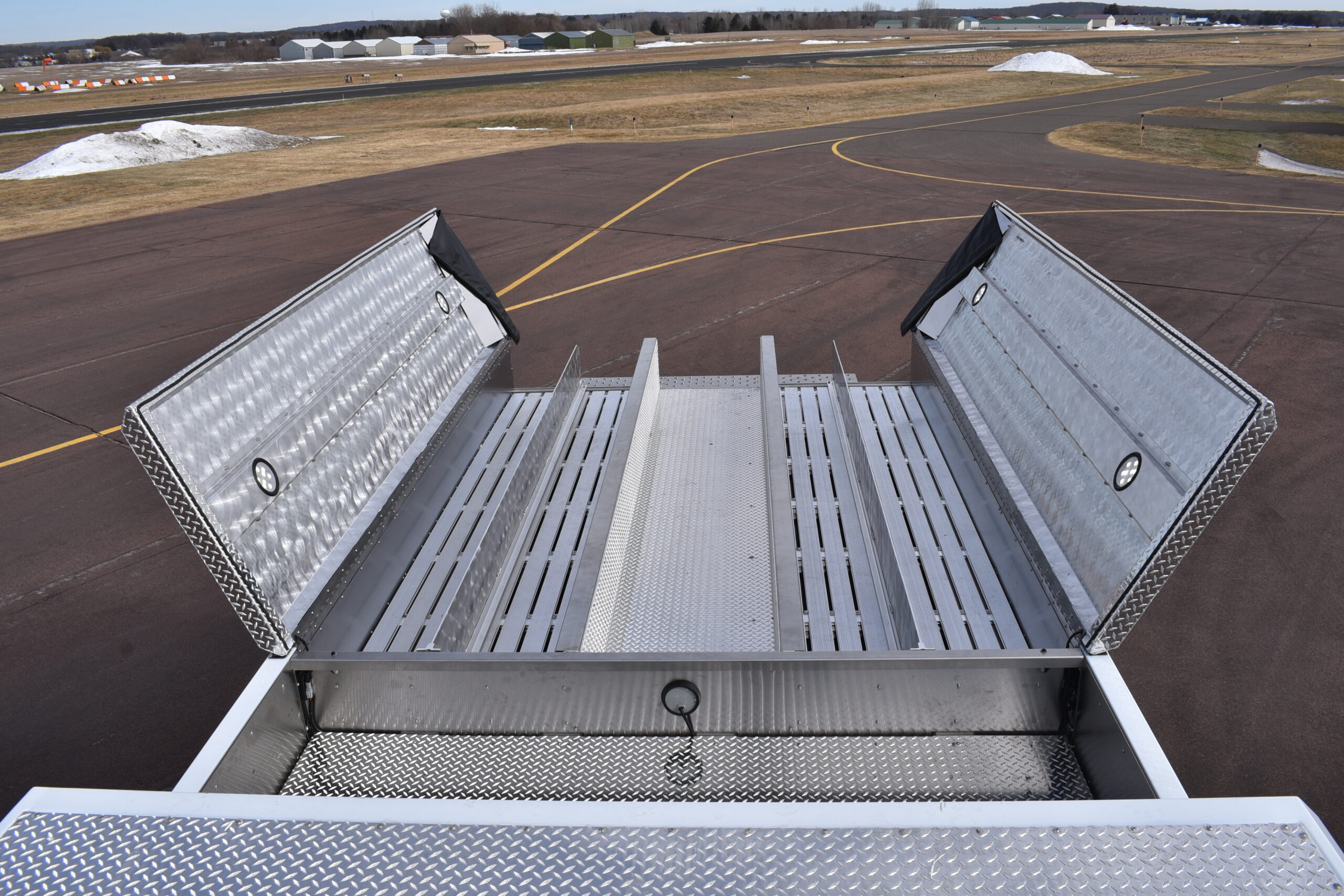

Aluminum Swing-Away Hose Bed Covers
Adjustable Hose Bed Dividers
Slide-In Suction Hose Storage

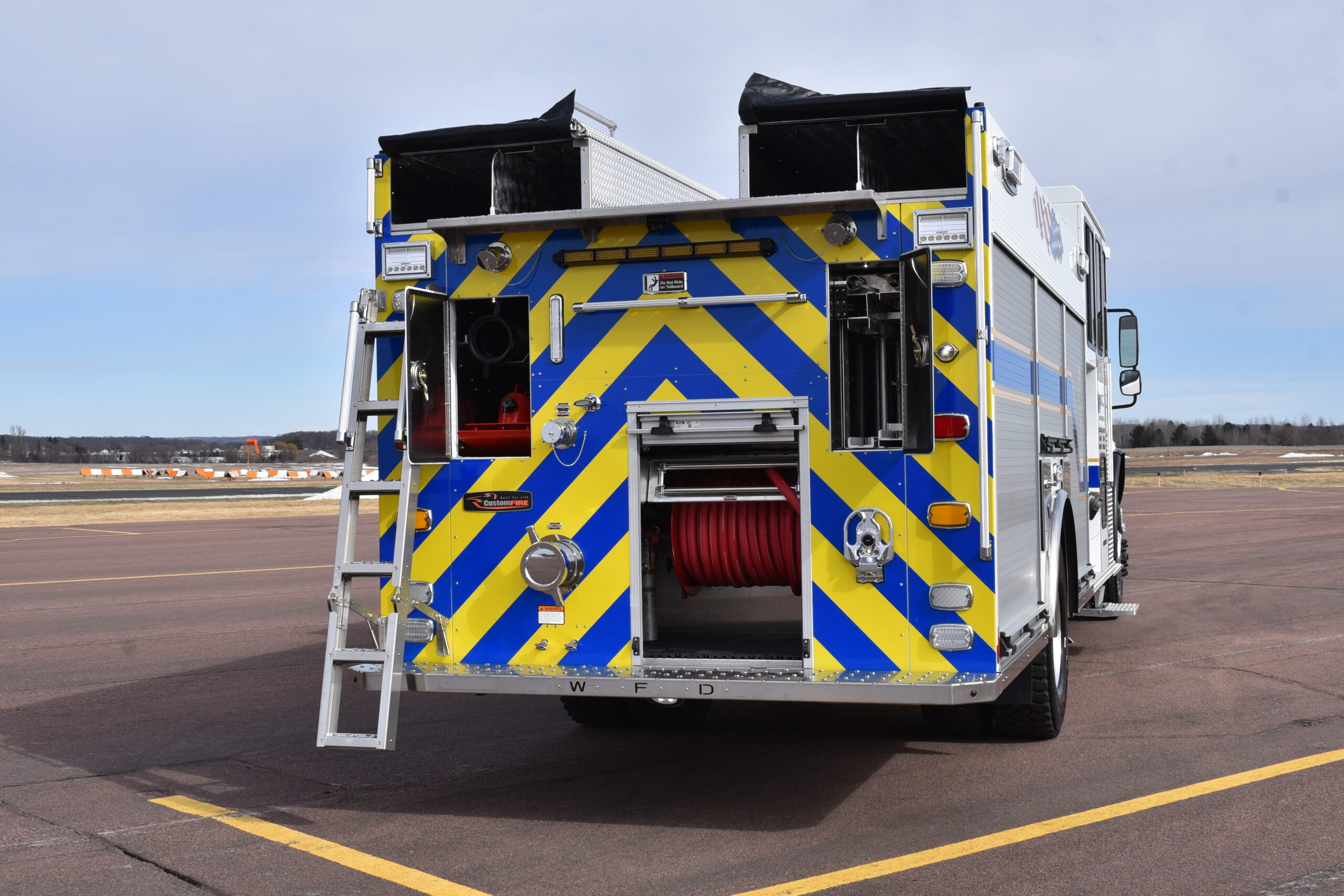

Swing-Out and Down Rear Access Ladder
Rear Observation System w/ Display

Emergency Warning Devices

Whelen Grille Warning Lights
Whelen LED Warning Lights
Whelen Traffic Directing Lights
Whelen Electronic Siren and Speaker
Whelen LED Freedom Lightbar
Stuttertone Emergency Air Horn

Exterior Lighting

LED Marker Lights
Whelen Scene Lighting
LED Step Lights
LED Vertical Strip Compartment Lighting
Under Cab and Under Body Lighting
LED Telescoping Scene Lights
Door Track Compartment Lighting
Whelen Cab Roof Brow Light

Vehicle Dimensions

Overall Height 10' 4"
Overall Length 35'
Wheelbase 250"
Weight w/ Water 38,900 Lbs.
