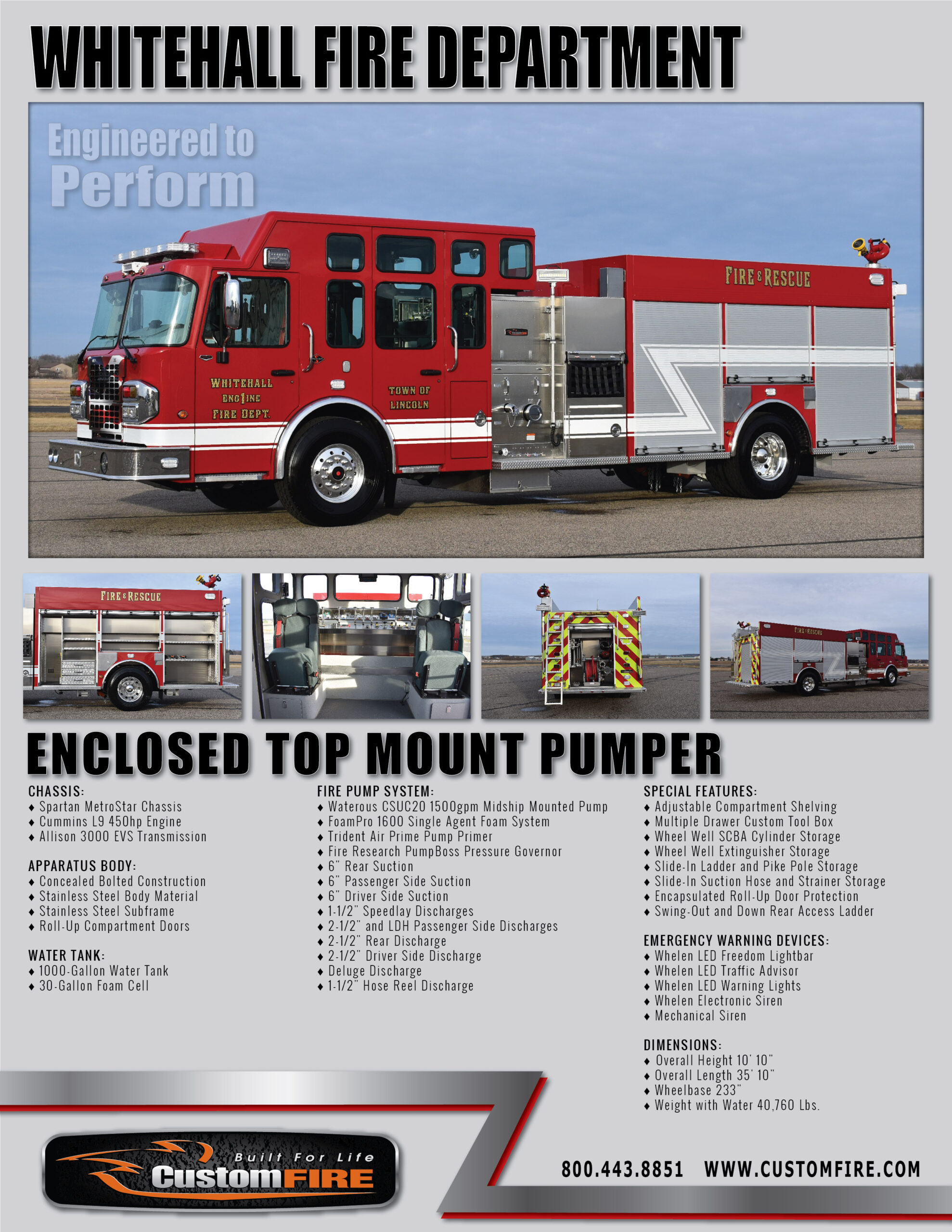

Enclosed Top Mount Pumper
Custom built for Whitehall Fire Department — Whitehall, WI
Fire Truck: Spartan MetroStar Chassis, Bolted Stainless Steel Body, Waterous 1500gpm Pump, FoamPro 1600 Single Agent Foam System, 1000-Gallon Water Tank, Adjustable Shelving, Slide-In Ladder Storage, Multiple Drawer Tool Box, LED Warning Lights
Truck Type : Pumpers
Cab Type : Custom Cab, Enclosed Top Mount
Chassis Model
Spartan MetroStar Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission
Apparatus Body
Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors
Fire Pump System
Interior Pump Control Panel
Waterous CSUC20 1500gpm Midship Mounted Pump
FoamPro 1600 Single Agent Foam System
Trident Air Prime Pump Primer
Fire Research PumpBoss Pressure Governor
6" Rear Suction
6" Passenger Side Suction
6" Driver Side Suction
1-1/2" Speedlay Discharges
2-1/2" and LDH Passenger Side Discharges
2-1/2" Rear Discharge
2-1/2" Driver Side Discharge
Deluge Discharge
1-1/2" Hose Reel Discharge
Booster Tank
1000-Gallon Water Tank
30-Gallon Foam Cell
Special Features
Adjustable Compartment Shelving
Multiple Drawer Custom Tool Box
Wheel Well SCBA Cylinder Storage
Wheel Well Extinguisher Storage
Slide-In Ladder and Pike Pole Storage
Slide-In Suction Hose and Strainer Storage
Encapsulated Roll-Up Door Protection
Swing-Out and Down Rear Access Ladder
Emergency Warning Devices
Whelen LED Freedom Lightbar
Whelen LED Traffic Advisor
Whelen LED Warning Lights
Whelen Electronic Siren
Mechanical Siren
Exterior Lighting
Vertical Strip LED Compartment Lighting
LED Step Lights
LED Marker Lights
Whelen LED Tail Lighting
Under Cab and Under Body Lighting
Fire Research Scene Lights
Vehicle Dimensions
Overall Height 10' 10"
Overall Length 35' 10"
Wheelbase 233"
Weight with Water 40,760 Lbs.
