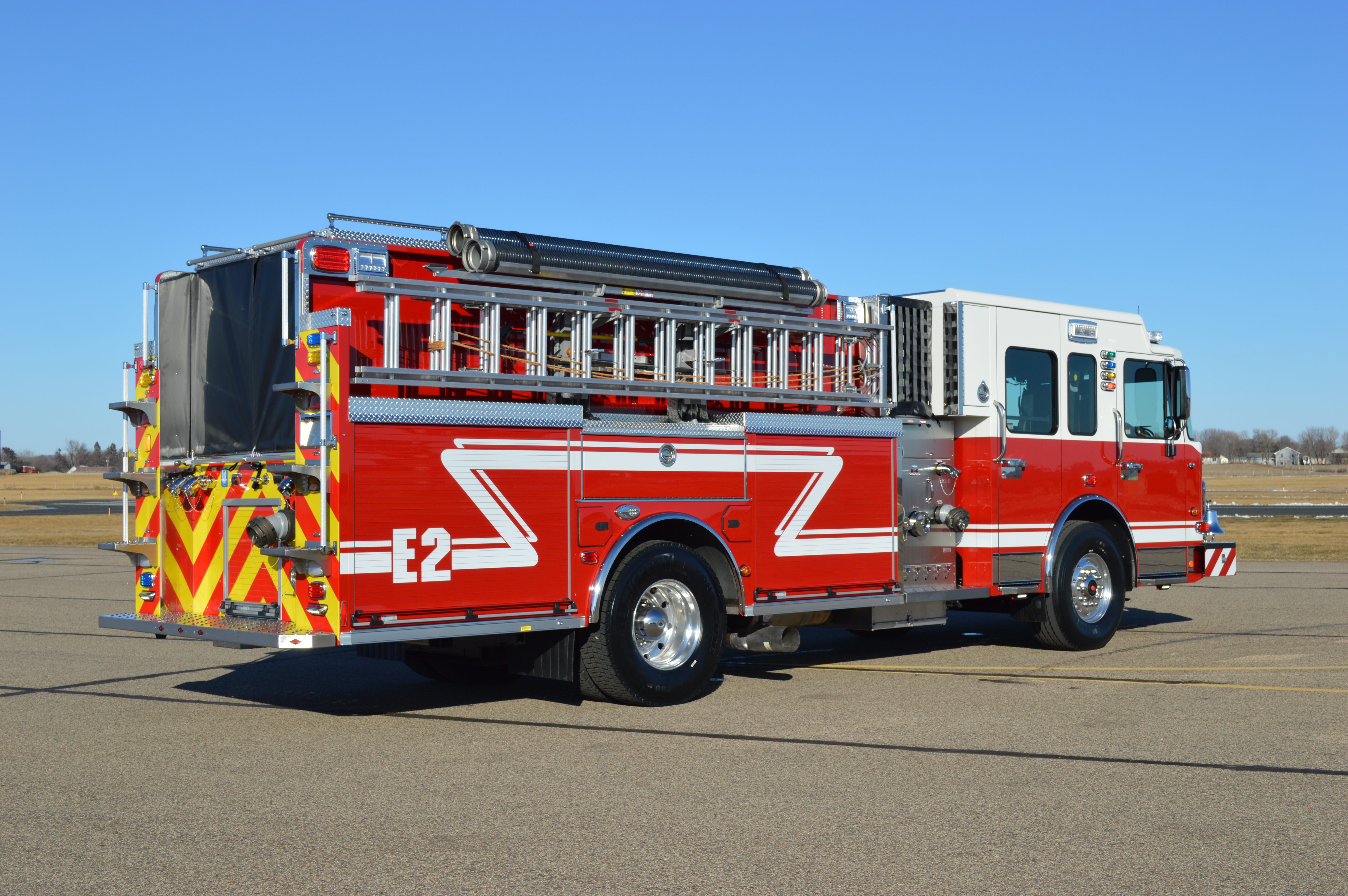

Side Mount Pumper

Custom built for Westfield Fire Department — Middletown, CT

Spartan Chassis, Bolted Stainless Steel Body, Waterous 1500gpm Pump, Waterous AQUIS Foam System, 1000-Gallon Water Tank, Adjustable Compartment Shelving, Pull-Out Compartment Trays, Wheel Well Storage, Drop-Down Ladder Rack, LED Emergency Lights


Truck Type : ,
Cab Type : ,
Deployed : January, 2019

Chassis Model

Spartan Gladiator Chassis
Cummins ISX12 450hp Engine
Allison 4000 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Roll-Up Door Protection

Fire Pump System

Waterous CSUC20 1500gpm Midship Pump
Waterous Aquis Foam System
Fire Research Total Control Pressure Governor
Waterous Oil-Less Pump Primer
Passenger Side 6" and 2-1/2" Suctions
Rear 6" Suction
Driver Side 6" and 2-1/2" Suctions
Passenger Side 2-1/2" and LDH Discharges
Rear 2-1/2" Discharges
Driver Side 2-1/2" Discharges
Top Deluge Discharge
2" and 2-1/2" Crosslay Discharges

Booster Tank

1000-Gallon Water Tank

Special Features

Hinged Hosebed Covers w/ Lift Actuators
Encapsulated Roll-Up Door Protection
Adjustable Compartment Shelving
Pull-Out Compartment Trays
PAC Trac Compartment Back Wall
SCBA Cylinder Storage Rack
SCBA Mounting Brackets
Hard Suction Hose Troughs
Zico Quic-Lift Ladder Access System
Onan 10kW Hydraulic Generator
Power Rewind Electric Cord Reels

Emergency Warning Devices

Whelen Mini Lightbars
Whelen LED Warning Lights

Exterior Lighting

Vertical Strip Compartment Lights
LED Marker Lights
Under Cab and Under Body Lights
Whelen Scene Lights

Vehicle Dimensions

Overall Height 10' 1"
Overall Length 33' 2"
Wheelbase 15' 10"
Weight with Water 43,190 Lbs.
