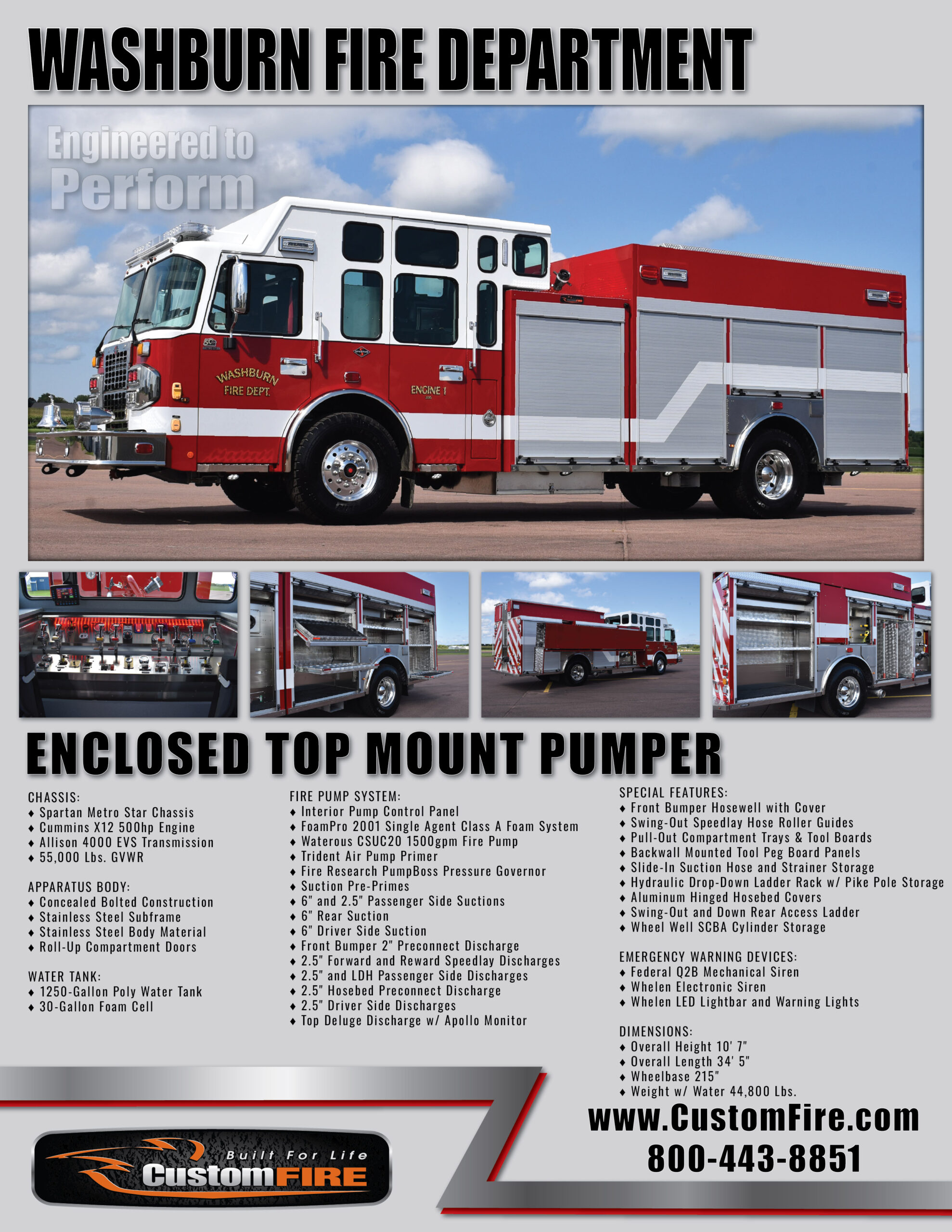

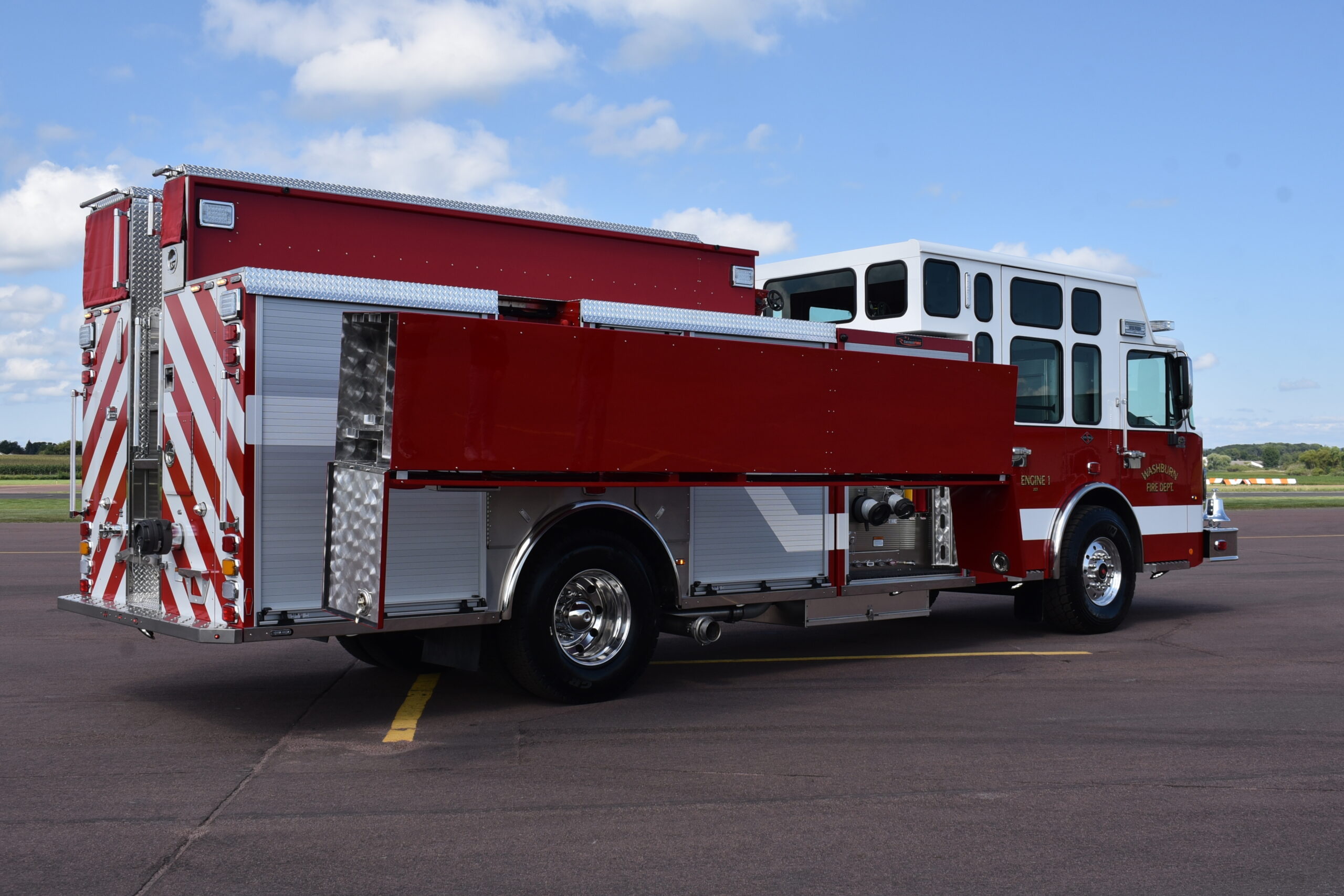

Truck Type : Pumpers
Cab Type : Custom Cab, Enclosed Top Mount

Chassis Model

Spartan Metro Star Chassis
Cummins X12 500hp Engine
Allison 4000 EVS Transmission
55,000 Lbs. GVWR

Apparatus Body

Concealed Bolted Construction
Stainless Steel Subframe
Stainless Steel Body Material
Roll-Up Compartment Doors

Fire Pump System

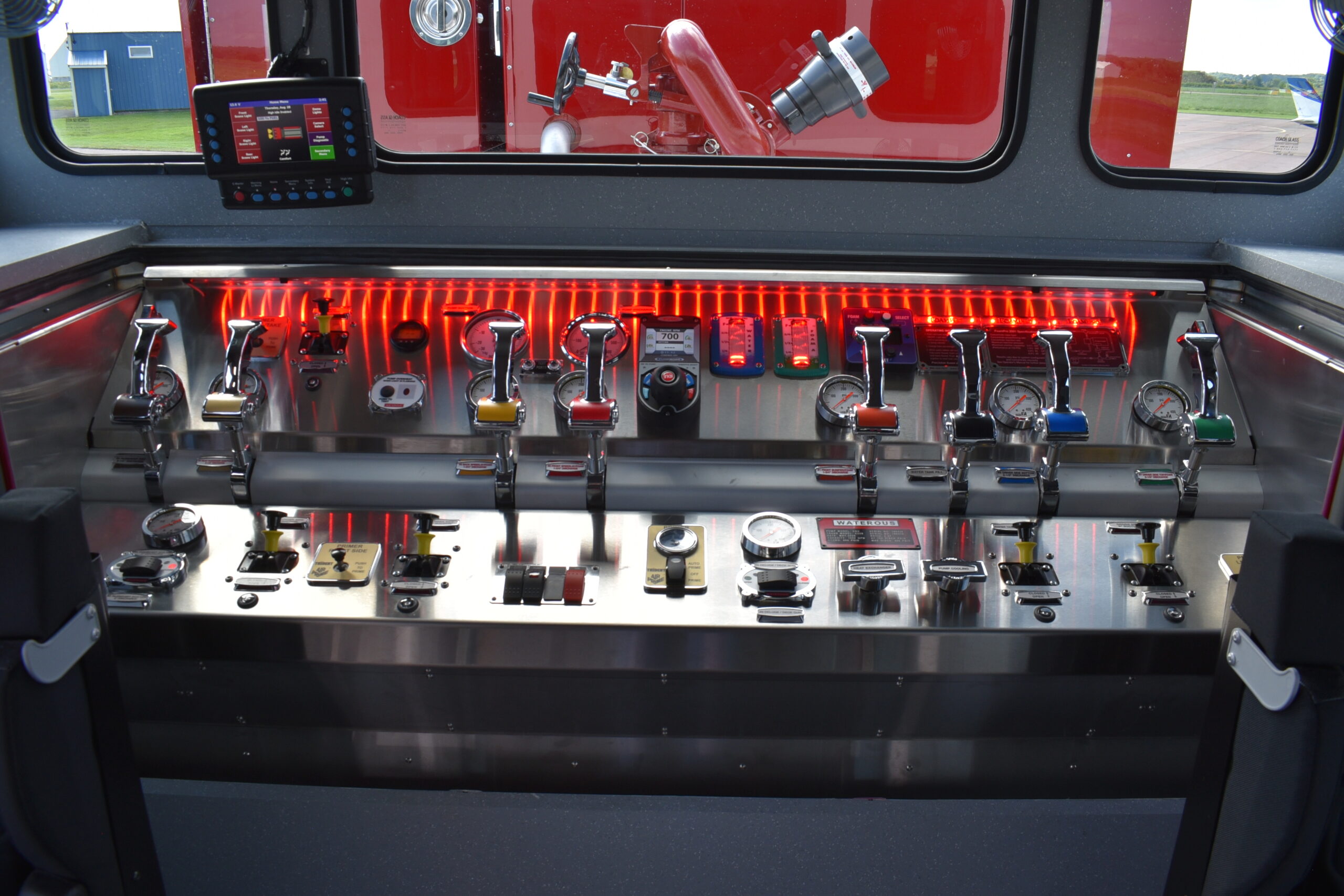

Interior Pump Control Panel
FoamPro 2001 Single Agent Class A Foam System
Waterous CSUC20 1500gpm Fire Pump
Trident Air Pump Primer
Fire Research PumpBoss Pressure Governor
Suction Pre-Primes
6" and 2.5" Passenger Side Suctions
6" Rear Suction
6" Driver Side Suction
Front Bumper 2" Preconnect Discharge
2.5" Forward and Reward Speedlay Discharges
2.5" and LDH Passenger Side Discharges
2.5" Hosebed Preconnect Discharge
2.5" Driver Side Discharges
Top Deluge Discharge w/ Apollo Monitor

Booster Tank

1250-Gallon Poly Water Tank
30-Gallon Foam Cell

Special Features

Front Bumper Hosewell with Cover
Removable Speedlay Hosebeds
Swing-Out Speedlay Hose Roller Guides

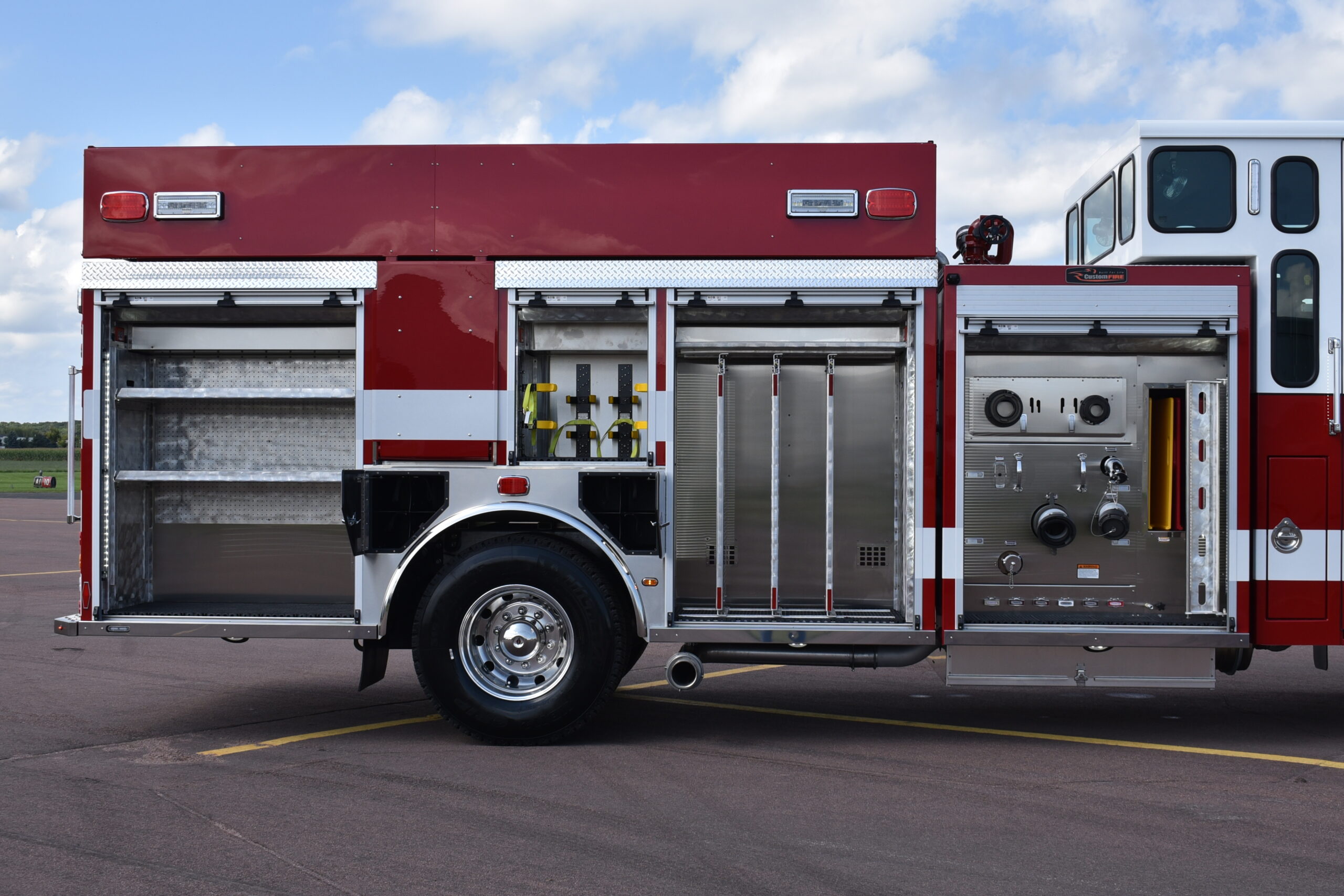

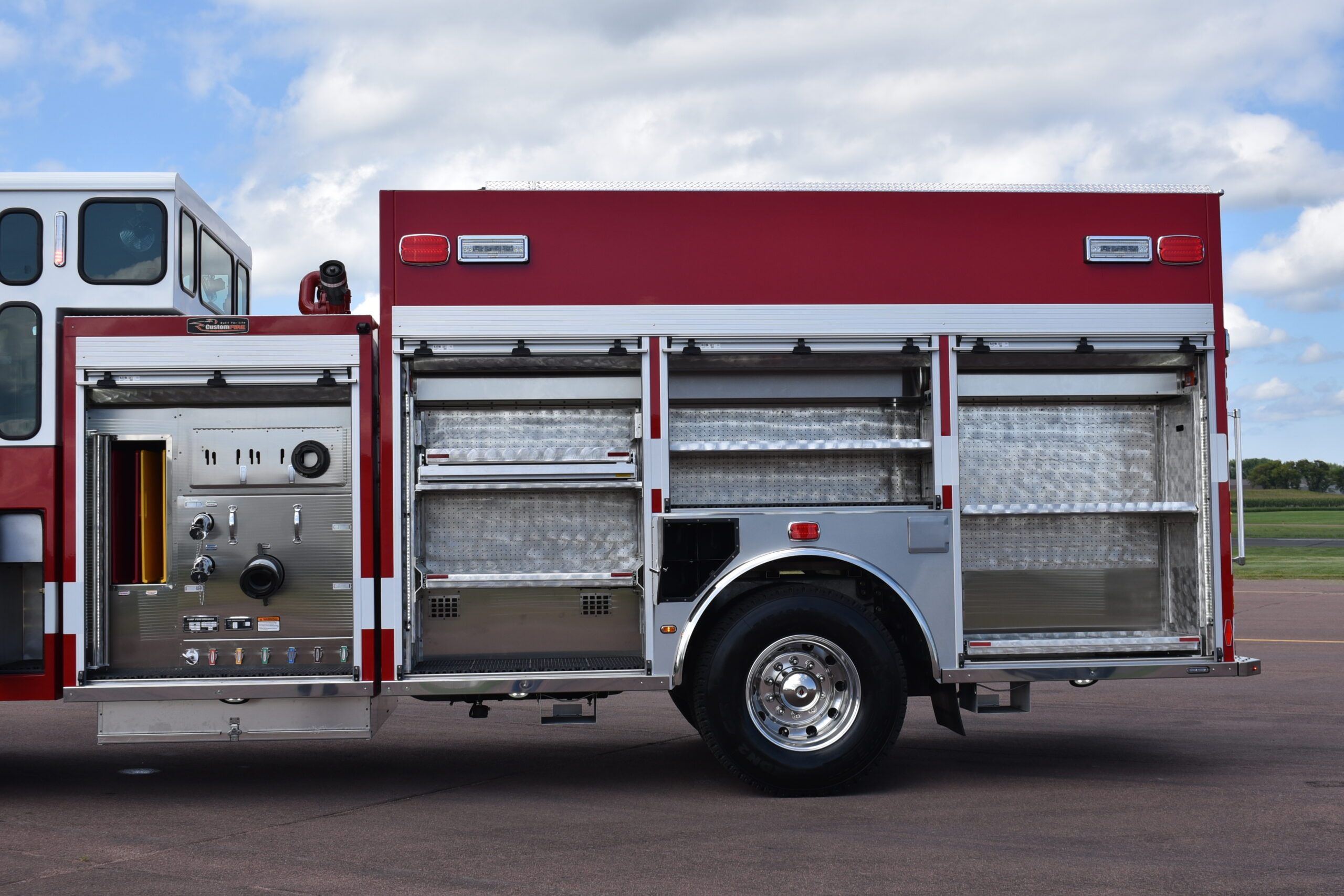

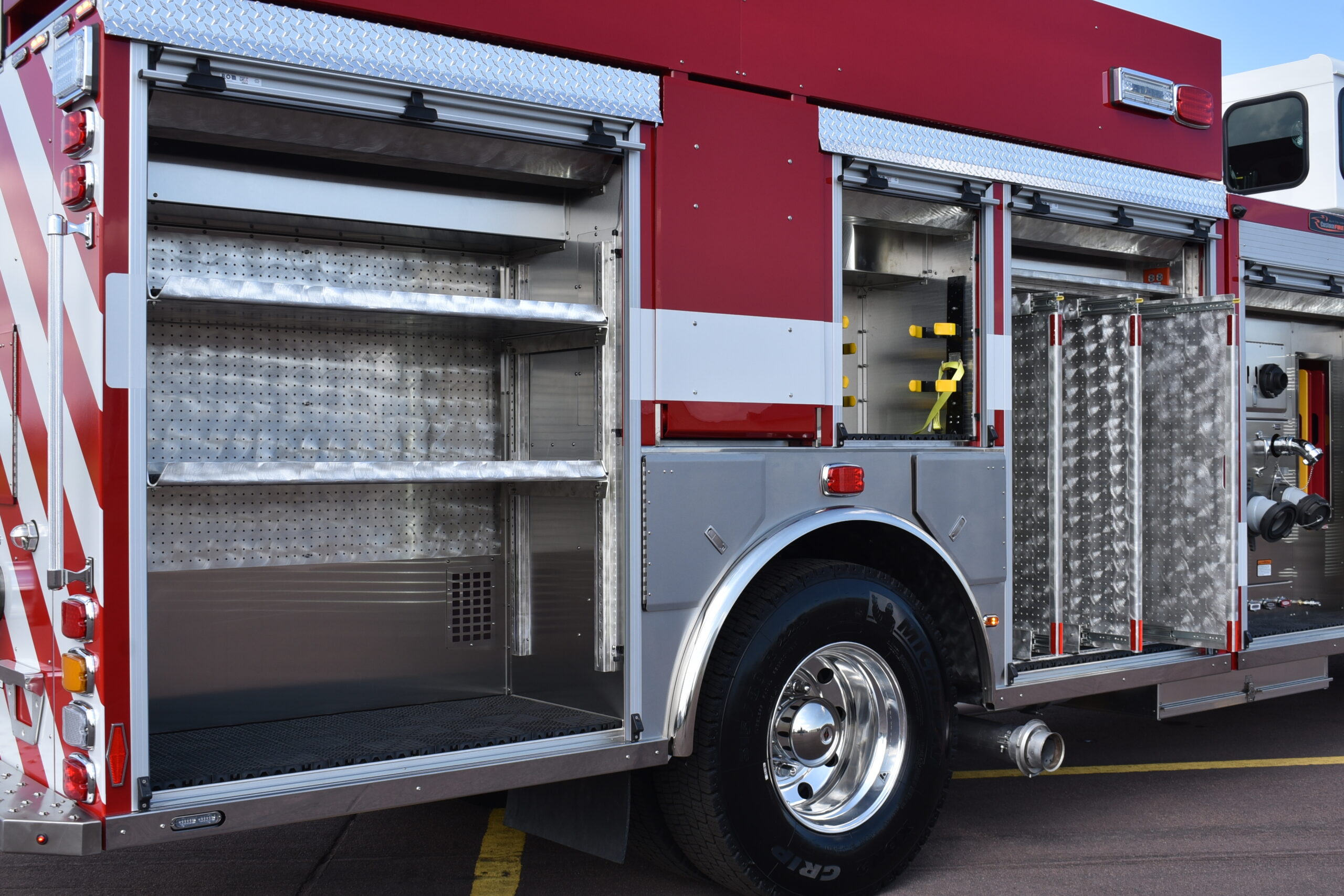

Adjustable Compartment Shelving

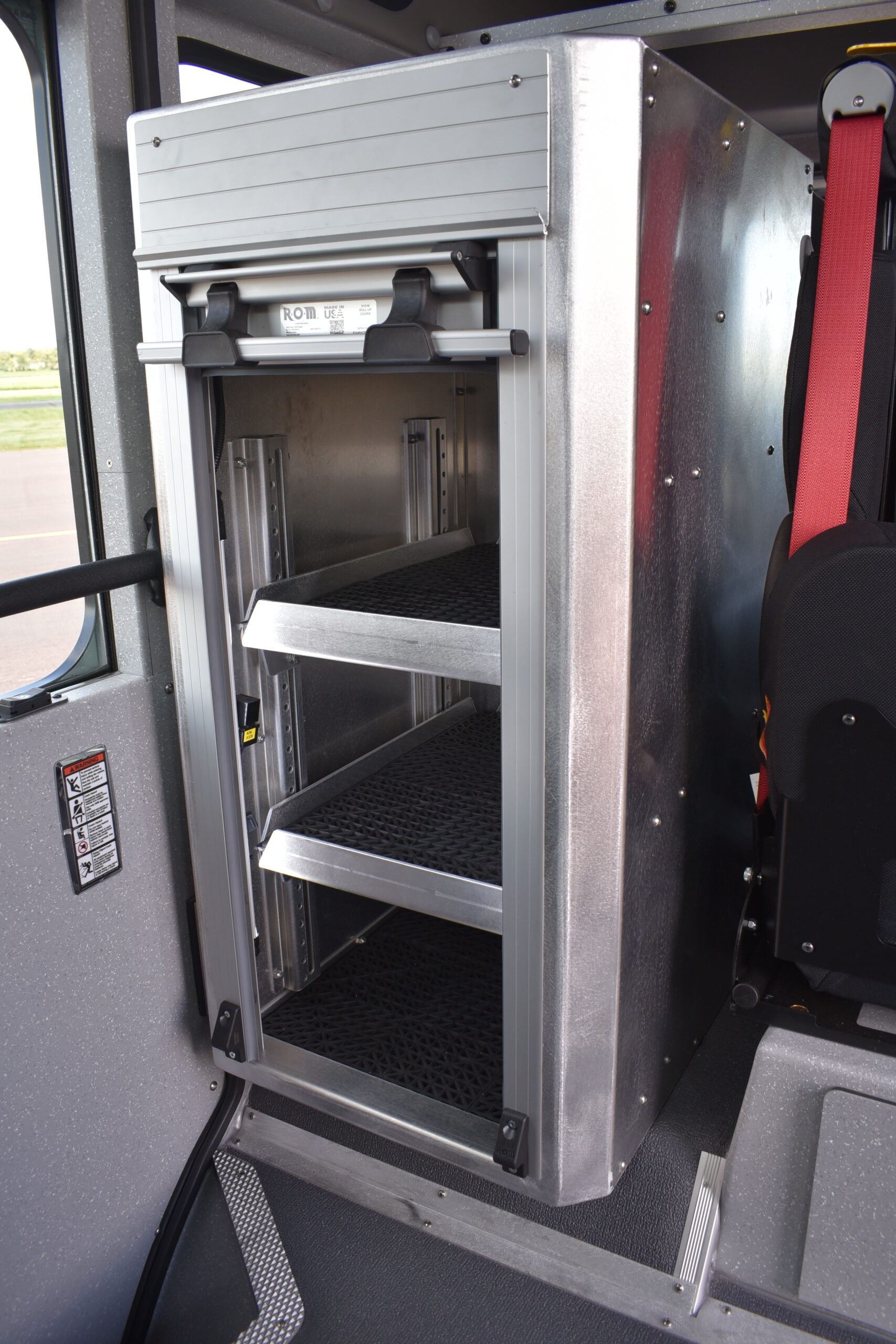

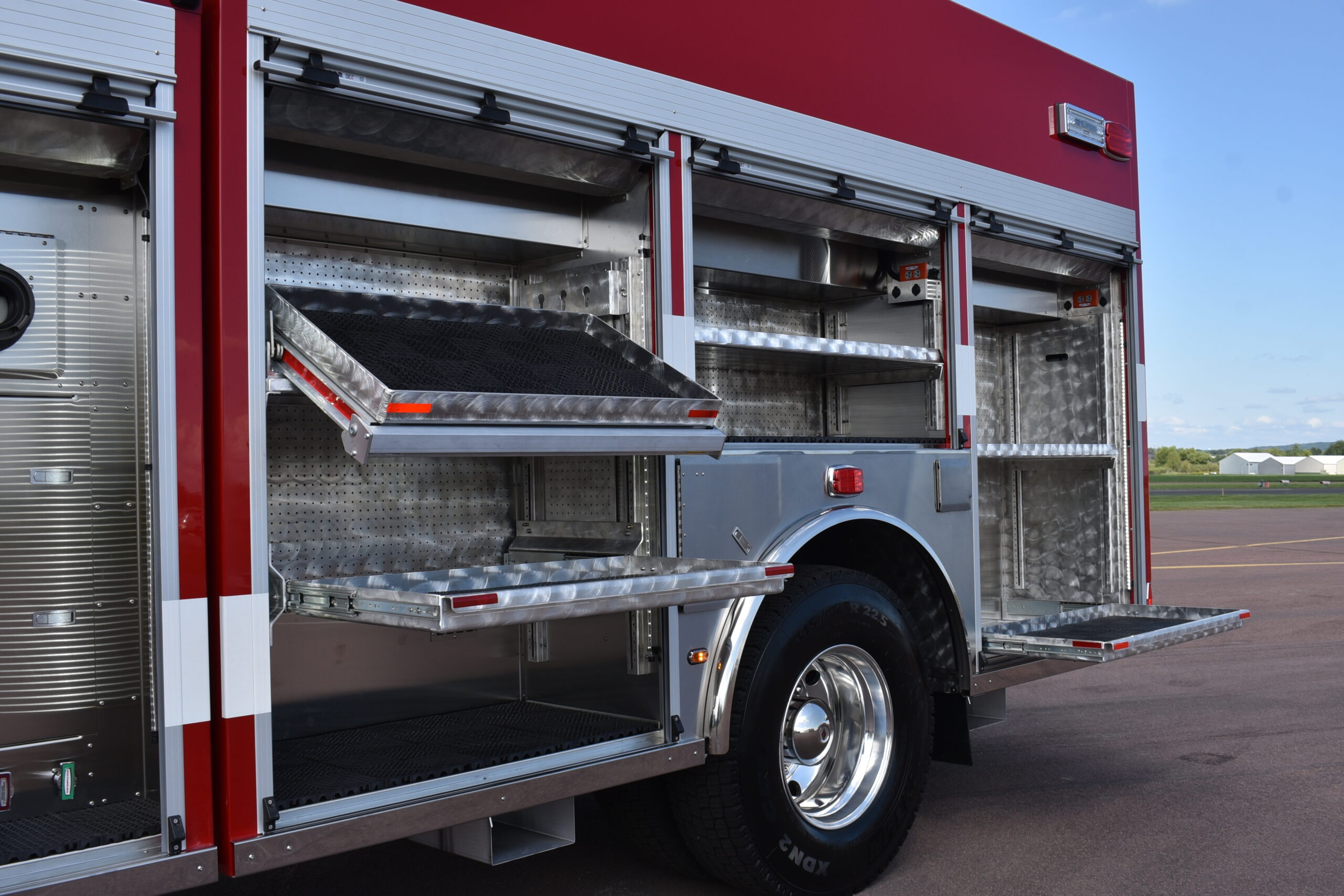

Pull-Out Compartment Trays
Pull-Out Tool Boards
Backwall Mounted Tool Peg Board Panels
Backwall Mounted SCBA Cylinder Brackets
Slide-In Suction Hose and Strainer Storage

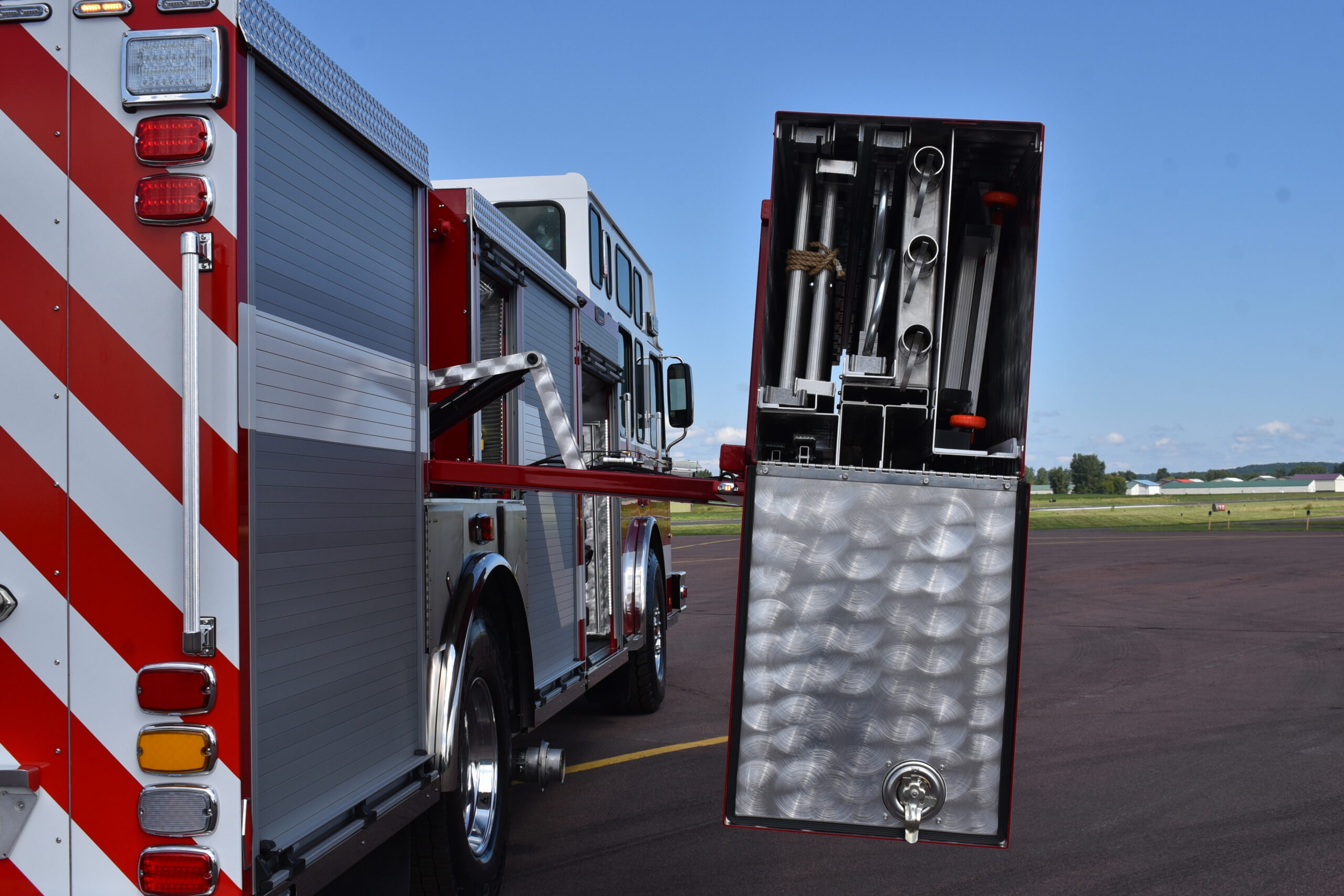

Hydraulic Drop-Down Ladder Rack w/ Pike Pole Storage
Encapsulated Roll-Up Door Protection
Aluminum Hinged Hosebed Covers

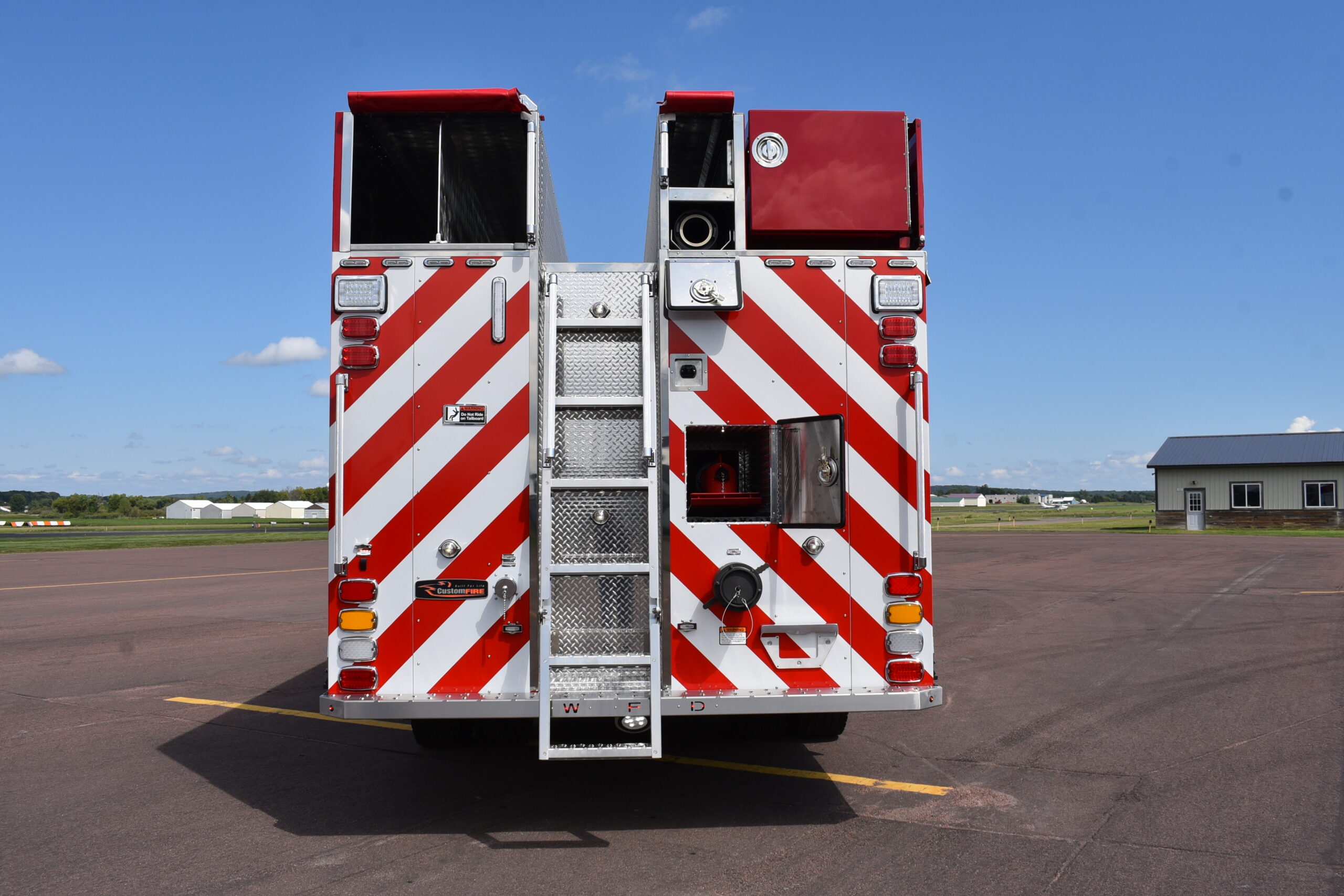

Swing-Out and Down Rear Access Ladder
Wheel Well SCBA Cylinder Storage

Emergency Warning Devices

Federal Q2B Mechanical Siren
Hadley E-Tone Air Horns
Whelen Electronic Siren
Cast Products Electronic Siren Speaker
Whelen LED Lightbar
Whelen LED Warning Lights
Whelen LED Traffic Directing Lights

Exterior Lighting

Fire Research Scene Lights
Under Cab and Under Body Lights
ROM Vertical LED Strip Compartment Lighting
Hosebed Covers Underside Lighting
LED Marker Lights
LED Walkway and Step Lighting

Vehicle Dimensions

Overall Height 10' 7"
Overall Length 34' 5"
Wheelbase 215"
Weight w/ Water 44,800 Lbs.
