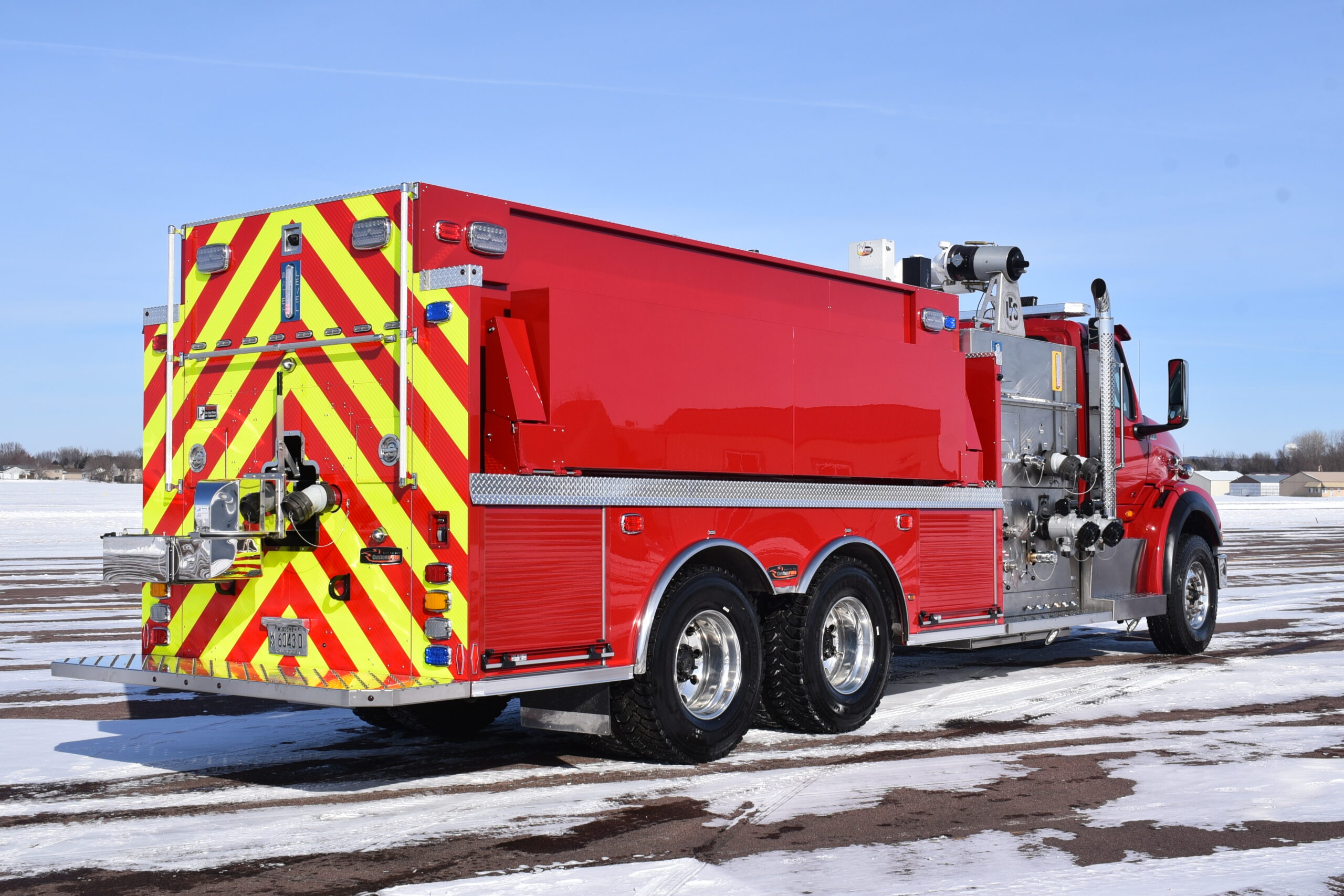

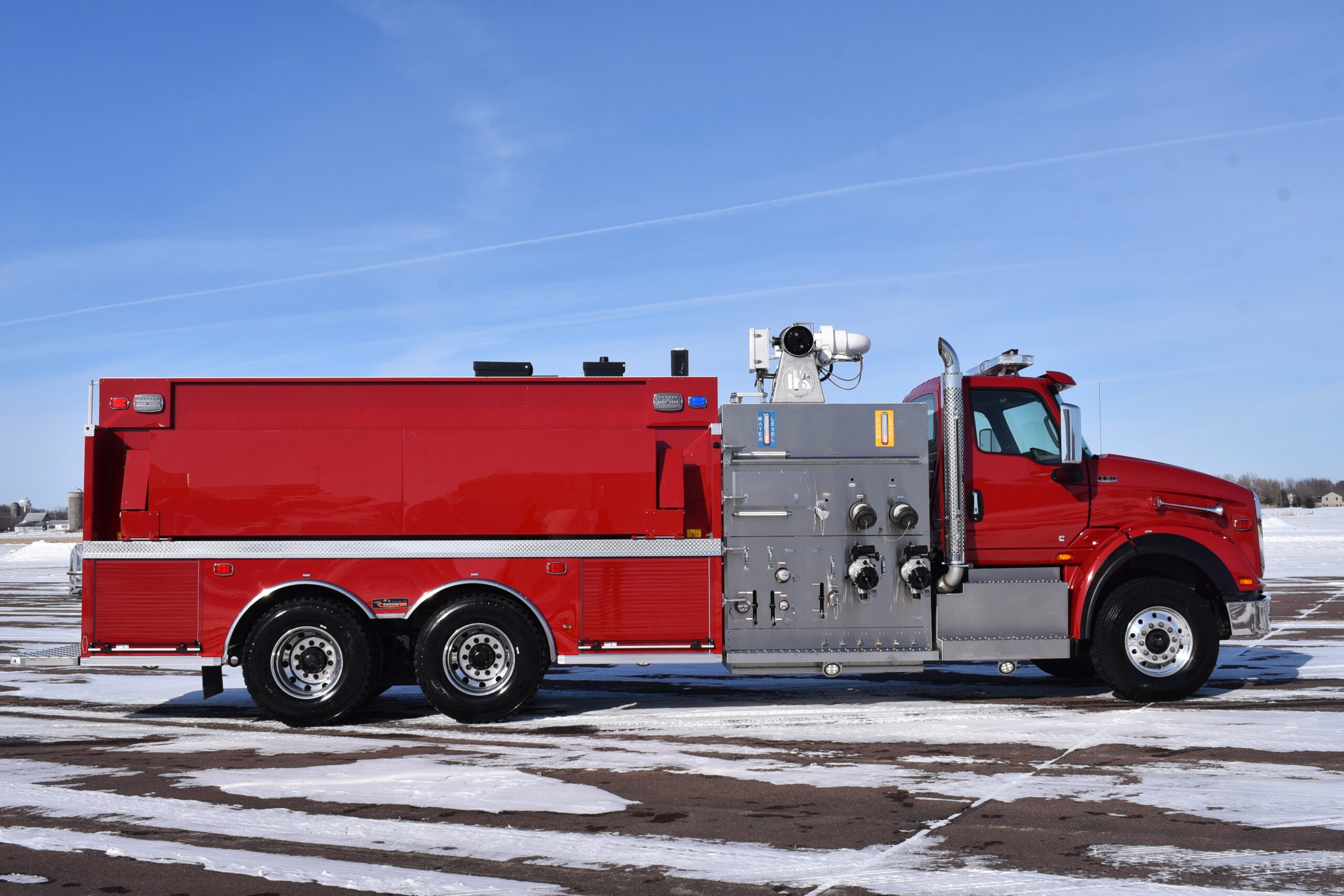

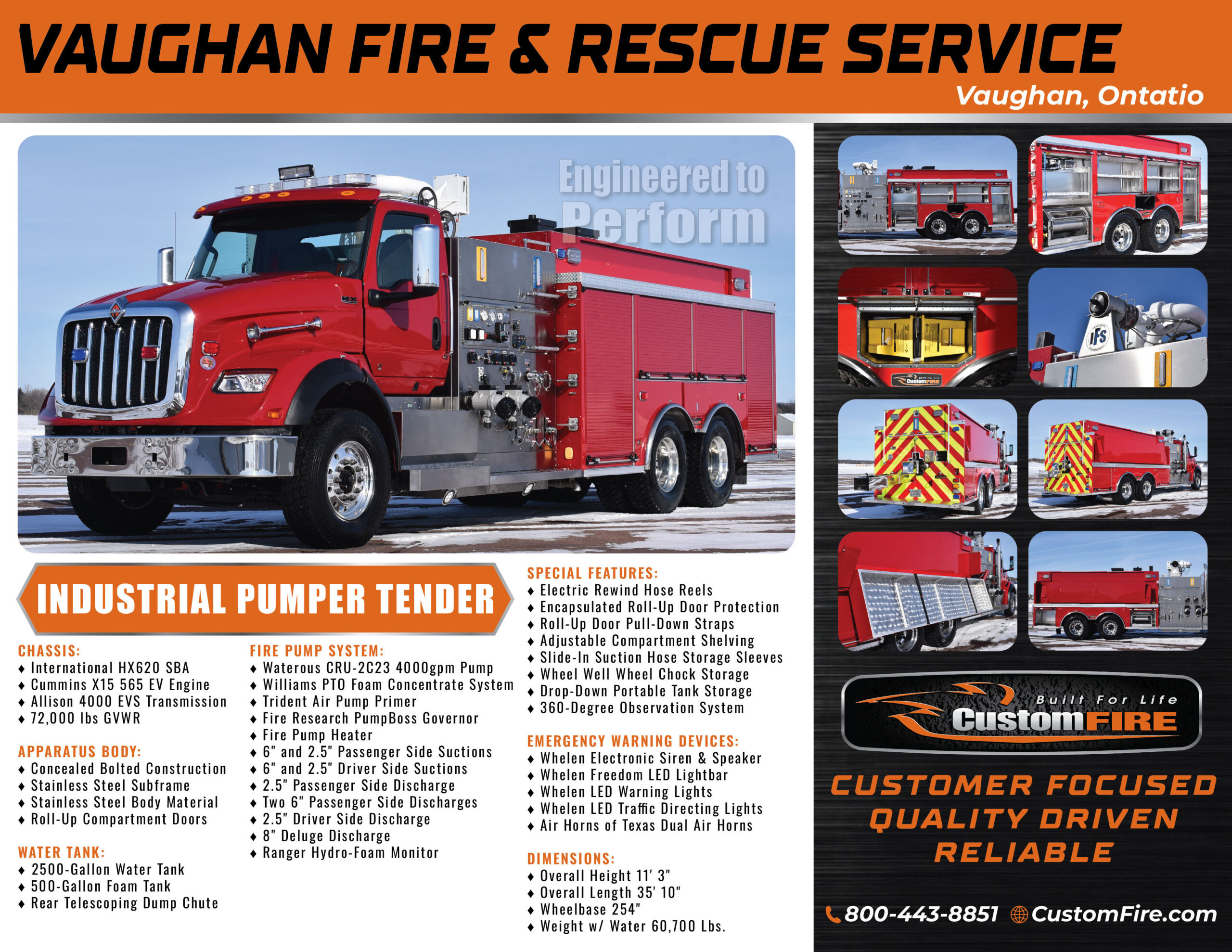

Industrial High Flow Pumper Tender
Custom built for Vaughan Fire & Rescue Service — Vaughan, ON
Industrial Fire Truck: International Chassis, Stainless Steel Body, Waterous 4000gpm Fire Pump, 2500-Gallon Water Tank, 500-Gallon Foam Tank, Adjustable Shelving, Pull-Out Compartment Trays & Tool Storage, Drop-Down Hydraulic Portable Tank Storage, LED Emergency Lighting
Truck Type : Industrial, Pumpers, Tenders
Cab Type : 2300 Gallons or More, Commercial Cab, Pumper Tankers, Side Mount
Chassis Model
International HX620 SBA Chassis
Cummins X15 565 EV Engine
Allison 4000 EVS Transmission
72,000 lbs GVWR
Apparatus Body
Concealed Bolted Construction
Stainless Steel Subframe
Stainless Steel Body Material
Roll-Up Compartment Doors
Fire Pump System
Waterous CRU-2C23 4000gpm Fire Pump
Williams PTO Foam Concentrate Transfer System
Trident Air Pump Primer
Fire Research PumpBoss Pressure Governor
Fire Pump Heater
6" and 2.5" Passenger Side Suctions
6" and 2.5" Driver Side Suctions
2.5" Passenger Side Discharge
Two 6" Passenger Side Discharges
2.5" Driver Side Discharge
8" Deluge Discharge w/ Ranger Hydro-Foam Monitor
Booster Tank
2500-Gallon Water Tank
500-Gallon Foam Tank

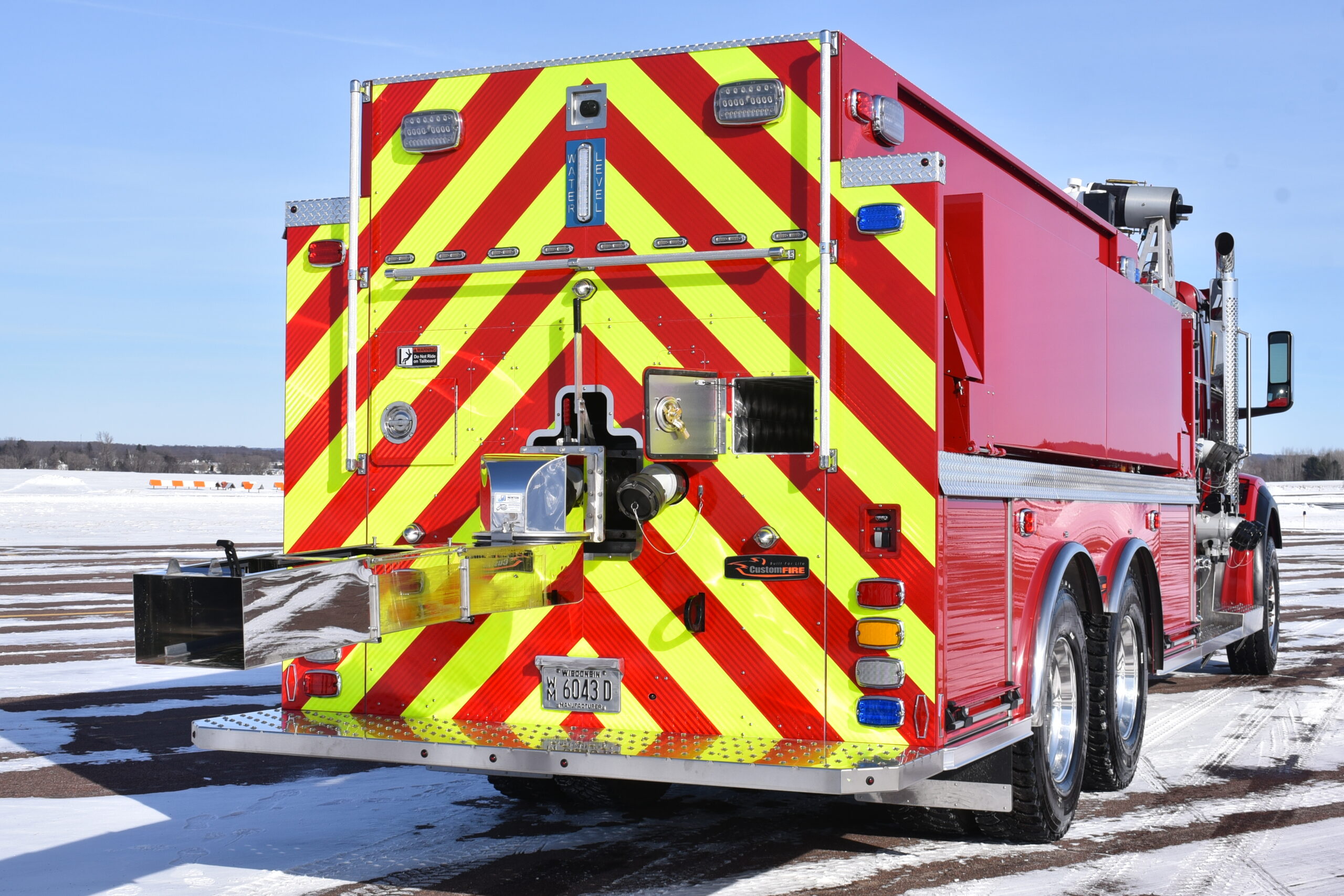

Rear Telescoping Dump Chute
Special Features
Electric Rewind Hose Reels
Rear Tow Eyes
Encapsulated Roll-Up Door Protection
Roll-Up Door Pull-Down Straps
Adjustable Compartment Shelving
Slide-In Suction Hose Storage Sleeves
Wheel Well Wheel Chock Storage
Drop-Down Portable Tank Storage
360-Degree Observation System w/ Display
Emergency Warning Devices
Whelen Electronic Siren & Speaker
Whelen Freedom LED Lightbar
Whelen LED Warning Lights
Whelen LED Traffic Directing Lights
Air Horns of Texas Dual Air Horns
Exterior Lighting
Running Board Ground Lights
ROM Door Track LED Compartment Lights
Step Lighting
LED DOT Marker Lights
Under Cab and Under Body Lighting
Whelen LED Scene Lighting
Whelen Cab Roof Brow Light
Vehicle Dimensions
Overall Height 11' 3"
Overall Length 35' 10"
Wheelbase 254"
Weight w/ Water 60,700 Lbs.
