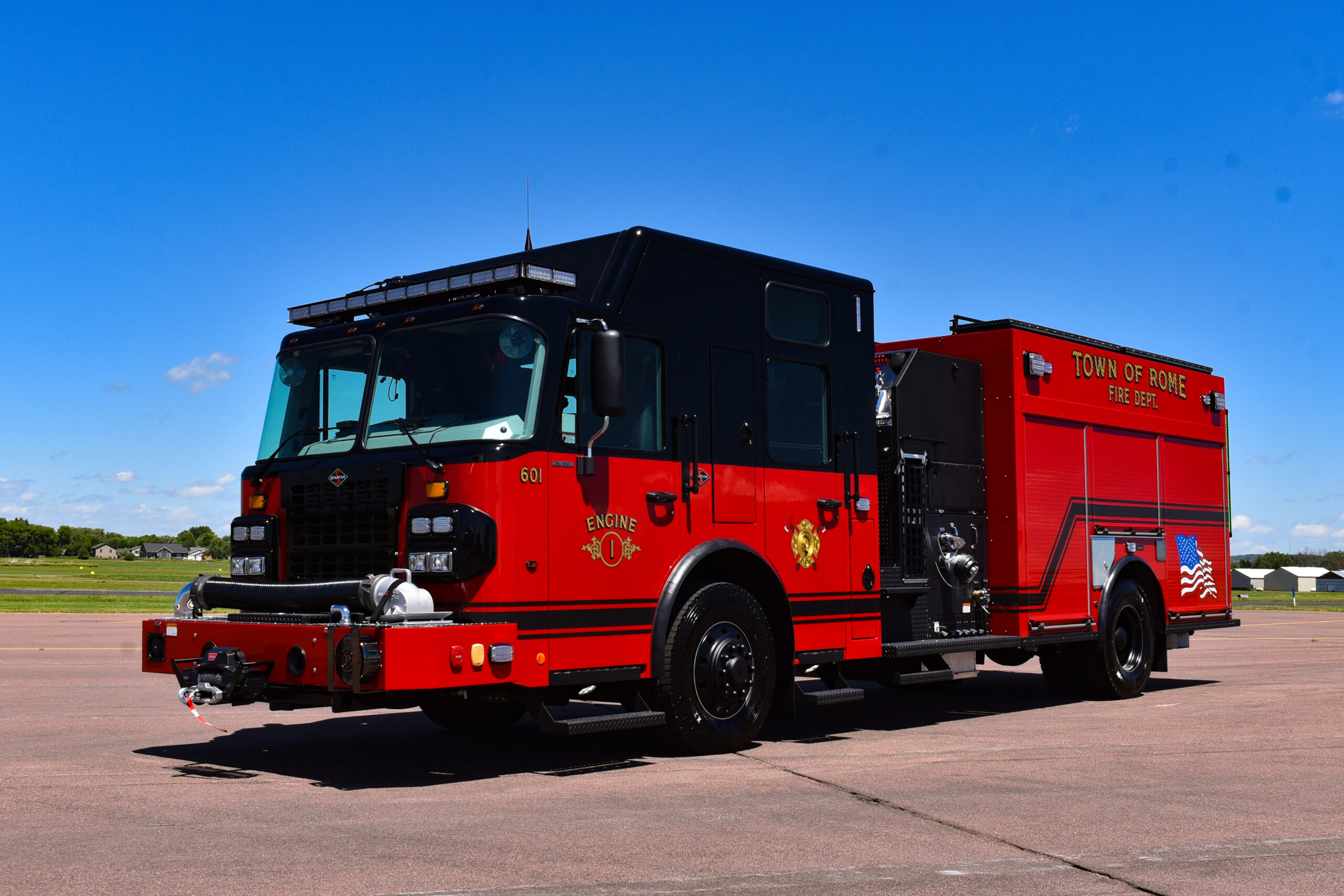

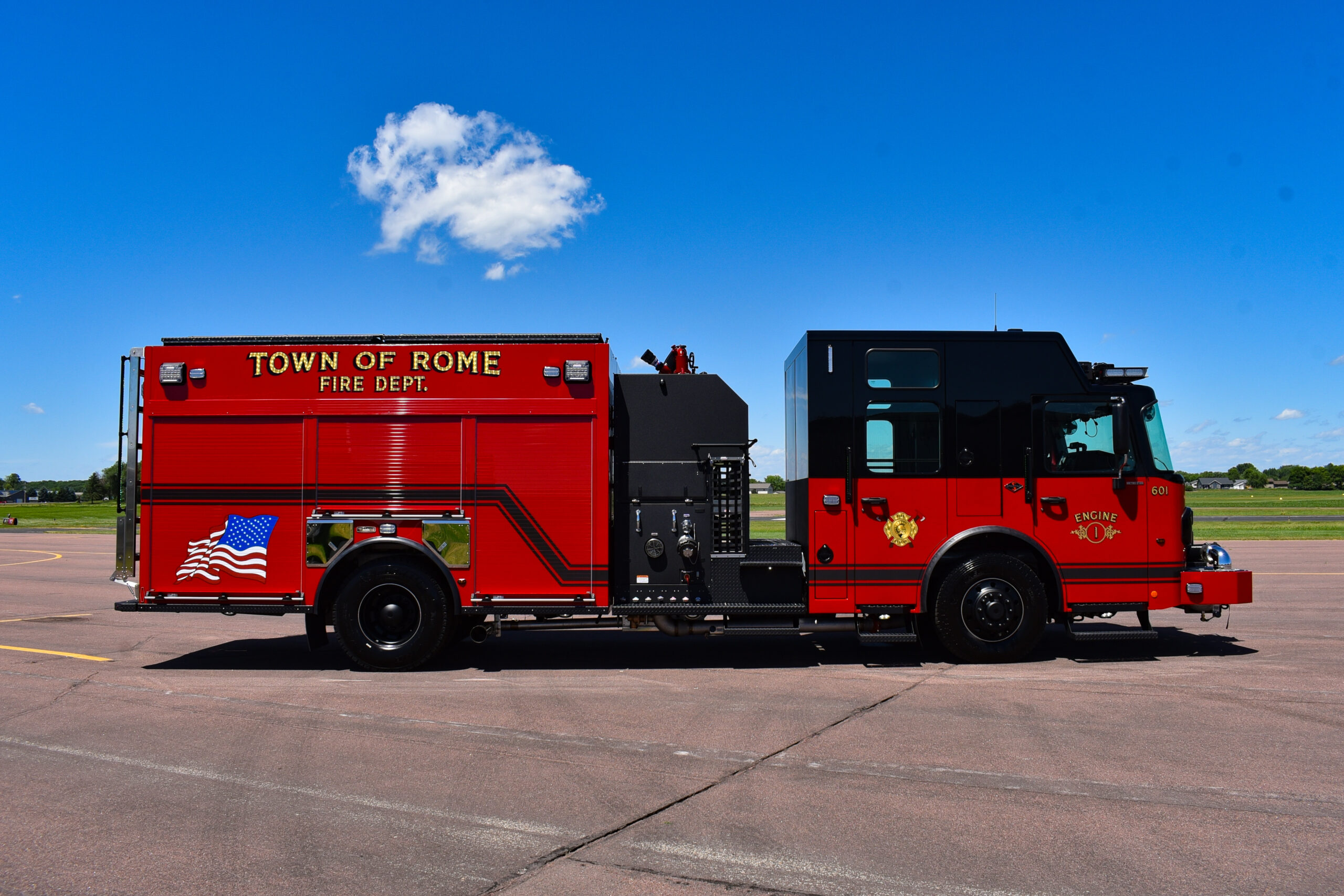

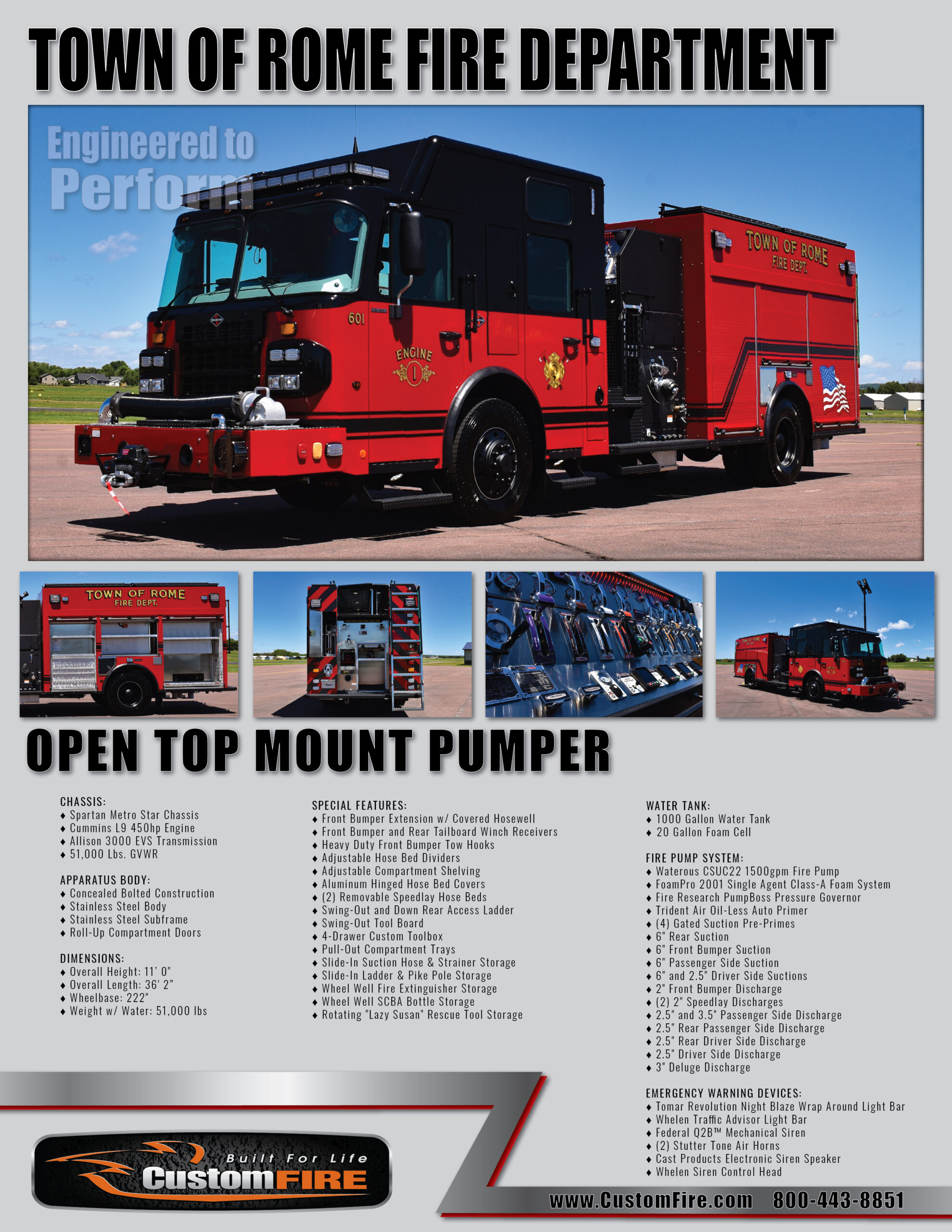

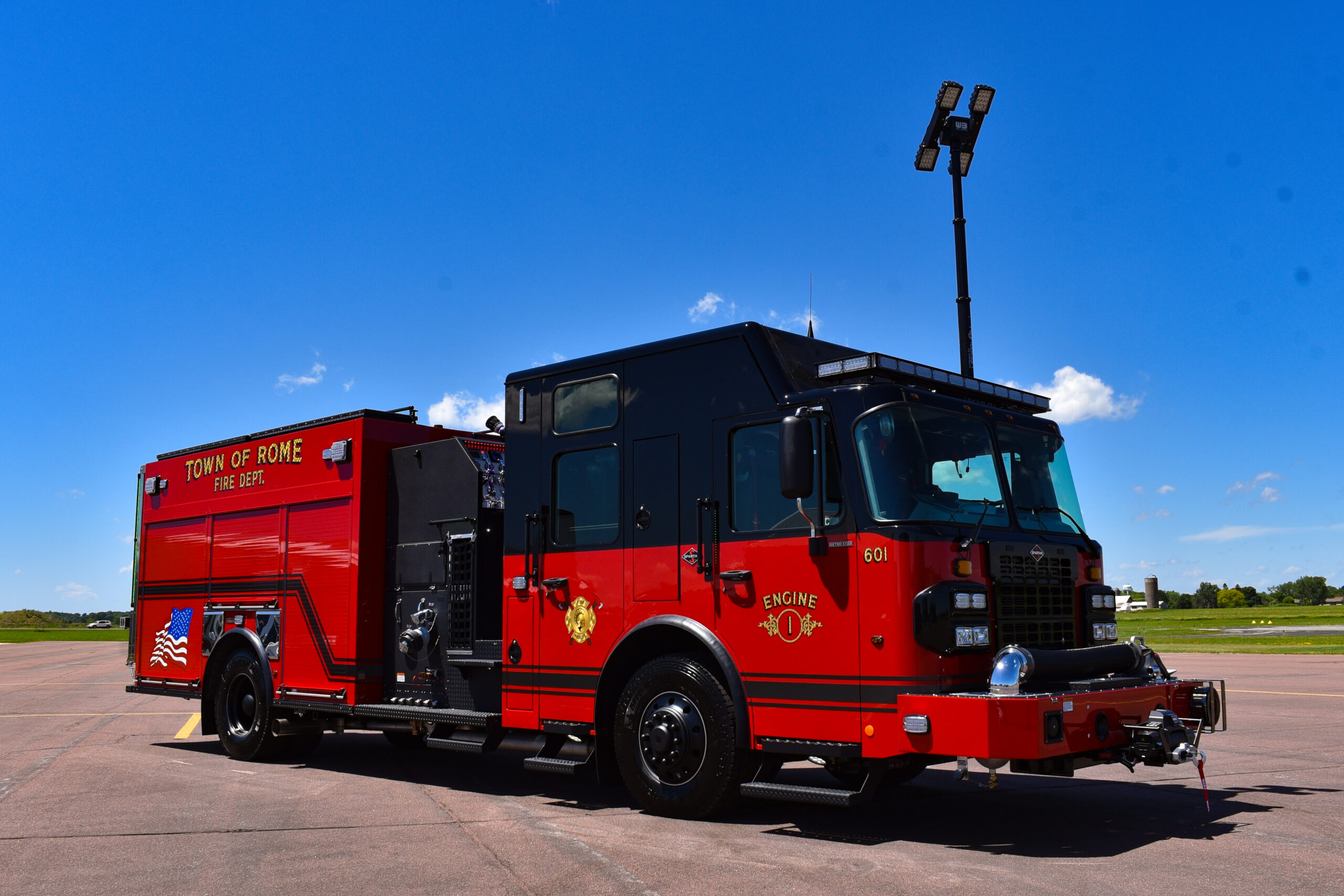

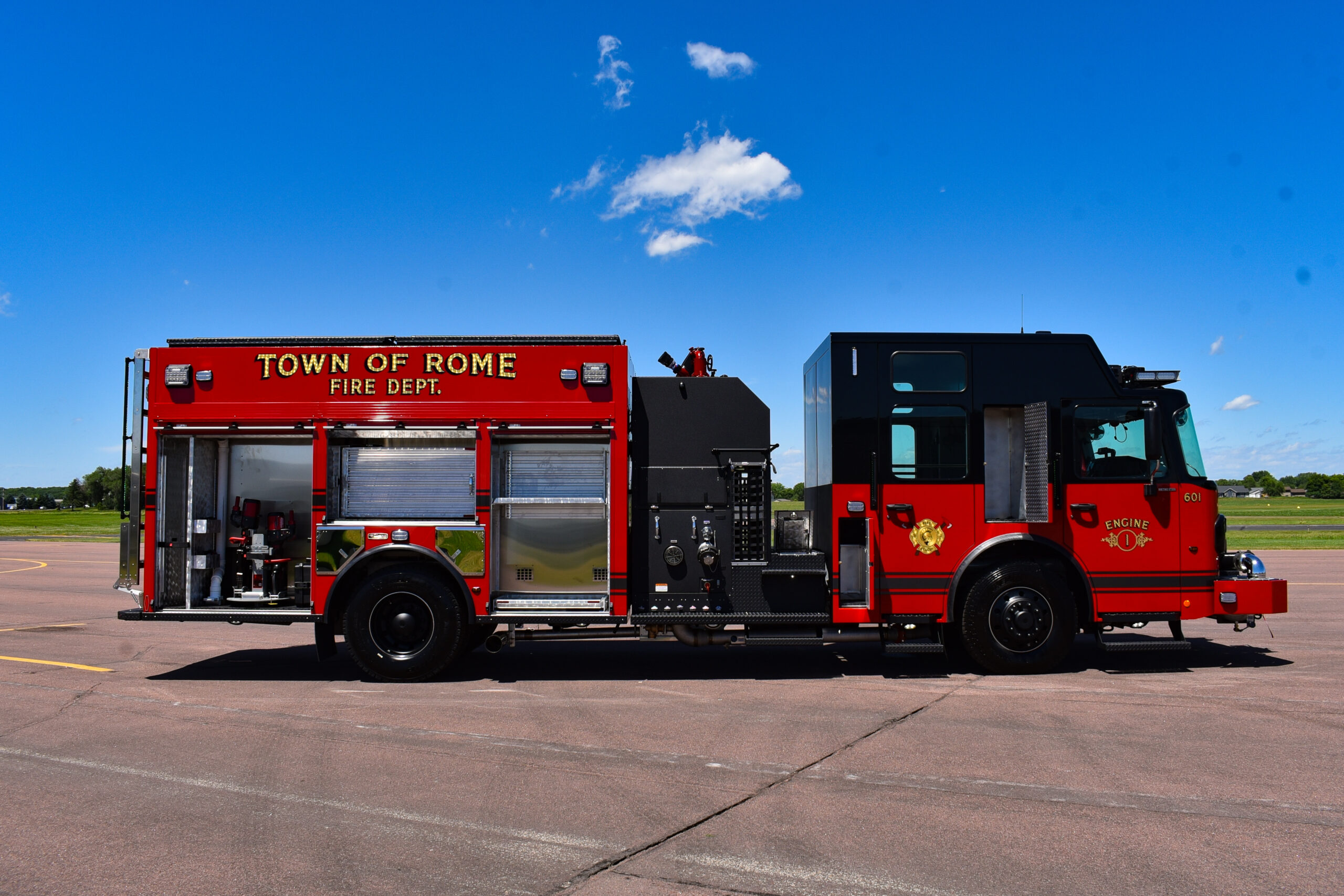

Open Top Mount Pumper
Custom built for Town of Rome Fire Department — Nekoosa, WI
Fire Truck: Spartan Chassis, Bolted Stainless Steel Body, Waterous CSUC22 1500gpm Fire Pump, FoamPro 2001 Class A Foam System, 1000 Gallon Water Tank, 20 Gallon Foam Cell, Adjustable Compartment Shelving, Pull-Out Compartment Trays, LED Emergency Lighting
Truck Type : Pumpers
Cab Type : Custom Cab, Less Than 2300 Gallons, Open Top Mount
Deployed : June, 2026
Chassis Model
Spartan Metro Star Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission
51,000 Lbs. GVWR
Apparatus Body
Concealed Bolted Construction
Stainless Steel Body
Stainless Steel Subframe

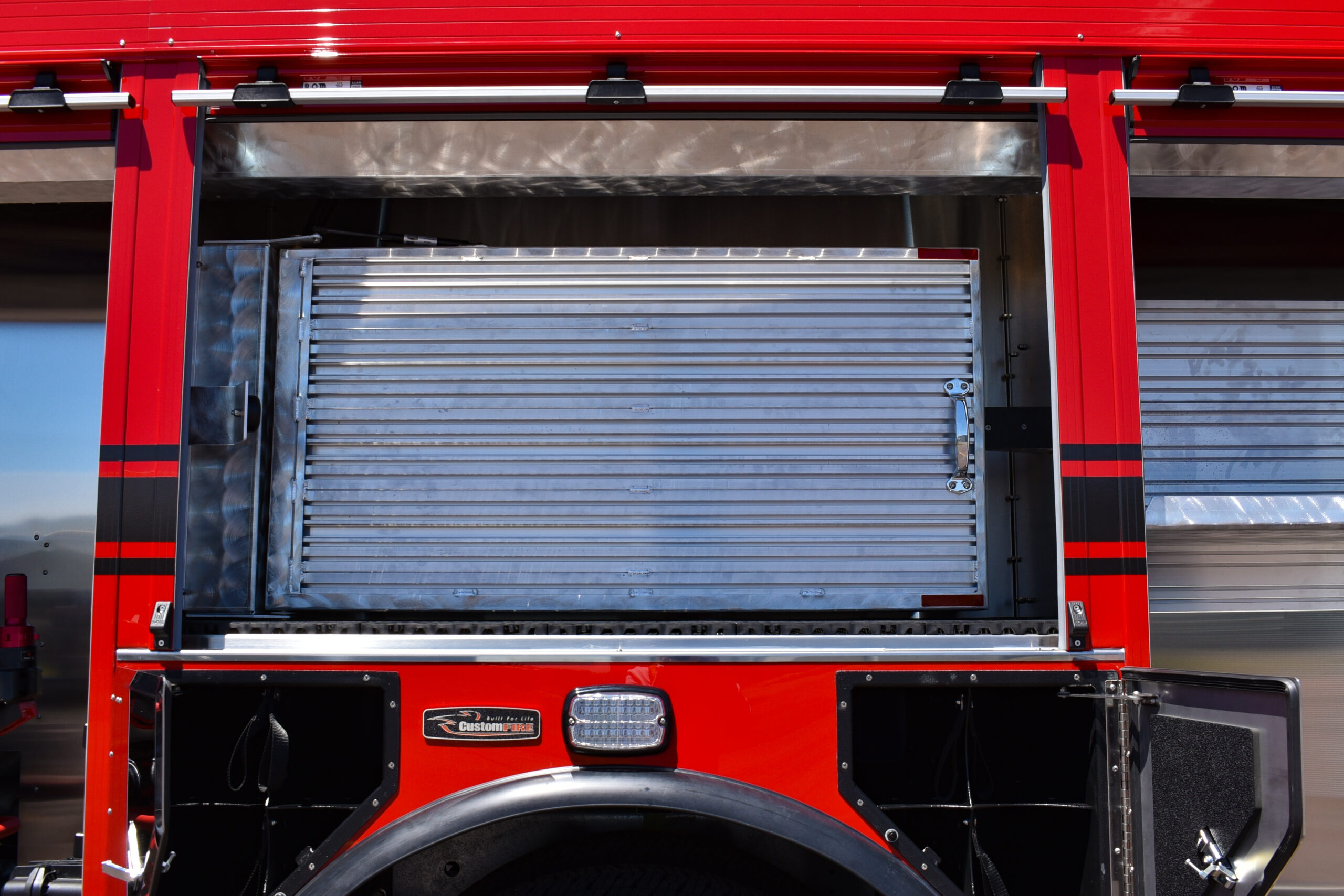

Roll-Up Compartment Doors

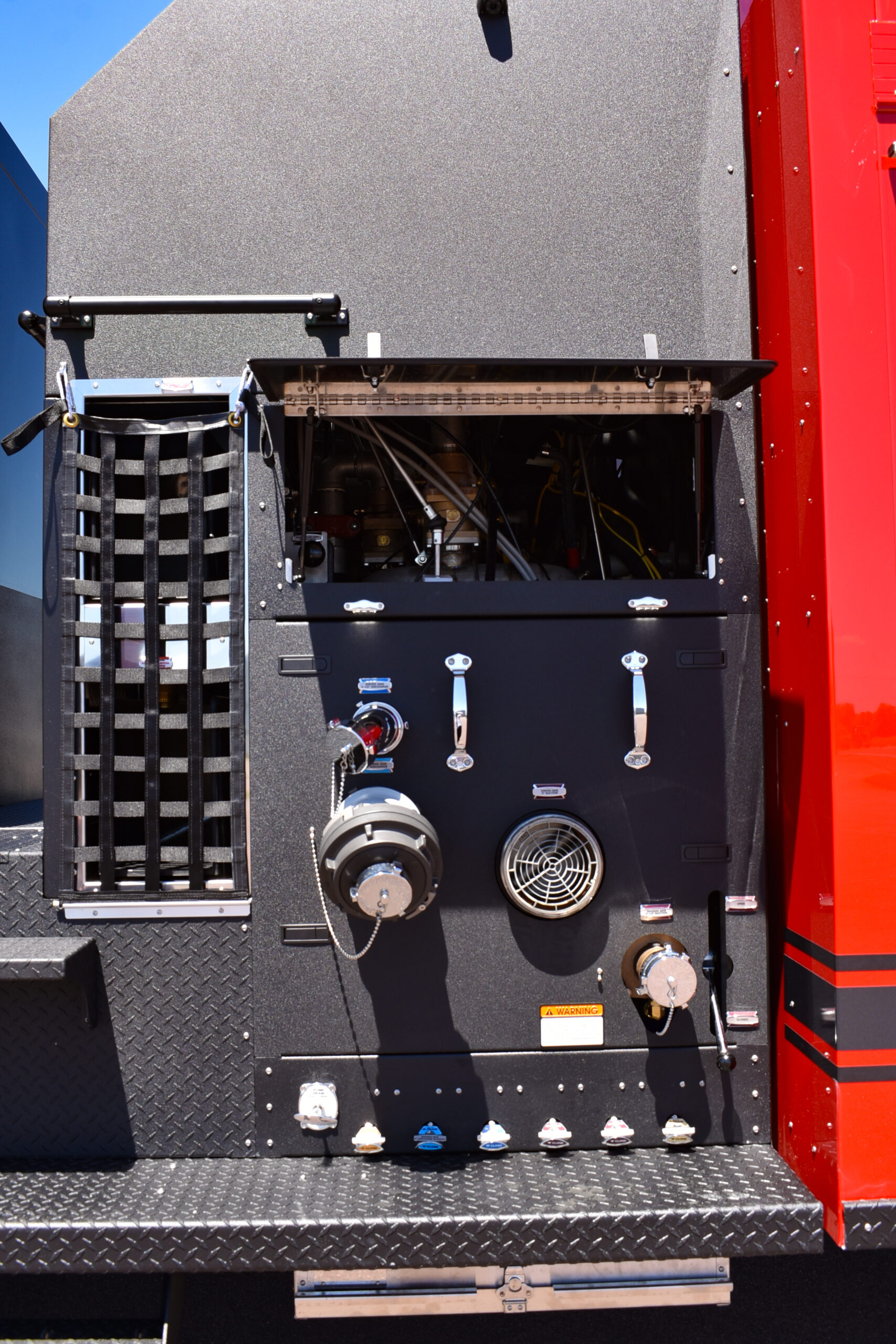

Fire Pump System
Waterous CSUC22 1500gpm Fire Pump
FoamPro 2001 Single Agent Class-A Foam System
Fire Research PumpBoss Pressure Governor
Trident Air Oil-Less Auto Primer
(4) Gated Suction Pre-Primes
6" Rear Suction
6" Front Bumper Suction

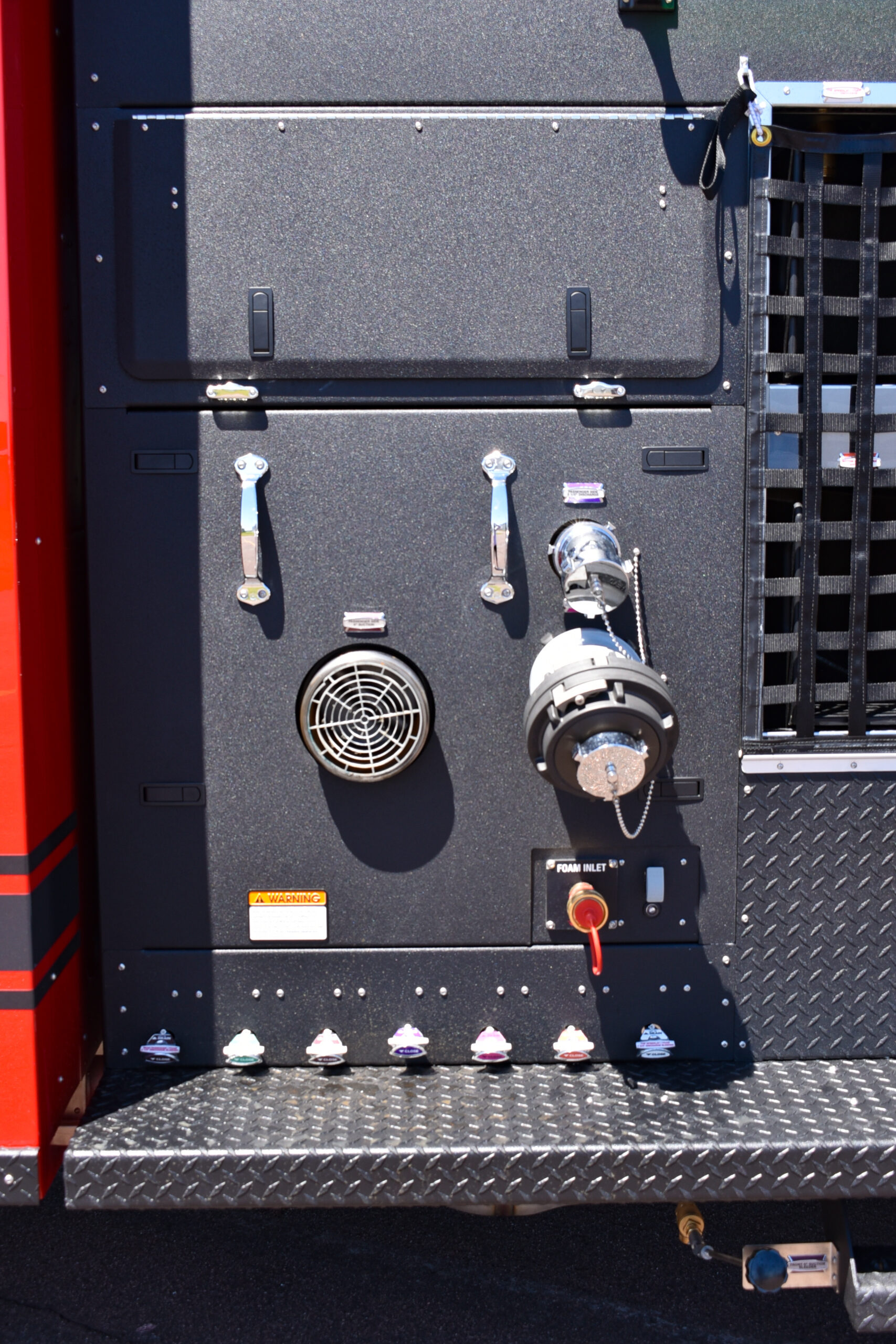

6" Passenger Side Suction
6" and 2.5" Driver Side Suctions
2" Front Bumper Discharge
(2) 2" Speedlay Discharges
2.5" and 3.5" Passenger Side Discharge
2.5" Rear Passenger Side Discharge
2.5" Rear Driver Side Discharge
2.5" Driver Side Discharge
3" Deluge Discharge
Booster Tank
1000 Gallon Water Tank
20 Gallon Foam Cell
Special Features

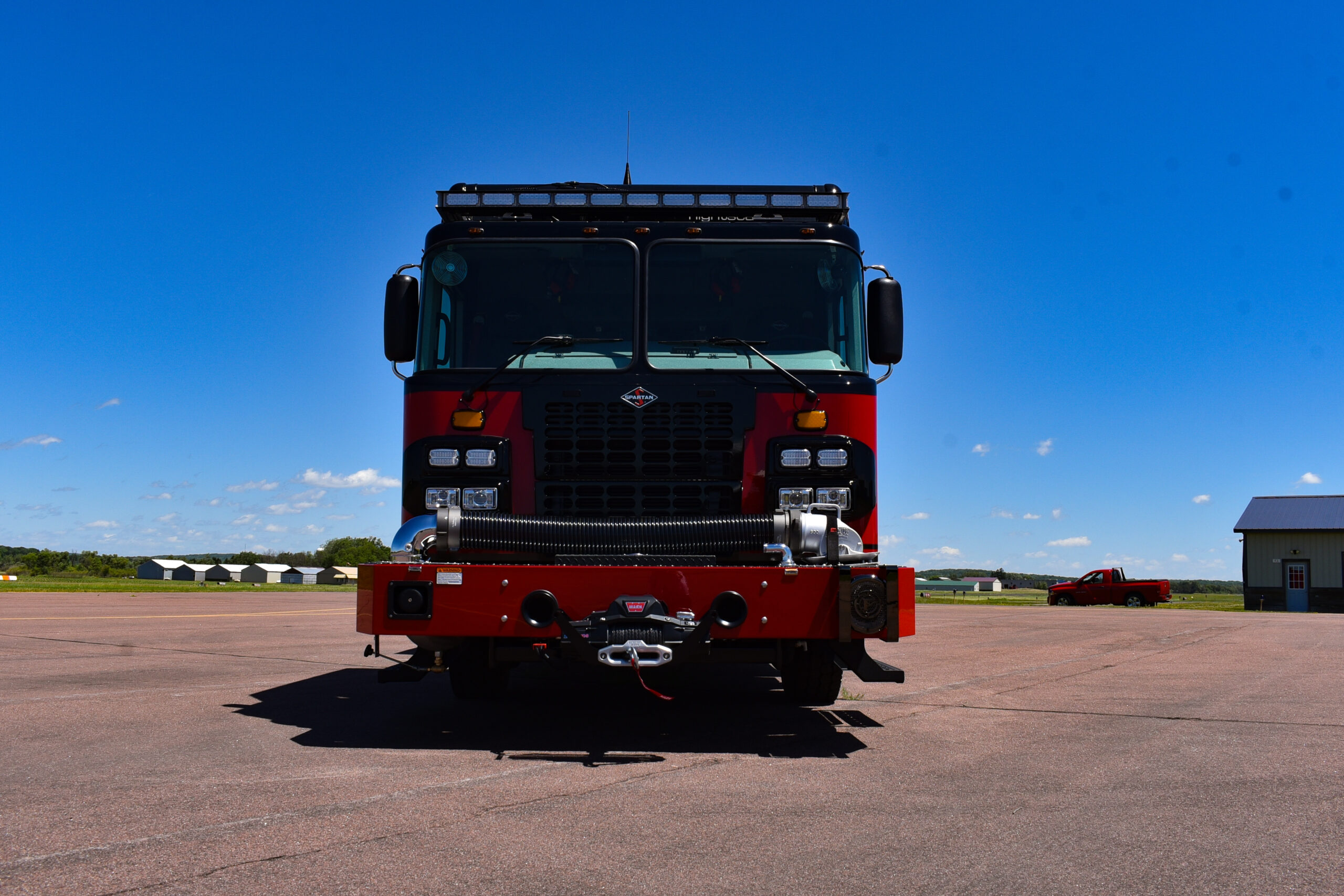

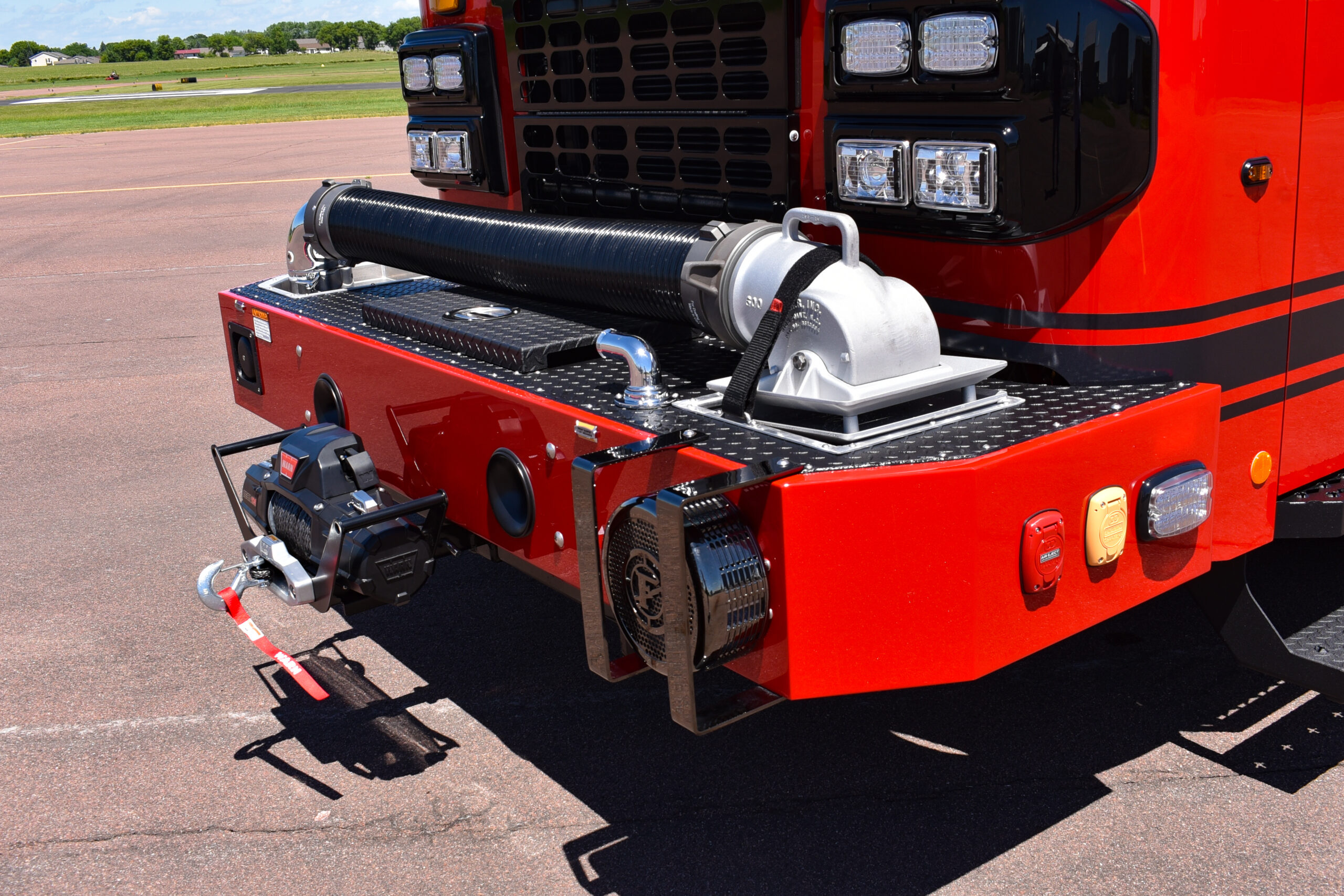

Front Bumper Extension w/ Covered Hosewell
Front Bumper and Rear Tailboard Winch Receivers
Heavy Duty Front Bumper Tow Hooks
Adjustable Hose Bed Dividers

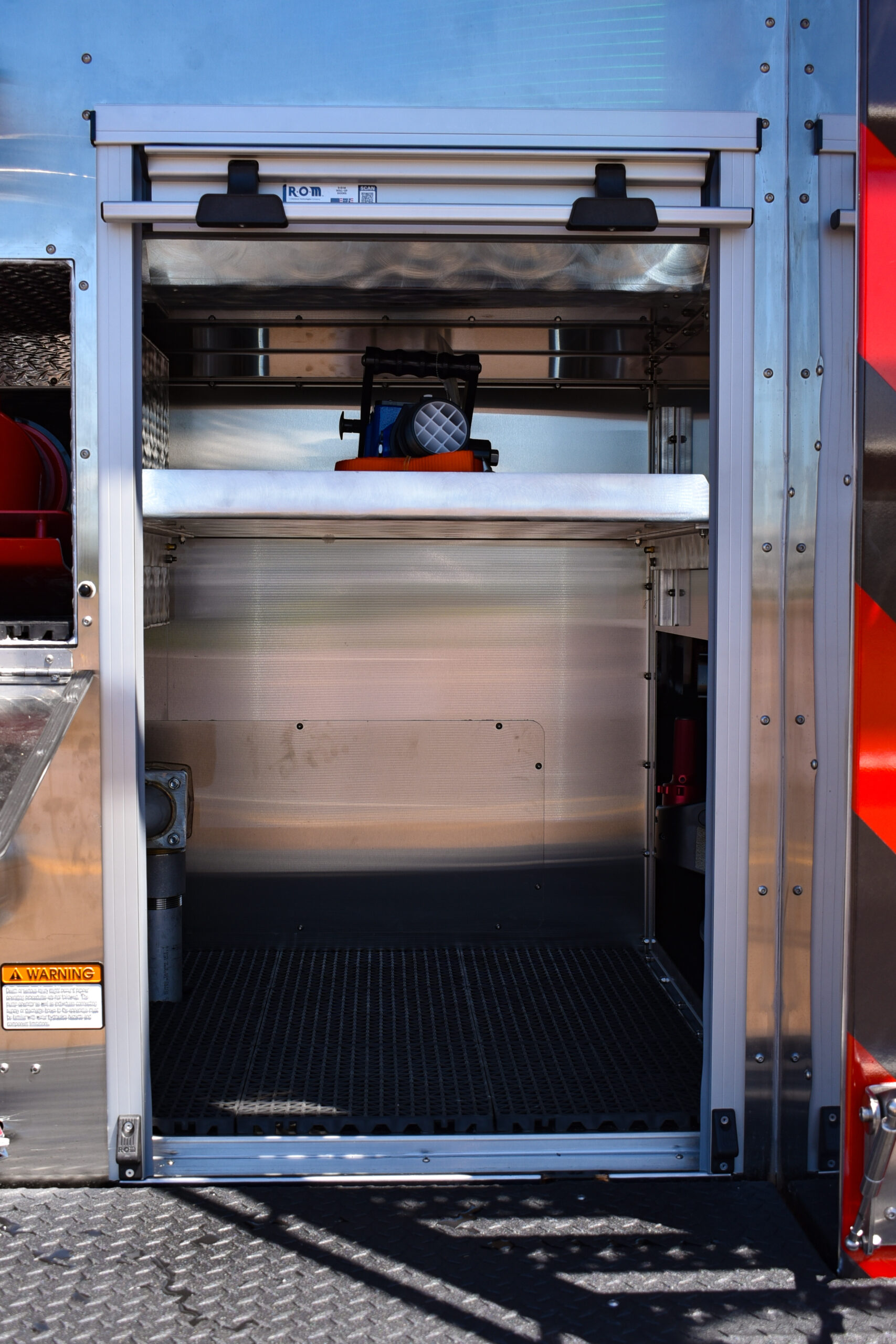

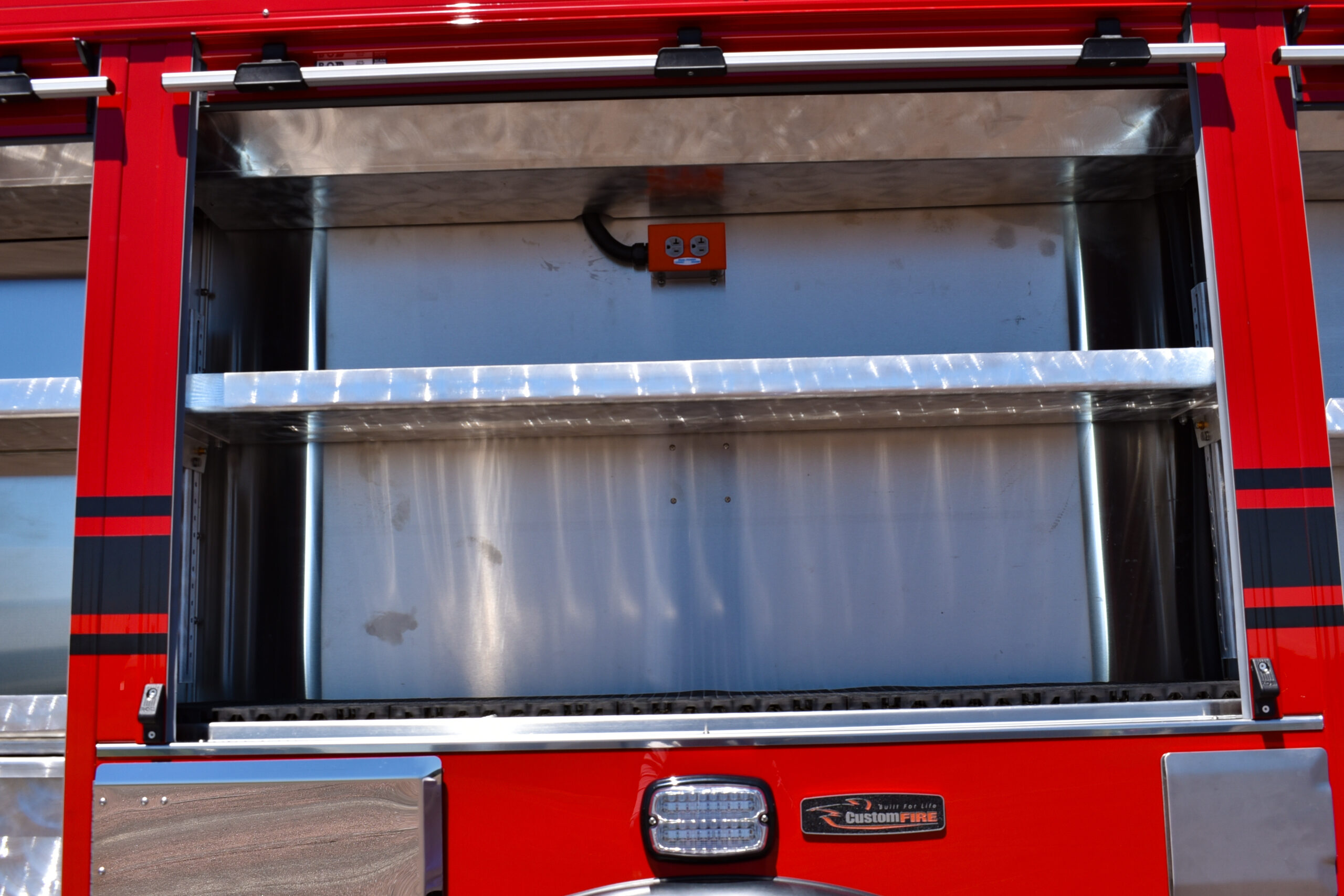

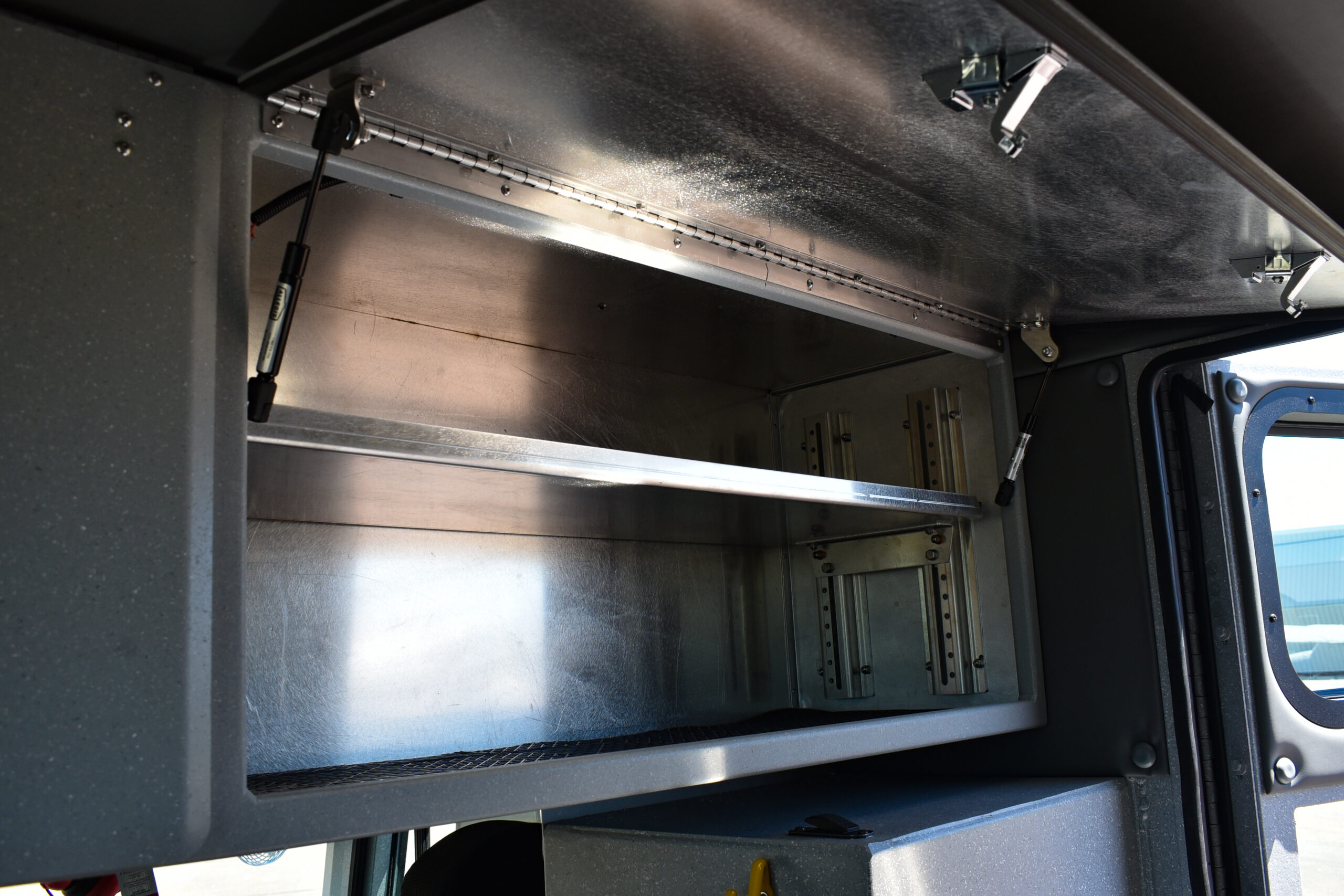

Adjustable Compartment Shelving

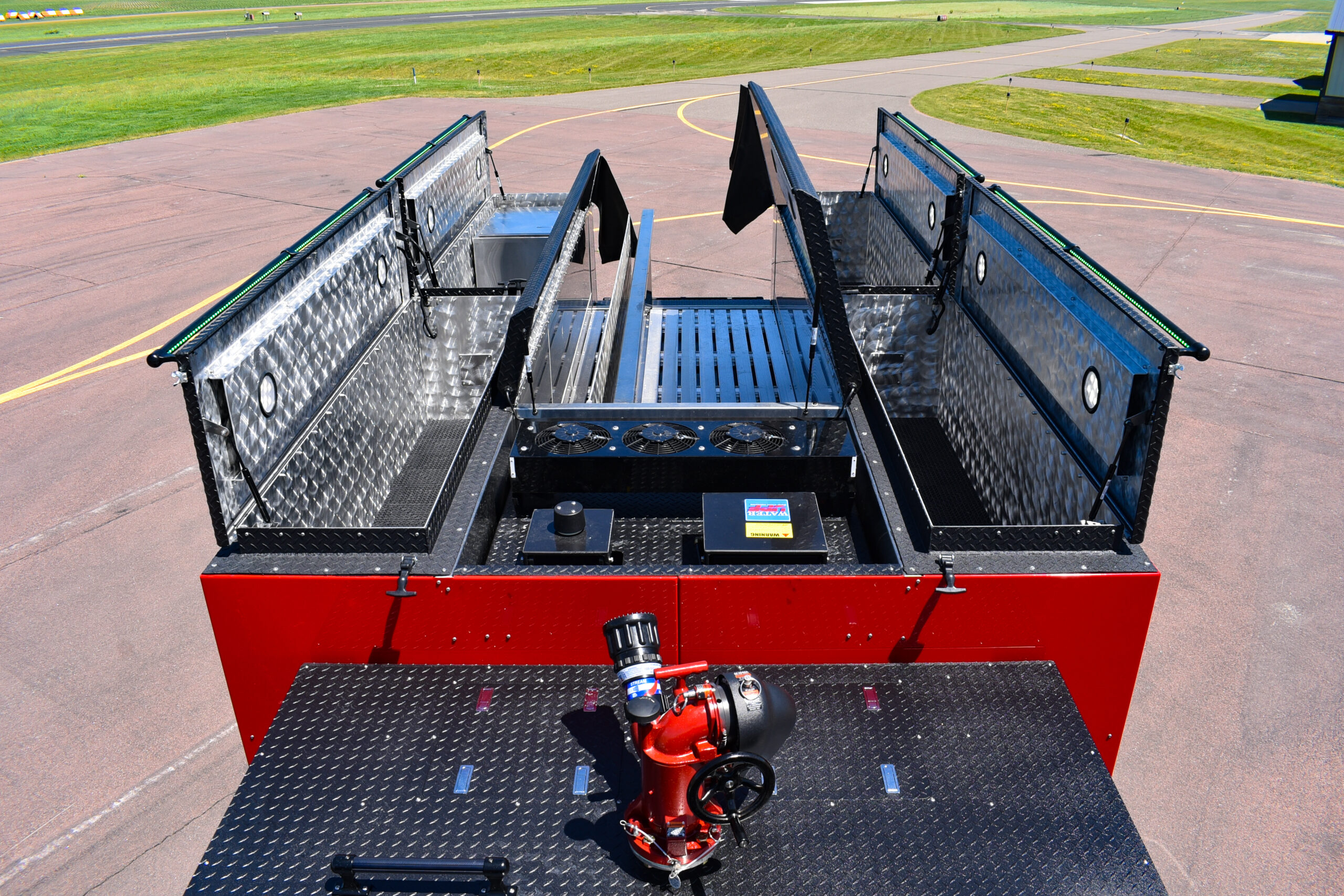

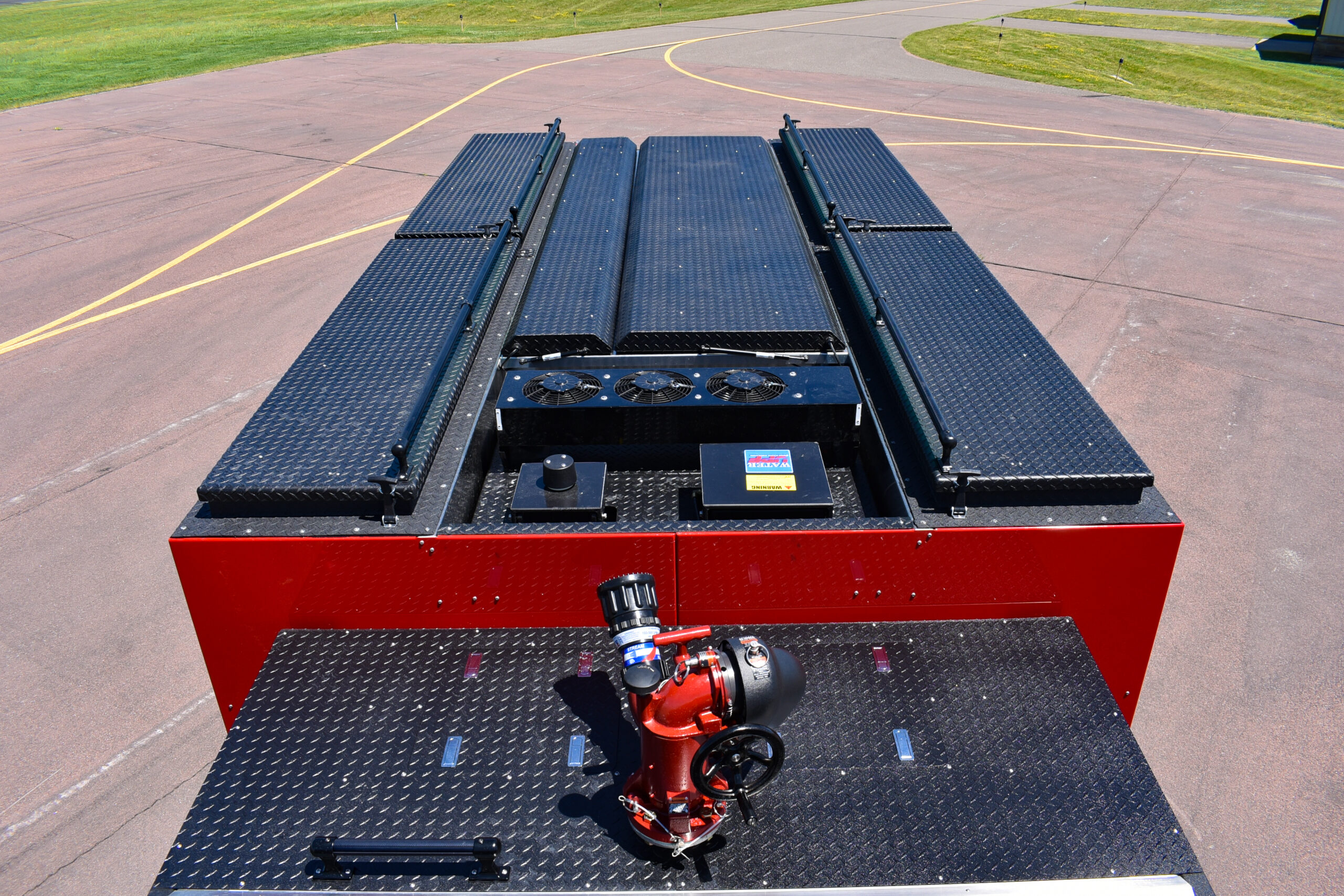

Aluminum Hinged Hose Bed Covers
(2) Removable Speedlay Hose Beds

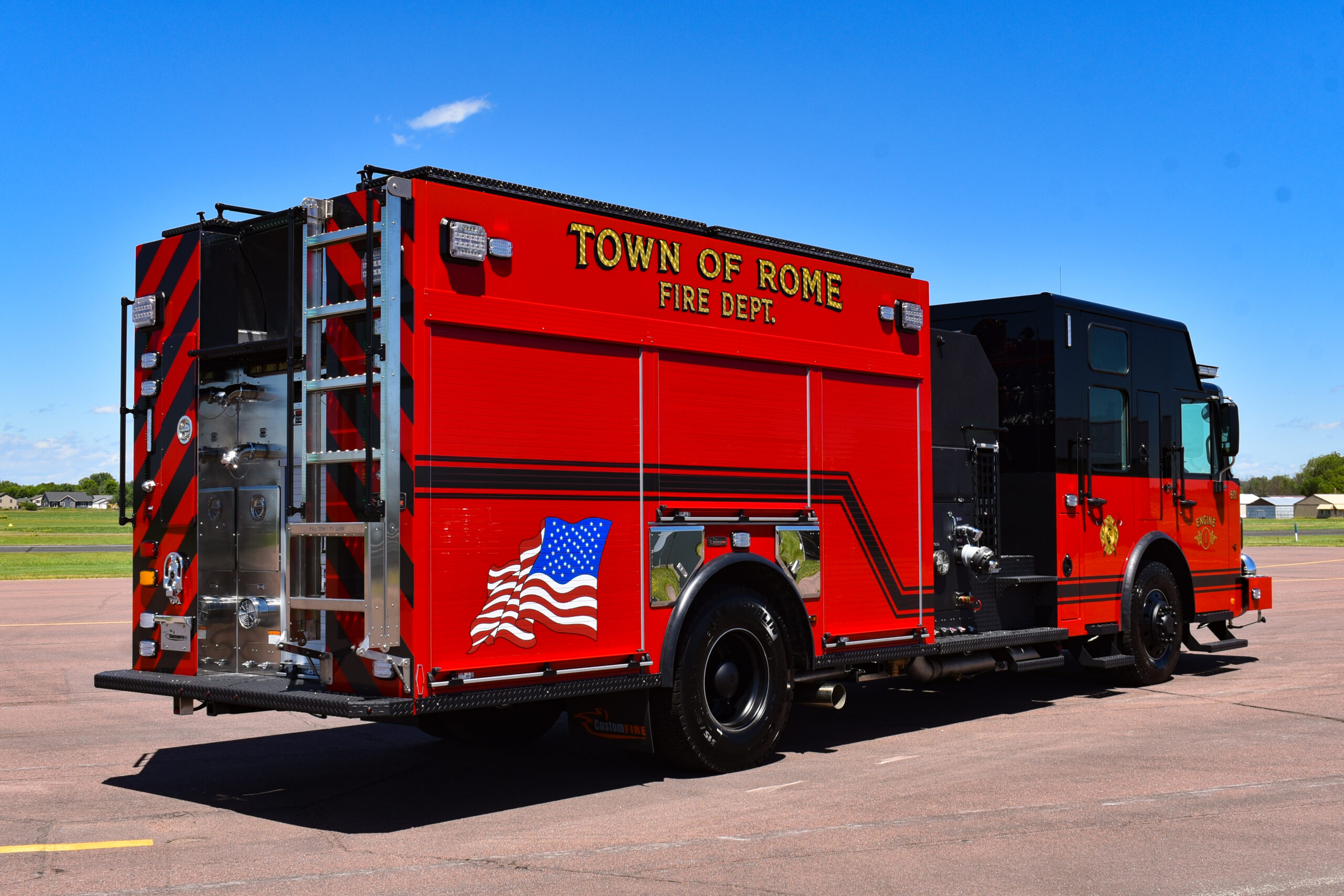

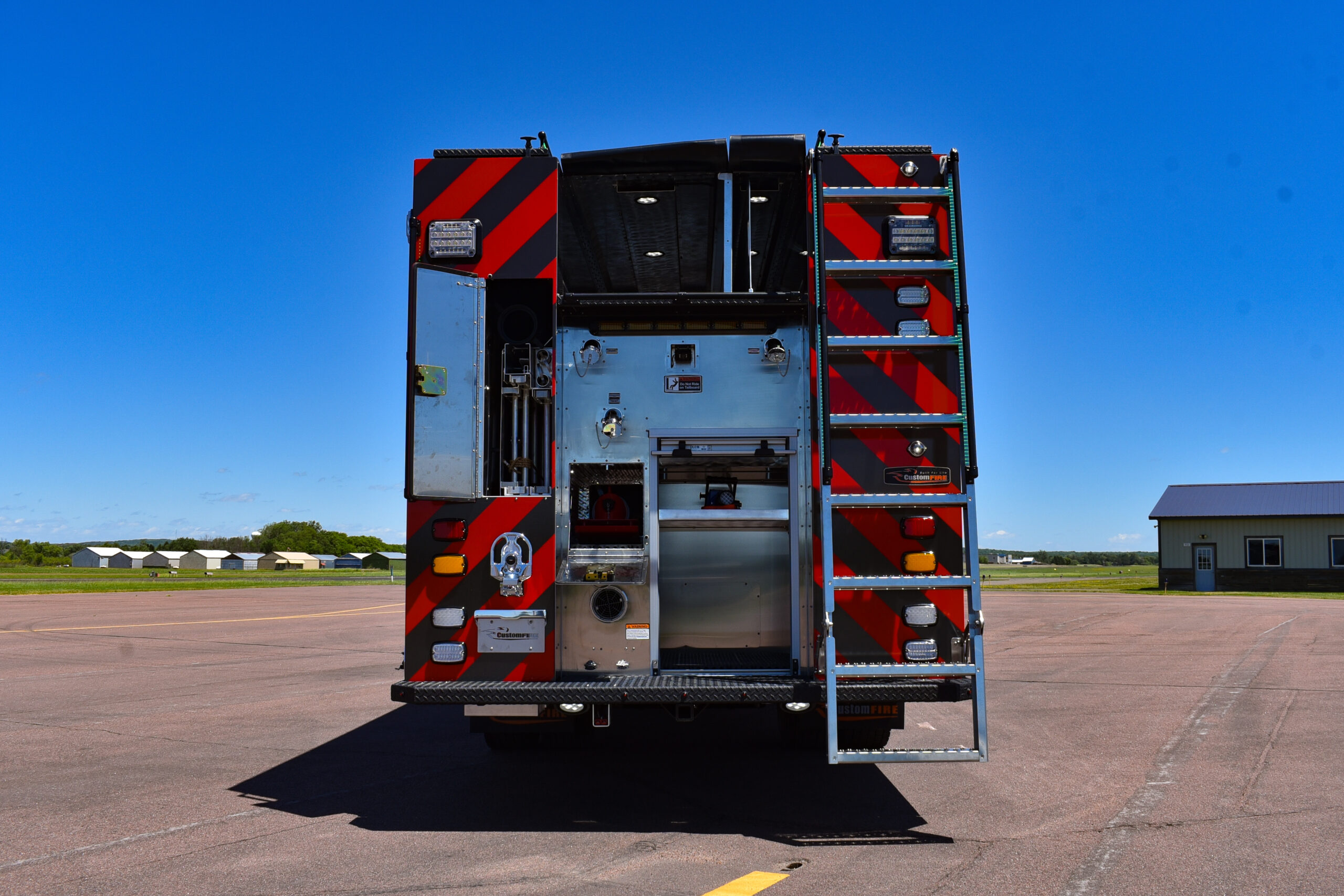

Swing-Out and Down Rear Access Ladder
Swing-Out Tool Board

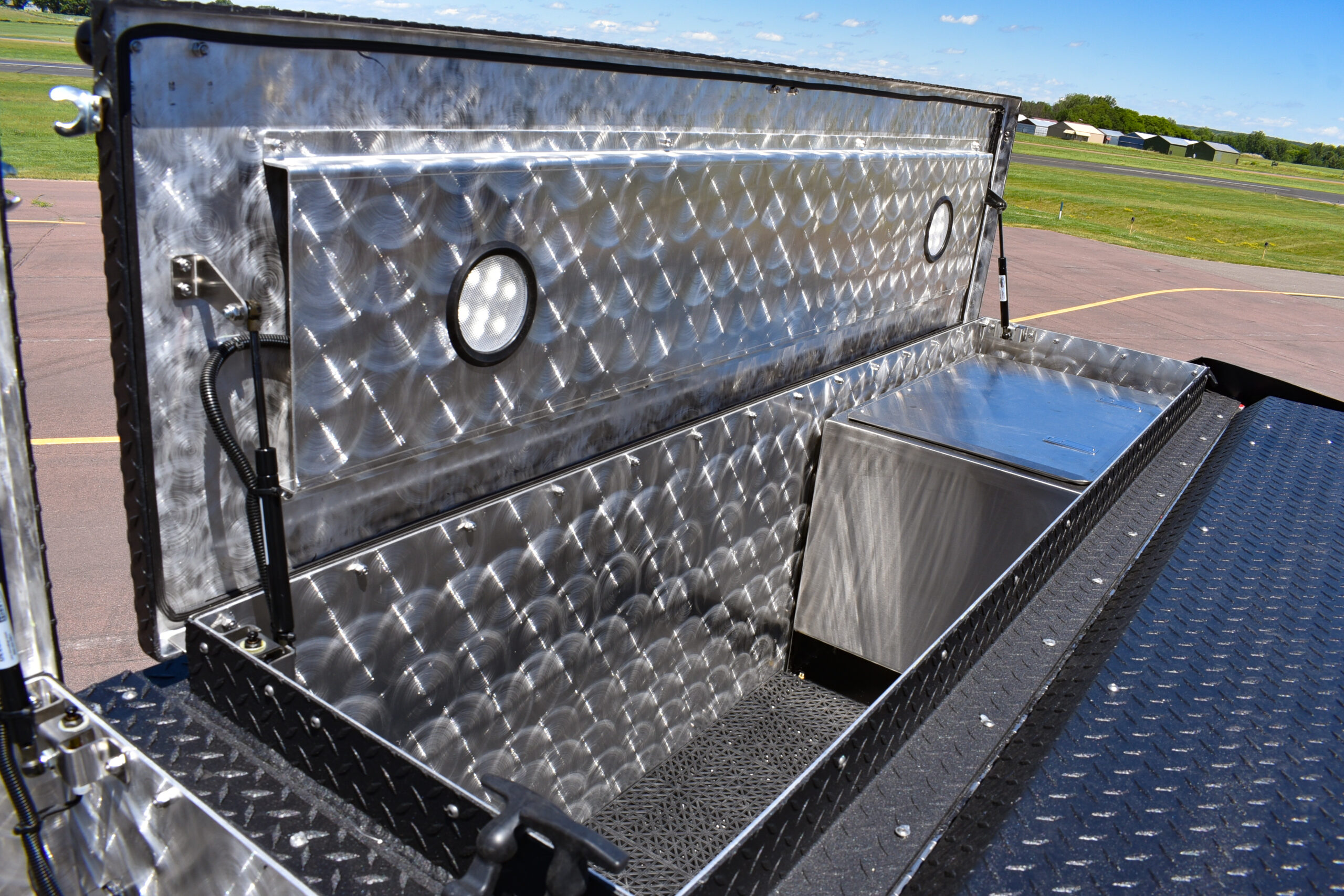

4-Drawer Custom Toolbox

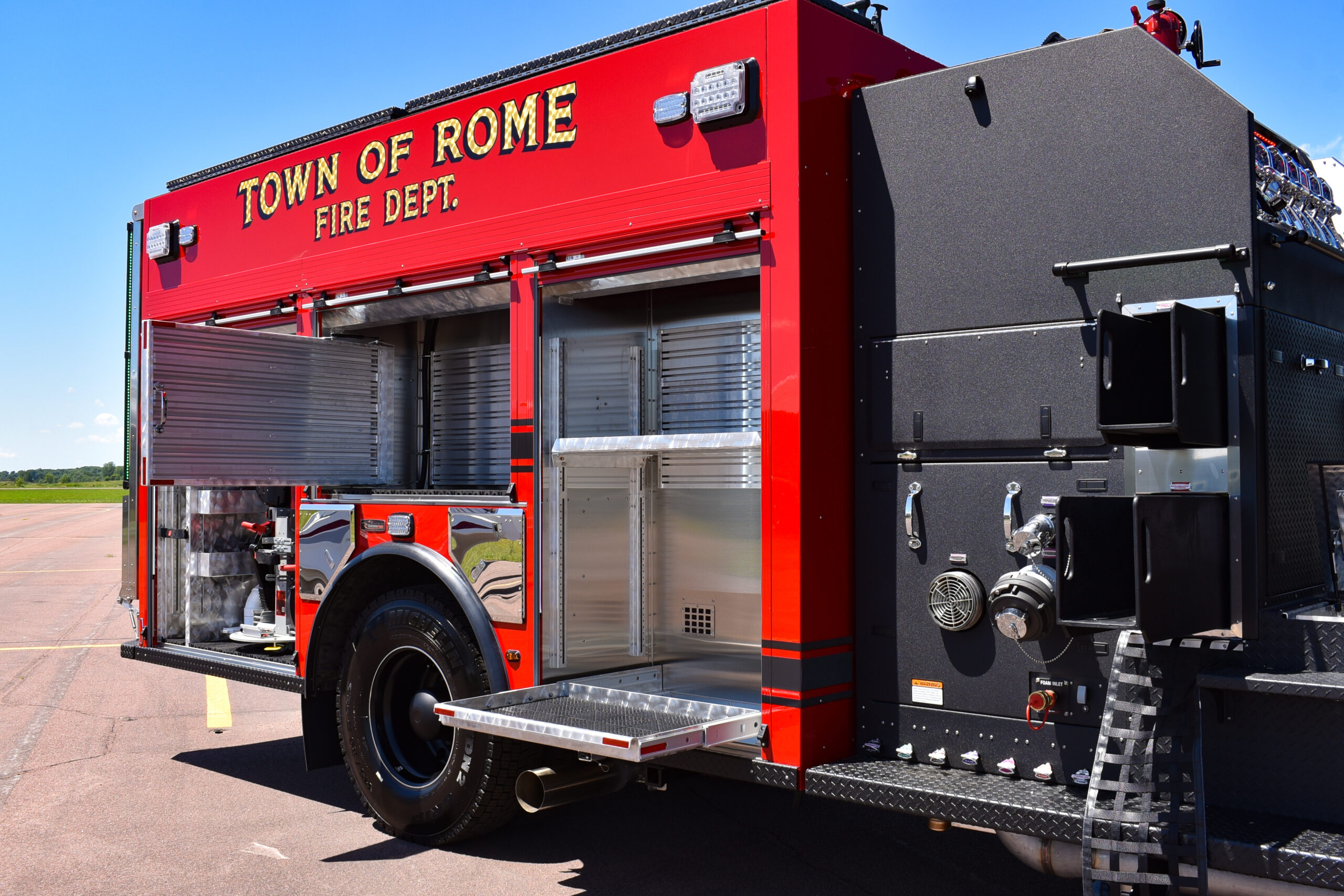

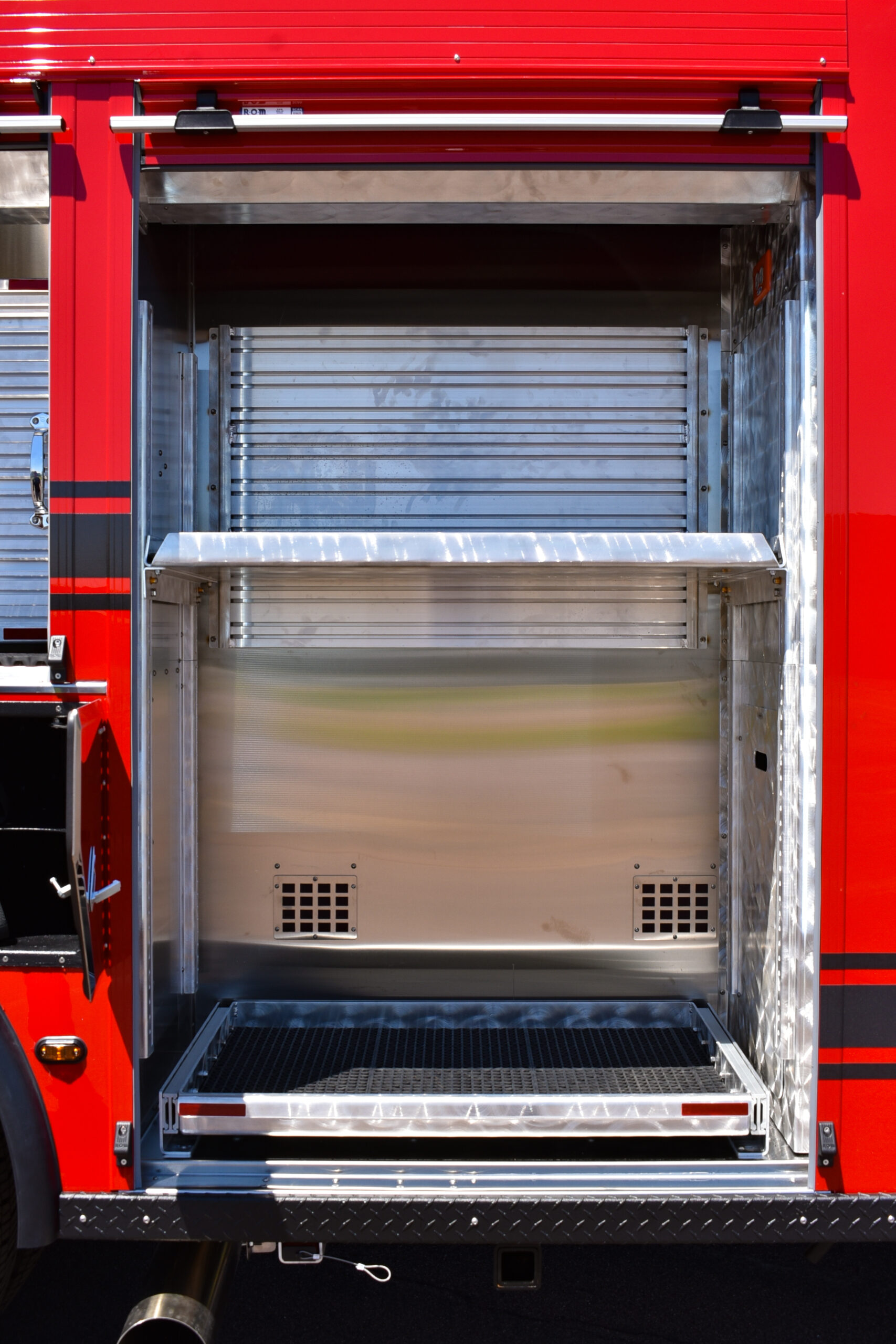

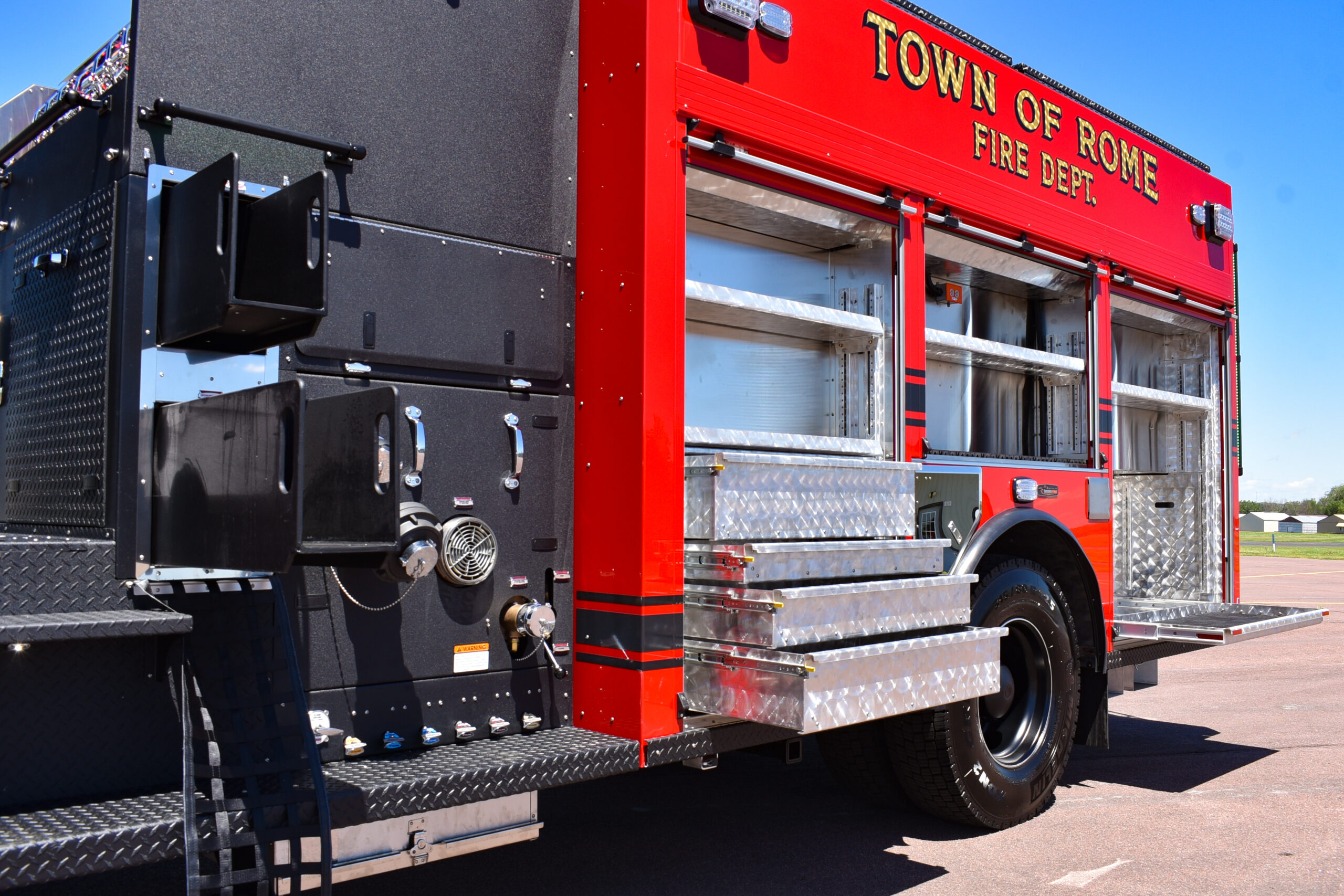

Pull-Out Compartment Trays
Slide-In Suction Hose & Strainer Storage
Slide-In Ladder & Pike Pole Storage

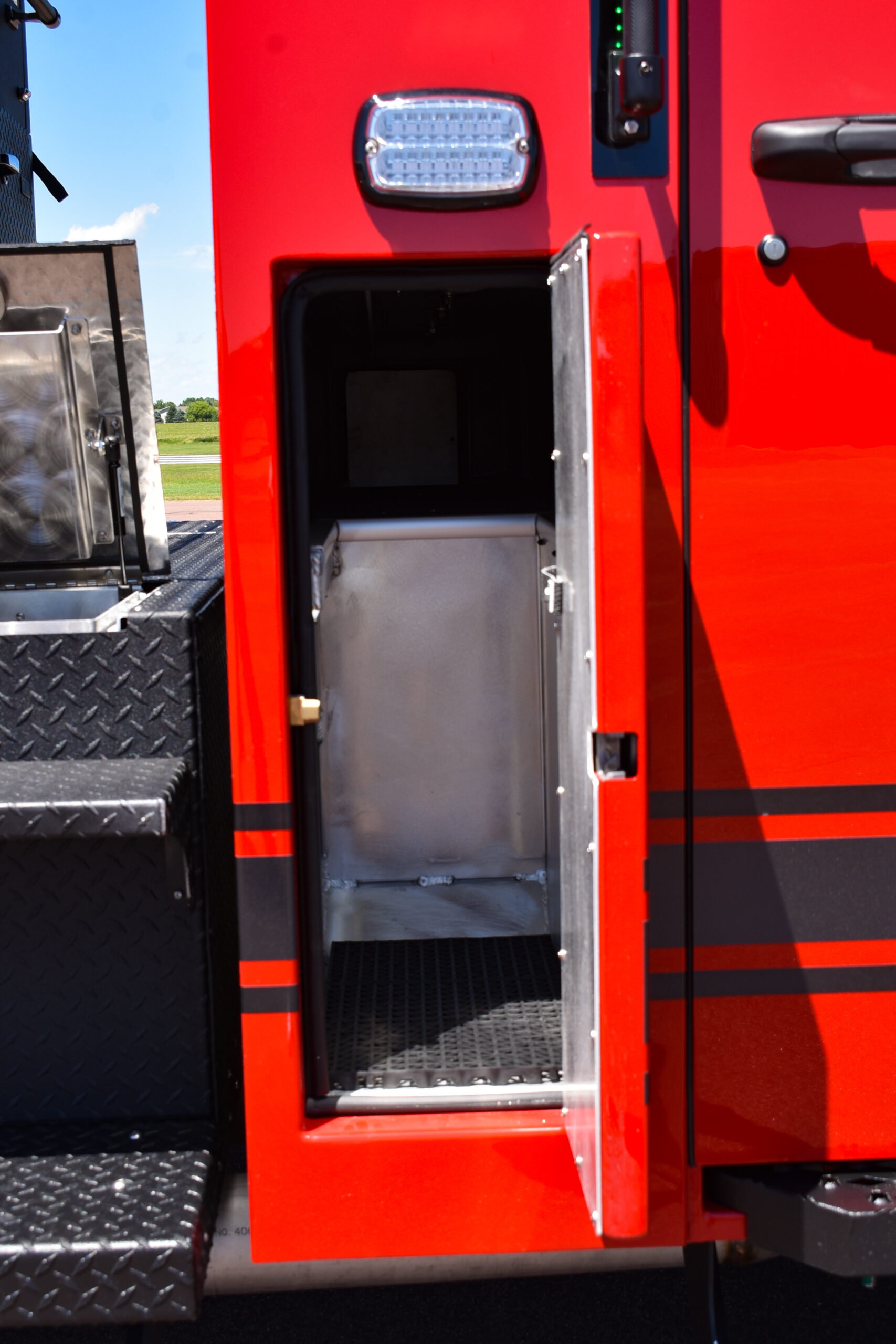

Wheel Well Fire Extinguisher Storage

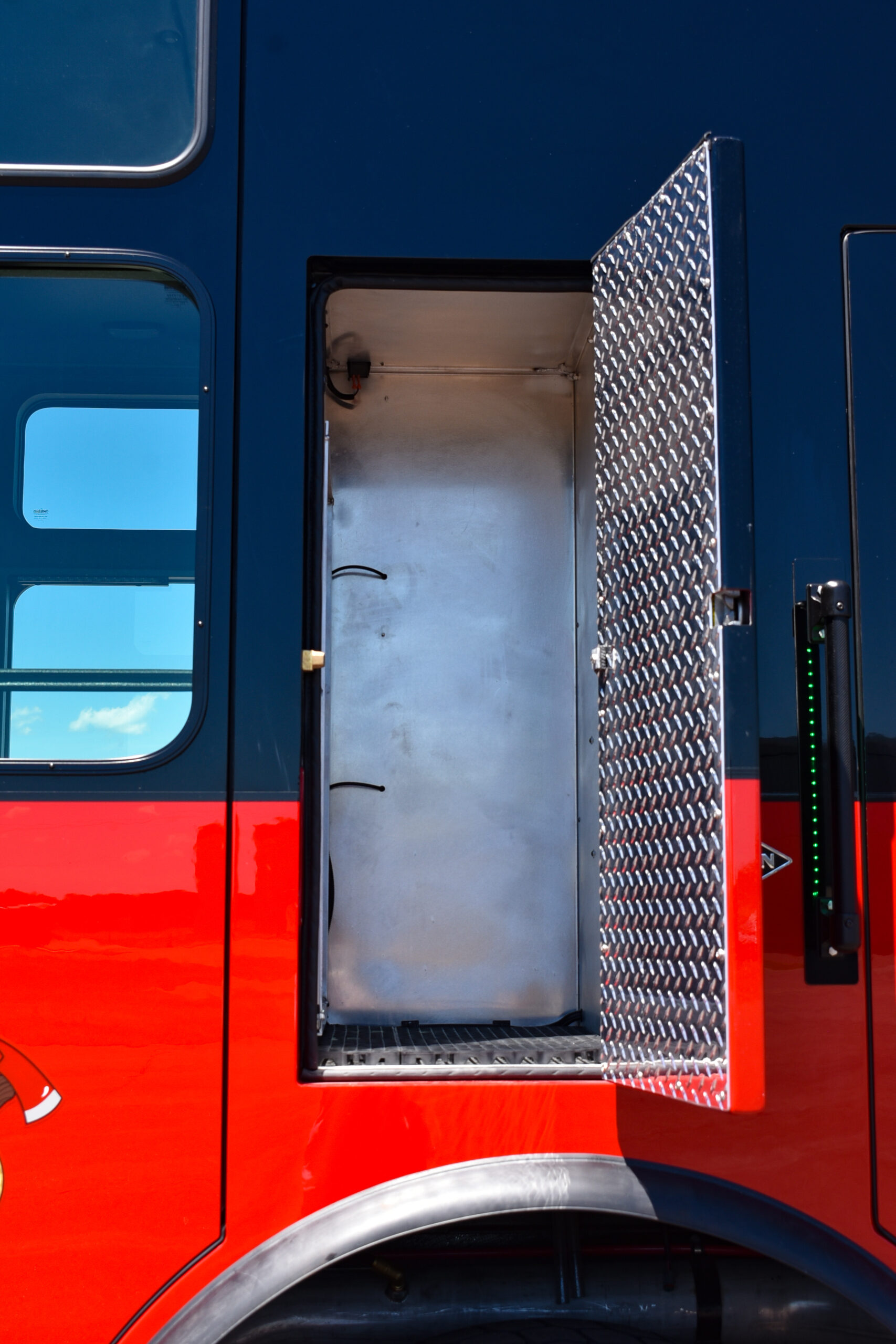

Wheel Well SCBA Bottle Storage

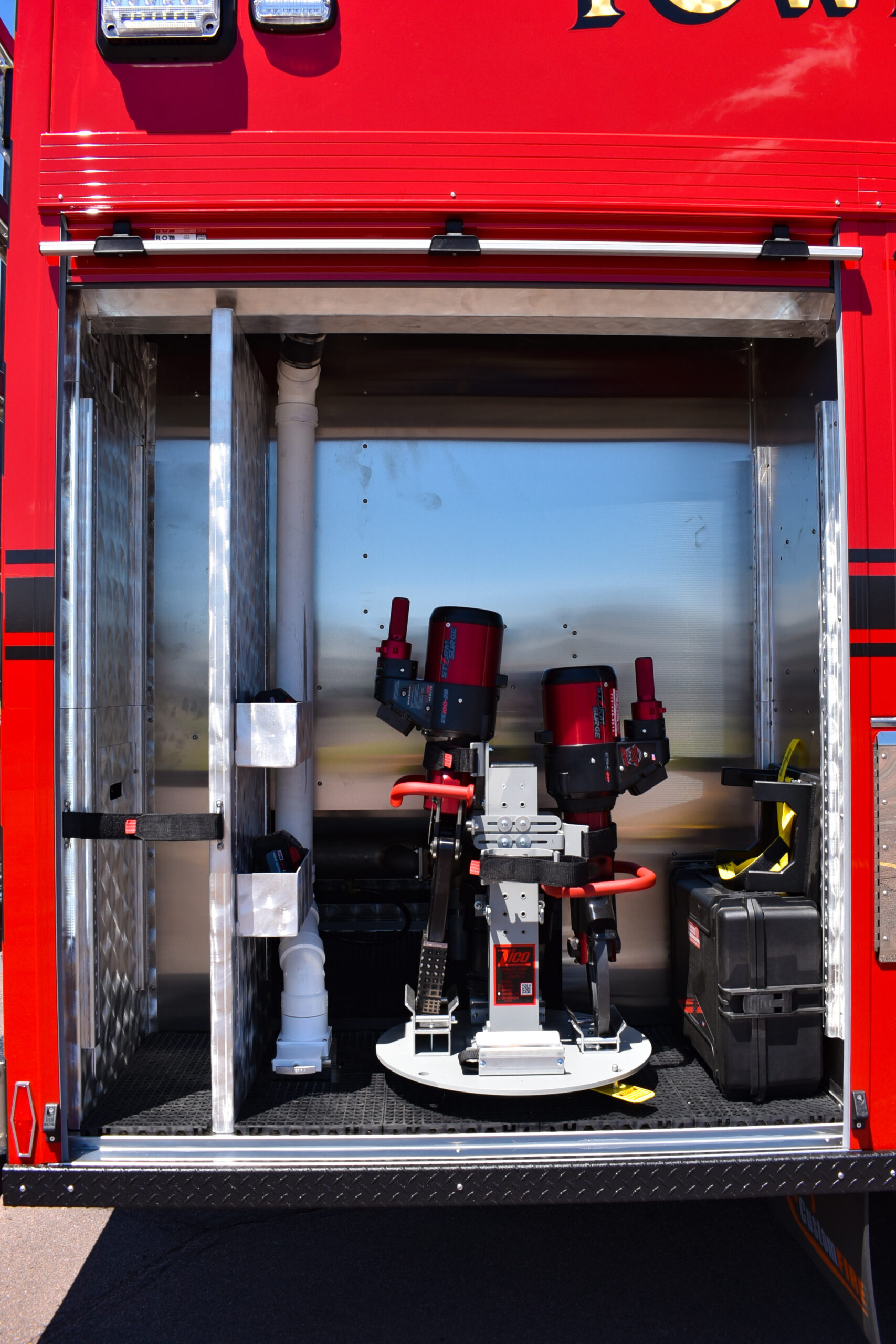

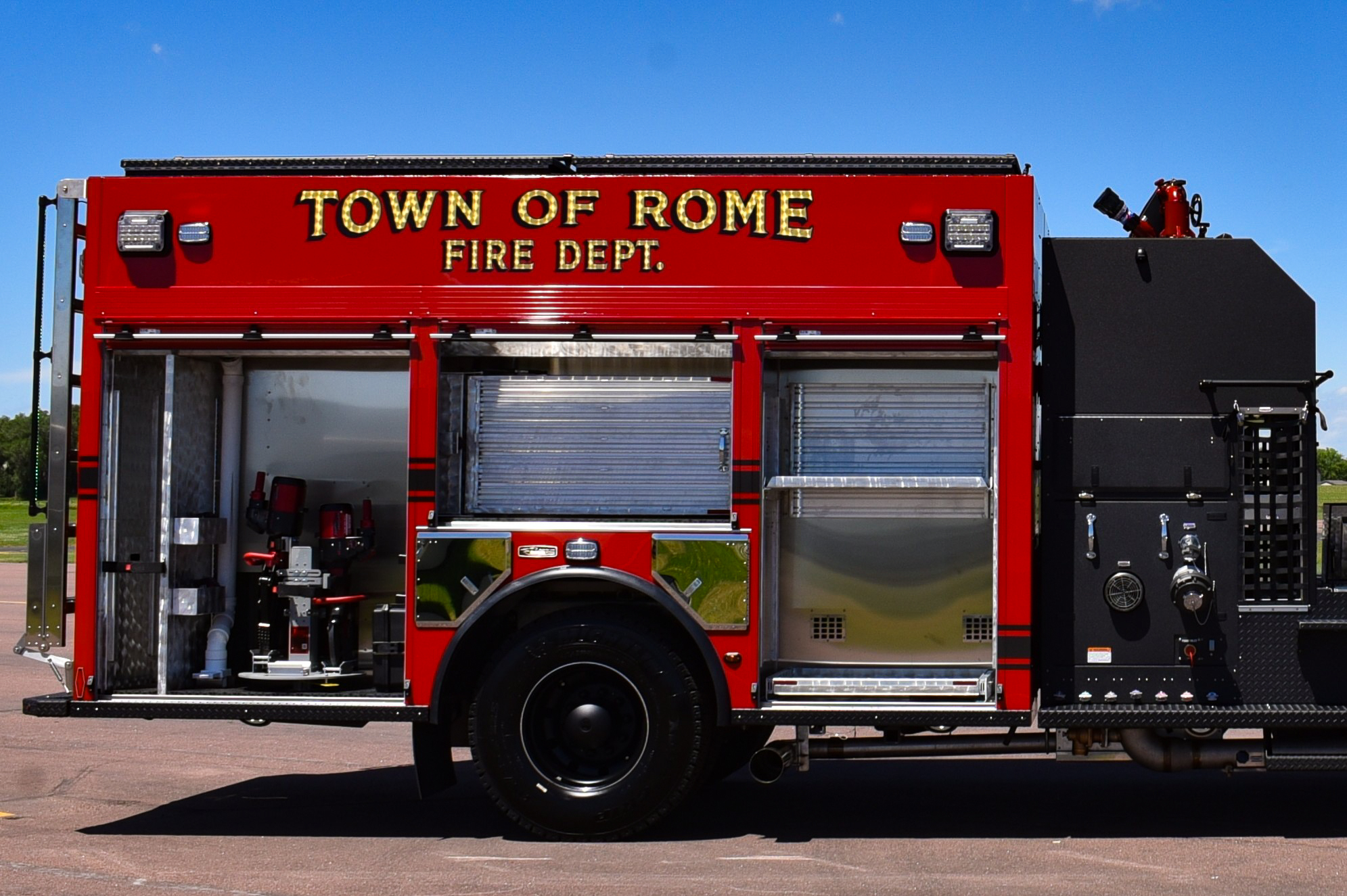

Rotating "Lazy Susan" Rescue Tool Storage
Emergency Warning Devices
Tomar Revolution Night Blaze Wrap Around Light Bar
Whelen Traffic Advisor Light Bar
Federal Q2B™ Mechanical Siren
(2) Stutter Tone Air Horns
Cast Products Electronic Siren Speaker
Whelen Siren Control Head
Exterior Lighting
Firetech Guardian Surface-Mounted Scene Lighting
Whelen M6 Series LED Warning Lights
TecNiq LED Walkway and Step Lights
ROM Door Track Compartment Lighting
ROM Vertical LED Strip Compartment Lighting
TecNiq LED DOT Marker Lights
Under Cab and Under Body Lights
Underside Hose Bed Cover Lighting
Vehicle Dimensions
Overall Height: 11' 0"
Overall Length: 36' 2"
Wheelbase: 222"
Weight w/ Water: 51,000 lbs
