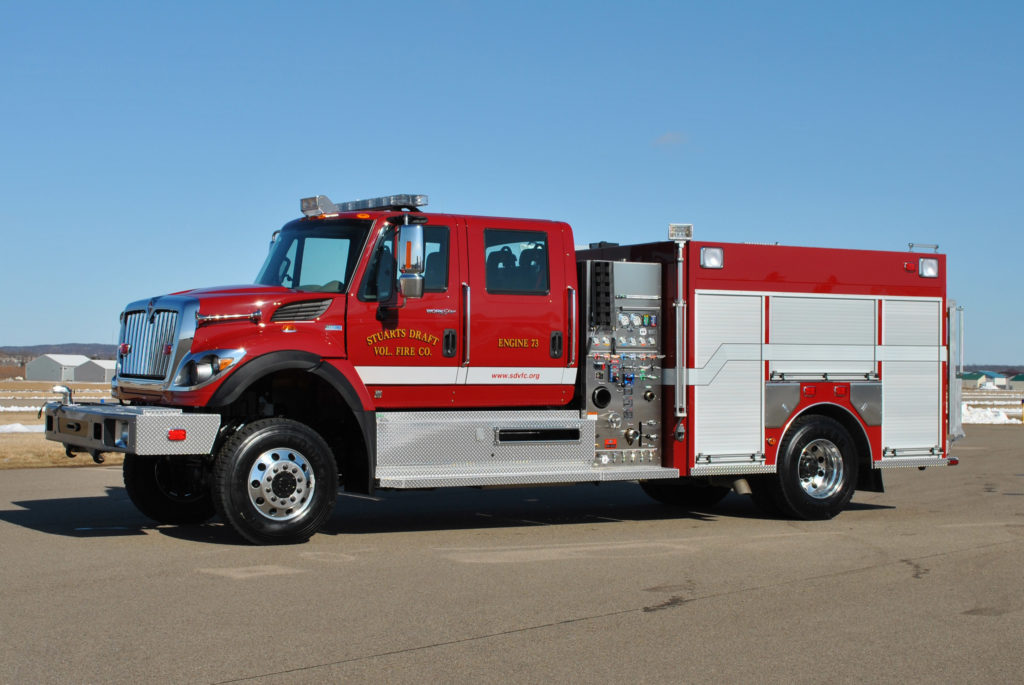

4×4 Side Mount Pumper
Custom built for Stuarts Draft Vol. Fire Department — Stuarts Draft, VA
International Chassis, Bolted Aluminum Body, Waterous 1000gpm Pump, FoamPro 2001 Foam System, 500-Gallon Water Tank, Front Bumper Hosewell and Tool Compartment, Adjustable Compartment Shelving, Wheel Well SCA Cylinder Storage, Slide-In Ladder and Pike Pole Storage, Swing-Out and Down Rear Ladder, Power Rewind Cord Reels, Stadco Generator
Truck Type : Pumpers
Cab Type : Commercial Cab, Side Mount
Deployed : March, 2012
Chassis Model
International 7400 4x4 Chassis
MaxxForce 330hp Engine
Allison 3500 EVS Transmission
Apparatus Body
Concealed Bolted Construction
Aluminum Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors
Fire Pump System
Waterous CXVPA 1000gpm Pump
FoamPro 2001 Single Agent Foam System
Waterous Oil-Less Pump Primer
Fire Research PumpBoss Pressure Governor
Passenger Side 6" and 2-1/2" Suctions
Driver Side 6" and 2-1/2" Suctions
Front Bumper 2-1/2" Preconnect Discharge
Passenger Side 2-1/2" and LDH Discharges
Rear 2-1/2" Discharge
Driver Side 2-1/2" Discharge
Hose Reel Discharges
Crosslay 2" Discharges
Booster Tank
500-Gallon Water Tank
15-Gallon Foam Cell
Special Features
Front Bumper Extension with Hosewell
Front Bumper Tool Compartment
Adjustable Compartment Shelving
Hard Suction Hose Trays
Wheel Well SCBA Cylinder Storage
Slide-In Ladder and Pike Pole Storage
Folding Ladder Tray
Swing-Out and Down Rear Access Ladder
Stadco Diesel Generator
Fire Research Tripods
Power Rewind Electric Cord Reels
Emergency Warning Devices
Whelen Electronic Siren and Speaker
Whelen LED Lightbar
Whelen LED Traffic Advisor
Whelen LED Warning Lights
Vehicle Dimensions
Height 10' 1"
Length 30' 1"
Wheelbase 19' 1"
Weight with Water 28,950 Lbs.
