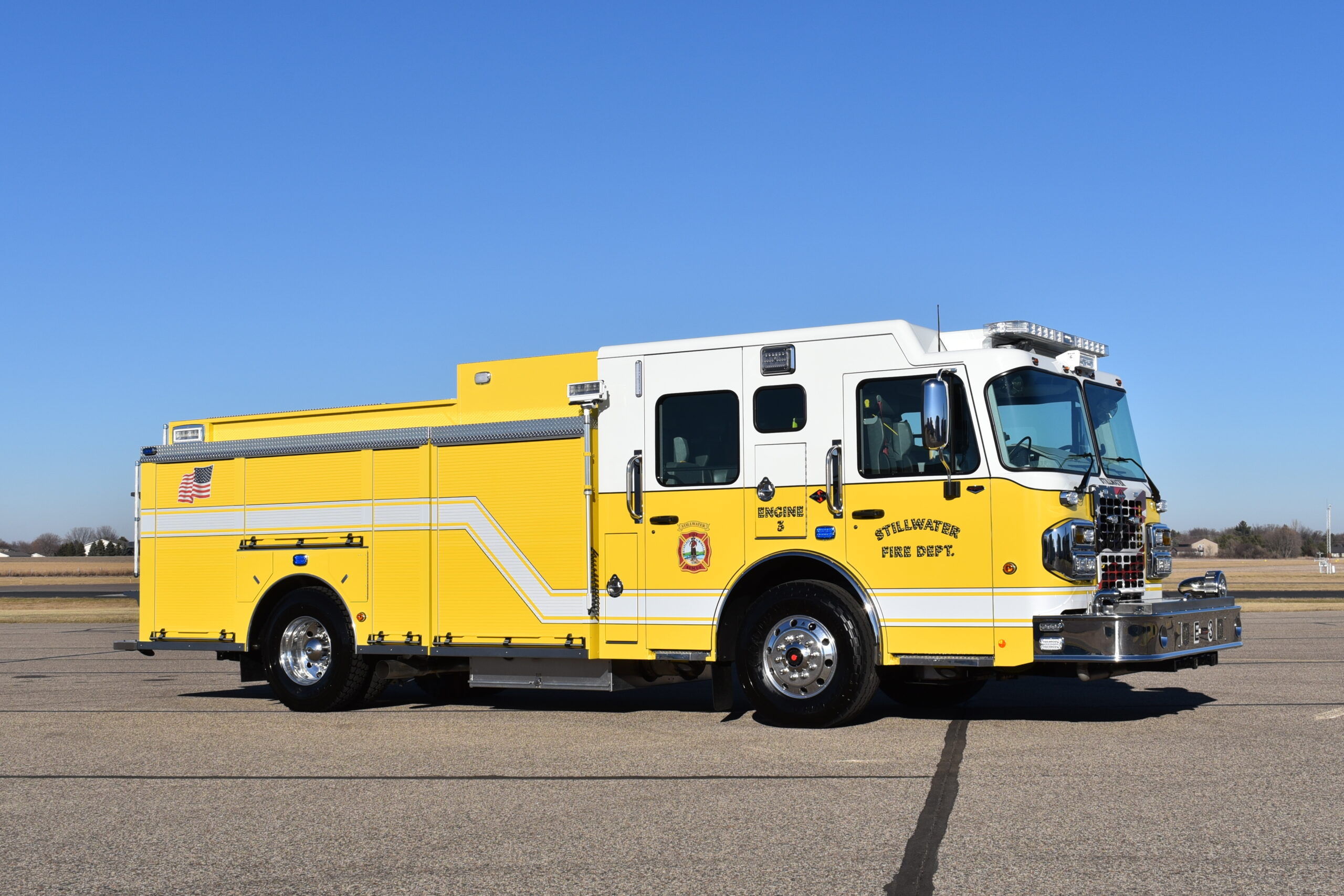

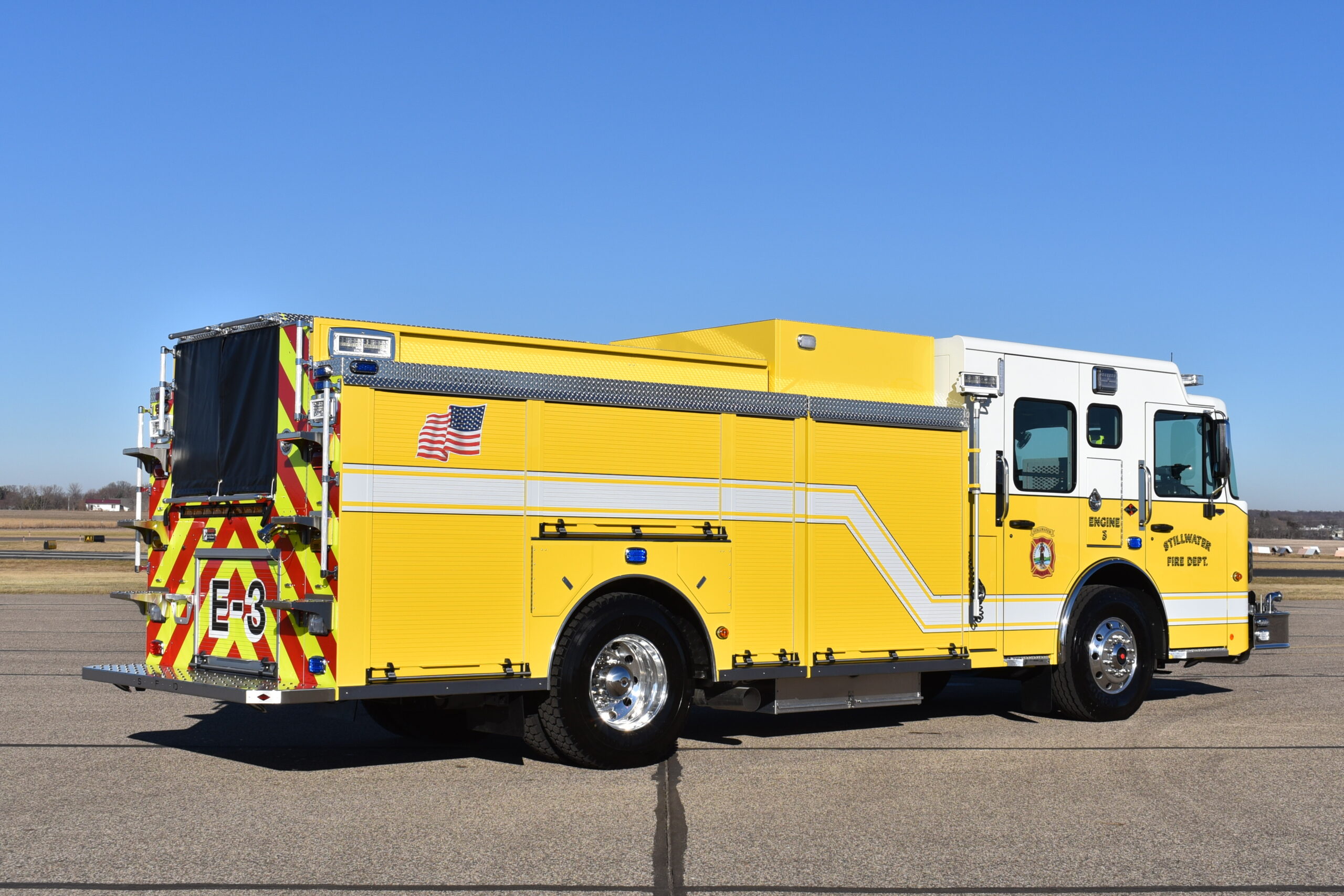

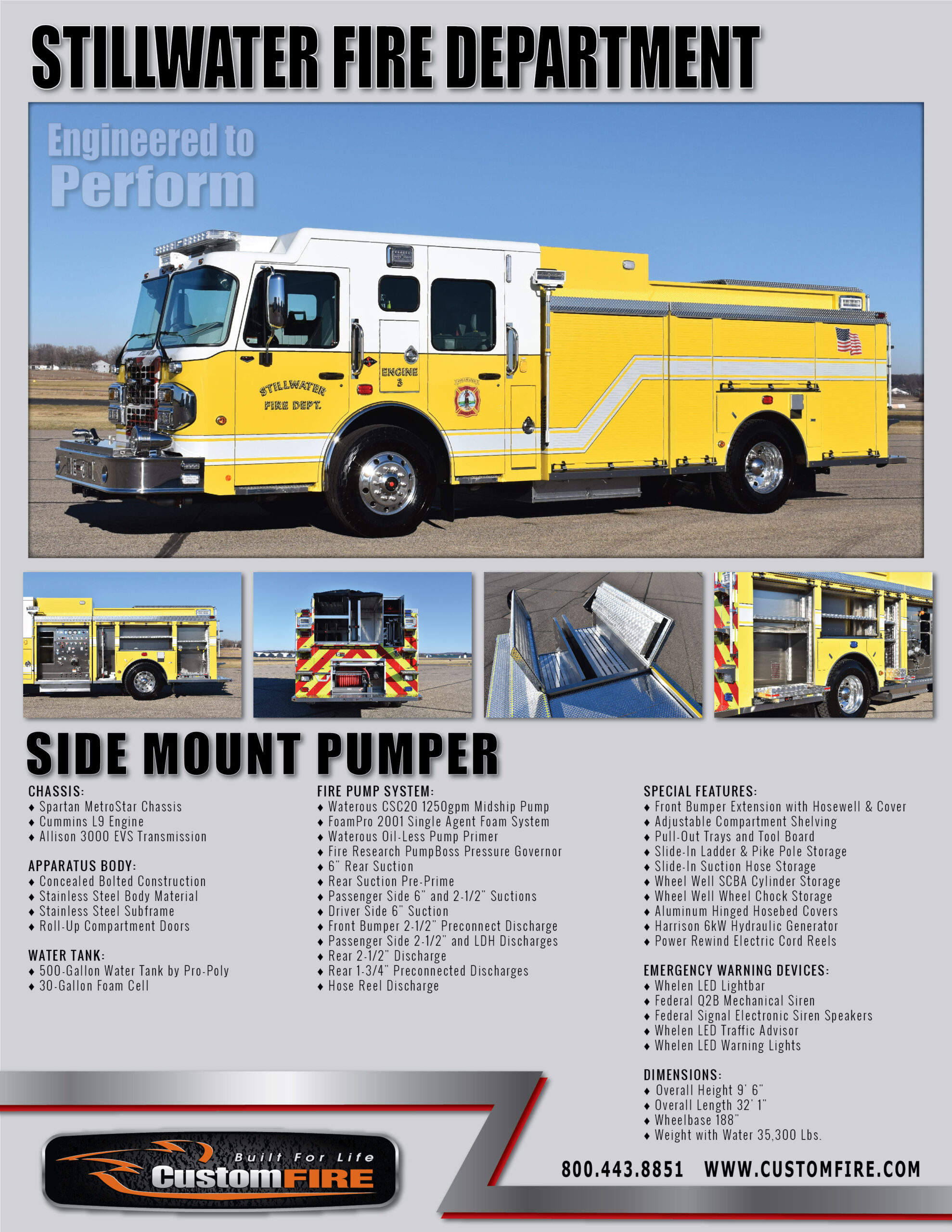

Side Mount Pumper

Custom built for Stillwater Fire Department — Stillwater, MN

Fire Truck: Spartan MetroStar Chassis, Bolted Stainless Steel Body, Waterous 1250gpm Pump, FoamPro 2001 Foam System, 500-Gallon Water Tank, Adjustable Shelving, Pull-Out Compartment Trays and Tool Boards, Slide-In Ladder and Suction Hose Storage, Harrison Generator, LED Warning Lights


Truck Type : ,
Cab Type : ,

Chassis Model

Spartan MetroStar Chassis
Cummins L9 Engine
Allison 3000 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CSC20 1250gpm Midship Pump
FoamPro 2001 Single Agent Foam System
Waterous Oil-Less Pump Primer
Fire Research PumpBoss Pressure Governor
6" Rear Suction
Rear Suction Pre-Prime
Passenger Side 6" and 2-1/2" Suctions
Driver Side 6" Suction
Front Bumper 2-1/2" Preconnect Discharge
Passenger Side 2-1/2" and LDH Discharges
Rear 2-1/2" Discharge
Rear 1-3/4" Preconnected Discharges
Hose Reel Discharge

Booster Tank

500-Gallon Water Tank by Pro-Poly
30-Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewell & Cover
Adjustable Compartment Shelving
Pull-Out Compartment Trays
Pull-Out Tool Board
Air Bag Storage Sleeve Rack
Slide-In Ladder & Pike Pole Storage
Slide-In Suction Hose Storage
Wheel Well SCBA Cylinder Storage
Wheel Well Wheel Chock Storage
Encapsulated Roll-Up Door Protection
Aluminum Hinged Hosebed Covers
Under Body Winch Receivers
Harrison 6kW Hydraulic Generator
Power Rewind Electric Cord Reels

Emergency Warning Devices

Whelen LED Lightbar
Federal Q2B Mechanical Siren
Federal Signal Electronic Siren Speakers
Whelen LED Traffic Advisor
Whelen LED Warning Lights

Exterior Lighting

Vertical Strip Compartment Lights
Whelen LED Tail Lighting
Under Body and Under Cab Lighting
LED Marker Lights

Vehicle Dimensions

Overall Height 9' 6"
Overall Length 32' 1"
Wheelbase 188"
Weight with Water 35,300 Lbs.
