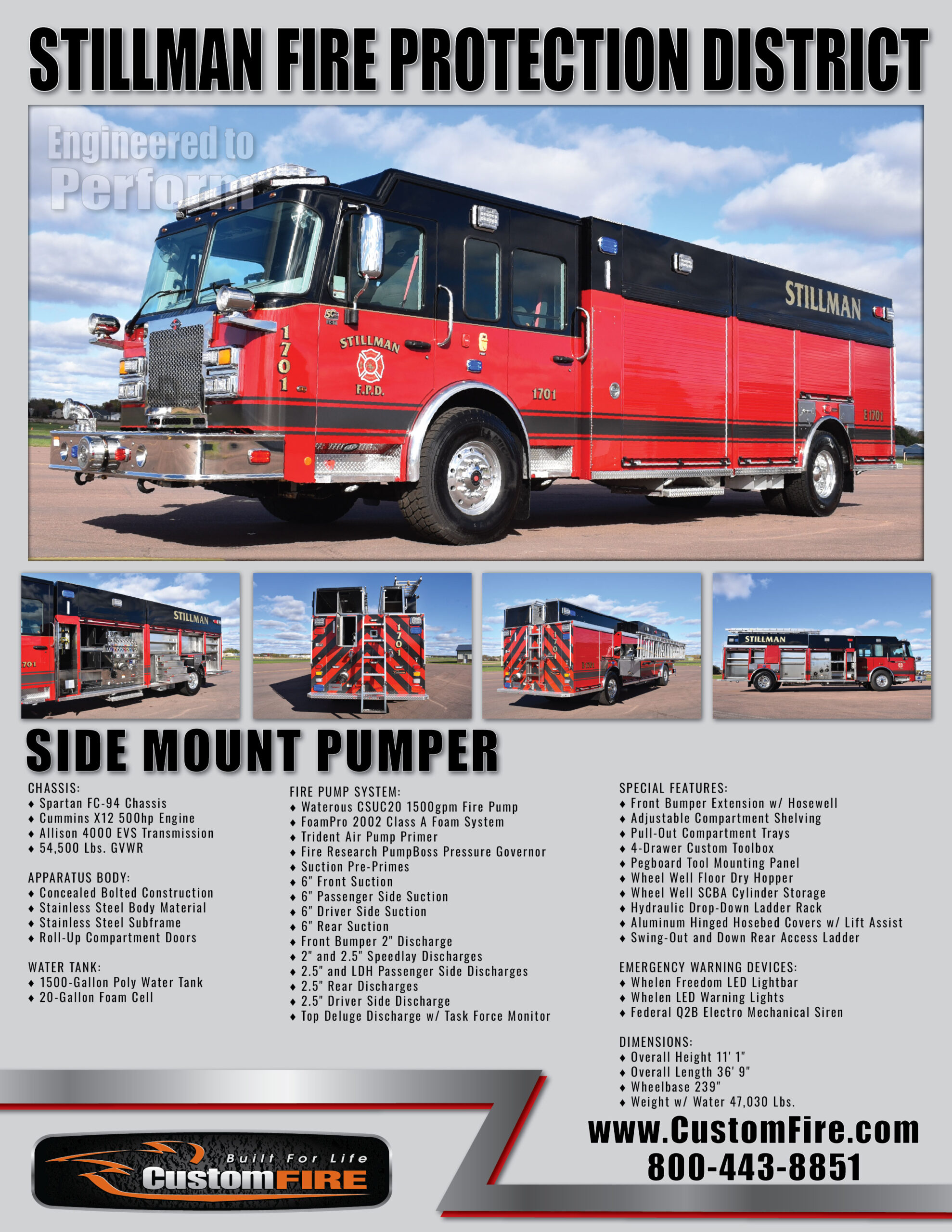

Truck Type : Pumpers
Cab Type : Custom Cab, Side Mount
Deployed : October, 2025

Chassis Model

Spartan FC-94 Chassis
Cummins X12 500hp Engine
Allison 4000 EVS Transmission
54,500 Lbs. GVWR

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors

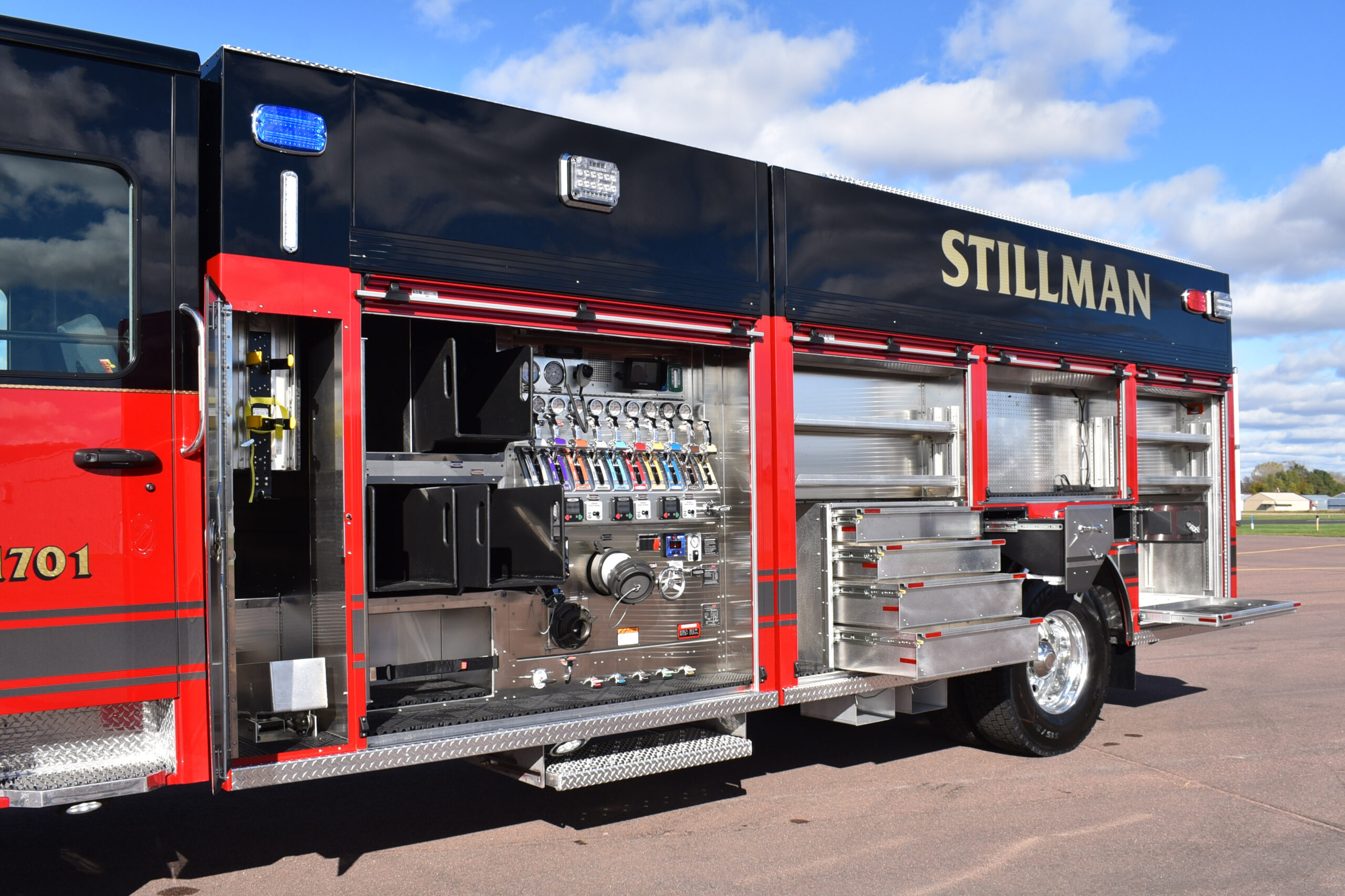

Fire Pump System

Waterous CSUC20 1500gpm Fire Pump
FoamPro 2002 Class A Foam System
Trident Air Pump Primer
Fire Research PumpBoss Pressure Governor
Suction Pre-Primes
6" Front Suction
6" Passenger Side Suction
6" Driver Side Suction
6" Rear Suction
Front Bumper 2" Discharge
2" and 2.5" Speedlay Discharges
2.5" and LDH Passenger Side Discharges
2.5" Rear Discharges
2.5" Driver Side Discharge
Top Deluge Discharge w/ Task Force Monitor

Booster Tank

1500-Gallon Poly Water Tank
20-Gallon Foam Cell

Special Features

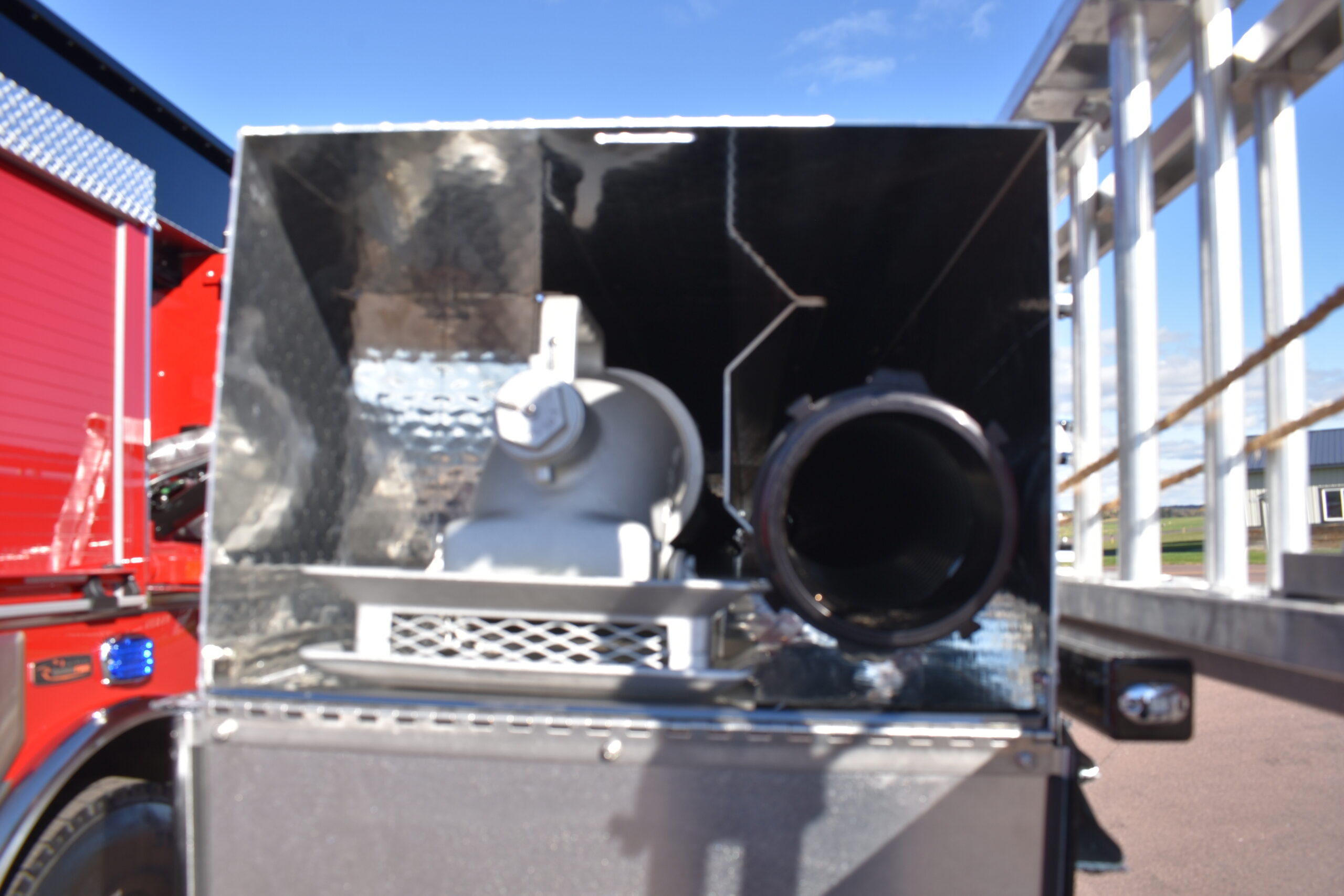

Front Bumper Extension w/ Hosewell
Removable Speedlay Hosebeds
Adjustable Compartment Shelving
Pull-Out Compartment Trays
4-Drawer Custom Toolbox
Pegboard Tool Mounting Panel
Wheel Well Floor Dry Hopper
Wheel Well SCBA Cylinder Storage
Hydraulic Drop-Down Ladder Rack
Encapsulated Roll-Up Door Protection

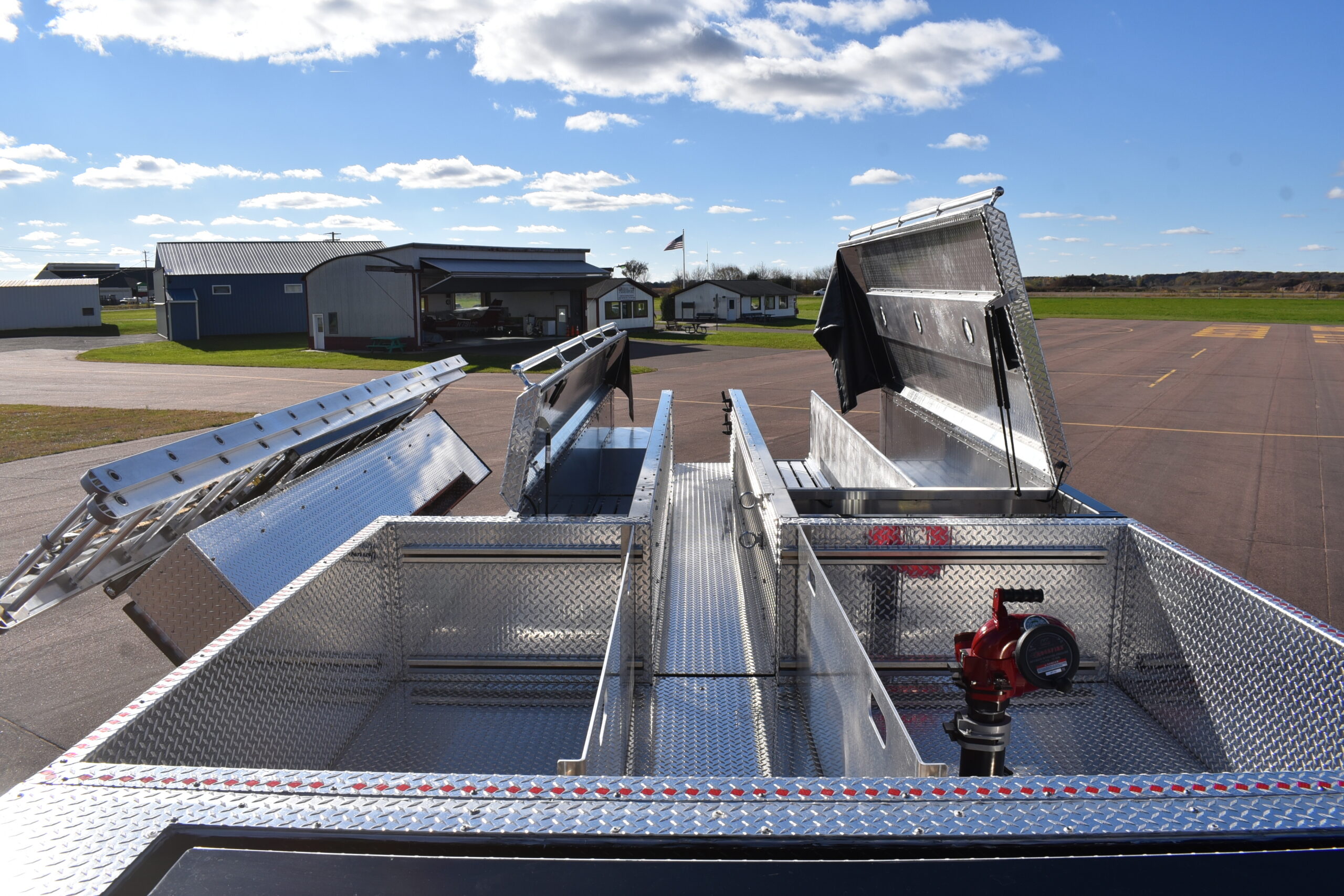

Aluminum Hinged Hosebed Covers w/ Lift Assist

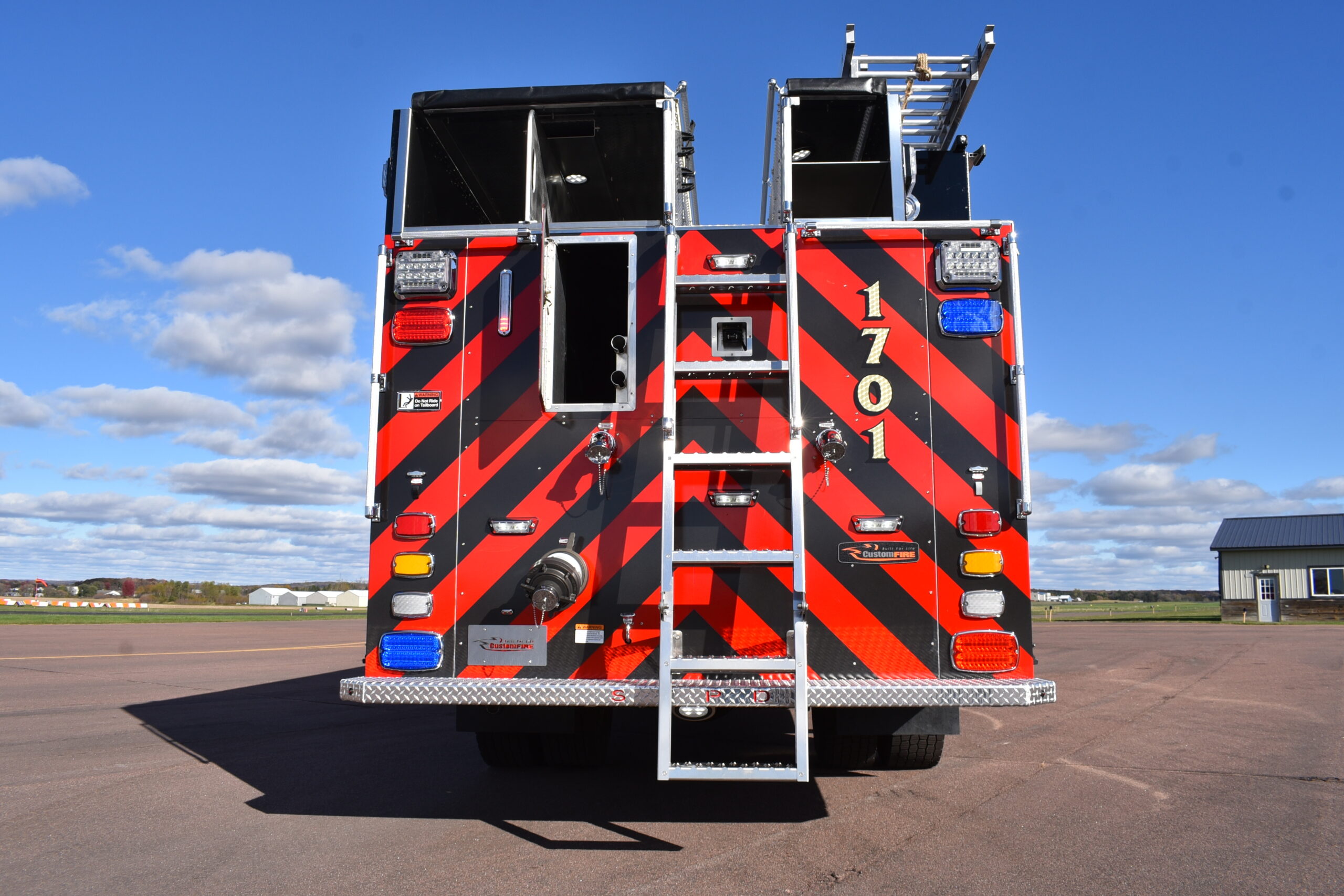

Swing-Out and Down Rear Access Ladder
Rear, Side, and Front View Cameras with Monitor

Emergency Warning Devices

Whelen Freedom LED Lightbar
Whelen LED Warning Lights
Mars 888 Oscillating Lights
Federal Q2B Electro Mechanical Siren

Exterior Lighting

Under Cab and Under Body Lighting
Vertical Strip LED Compartment Lights
Walkway and Step LED Lighting
LED Marker Lights
Firetech LED Scene Lights

Vehicle Dimensions

Overall Height 11' 1"
Overall Length 36' 9"
Wheelbase 239"
Weight w/ Water 47,030 Lbs.
