Truck Type : Pumpers, Sourcewell Deliveries
Cab Type : Custom Cab, Open Top Mount

Chassis Model

Spartan Metro Star Chassis
Cummins X12 500hp Engine
Allison 4000 EVS Transmission
51,000 Lbs. GVWR

Apparatus Body

Concealed Bolted Construction
Stainless Steel Subframe
Stainless Steel Body Material
Hinged Compartment Doors

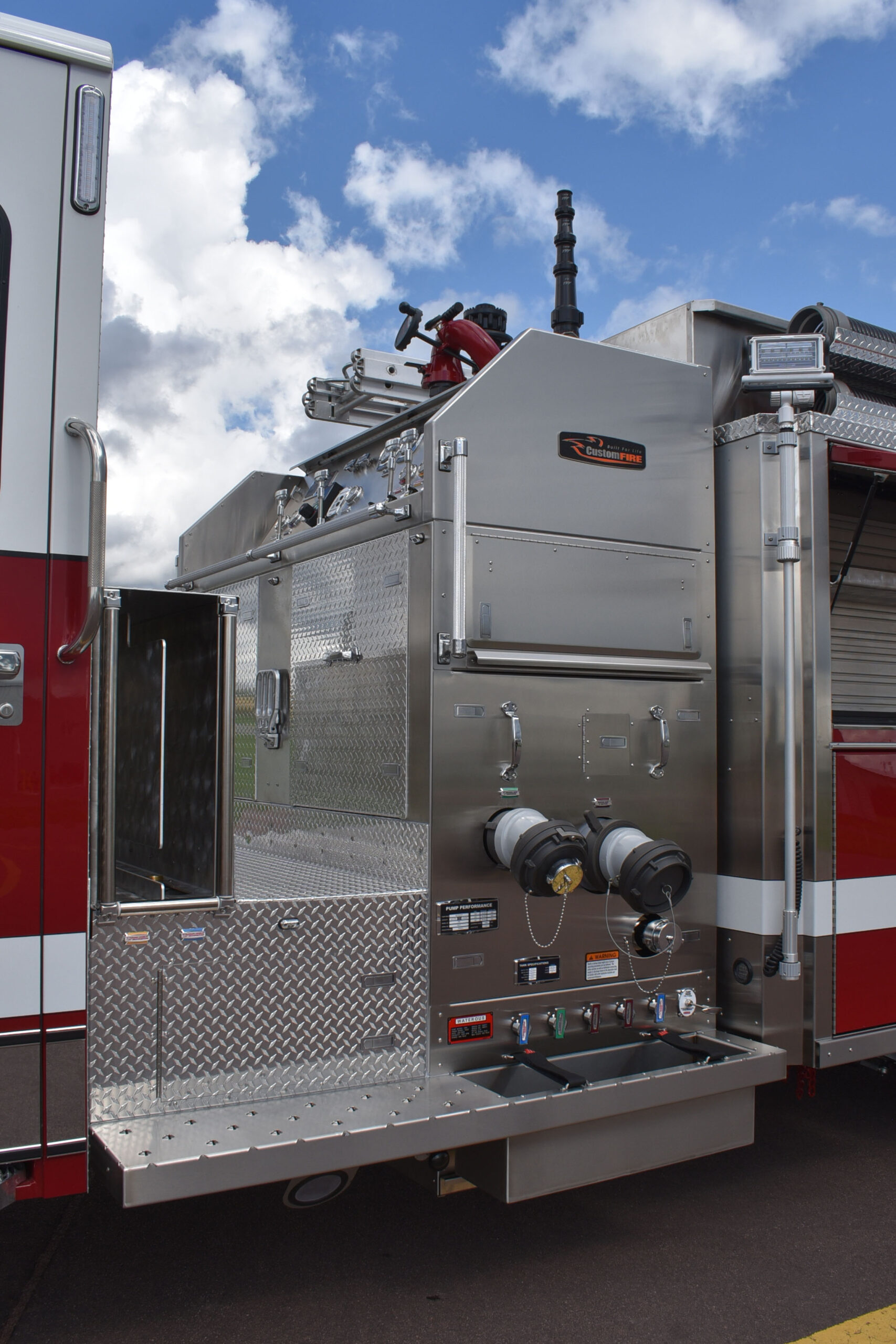

Fire Pump System

Waterous CMU 1500gpm Midship Mounted Fire Pump
FoamPro 2002 Single Agent Foam System
Fire Research PumpBoss Pressure Governor
Waterous VPO Oil-Less Pump Primer
Suction Pre-Primes
Passenger Side 6" Suction
Driver Side 6" and 2.5" Suctions
Passenger Side 2.5" and LDH Discharges
Rear 2.5" Discharges
Driver Side LDH Discharge
Top Deluge Discharge w/ Task Force Tips Monitor
Front Bumper 2" Discharge
Forward and Rearward 2" Crosslay Discharges

Booster Tank

1000-Gallon Poly Water Tank by UPF
25-Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewell and Cover
Adjustable Hosebed Dividers

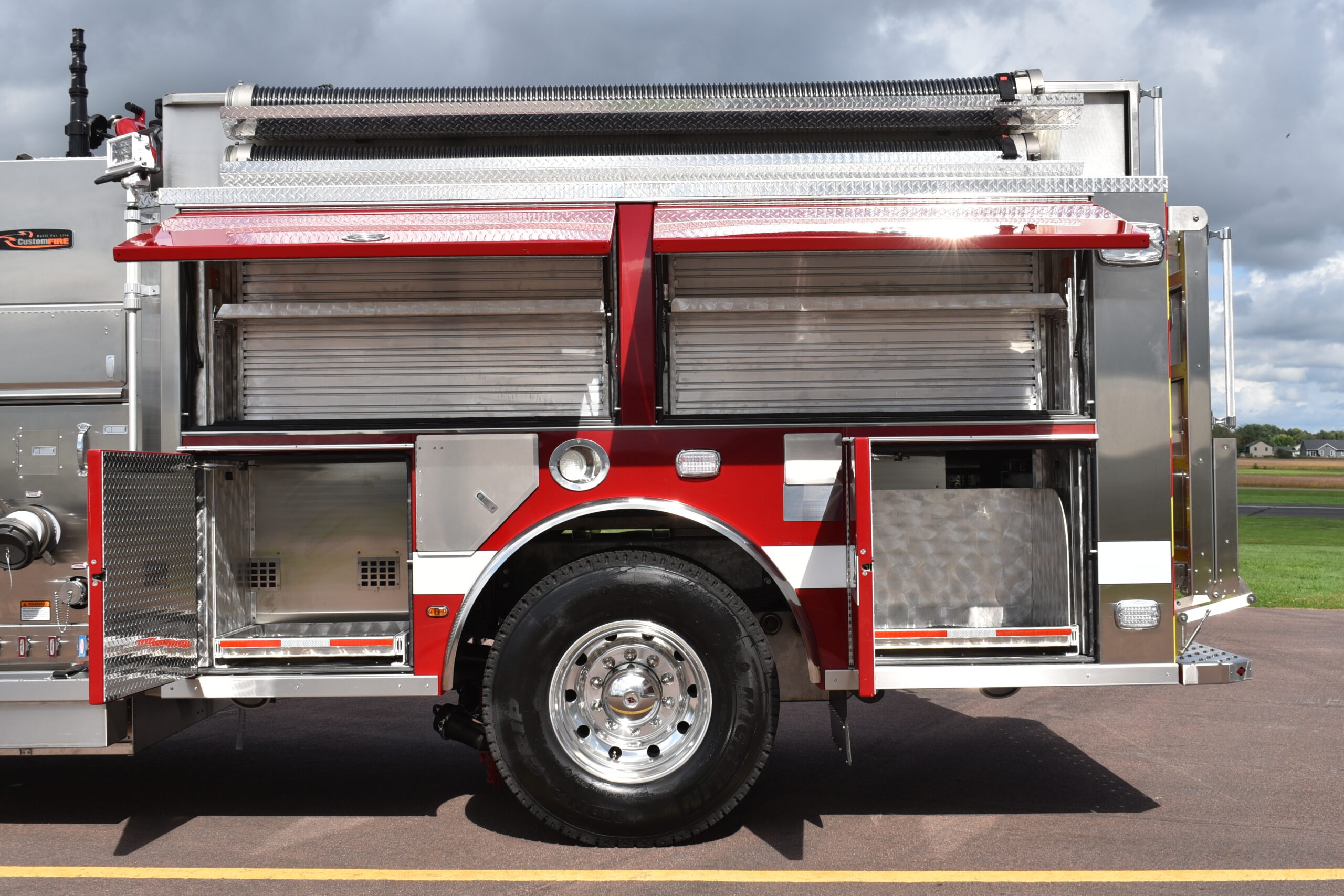

Adjustable Compartment Shelving

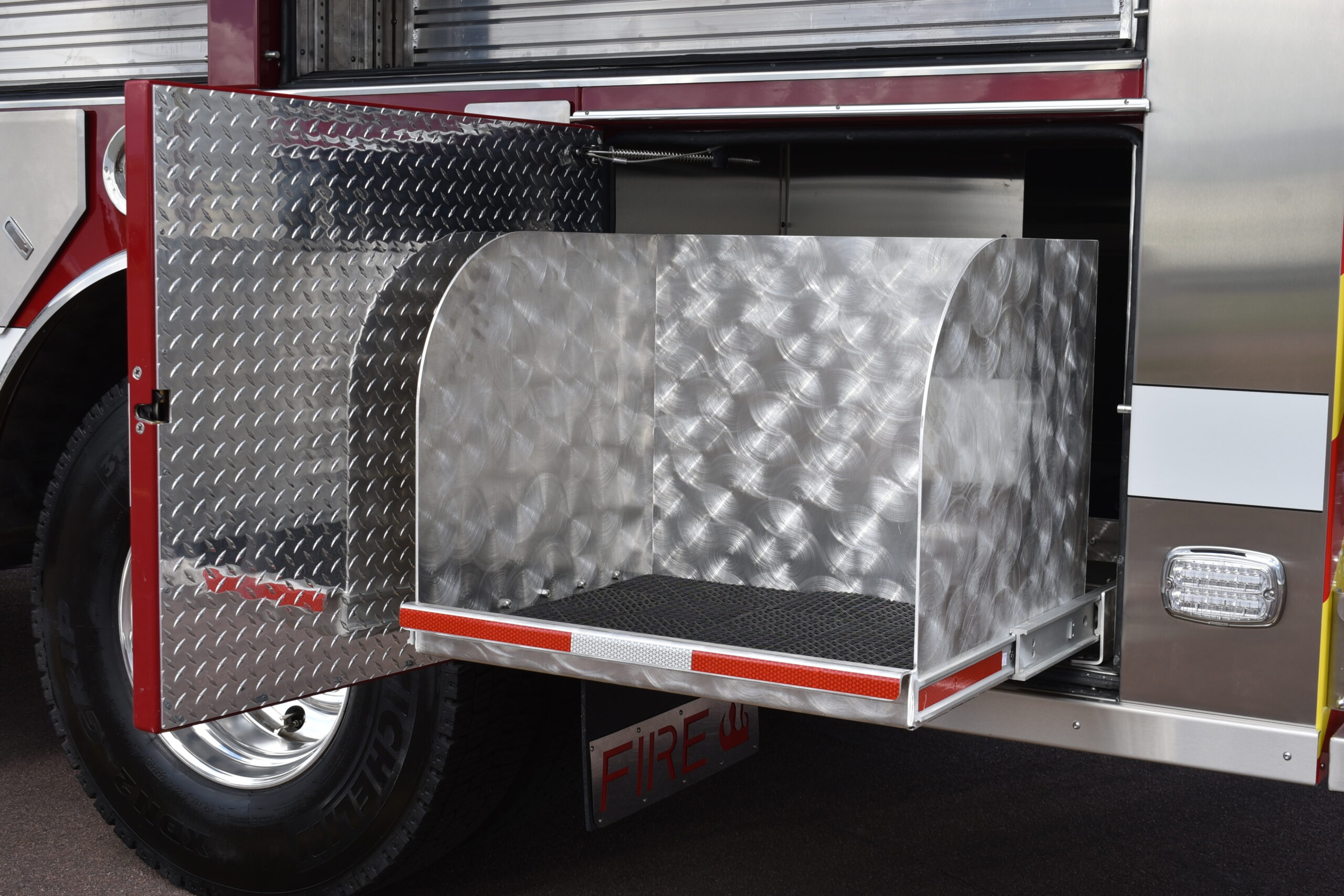

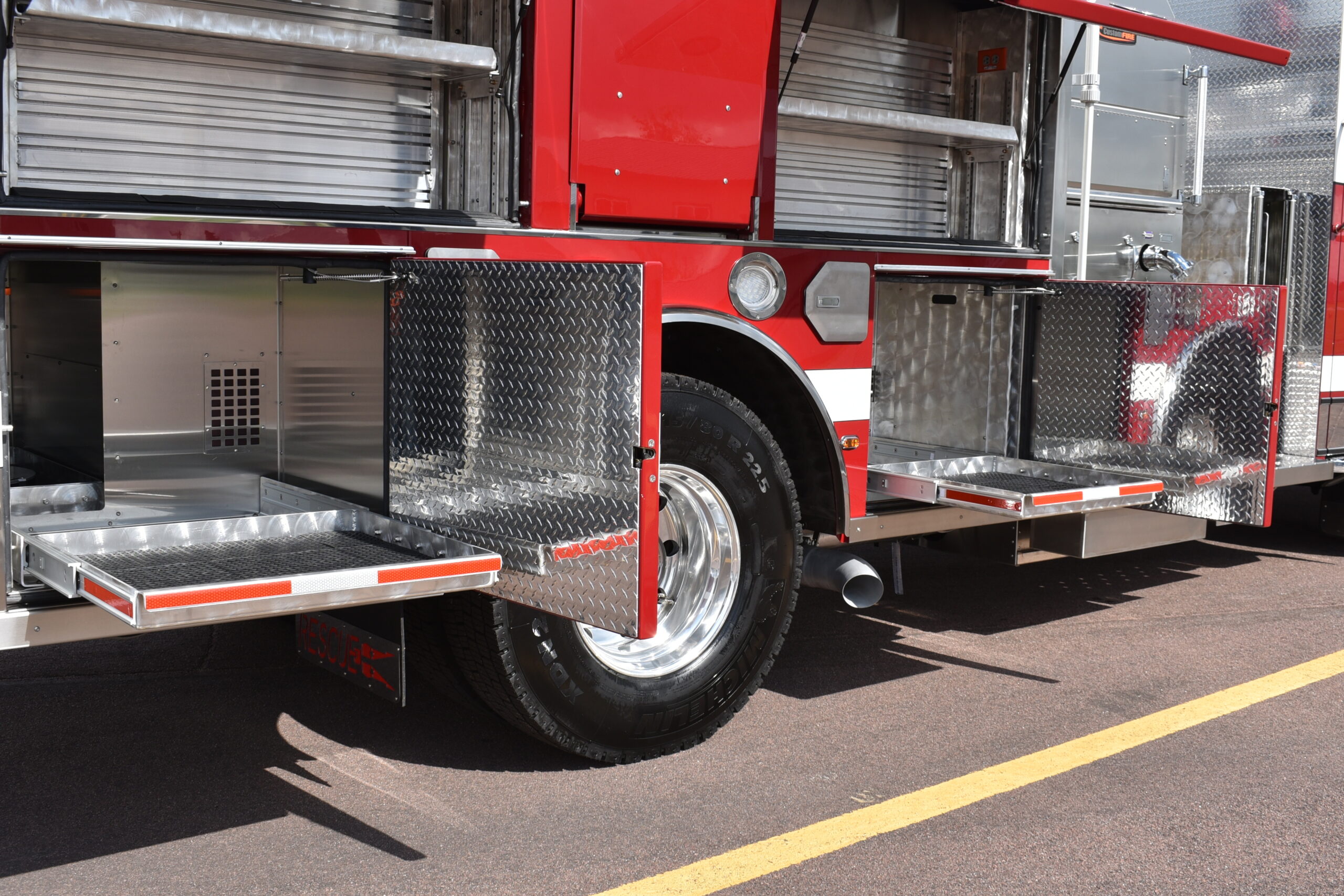

Pull-Out Compartment Trays

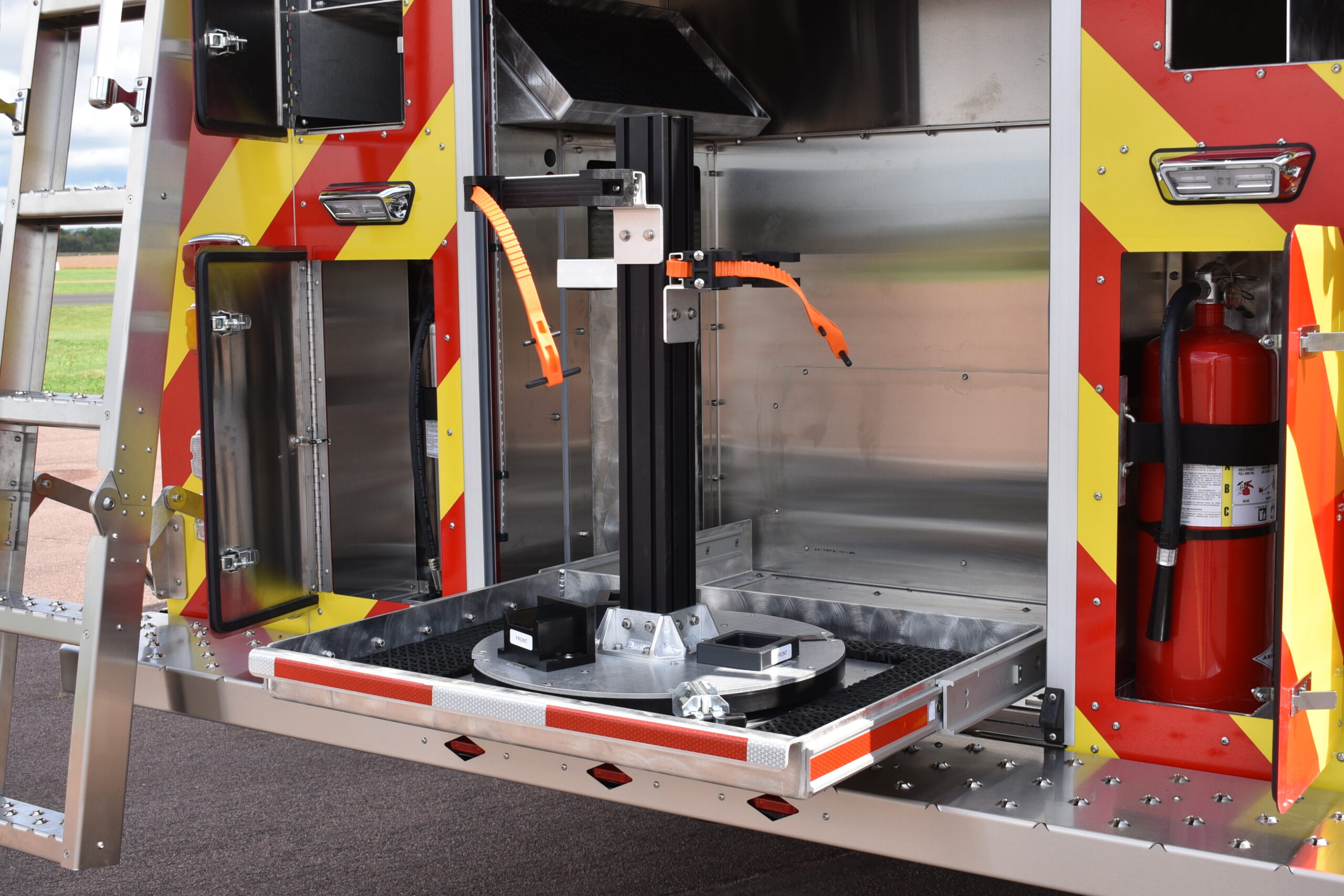

Rescue Tool Lazy Susan
Hard Suction Hose Troughs
Wheel Well SCBA Cylinder Storage

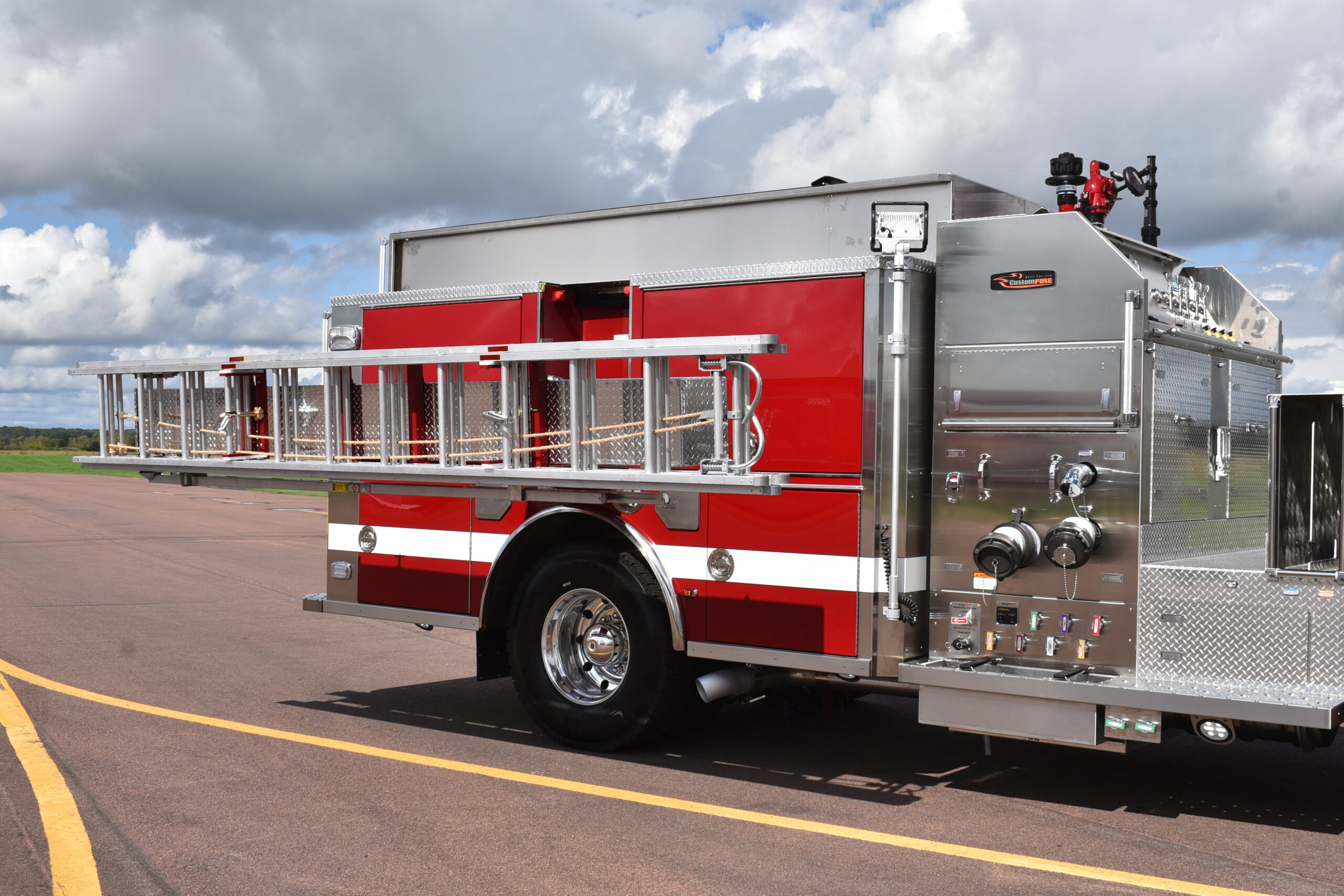

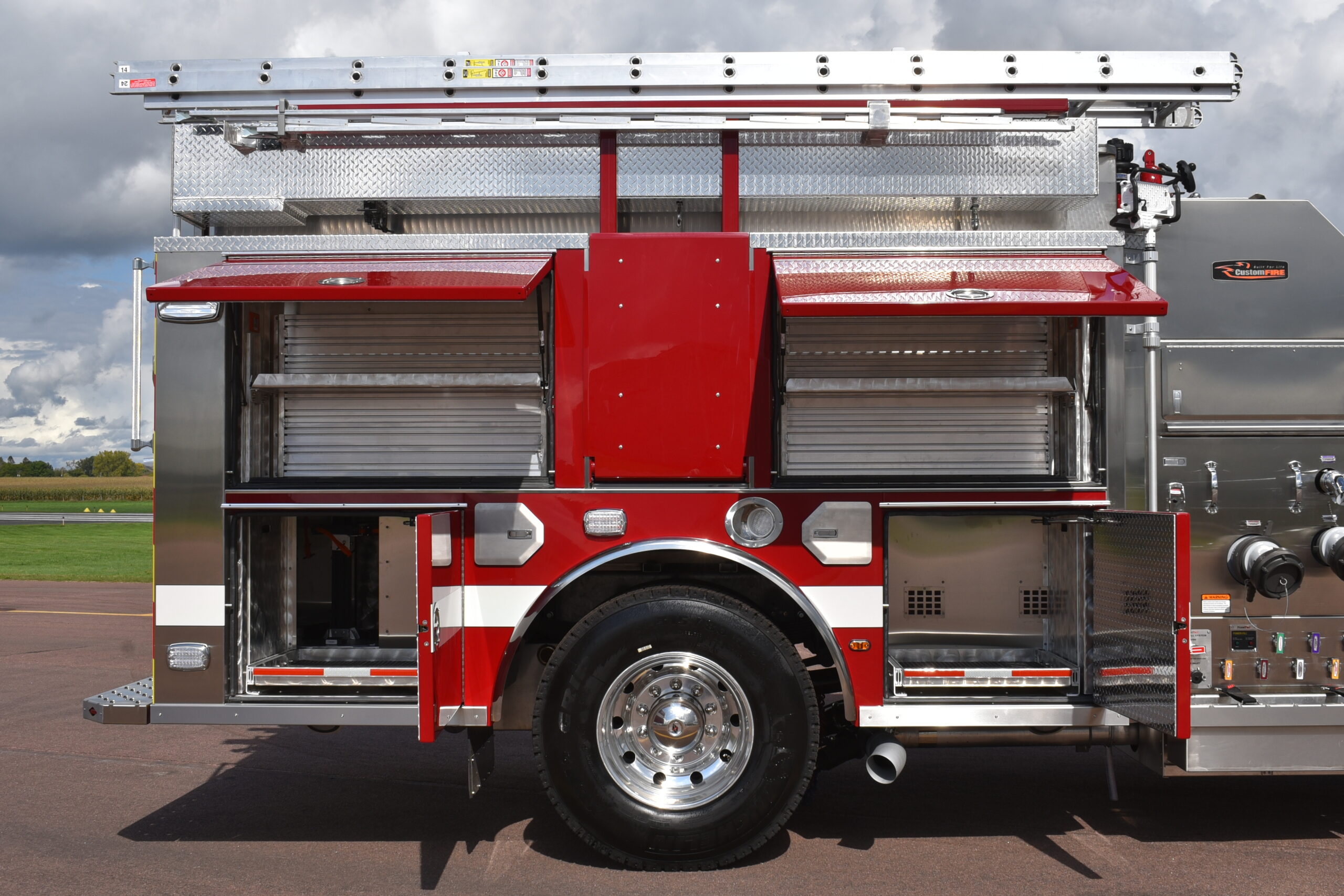

Hydraulic Drop-Down Ladder Rack

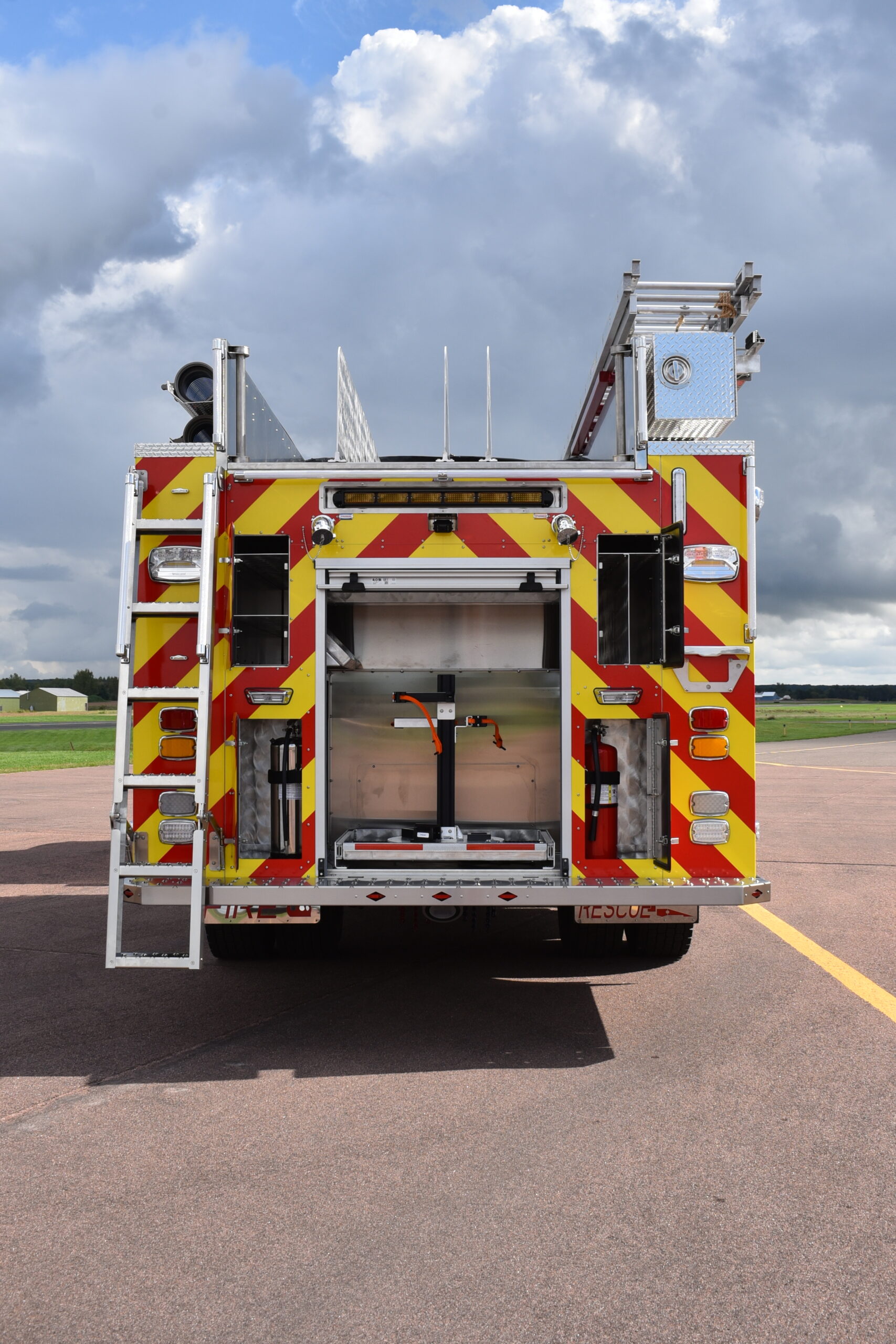

Swing-Out and Down Rear Access Ladder

Emergency Warning Devices

Federal Q2B Mechanical Siren
Hadley E-Tone Air Horns
Whelen Electronic Siren
Cast Products Electronic Siren Speaker
Whelen LED Lightbar
Whelen LED Warning Lights
Whelen Traffic Directing Lightbar

Exterior Lighting

Whelen LED Scene Lights
Under Cab and Under Body Lights
Vertical Strip LED Compartment Lighting
LED Tailboard Step Lights
DOT Marker Lights
Whelen Tail Lights

Vehicle Dimensions

Overall Height 10' 3"
Overall Length 32' 3"
Wheelbase 199"
Weight with Water 40,230 Lbs.
