Monitor Trucks

Custom built for Shell Chemical Appalachia, LLC — Moncaca, PA

Truck Type :
Cab Type :

Chassis Model

Ford F-250 ¾-Ton Crew Cab Pickup, with 8-Foot Cargo Box
6.2L 2-Valve SOHC V8 Flex Fuel Engine, 6-Speed Automatic Transmission
10,000 lb. GVWR, LT245/75, 17” Tires, 17” x 7.5” Steel Wheels
278” Wheelbase, 140” Overall Height, 102” Overall Width, 48’6” Overall Length
X15 600HP/1850 ft. lb. Diesel Engine -or- Cummins X12, 500HP/1645 ft. lb.
Allison 4000 EVS Generation-5 Automatic Transmission, Touch-Pad Shifter
240-Amp Alternator, 12 Volt System, with Trailer Brakes
Electric Select Shift Transfer Case
Power Fold-Away Trailer Tow Mirrors
40/20/40 Bench Seat
Platform Running board

Fire Pump System

Two (2) Longitudinal Manifold-Feed Waterways, each with:
5” NST LH FM x 5” Storz Adapter, with Storz Cap
5” NST Stainless Steel Male Inlet Fitting
5” Grid style Stainless Steel Strainer
5” I.D. 304-Stainless Steel Tubular Waterway Pipe
5” I.D. Inline “Downstream” Wafer Style One-Way Check Valve

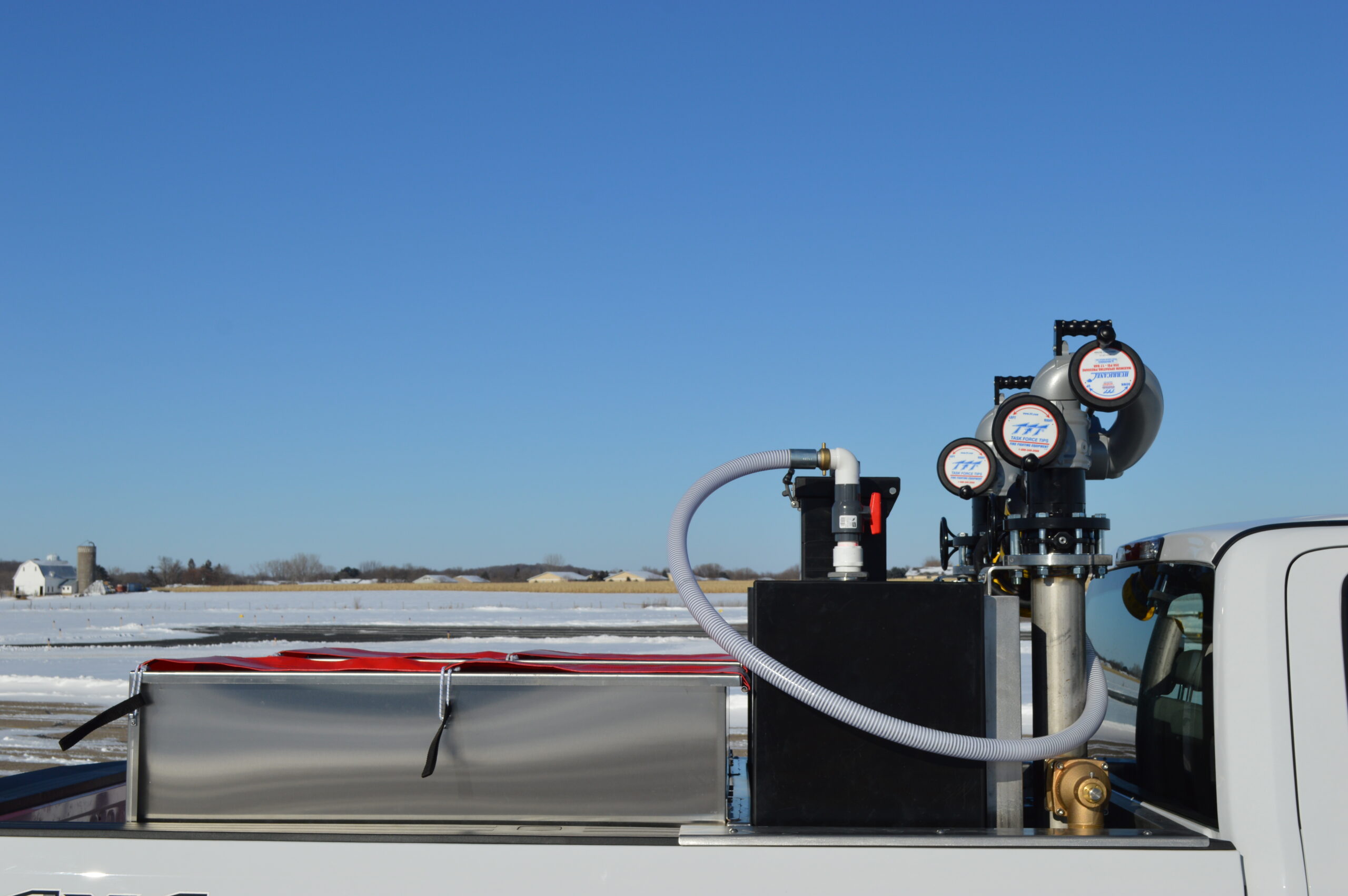

One (1) Transverse Deluge Monitor Feed Manifold, with:
8” I.D. 304-Stainless Steel Tubular Cross-Manifold, with Dome Caps
2-1/2” Bronze Pre-Set Pressure Relief Valve, Discharge to Ground
¾” Bronze ¼-turn Drain Valve
Two (2) 4” I.D. 304 Stainless Steel Vertical Riser Pipes, Outlet Flanged 4” ASA
Two (2) Wafer Style Butterfly Valves, with Hand-Crank Wheel Controls
Two (2) 4” ASA Flanged x 4” Threaded Pipe, to Deluge Appliance Adapters
Two (2) TFT Hurricane Manually Hand Crank Operated 1250-GPM model XF1H-DP1A Monitors
One (1) Elkhart SM-1000HF, 1000-GPM Self-Educting Foam Master Stream Nozzle
One (1) Elkhart SM-1250, 1250-GPM Master Stream Deluge Nozzle
Two (2) Fabricated 304-Stainless Steel LDH Hose Beds
Hose Beds Located, One (1) Overhead Each Longitudinal Waterway
Hose Beds Provided with Vinyl Coated Hose Covers with Bungie Cords and J-Hooks
Hose Cover Weighted End Flaps

Booster Tank

100-Gallon Capacity Foam Concentrate T-Shaped Poly Tank
Drain Sump
Fill Tower with Hinged Lid and Latch
2” I.D. Foam Standpipe (or use with Nozzle Wand)
Foam Vent
