Enclosed Top Mount Pumper

Custom built for Sheboygan Falls Fire Department — Sheboygan Falls, WI

Spartan Chassis, Bolted Stainless Steel Body, Waterous 1500 gpm Pump, Waterous CAFS, FoamPro Dual Agent Foam System, 1000/20/40 Gallon Water and Foam Tanks, Pull-Out and Pull-Out Tip-Down Compartment Trays, Pull-Out Tool Boards, Custom Tool Box, Drop-Down Ladder Rack, Hydraulic Generator, Nightscan Light Tower, LED Emergency Lights

Truck Type :
Cab Type : ,
Deployed : April, 2019

Chassis Model

Spartan Gladiator Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Hinged Compartment Doors

Fire Pump System

Waterous CSUC20 1500gpm Midship Mount Pump
Waterous 200cfm Compressed Air Foam System
FoamPro 3012 Dual Agent Foam System
Waterous Powered Foam Refill System

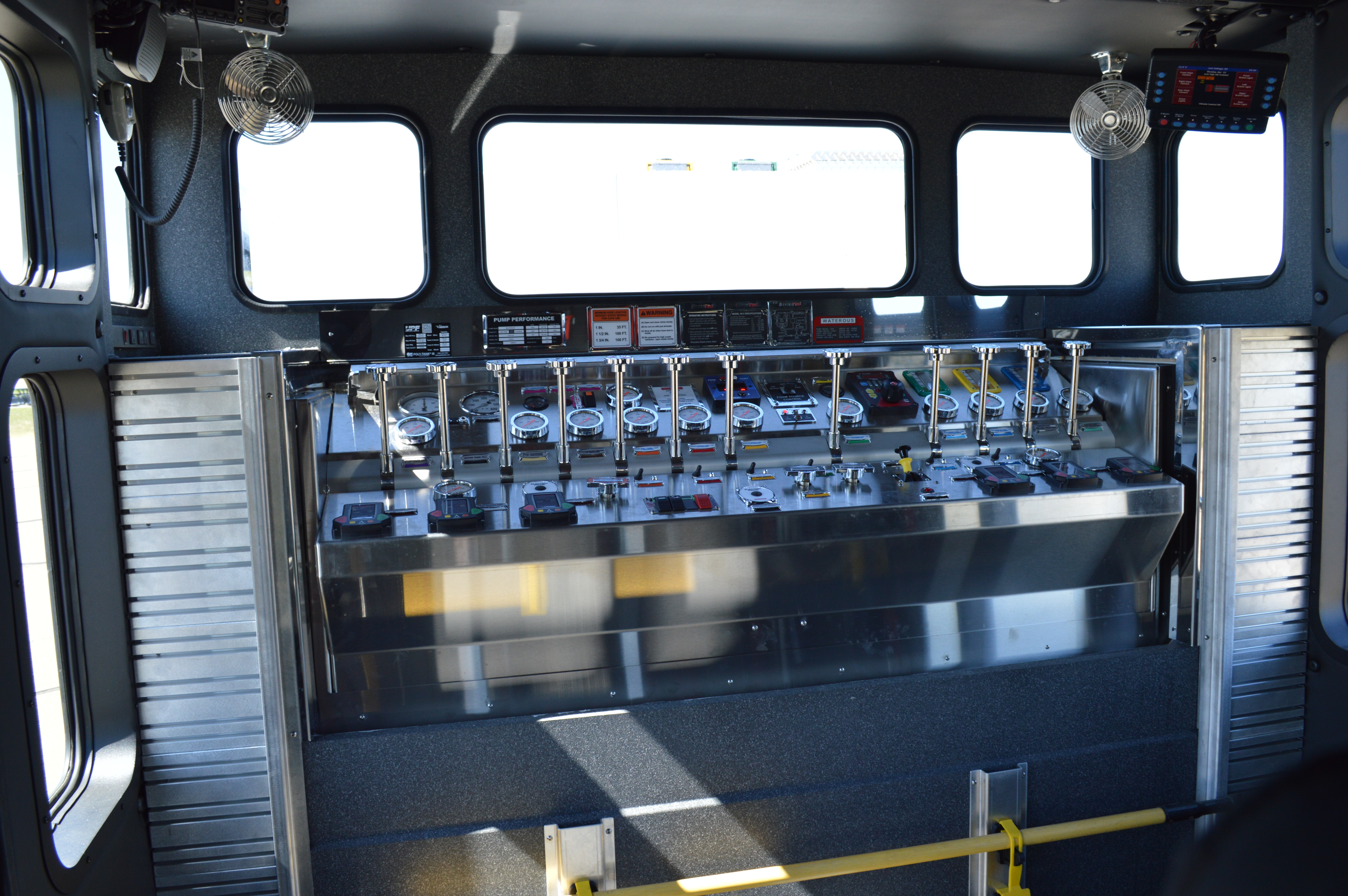

Fire Research PumpBoss Pressure Governor
Waterous Oil-Less Pump Primer
Suction Pre-Primes
Gated 6" Front Suction
Passenger Side 6" Suction
Rear 6" Suction
Driver Side 6" Suction
Passenger Side 2-1/2" and 3-1/2" Discharges
Rear 2-1/2" and LDH Discharges
Driver Side 2-1/2" Discharges
Deluge Discharge
Hose Reel Discharges

Booster Tank

1000-Gallon Water Tank
Foam A Cell Tank
Foam B Cell Tank

Special Features

Front Bumper Extension with Hosewell
Under Body Winch Receivers
Overhead Coffin Style Storage Pods
Adjustable Compartment Shelving
Pull-Out Compartment Trays
Pull-Out Tip-Down Compartment Trays
Pull-Out Tool Boards
Slide-In Suction Hose Storage
Wheel Well SCBA Cylinder Storage
Drop-Down Hydraulic Ladder Rack
Slide-In Folding Tank Sleeve Storage
Swing-out and Down Rear Access Ladder
Harrison 6kW Hydraulic Generator
Power Rewind Electric Cord Reels
Will-Burt Nightscan Light Tower
Light Tower Protective Shroud

Emergency Warning Devices

Federal Q2B Mechanical Siren
Electronic Siren and Speaker
Whelen Freedom LED Lightbar
Whelen LED Warning Lights
Whelen LED Traffic Advisor

Exterior Lighting

Fire Research LED Scene Lights
Vertical Strip LED Compartment Lights
LED Step Lighting
LED Marker Lights
Techniq LED Tail Lighting
Under Cab and Under Body Lights

Vehicle Dimensions

Overall Height 11' 7"
Overall Length 37' 3"
Wheelbase 21' 3"
Weight with Water 45,960 Lbs.
