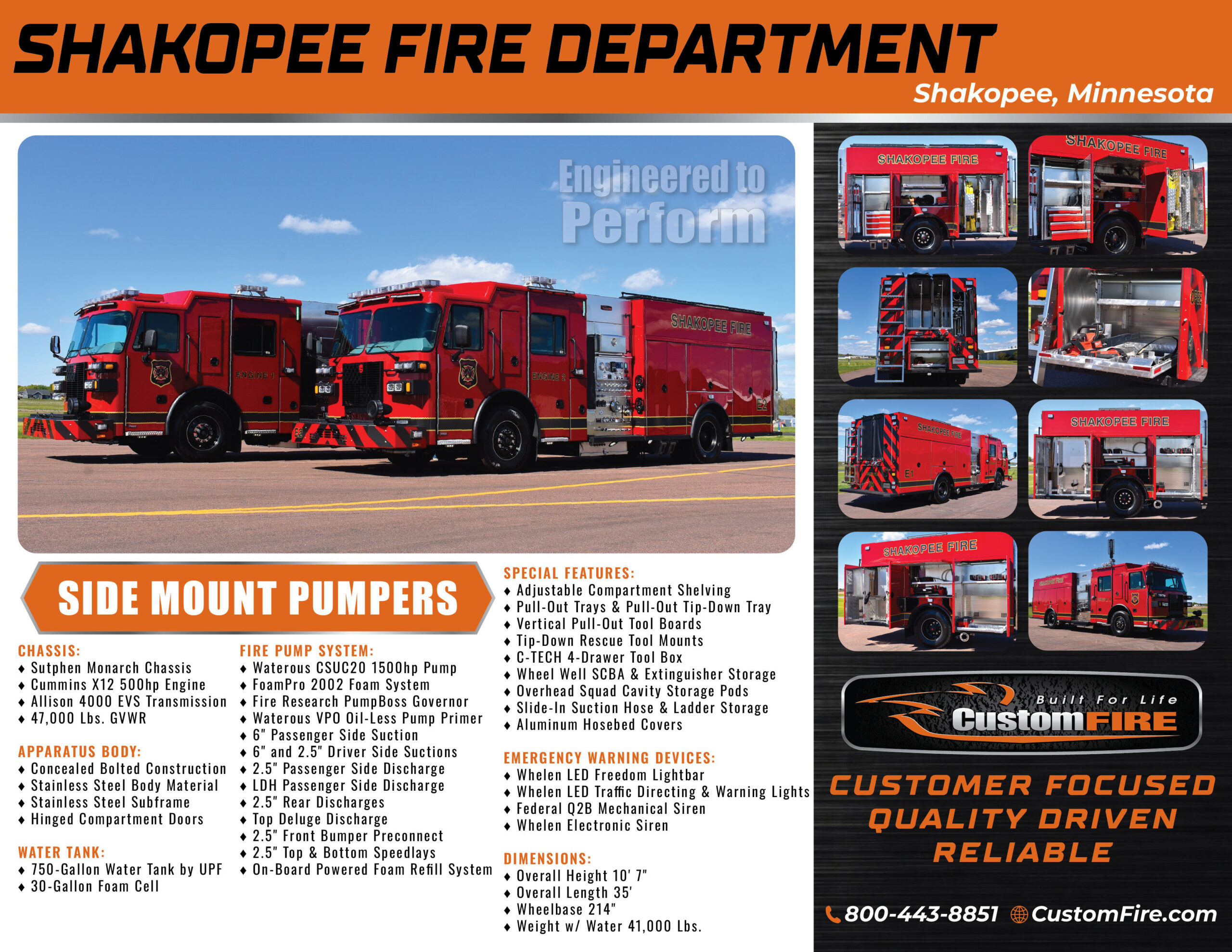

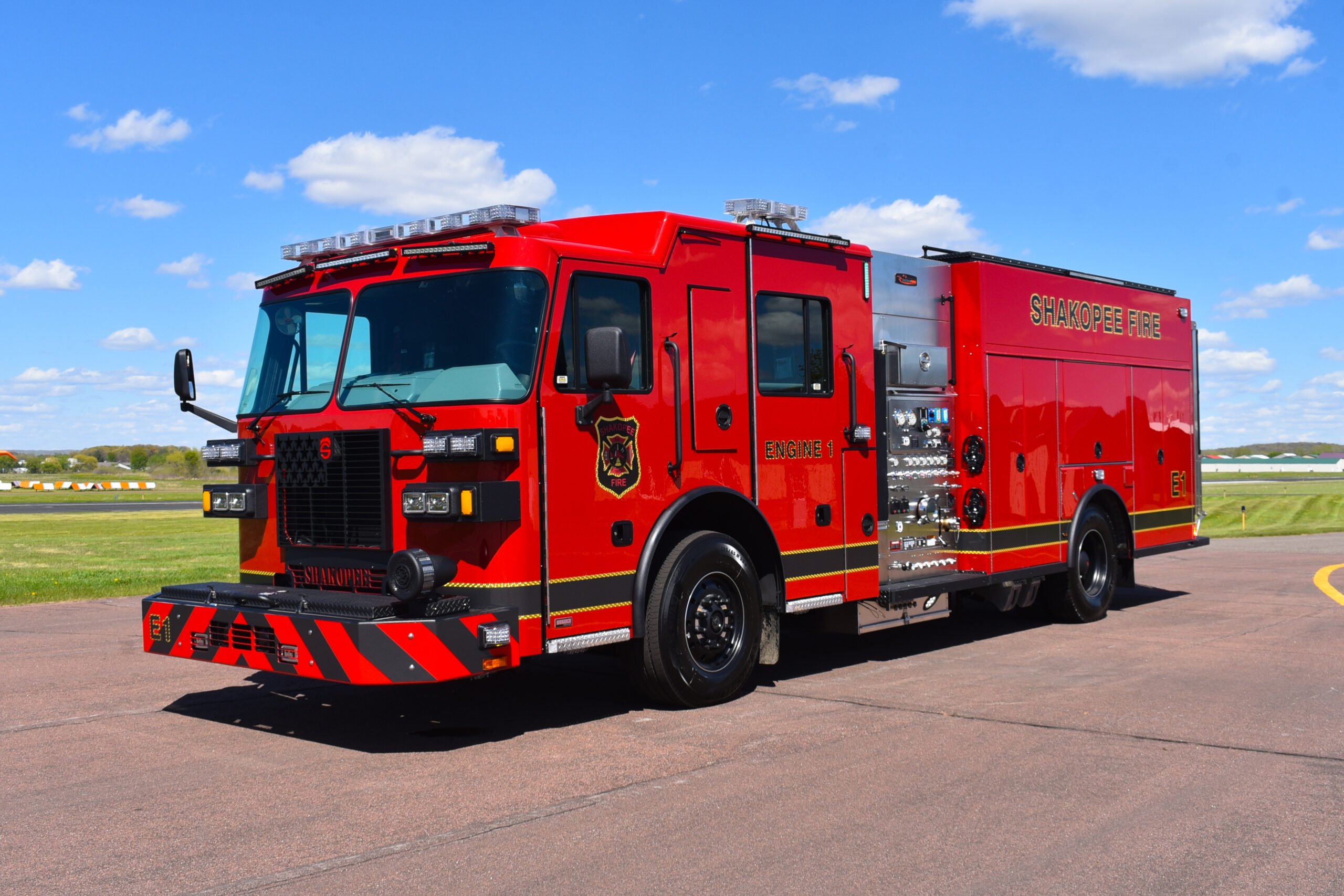

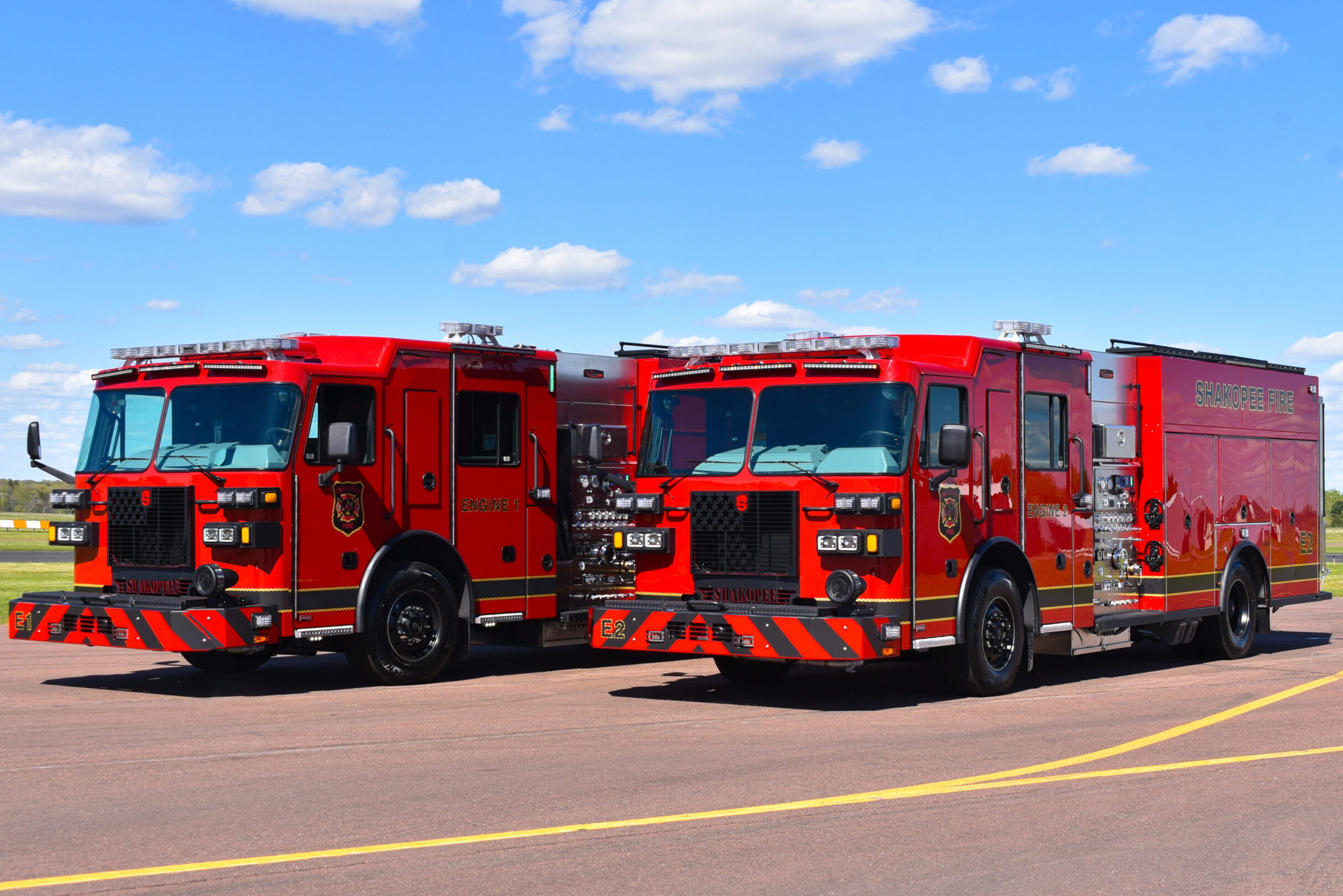

Truck Type : Pumpers
Cab Type : Custom Cab, Side Mount
Deployed : May, 2026

Chassis Model

Sutphen Monarch Chassis
Cummins X12 500hp Engine
Allison 4000 EVS Transmission
47,000 Lbs GVWR

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Hinged Compartment Doors

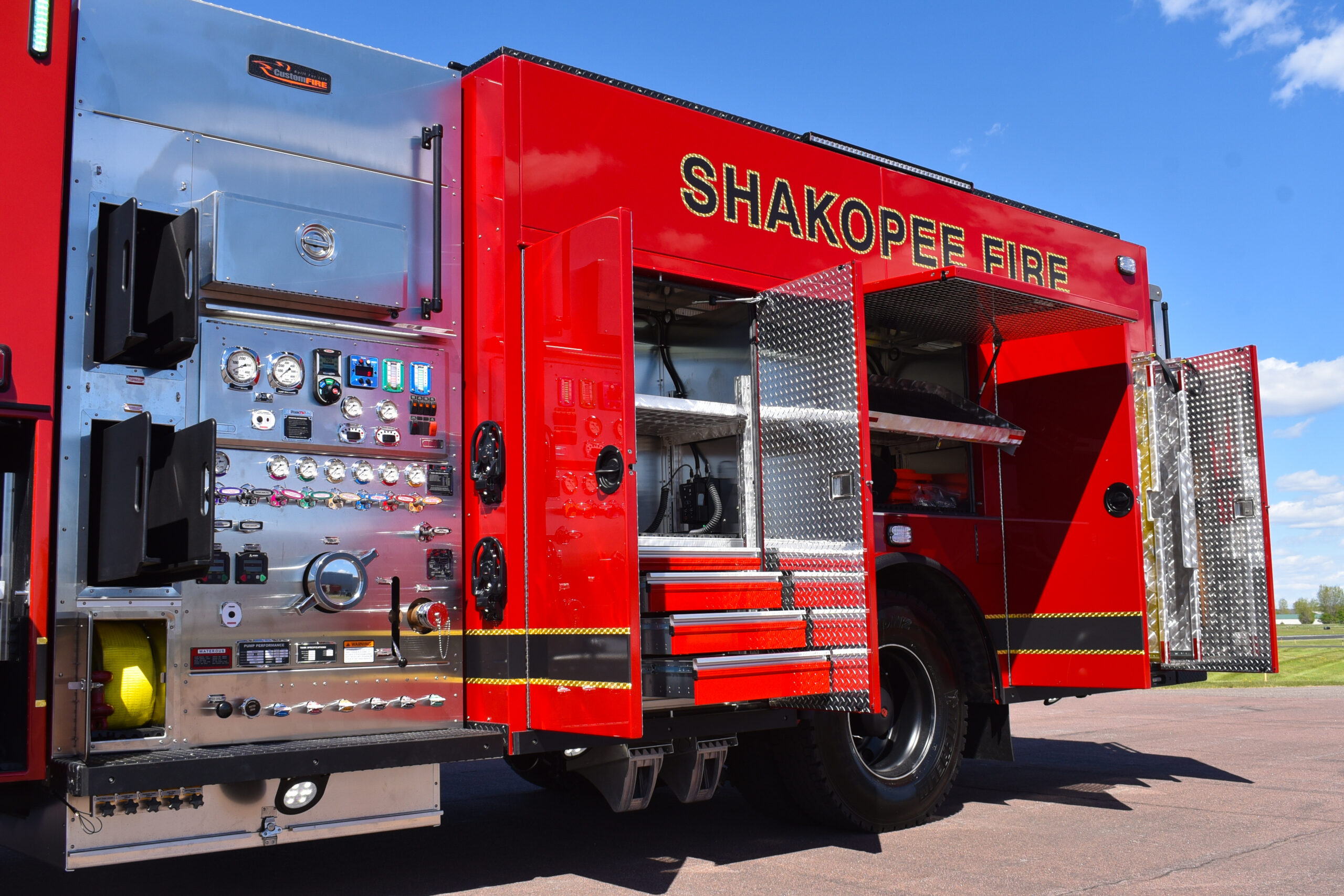

Fire Pump System

Waterous CSUC20 1500hp Fire Pump
FoamPro 2002 Foam System
Fire Research PumpBoss Pressure Governor
Waterous VPO Oil-Less Pump Primer
6" Passenger Side Suction
6" and 2.5" Driver Side Suctions
2.5" and LDH Passenger Side Discharges
2.5" Rear Discharges
Top Deluge Discharge

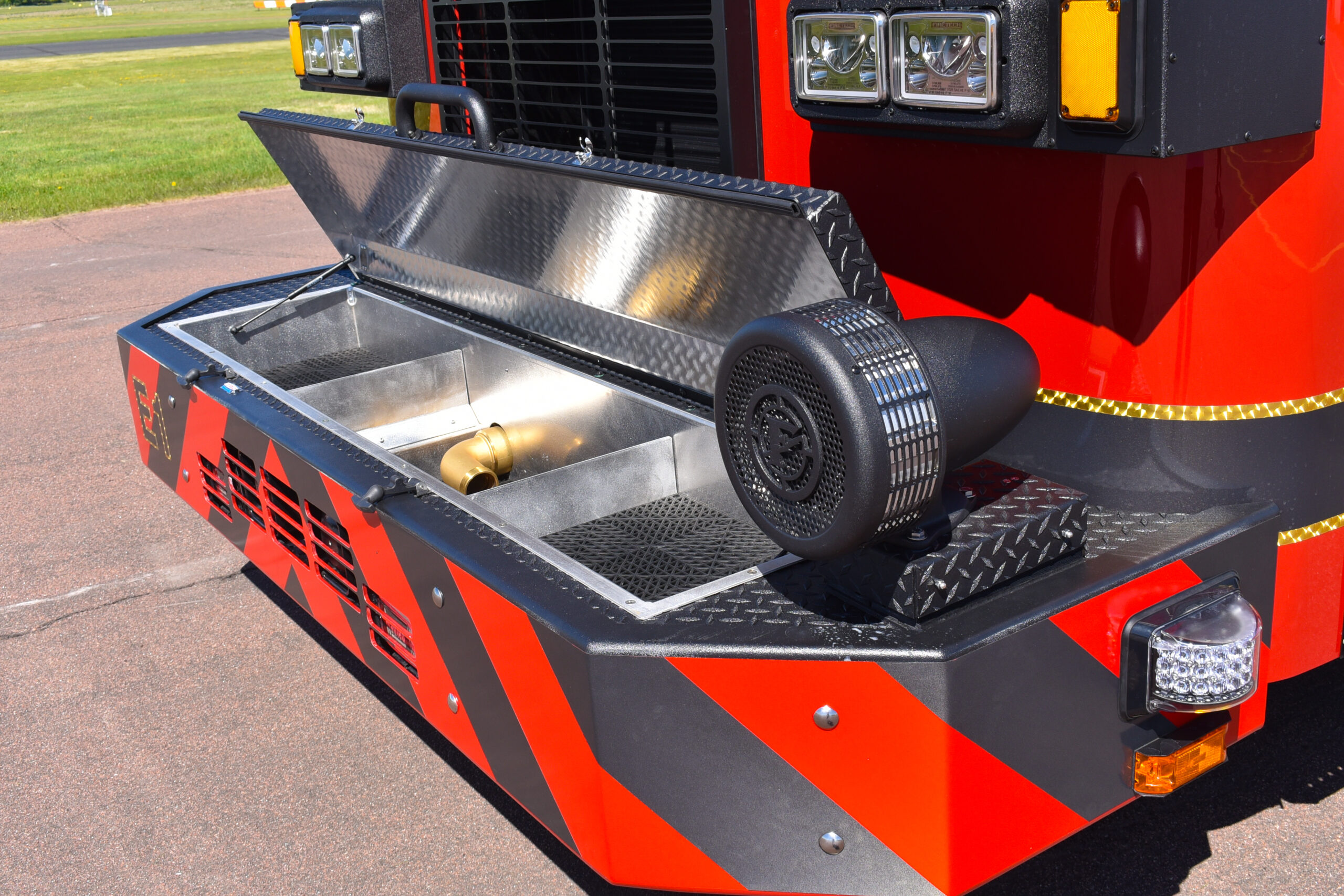

2.5" Front Bumper Preconnect Discharge
2.5" Top and Bottom Speedlay Discharges
On-Board Powered FoamPro Foam Refill System

Booster Tank

750-Gallon Water Tank by UPF
30-Gallon Foam Cell

Special Features

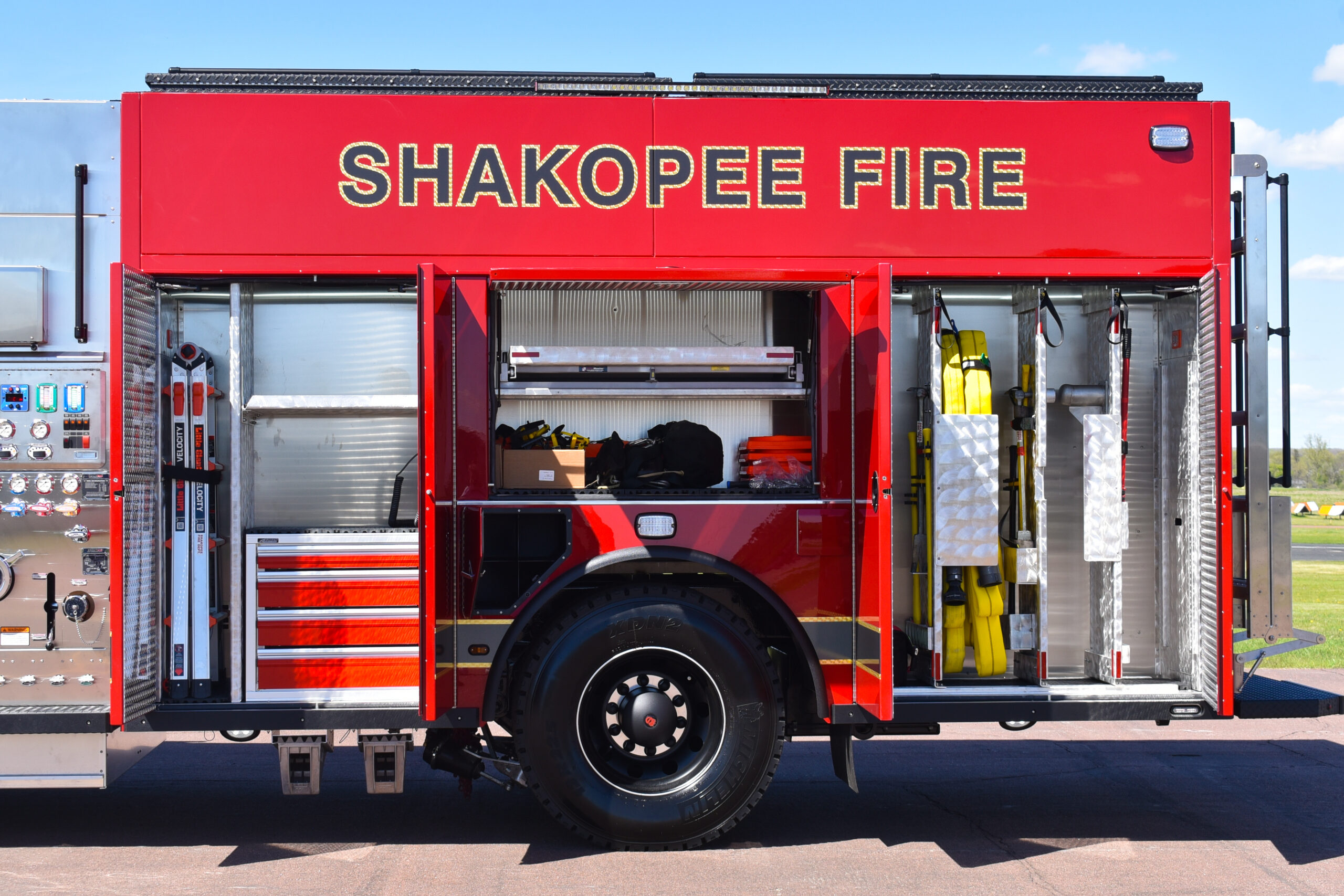

Adjustable Compartment Shelving
Pull-Out Compartment Trays
Pull-Out Tip-Down Compartment Tray
Vertical Pull-Out Tool Boards
Tip-Down Rescue Tool Mounts
C-TECH 4-Drawer Tool Box
Wheel Well SCBA Cylinder & Extinguisher Storage
Overhead Squad Cavity Storage Pods
Removeable Speedlay Hosebeds
Slide-In Suction Hose Storage
Slide-In Ladder and Pike Pole Storage
Rear Folding Steps
Aluminum Hosebed Covers

Emergency Warning Devices

Whelen LED Freedom Lightbar
Whelen LED Traffic Directing Lights
Whelen LED Warning Lights
Federal Q2B Mechanical Siren
Whelen Electronic Siren
Cast Products Siren Speaker

Exterior Lighting

Under Cab and Under Body Lighting
Pump Panel LED Strip Lighting
Vertical Strip Compartment Lighting
Walkway and Step LED Lighting
LED Marker Lights
Whelen LED Tail Lighting
Fire Tech LED Scene Lighting
Whelen Flood Lighting

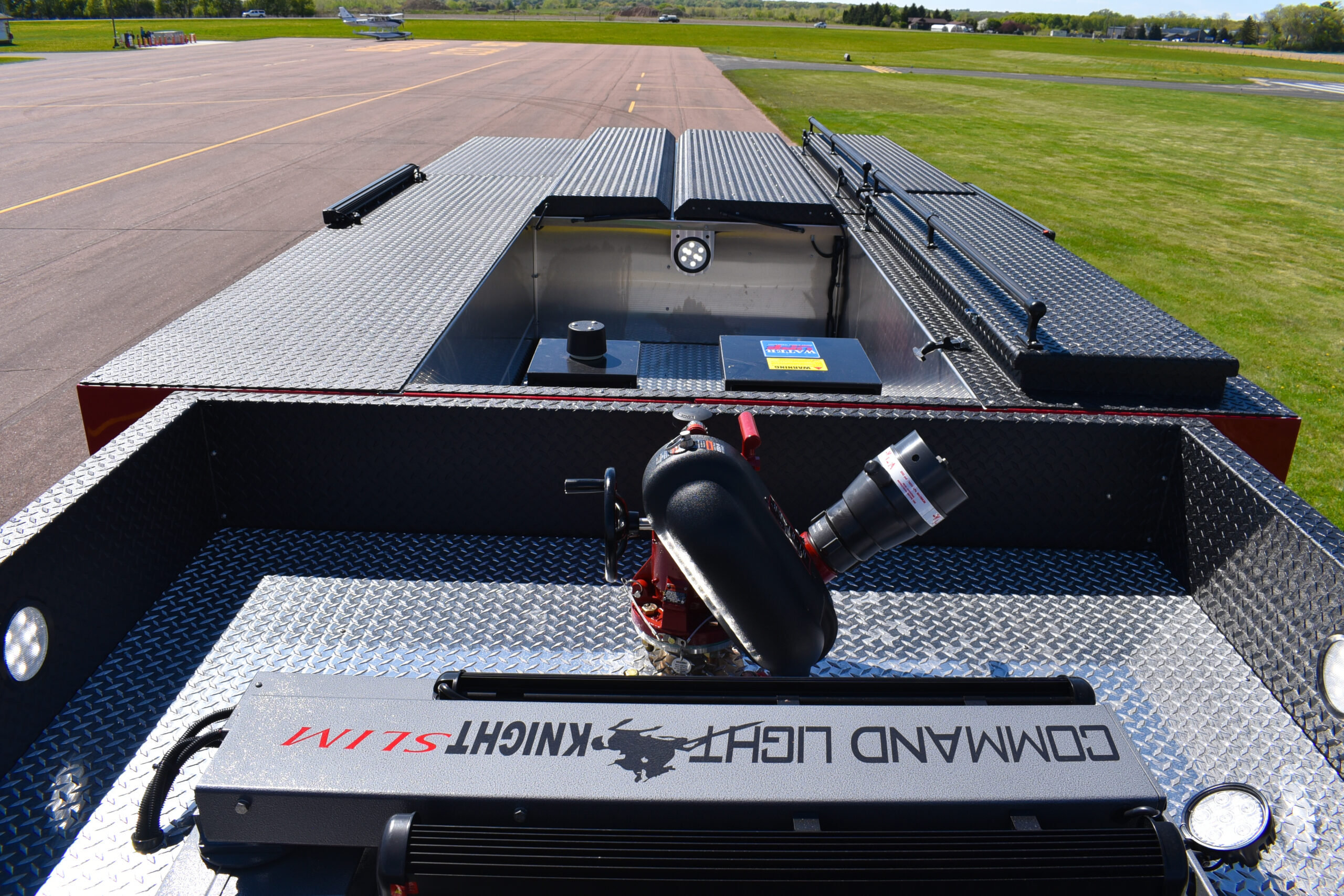

Command Light Knight 2 800w Light Tower
Review Camera and Monitor

Vehicle Dimensions

Overall Height 10' 7"
Overall Length 35'
Wheelbase 214"
Weight w/ Water 41,000 Lbs.
