Truck Type : Pumpers
Cab Type : Custom Cab, Enclosed Top Mount
Deployed : October, 2019

Chassis Model

Spartan MetroStar Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CSUC20 1500gpm Midship Pump
FoamPro 2001 Single Agent Foam System

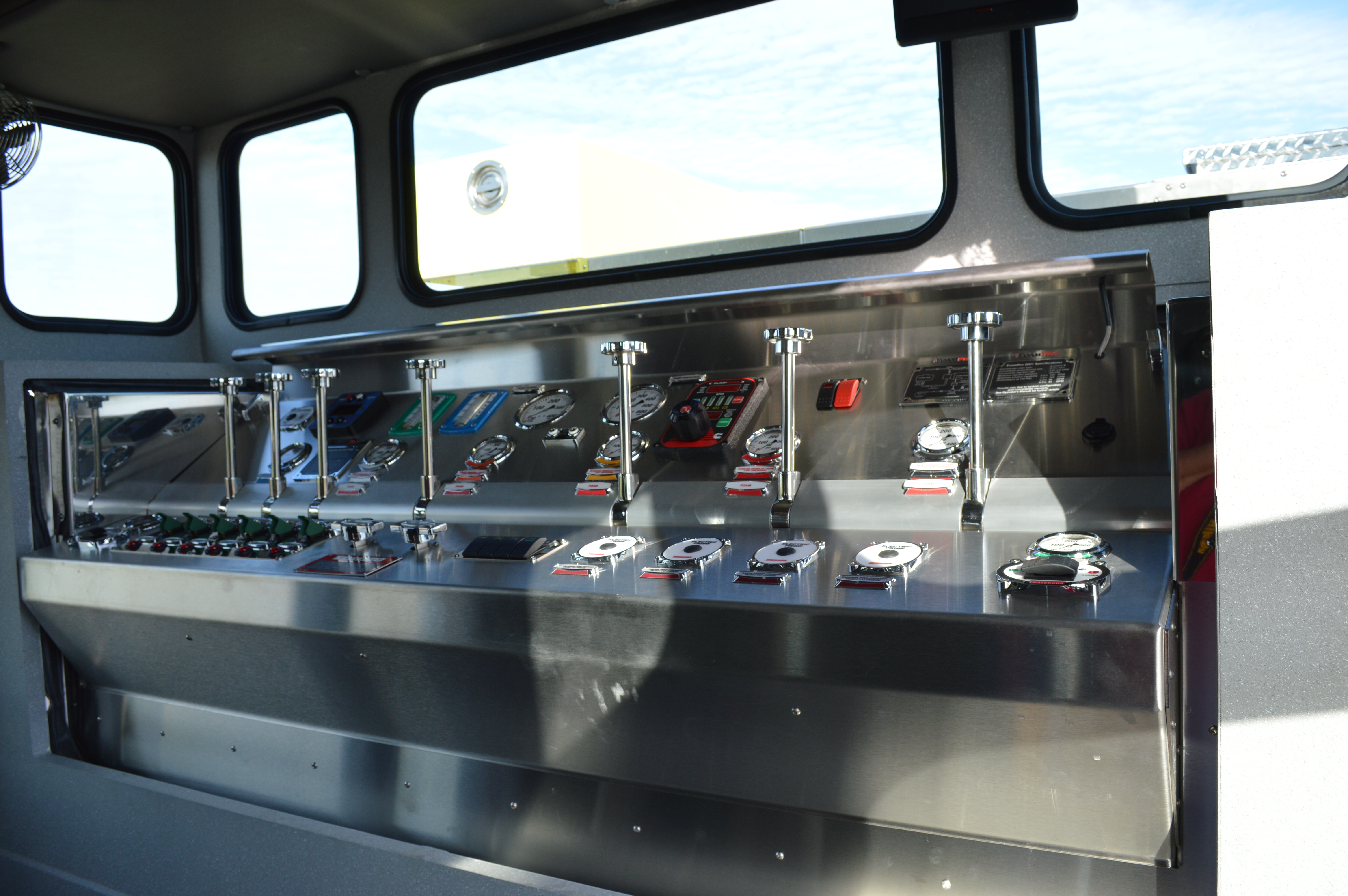

Interior Pump Control Panel
Waterous Oil-Less Pump Primer
Fire Research PumpBoss Pressure Governor
Suction Pre-Primes
Passenger Side 6" and 2-1/2" Suctions
Rear 6" Suction
Driver Side 6" and 2-1/2" Suctions
Front Bumper 2-1/2" Preconnect Discharge
Forward and Rearward 2-1/2" Crosslay Discharges
Passenger Side 2-1/2" and 4" Discharges
Rear 2-1/2" Discharges
Driver Side 4" Discharge

Booster Tank

1250-Gallon Water Tank by Pro-Poly
20-Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewell
Interior Cab Overhead Cabinets
Stacked Crosslay Hosebeds with Hinged Cover
On-Board Powered Foam Refill System
Pull-Out Platform Steps
Adjustable Compartment Shelving
Pull-Out Compartment Trays
Pull-Out Tool Boards
Wheel Well SCBA Cylinder Storage
Wheel Well Floor Dry Hopper Compartment
Hydraulic Drop-Down Ladder Rack
Suction Hose Storage in Ladder Rack
Overhead Storage Pods with Lift-Up Lids
Encapsulated Roll-Up Door Protection
Aluminum Hosebed Covers
Rear Observation System
Harrison Hydraulic Generator
Power Rewind Electric Cord Reels

Emergency Warning Devices

Federal Q2B Mechanical Siren
Electronic Siren and Speaker
Whelen LED Lightbar
Whelen Traffic Advisor

Exterior Lighting

Whelen LED Front Scene Lights
ROM Vertical Strip LED Compartment Lights
LED Marker Lights
Whelen LED Tail Lighting
Under Cab and Under Body Lights
LED Scene Lights

Vehicle Dimensions

Overall Height 10' 5"
Overall Length 33' 6"
Wheelbase 16' 7"
Weight 34,130 Lbs.
