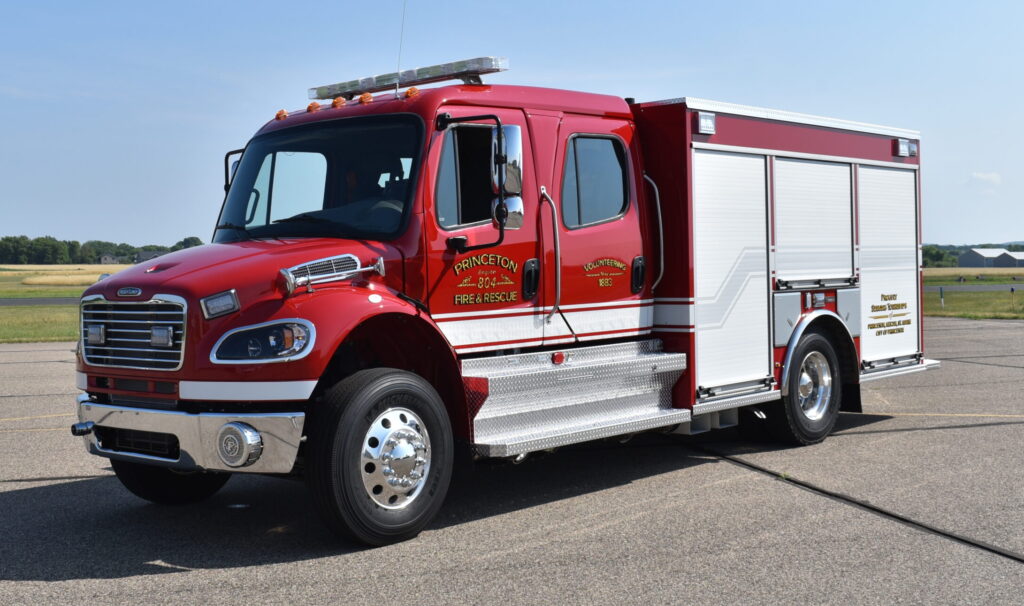

Princeton Rear Mount Pumper

Custom built for Princeton Fire and Rescue Department — Princeton, WI

*Please note: Sales drawing may not be up to date and reflect the latest changes*

Truck Type :
Cab Type :

Chassis Model

Freightliner M2 106 Conventional Chassis
Cummins L9 360EV HP Engine
Allison 3000 EVS Transmission
35,000 Lbs GVWR

Apparatus Body

Concealed Bolted Construction
Aluminum Body
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous S-100D 1500 GPM Rear Centerline Mounted Pump
FoamPro 1600 Foam System
Fire Research PumpBoss Pressure Governor
Trident Air Oil-Less Auto Primer
2.5" Rear Suction
2.5" Front Bumper Discharge
2.5" Rear Driver Side Discharge
2.5" and 4" Rear Passenger Side Discharge
Top Deluge Discharge

Booster Tank

650 Gallon Water Tank
30 Gallon Foam Tank

Special Features

Running Board Hose Reel Enclosure
Chassis Rear Wall Storage
Removable Speedlay Hosebeds
Speedlay Swing-Out Hose Roller Guides
Electric Rewind Hose Reel
Wheel Well SCBA Storage
Slide-In Ladder Compartment
Encapsulated Roll-Up Door Protection
Adjustable Shelving
Pull-Out Compartment Trays
Over Wheels Compartments
ProVision Rear View Camera

Emergency Warning Devices

Ecco Back-Up Alarm
Whelen Edge Ultra Freedom IV LC LED Lightbar
TecNiq LED Red and Blue Warning Lights
Whelen Electronic Siren
Federal Q2B Mechanical Siren

Exterior Lighting

LED Marker Lighting
TecNiq LED Stop/Tail, Turn, and Back-up Lights
Under Cab and Underbody LED Lighting
Whelen Pioneer Plus LED Flood/Spot Lighting
