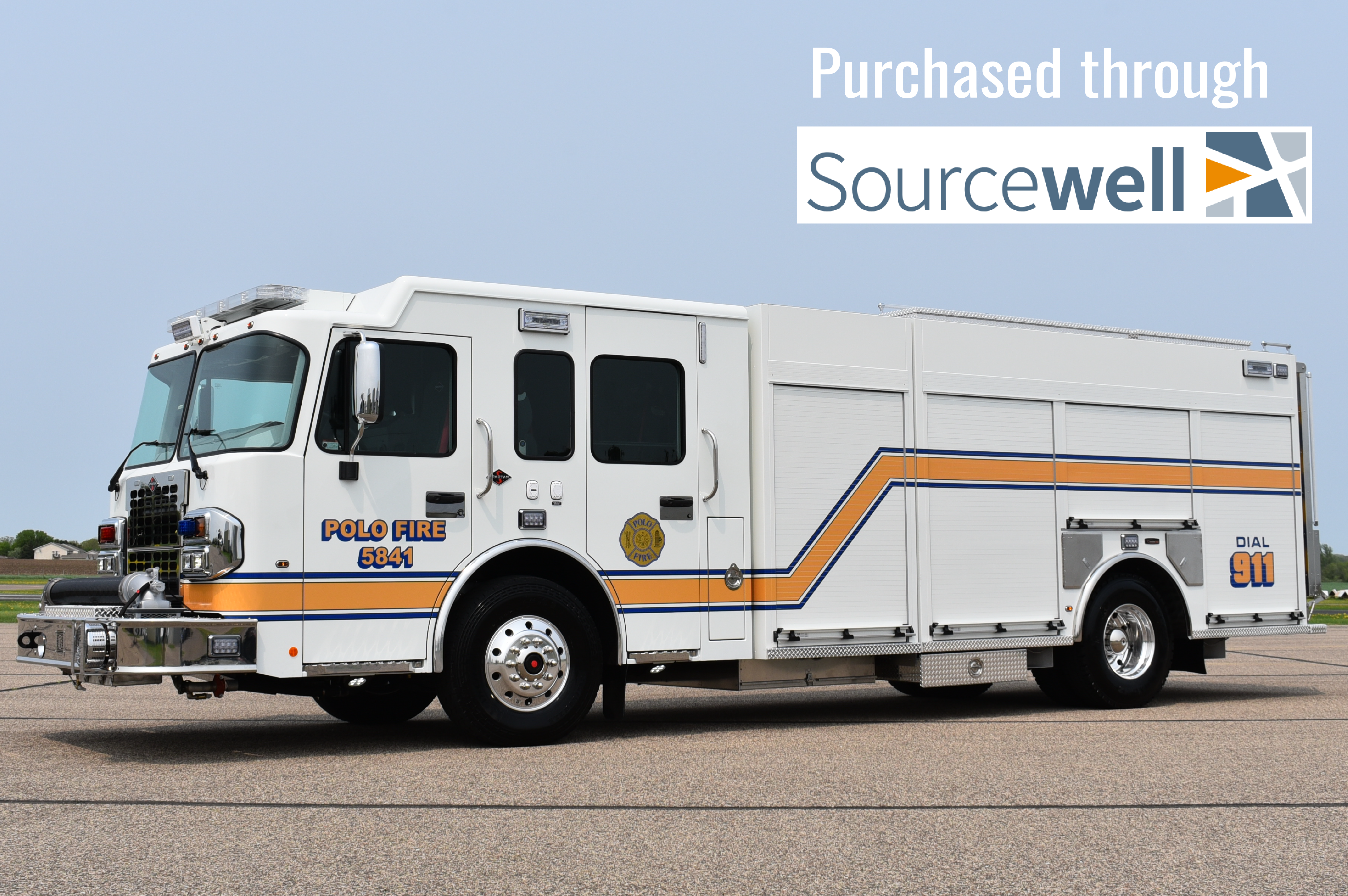

Truck Type : Pumpers, Sourcewell Deliveries
Cab Type : Custom Cab, Side Mount

Chassis Model

Spartan Metro Star Chassis
Cummins L9 380hp Engine
Allison 3000 EVS Transmission
47,000 Lbs. GVWR

Apparatus Body

Concealed Bolted Construction
Aluminum Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CSUC20 2000gpm Midship Mounted Pump
FoamPro 2001 Class A Foam System
Trident Air Pump Primer
Fire Research PumpBoss Pressure Governor
Suction Pre-Primes
6" Front Suction Discharge
6" and 2.5" Passenger Side Suctions
6" Driver Side Suction
Front Bumper 2" Discharge
Top and Bottom 2" Speedlay Discharges
2.5" and LDH Passenger Side Discharges
2.5" Hosebed Discharge
Top Deluge Discharge with Task Force Tips Nozzle

Booster Tank

750-Gallon Poly Water Tank by UPF
20-Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewell & Cover

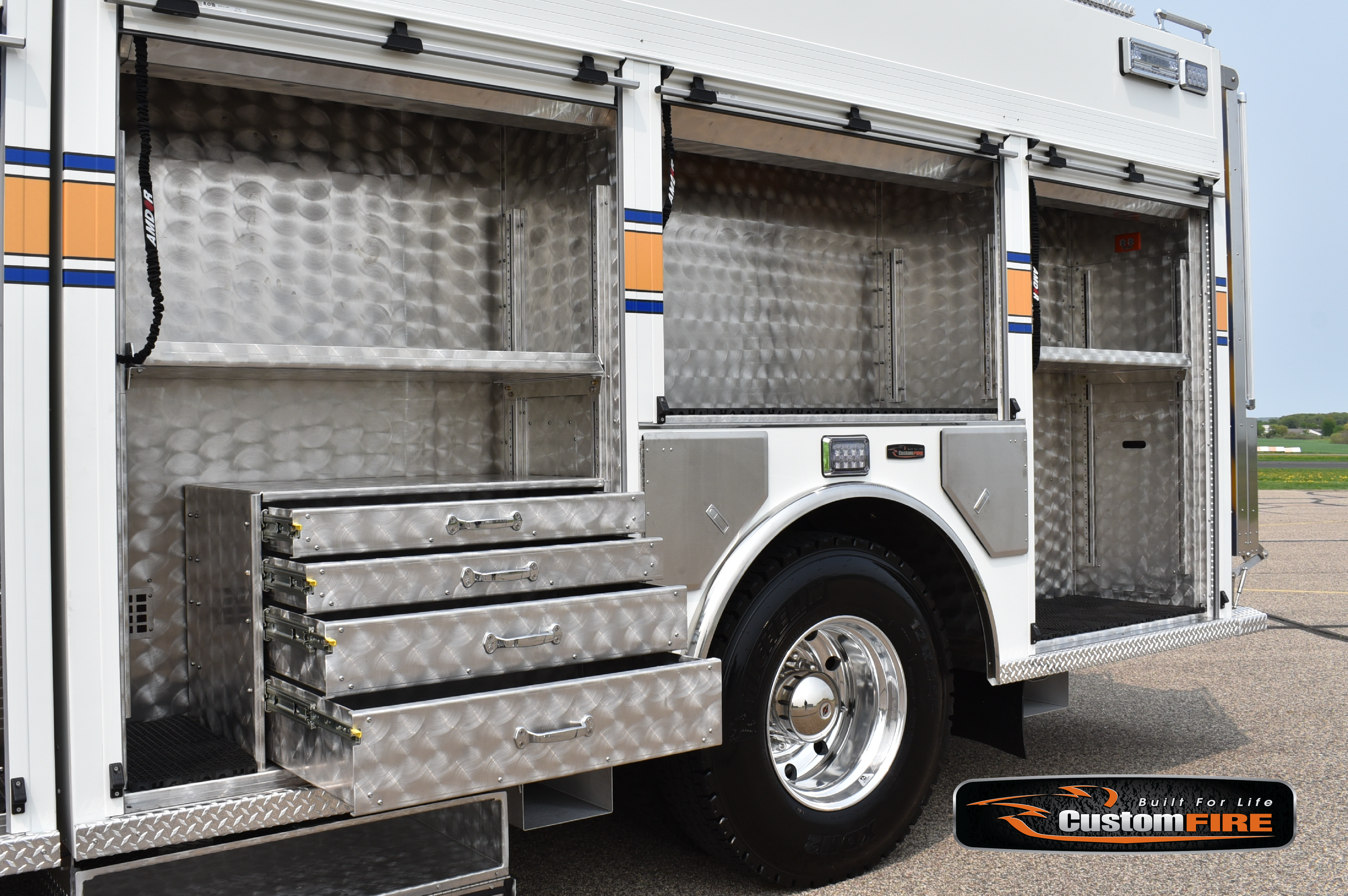

Adjustable Compartment Shelving
Custom 4-Drawer Tool Box
Pull-Out Compartment Tray
Pull-Out Tip-Down Compartment Tray
Wheel Well SCBA Cylinder Storage
Under Body Folding Wheel Chock Storage
Slide-In Ladder and Pike Pole Storage
Top of Body Coffin Storage Pods
Encapsulated Roll-Up Door Protection
Roll-Up Door Pull-Down Straps
Adjustable Hosebed Dividers
Aluminum Hinged Hosebed Covers
Swing-Out and Down Rear Access Ladder
Rear View Camera

Emergency Warning Devices

Whelen LED Lightbar
Whelen LED Traffic Advisor
Federal Q2B Electro Mechanical Siren
Hadley Air Horns
Federal Signal Electronic Siren Speaker
TecNiq LED Warning Lights

Exterior Lighting

Fire Research Scene Lights
LED Marker Lights
Techniq LED Tail Lights
Under Cab and Under Body Lighting
Fire Research LED Scene Lights

Vehicle Dimensions

Overall Height 10' 3"
Overall Length 35' 2"
Wheelbase 17' 10"
GVWR 47,000 Lbs.
