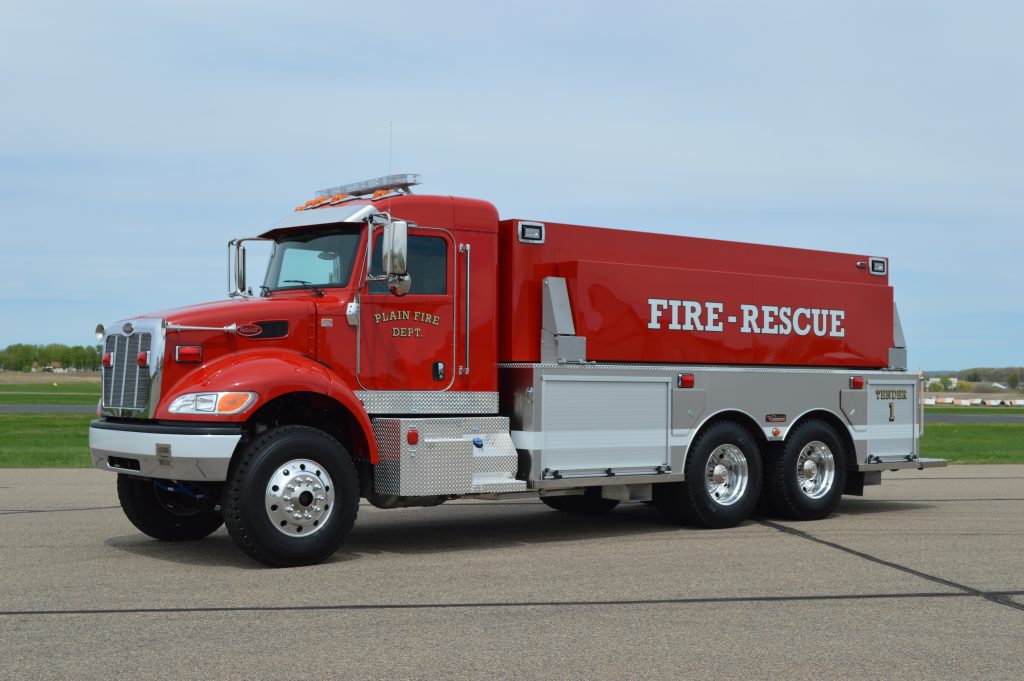

3000-Gallon Tender

Custom built for Plain Fire Department — Plain, WI

Peterbilt Chassis, Aluminum Body, Waterous 1000gpm Pump, 3000-Gallon Tank, Rear Tank Dump, Drop-Down Portable Tank Storage, Drop-Down Ladder and Suction Hose Storage, LED Warning Lights

Truck Type :
Cab Type : ,
Deployed : May, 2018

Chassis Model

Peterbilt 348 Chassis
Paccar PX-9 450hp Engine
Allison 3000 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Aluminum Body Material
Stainless Steel Subframe

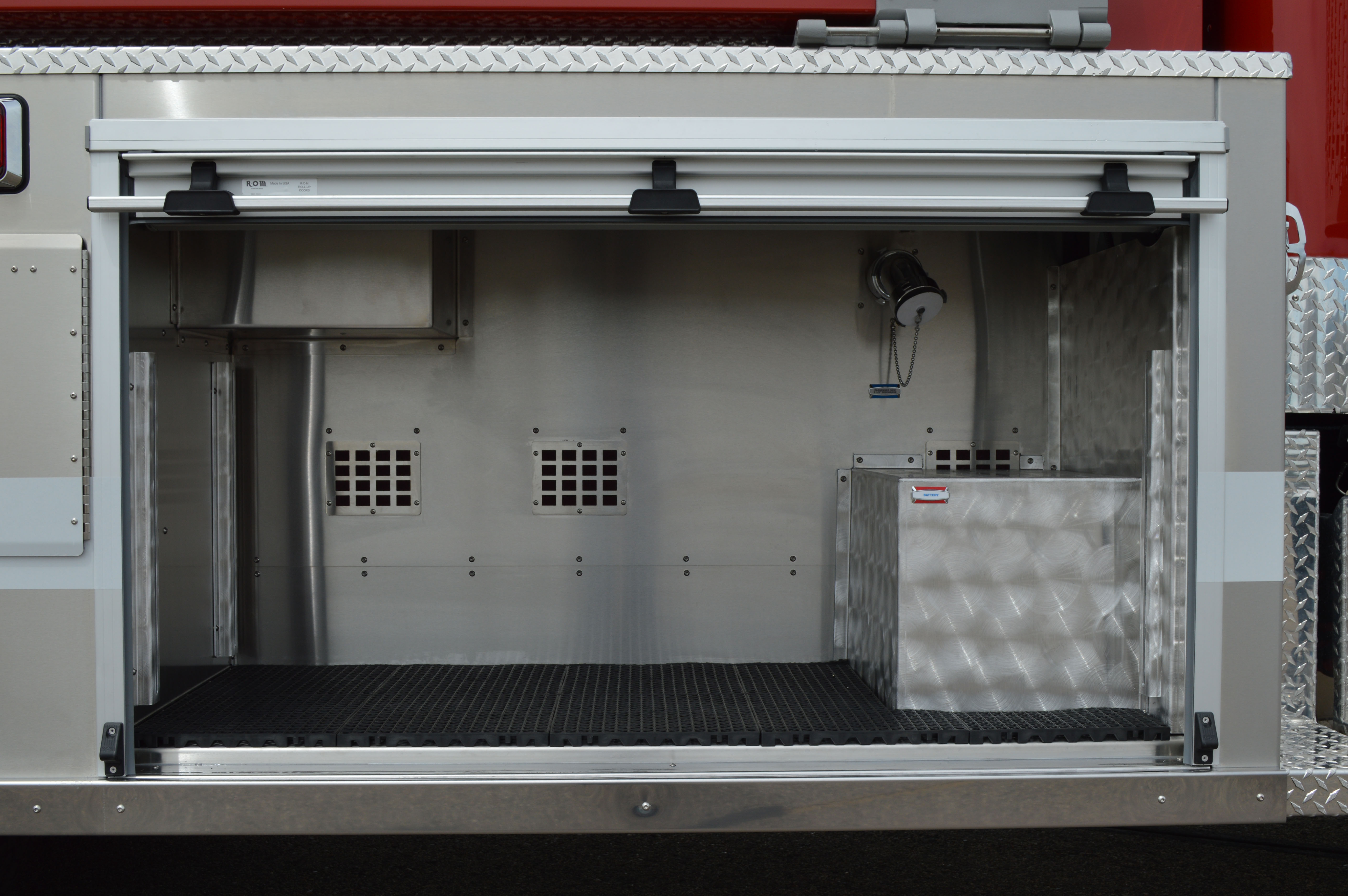

Roll-Up Compartment Doors

Fire Pump System

Waterous CXVPA 1000gpm Midship Pump
Fire Research PumpBoss Pressure Governor
Waterous VPO Oil-Less Pump Primer
Driver Side 6" Suction
Passenger Side 2-1/2" Discharge
Rear LDH Discharge
Driver Side 2-1/2" Discharge

Booster Tank

3000-Gallon Poly Water Tank
Rear Tank Dump

Special Features

Drop-Down Portable Tank Storage
Slide-In Suction Hose and Strainer Storage
Wheel Well SCBA Cylinder Storage
Hard Suction Hose Trough
Drop-Down Ladder and Suction Hose Storage
Rear Observation System

Emergency Warning Devices

Grover Air Horns
Whelen Electronic Siren and Speaker
Whelen LED Lightbar
Whelen LED Traffic Advisor
Whelen LED Warning Lights

Exterior Lighting

LED Marker Lights
Whelen LED Tail Lights
LED Compartment Lights
Under Body and Under Cab Lighting

Vehicle Dimensions

Overall Height 10' 7"
Overall Length 30' 3"
Wheelbase 17' 4"
Weight with Water 49,110 Lbs.
