Truck Type : Pumpers
Cab Type : Commercial Cab, Rear Mount
Deployed : December, 2025

Chassis Model

Freightliner M2 106 Chassis
Cummins L9 360EV HP Engine
Allison 3000 EVS Transmission
51,080 Lbs. GVWR

Apparatus Body

Concealed Bolted Construction
Aluminum Body Material
Stainless Steel Subframe
Roll-Up Style Compartment Doors

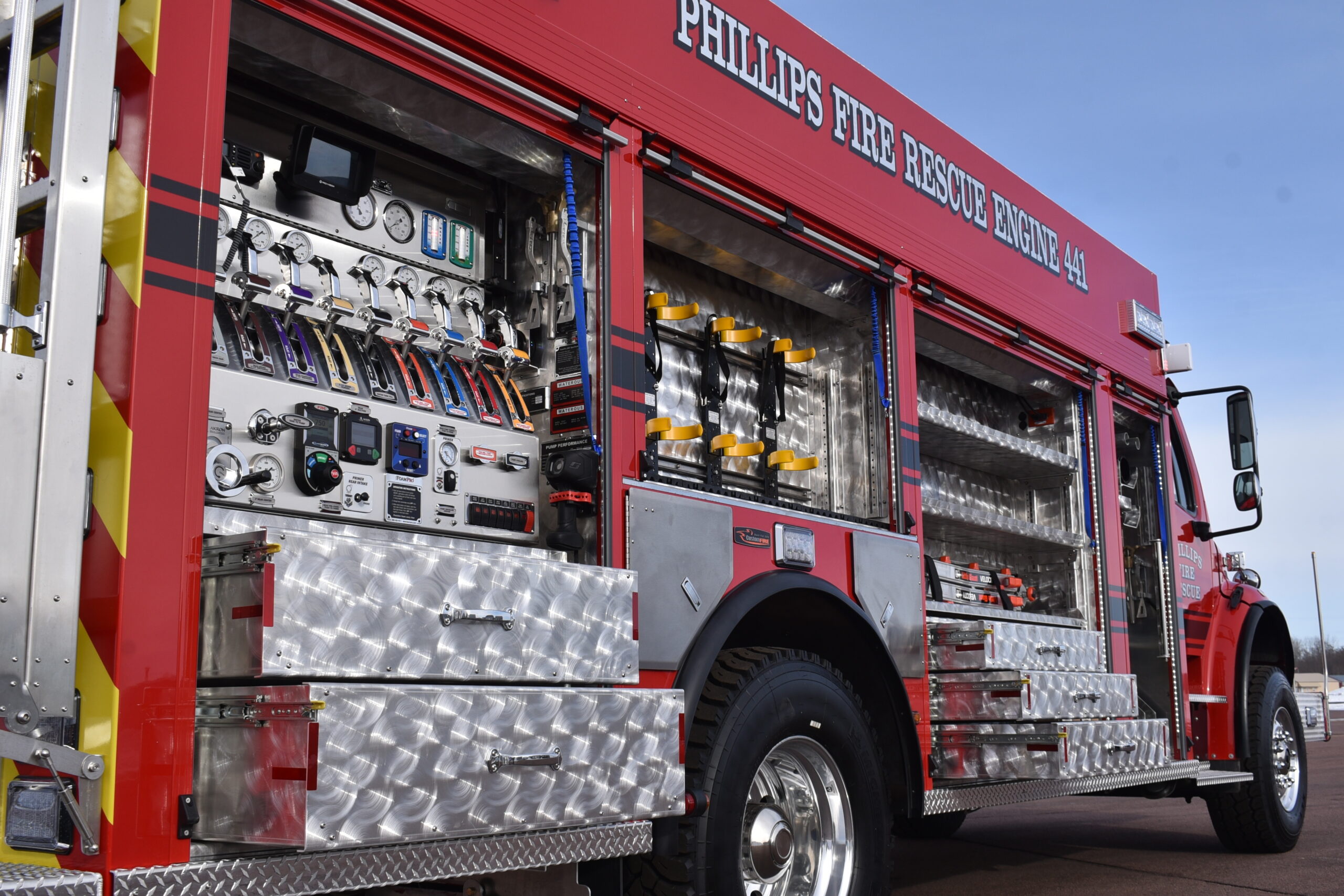

Fire Pump System

Waterous ESU-1 1500gpm Rear Mounted Fire Pump
FoamPro 2001 Class A Foam System
Trident Air Pump Primer
Fire Research PumpBoss Pressure Governor
Foam Refill System
6" and 2.5" Rear Suctions
2.5" Front Bumper Discharge
2.5" and LDH Rear Discharges
Top Deluge Discharge w/ Akron Monitor
Hose Reel 1" Discharge
2" Forward and Rearward Speedlay Discharges

Booster Tank

1500-Gallon Poly Water Tank
30-Gallon Foam Cell

Special Features

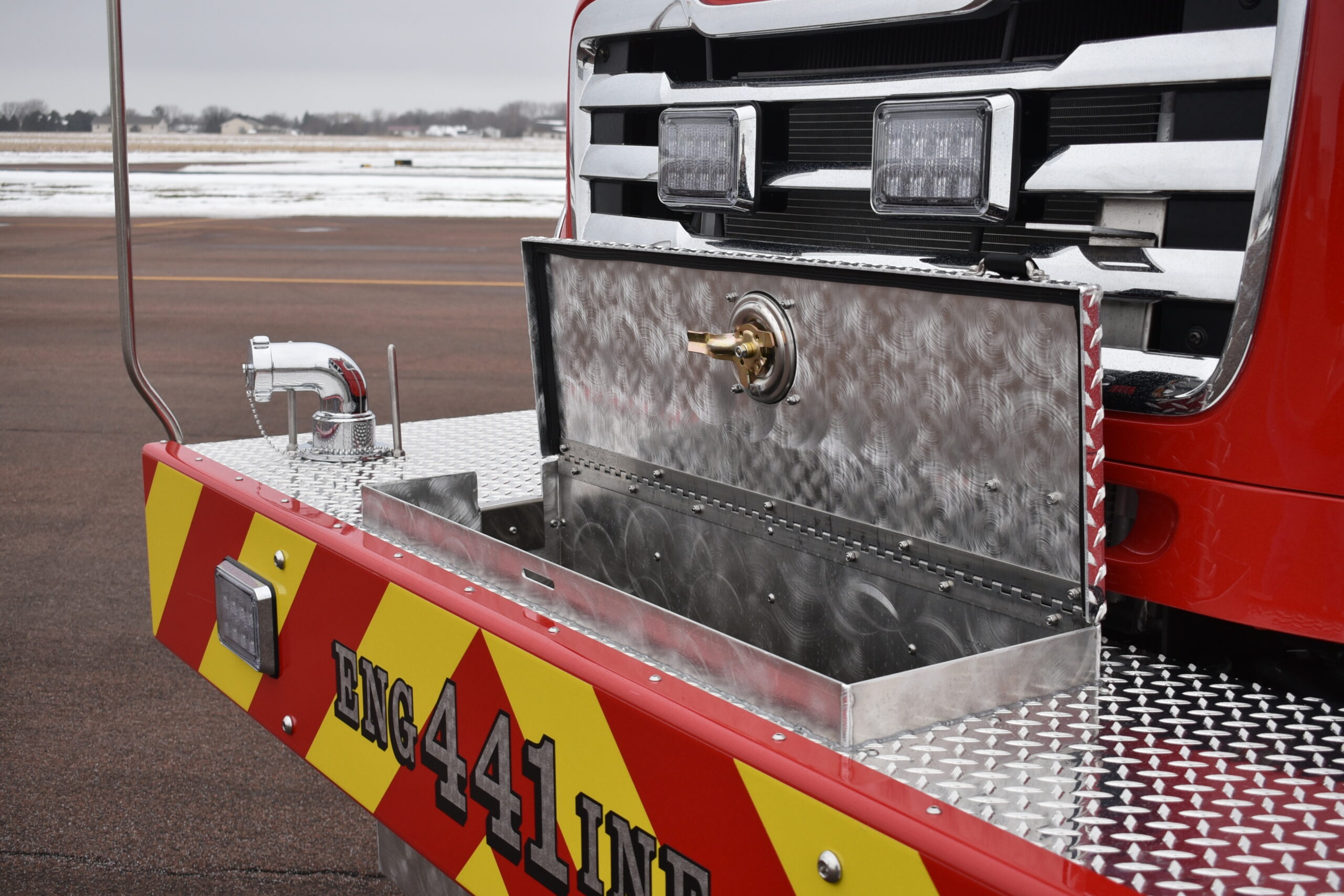

Front Bumper Extension w/ Hosewell
Removable Speedlay Hosebeds

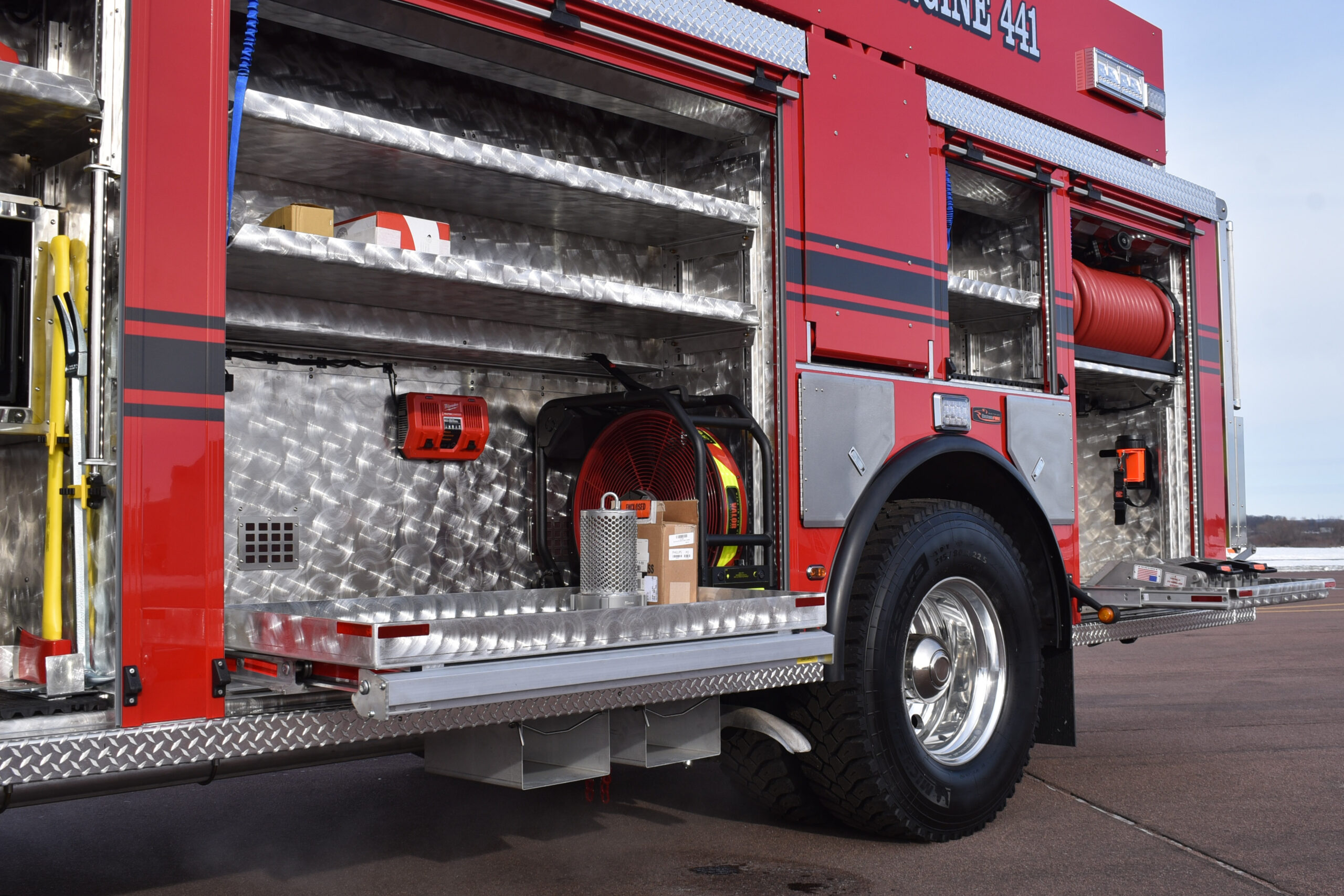

Adjustable Compartment Shelving
Pull-Out Compartment Trays
Custom 4-Drawer Tool Box
Wheel Well SCBA Cylinder & Fire Extinguisher Storage
Transverse Sleeve Storage
Slide-In Suction Hose Sleeve Compartment
Drop-Down Ladder Rack
Encapsulated Roll-Up Door Protection
Swing-Out and Down Rear Access Ladder
Rear View Camera and Monitor

Emergency Warning Devices

Whelen Edge LED Lightbar
TecNiq LED Emergency Lighting
LED Traffic Directing Lights
Federal EQ2B Electronic Siren & Speaker

Exterior Lighting

LED Door Track Compartment Lighting
LED Marker Lights
Under Body and Under Cab Lights
Whelen LED Scene Lighting
Fire Research Telescoping LED Scene Lights

Vehicle Dimensions

Overall Height 10' 4"
Overall Length 30' 6"
Wheelbase 209"
Weight w/ Water 38,480 Lbs.
