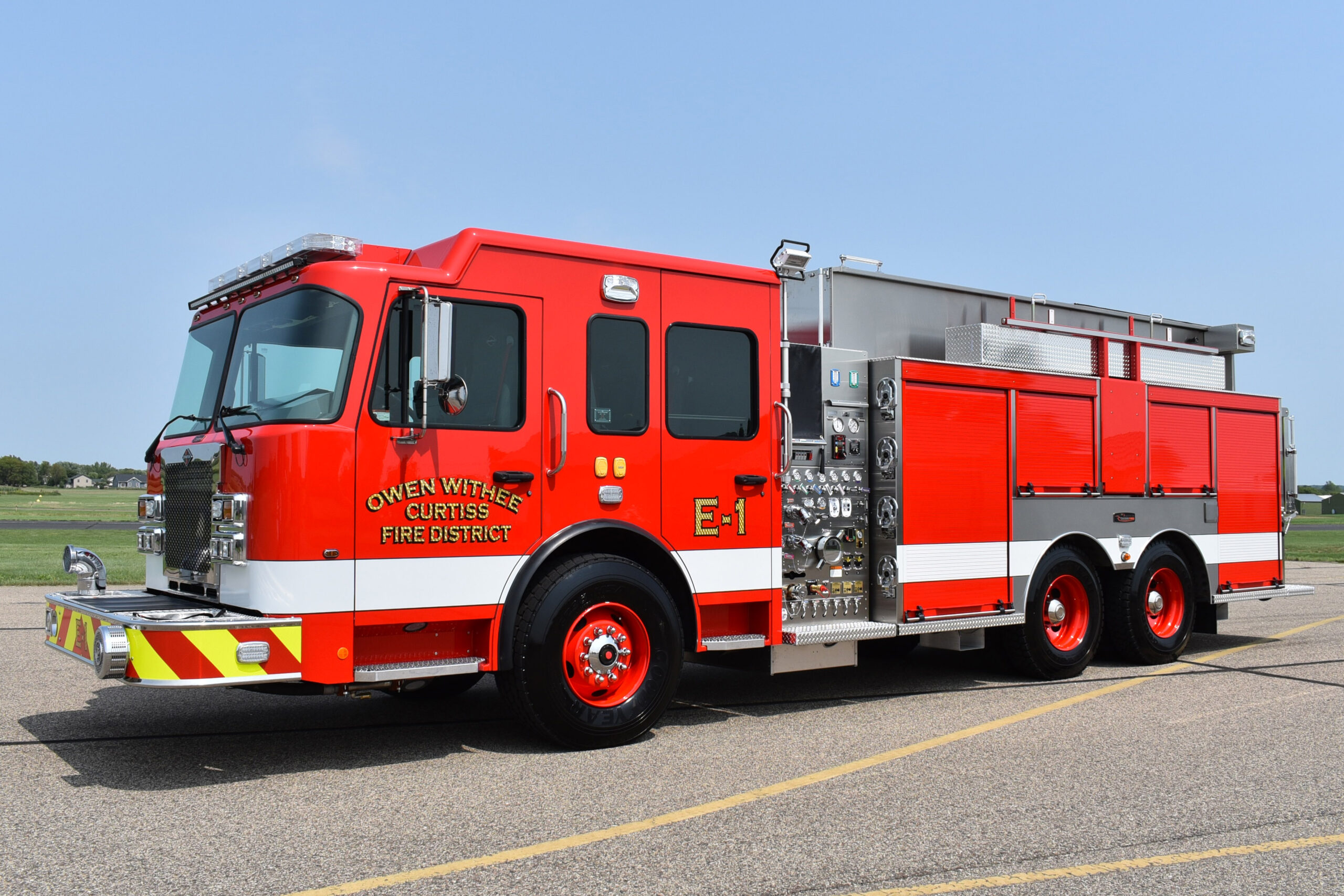

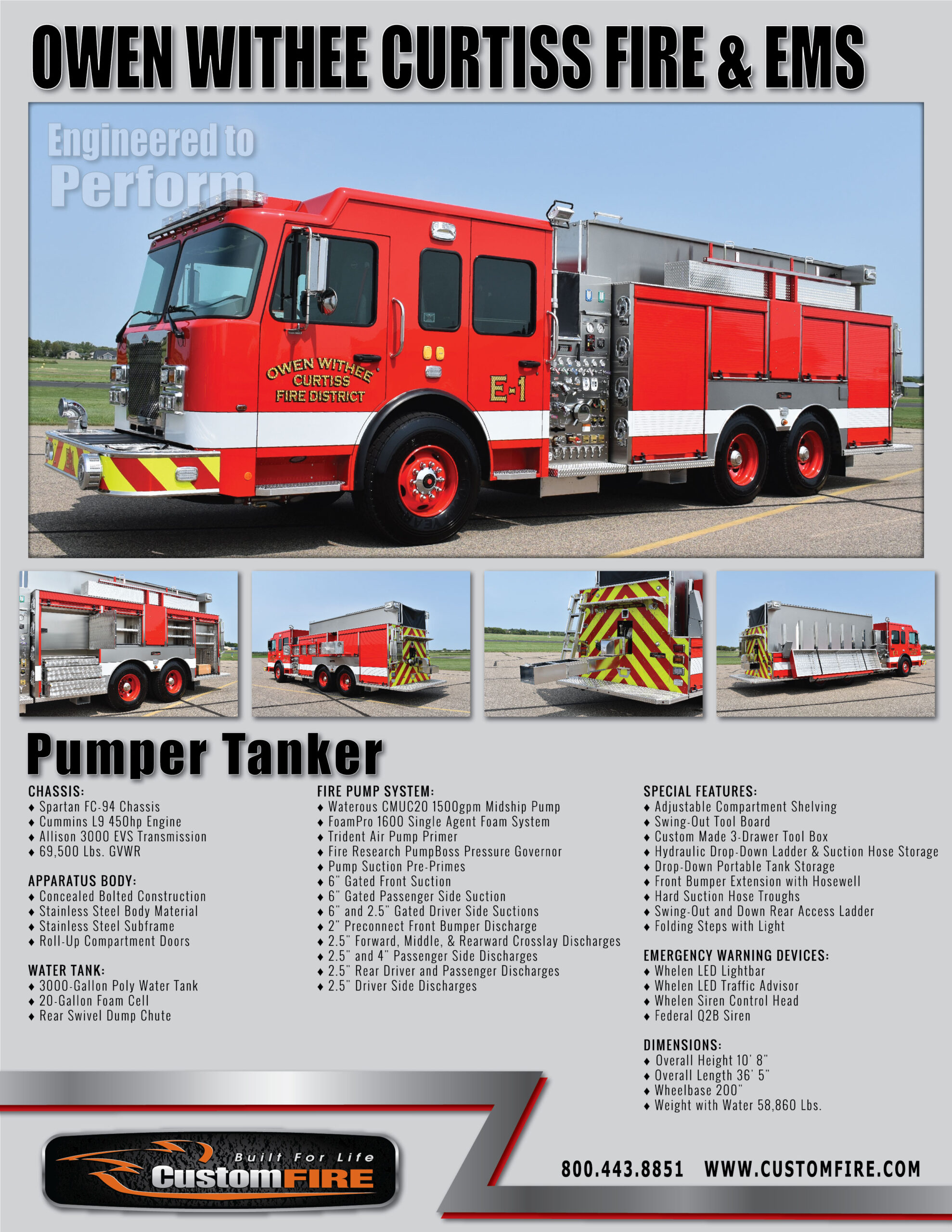

Pumper Tender

Custom built for Owen Withee Curtiss Fire & EMS District — Owen, WI

Fire Truck: Spartan Chassis, Bolted Stainless Steel Body, Waterous 1500gpm Pump, FoamPro 1600 Foam System, 3000-Gallon Water Tank, Adjustable Shelving, Swing-out Tool Panel, Custom Tool Box, Drop-Down Ladder and Tank Storage, Swing-Out and Down Rear Ladder, LED Lighting

Truck Type : ,
Cab Type : , , ,
Deployed : August, 2021

Chassis Model

Spartan FC-94 Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission
69,500 Lbs. GVWR

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CMUC20 1500gpm Midship Pump
FoamPro 1600 Single Agent Foam System
Trident Air Pump Primer
Fire Research PumpBoss Pressure Governor
Pump Suction Pre-Primes
6" Gated Front Suction
6" Gated Passenger Side Suction
6" and 2.5" Gated Driver Side Suctions
2" Preconnect Front Bumper Discharge
2.5" Forward, Middle, and Rearward Crosslay Discharges
2.5" and 4" Passenger Side Discharges
2.5" Rear Driver and Passenger Discharges
2.5" Driver Side Discharges

Booster Tank

3000-Gallon Poly Water Tank
20-Gallon Foam Cell
Rear Swivel Dump Chute

Special Features

Adjustable Compartment Shelving
Swing-Out Tool Board
Custom Made 3-Drawer Tool Box
Hydraulic Drop-Down Ladder and Suction Hose Storage
Drop-Down Portable Tank Storage
Front Bumper Extension with Hosewell
Hard Suction Hose Troughs
Swing-Out and Down Rear Access Ladder
Folding Steps with Light

Emergency Warning Devices

Whelen LED Lightbar
Whelen LED Traffic Advisor
Whelen Siren Control Head
Federal Q2B Siren

Exterior Lighting

Pump Panel LED Lighting
Fire Research LED Scene Lights
Vertical Strip LED Compartment Lighting
LED DOT Lighting
Techniq LED Tail Lighting
Under Cab and Under Body Lights
Whelen LED Telecoping Scene Lights
Whelen LED Warning Lights

Vehicle Dimensions

Overall Height 10' 8"
Overall Length 36' 5"
Wheelbase 200"
Weight with Water 58,860 Lbs.
