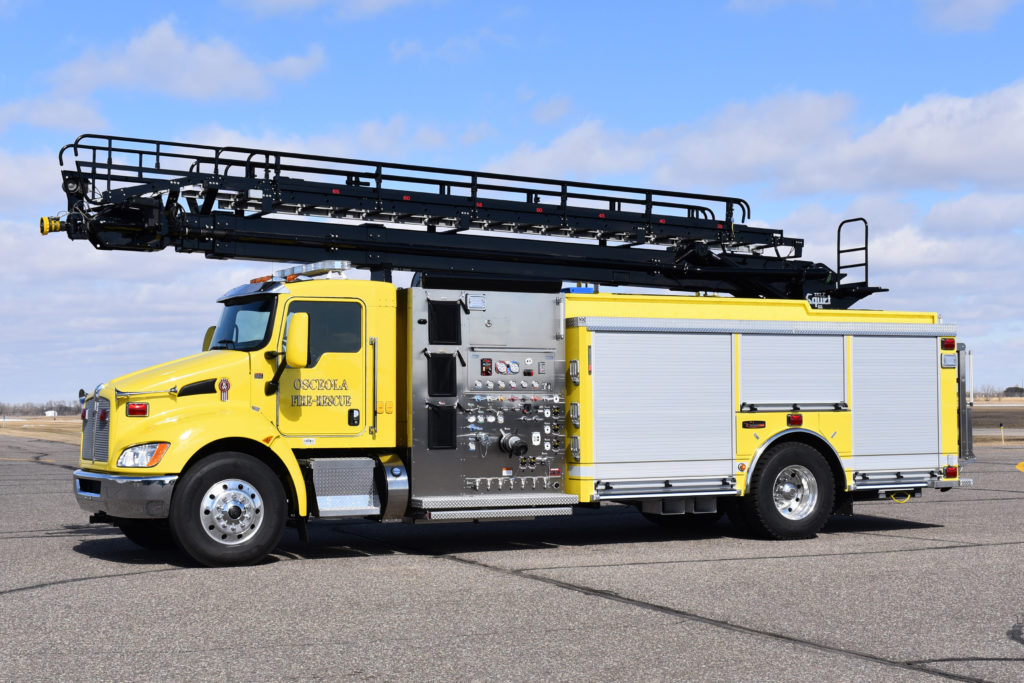

Telesqurt Pumper

Custom built for Osceola Fire Department — Osceola, WI

Kenworth Chassis, Stainless Bolted Construction, Waterous 1500gpm Pump, 65-Foot TeleSqurt Waterway, 800-Gallon Water Tank, Pull-Out Compartment Trays and Tool Boards, Hydraulic Drop-Down Ladder Rack, Roll-Out Awning, LED Emergency Lighting

Truck Type :
Cab Type : ,
Deployed : March, 2020

Chassis Model

Kenworth T370 Chassis
Cummins PX9 380hp Engine
Allison 3000 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CMUC20 1500gpm Pump
65-Foot Tele-Squrt Water Tower/Aerial Ladder
Waterous Oil-Less Pump Primer
Fire Research PumpBoss Pressure Governor
Suction Pre-Primes
Rear 6" Suction
Passenger Side 6" and 2-1/2" Suctions
Driver Side 6" and 2-1/2" Suctions
2-1/2" and 2" Speedlay Discharges
Passenger Side 2-1/2" and 4" Discharges
Rear 1-2/", 2-1/2", and LDH Discharges
Driver Side 2-1/2" Discharge
Aerial Discharge
Hose Reel 1" Discharge

Booster Tank

800-Gallon Poly Water Tank

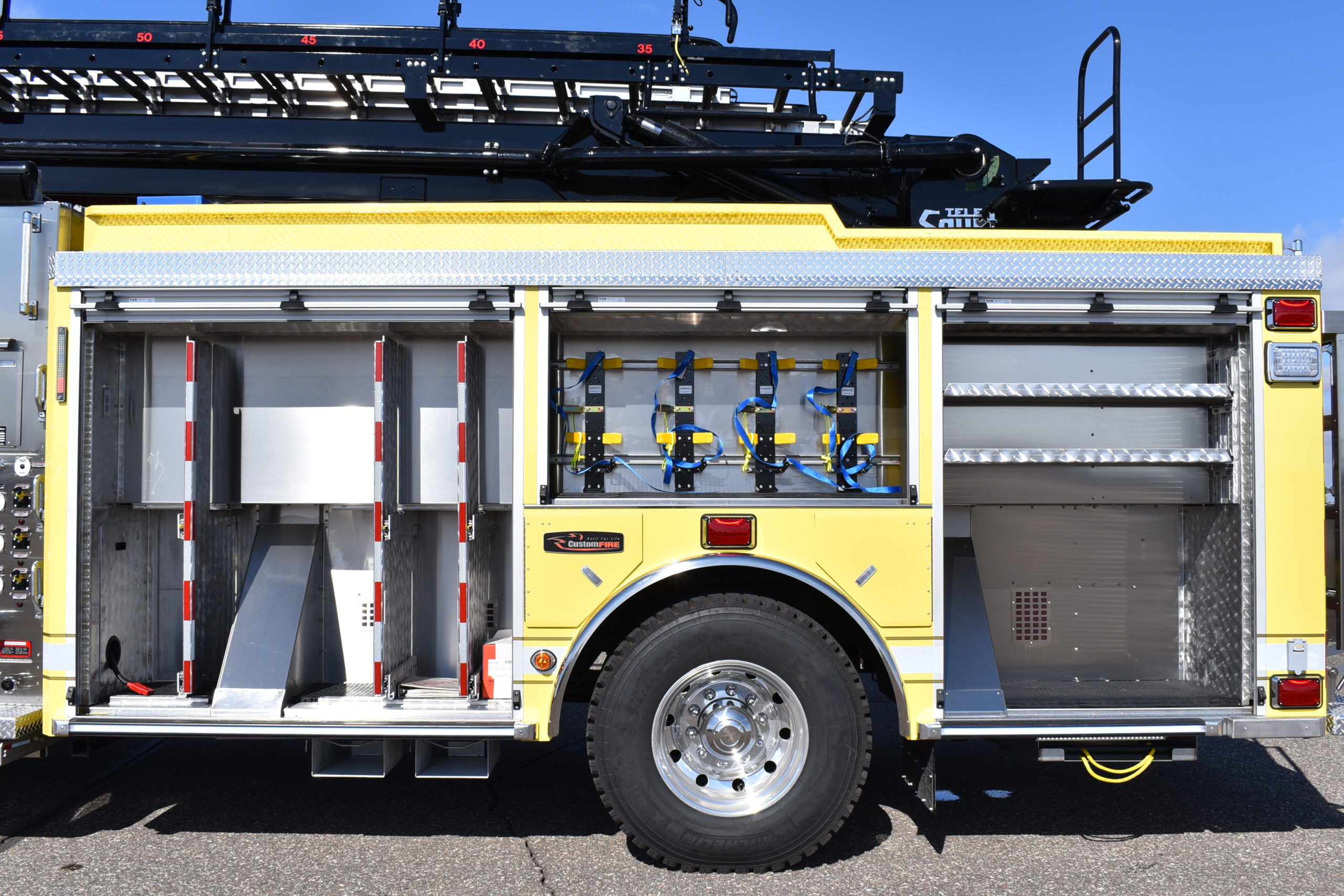

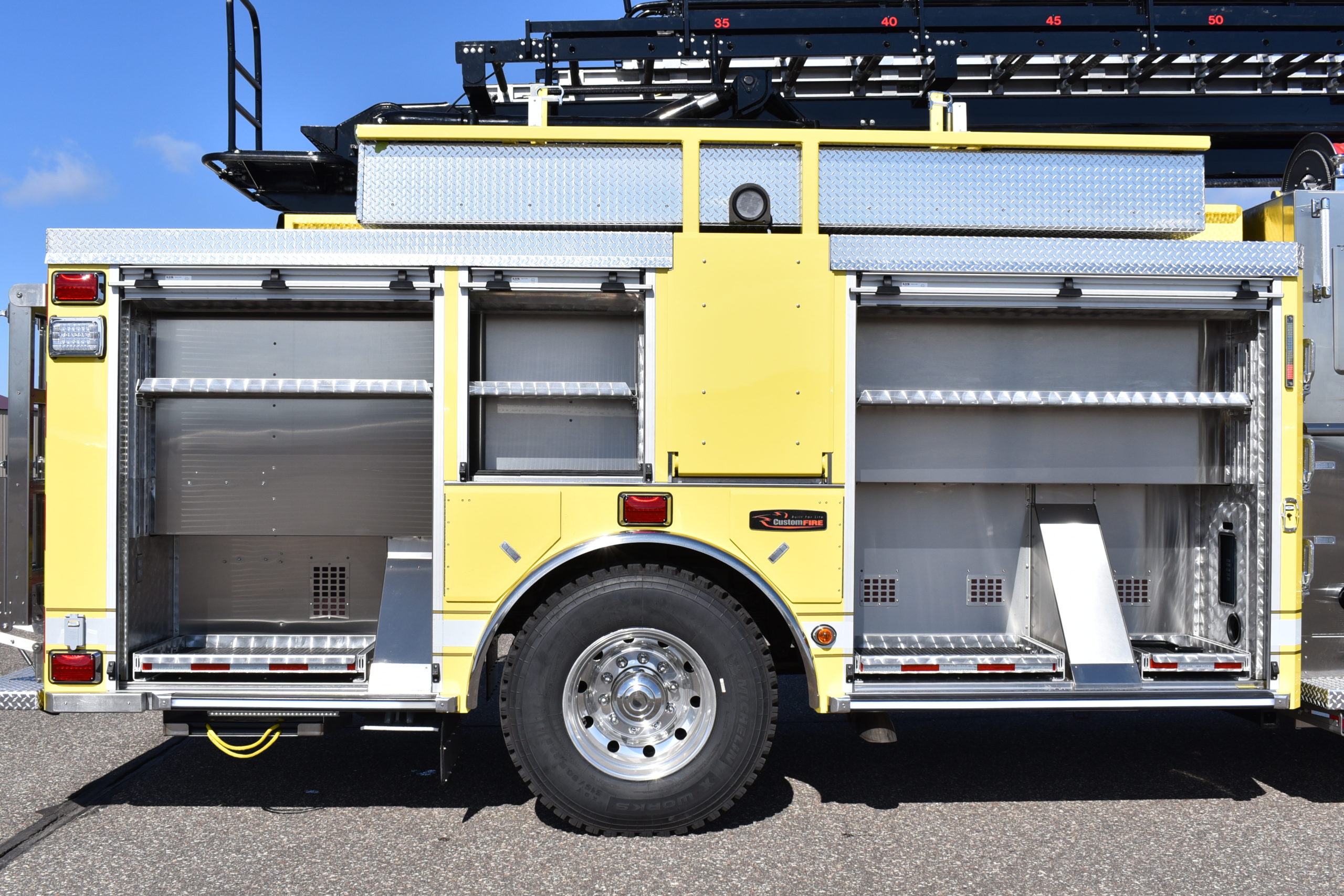

Special Features

Adjustable Compartment Shelving
Pull-Out Compartment Trays
Pull-Out Tool Boards
Removable Speedlay Hosebeds
Wheel Well SCBA Cylinder Storage
Slide-In Suction Hose and Pike Pole Storage
Hydraulic Drop-Down Ladder Rack
Encapsulated Roll-Up Door Protection
Adjustable Hosebed Dividers
Under Body Winch Receivers
Roll-Out Awning over Pump Controls
Utility Air Hose Reels
Wall-Mounted SCBA Brackets
On-Board Battery Charger
Power Rewind Electric Cord Reels

Emergency Warning Devices

Dual Grover Air Horns
Whelen Electronic Siren and Speaker
LED Traffic Directing Lights
Whelen LED Emergency Lights

Exterior Lighting

Vertical Strip LED Compartment Lights
LED Step Lights
LED DOT Marker Lights
Whelen LED Tail Lighting
Under Body and Under Cab Lighting
Front Bumper Lighted Guides
Aerial Tip Mounted Command Light

Vehicle Dimensions

Overall Height 13'
Overall Length 32' 5"
Wheelbase 20' 6"
Weight 36,800 Lbs.
