Enclosed Top Mount Pumper

Custom built for Northfield Fire Department — Northfield, MN

*Please note: Sales drawing may not be up to date and reflect latest changes*


Truck Type :
Cab Type :
Deployed : September, 2019

Chassis Model

Spartan MetroStar Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CMC20 1250gpm Midship Mounted Pump
FoamPro 2001 Single Agent Foam System
Waterous Oil-Less Pump Primer
Fire Research InfinityPro Remote Hand Throttle
Passenger Side 6" and 2-1/2" Suctions
Rear 6" Suction
Driver Side 5" and 2-1/2" Suctions
Passenger Side 2-1/2" and 4" Discharges
Rear 2-1/2" Discharges
Driver Side 2-1/2" Discharge
Top Deluge Discharge
Front Bumper 2" Preconnect Discharge

Booster Tank

1000-Gallon Water Tank
20-Gallon Foam Cell

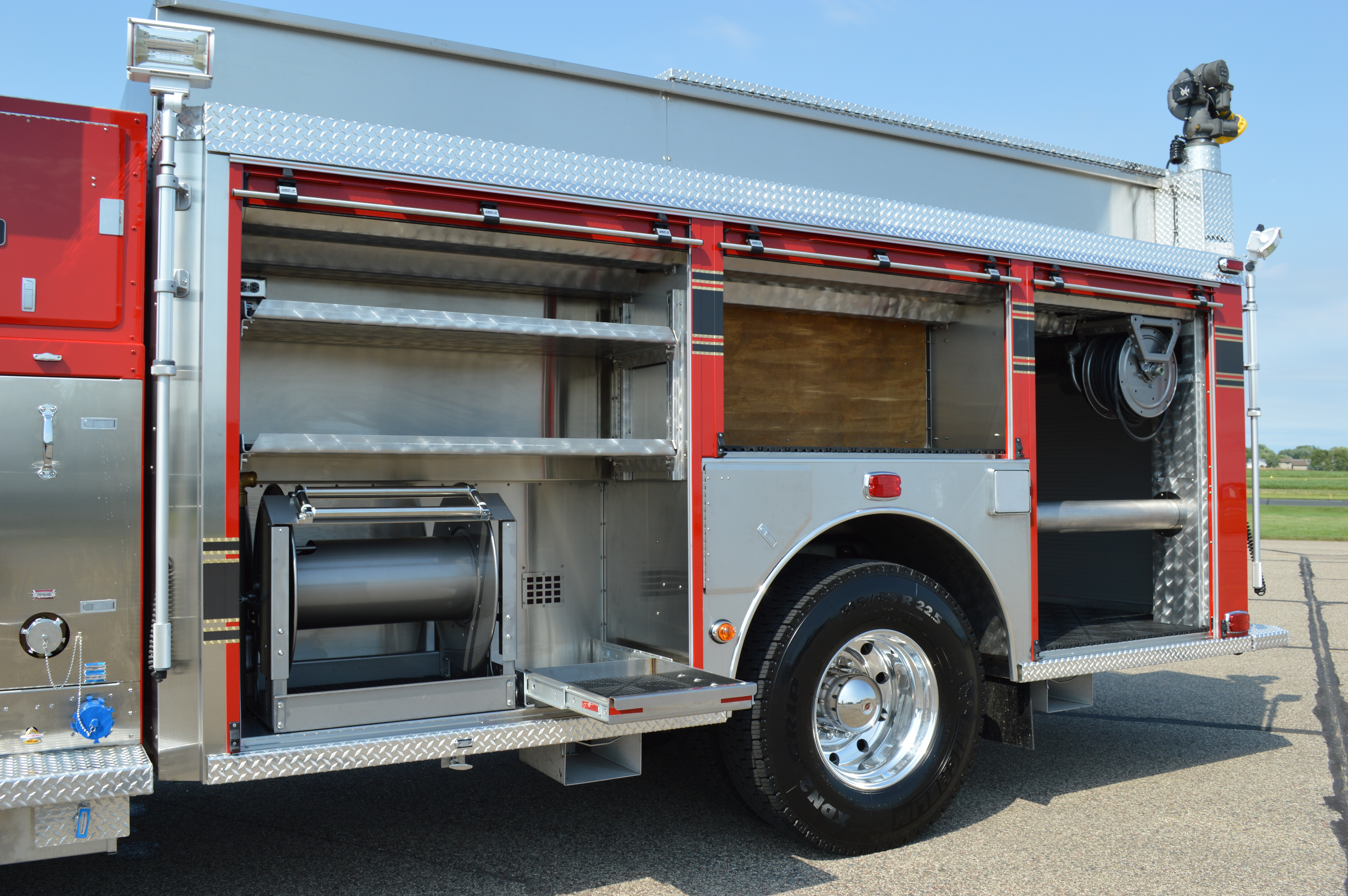

Special Features

On-Board Powered Foam Refill System
Encapsulated Roll-Up Door Protection
Adjustable Compartment Shelving
Pull-Out Compartment Trays
Wheel Well SCBA Cylinder Storage
Hydraulic Drop-Down Ladder Rack
Swing-Out and Down Rear Access Ladder
Smart Power Hydraulic Generator
Power Rewind Electric Cord Reels
Command Light Tower
Light Tower Protective Shroud

Emergency Warning Devices

Whelen LED Warning Lights
Whelen Electronic Siren
Whelen LED Traffic Advisor

Exterior Lighting

Vertical Strip Compartment Lighting
DOT Marker Lights
Whelen LED Tail Lights
Under Body and Under Cab Lights

Vehicle Dimensions

Overall Height 11' 11"
Overall Length 33' 6"
Wheelbase 16' 2"
Weight 32,060 Lbs.
