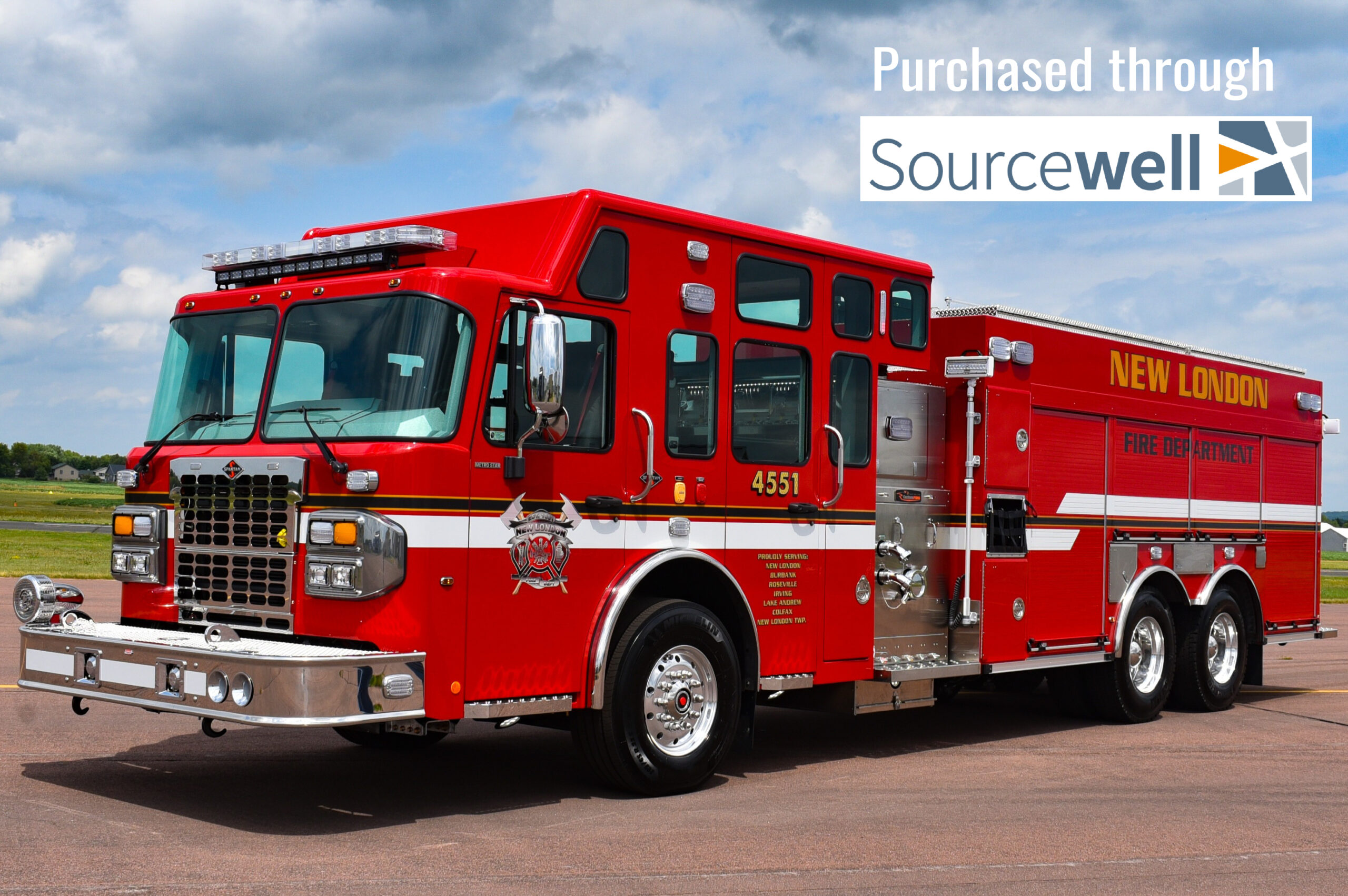

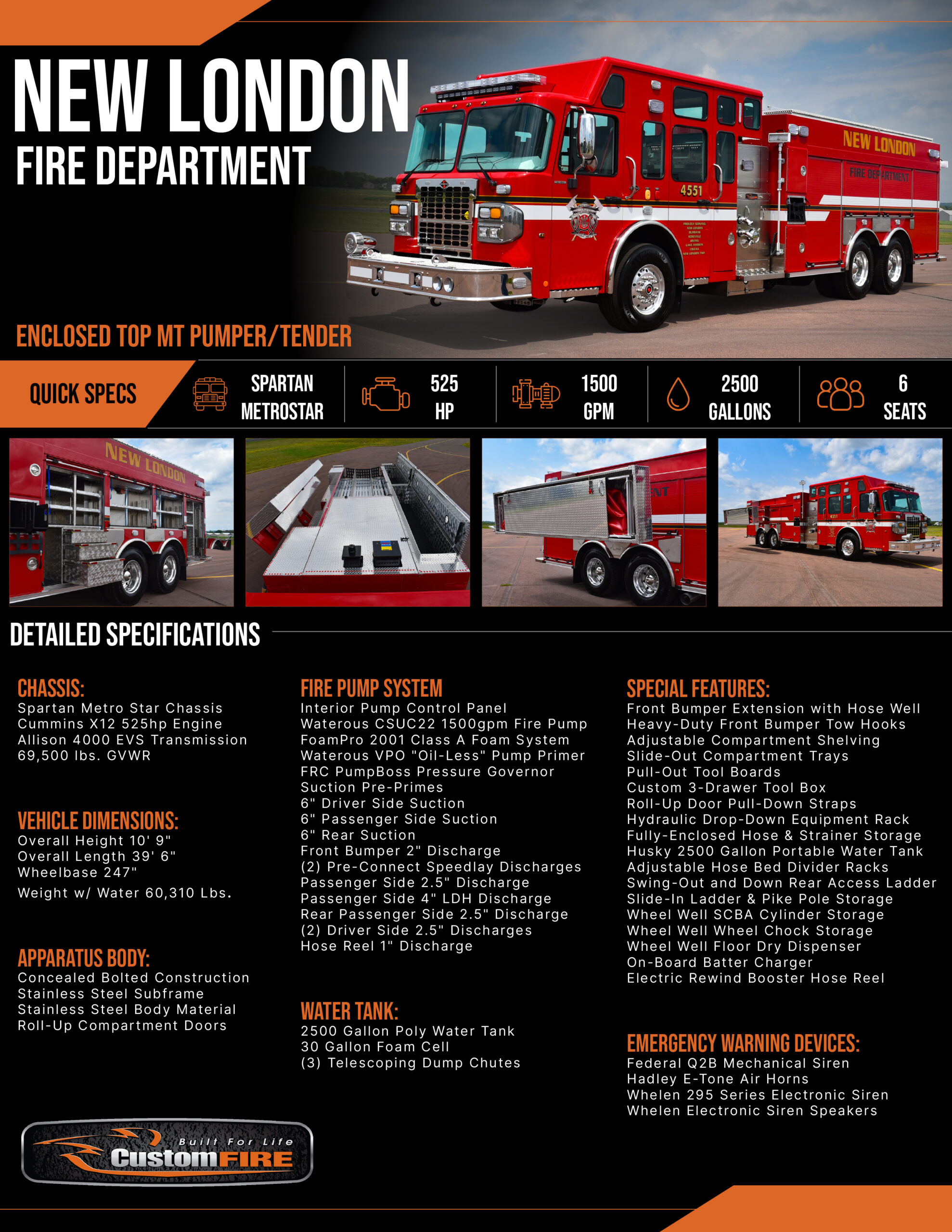

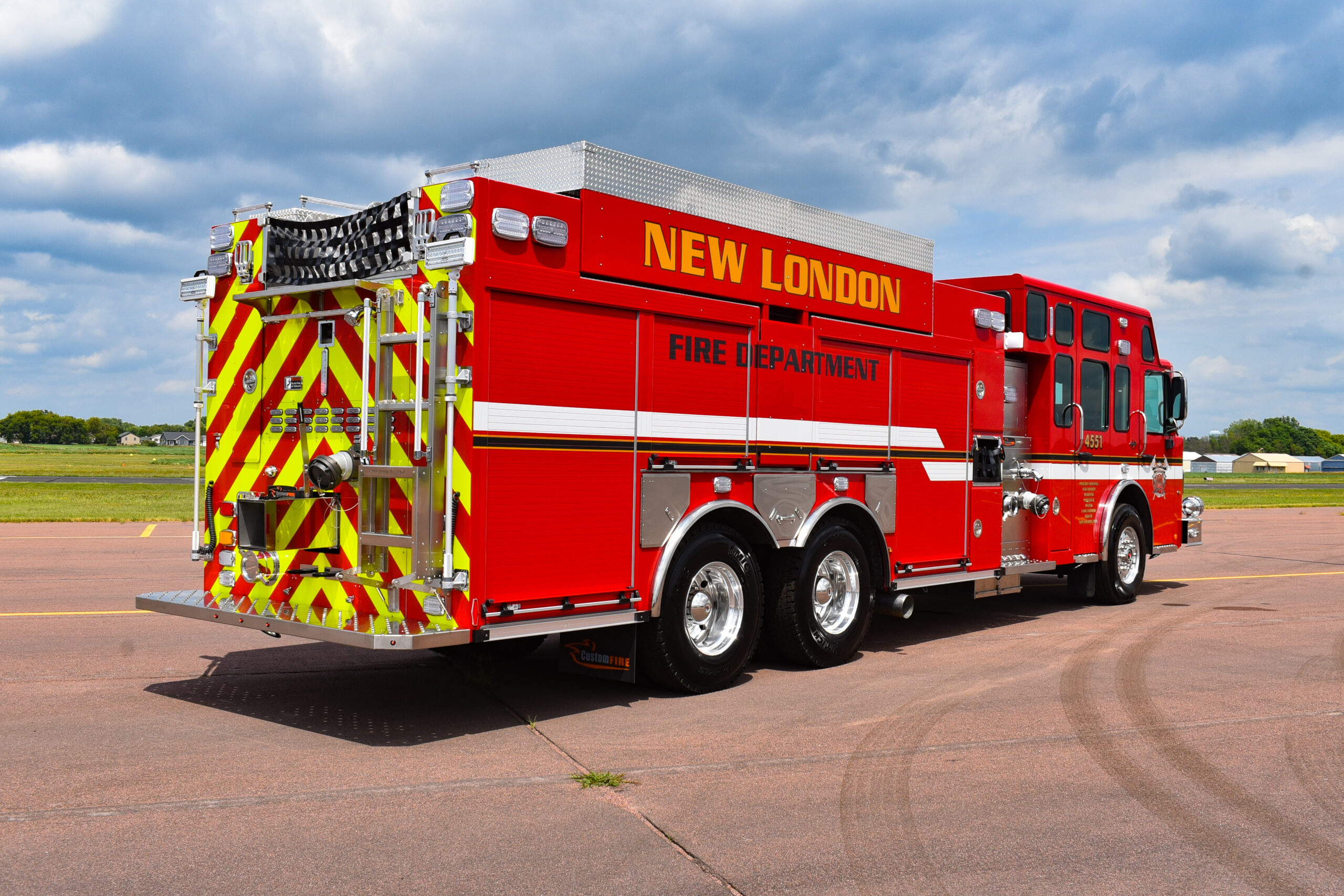

Enclosed Top Mount Pumper Tender
Custom built for New London Fire Department — New London, MN
Fire Truck: Spartan Chassis, Bolted Stainless Steel Body, Waterous CSUC22 1500gpm Fire Pump, FoamPro 2001 Class A Foam System, 2500 Gallon Water Tank, 30 Gallon Foam Cell, Adjustable Compartment Shelving, Pull-Out Compartment Tool Boards, LED Emergency Lighting
Truck Type : Pumpers, Sourcewell Deliveries, Tenders
Cab Type : 2300 Gallons or More, Custom Cab, Enclosed Top Mount, Pumper Tankers
Deployed : July, 2026
Chassis Model
Spartan Metro Star Chassis
Cummins X12 525hp Engine
Allison 4000 EVS Transmission
69,500 lbs. GVWR
Apparatus Body
Concealed Bolted Construction
Stainless Steel Subframe
Stainless Steel Body Material
Roll-Up Compartment Doors
Fire Pump System

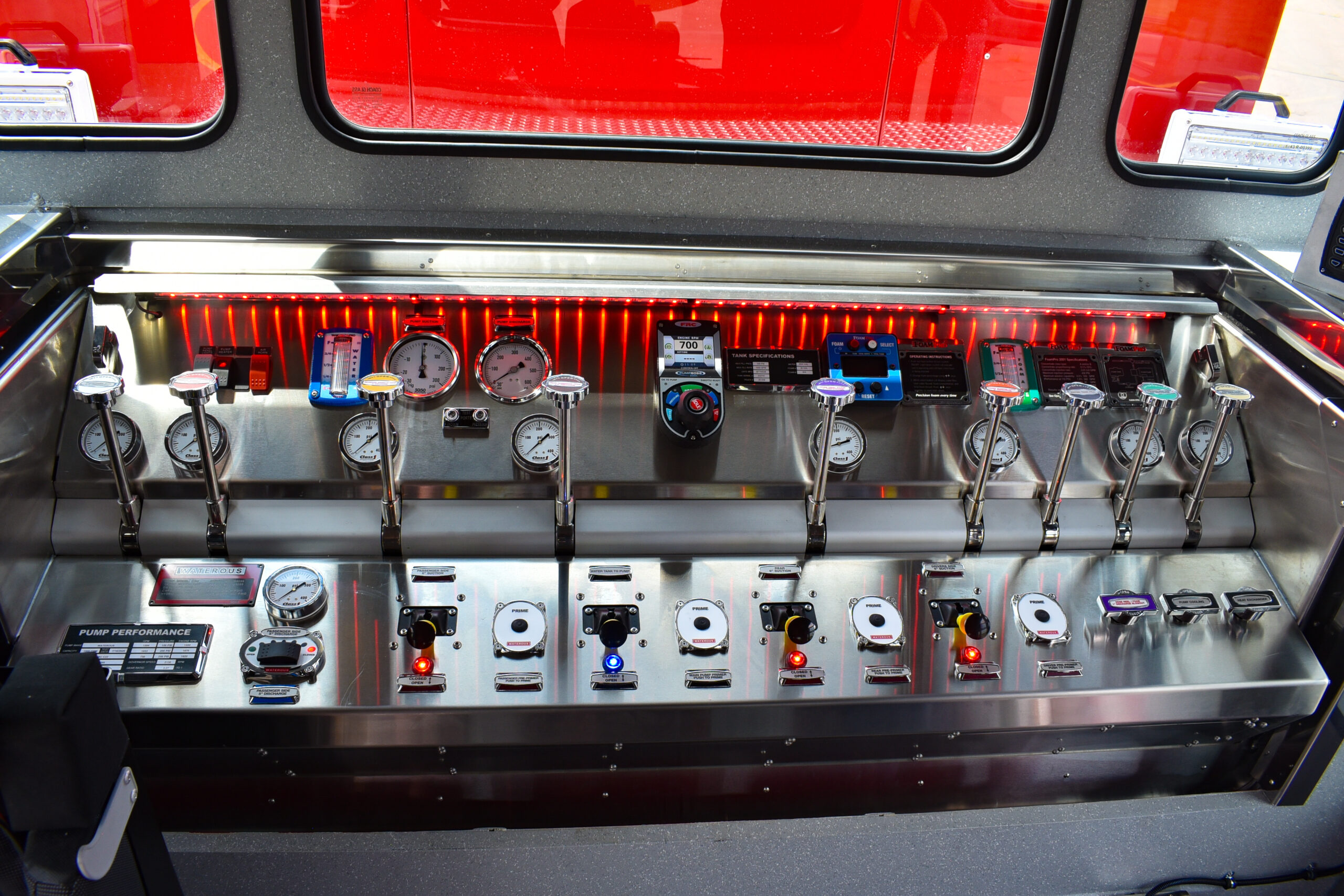

Interior Pump Control Panel
Waterous CSUC22 1500gpm Fire Pump
FoamPro 2001 Class A Foam System
Waterous VPO "Oil-Less" Pump Primer
Fire Research PumpBoss Pressure Governor
Suction Pre-Primes
6" Driver Side Suction
6" Passenger Side Suction
6" Rear Suction
Front Bumper 2" Discharge
(2) Pre-Connect Speedlay Discharges
Passenger Side 2.5" Discharge
Passenger Side 4" Large Diameter Discharge
Rear Passenger Side 2.5" Discharge
(2) Driver Side 2.5" Discharges
Hose Reel 1" Discharge
Booster Tank
2500 Gallon Poly Water Tank
30 Gallon Foam Cell

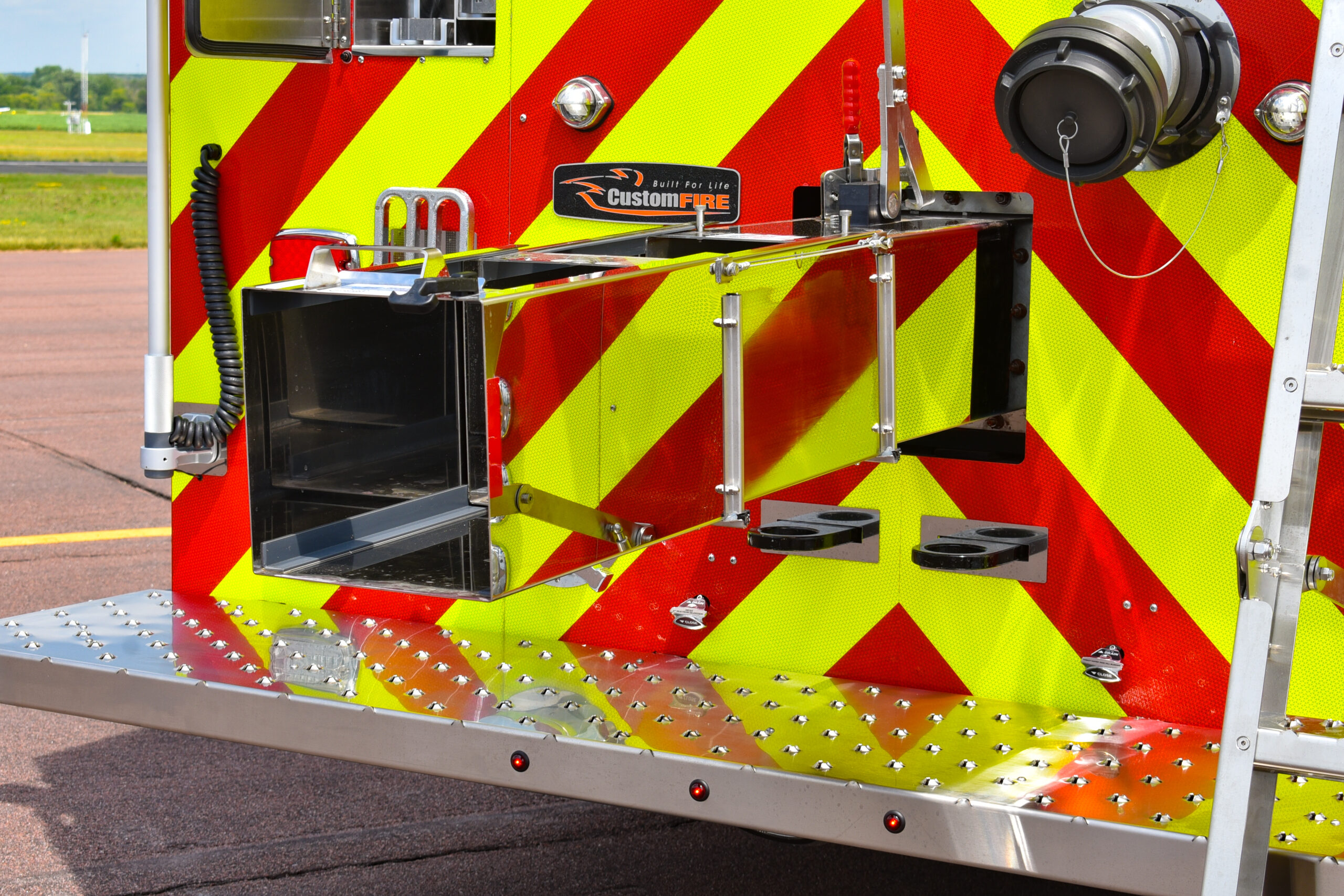

(3) Telescoping Dump Chutes
Special Features

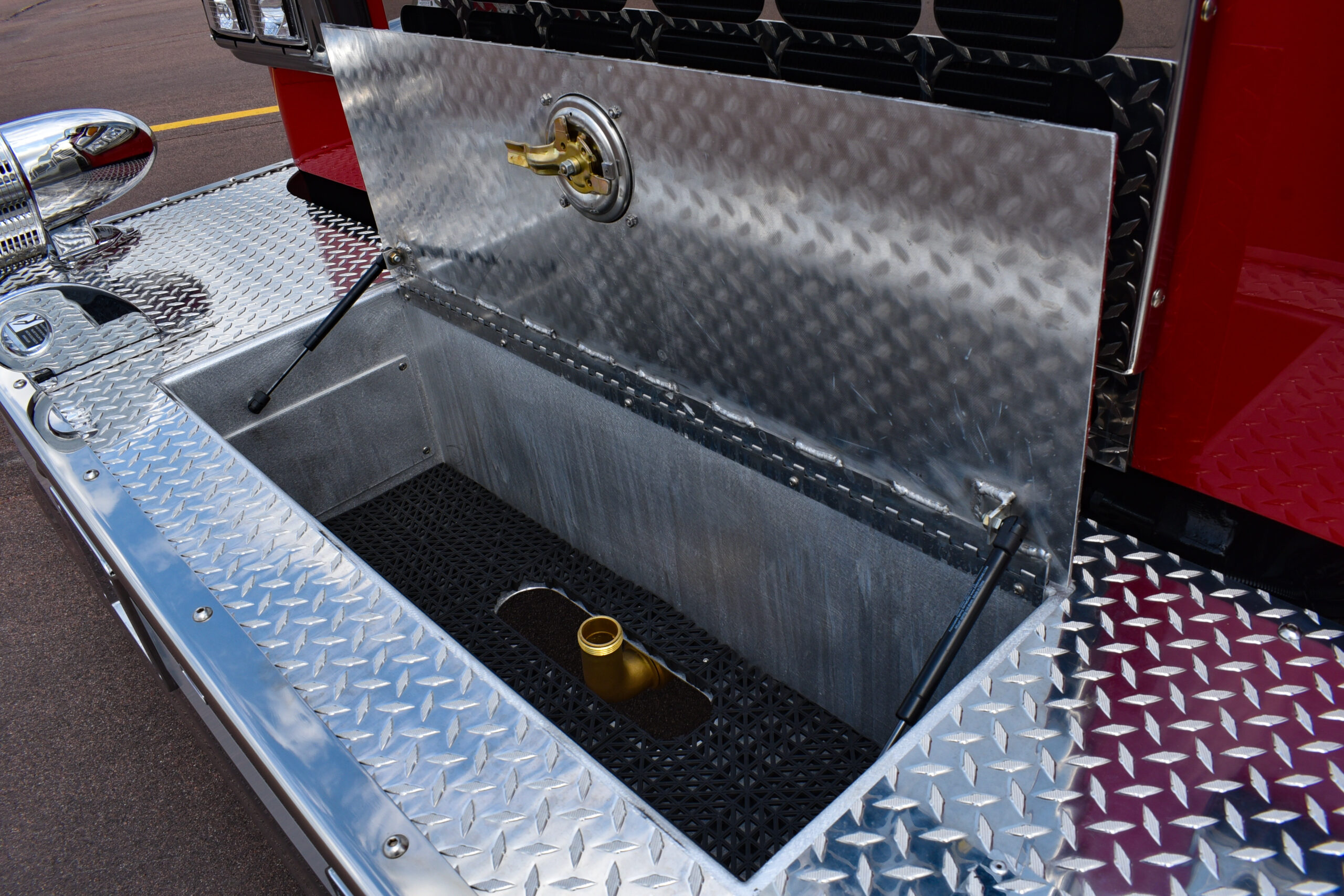

Front Bumper Extension with Hose Well
Heavy-Duty Front Bumper Tow Hooks

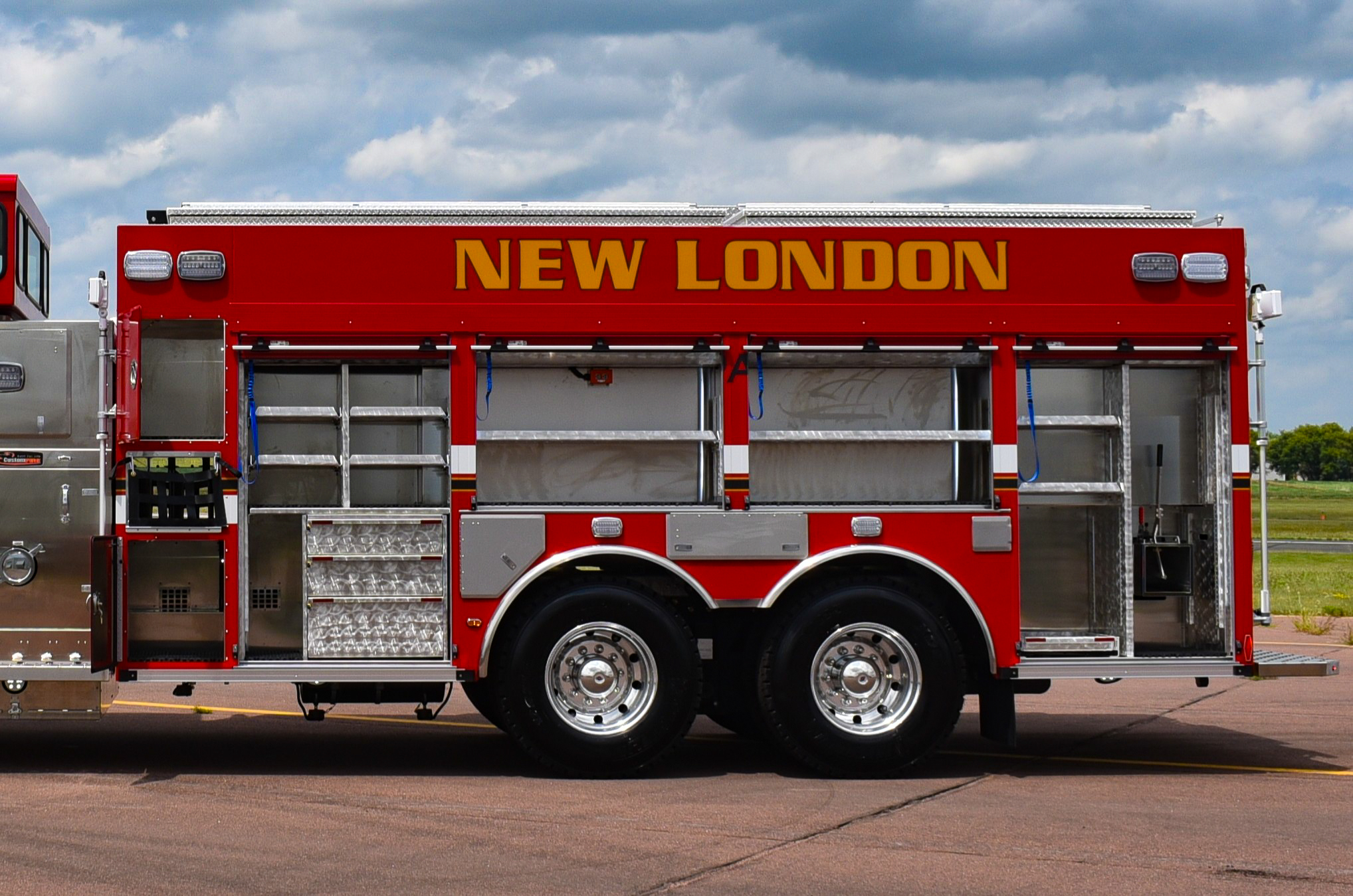

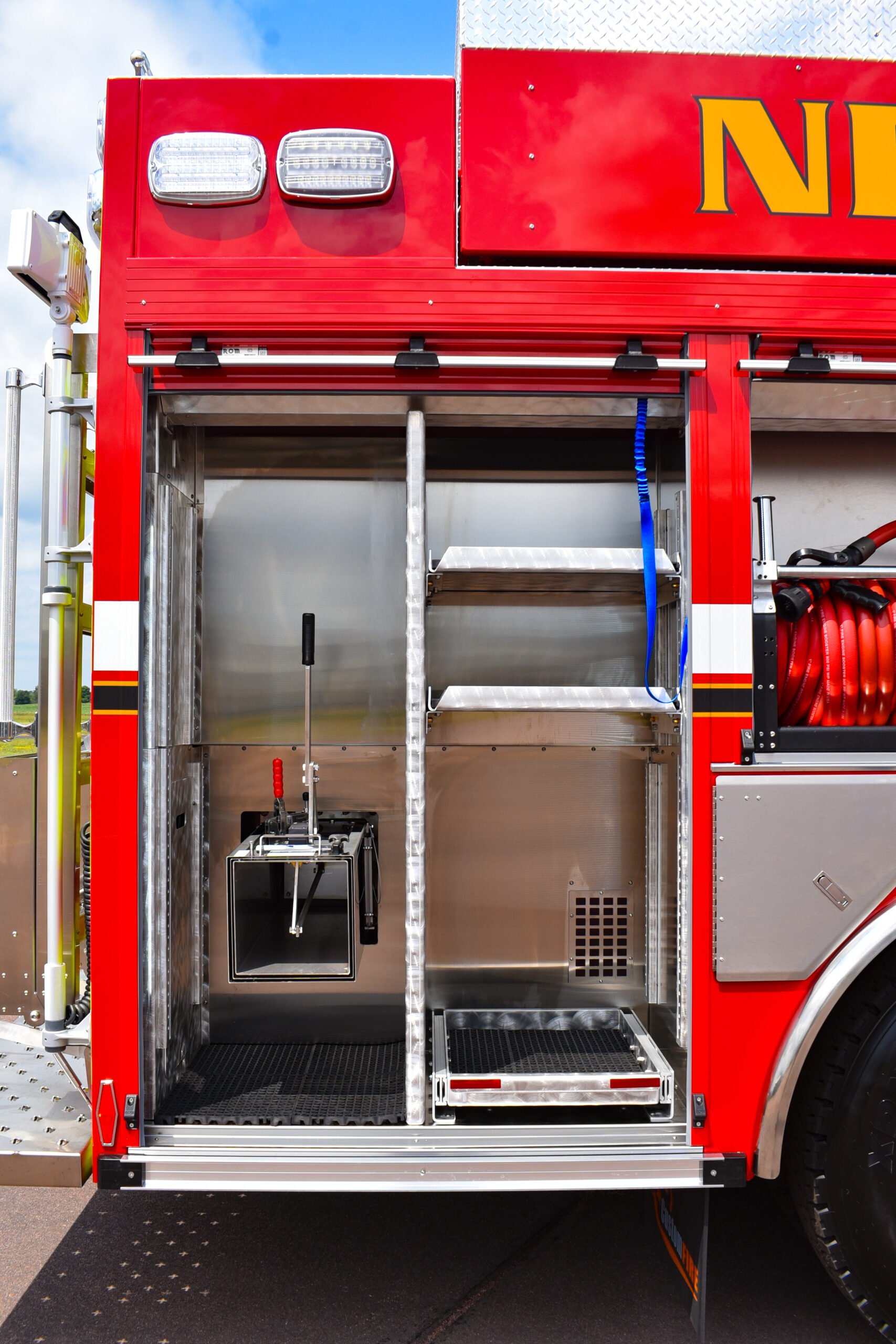

Adjustable Compartment Shelving

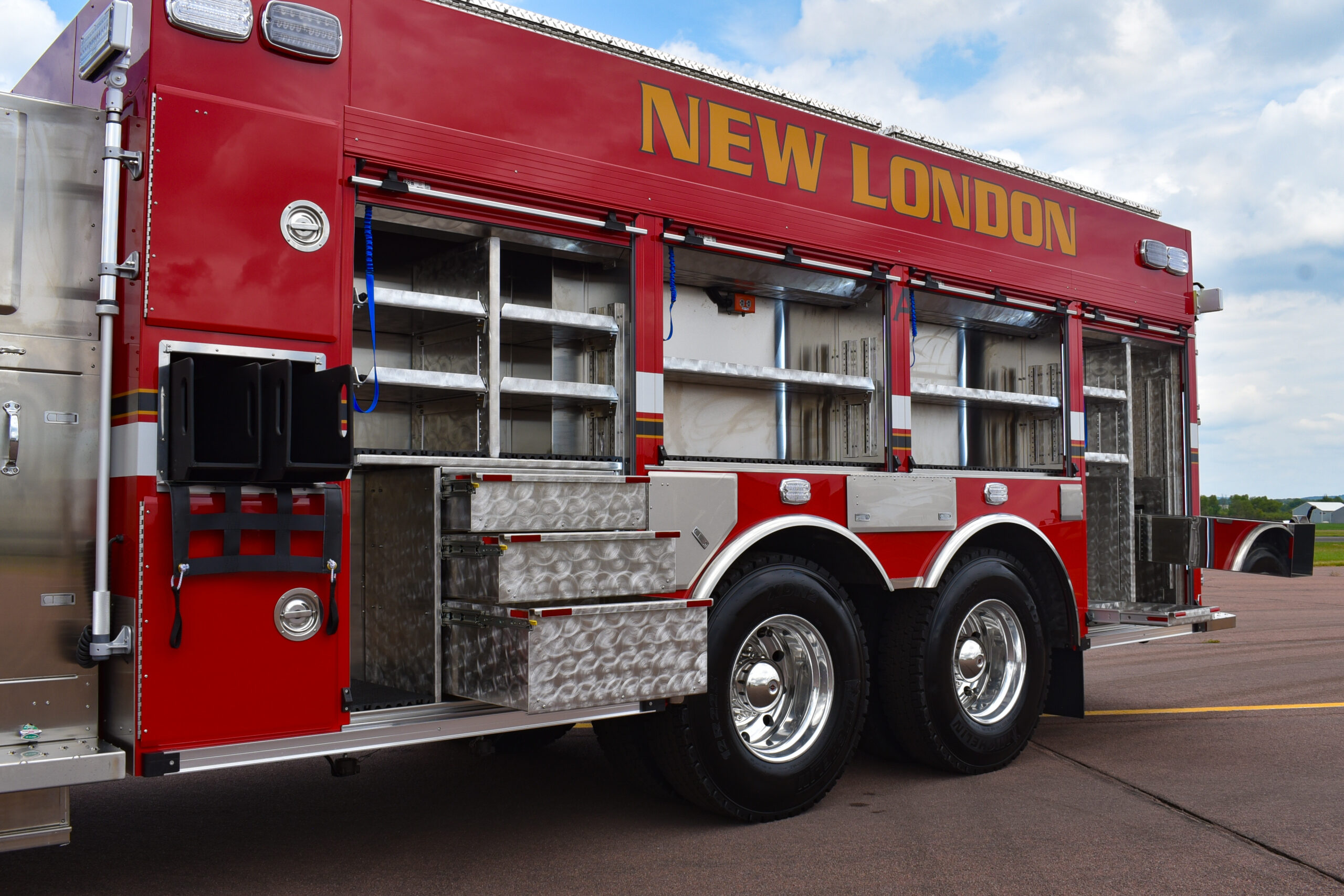

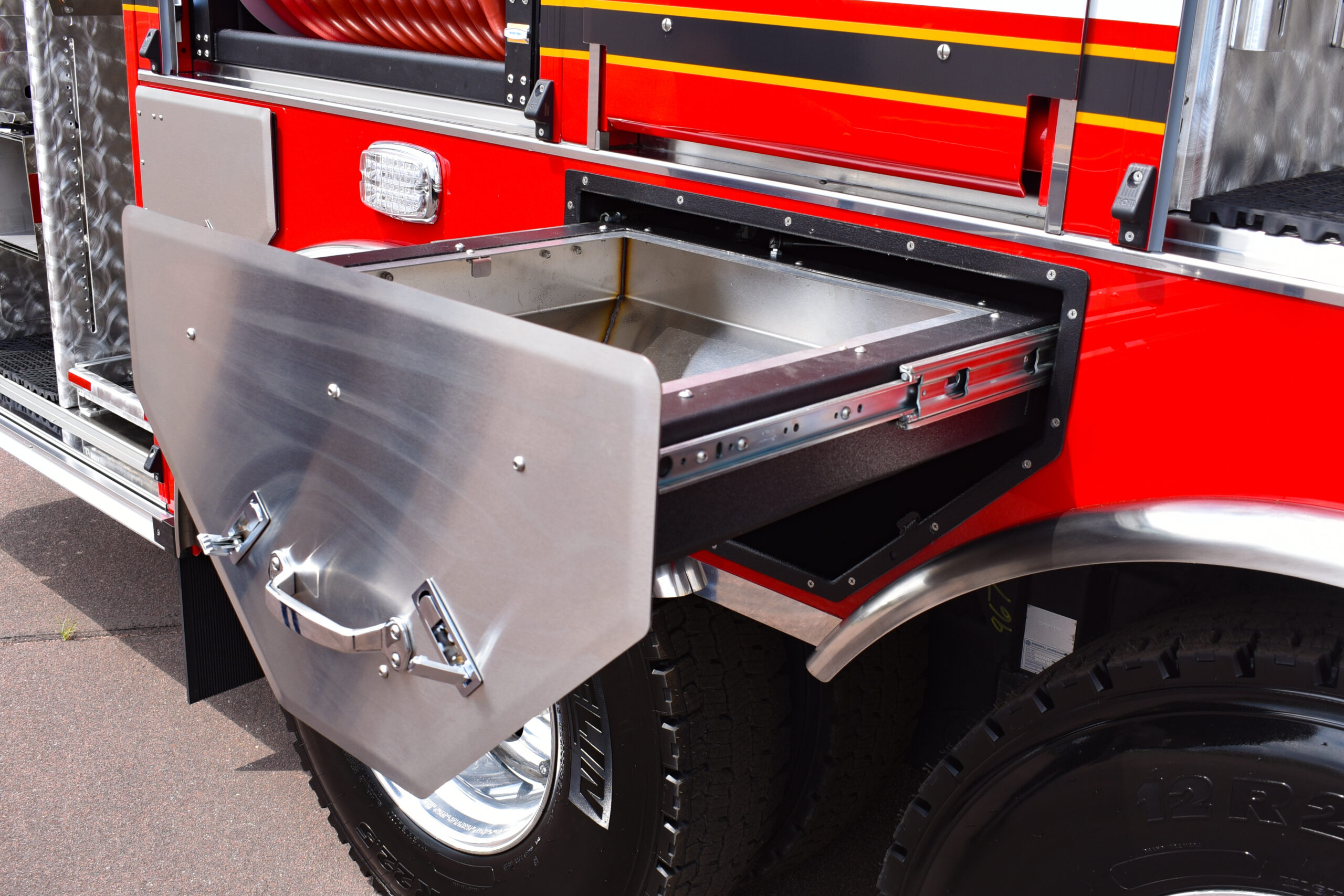

Slide-Out Compartment Trays
Pull-Out Tool Boards

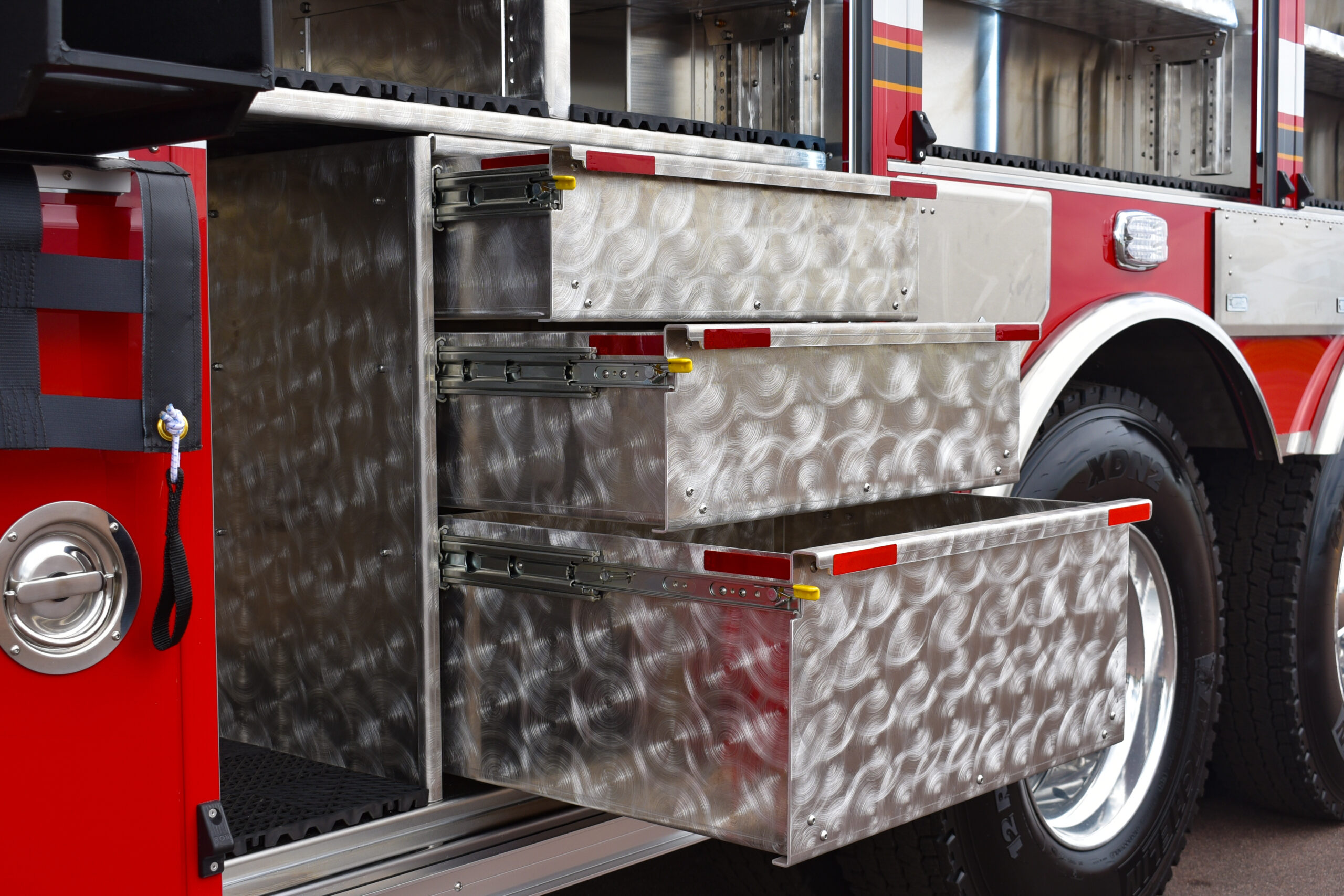

Custom 3-Drawer Tool Box
Roll-Up Door Pull-Down Straps

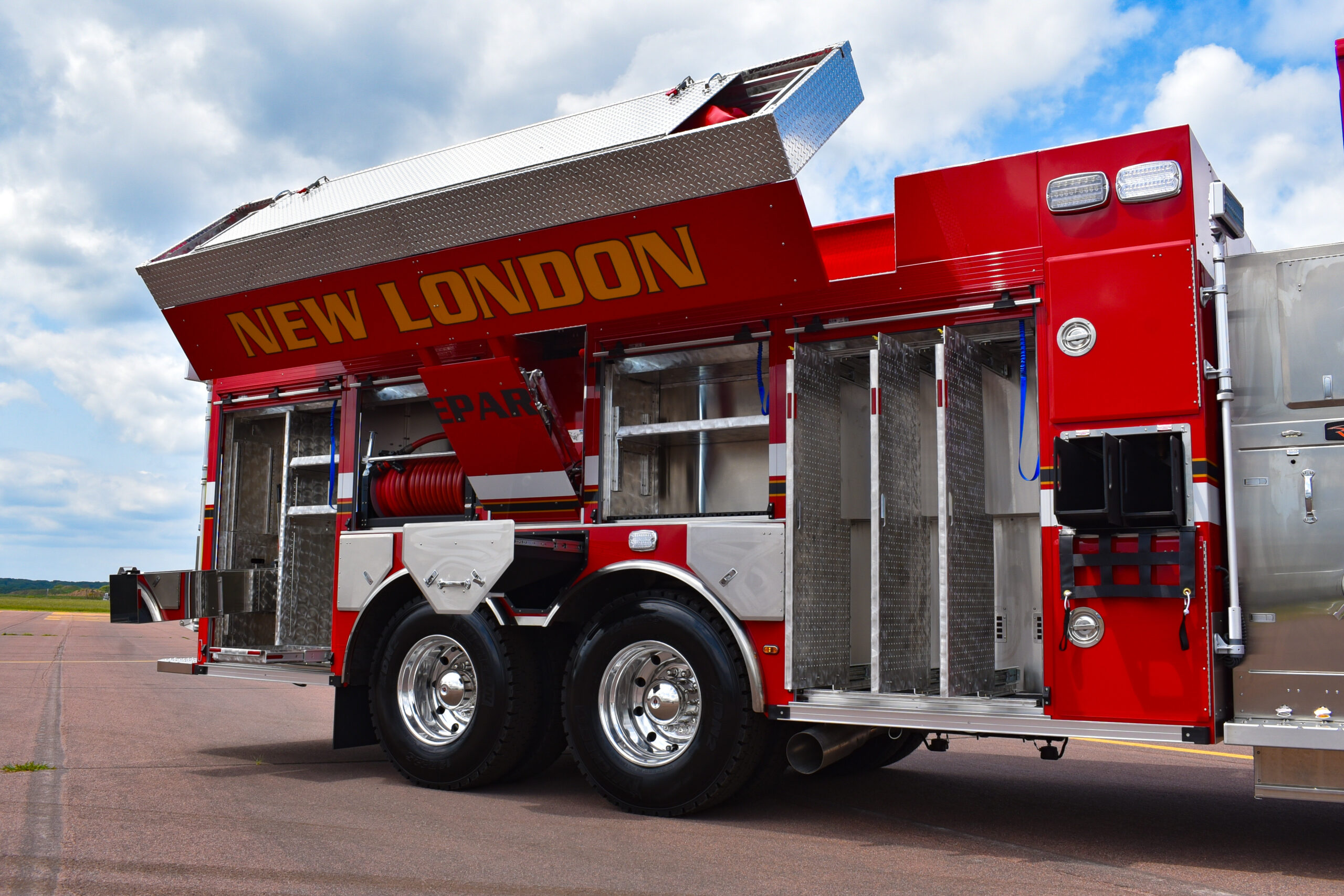

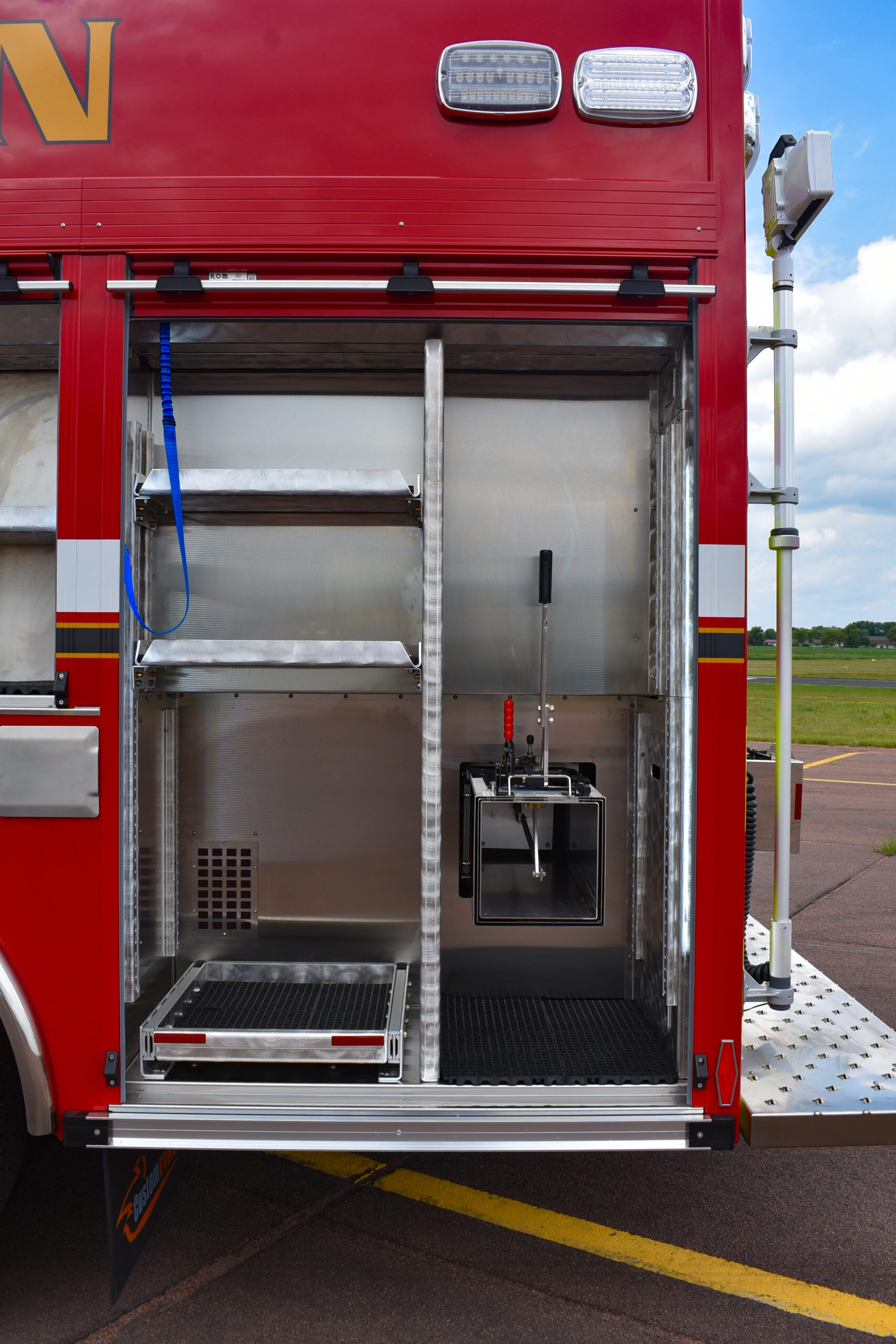

Hydraulic Drop-Down Equipment Rack

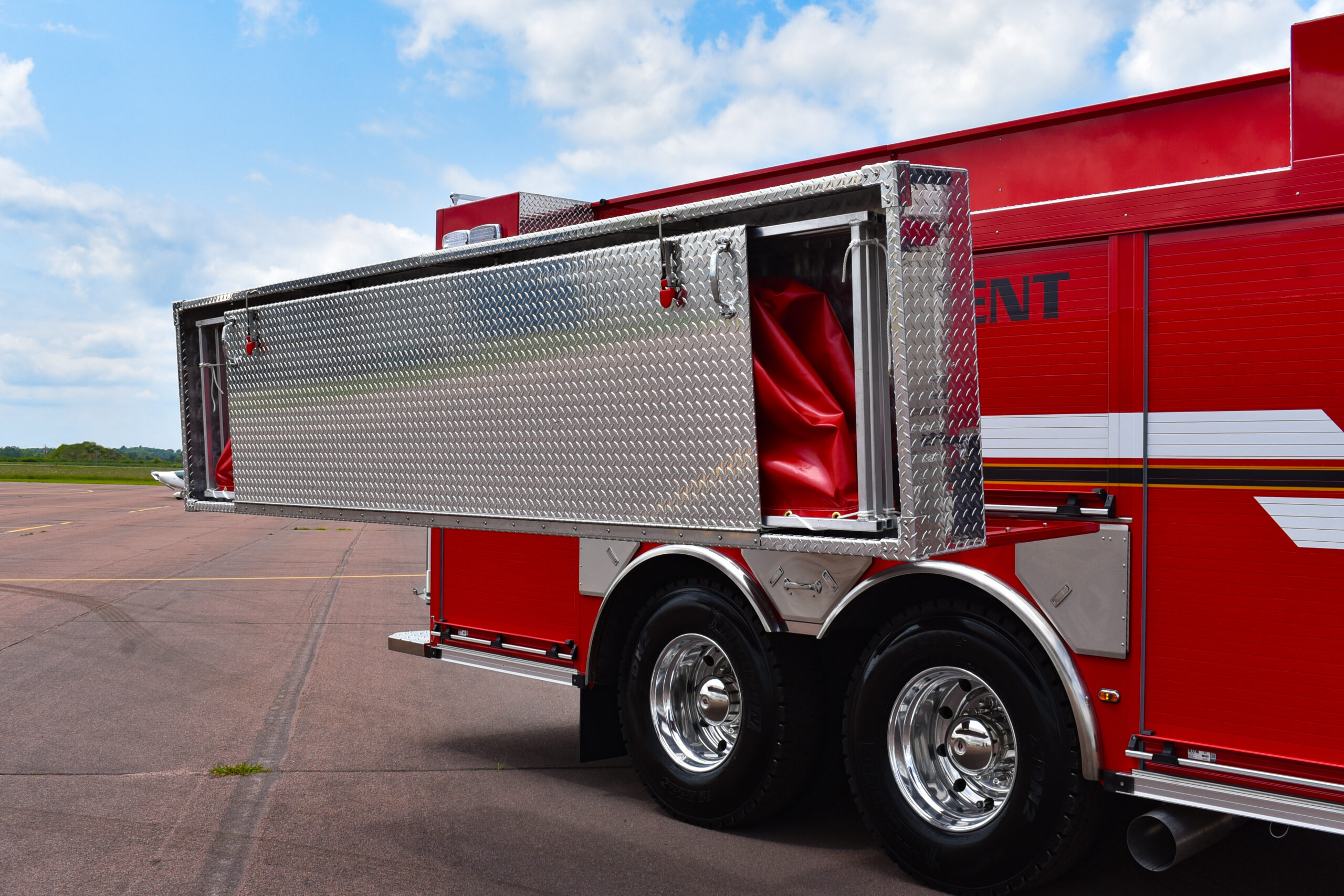

Fully-Enclosed Hard Suction Hose & Strainer Storage
Husky 2500 Gallon Portable Water Tank
Adjustable Hose Bed Divider Racks

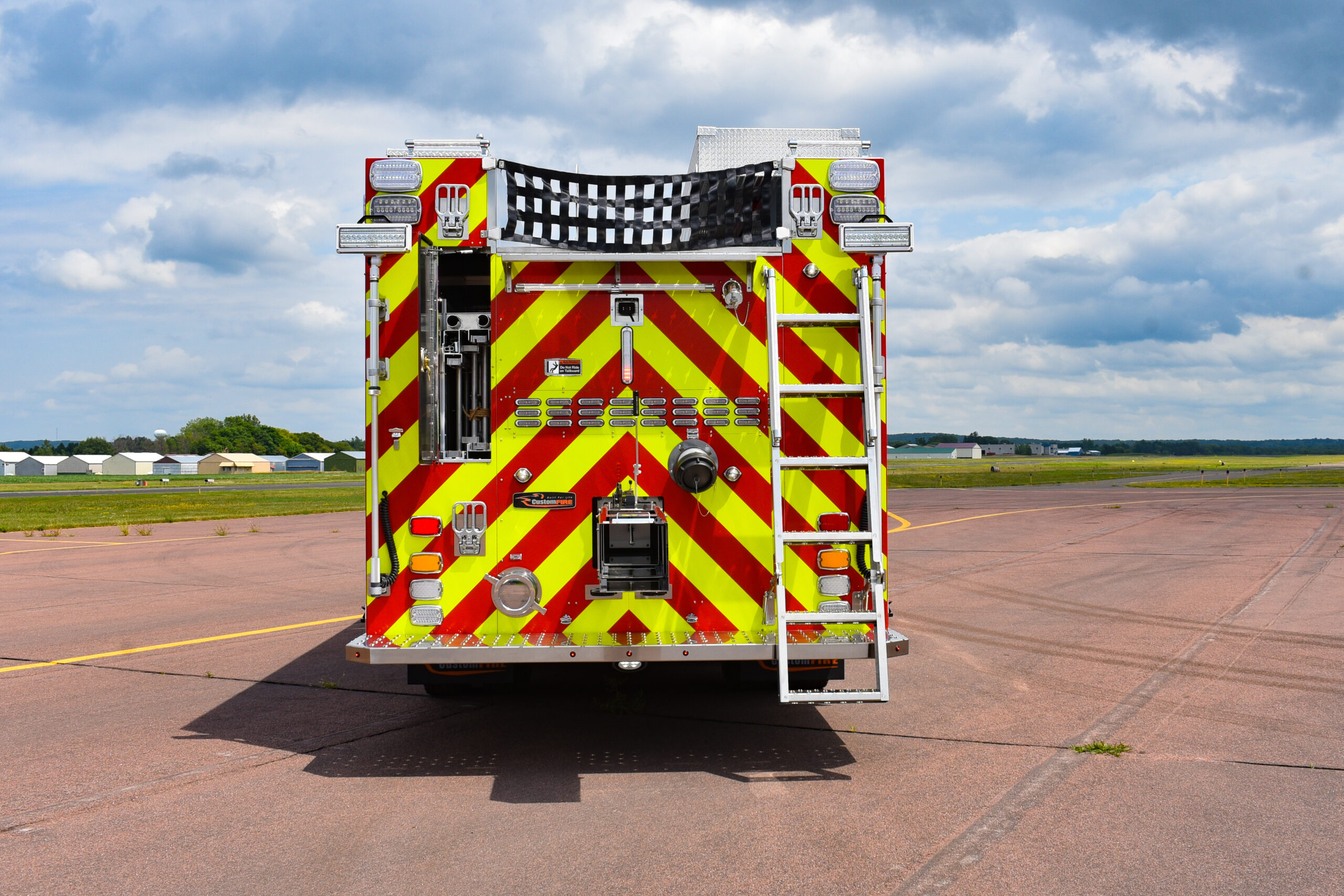

Swing-Out and Down Rear Access Ladder
Slide-In Ladder & Pike Pole Storage

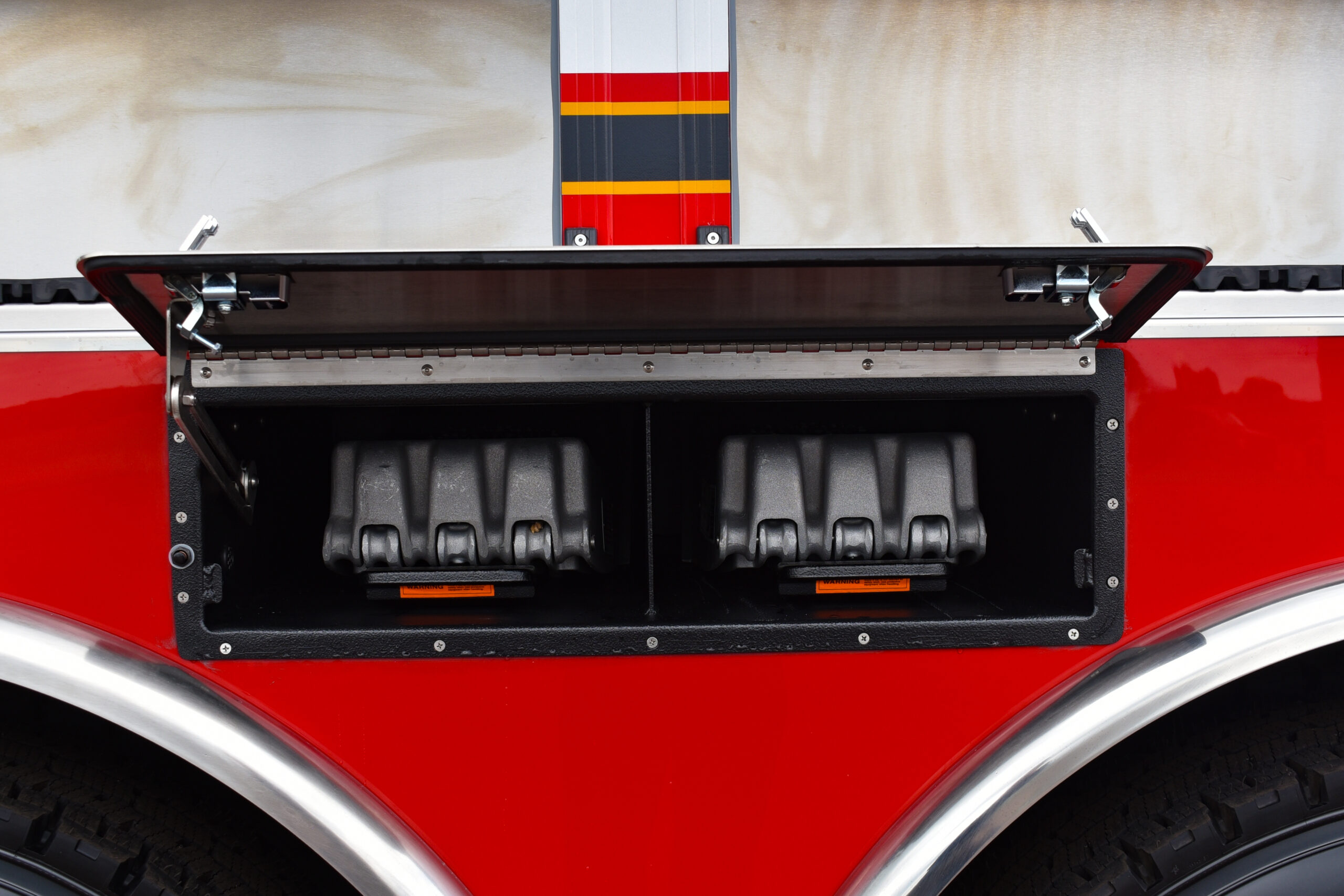

Wheel Well SCBA Cylinder Storage
Wheel Well Wheel Chock Storage
Wheel Well Floor Dry Dispenser
On-Board Batter Charger

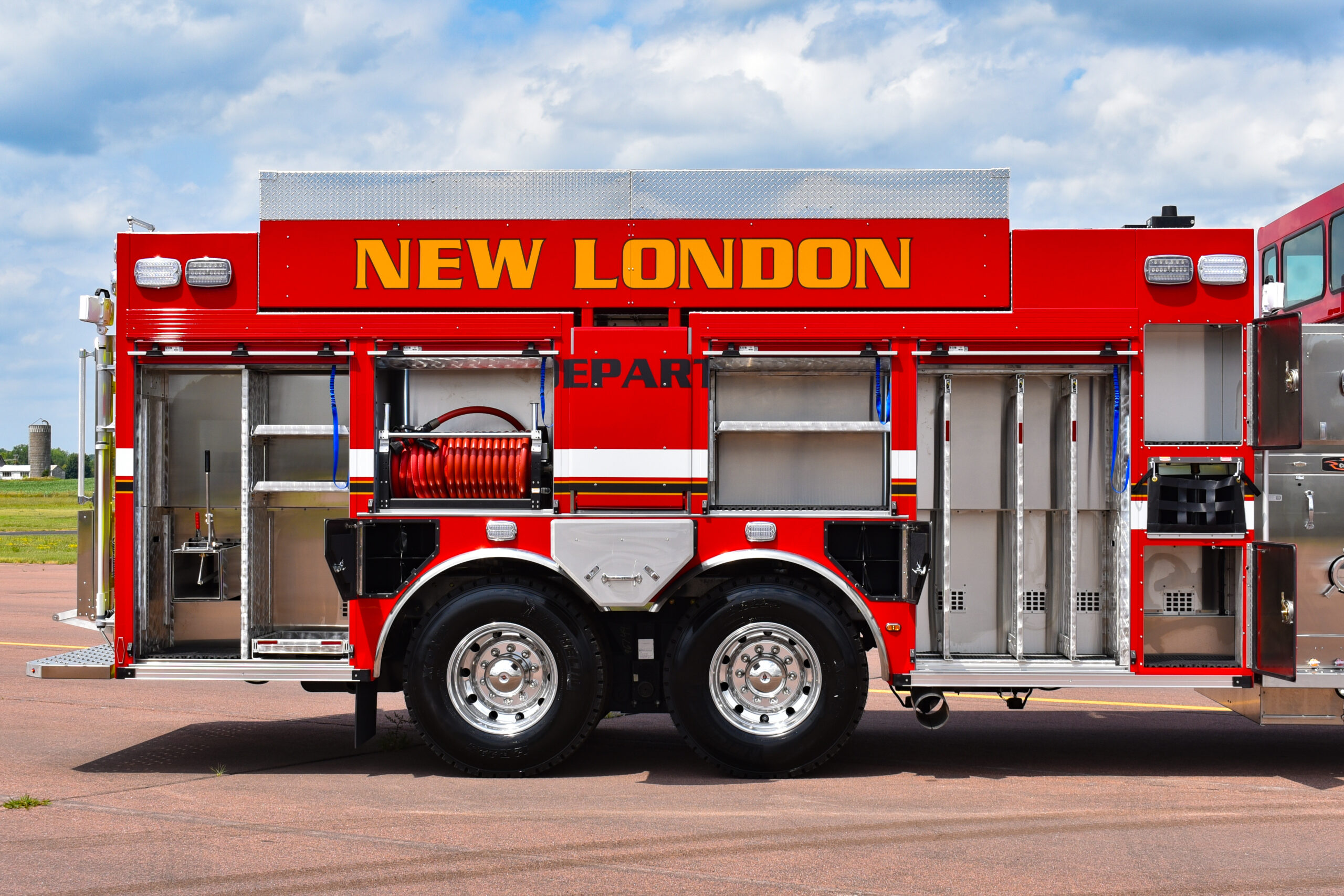

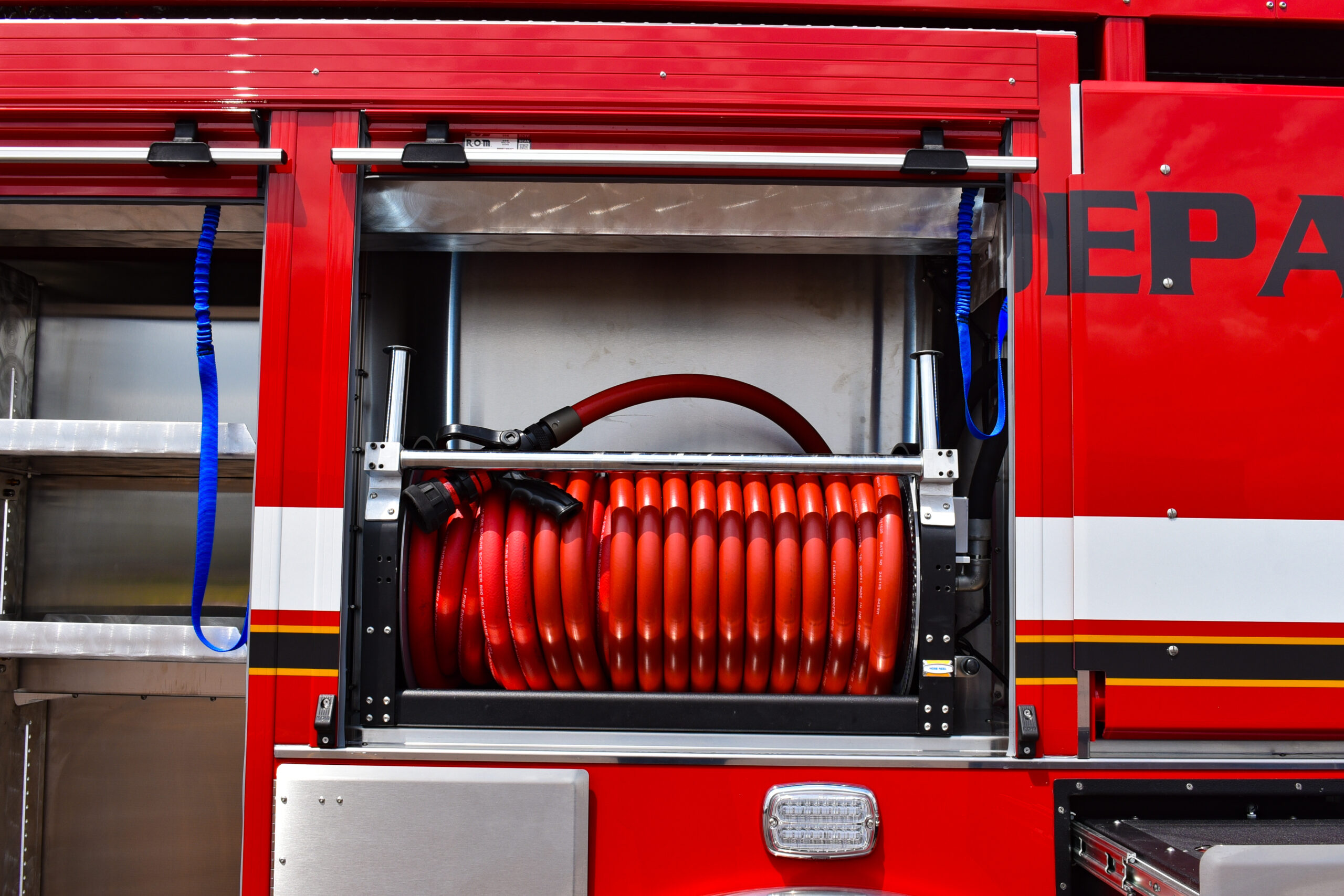

Electric Rewind Booster Hose Reel
Emergency Warning Devices
Federal Q2B Mechanical Siren
Hadley E-Tone Air Horns
Whelen 295 Series Electronic Siren
Whelen Electronic Siren Speakers
Exterior Lighting
Whelen Freedom IV Lightbar
Tomar TRX Series LED Lightbar
Whelen LED Traffic Directing Lights
Whelen M6 & M9 Series Scene Lights
Fire Research Spectra Telescoping Scene Lights
ROM Door Track Compartment Lighting
Standing, Stepping, and Walking Surface Lighting
Under Chassis & Underbody Lights
LED DOT Lighting
Vehicle Dimensions
Overall Height 10' 9"
Overall Length 39' 9"
Wheelbase 247"
Weight w/ Water 60,310 Lbs.
