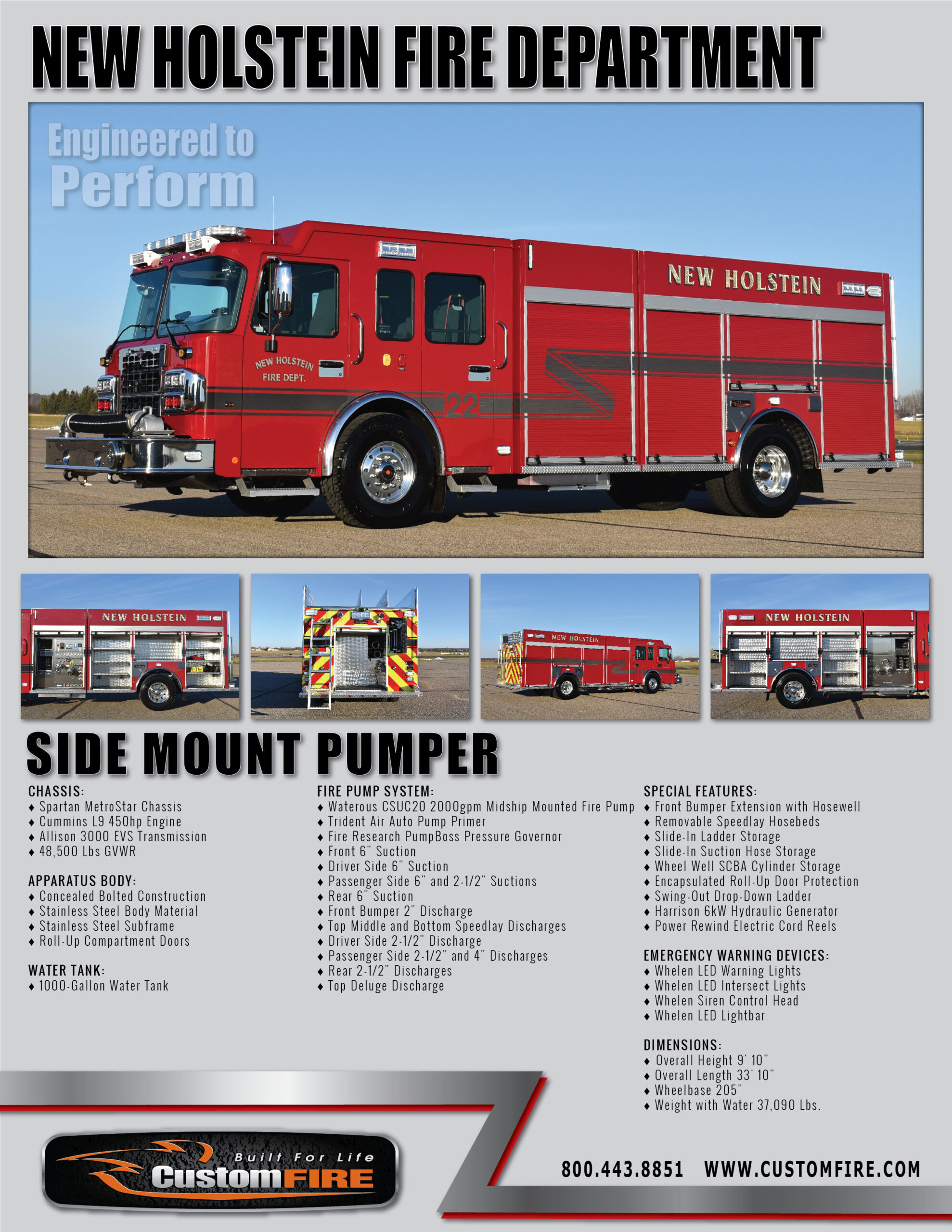

Side Mount Pumper
Custom built for New Holstein Fire Department — New Holstein, WI
Fire Truck: Spartan MetroStar Chassis, Concealed Bolted Stainless Steel, Waterous 2000gpm Pump, 1000-Gallon Tank, Adjustable Shelving, Slide-In Ladder and Suction Hose Storage, Harrison Hydraulic Generator, Power Rewind Cord Reel, LED Emergency Lighting
Truck Type : Pumpers
Cab Type : Custom Cab, Side Mount
Deployed : November, 2021
Chassis Model
Spartan MetroStar Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission
48,500 Lbs GVWR
Apparatus Body
Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors
Fire Pump System
Waterous CSUC20 2000gpm Midship Pump
Trident Air Auto Pump Primer
Fire Research PumpBoss Pressure Governor
Front 6" Suction
Driver Side 6" Suction
Passenger Side 6" and 2-1/2" Suctions
Rear 6" Suction
Front Bumper 2" Discharge
Top Middle and Bottom Speedlay Discharges
Driver Side 2-1/2" Discharge
Passenger Side 2-1/2" and 4" Discharges
Rear 2-1/2" Discharges
Top Deluge Discharge
Booster Tank
1000-Gallon Water Tank
Special Features
Front Bumper Extension with Hosewell
Removable Speedlay Hosebeds
Slide-In Ladder Storage
Slide-In Suction Hose Storage
Wheel Well SCBA Cylinder Storage
Encapsulated Roll-Up Door Protection
Swing-Out Drop-Down Ladder
Harrison 6kW Hydraulic Generator
Power Rewind Electric Cord Reels
Emergency Warning Devices
Whelen LED Warning Lights
Whelen LED Intersect Lights
Whelen Siren Control Head
Whelen LED Lightbar
Exterior Lighting
Vertical Strip LED Comparment Lights
LED Marker Lights
Whelen LED Tail Lighting
Under Cab and Under Body Lights
Whelen LED Scene Lights
Vehicle Dimensions
Overall Height 9' 10"
Overall Length 33' 10"
Wheelbase 205"
Weight with Water 37,090 Lbs.
