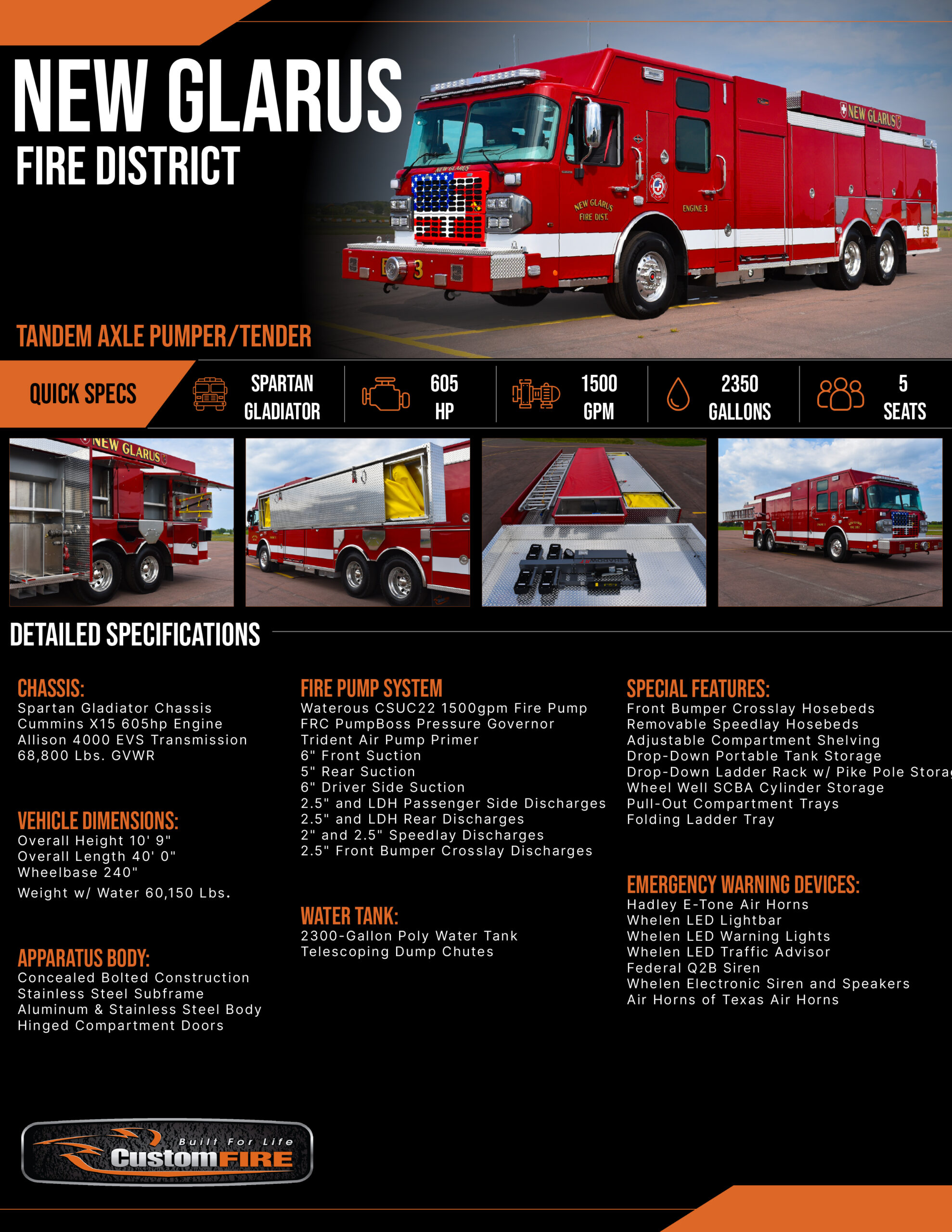

Truck Type : Pumpers, Tenders
Cab Type : 2300 Gallons or More, Custom Cab, Pumper Tankers, Side Mount
Deployed : August, 2026

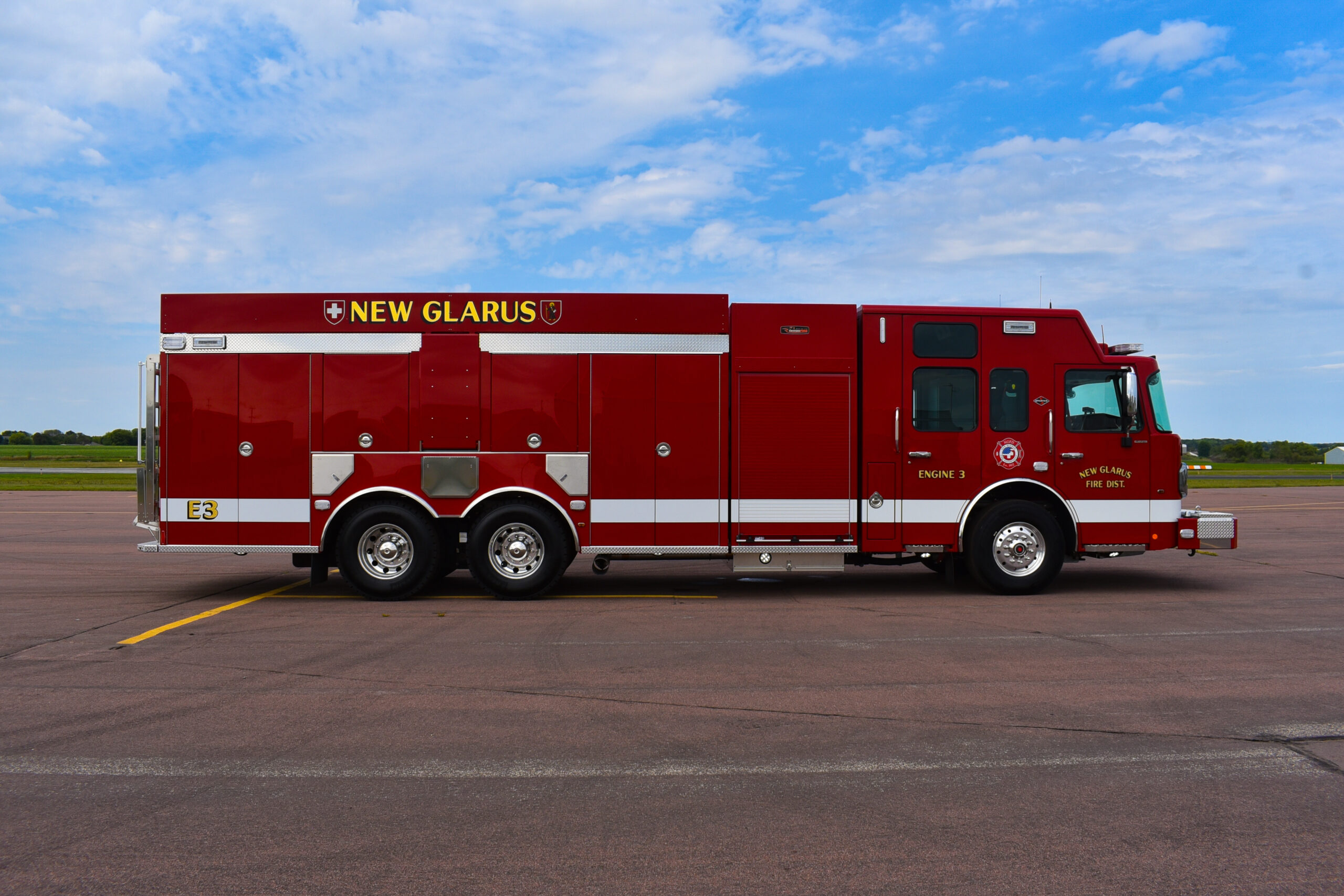

Chassis Model

Spartan Gladiator Chassis
Cummins X15 605hp Engine
Allison 4000 EVS Transmission
68,800 Lbs. GVWR

Apparatus Body

Concealed Bolted Construction
Stainless Steel Subframe
Aluminum and Stainless Steel Body Materials
Hinged Compartment Doors

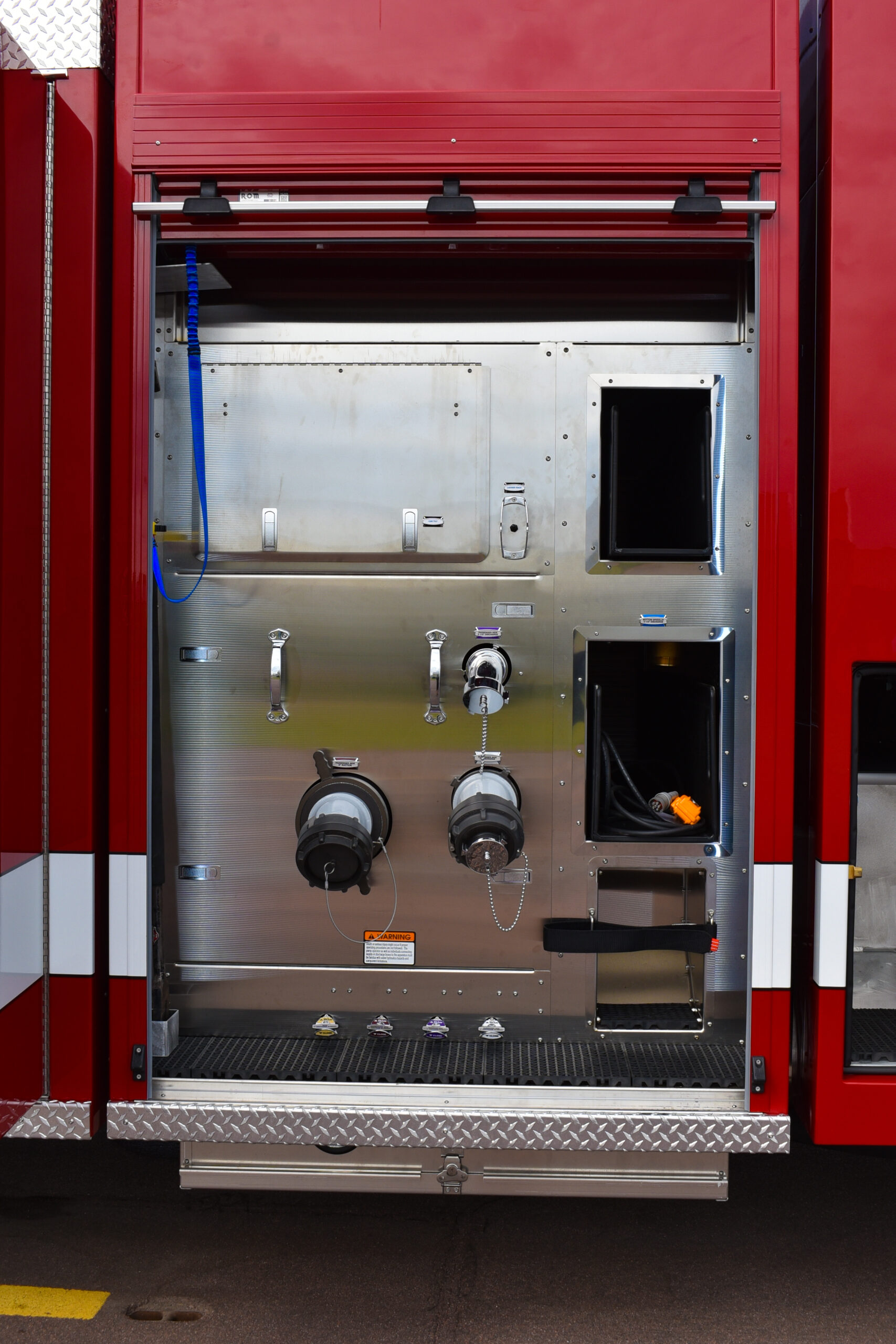

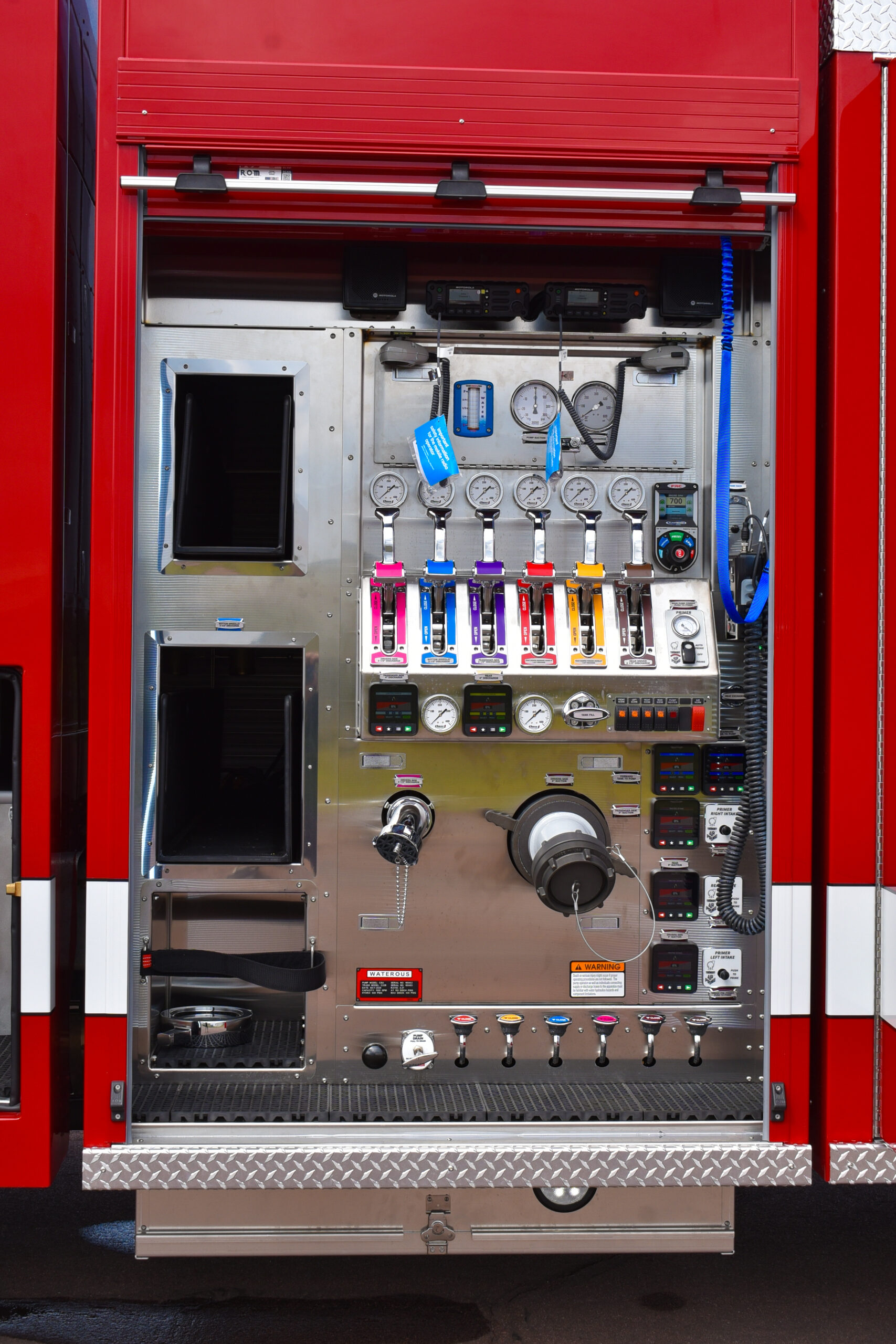

Fire Pump System

Waterous CSUC22 1500gpm Fire Pump
FoamPro 2002 Single Agent Foam System
Fire Research PumpBoss Pressure Governor
Trident Air Pump Primer
6" Front Suction

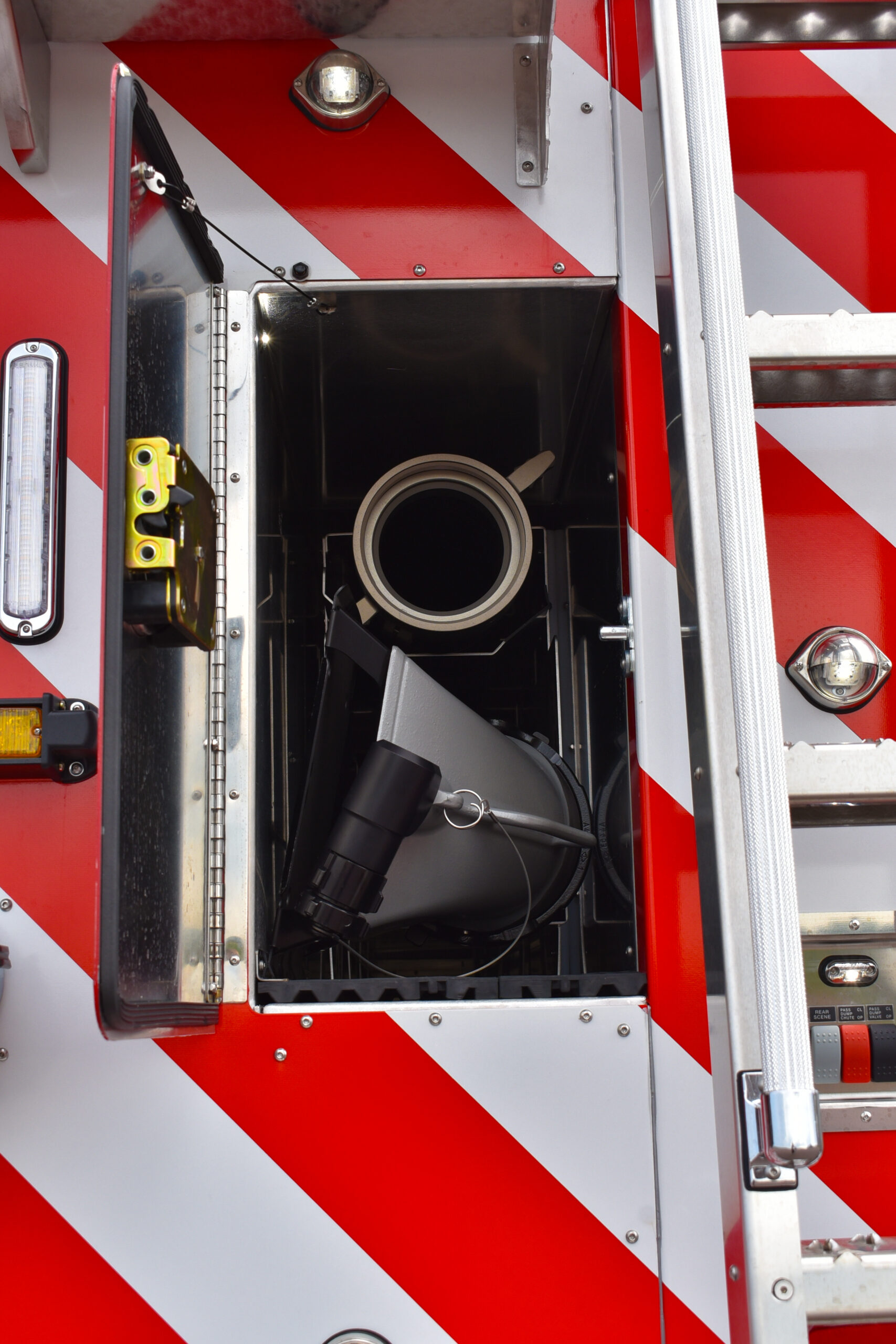

5" Rear Suction
6" Driver Side Suction
2.5" and LDH Passenger Side Discharges

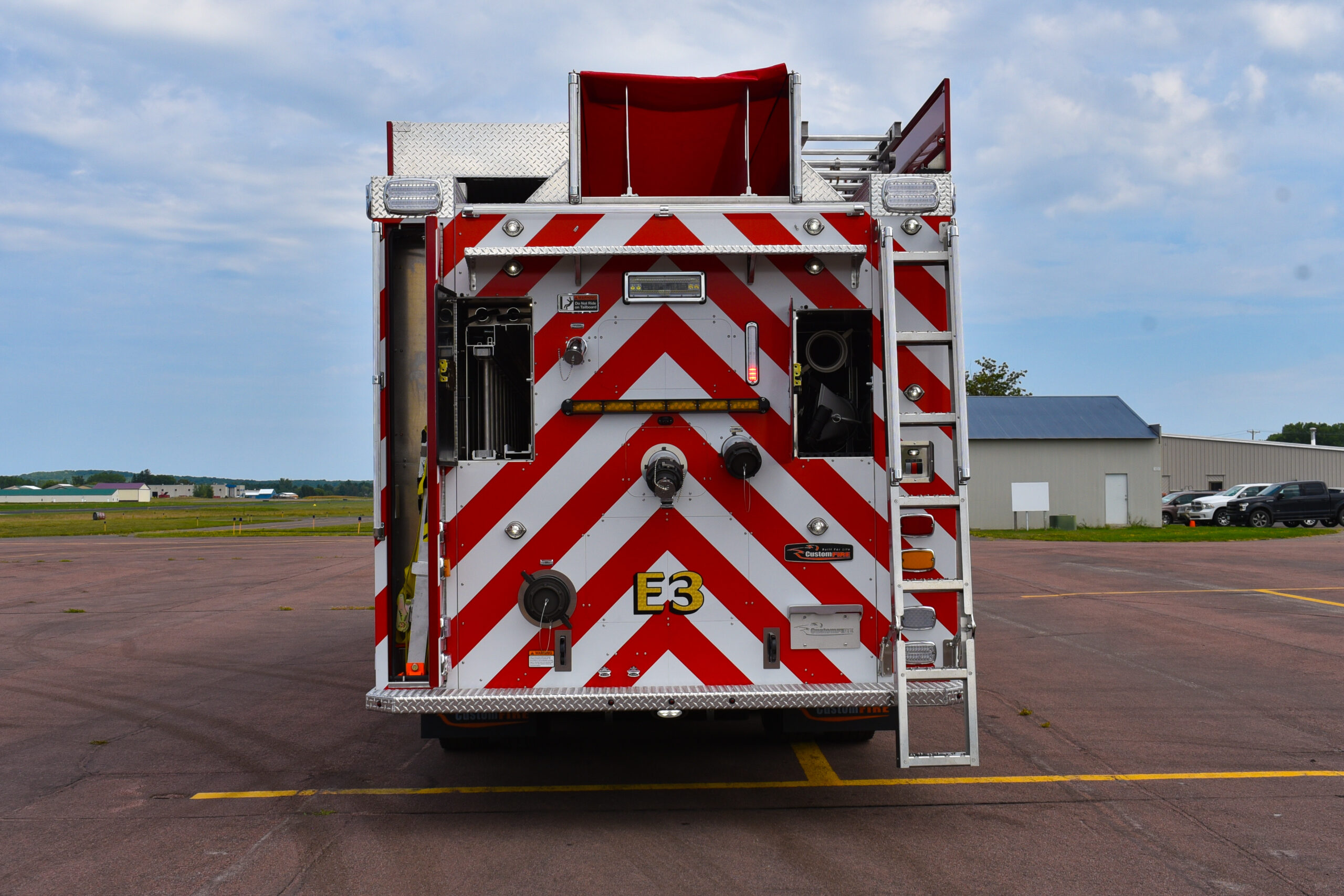

2.5" and LDH Rear Discharges
2" and 2.5" Speedlay Discharges
2.5" Front Bumper Crosslay Discharges

Booster Tank

2300-Gallon Poly Water Tank
30-Gallon Foam Cell

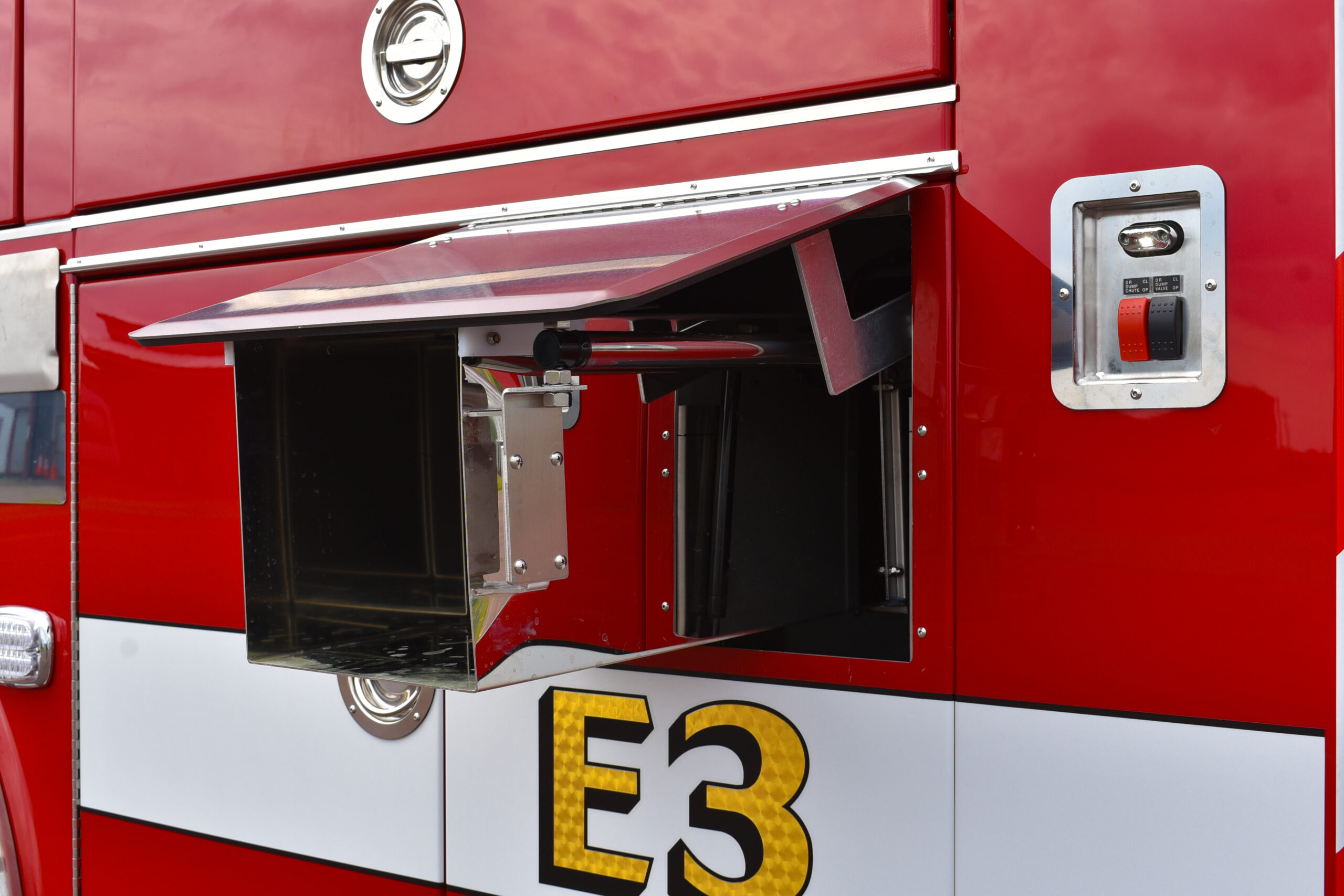

Driver and Passenger Side Telescoping Dump Chutes

Special Features

Front Bumper Crosslay Hosebeds
Removable Speedlay Hosebeds

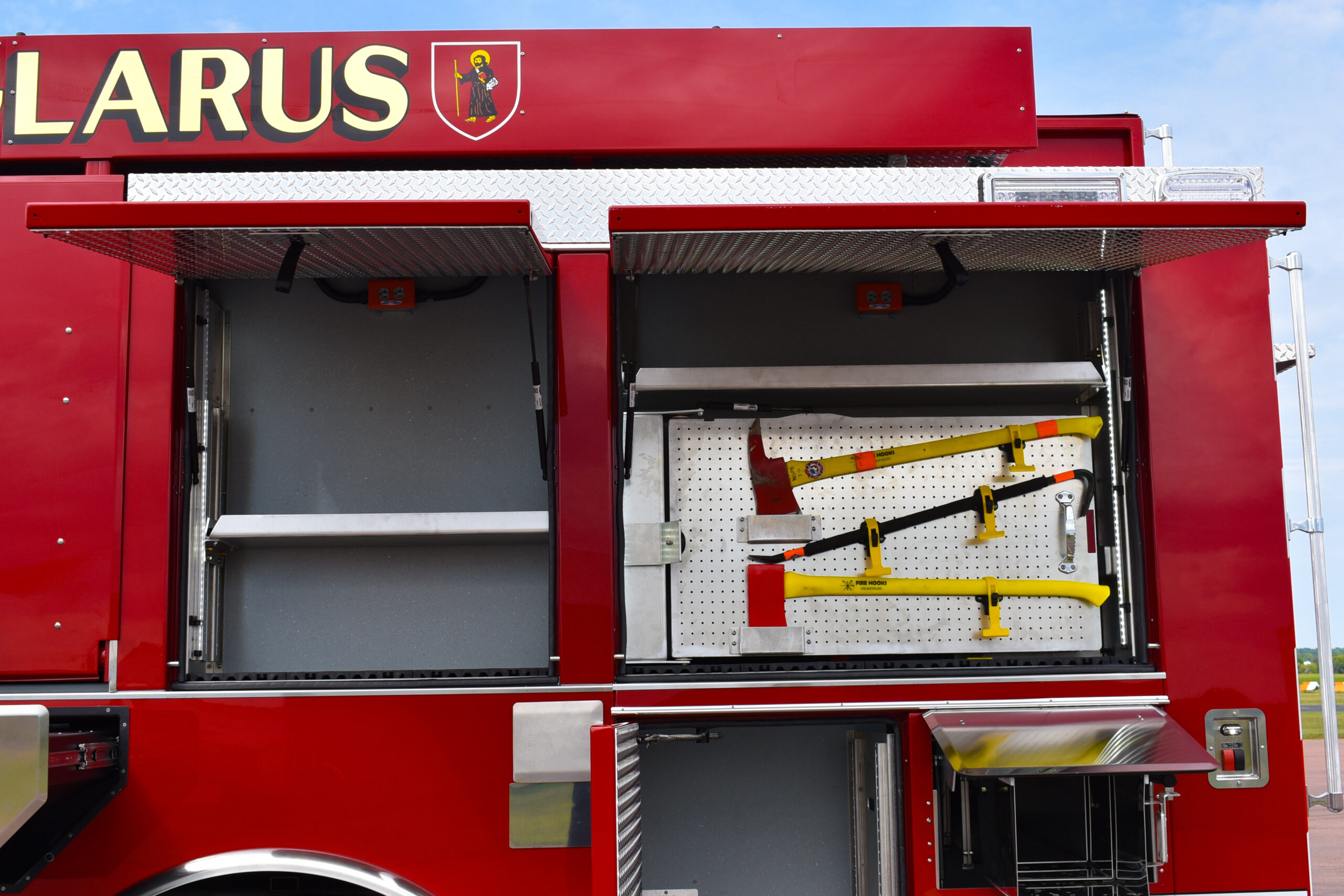

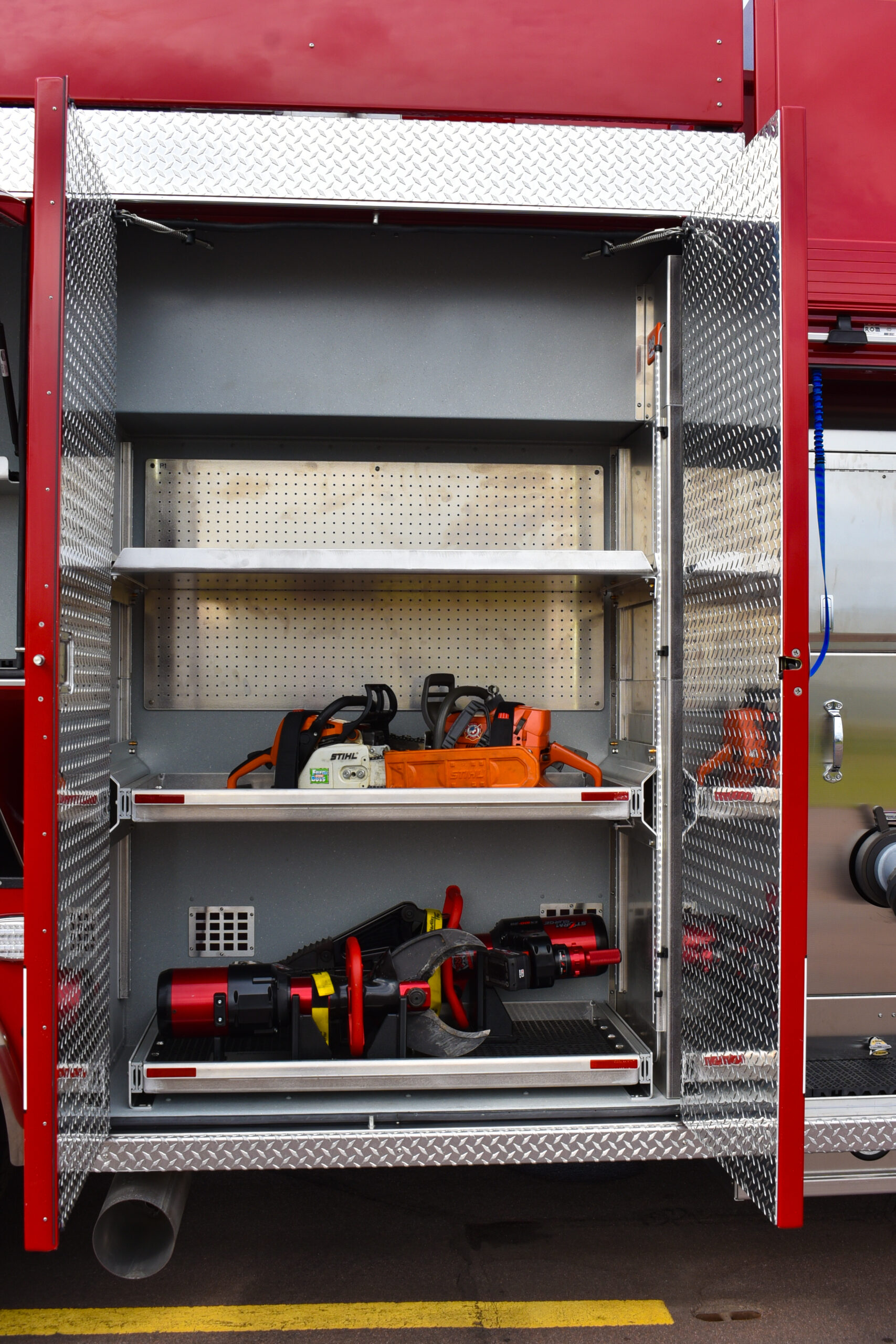

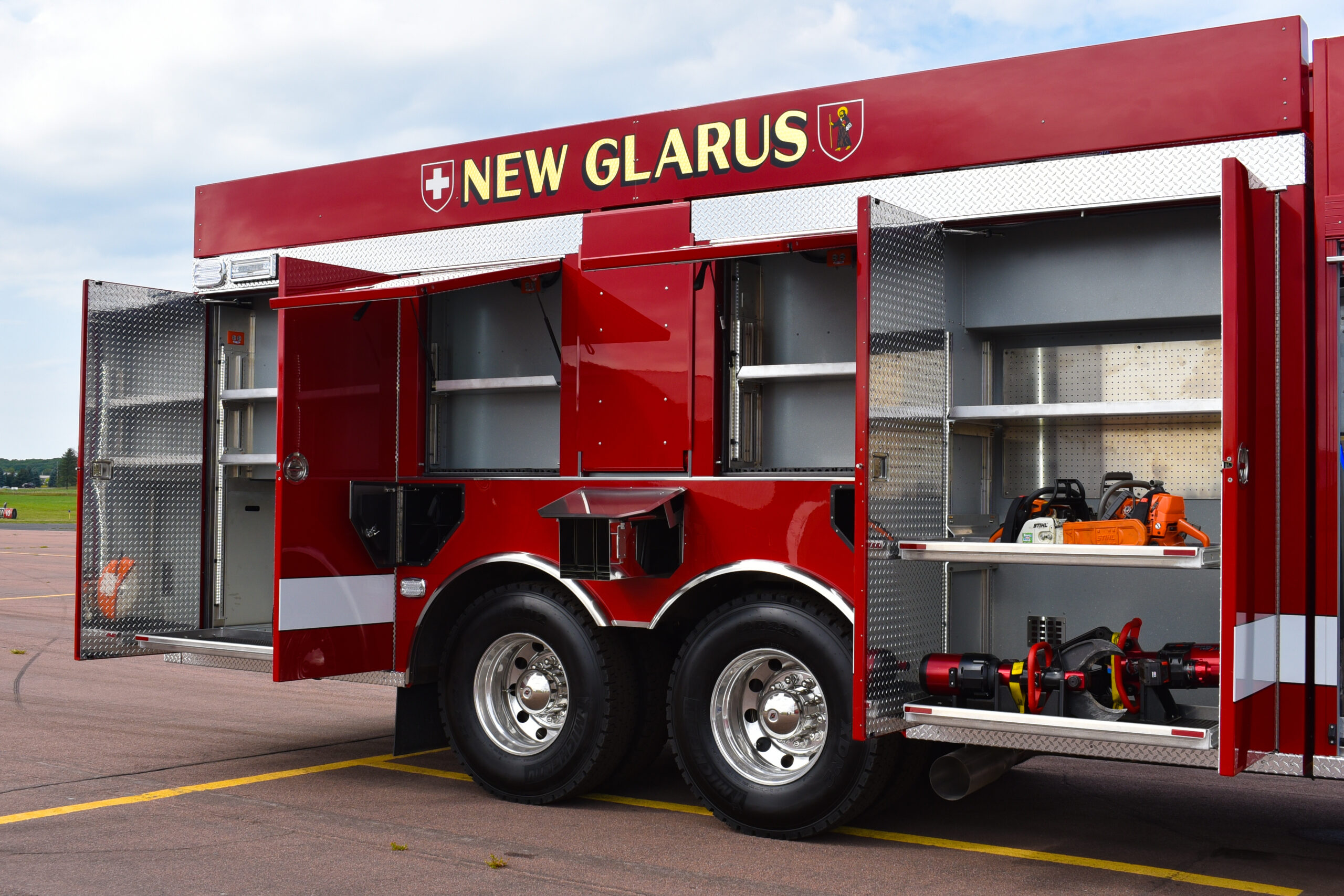

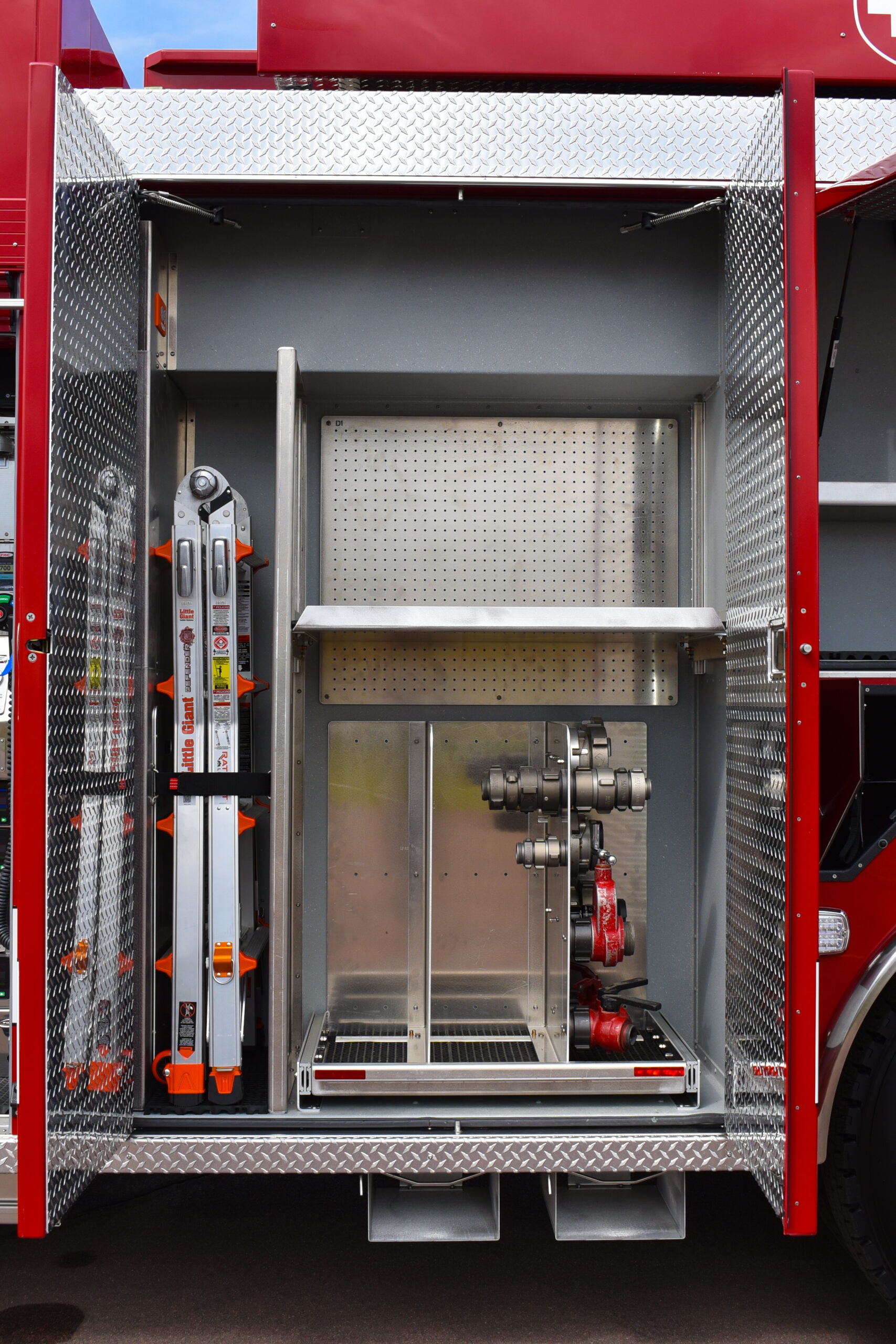

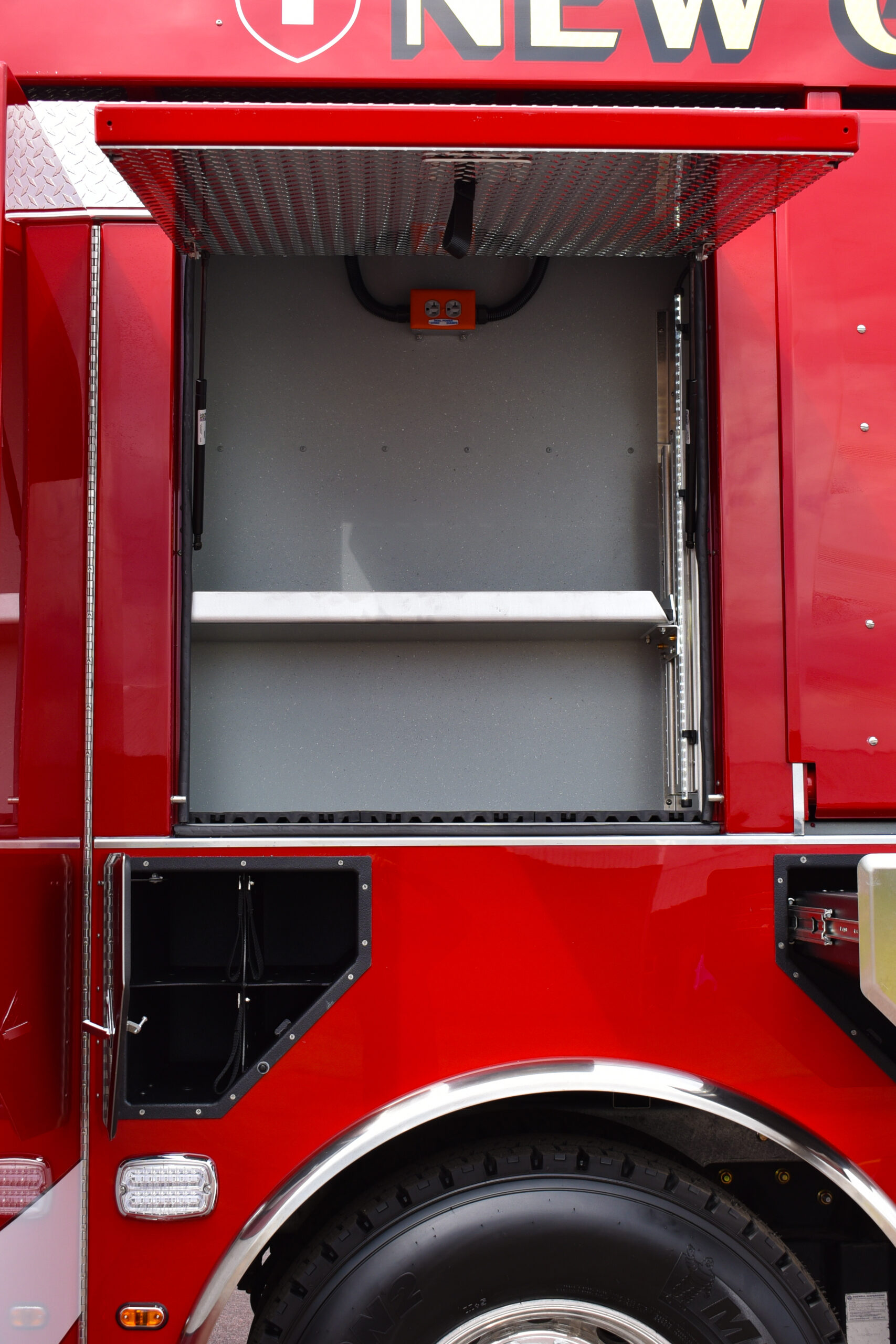

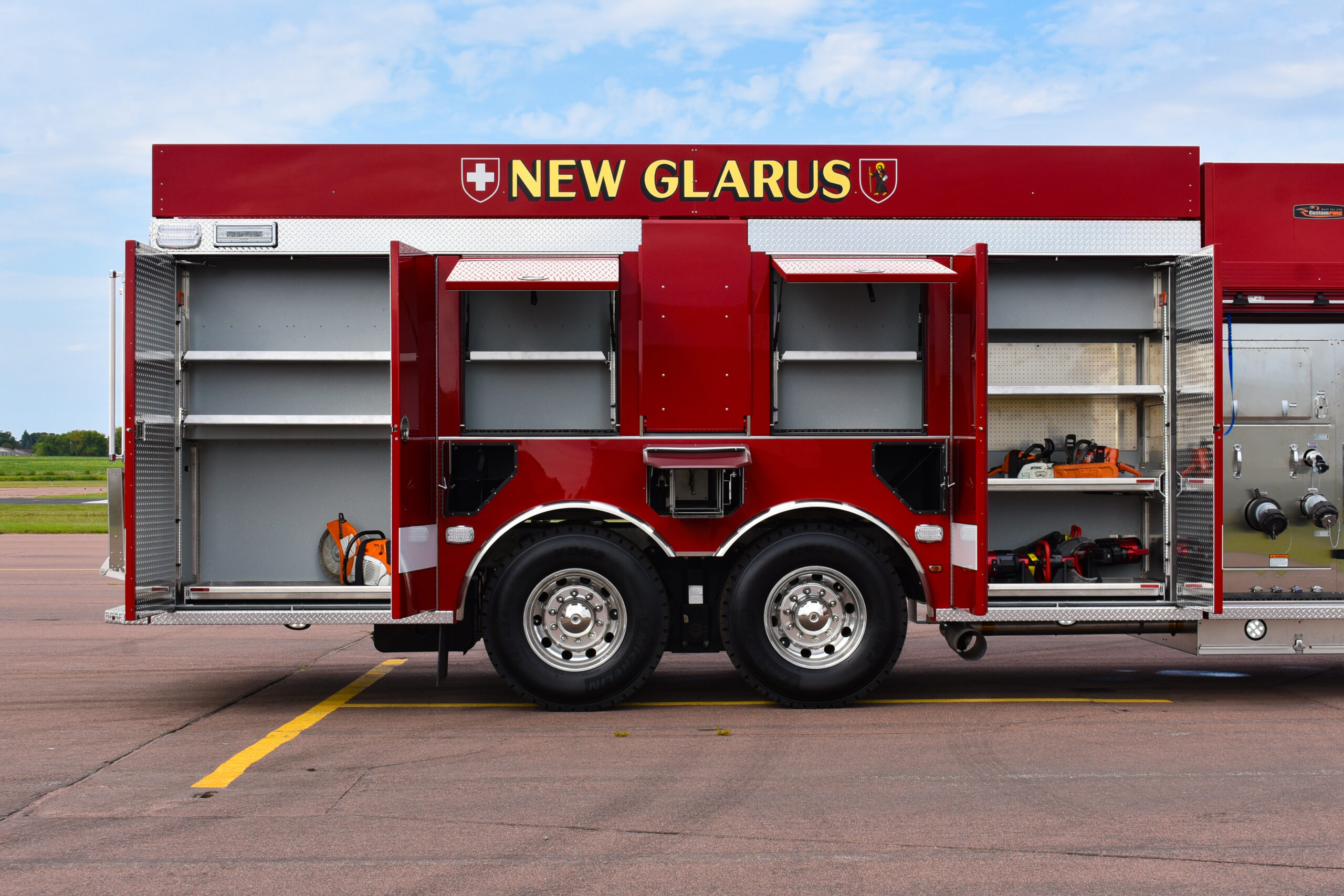

Adjustable Compartment Shelving

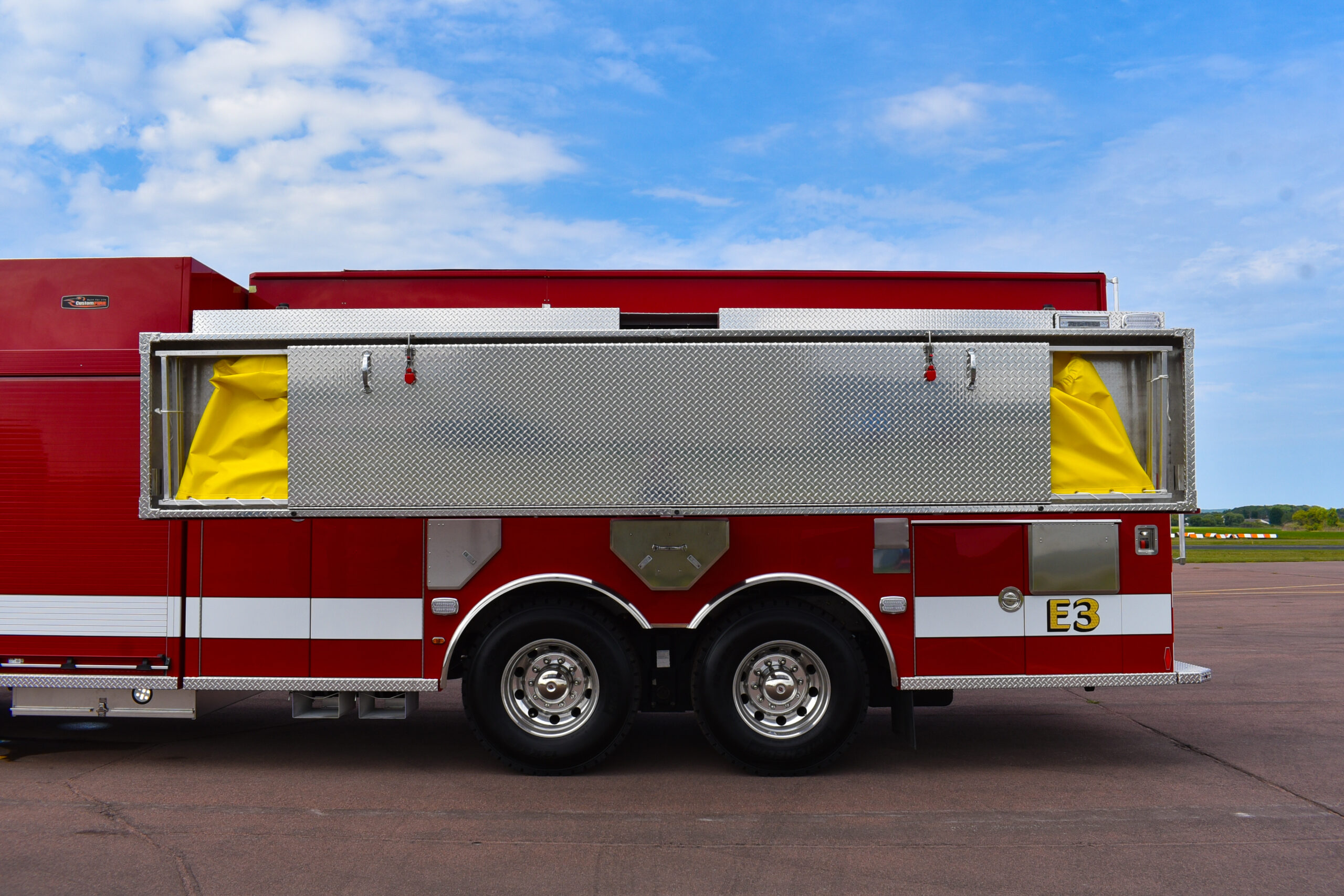

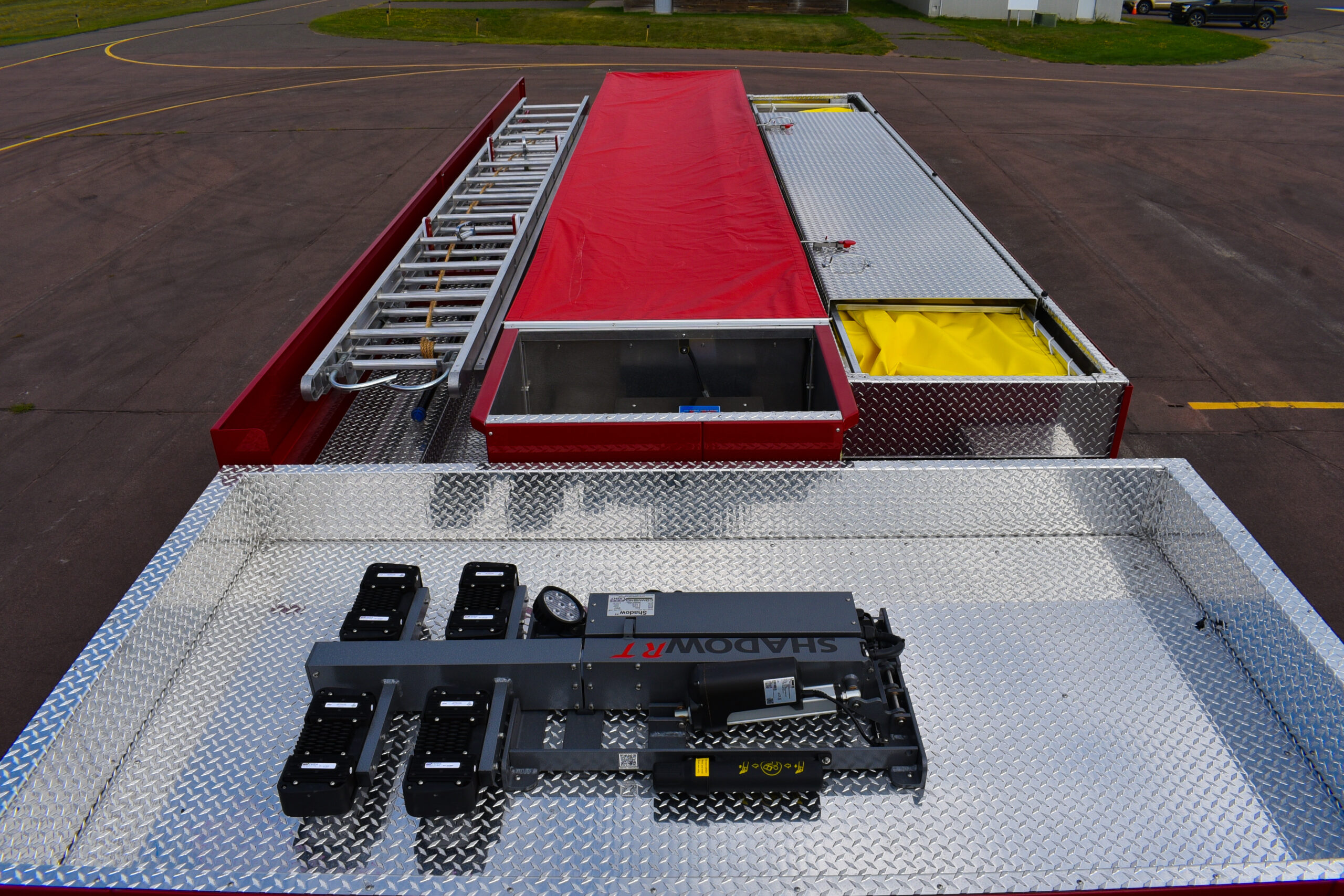

Drop-Down Portable Tank Storage

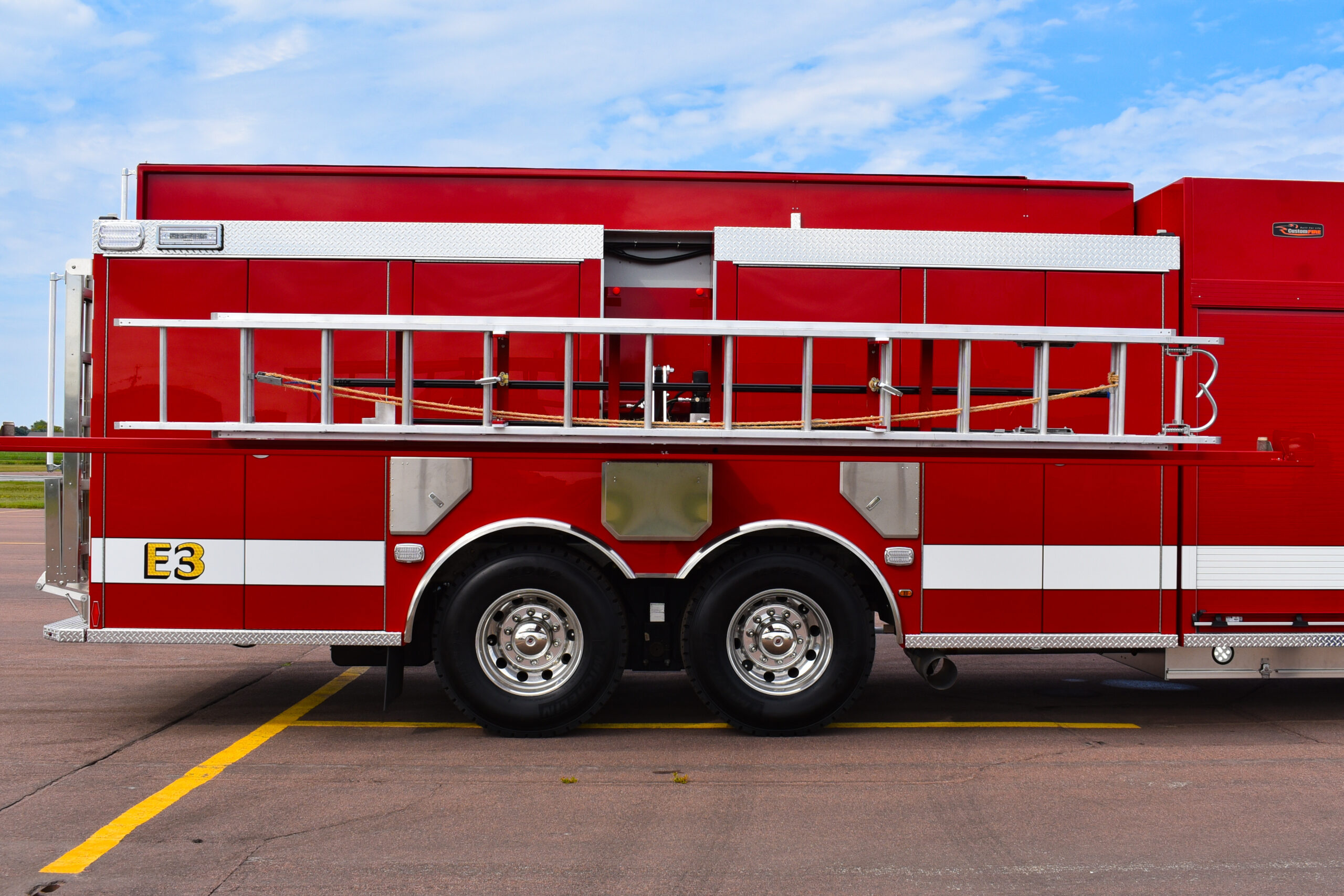

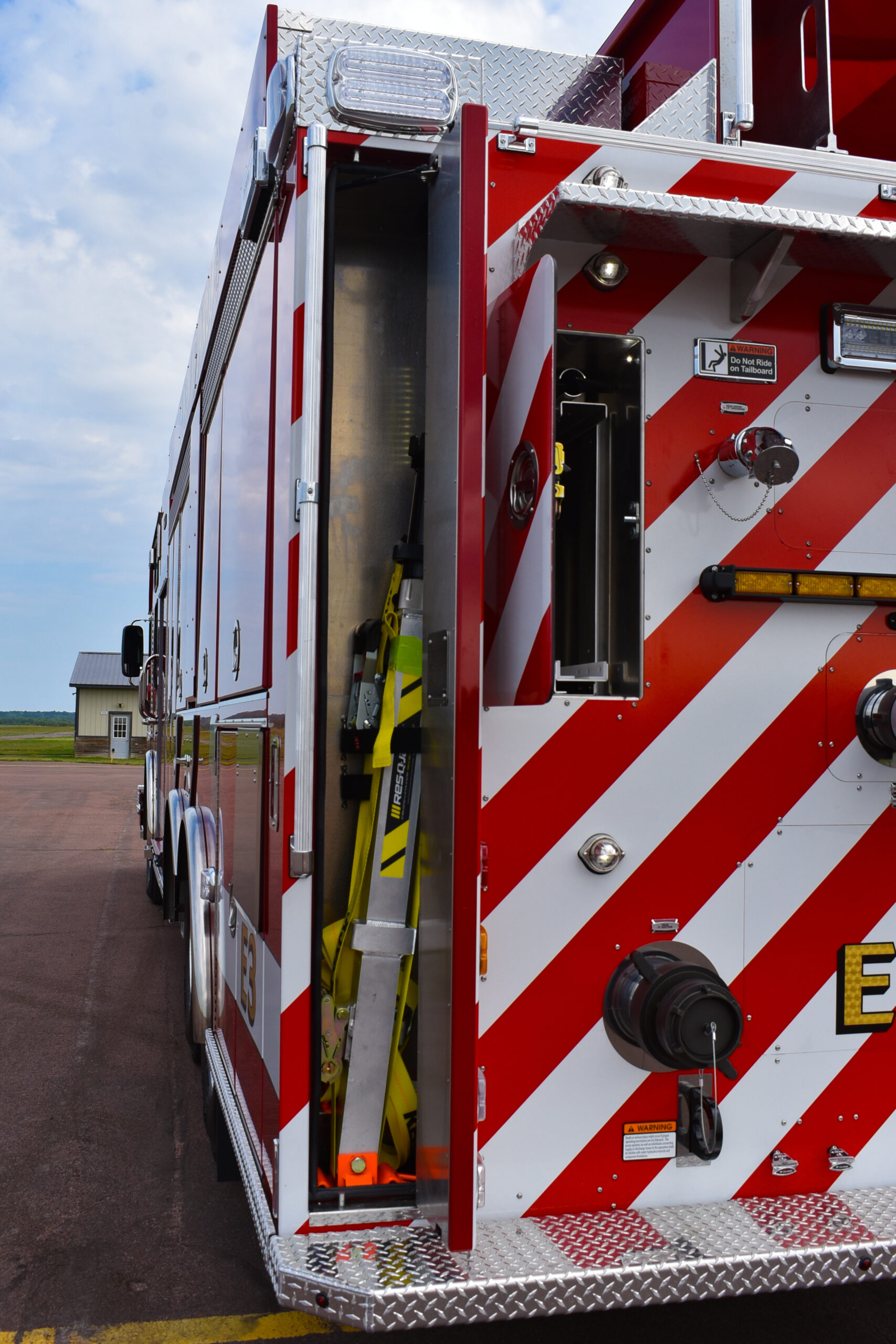

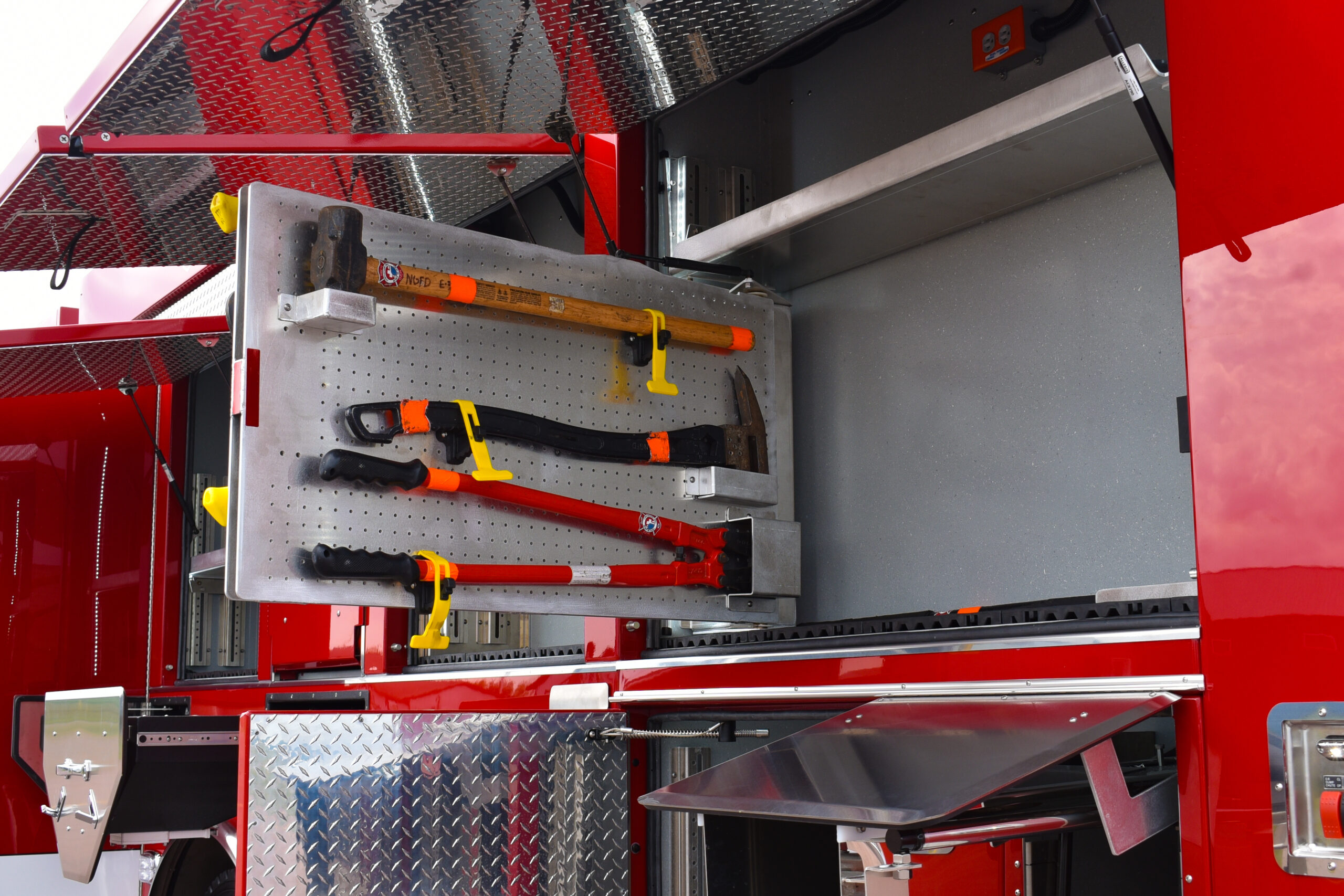

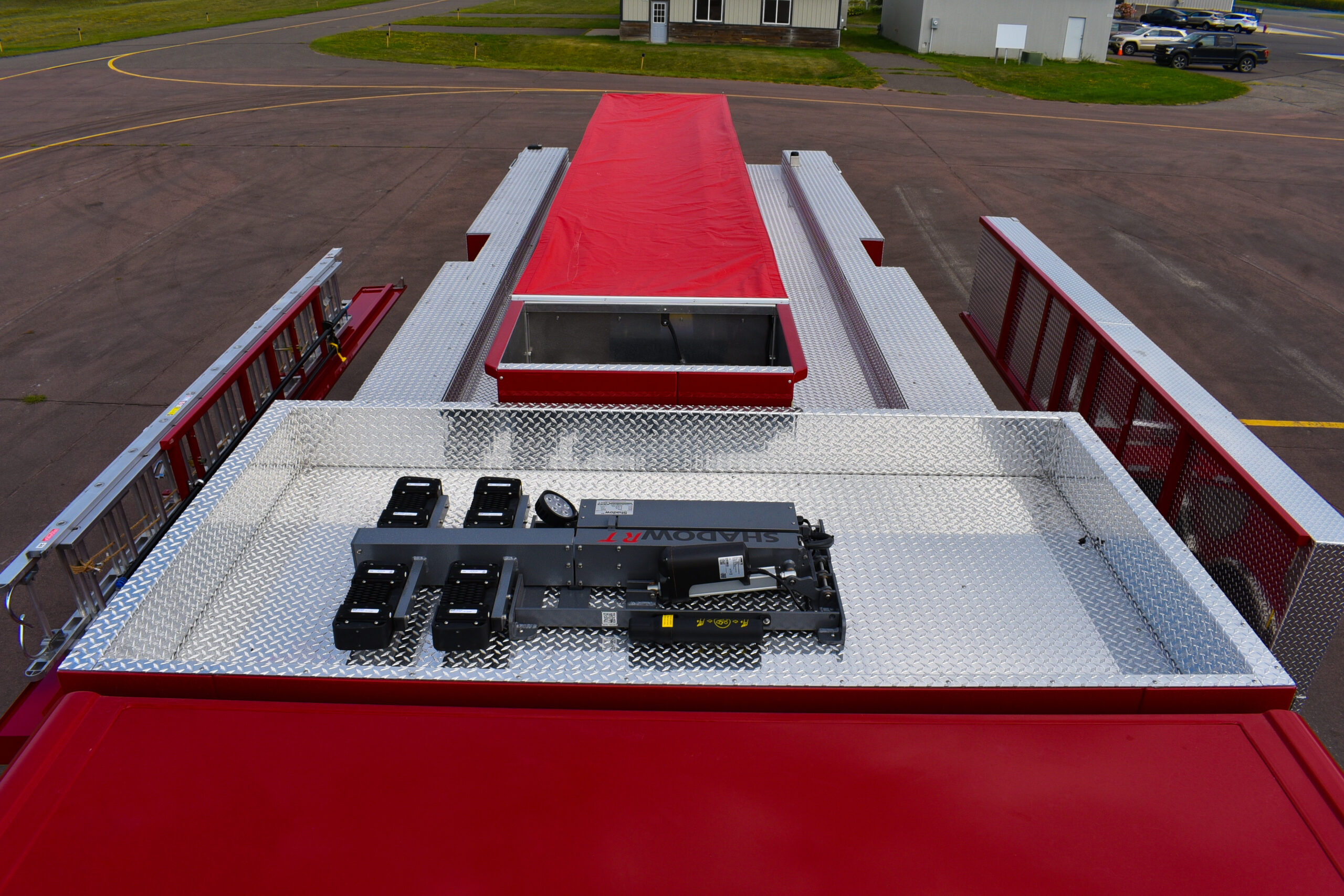

Drop-Down Ladder Rack w/ Pike Pole Storage

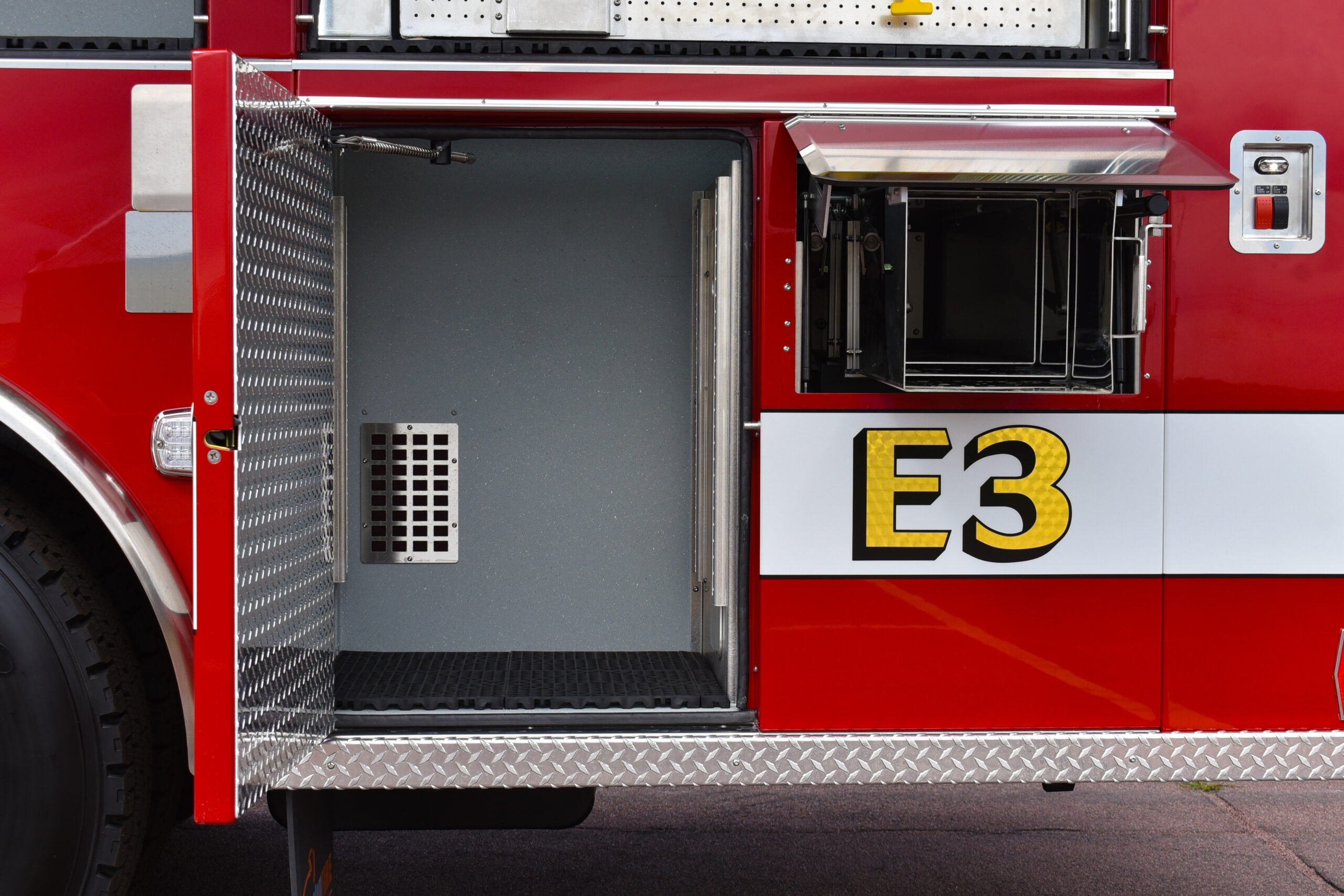

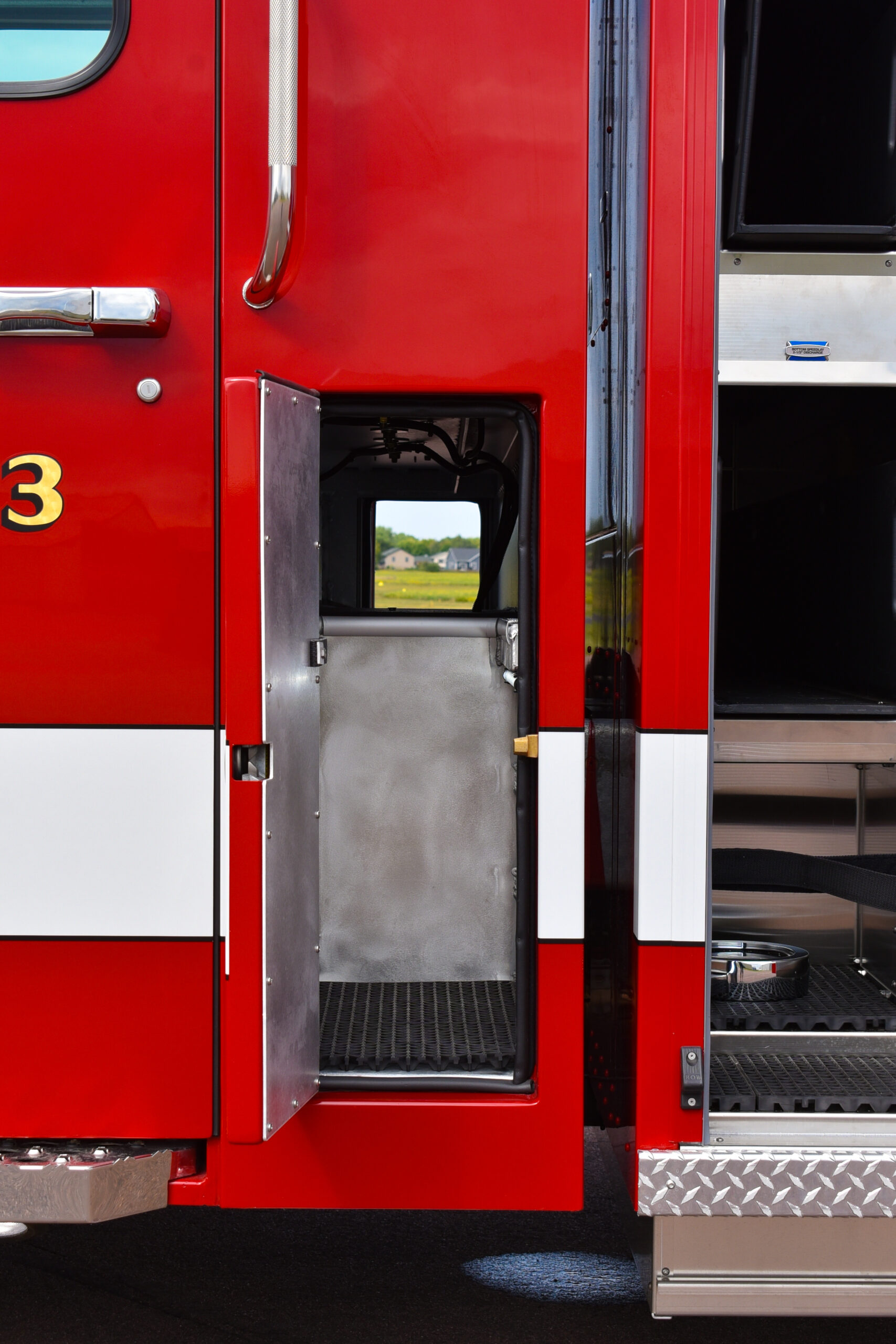

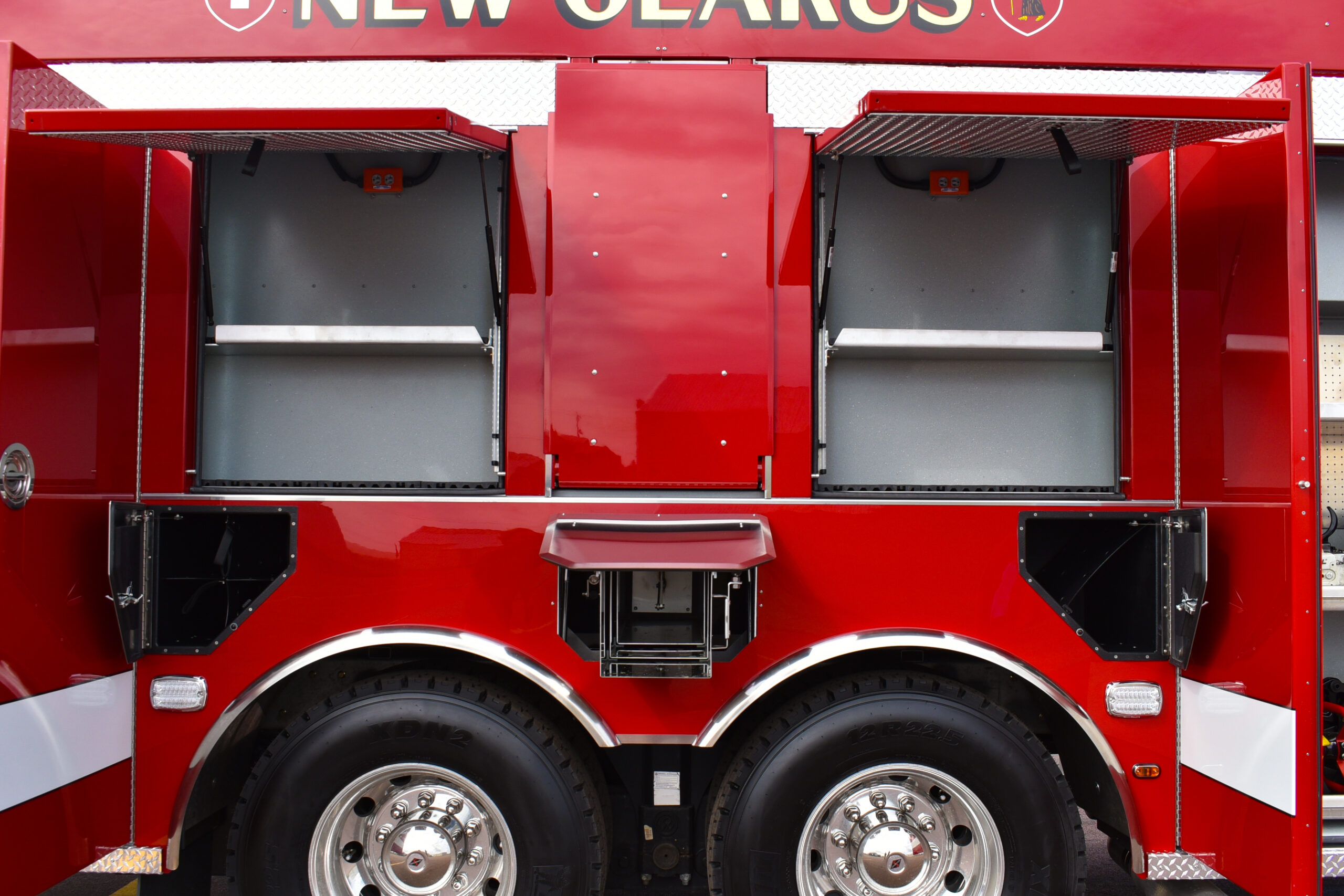

Wheel Well SCBA Cylinder Storage

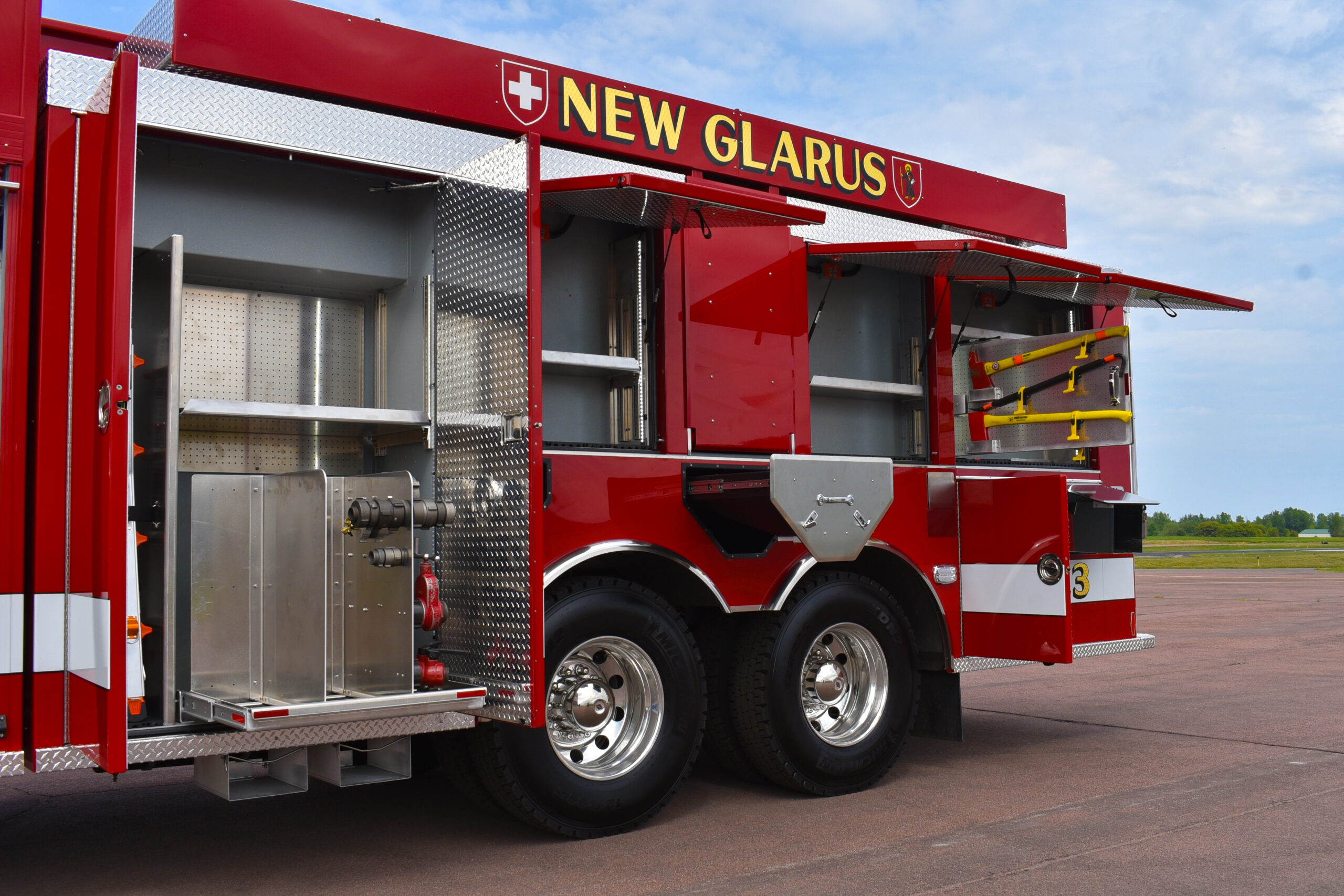

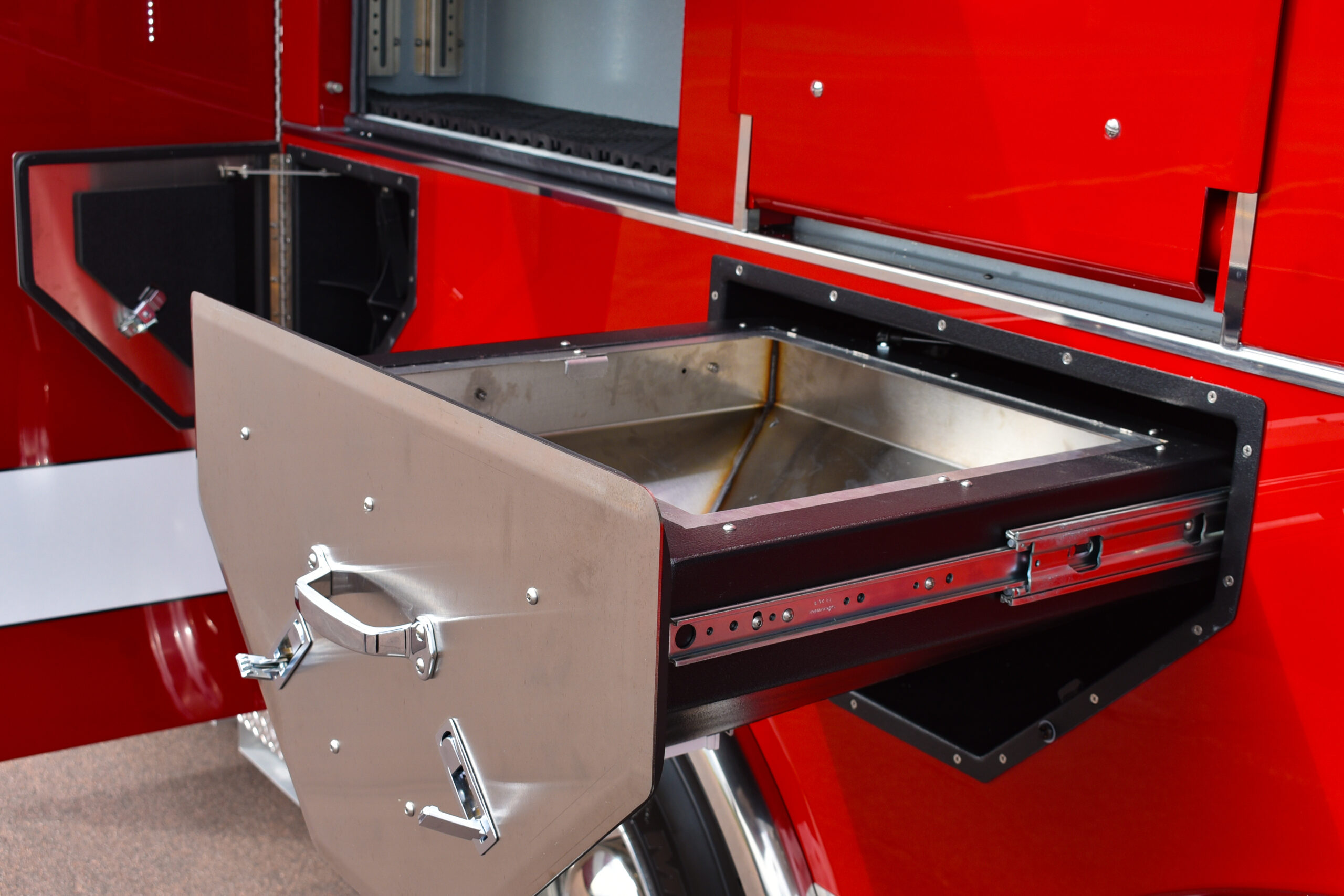

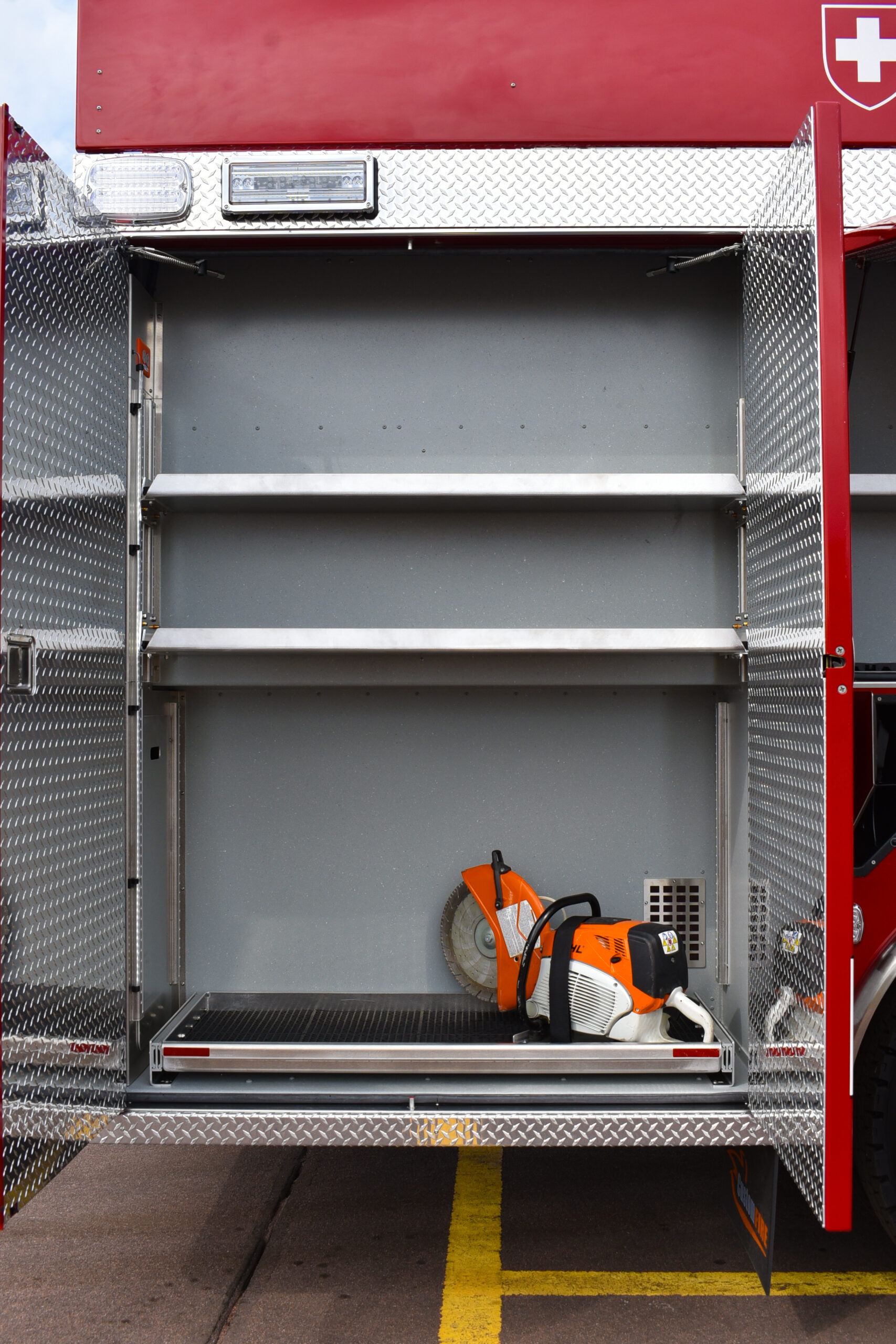

Pull-Out Compartment Trays

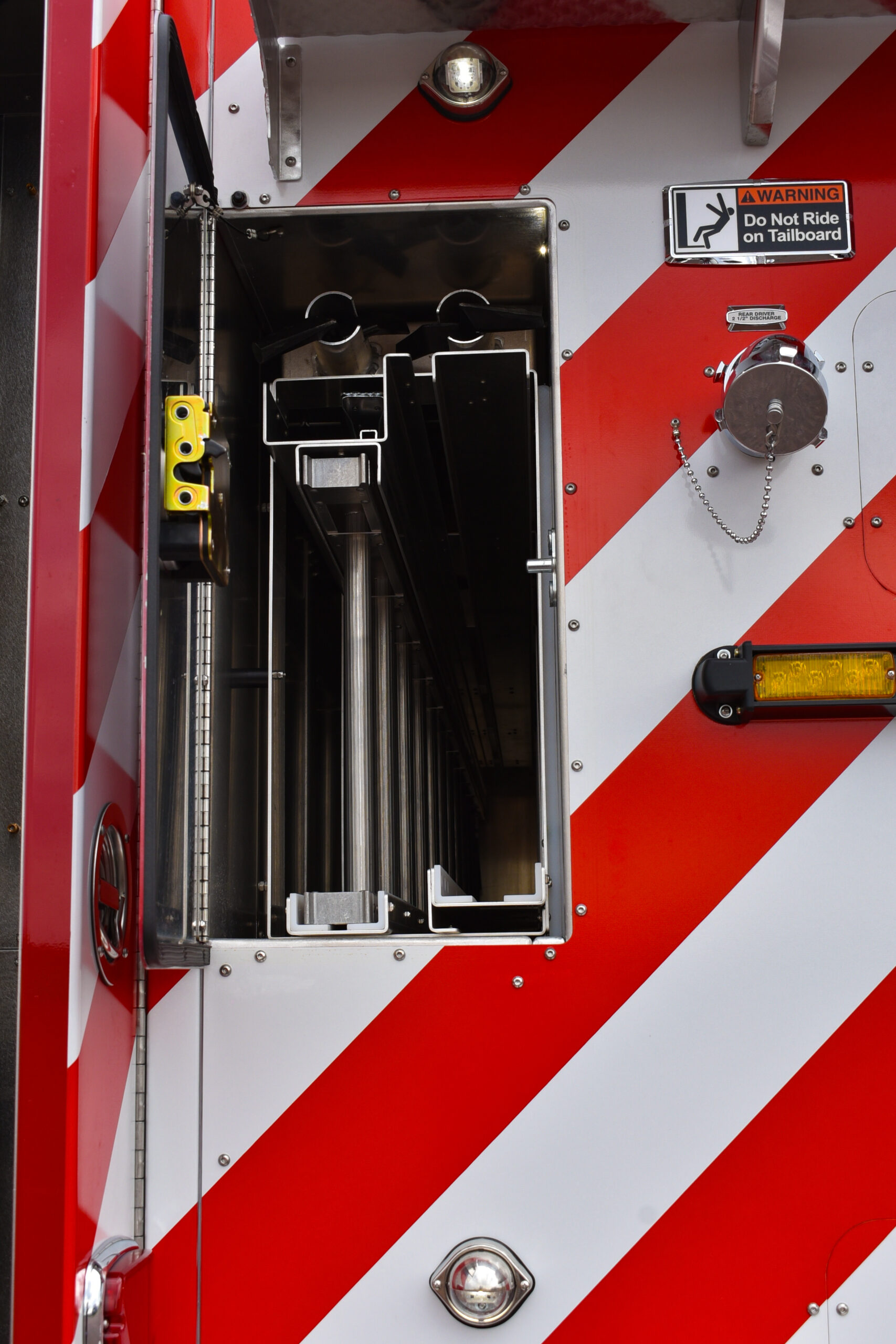

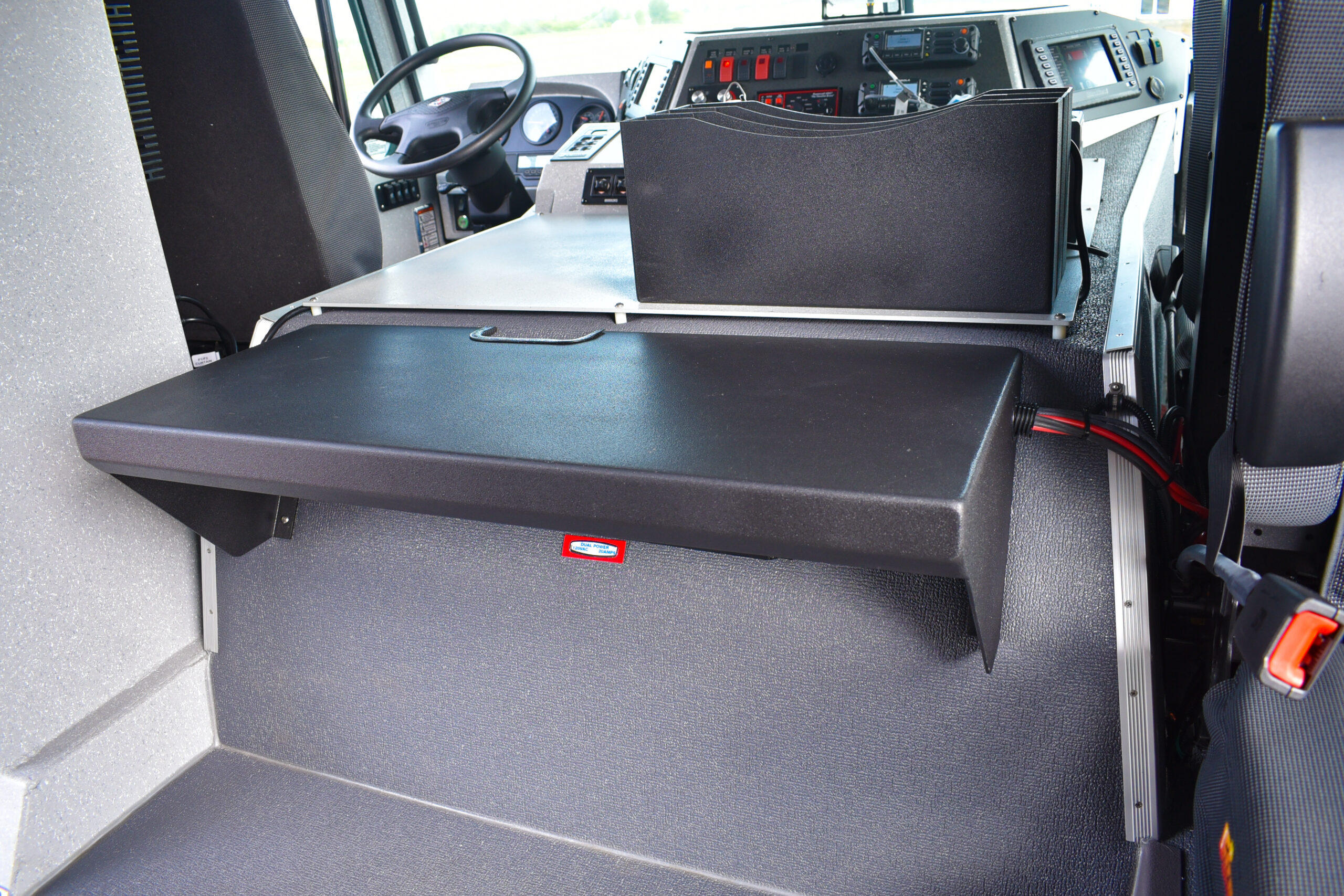

Folding Ladder Tray

Emergency Warning Devices

Hadley E-Tone Air Horns
Whelen LED Lightbar
Whelen LED Warning Lights
Whelen LED Traffic Advisor
Federal Q2B Siren
Whelen Electronic Siren and Speakers
Air Horns of Texas Air Horns

Exterior Lighting

Under Cab and Under Body Lights
LED Marker Lights
LED Tail Lights
LED Compartment Lighting

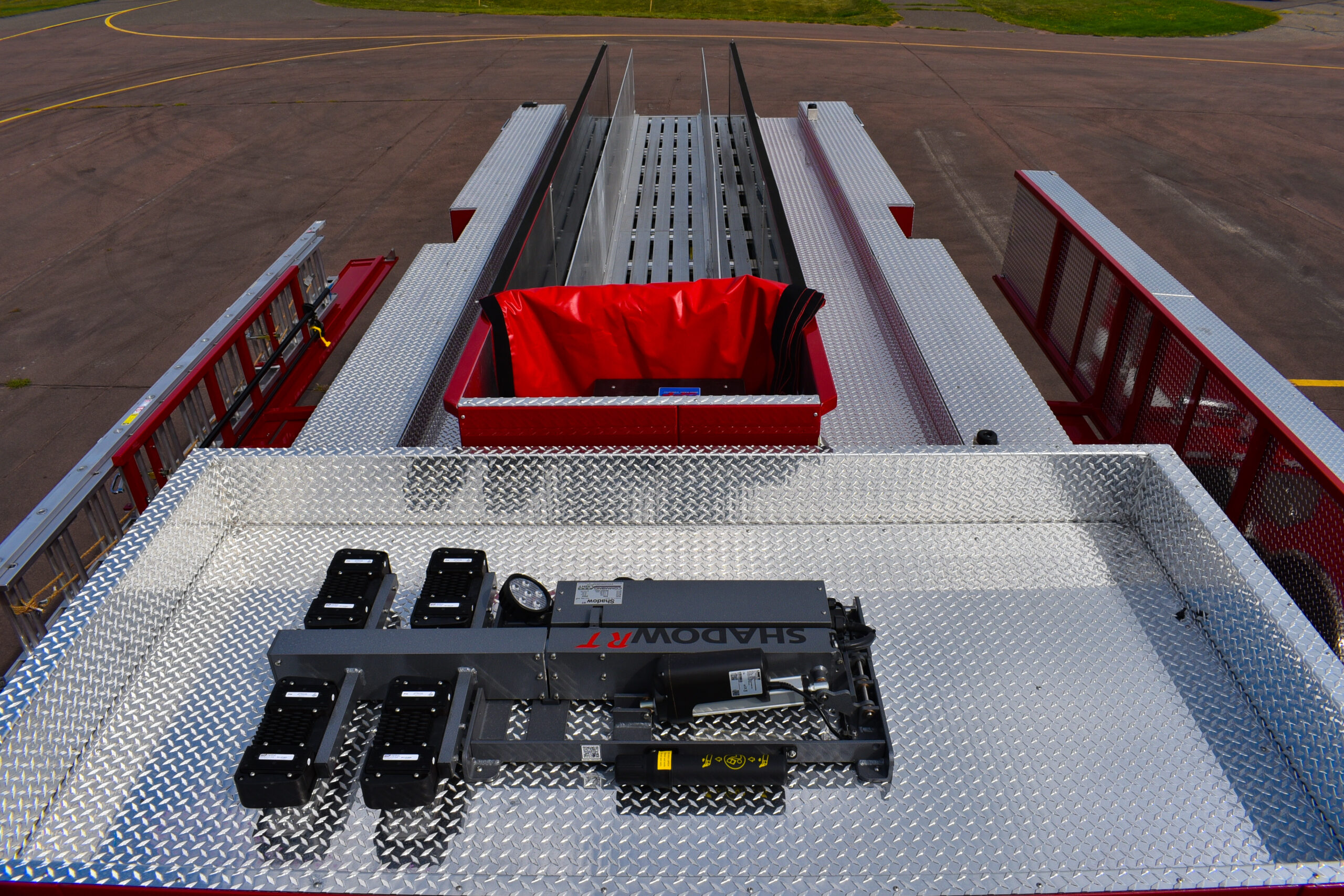

Command Light SL Light 600w Tower
Fire Research Scene Lights

Vehicle Dimensions

Overall Height 10' 9"
Overall Length 40' 0"
Wheelbase 240"
Weight w/ Water 60,150 Lbs.
