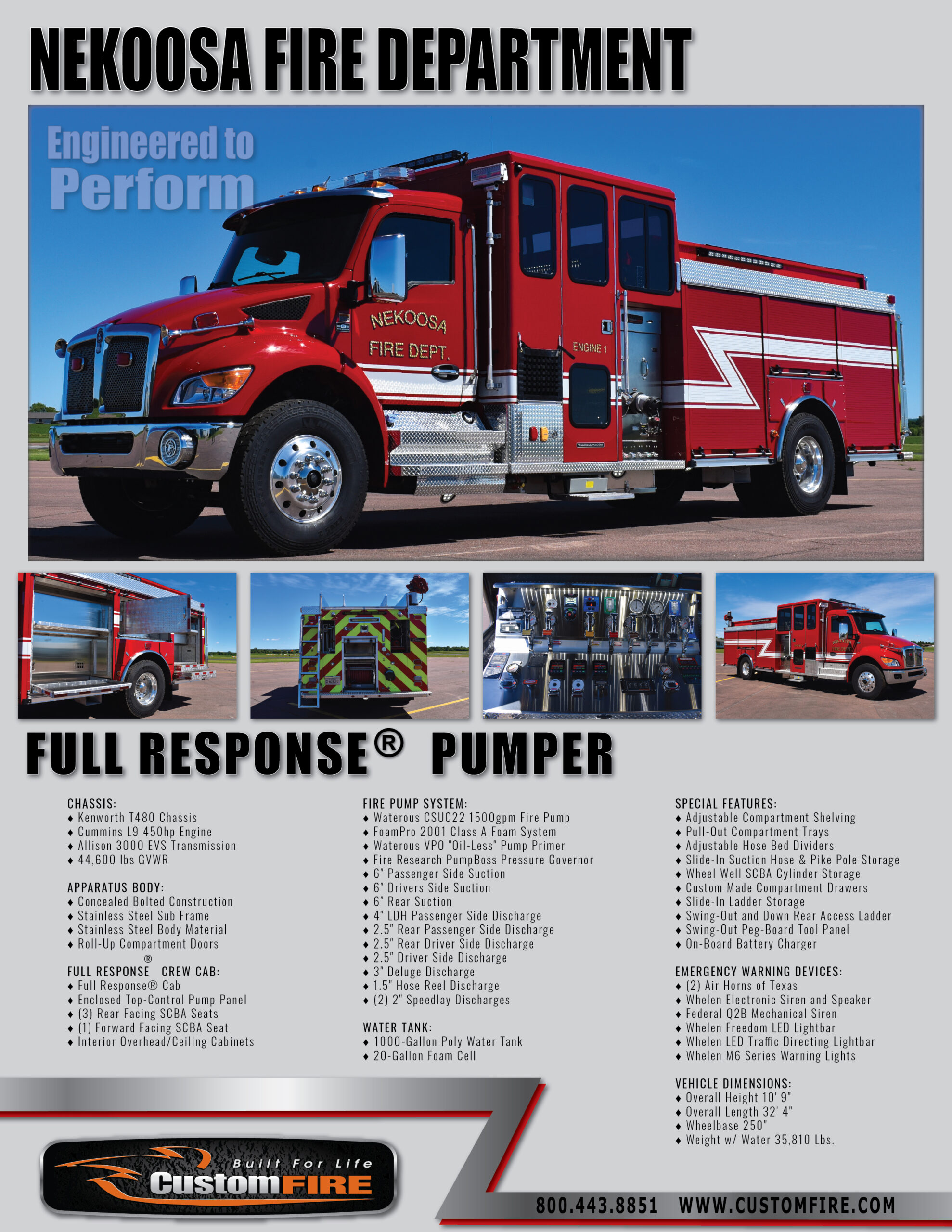

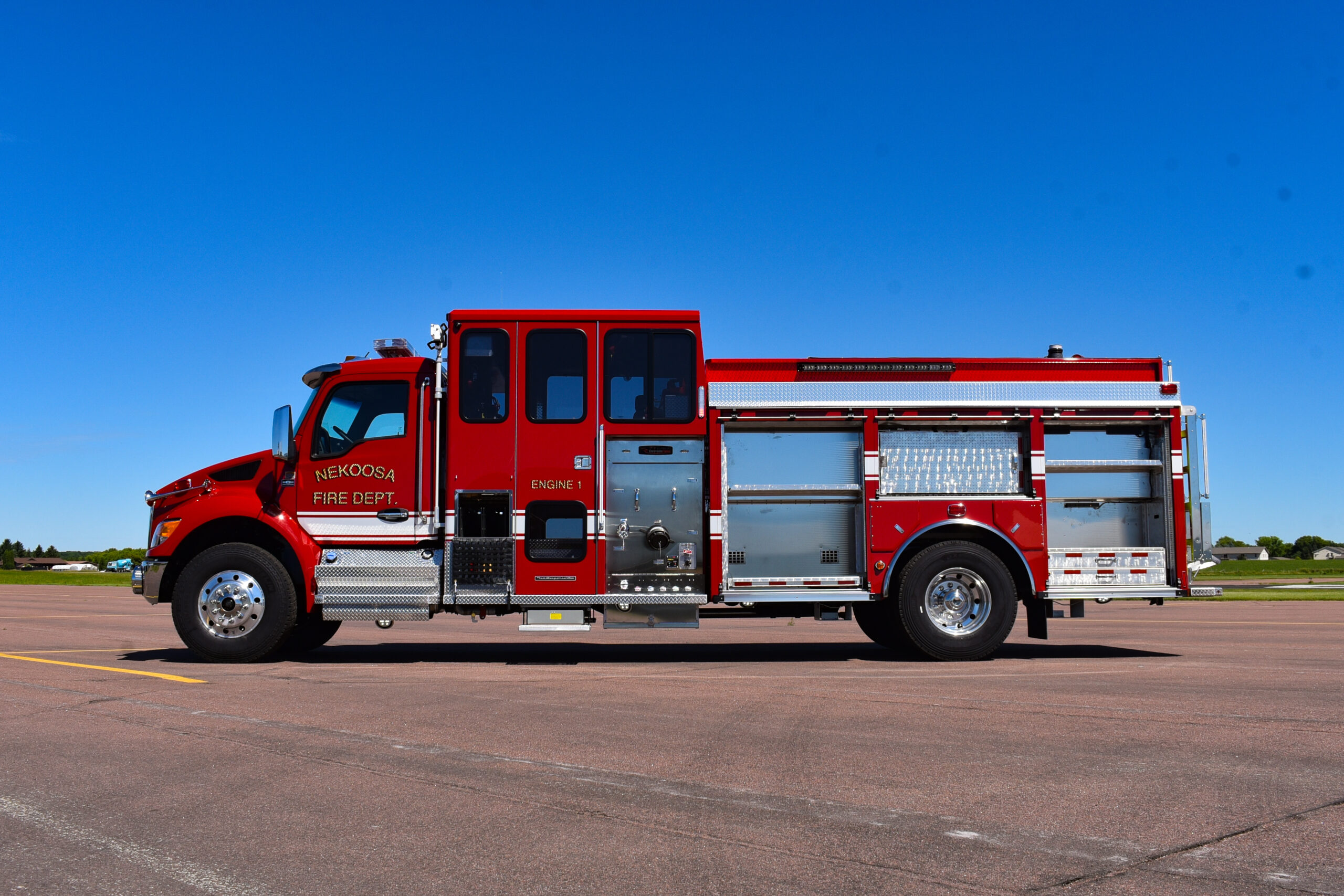

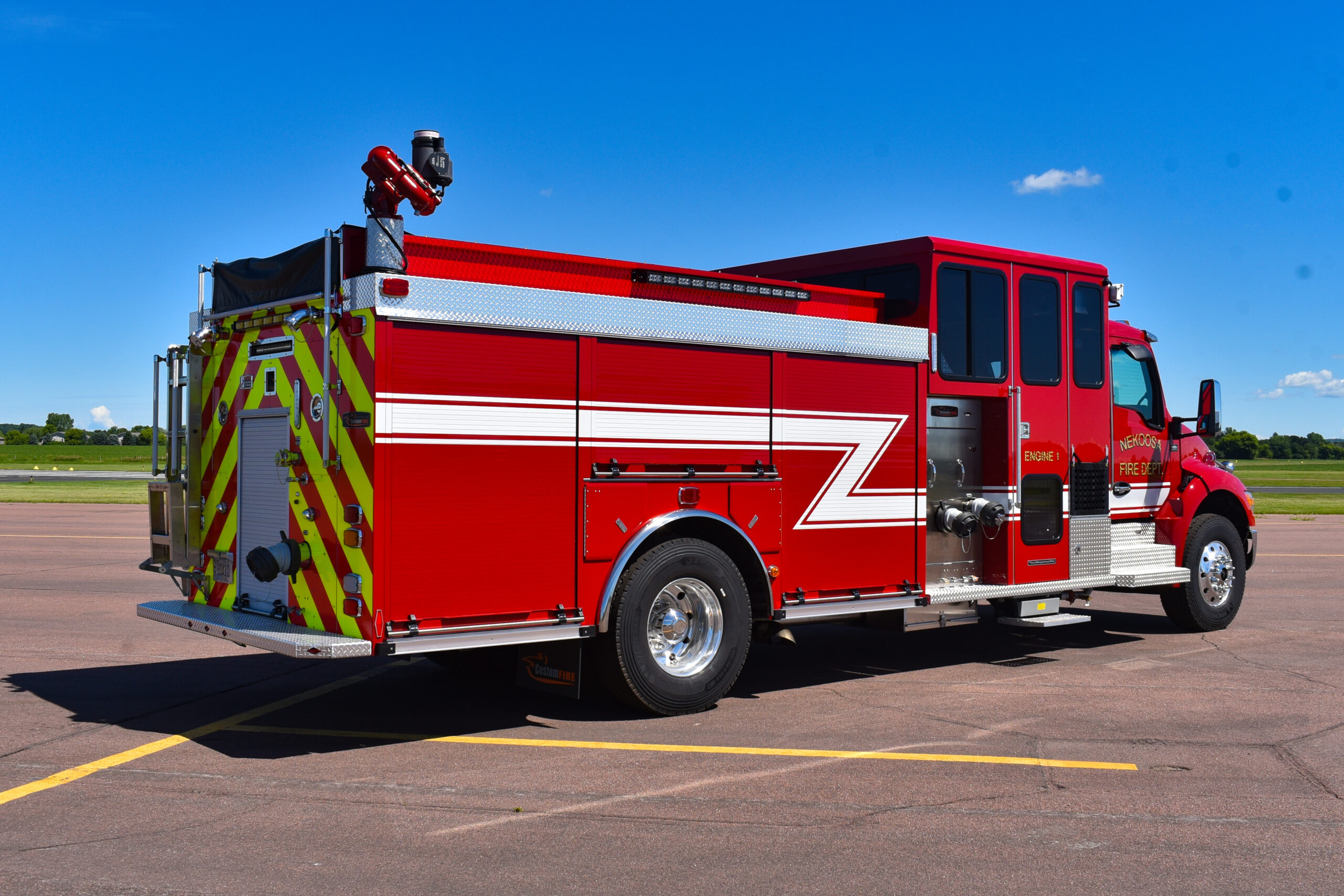

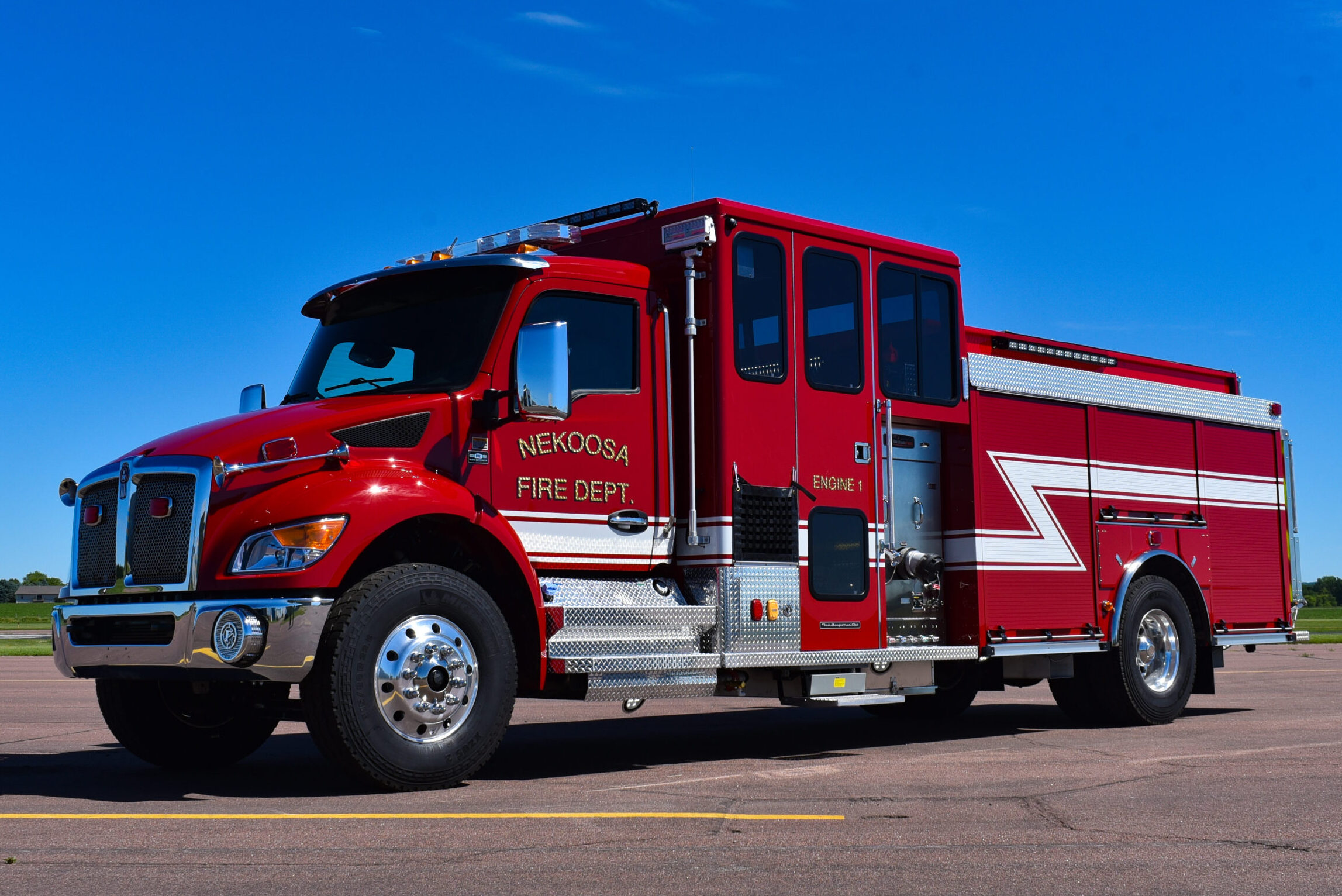

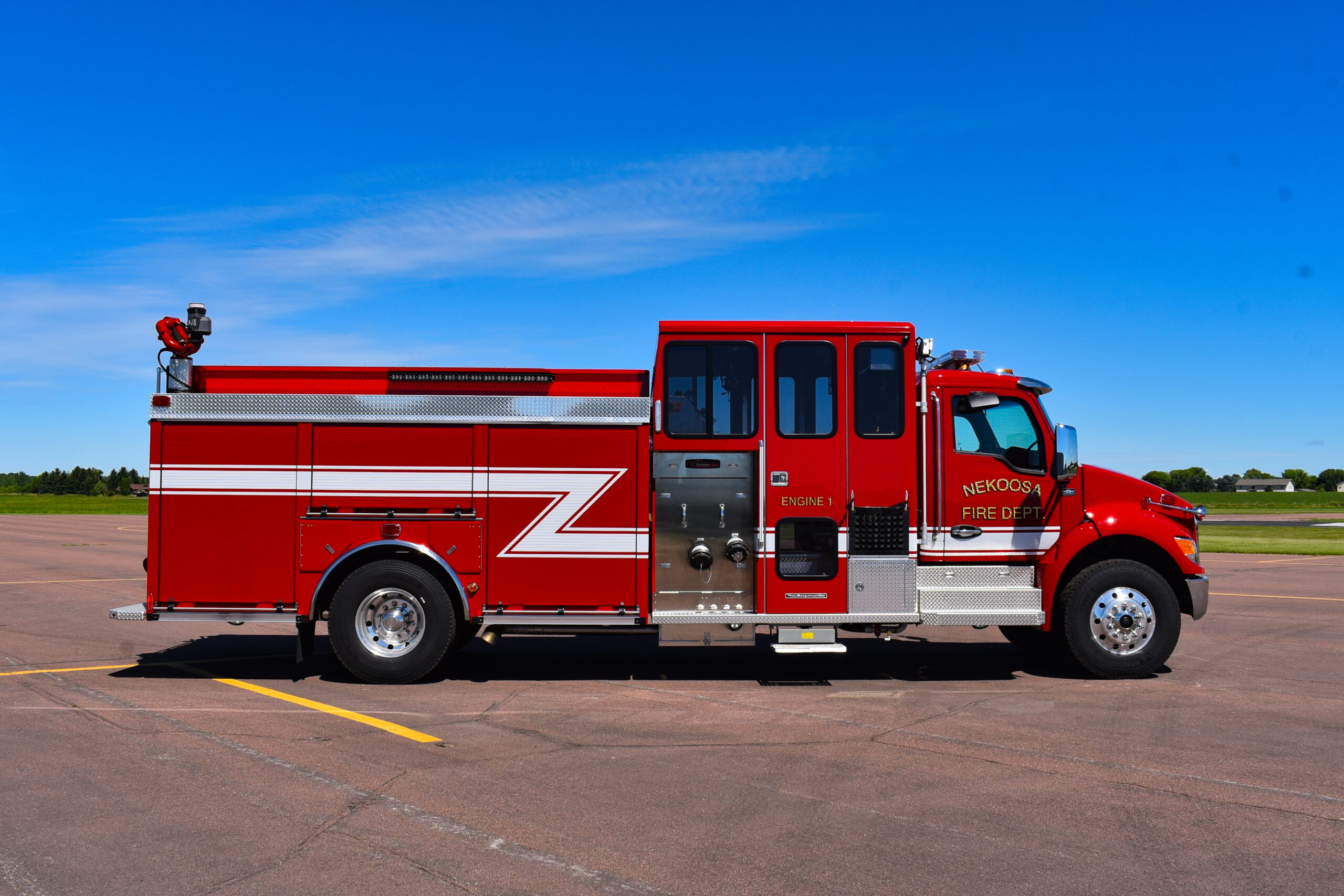

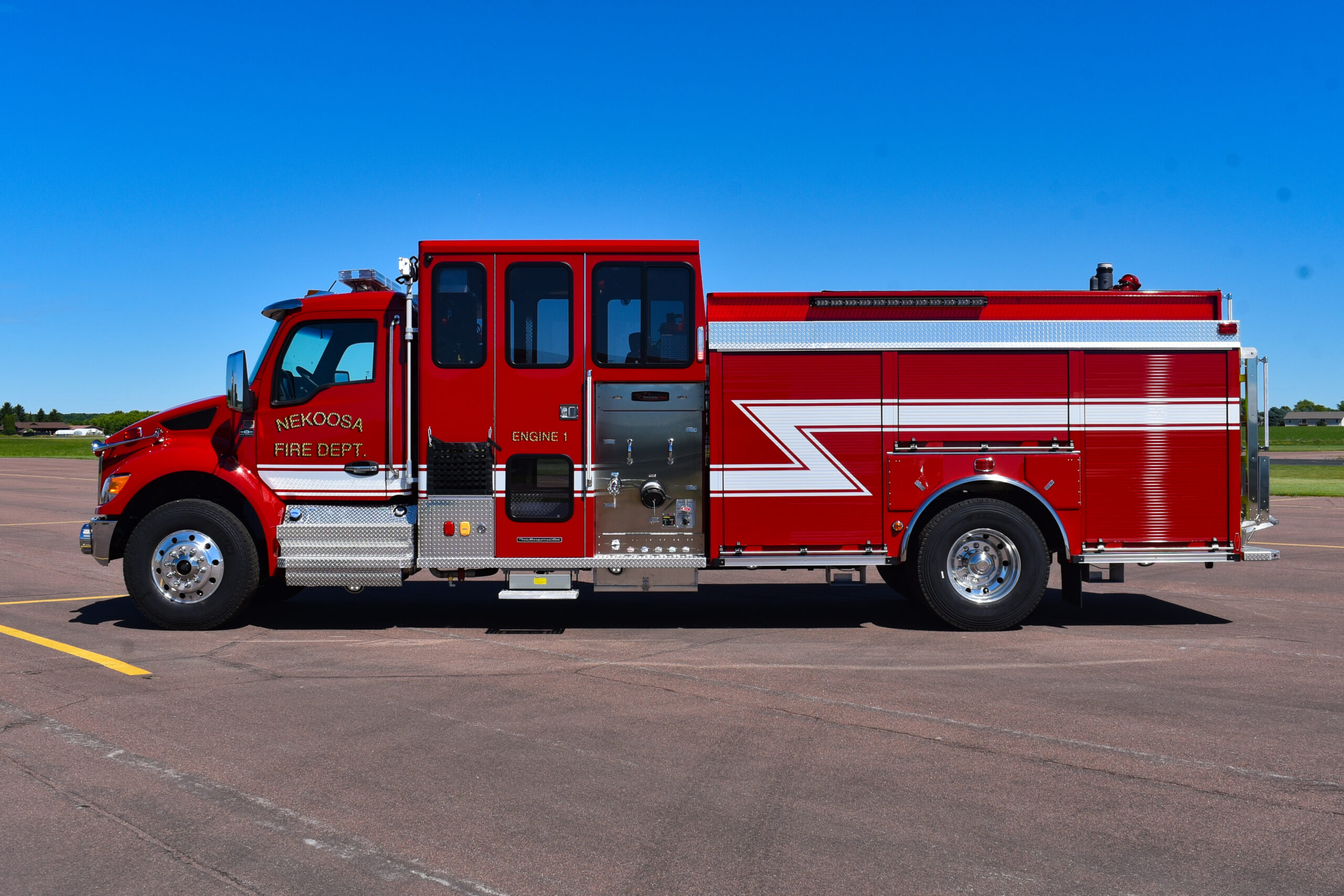

Truck Type : Pumpers
Cab Type : Commercial Cab, Enclosed Top Mount, Full Response Cab
Deployed : July, 2026

Chassis Model

Kenworth T480 Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission
44,600 lbs GVWR

Cab Details

Full Response® Cab

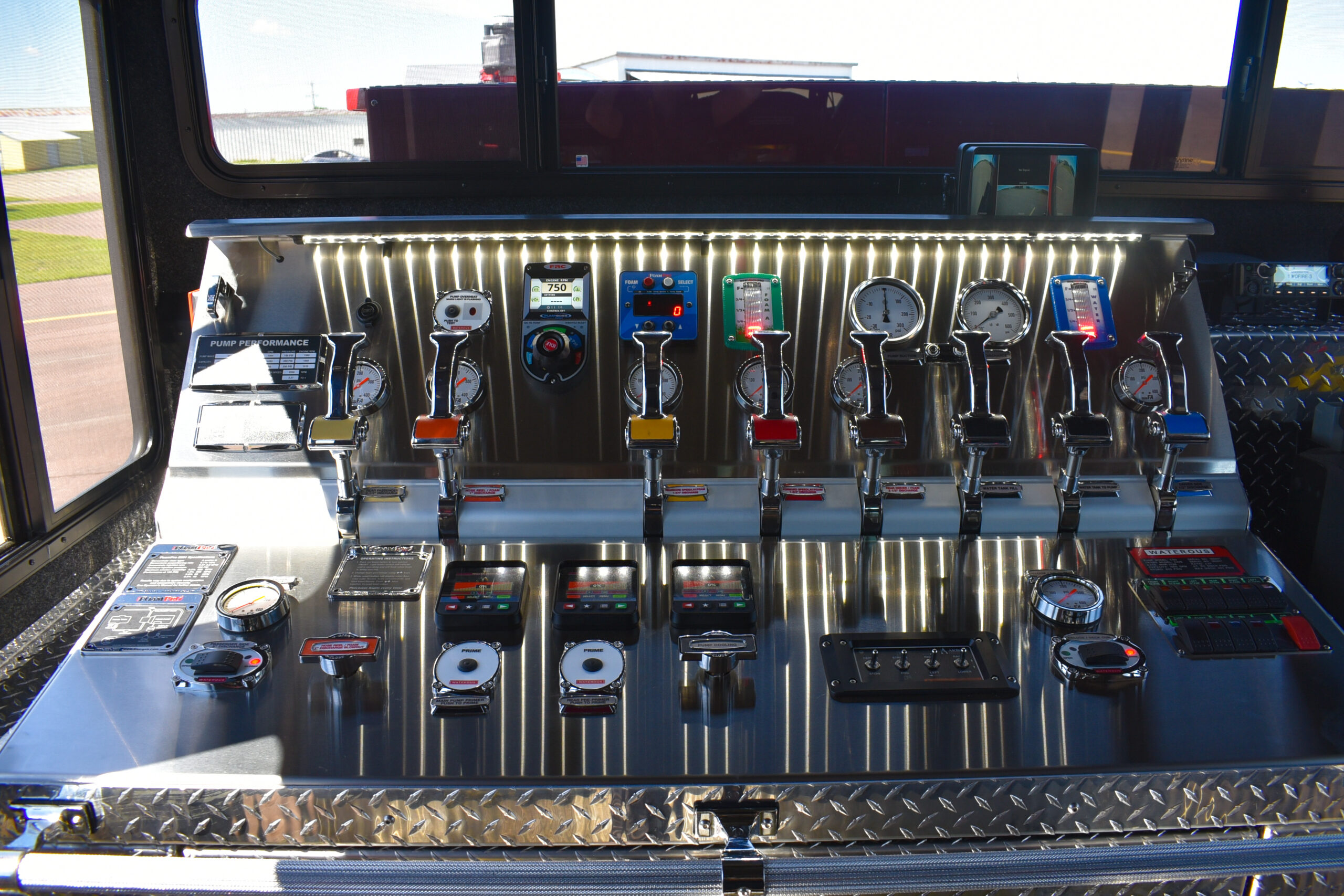

Enclosed Top-Control Pump Panel

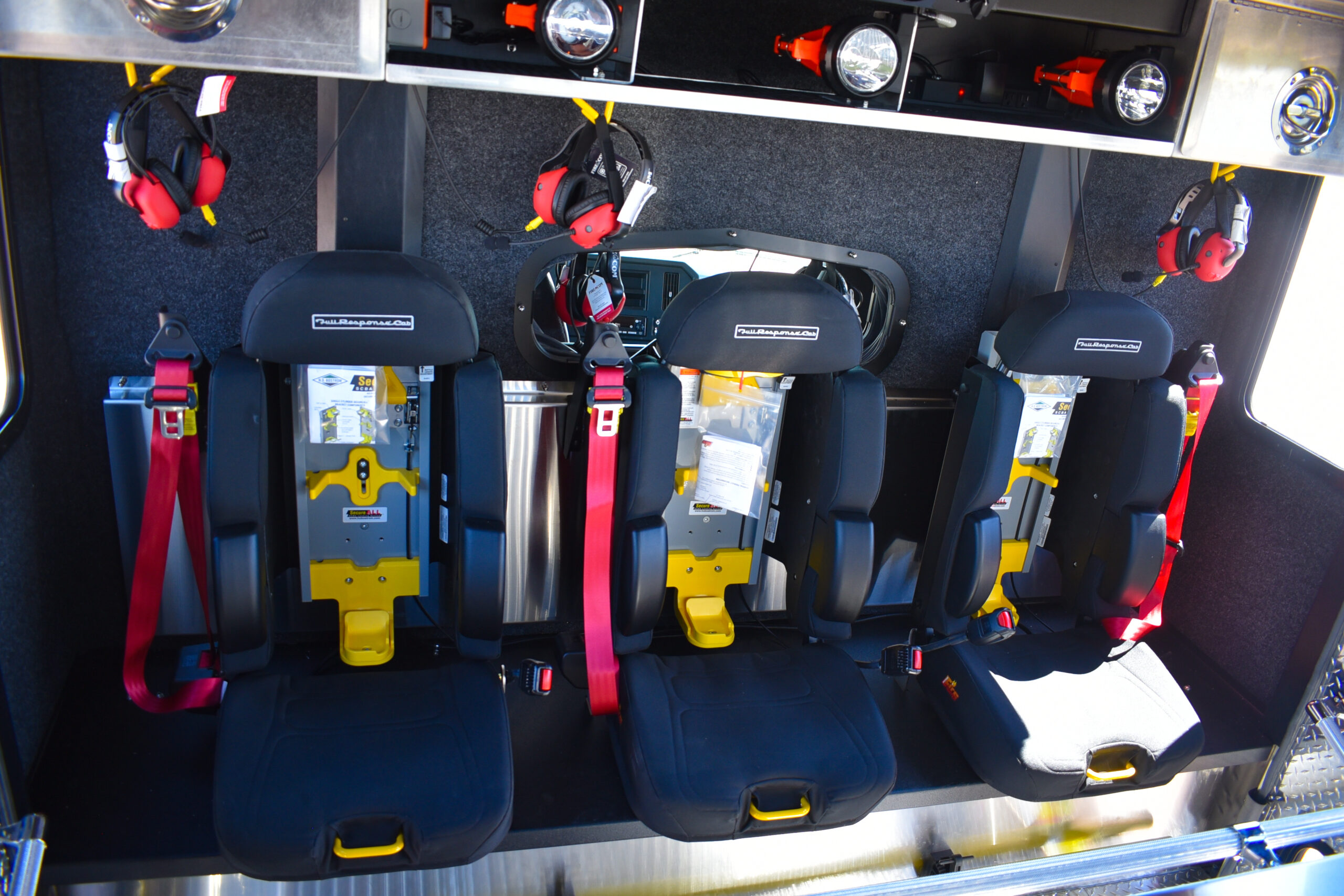

(3) Rear Facing SCBA Seats
(1) Forward Facing SCBA Seat

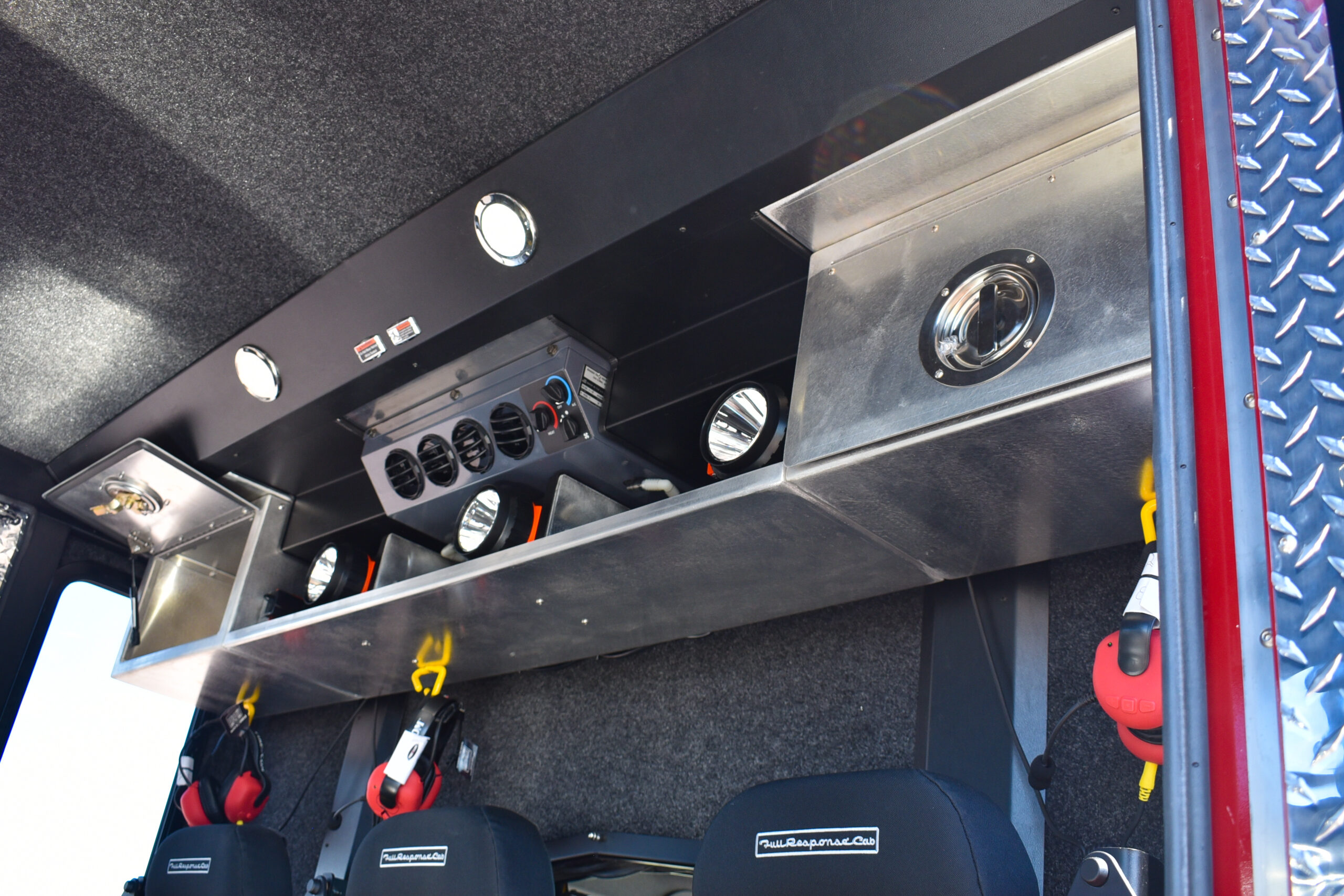

Interior Overhead/Ceiling Cabinets

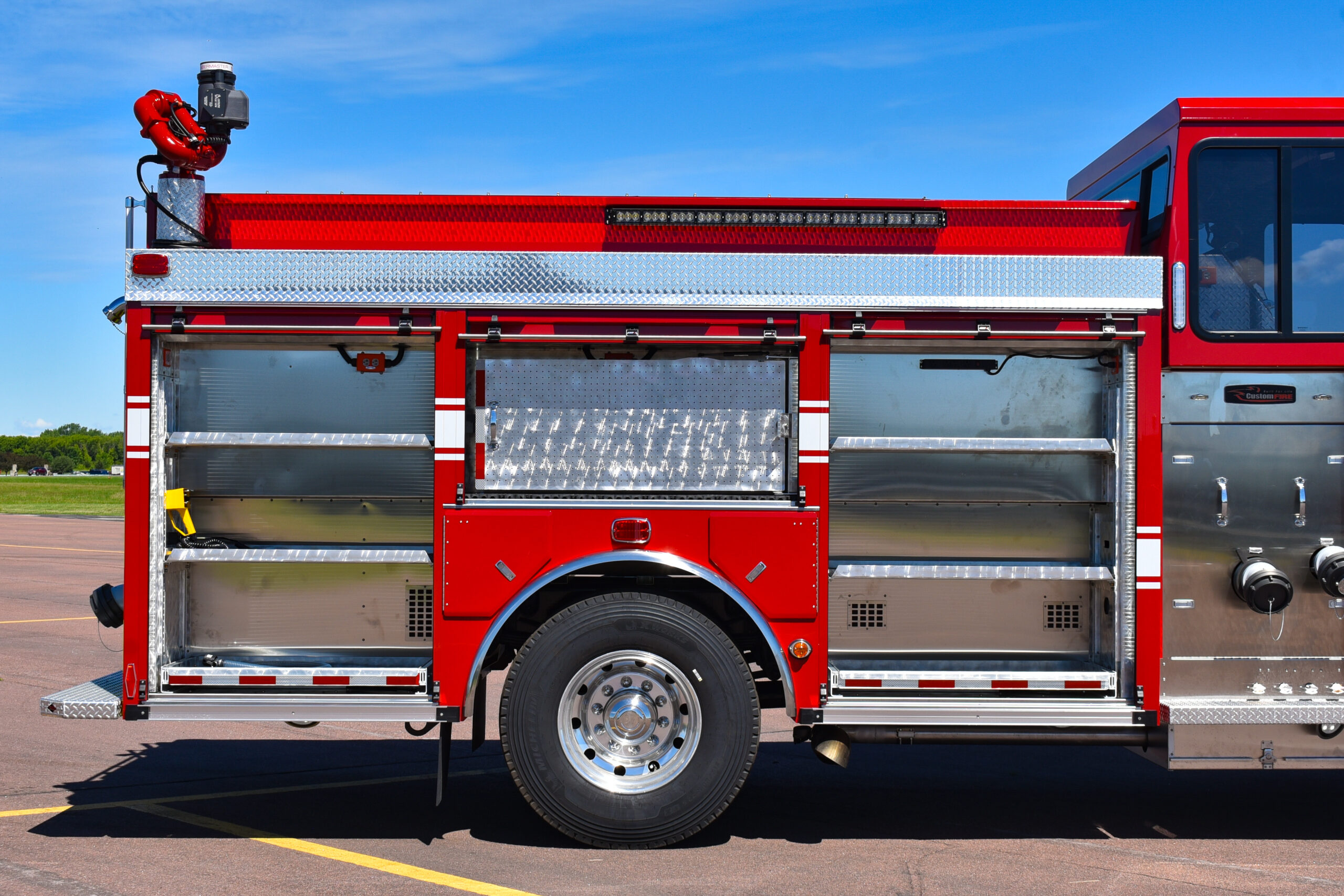

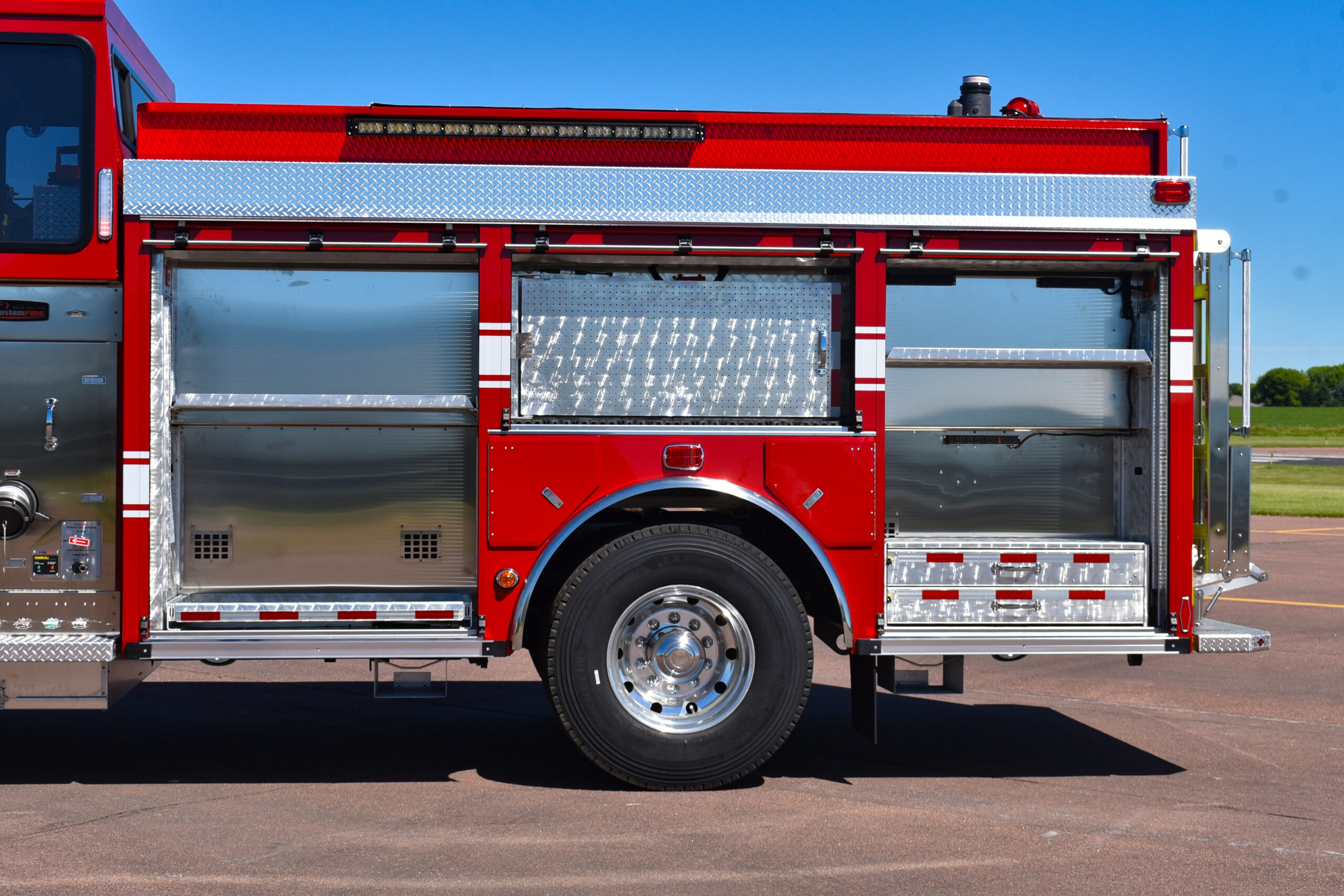

Apparatus Body

Concealed Bolted Construction
Stainless Steel Sub Frame
Stainless Steel Body Material
Roll-Up Compartment Doors

Fire Pump System

Waterous CSUC22 1500gpm Fire Pump
FoamPro 2001 Class A Foam System
Waterous VPO "Oil-Less" Pump Primer
Fire Research PumpBoss Pressure Governor

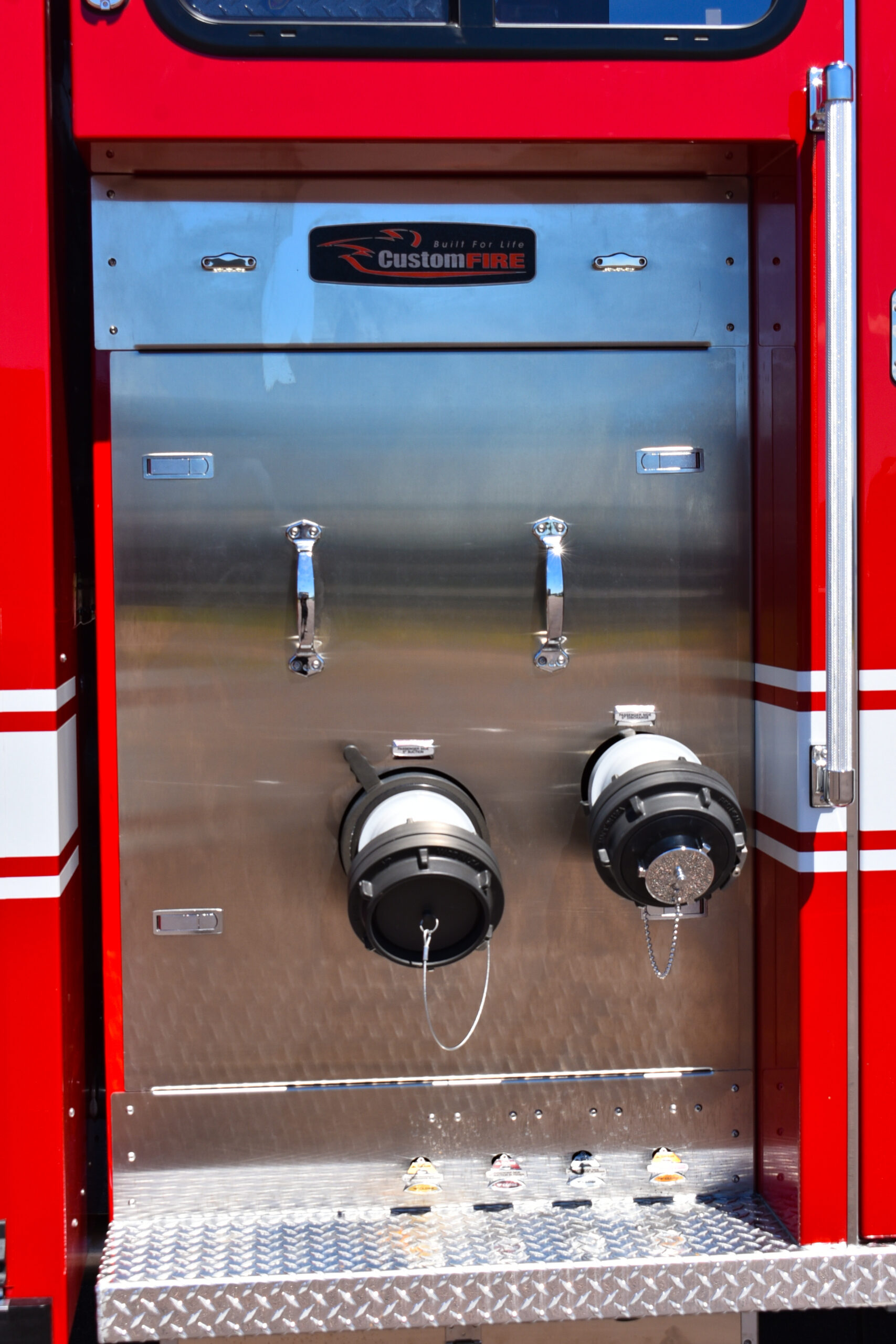

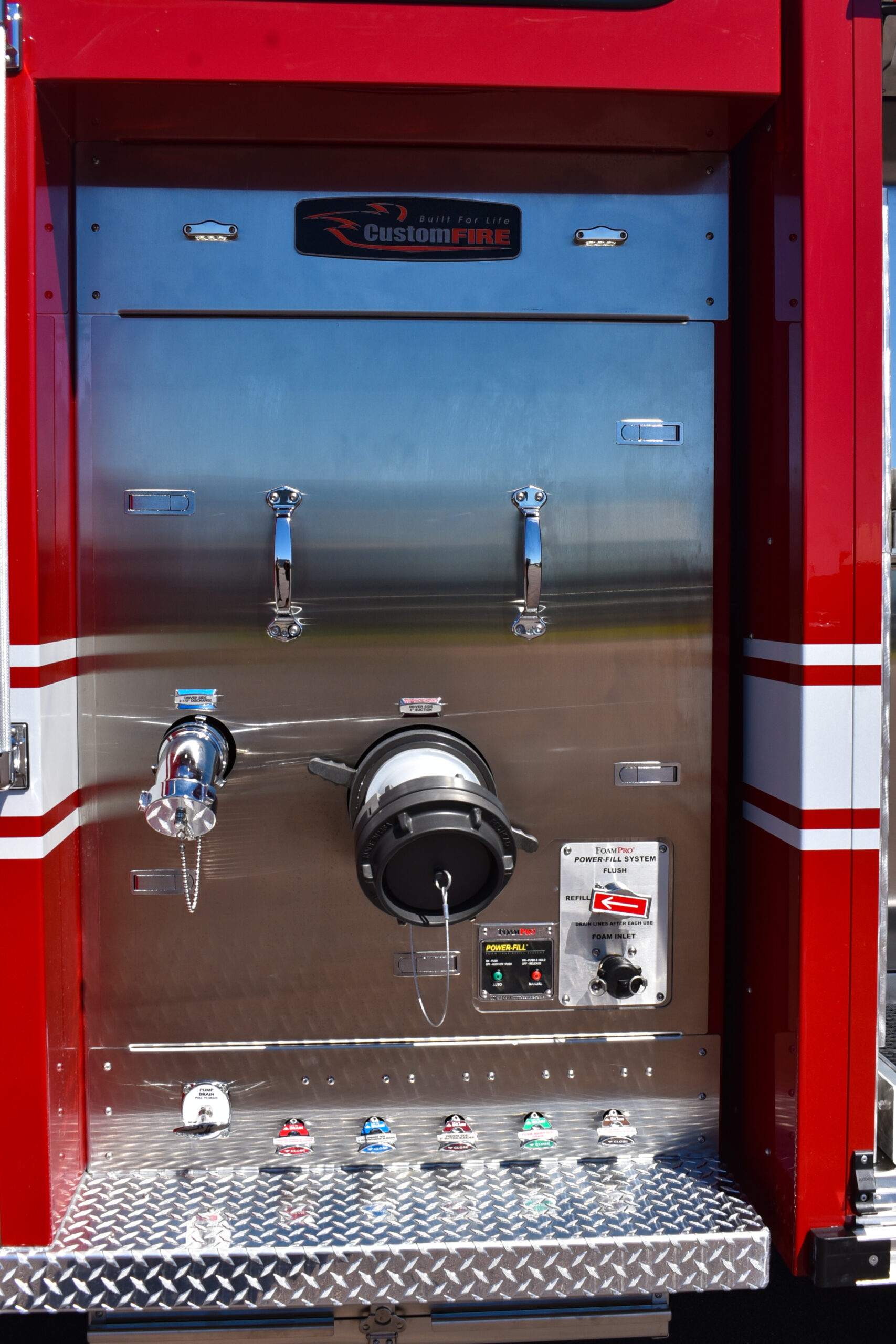

6" Passenger Side Suction
6" Drivers Side Suction

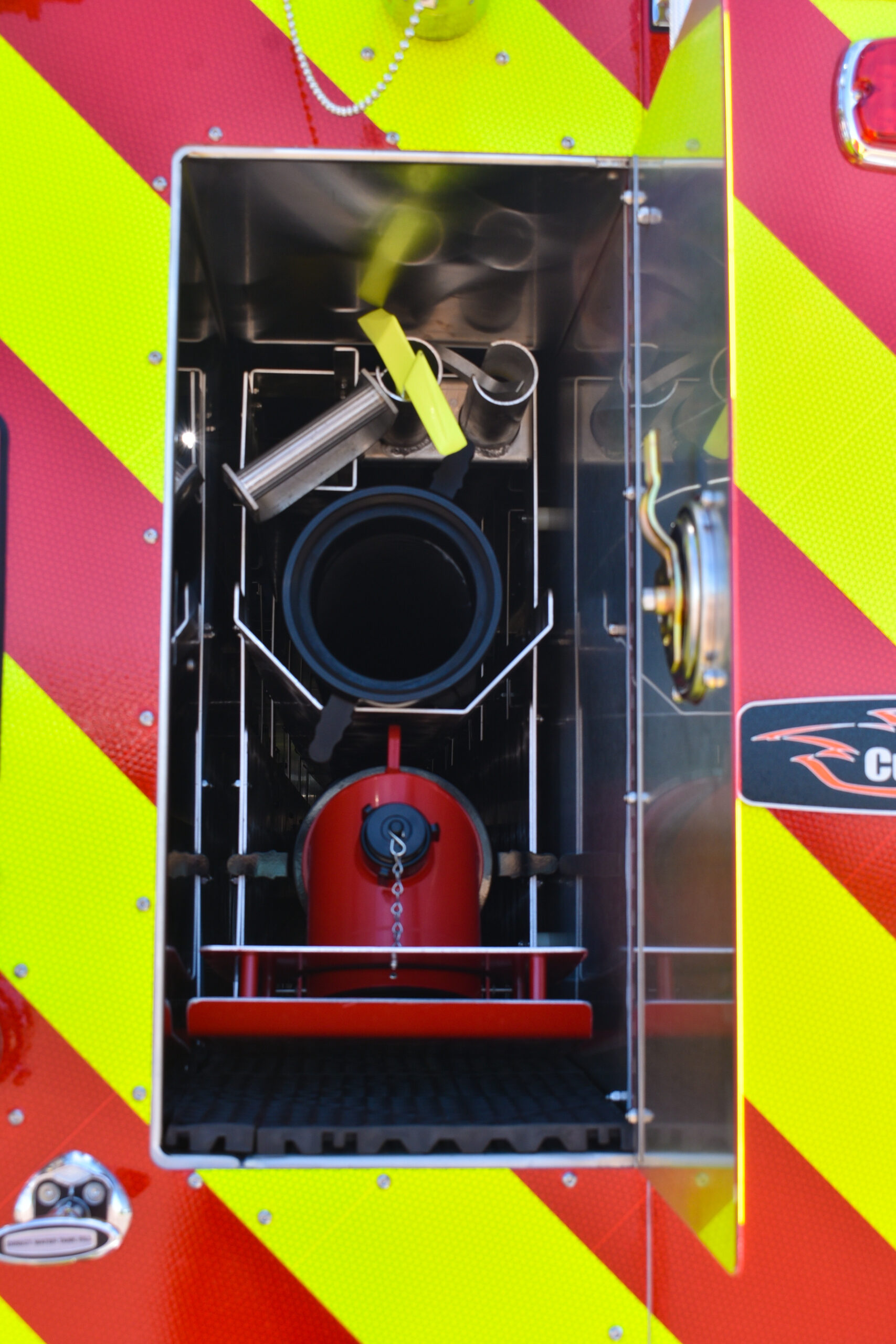

6" Rear Suction
4" LDH Passenger Side Discharge
2.5" Rear Passenger Side Discharge
2.5" Rear Driver Side Discharge
2.5" Driver Side Discharge
3" Deluge Discharge

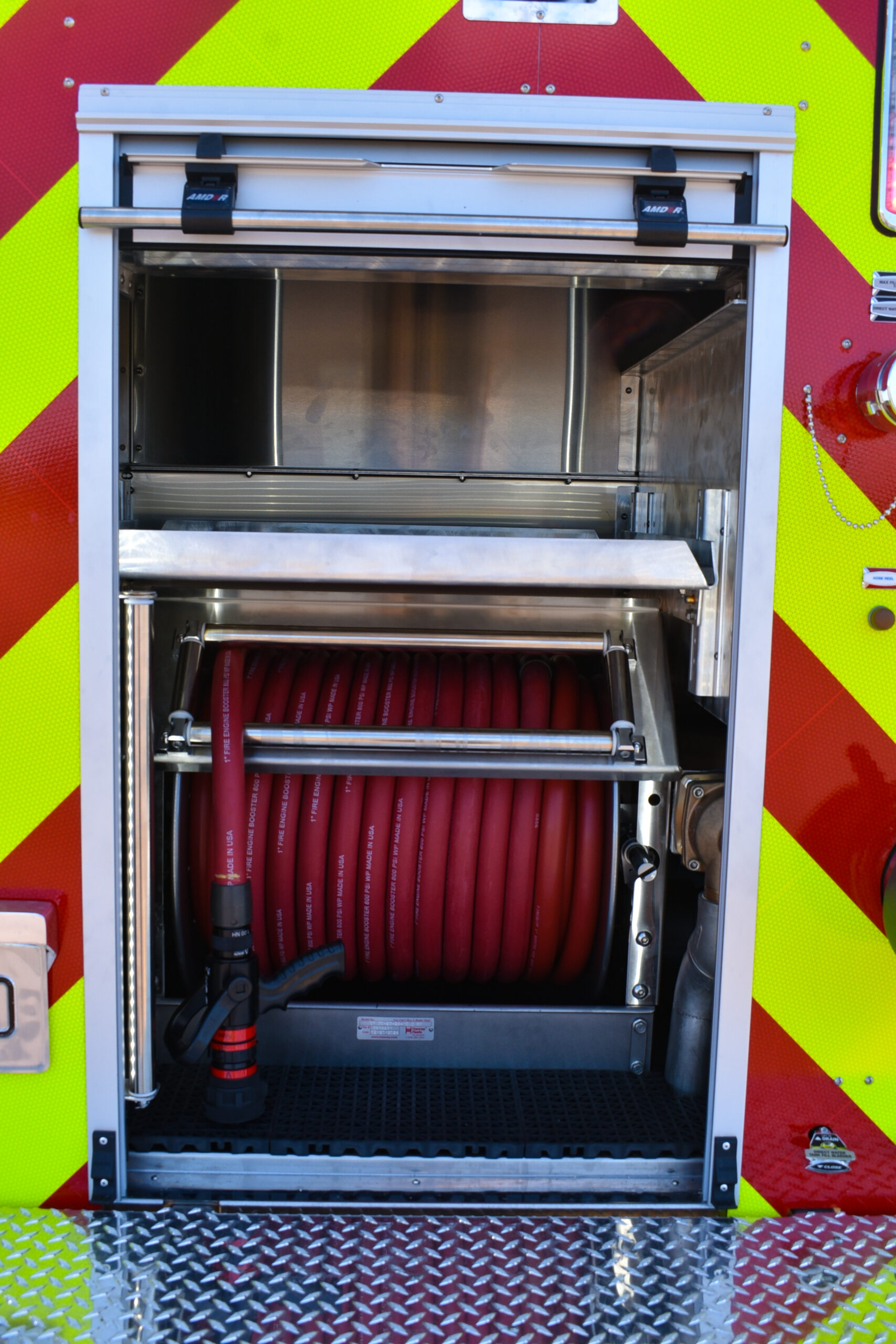

1.5" Hose Reel Discharge
(2) 2" Speedlay Discharges

Booster Tank

1000-Gallon Poly Water Tank
20-Gallon Foam Cell

Special Features

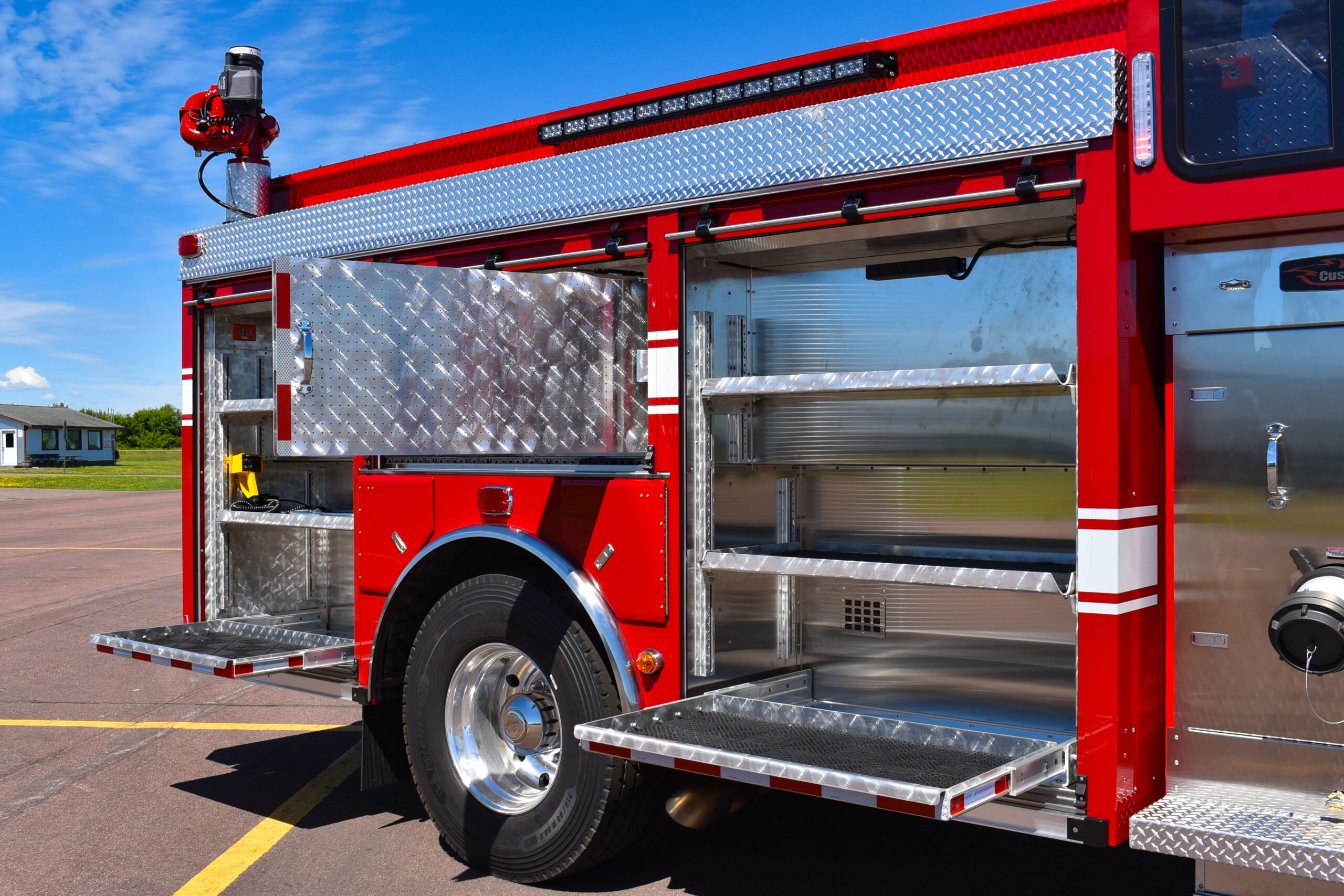

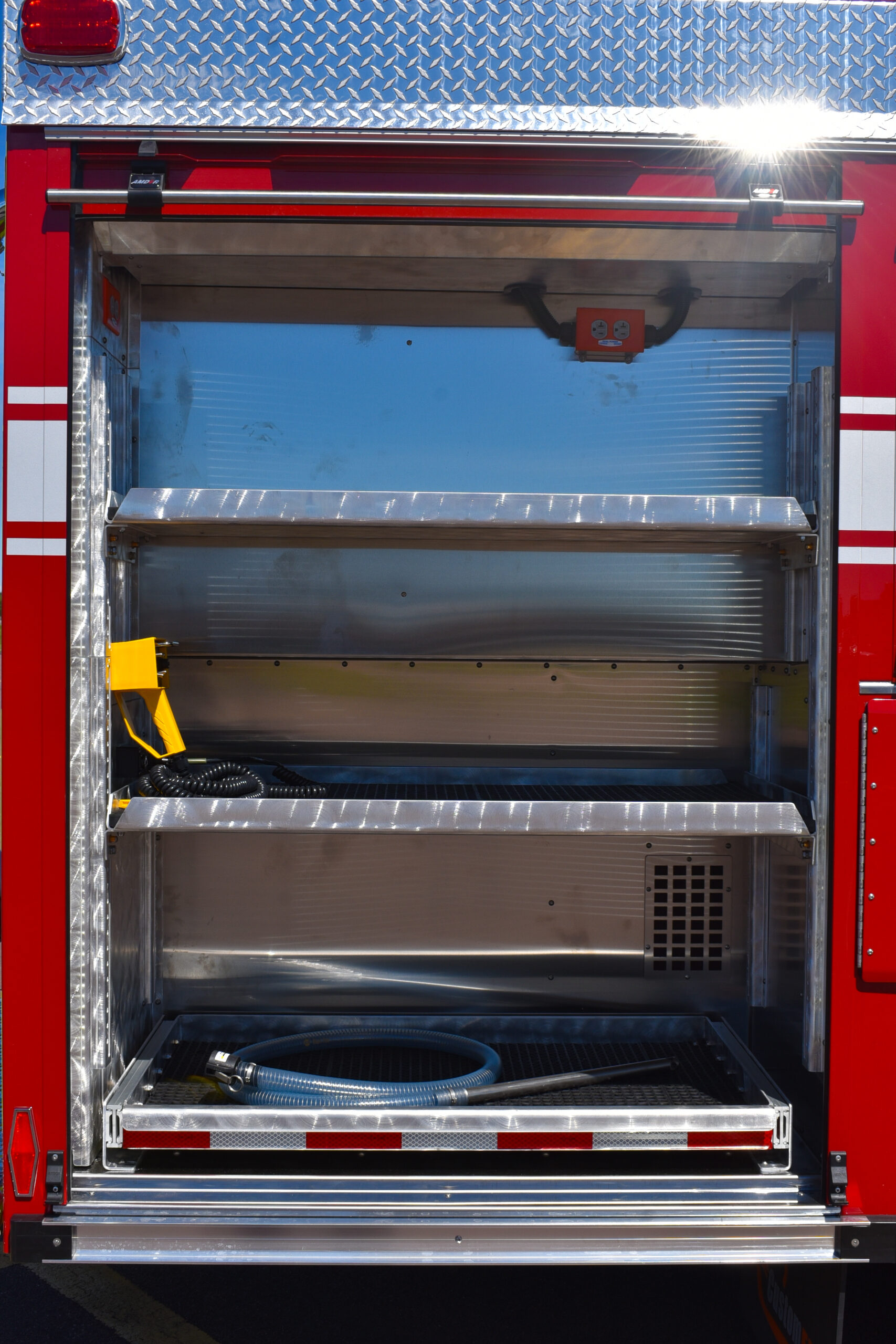

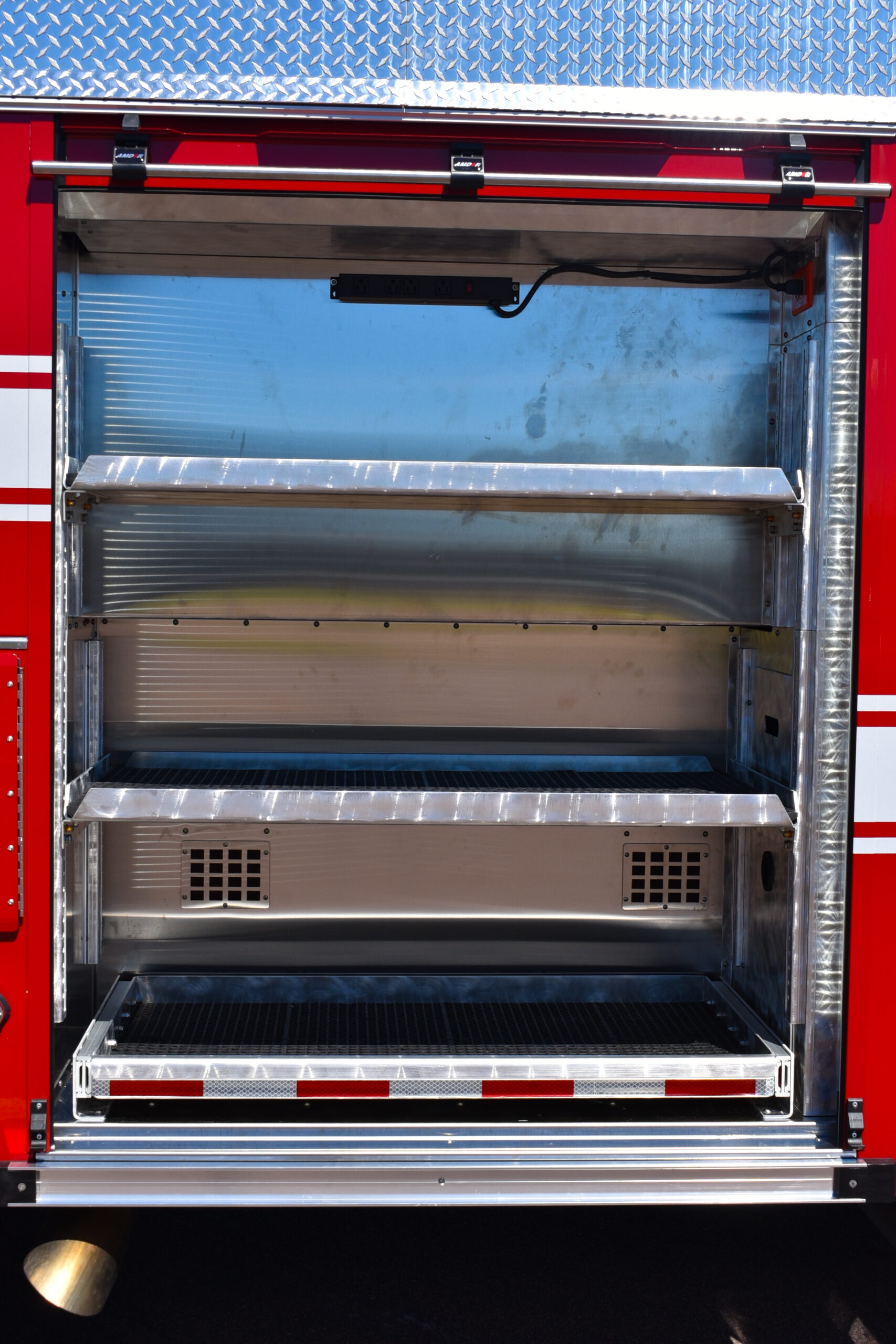

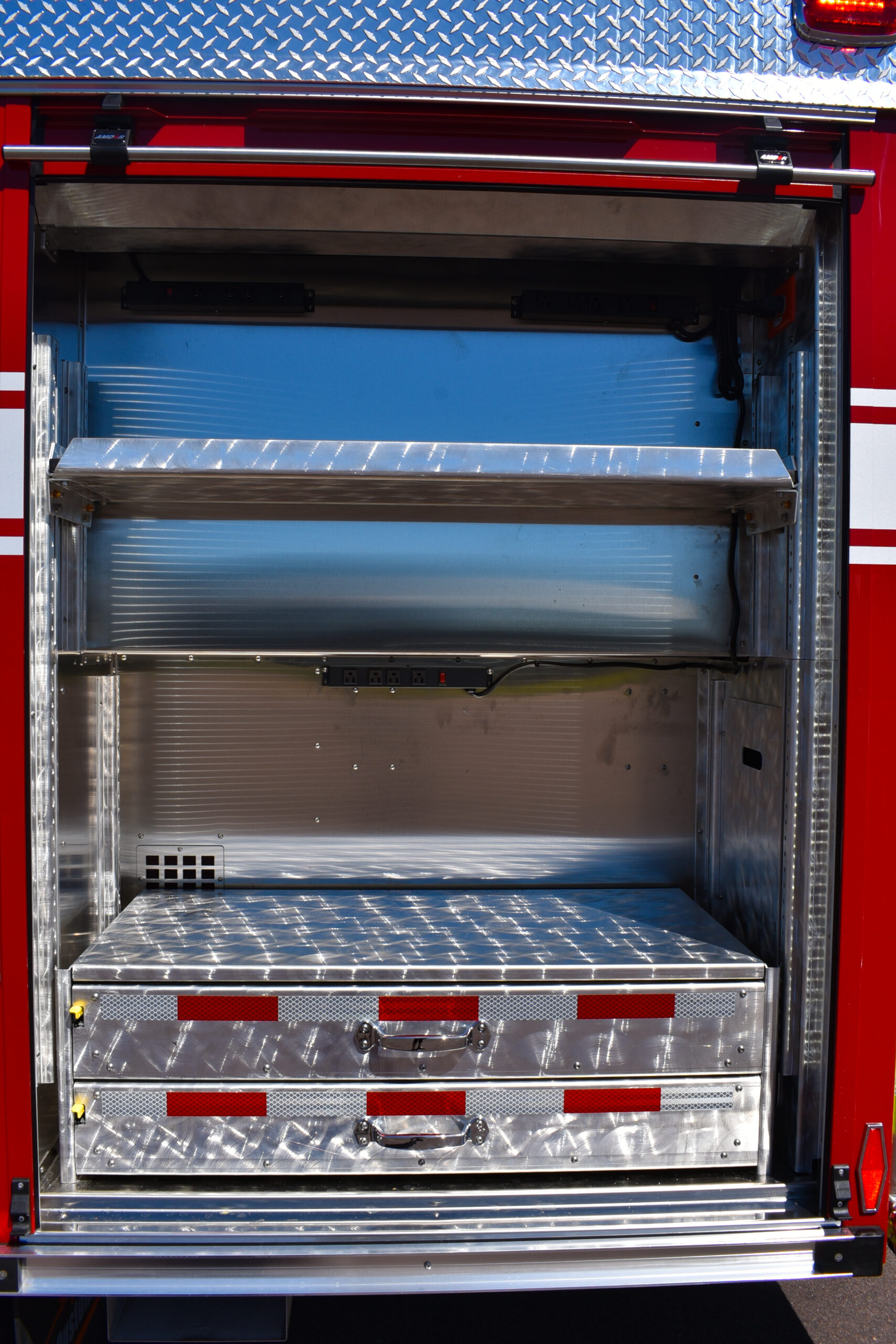

Adjustable Compartment Shelving

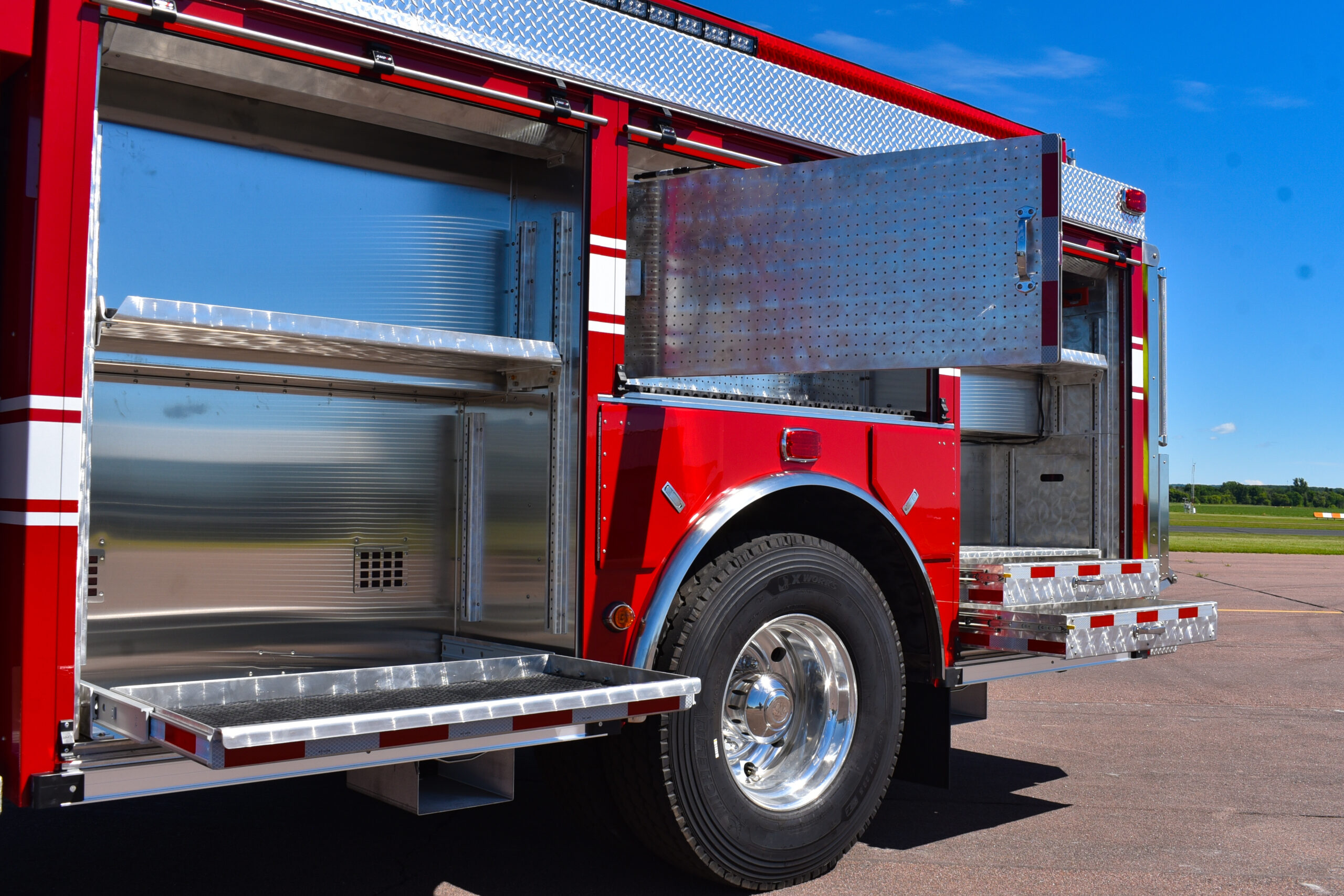

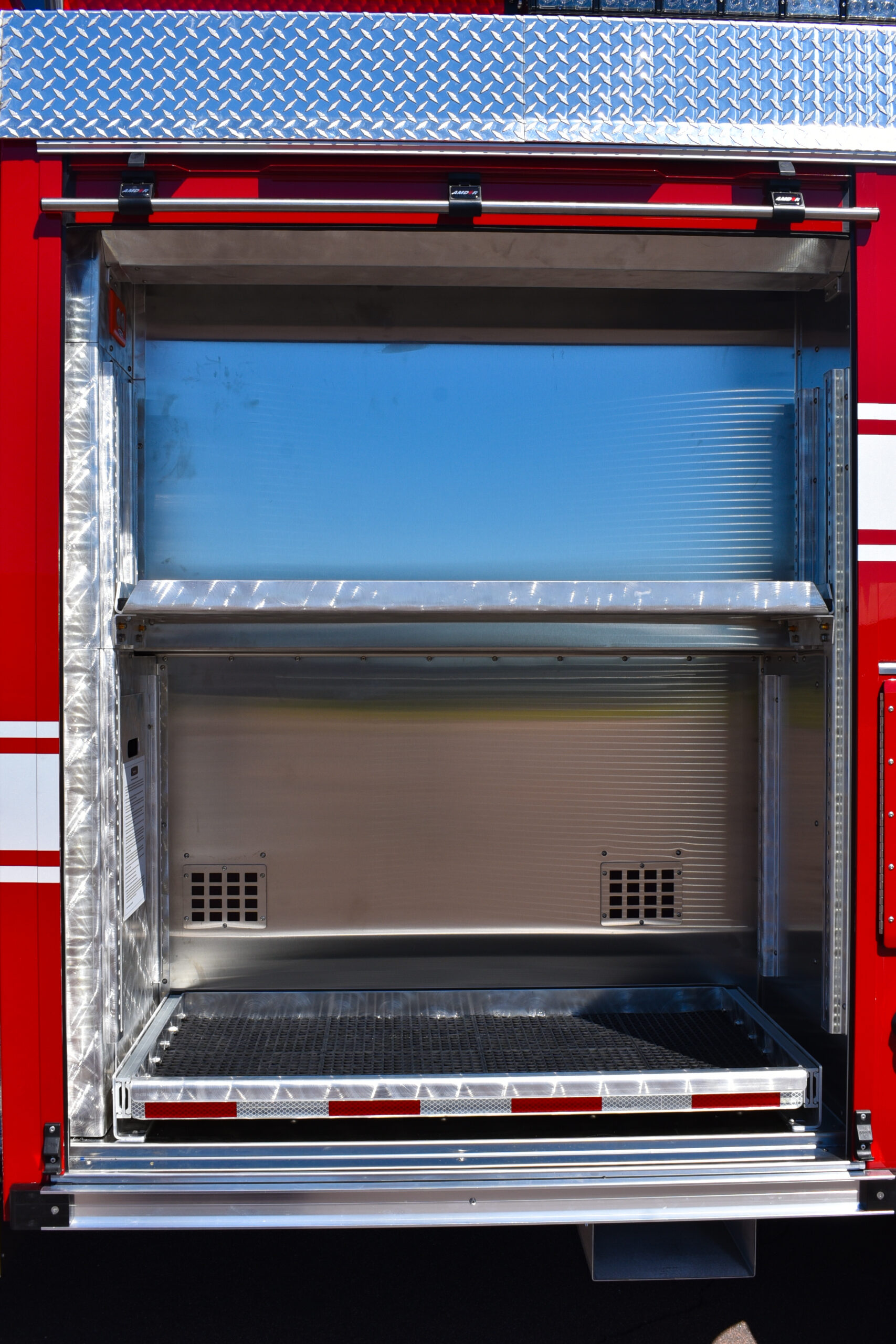

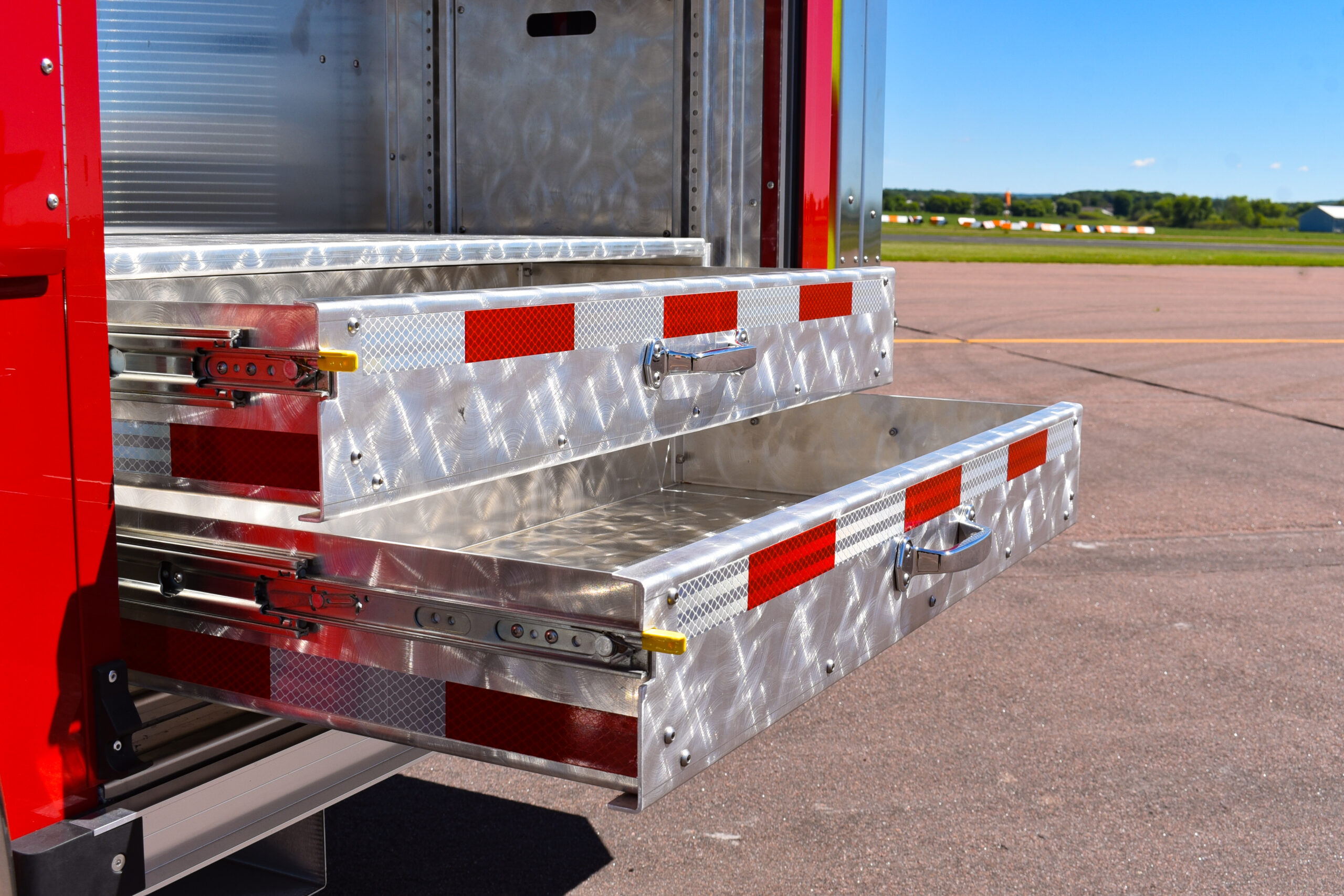

Pull-Out Compartment Trays

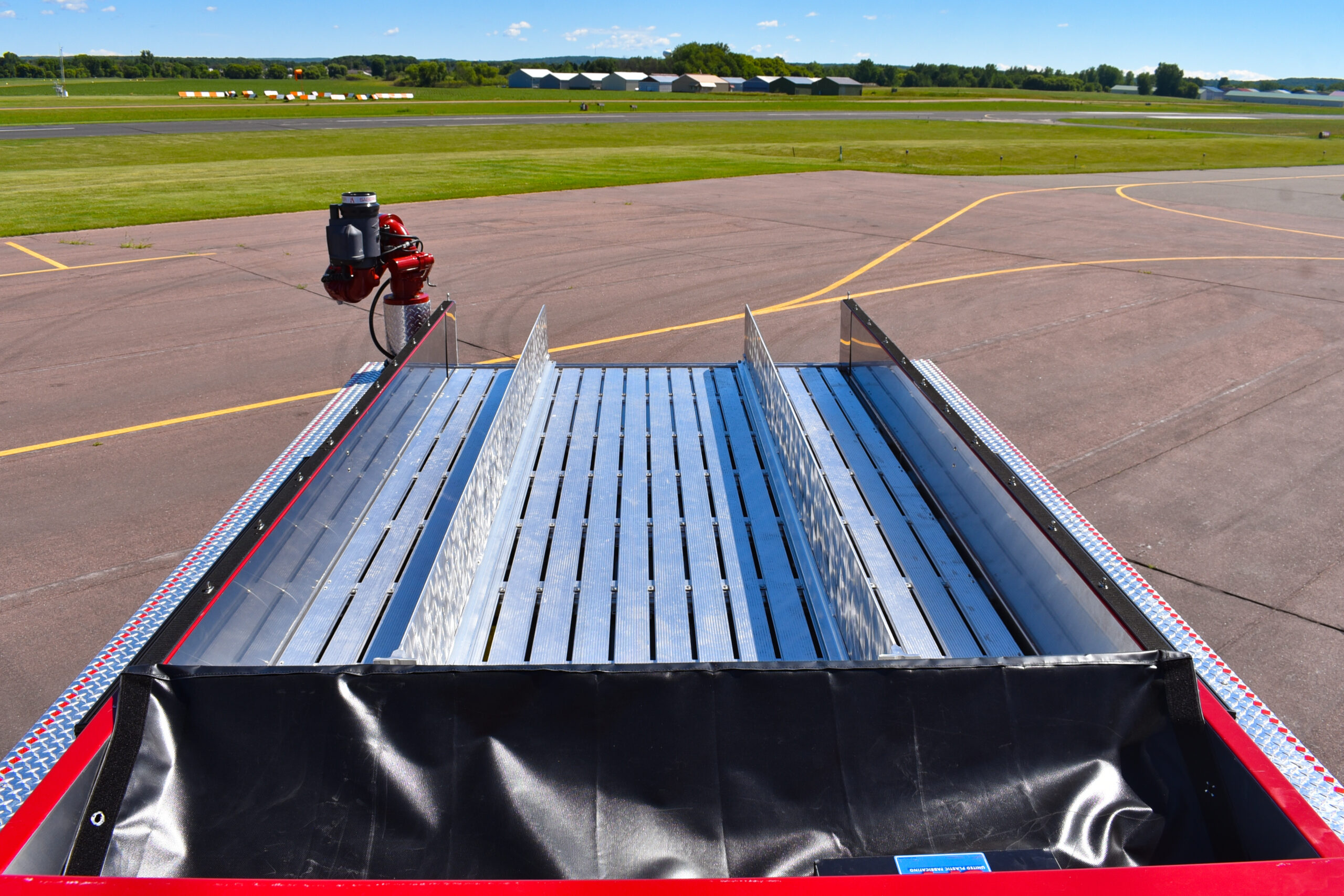

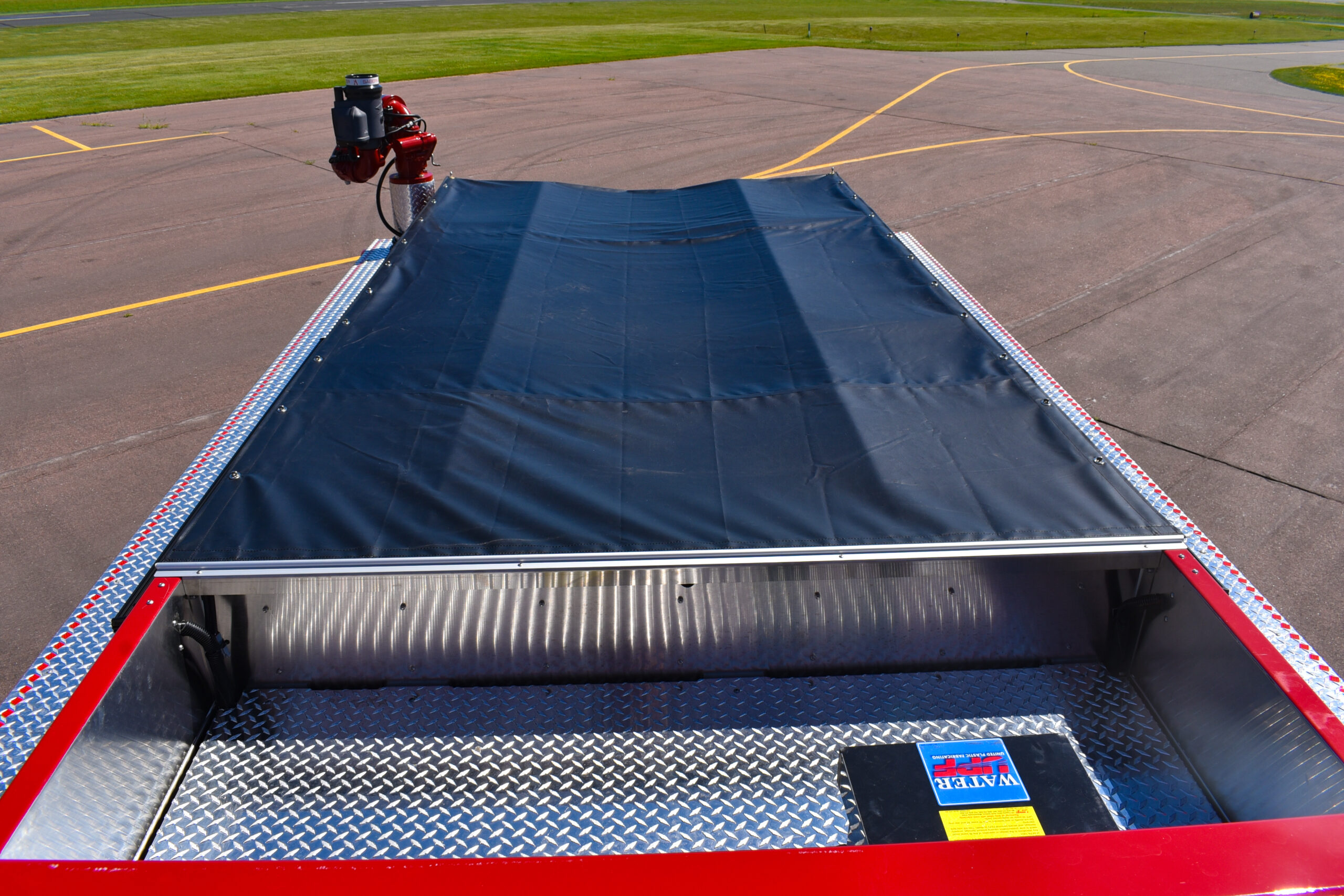

Adjustable Hose Bed Dividers

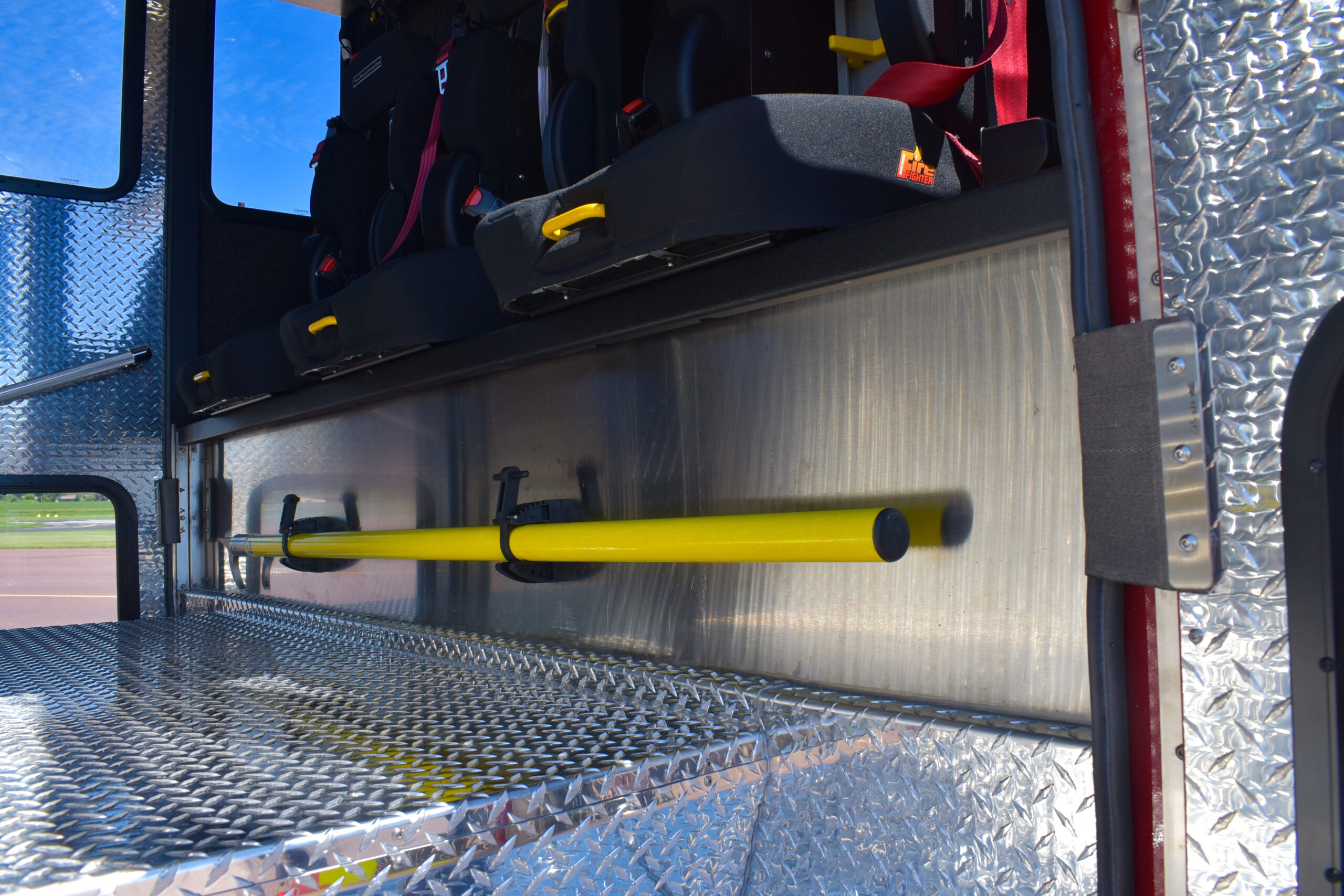

Slide-In Suction Hose & Pike Pole Storage

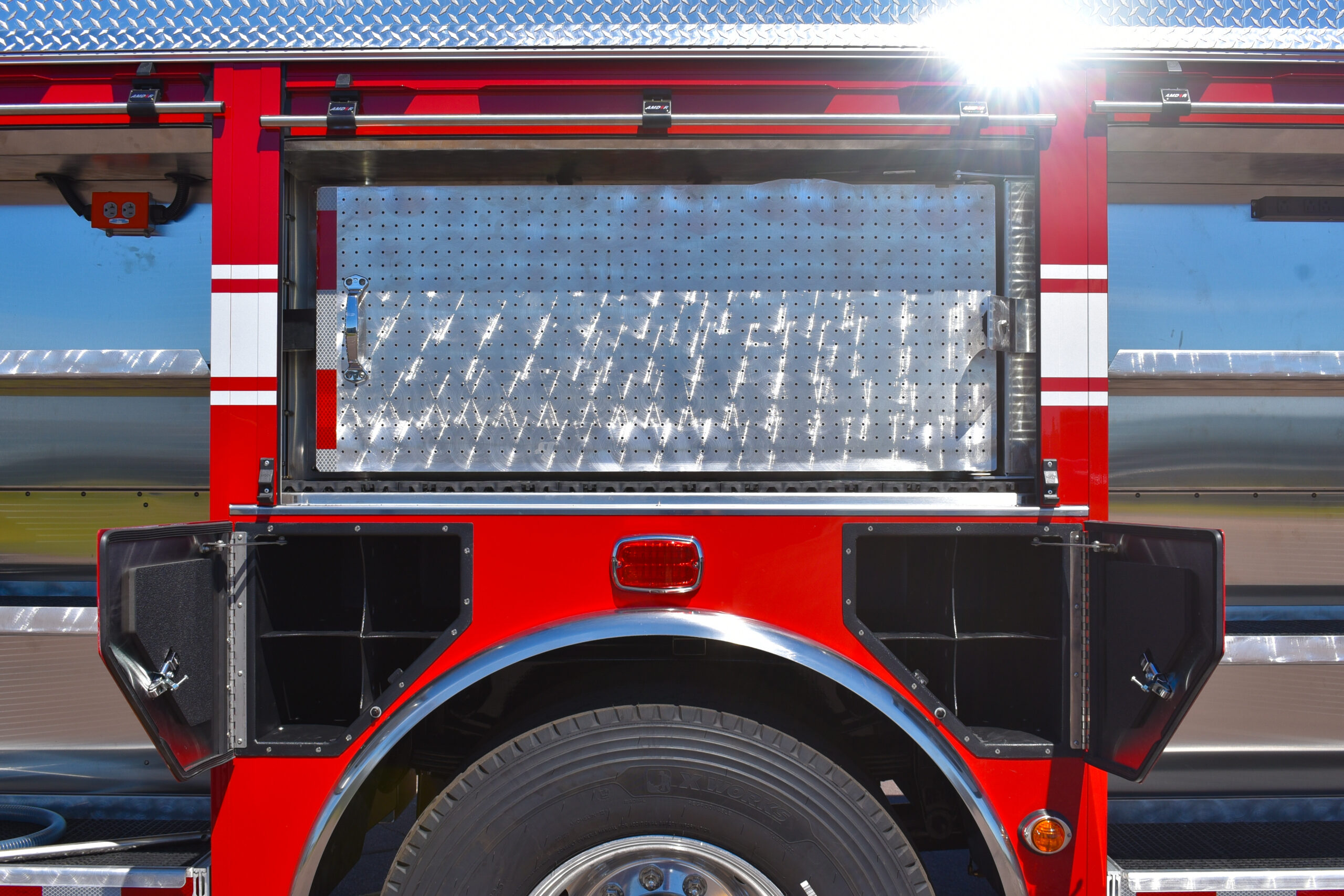

Wheel Well SCBA Cylinder Storage
Custom Made Compartment Drawers
Slide-In Ladder Storage

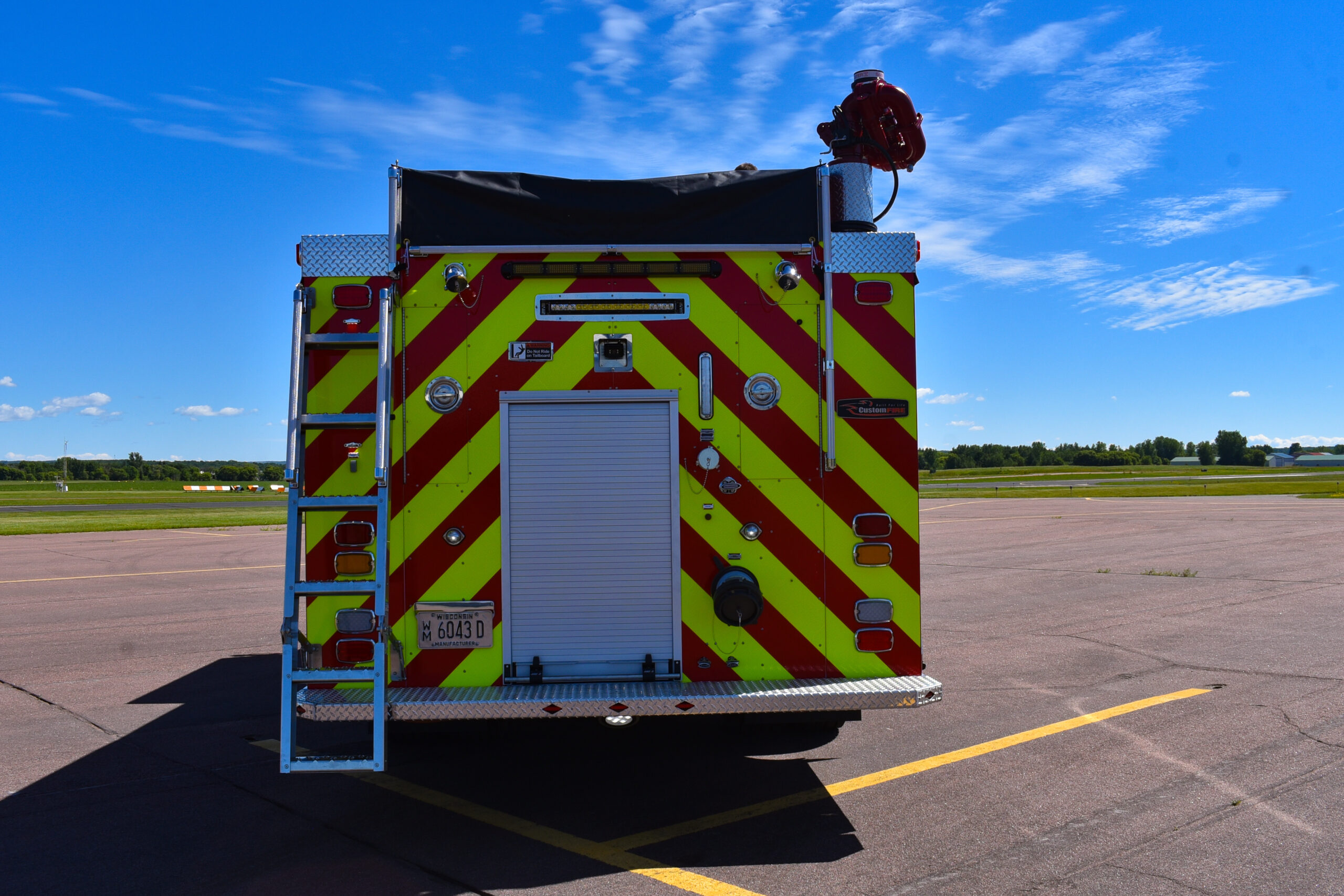

Swing-Out and Down Rear Access Ladder

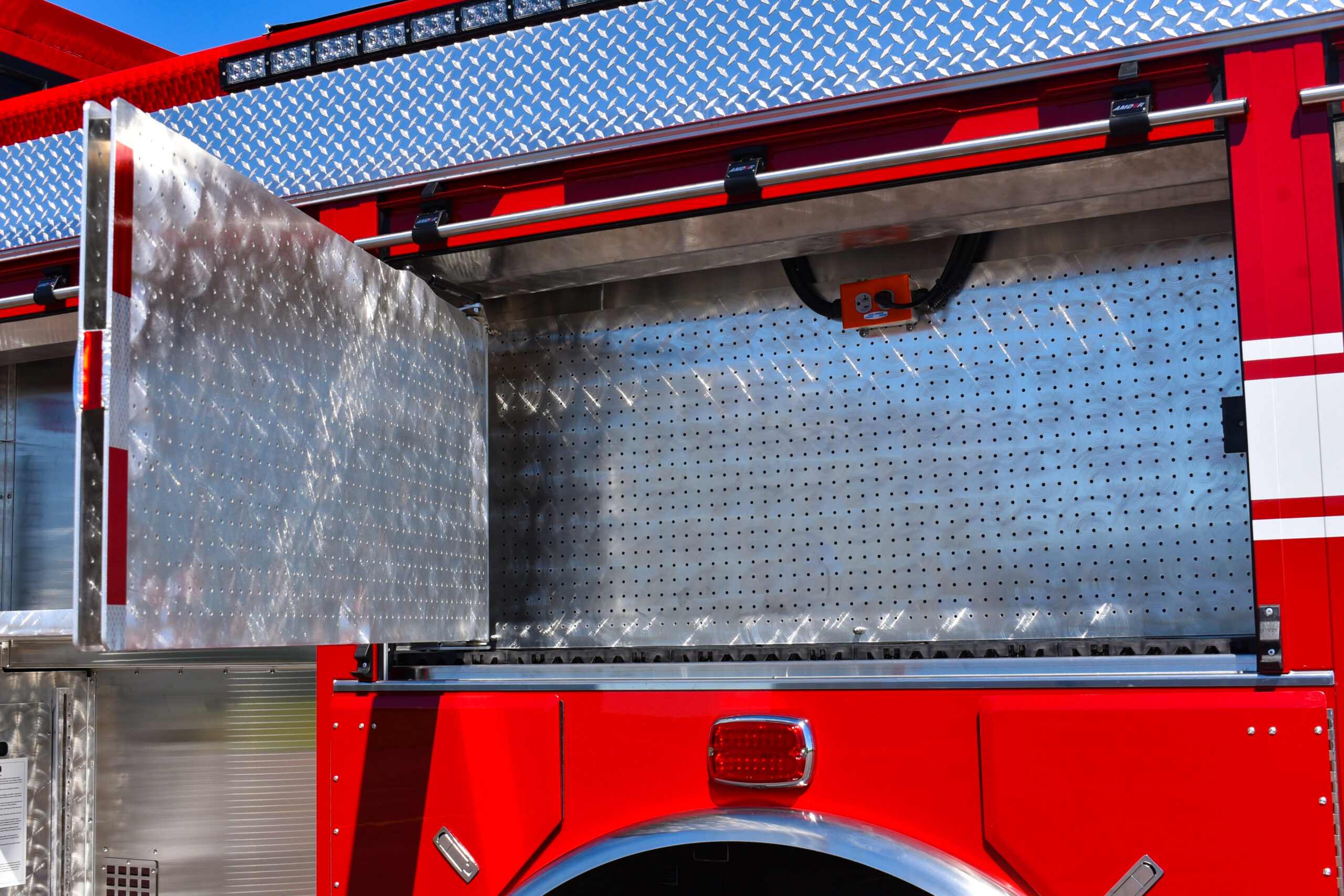

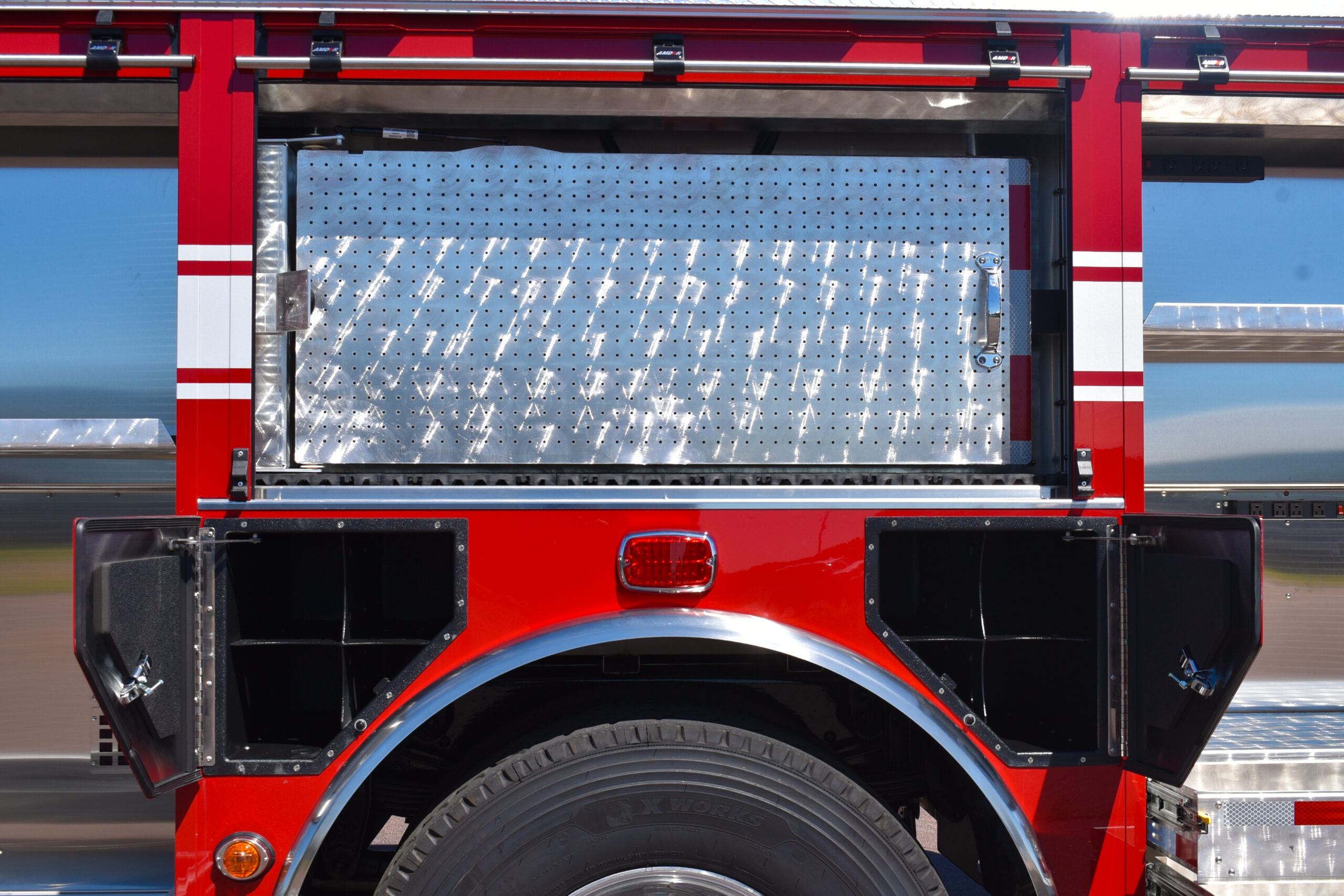

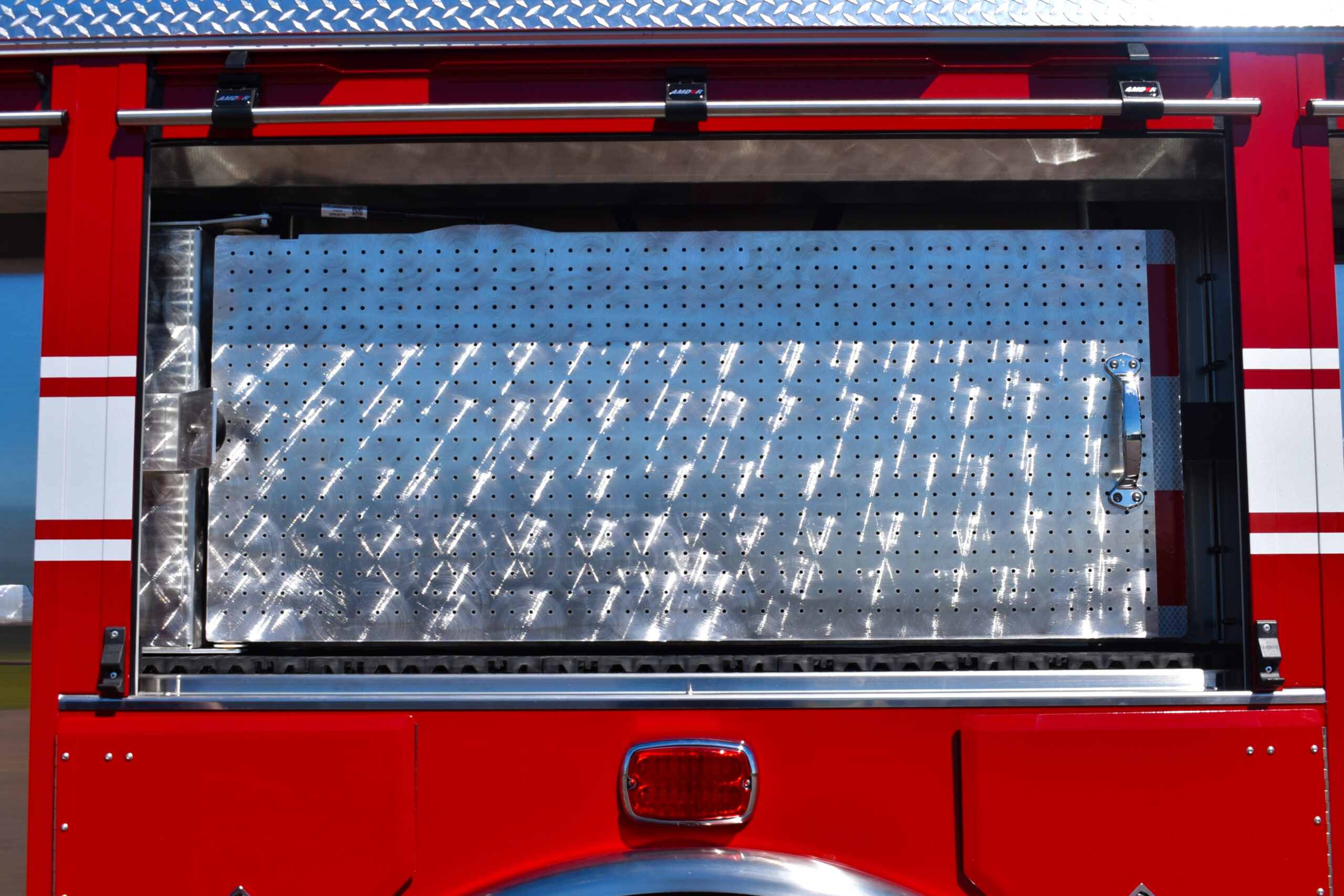

Swing-Out Peg-Board Tool Panel
On-Board Battery Charger

Emergency Warning Devices

(2) Air Horns of Texas
Whelen Electronic Siren and Speaker
Federal Q2B Mechanical Siren
Whelen Freedom LED Lightbar
Whelen LED Traffic Directing Lightbar
Whelen M6 Series Warning Lights

Exterior Lighting

LED DOT Marker Lighting
Whelen M6 Series Tail Lighting
Lumabar Door Track Compartment Lighting
Lumabar Vertical Strip Compartment Lighting
Under Cab and Under Body Lighting
Tomar LED Scene Lighting
Whelen Pioneer Telescoping Scene Lights

Vehicle Dimensions

Overall Height 10' 9"
Overall Length 32' 4"
Wheelbase 250"
Weight w/ Water 35,810 Lbs.
