Side Mount Pumper
Custom built for Morningside Fire Department — Morningside, MD
Spartan Chassis, Bolted Stainless Steel Body, Waterous 1250gpm Pump, 500-Gallon Water Tank, Adjustable Compartment Shelving, Pull-Out Compartment Trays, Rescue Tool Hose Reels, Slide-In Ladder Storage, Fire Research Flood Lights, Custom Tool Mounting, LED Emergency Lighting
Truck Type : Pumpers
Cab Type : Custom Cab, Side Mount
Deployed : March, 2012
Chassis Model
Spartan Gladiator Chassis
Cummins ISX 500hp Engine
Allison 4000 EVS Transmission
Apparatus Body
Concealed Bolted Construction
Stainless Steel Body
Stainless Steel Subframe
Roll-Up Compartment Doors
Fire Pump System
Waterous CSC20 1250gpm Midship Pump
Waterous Oil-Less Pump Primer
Front Bumper 6" Suction
Driver Side 6" Suction
Front Bumper 2" Preconnect Discharge
Passenger Side 2-1/2" and 4" Discharges
Rear 2-1/2" Discharges
Driver Side 2-1/2" Discharges
Forward, Middle, and Rear 2" Crosslay Discharges
Booster Tank
500-Gallon Water Tank
Special Features
Front Bumper Hosewells
Recessed Front Suction
Interior Cab Storage
Adjustable Compartment Shelving

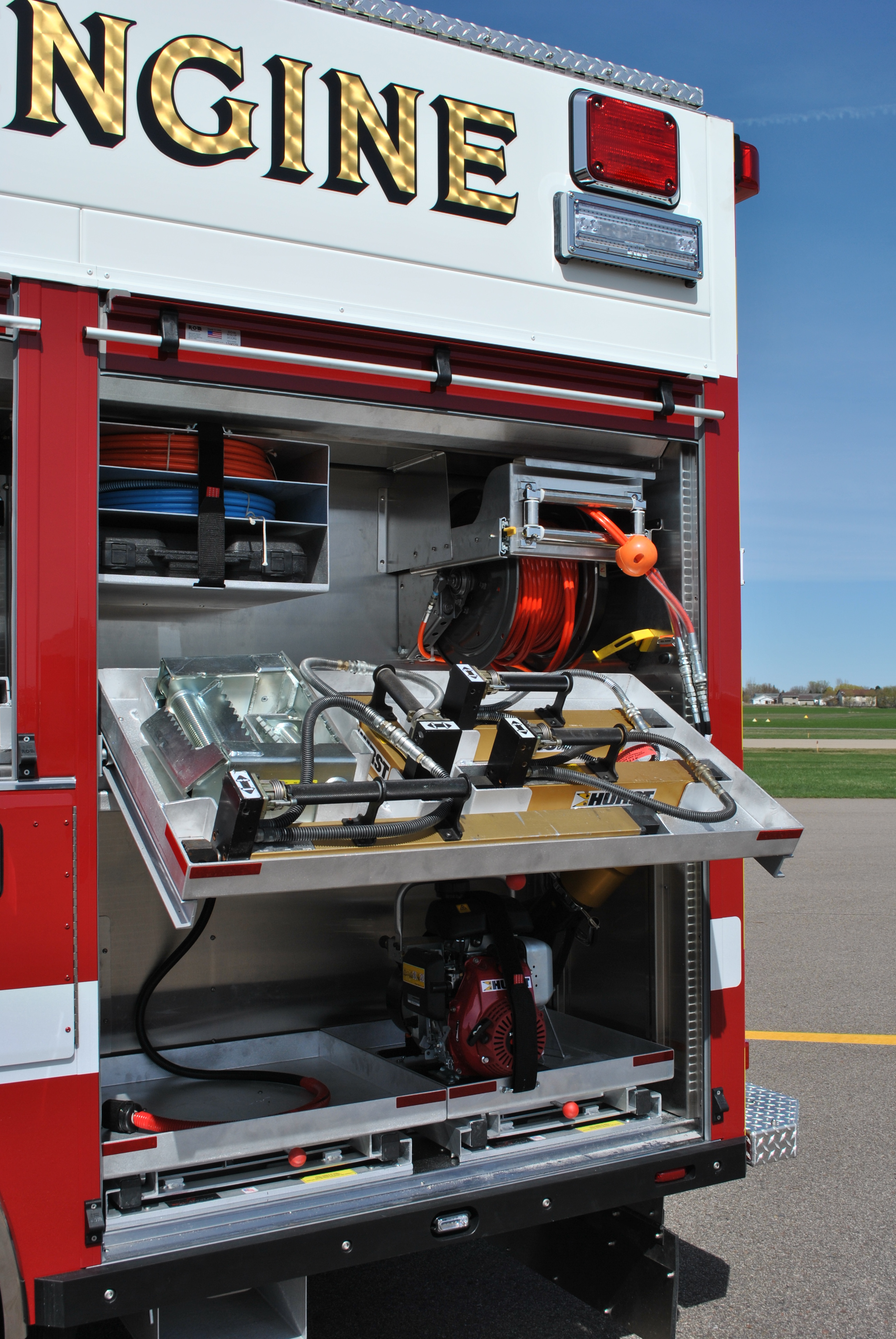

Pull-Out Compartment Trays
Rescue Tool Hose Reels
Wheel Well SCBA Cylinder Storage
Slide-In Ladder Storage
Fire Research Flood Lights
Rugged Duty Interior
Treadbrite Flooring
Custom Tool Mounting
Emergency Warning Devices
Mars Oscillating Front Corner Lights
Roto-Ray Warning Light
Federal Signal Q2B Mechanical Siren
Whelen LED Lightbar
Whelen LED Warning Lights
Exterior Lighting
Under Cab and Under Body Lights
Compartment Lights
Marker Lights
Tail Lighting
Vehicle Dimensions
Overall Height 9' 6"
Overall Length 33' 3"
Wheelbase 16' 7"
Weight with Water 39,300 Lbs.
