Truck Type : Full Response®, Pumpers
Cab Type : Commercial Cab, Enclosed Top Mount, Full Response Cab
Deployed : October, 2017

Chassis Model

Freightliner M2 Chassis
Cummins L9 350hp Engine
Allison 3000 EVS Automatic Transmission

Cab Details

Full Response® Crew Cab
Interior Pump Control Panel

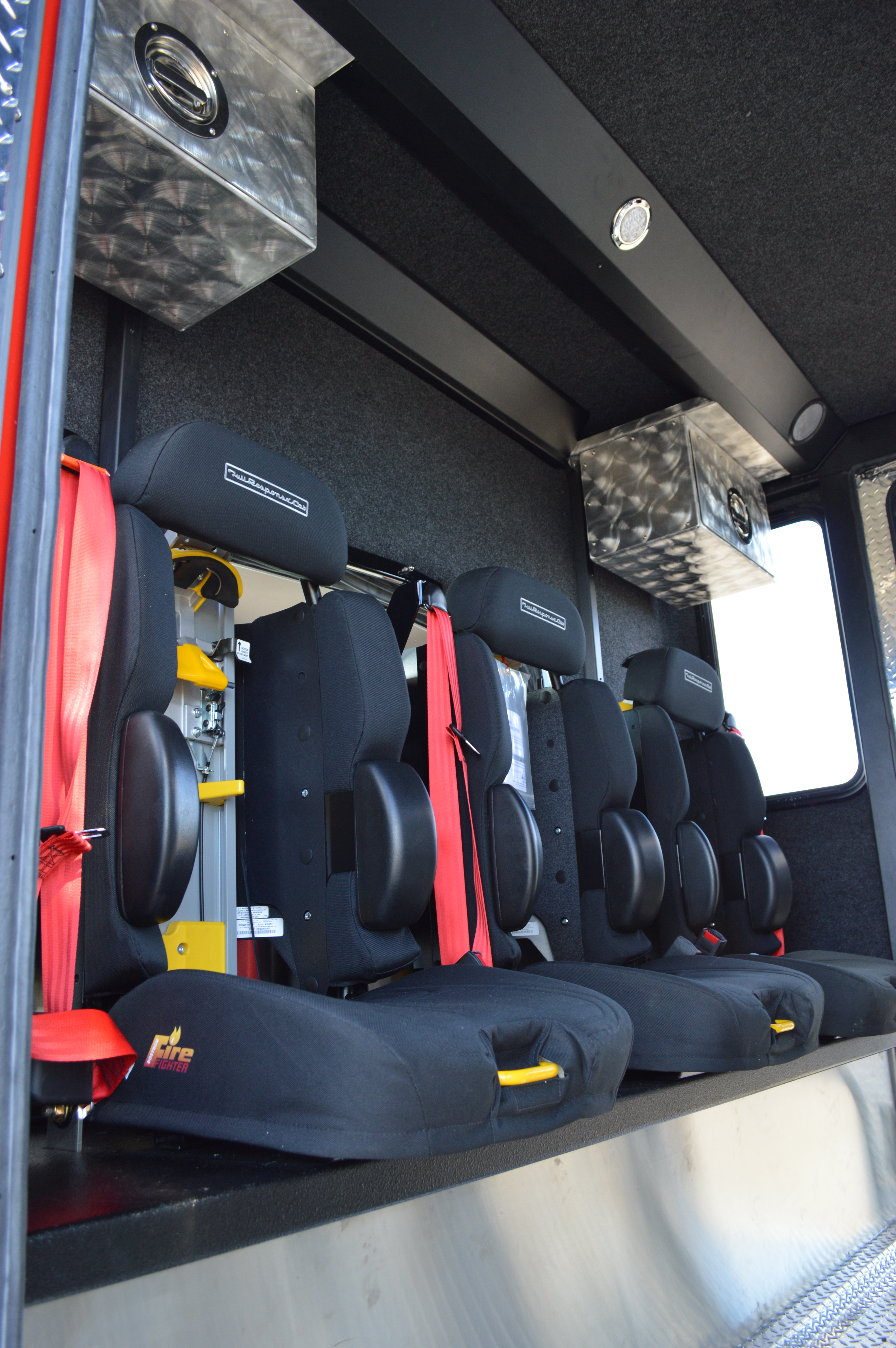

SCBA Seating
Overhead Cabinets
Command Desk with EMS Cabinet
Heater and Air Conditioner
Speedlay Hosebeds
Lower Level Exterior Cabinets

Apparatus Body

Concealed Bolted Construction
Aluminum Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Hale Qflo 1250gpm Midship Pump
FoamPro 2001 Single Agent Foam System
Fire Research PumpBoss Pressure Governor
Hale ESP Priming System
Pump Suction Pre-Primes
Passenger Side 6" and 2-1/2" Suctions
Driver Side 6" and 2-1/2" Suctions
Passenger Side LDH Discharge
Rear 2-1/2" Discharges
Hosebed 2-1/2" Discharge
Driver Side LDH Discharge
Top Deluge Discharge
Front Bumper 2" Preconnect Discharge
Forward and Rearward Speedlay Preconnect 2" Discharges

Booster Tank

1000-Gallon Poly Water Tank by UPF
30-Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewell
Removable Speedlay Hosebeds
Encapsulated Roll-Up Door Protection
Adjustable Compartment Shelving

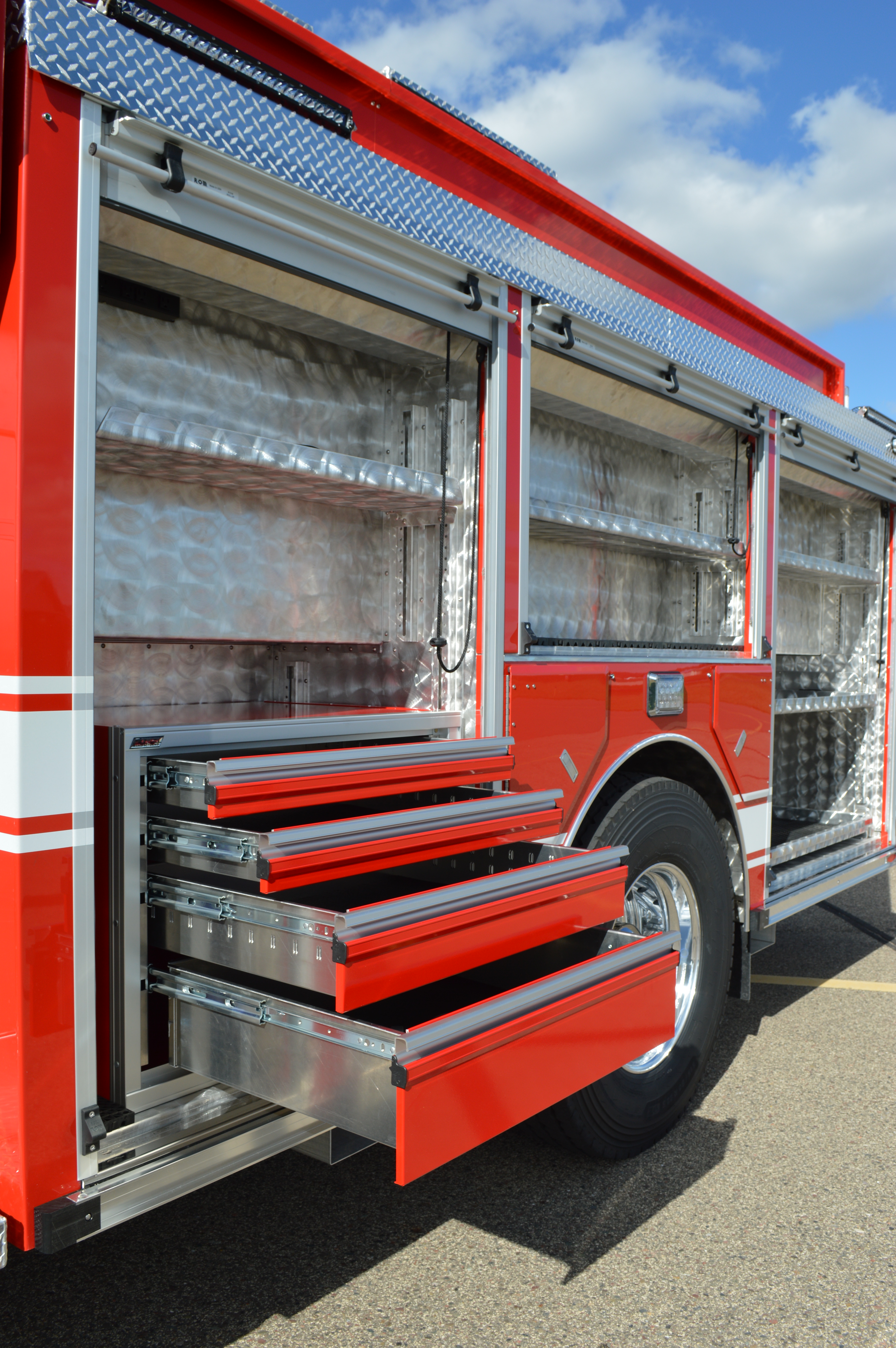

Pull-Out Compartment Trays
Slide-In Suction Hose Sleeve Compartment
Wheel Well SCBA Cylinder Storage
Slide-In Ladder and Pike Pole Storage
Swing-Out and Down Rear Access Ladder
Harrison 10kW Hydraulic Generator
Power Rewind Electric Cord Reels

Emergency Warning Devices

Whelen Electronic Siren and Speaker
Whelen LED Lightbar
LED Traffic Directing Lightbar
Tecniq LED Warning Lights

Exterior Lighting

Vertical Strip Compartment LED Lights
LED Marker Lights
Under Cab and Under Body Lights

Vehicle Dimensions

Height 10' 5"
Length 34' 5"
Wheelbase 19' 11"
Weight with Water 34,520 Lbs.
