Truck Type : Pumpers
Cab Type : Commercial Cab, Rear Mount
Deployed : October, 2025

Chassis Model

International HV507 SFA Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission
40,000 Lbs. GVRW

Apparatus Body

Concealed Bolted Construction
Stainless Steel Subframe
Stainless Steel Body Material
Roll-Up Compartment Doors

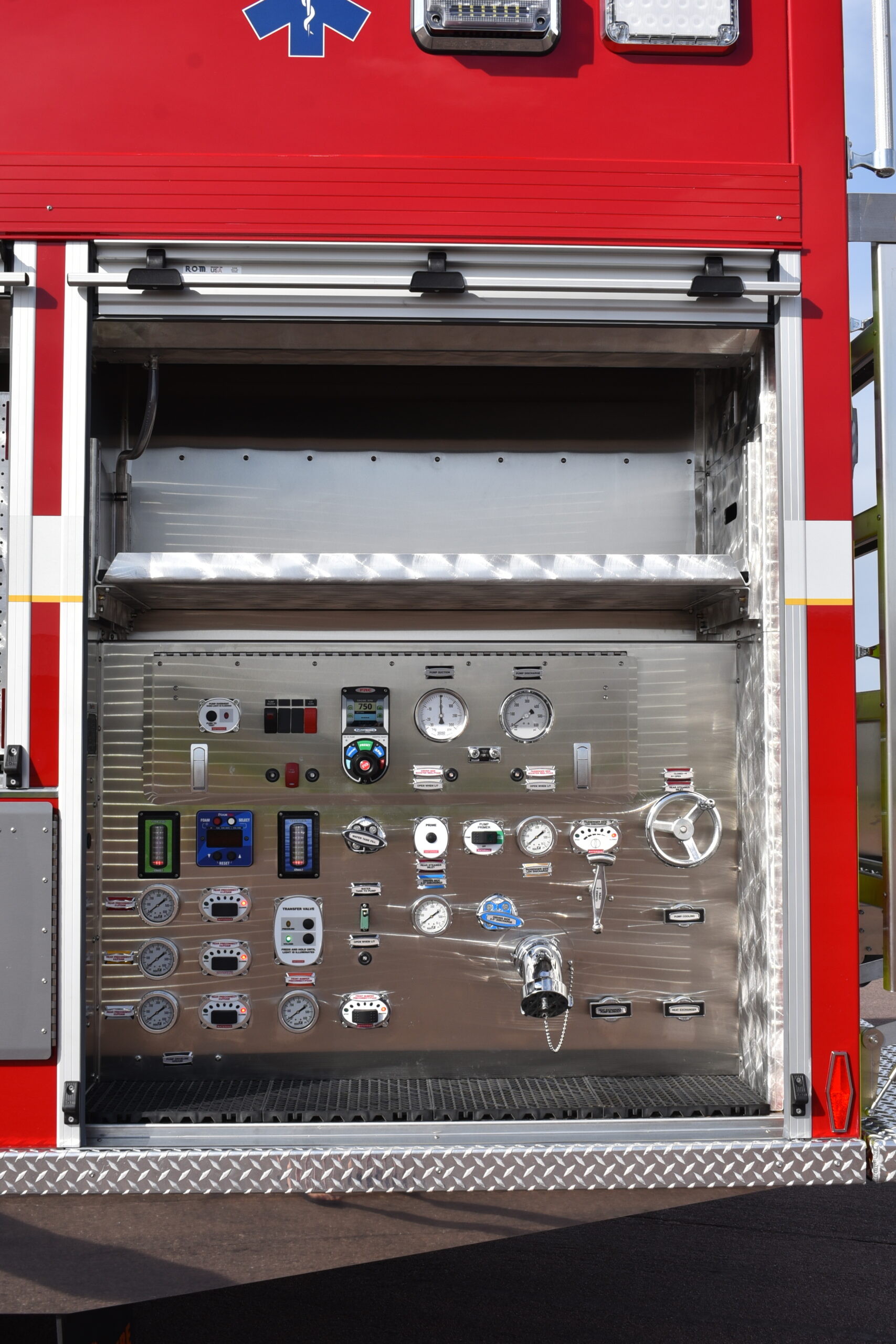

Fire Pump System

Waterous CMUK 1000gpm PTO Driven Fire Pump
Waterous TPA Power Take-Off
FoamPro 2001 Foam System
Venturis Air Pump Primer
Fire Research PumpBoss Pressure Governor
Passenger Side 6" Suction

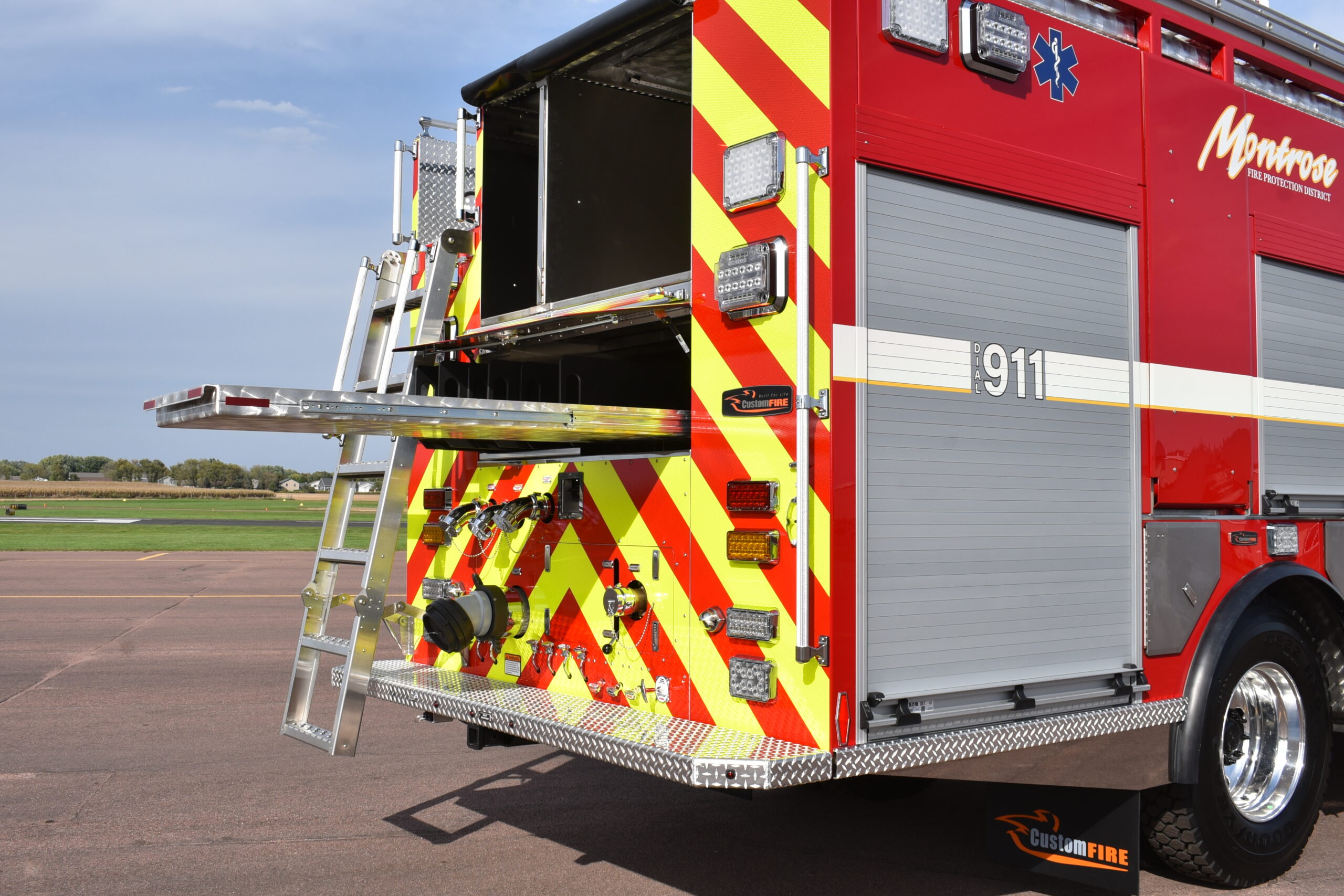

Rear 6" Suction w/ Pre-Prime
Rear 2.5" Suction
Front Bumper 2.5" Preconnect Discharge
Passenger Side 4" Discharge
Rear 2.5" Discharges
Driver Side 2.5" Discharge
Hose Reel 1.5" Discharge

Booster Tank

750-Gallon Poly Water Tank
20-Gallom Foam Cell

Special Features

Front Bumper Extension with Hosewell and Cover
Front Bumper, Driver Side, and Passenger Side Winch Receivers

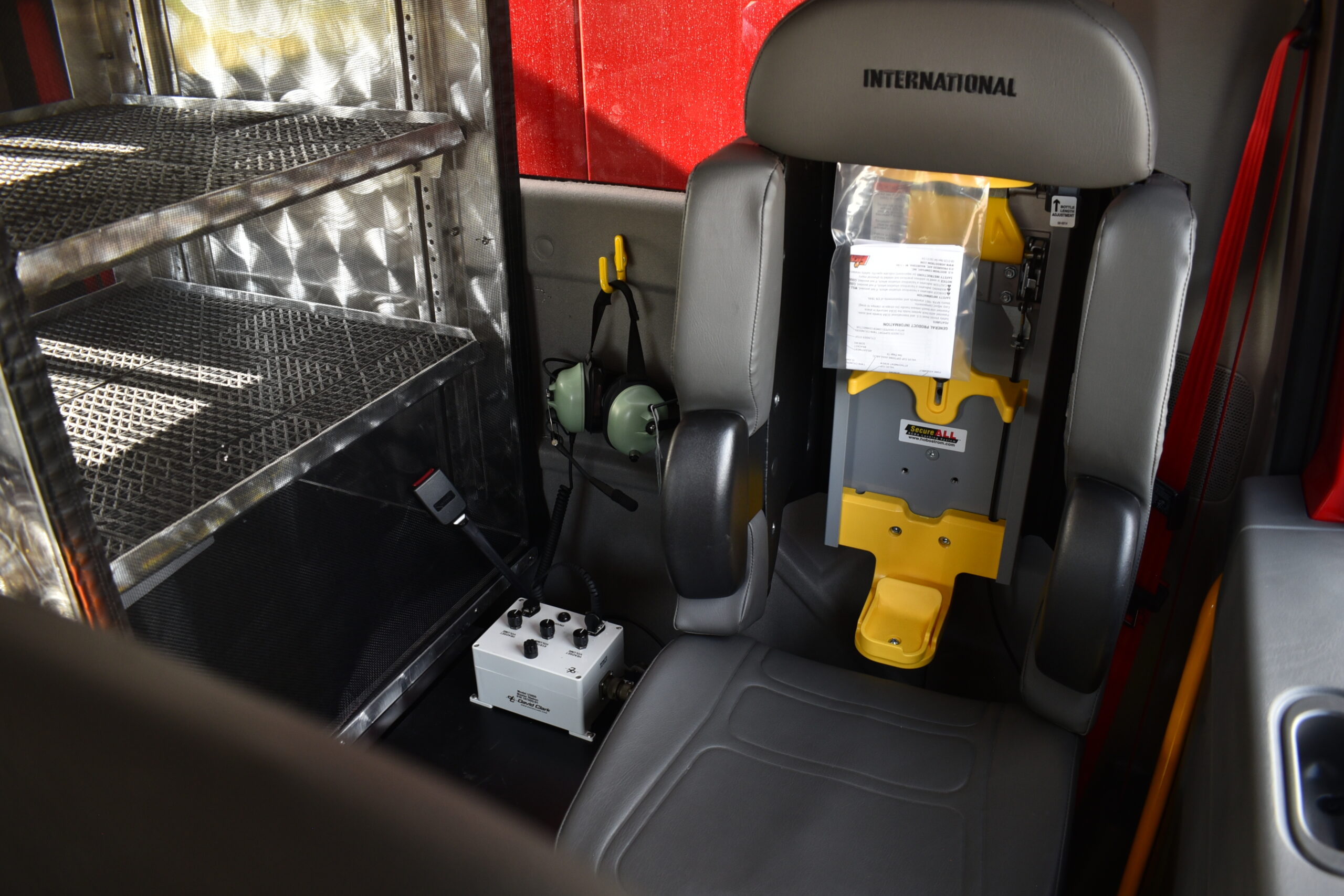

David Clark Intercom System
Interior Cab Storage Compartment
Electric Rewind Booster Hose Reel
Hard Suction Hose Storage Sleeve

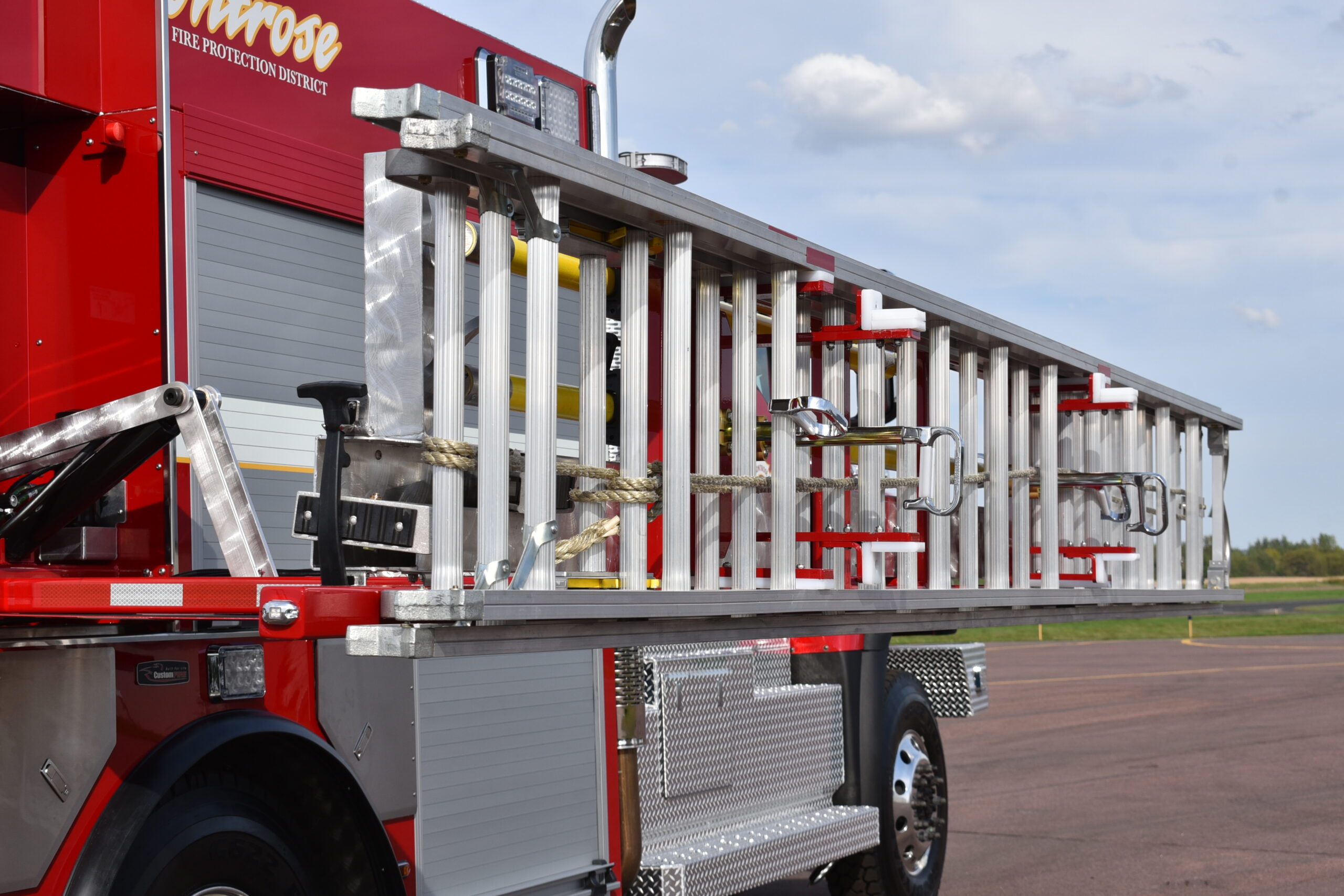

Hydraulic Drop-Down Ladder Rack
Encapsulated Roll-Up Door Protection

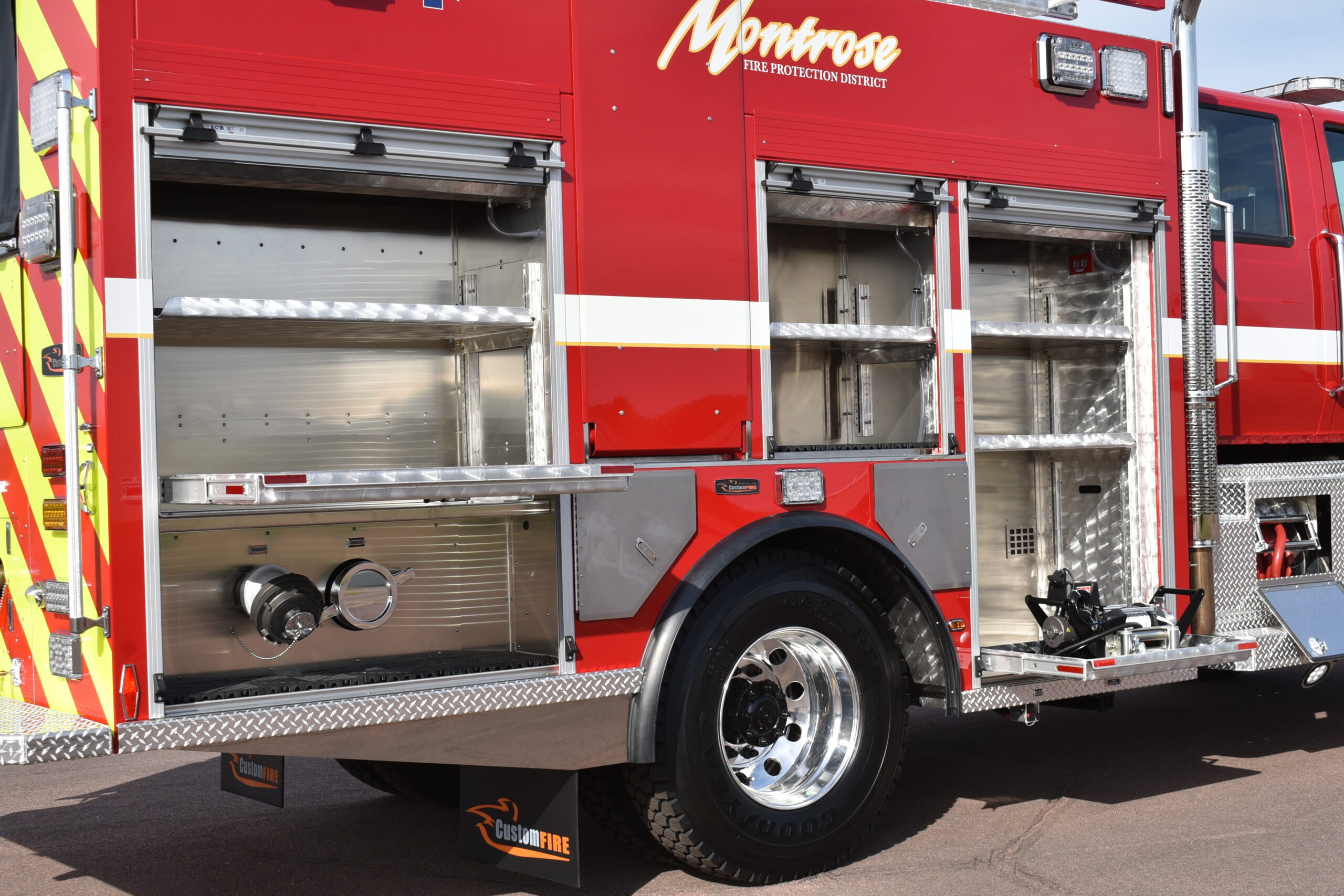

Adjustable Compartment Shelving
Removable Poly Hosebed Trays
Aluminum Hinged Hosebed Covers w/ Lift-Assist
Slide-In Tool Storage Compartment
Swing-Out and Down Rear Access Ladder
Wheel Well SCBA Cylinder Storage
Wheel Well Extinguisher Storage
Pull-Out Compartment Trays
Swing-Out Tool Board w/ Peg Board Panel
Kussmaul On-Board Air Compressor
On-Board Battery Charger

Emergency Warning Devices

Tomar Scorpion LED Lightbar
Tomar LED Warning Lights
Whelen Siren Control Head and Speaker
Air Horns of Texas Air Horns

Exterior Lighting

ROM Door Track LED Compartment Lighting
Hosebed Cover LED Lighting
Walkway, Standing Platform, and Work Area Lighting
LED Step Lights
Under Cab and Under Body Lights
Hi Viz Firetech LED Scene Lighting

Vehicle Dimensions

Overall Height 11' 4"
Overall Length 29' 10"
Wheelbase 239"
Weight w/ Water 33,580 Lbs
