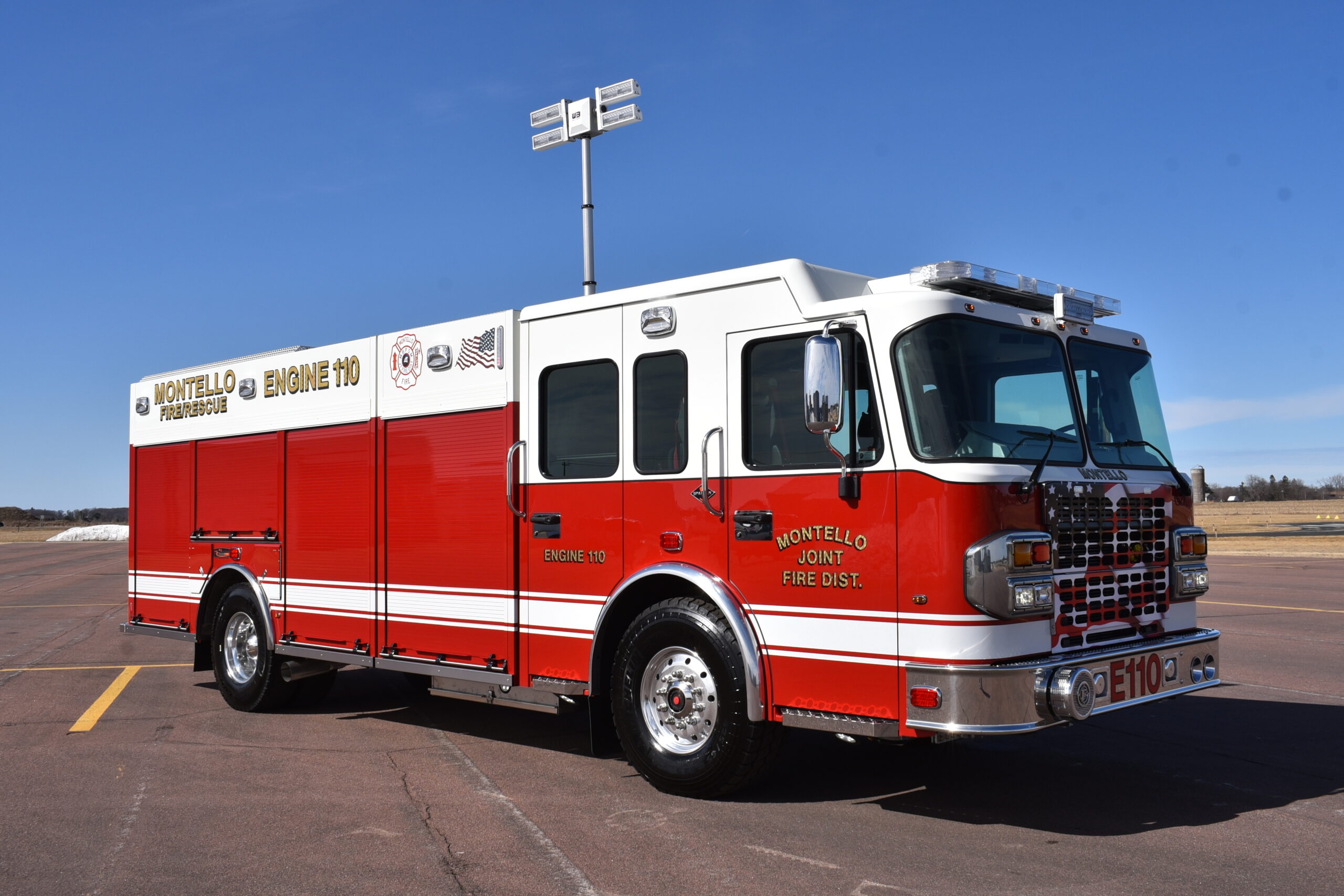

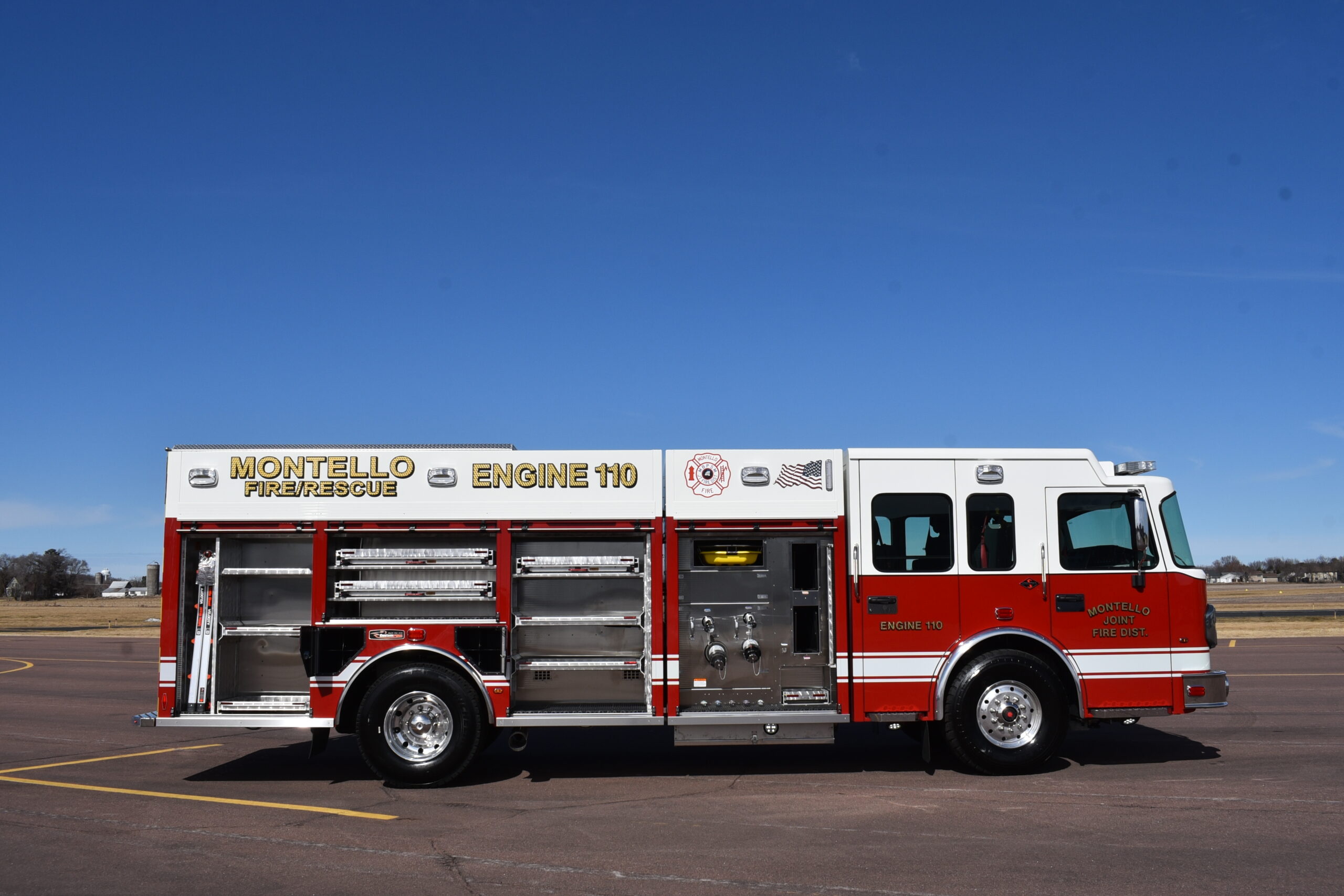

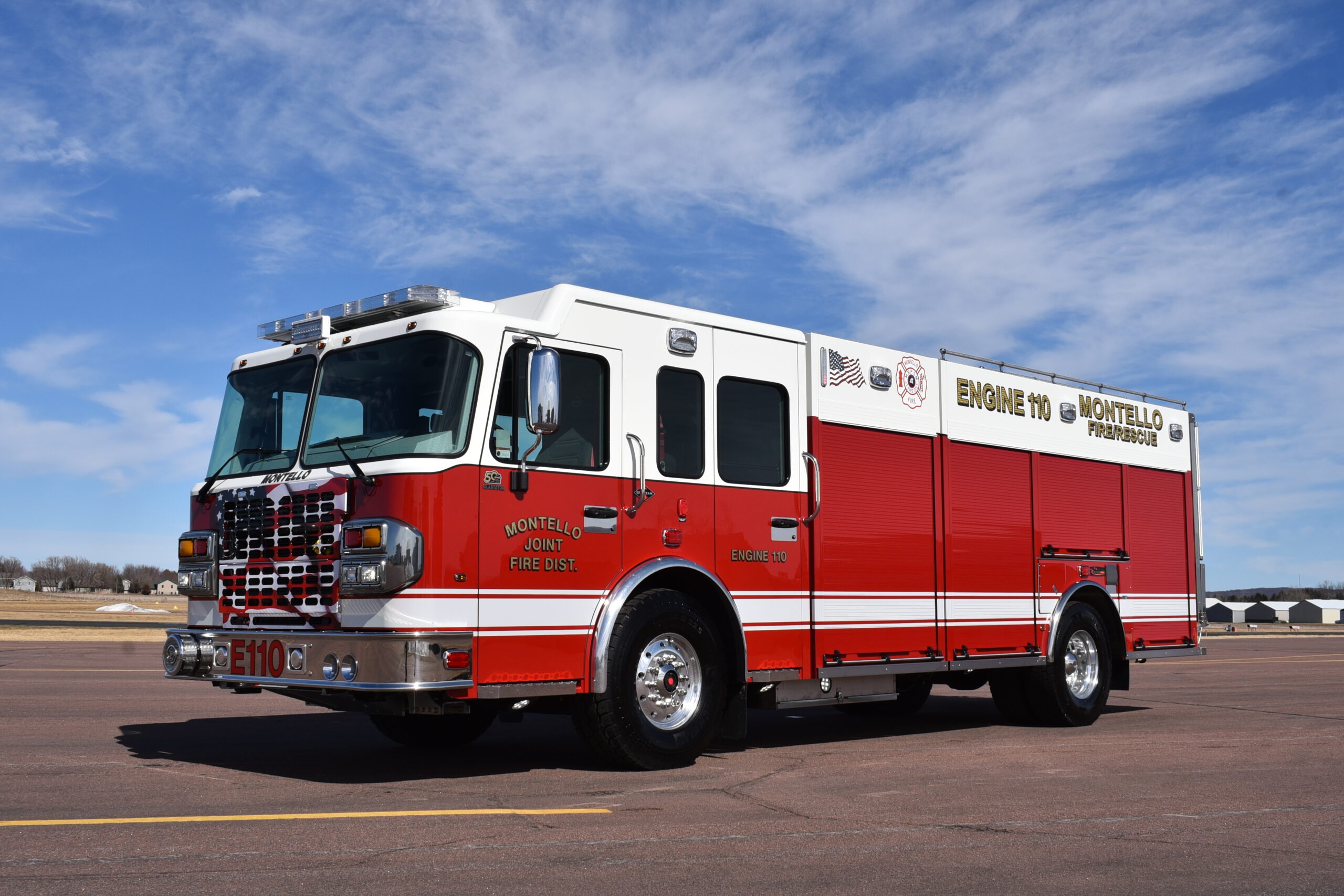

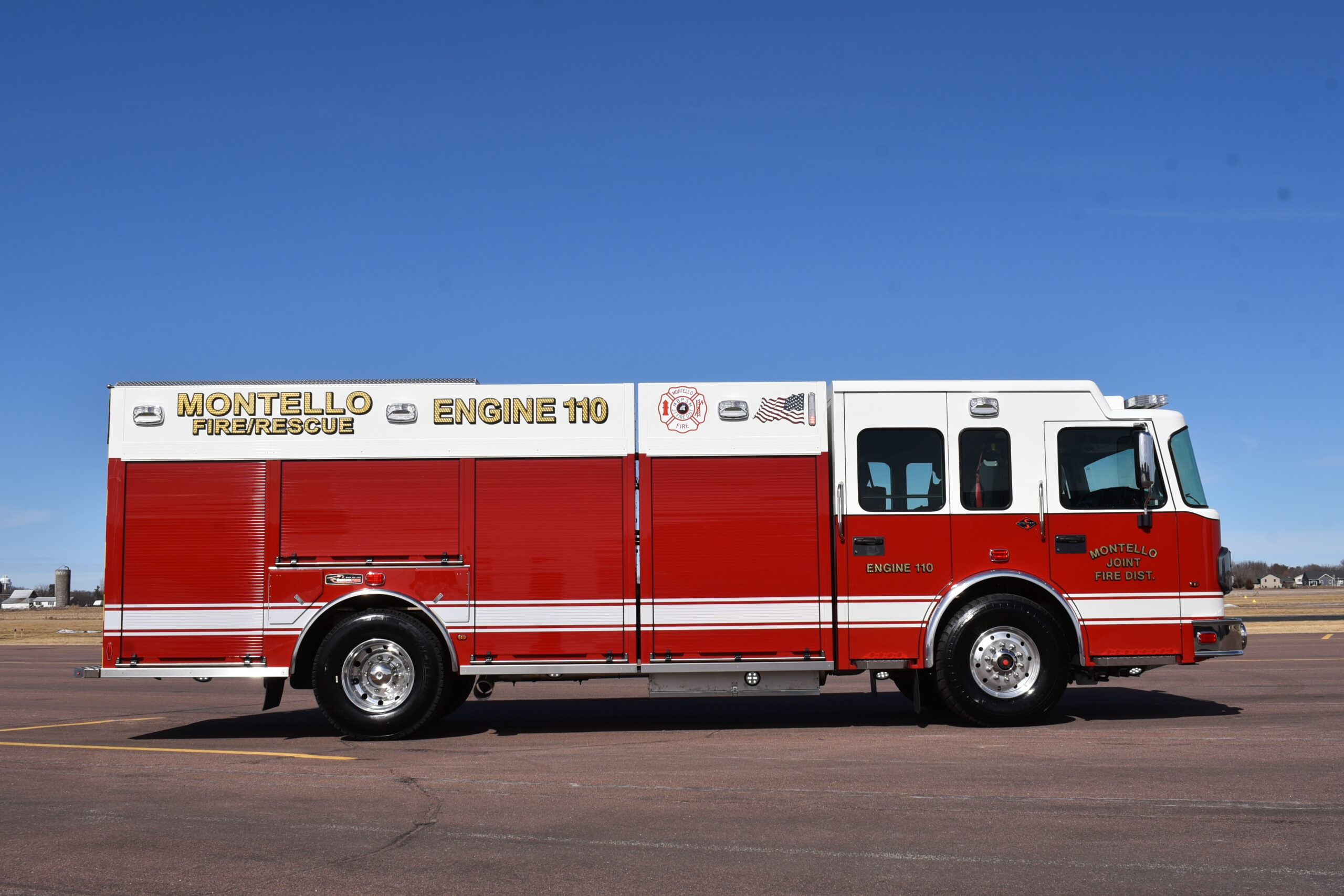

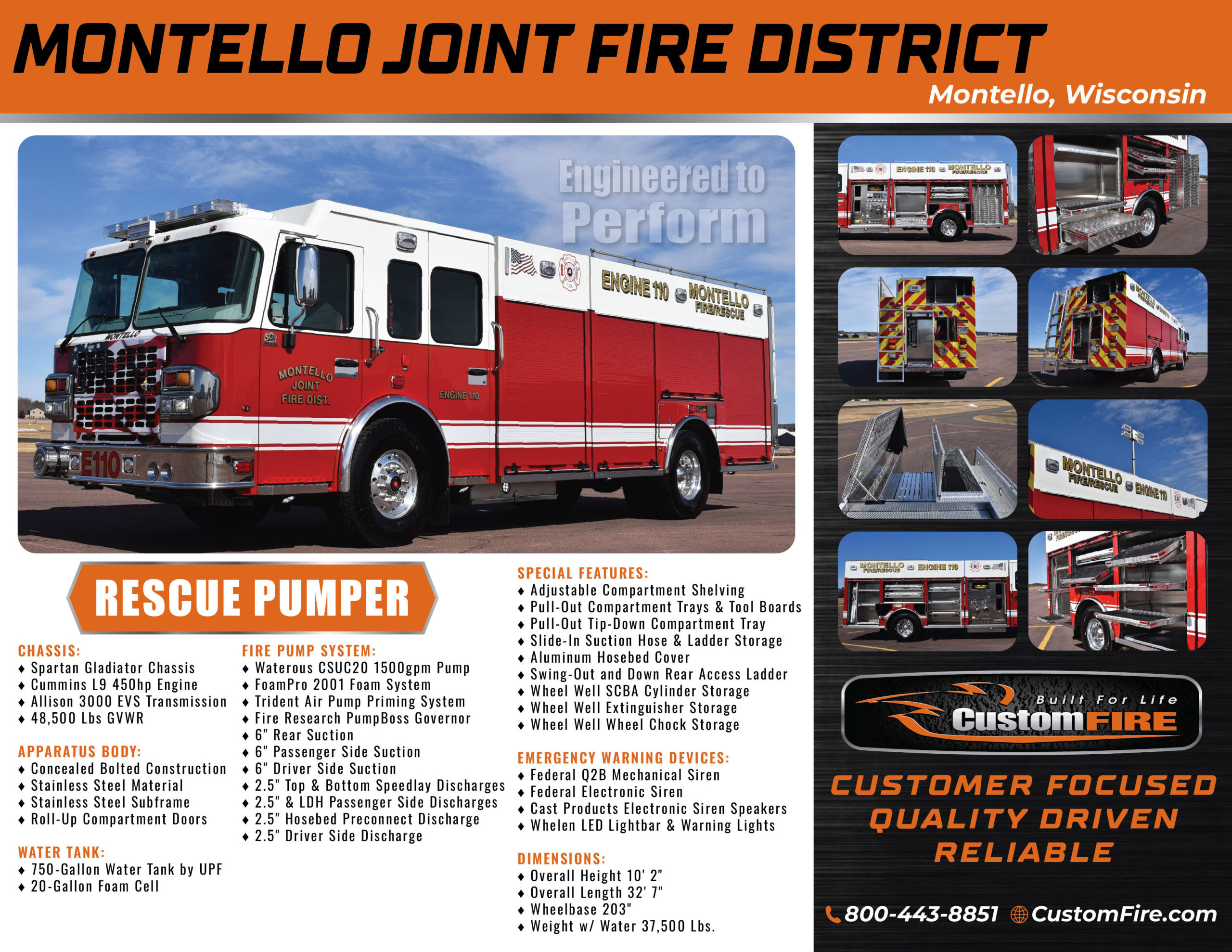

Truck Type : Pumpers

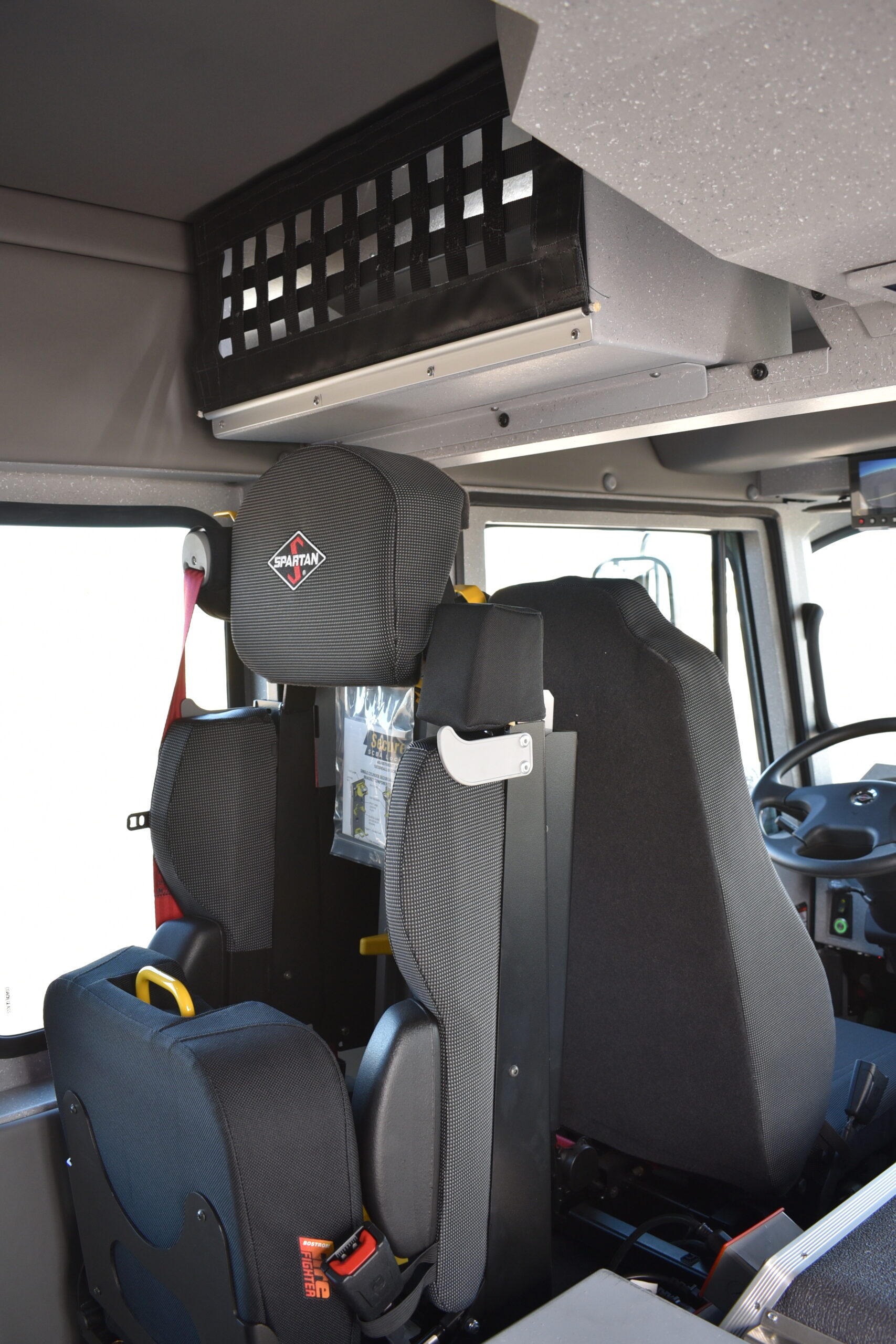

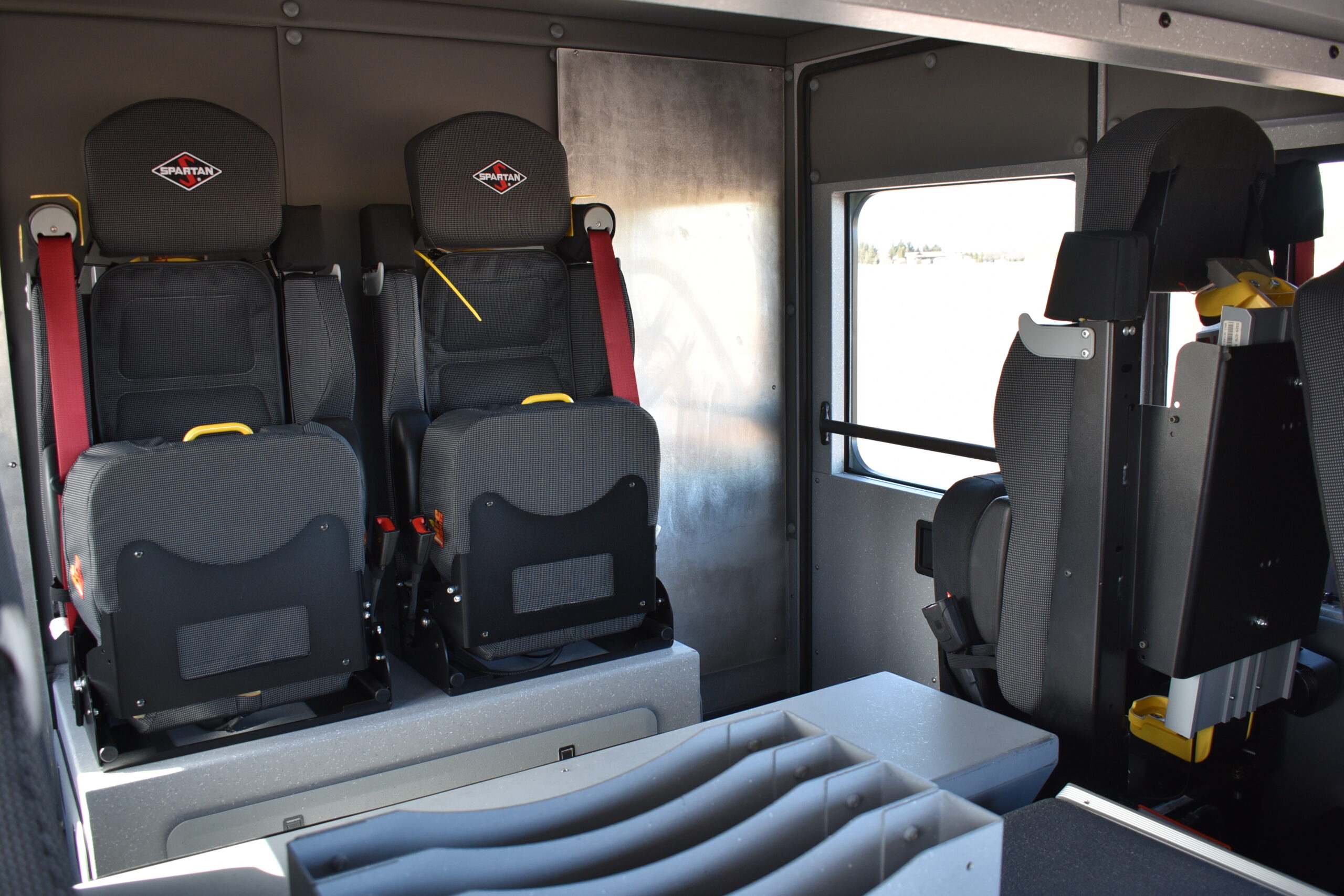

Cab Type : Custom Cab, Side Mount
Deployed : April, 2026

Chassis Model

Spartan Gladiator Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission
48,500 Lbs GVWR

Apparatus Body

Concealed Bolted Construction
Stainless Steel Material
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CSUC20 1500gpm Fire Pump
FoamPro 2001 Single Agent Foam System
Trident Air Pump Priming System
Fire Research PumpBoss Pressure Governor
6" Rear Suction
6" Passenger Side Suction
6" Driver Side Suction
2.5" Top and Bottom Speedlay Discharges
2.5" and LDH Passenger Side Discharges
2.5" Hosebed Preconnect Discharge
2.5" Driver Side Discharge

Booster Tank

750-Gallon Water Tank by UPF
20-Gallon Foam Cell

Special Features

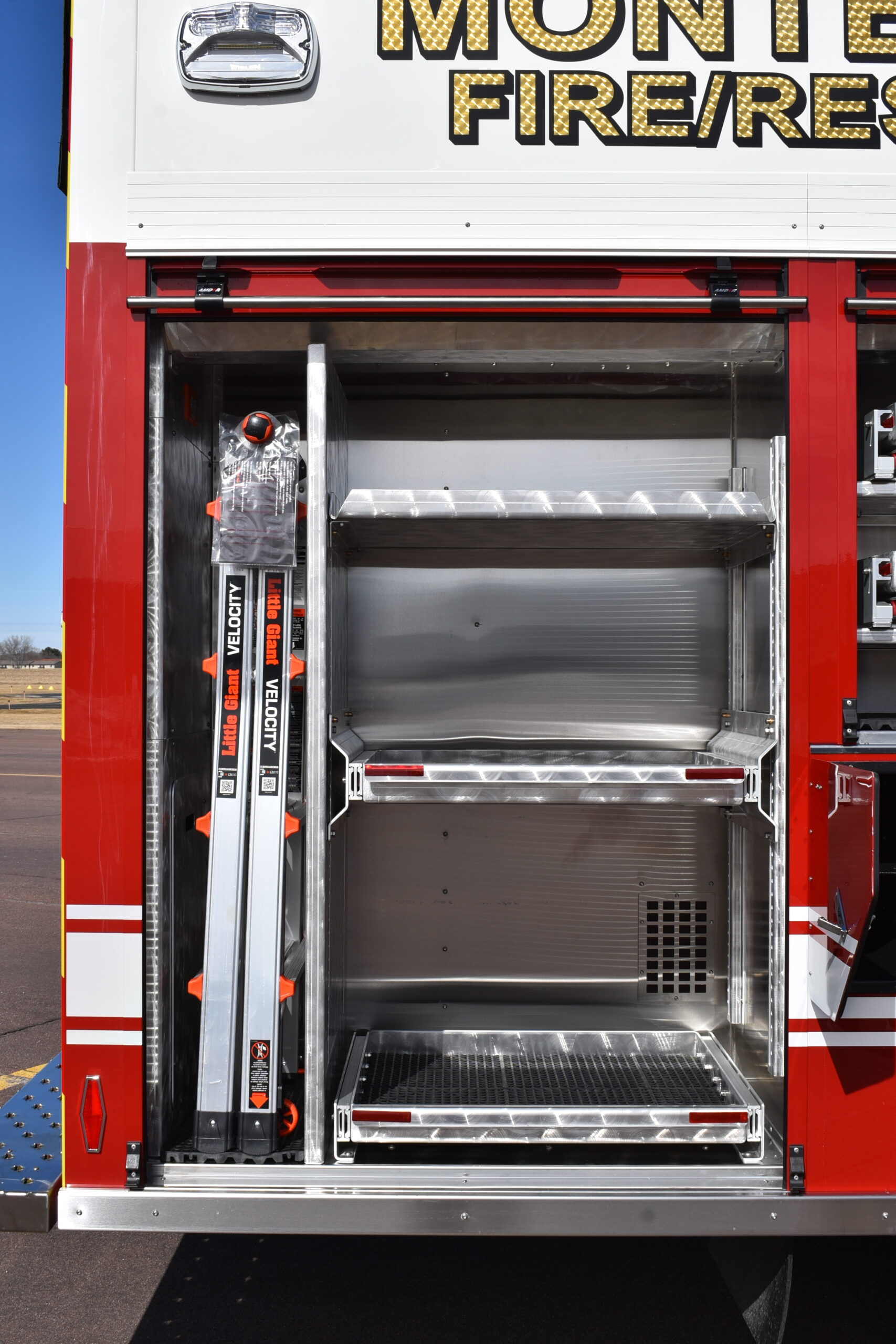

Adjustable Compartment Shelving

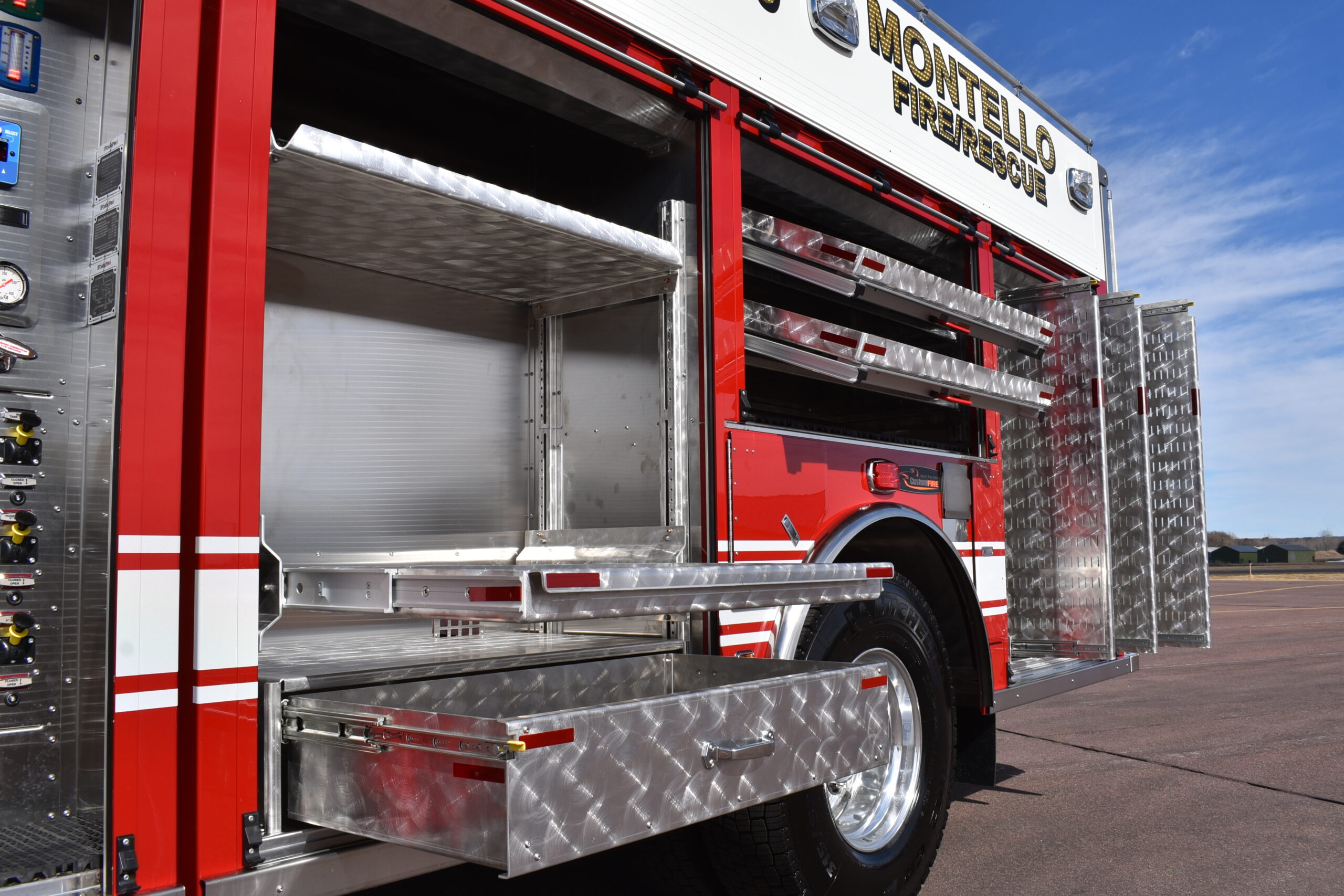

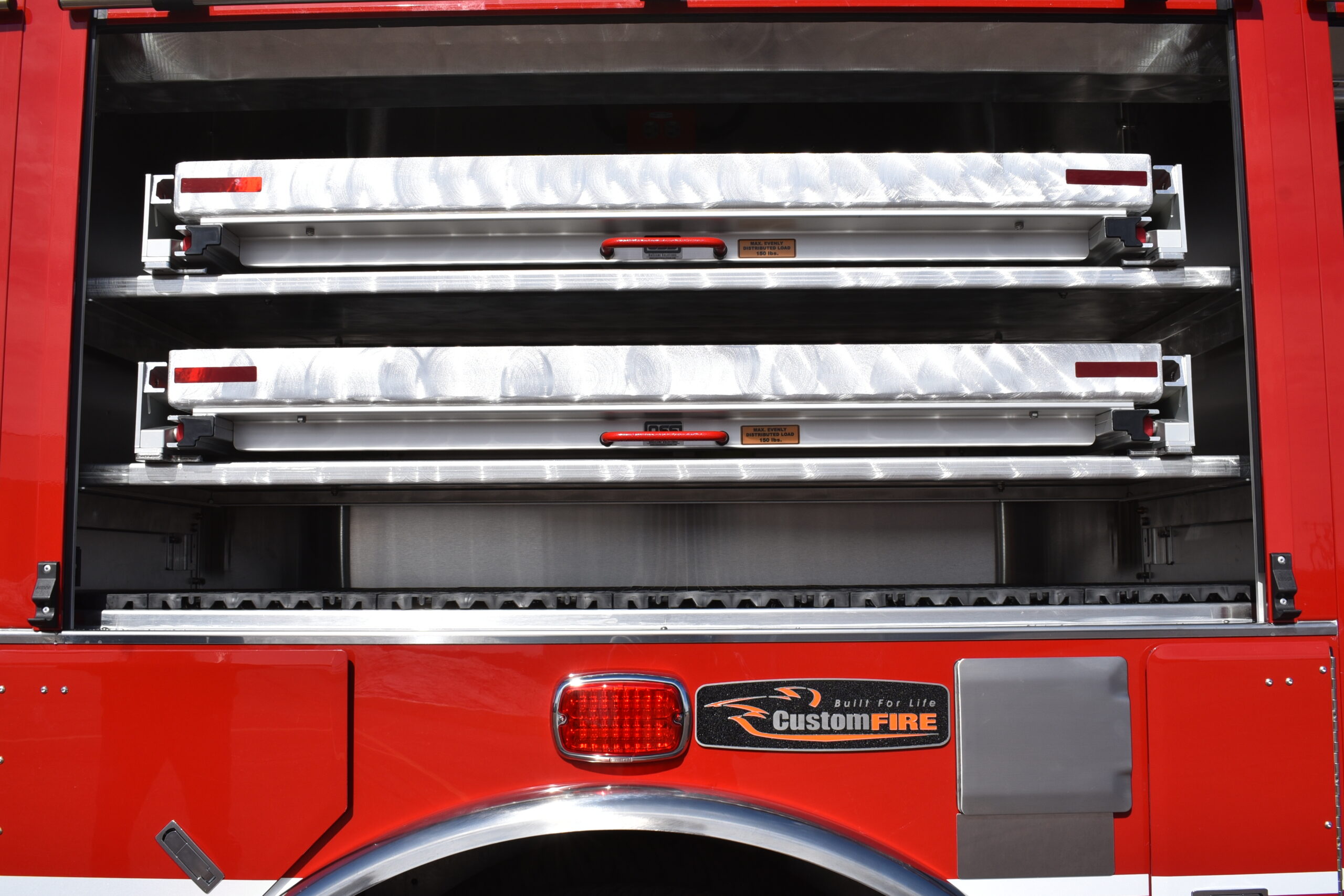

Pull-Out Compartment Trays

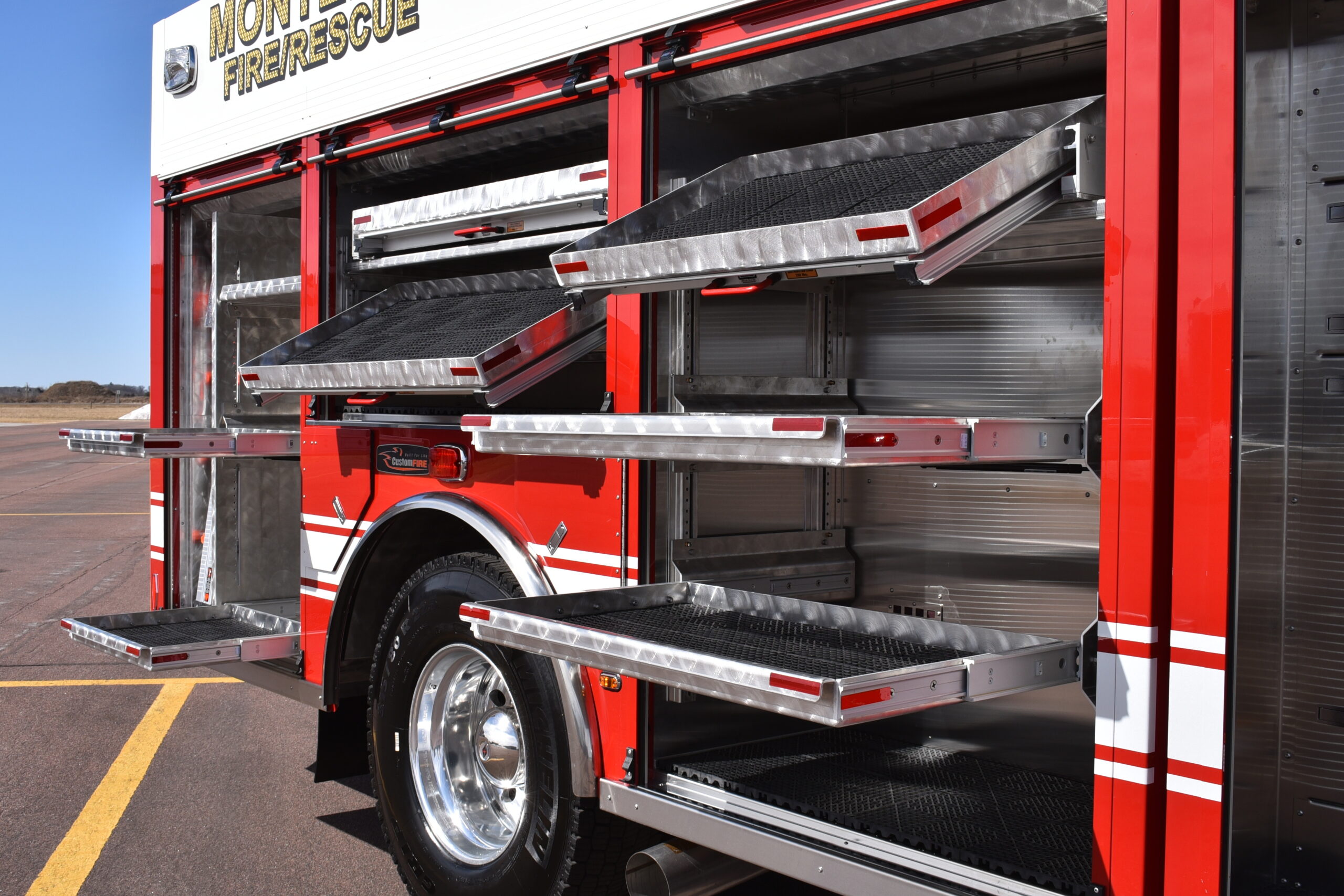

Pull-Out Tip-Down Compartment Tray

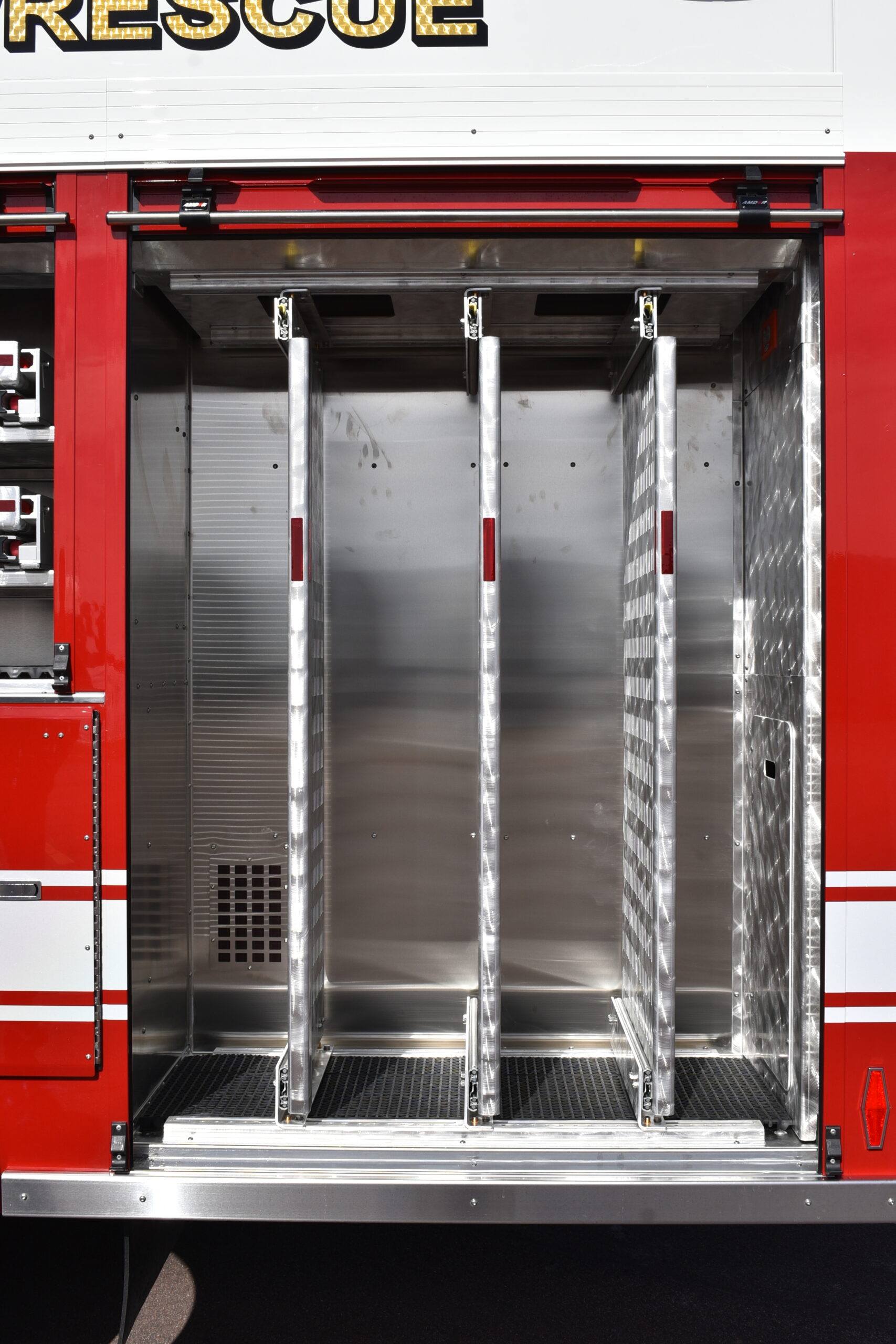

Pull-Out Tool Boards
Slide-In Suction Hose Storage
Slide-In Ladder Storage
Encapsulated Roll-Up Door Protection

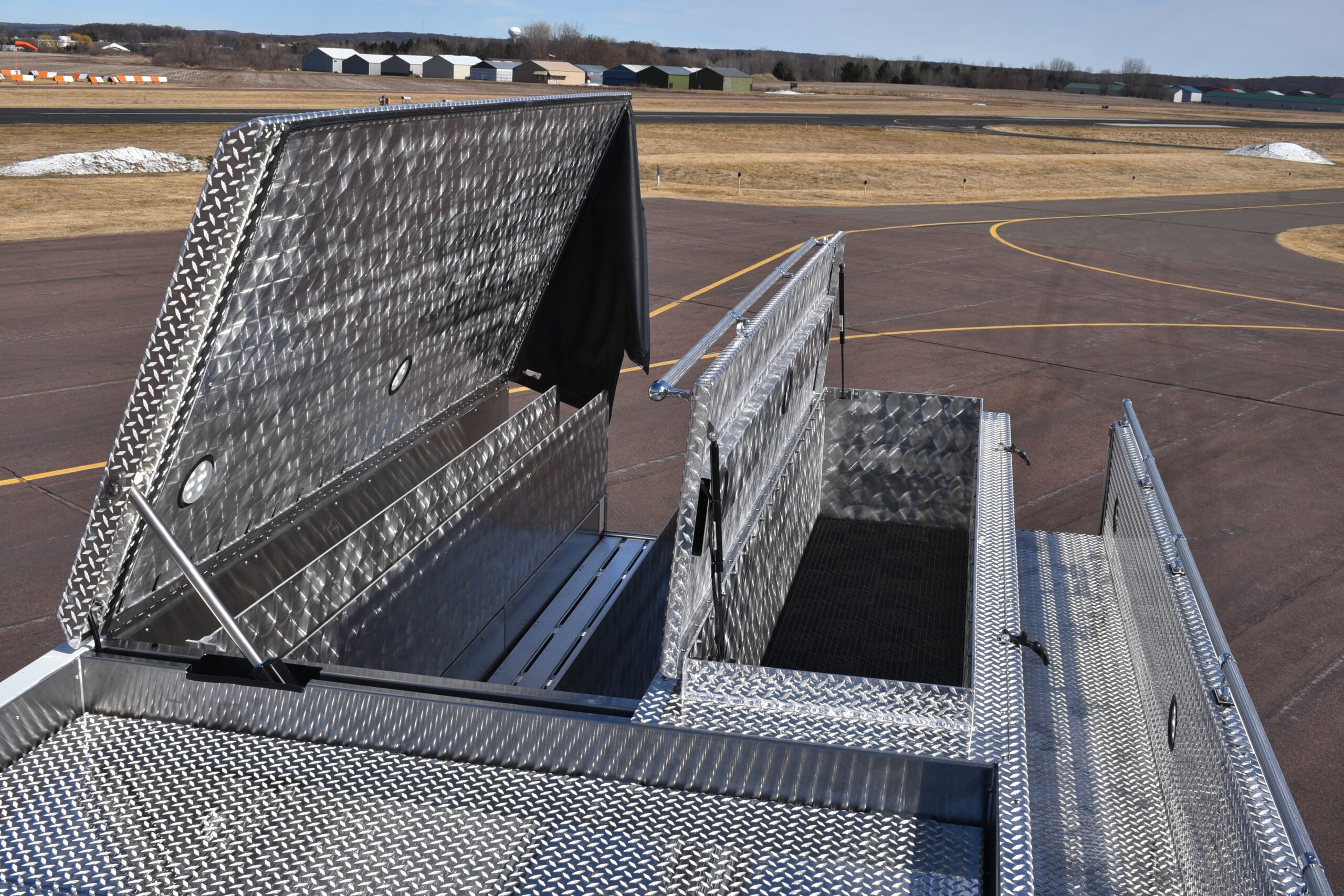

Aluminum Hosebed Cover

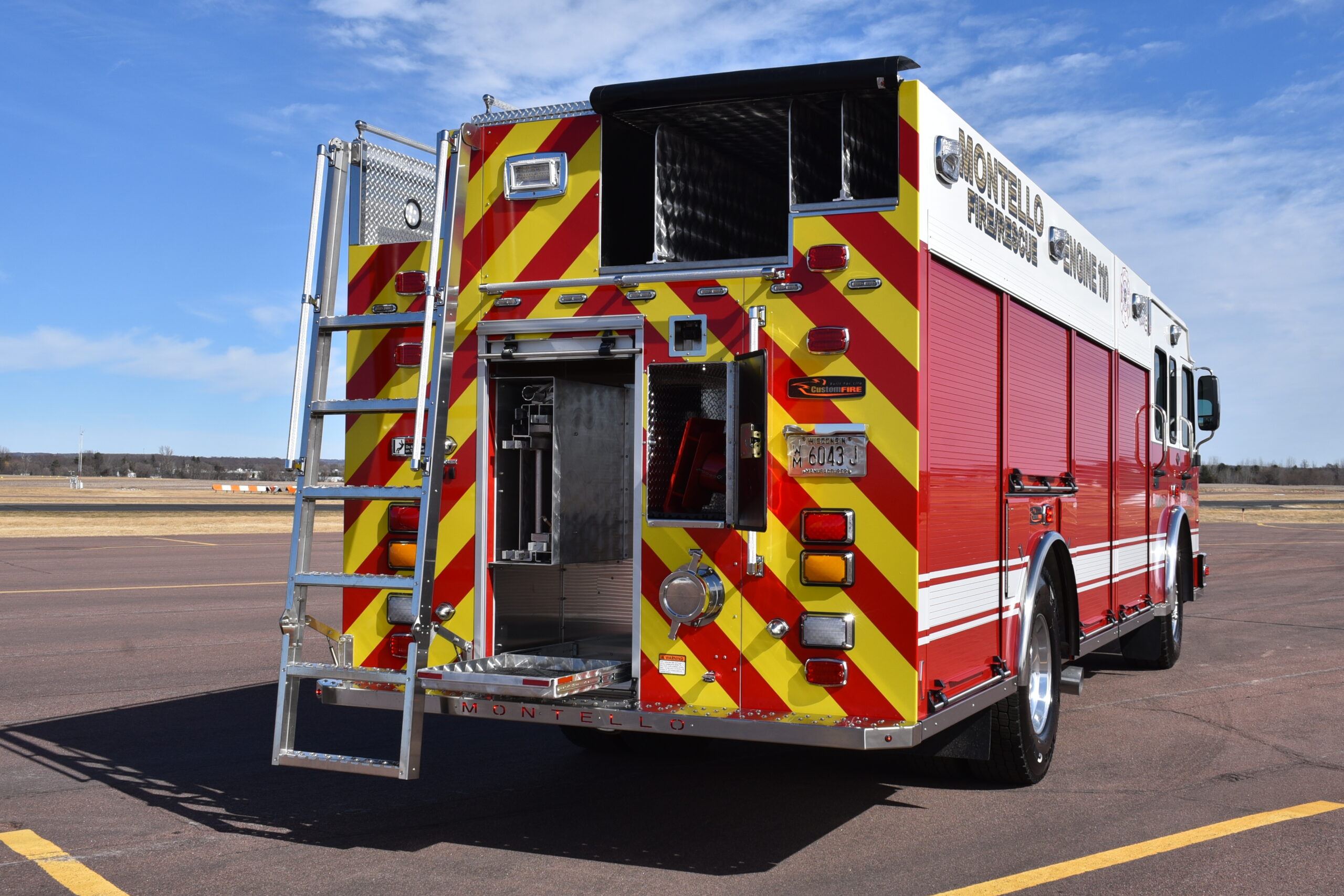

Swing-Out and Down Rear Access Ladder
Wheel Well SCBA Cylinder Storage
Wheel Well Extinguisher Storage
Wheel Well Wheel Chock Storage

Emergency Warning Devices

Federal Q2B Mechanical Siren
Hadley E-Tone Air Horns
Federal Electronic Siren
Cast Products Electronic Siren Speakers
Whelen LED Lightbar
Whelen LED Warning Lights
Whelen LED Traffic Directing Lights

Exterior Lighting

Under Cab and Under Body Lights
LED Door Track Lighting
Walkway and Step LED Lighting
LED Marker Lights
Whelen LED Tail Lighting
Fire Research Scene Lighting
WillBurt NightScan 600w Light Tower
