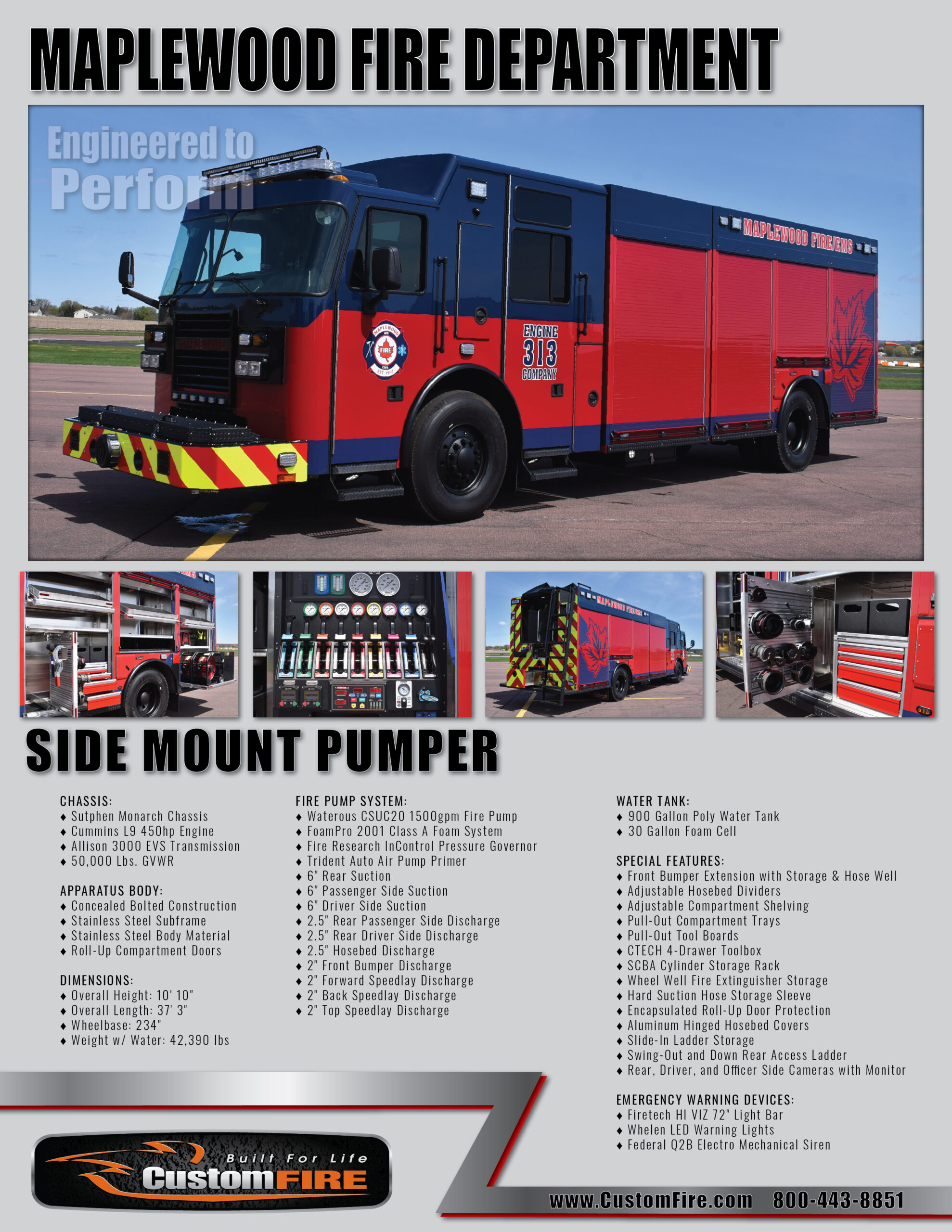

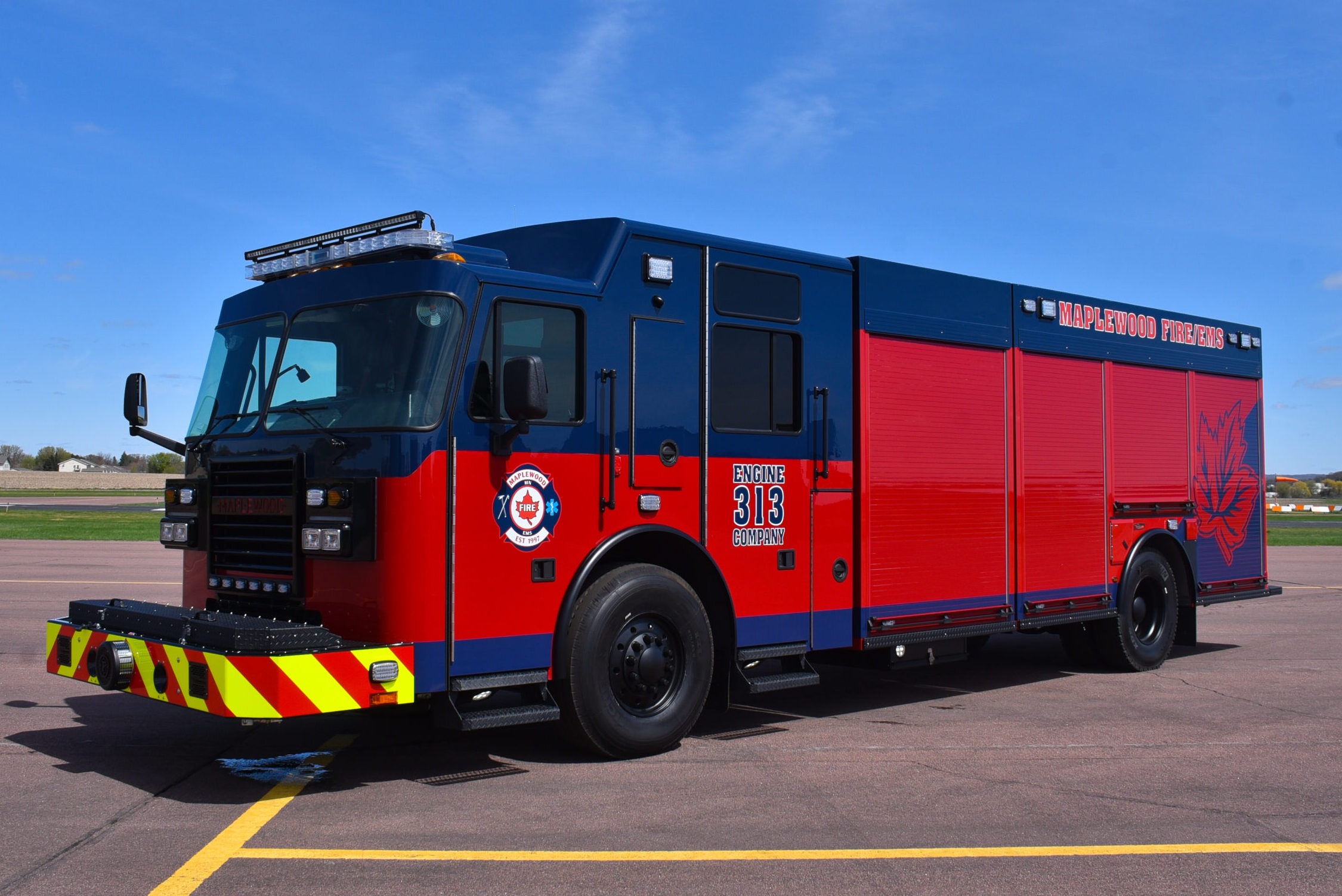

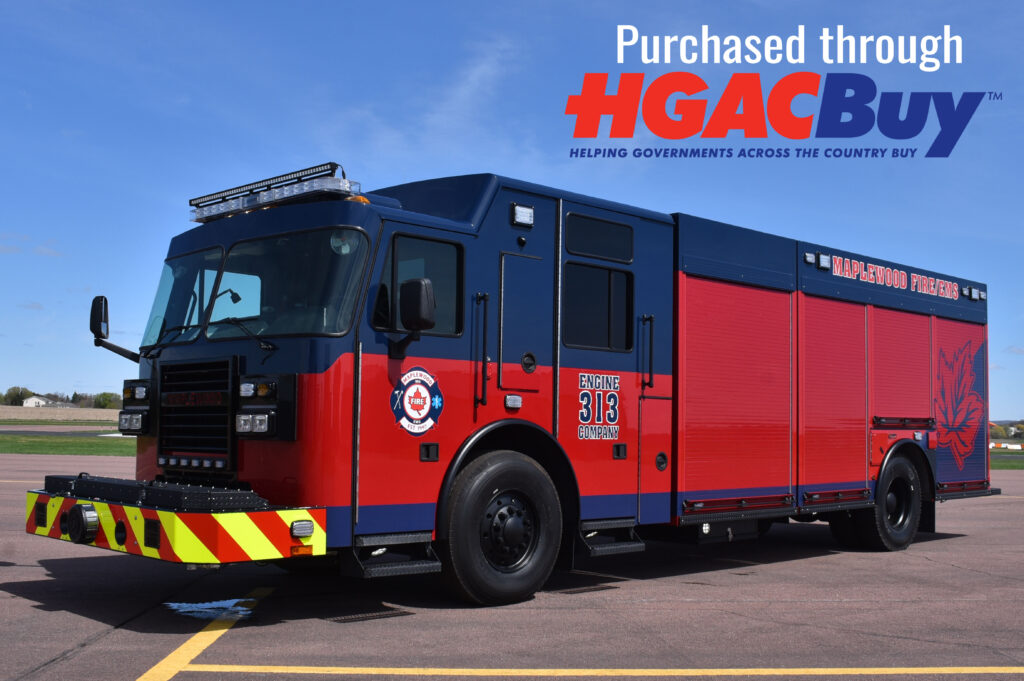

Truck Type : HGACBuy Deliveries, Pumpers
Cab Type : Custom Cab, Side Mount
Deployed : April, 2026

Chassis Model

Sutphen Monarch Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission
50,000 Lbs. GVWR

Apparatus Body

Concealed Bolted Construction
Stainless Steel Subframe
Stainless Steel Body Material
Roll-Up Compartment Doors

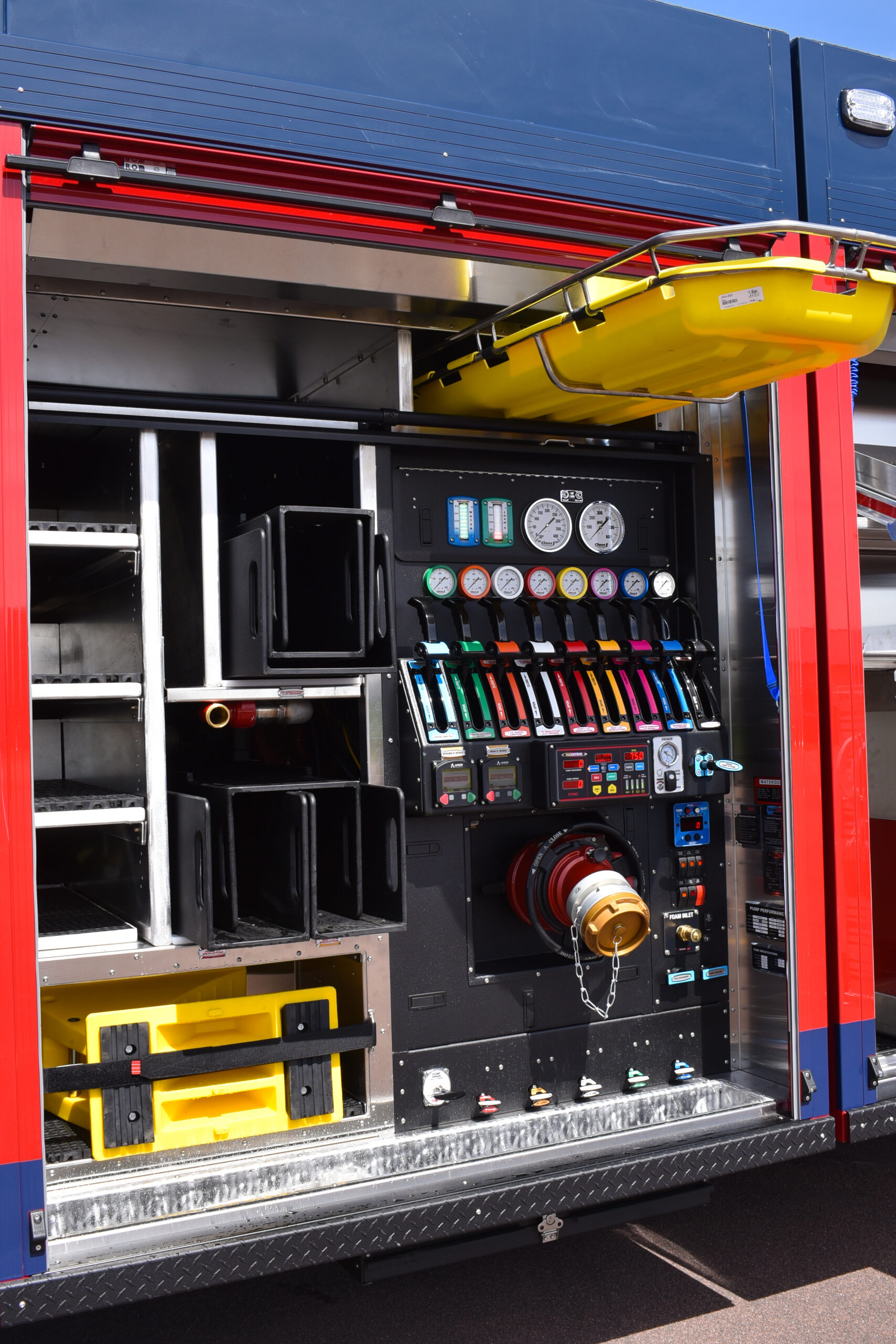

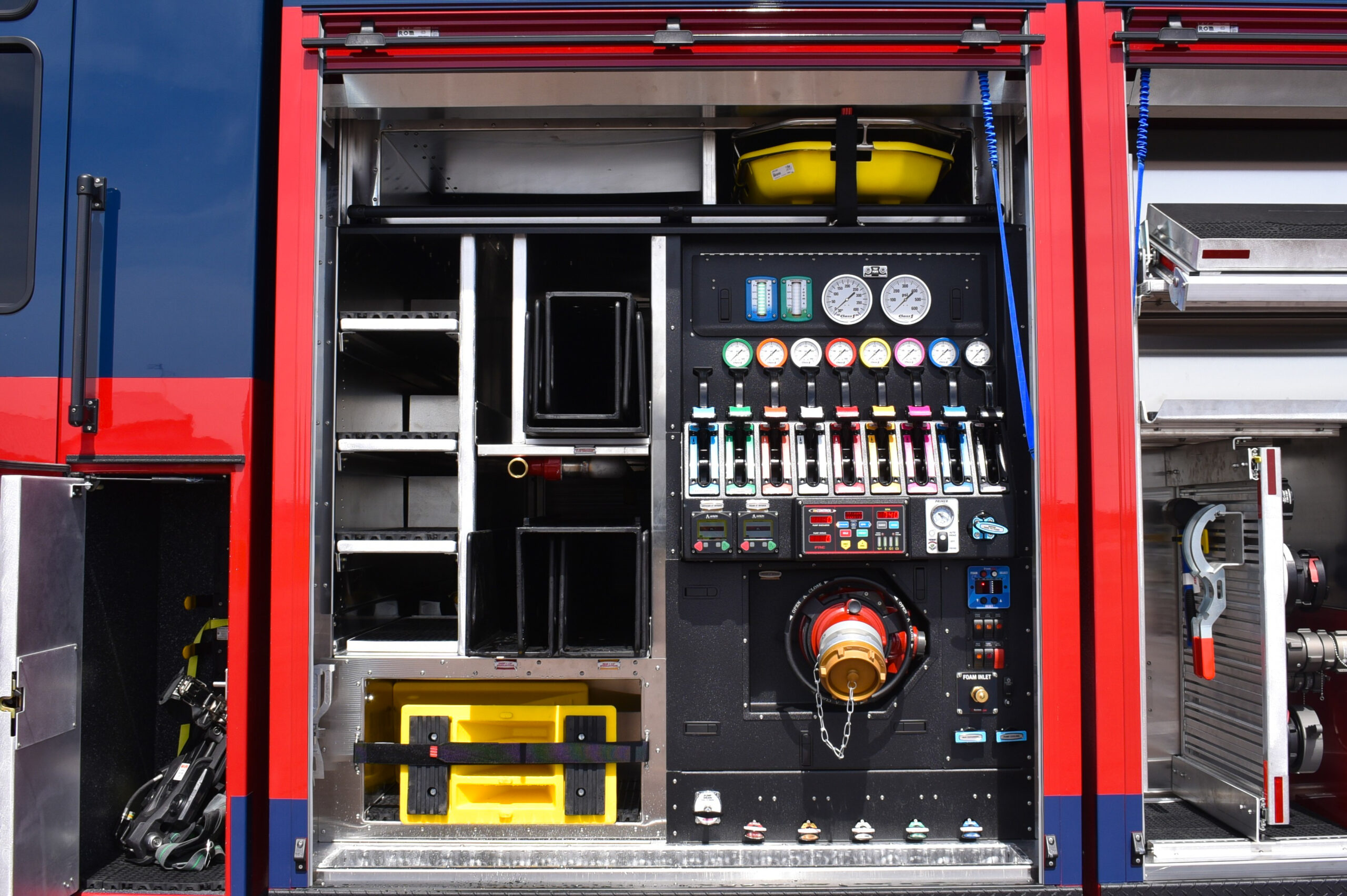

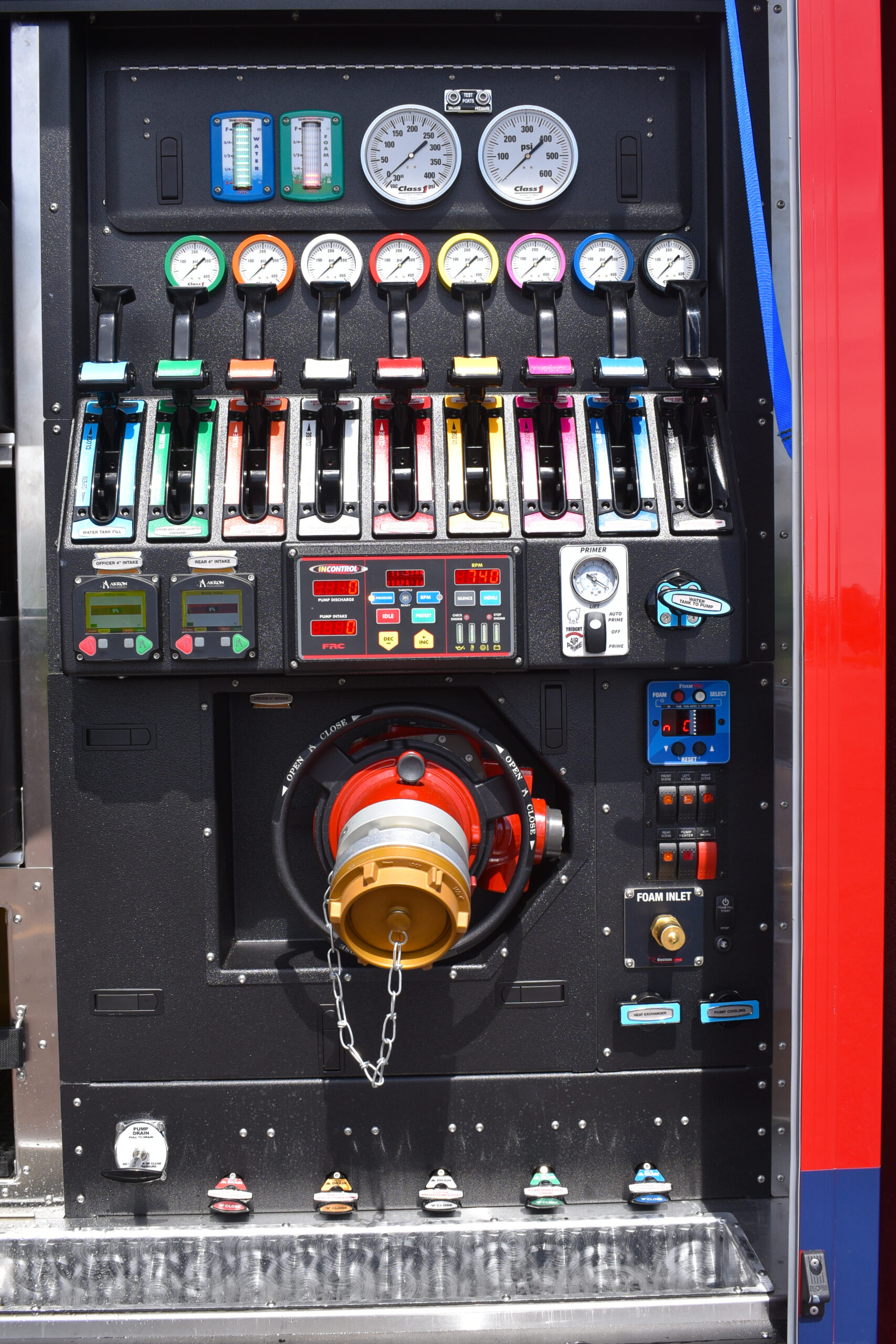

Fire Pump System

Waterous CSUC20 1500gpm Fire Pump
FoamPro 2001 Class A Foam System
Fire Research InControl Pressure Governor
Trident Auto Air Pump Primer
6" Rear Suction
6" Passenger Side Suction
6" Driver Side Suction
2.5" Rear Passenger Side Discharge
2.5" Rear Driver Side Discharge
2.5" Hosebed Discharge
2" Front Bumper Discharge
2" Forward Speedlay Discharge
2" Back Speedlay Discharge
2" Top Speedlay Discharge

Booster Tank

900 Gallon Poly Water Tank
30 Gallon Foam Cell

Special Features

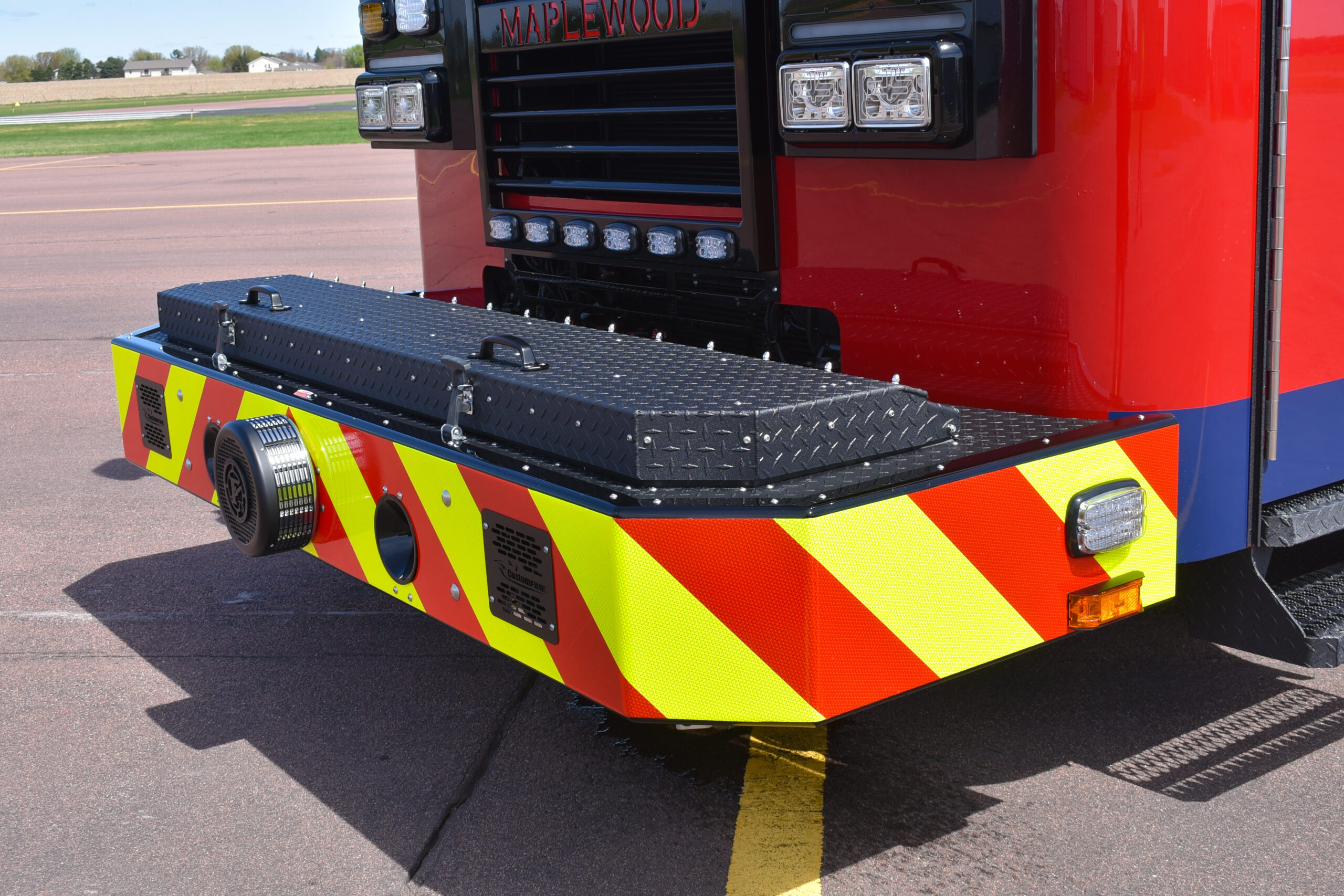

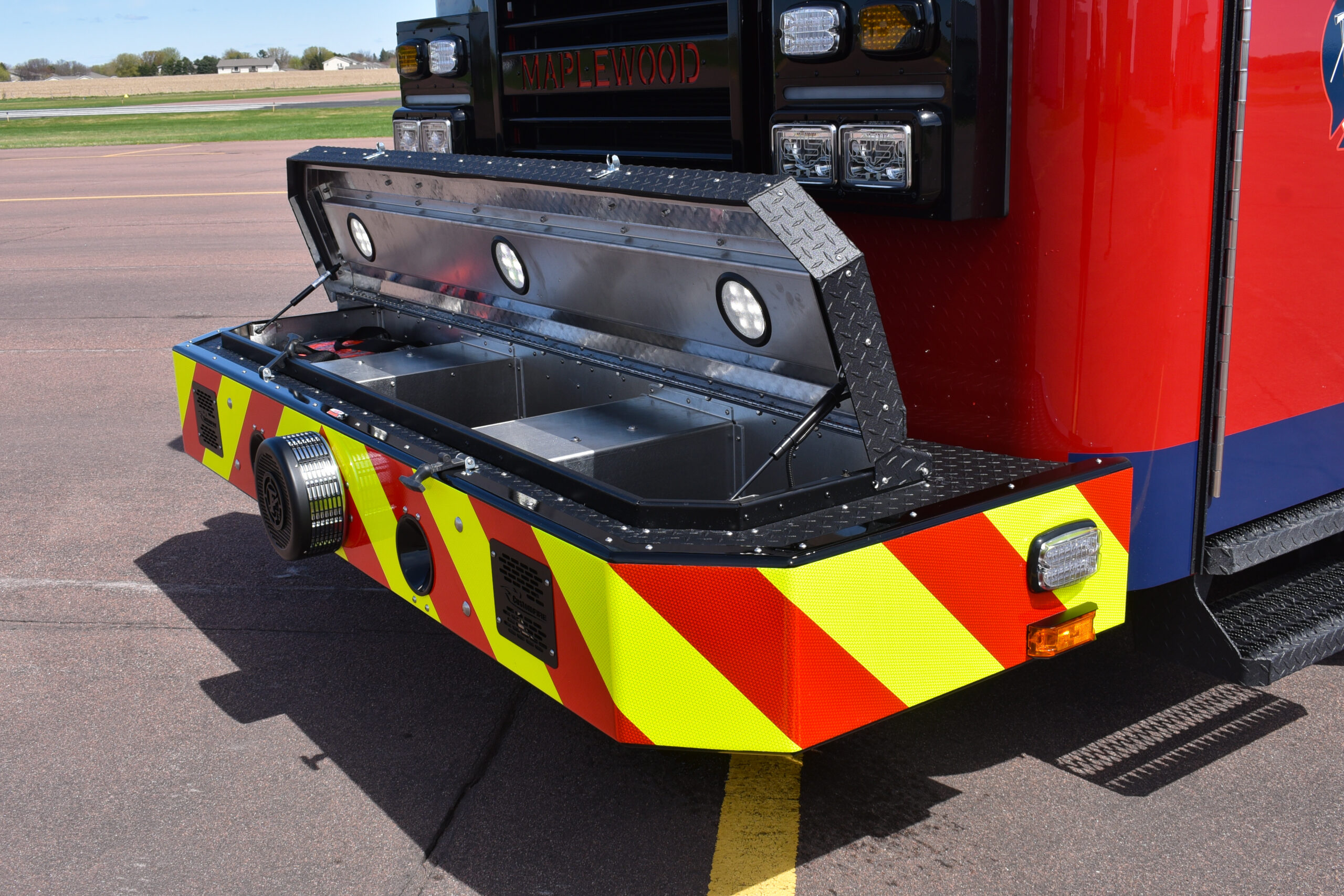

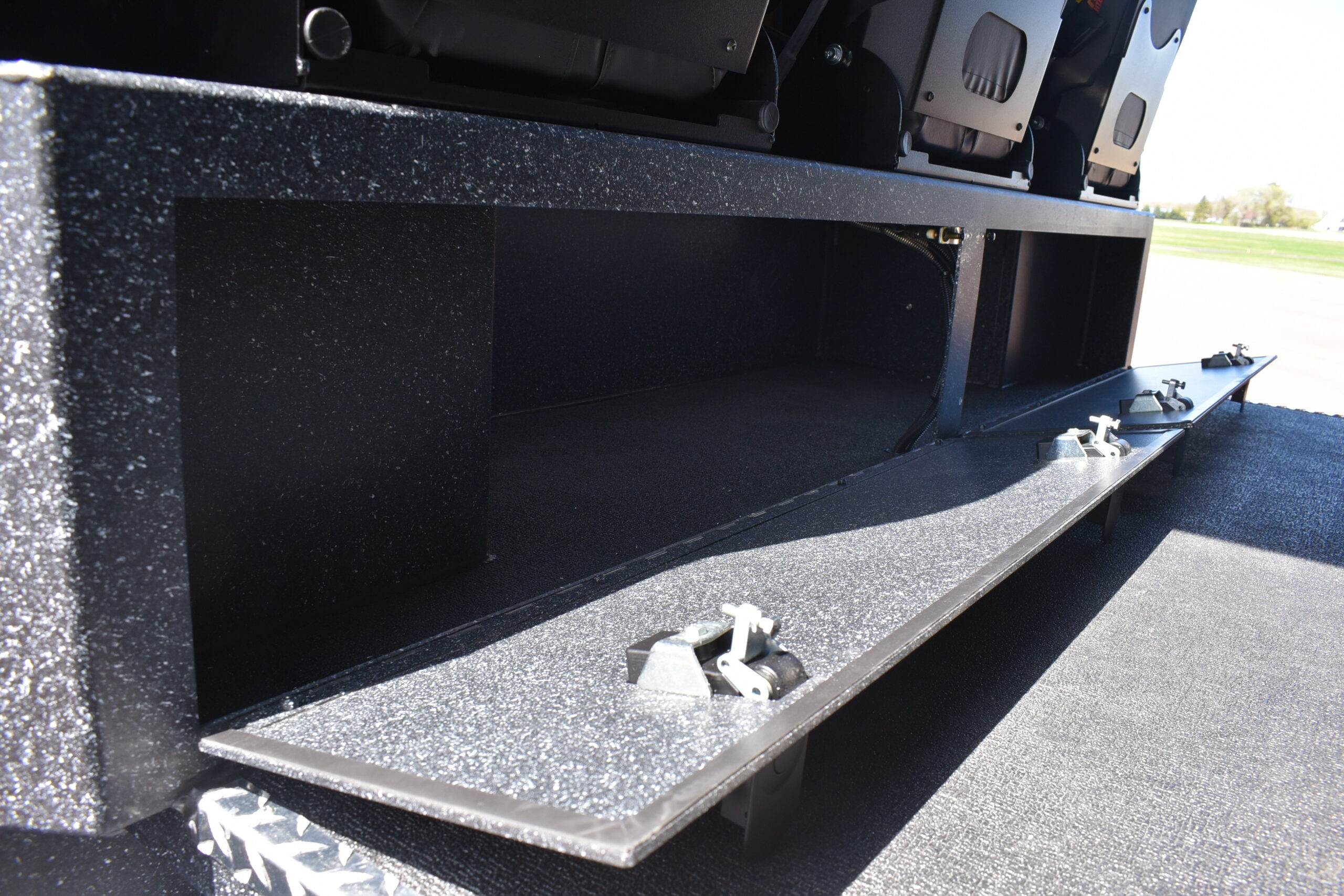

Front Bumper Extension with Storage & Hose Well
Adjustable Hosebed Dividers

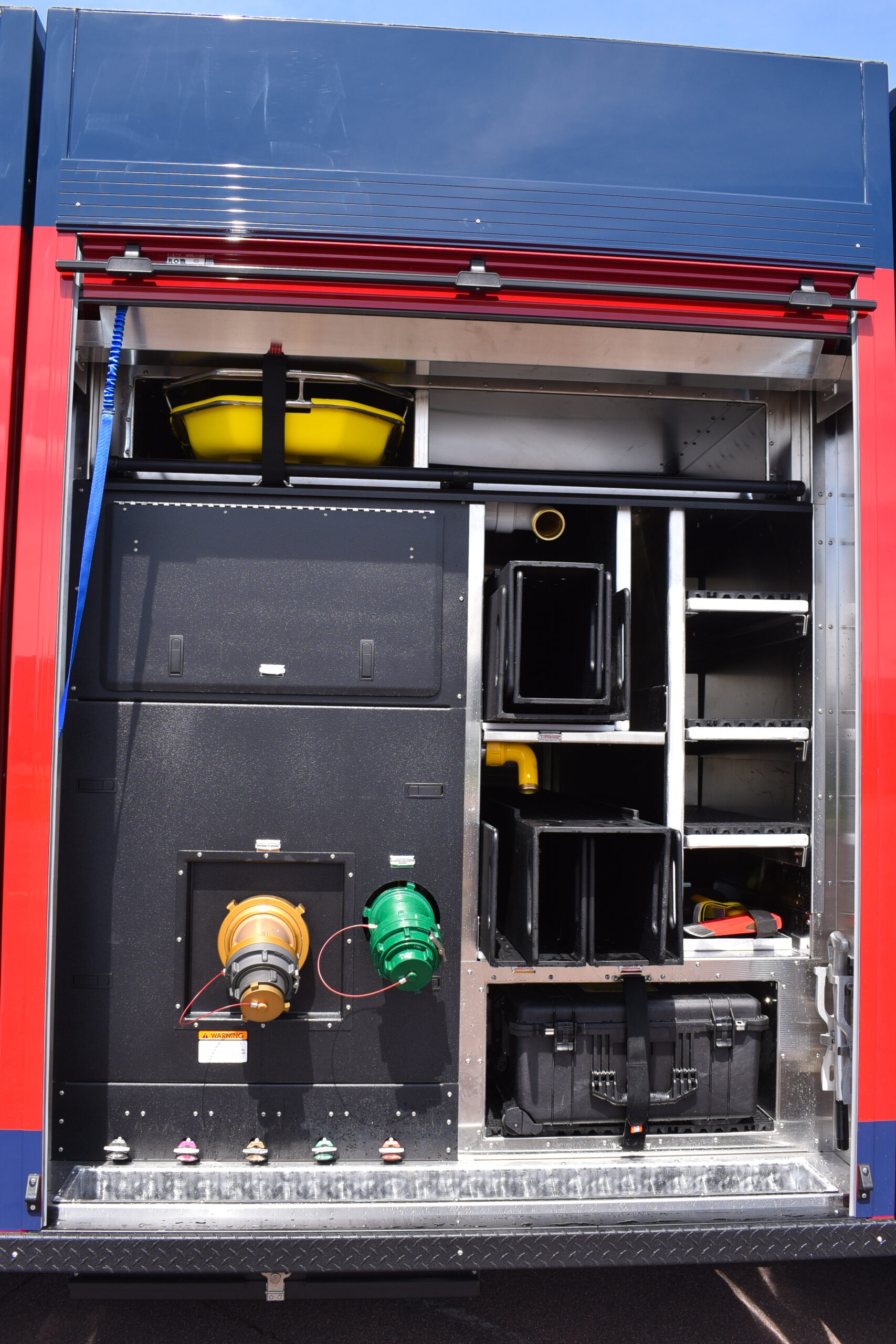

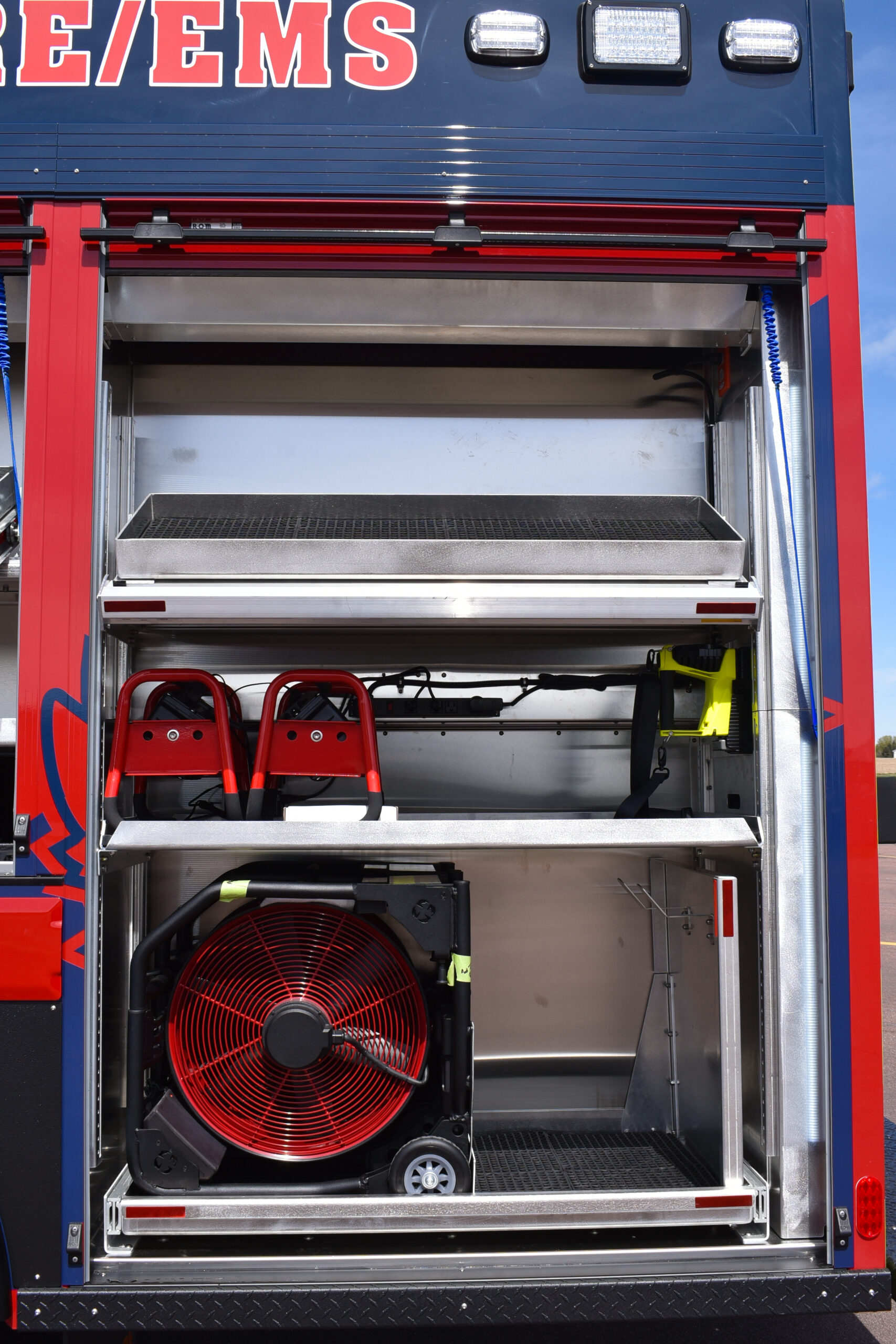

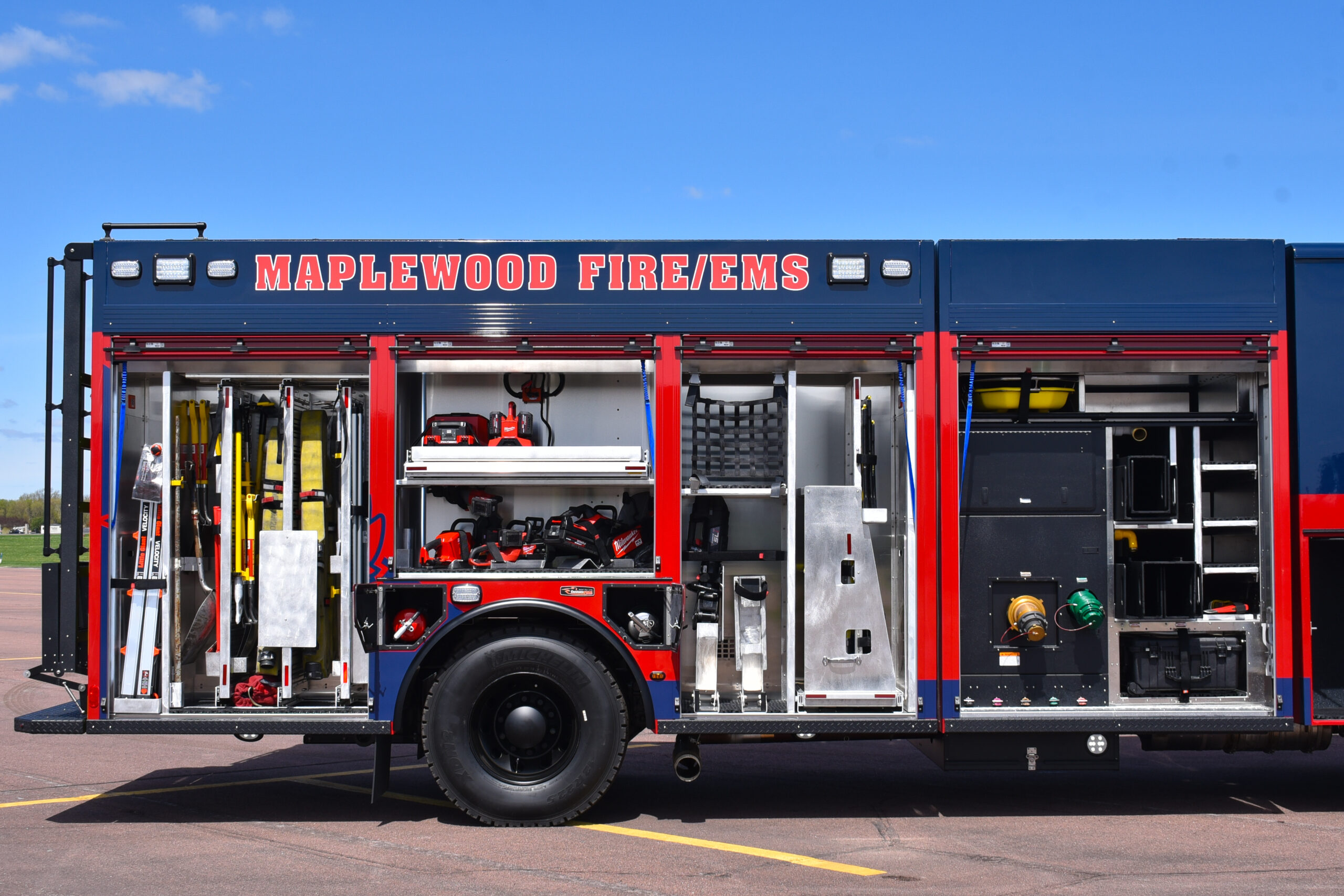

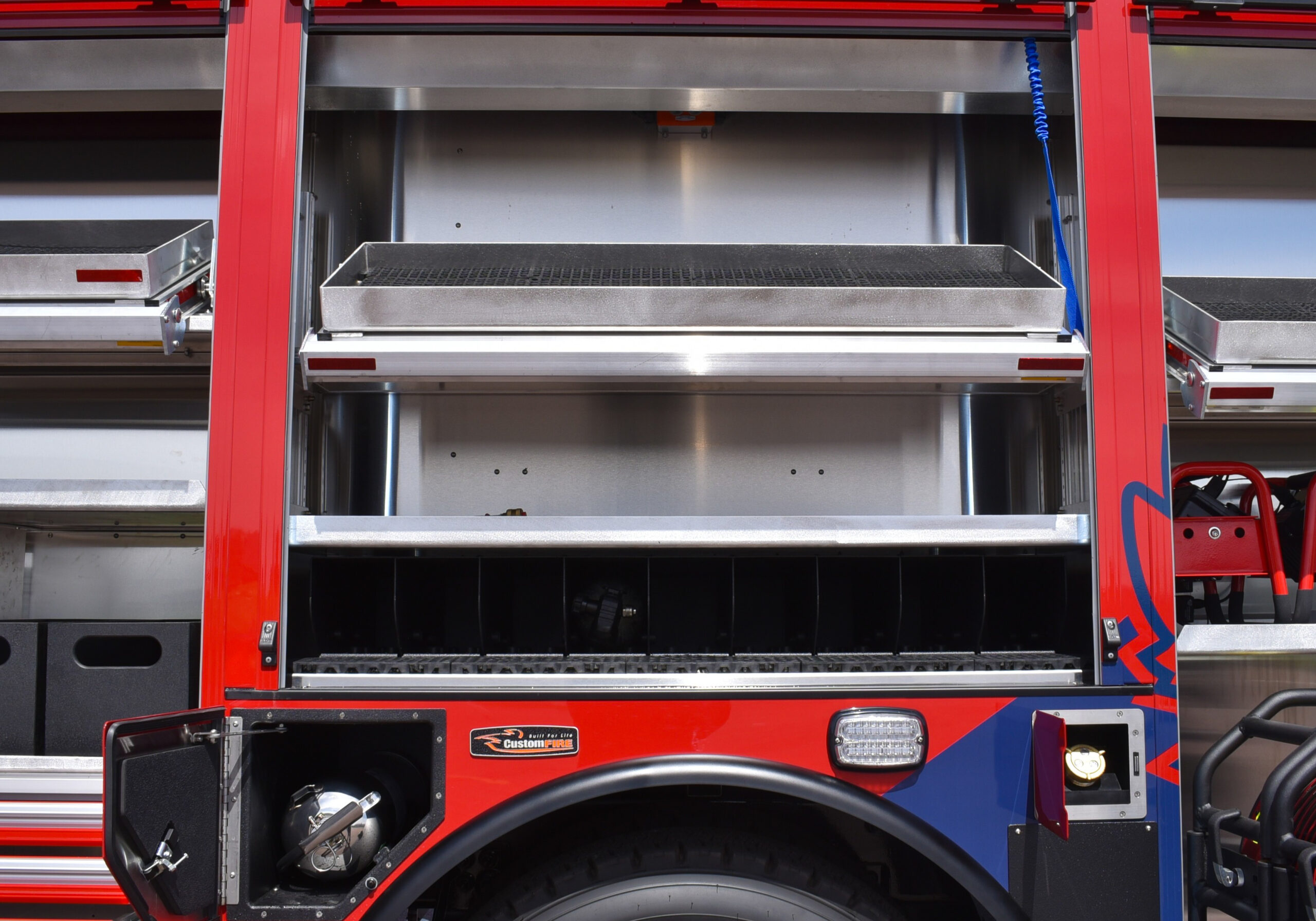

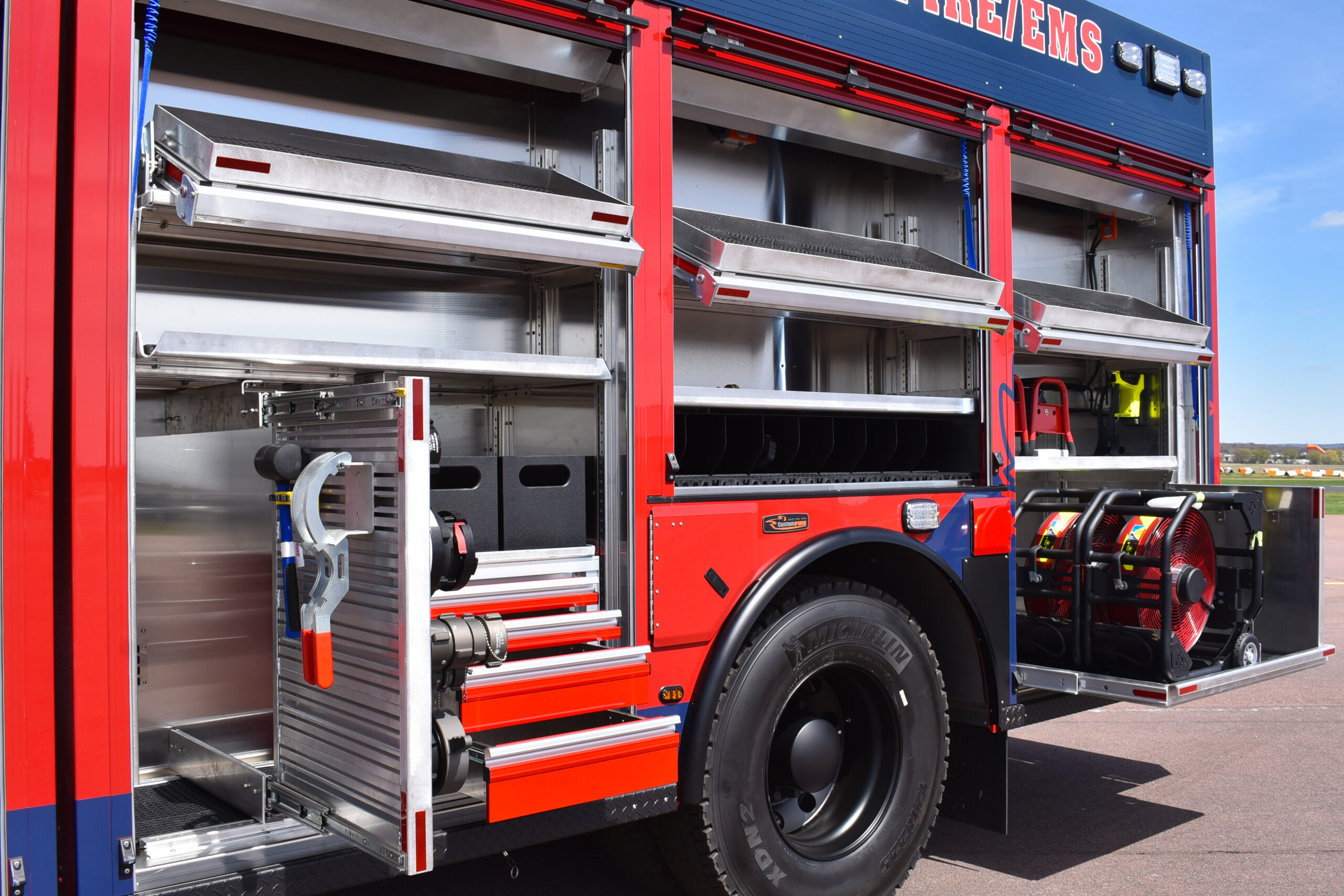

Adjustable Compartment Shelving

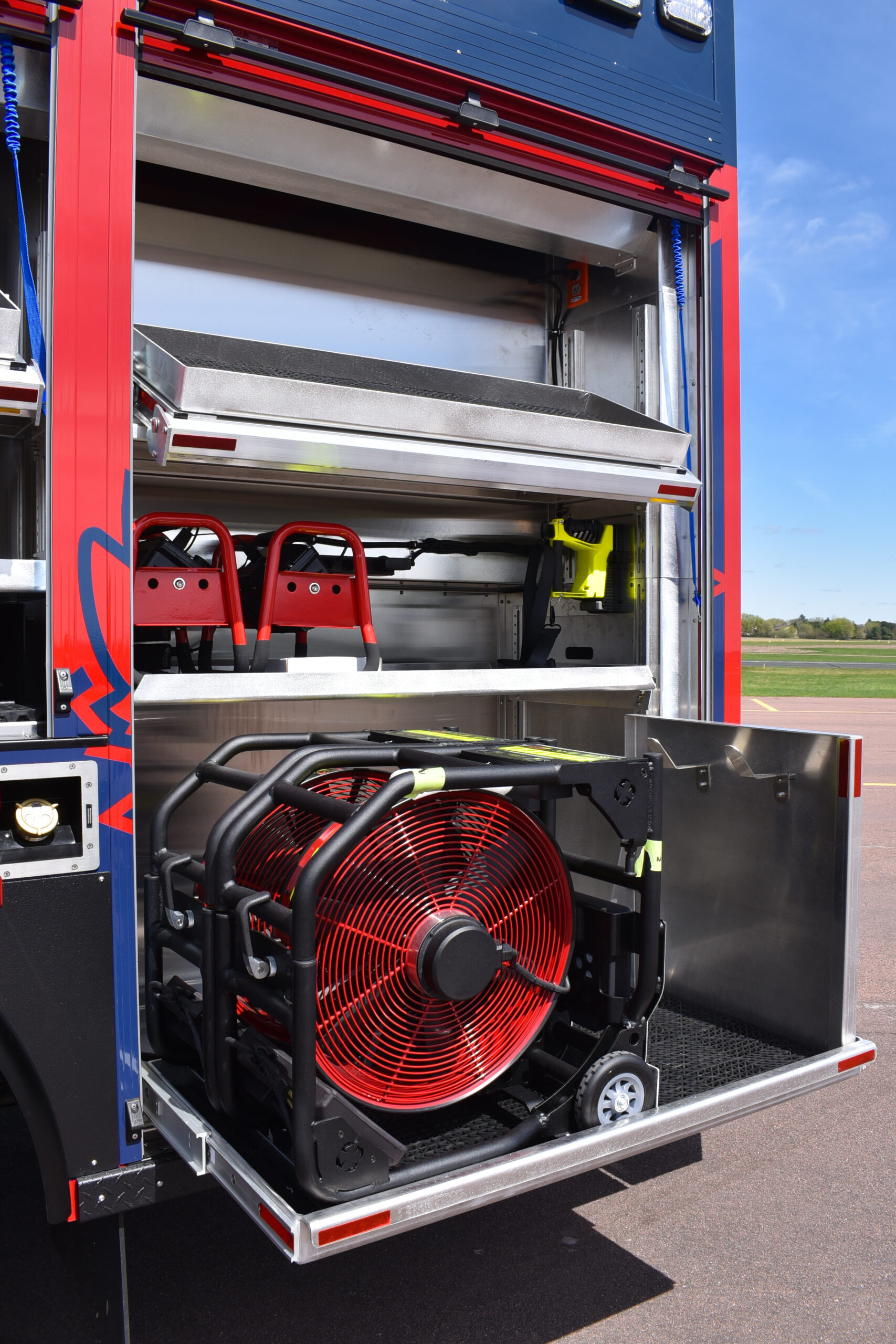

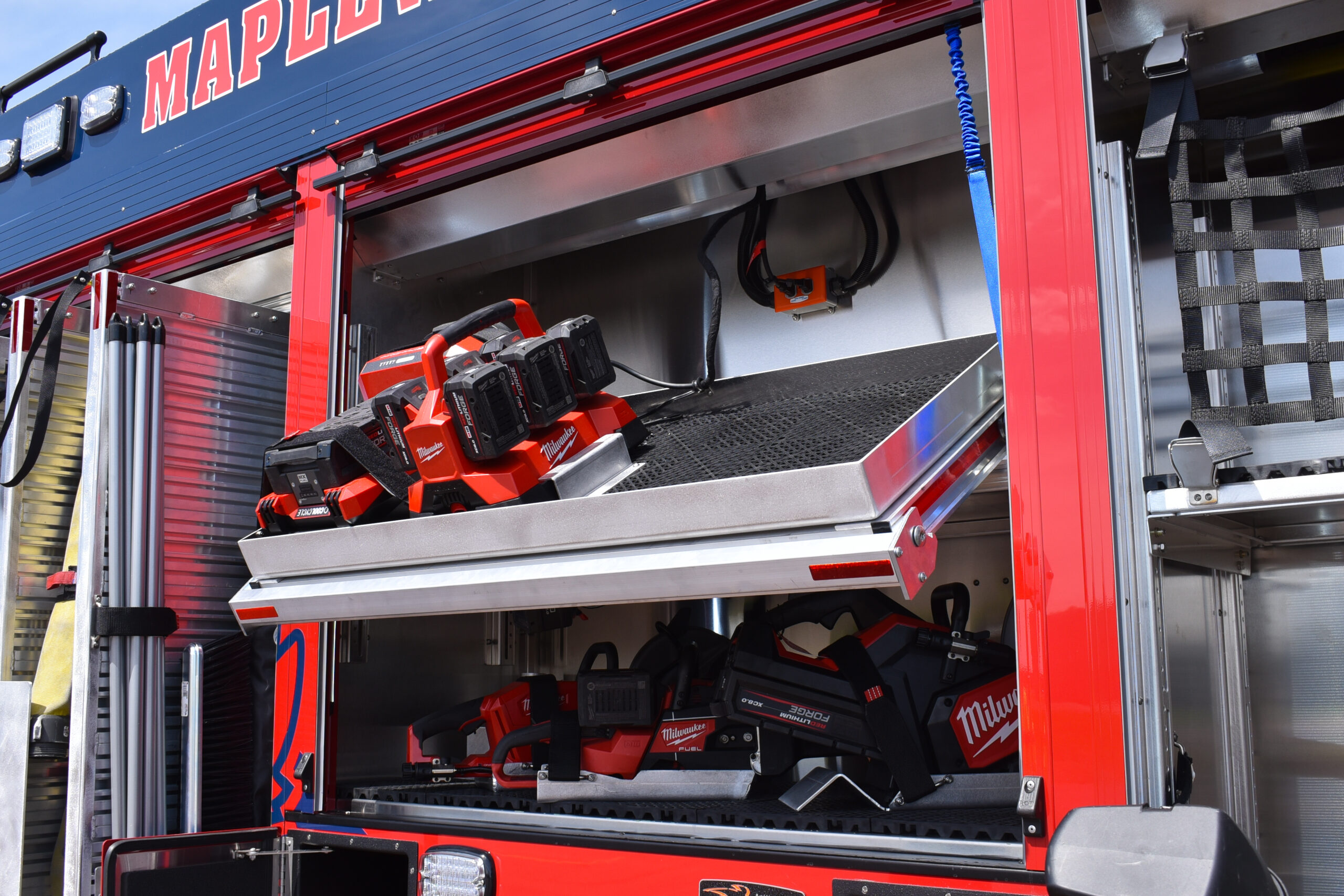

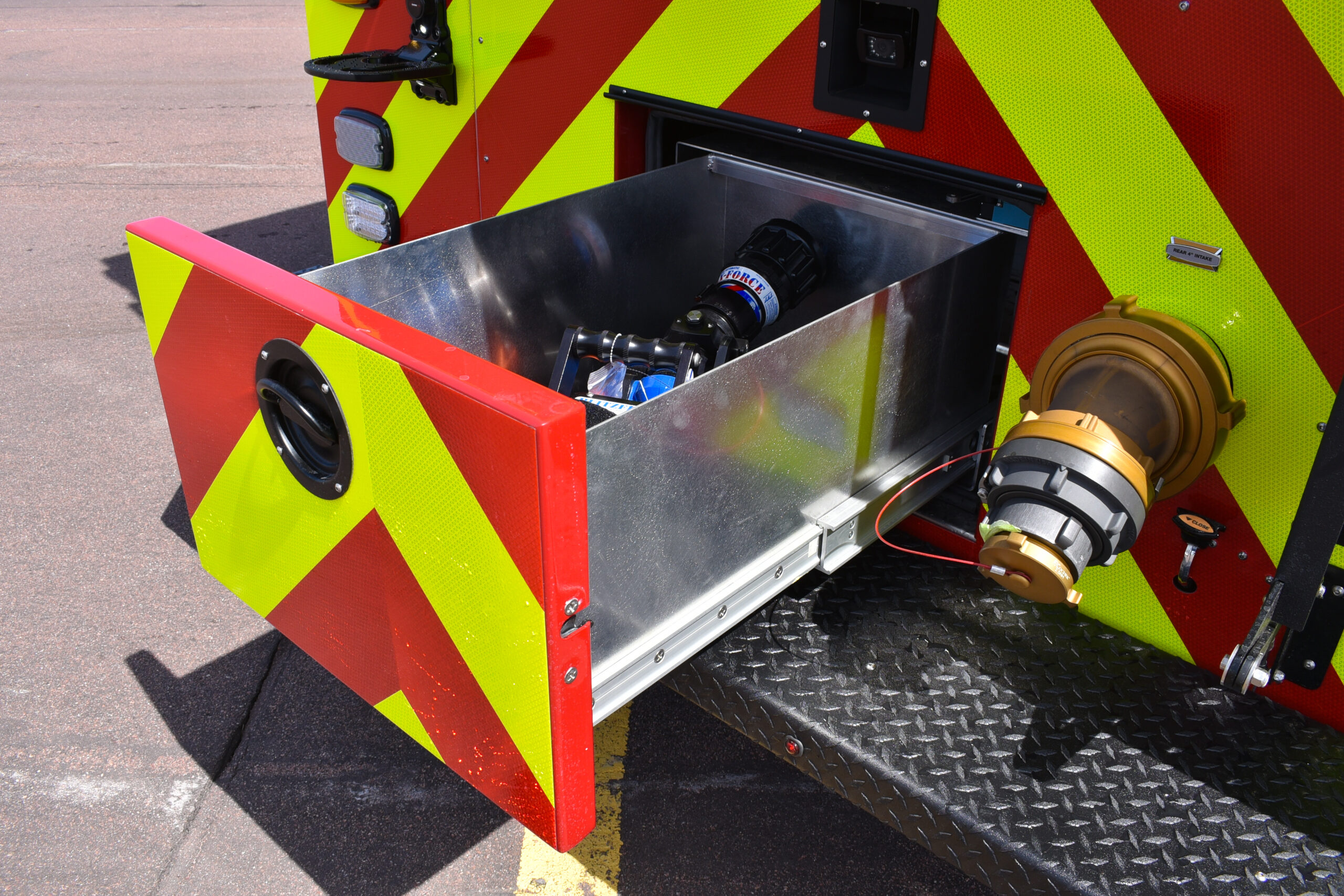

Pull-Out Compartment Trays

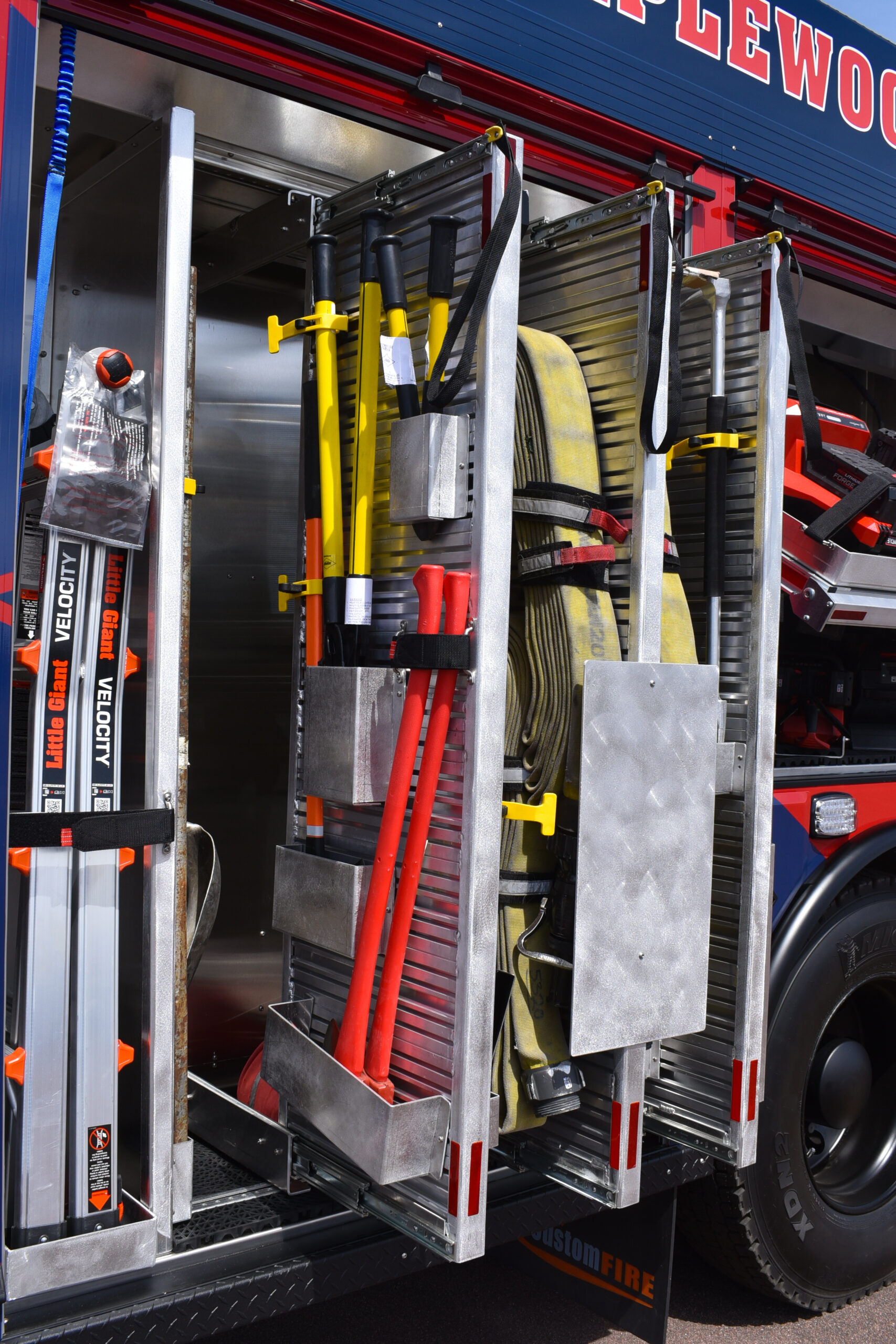

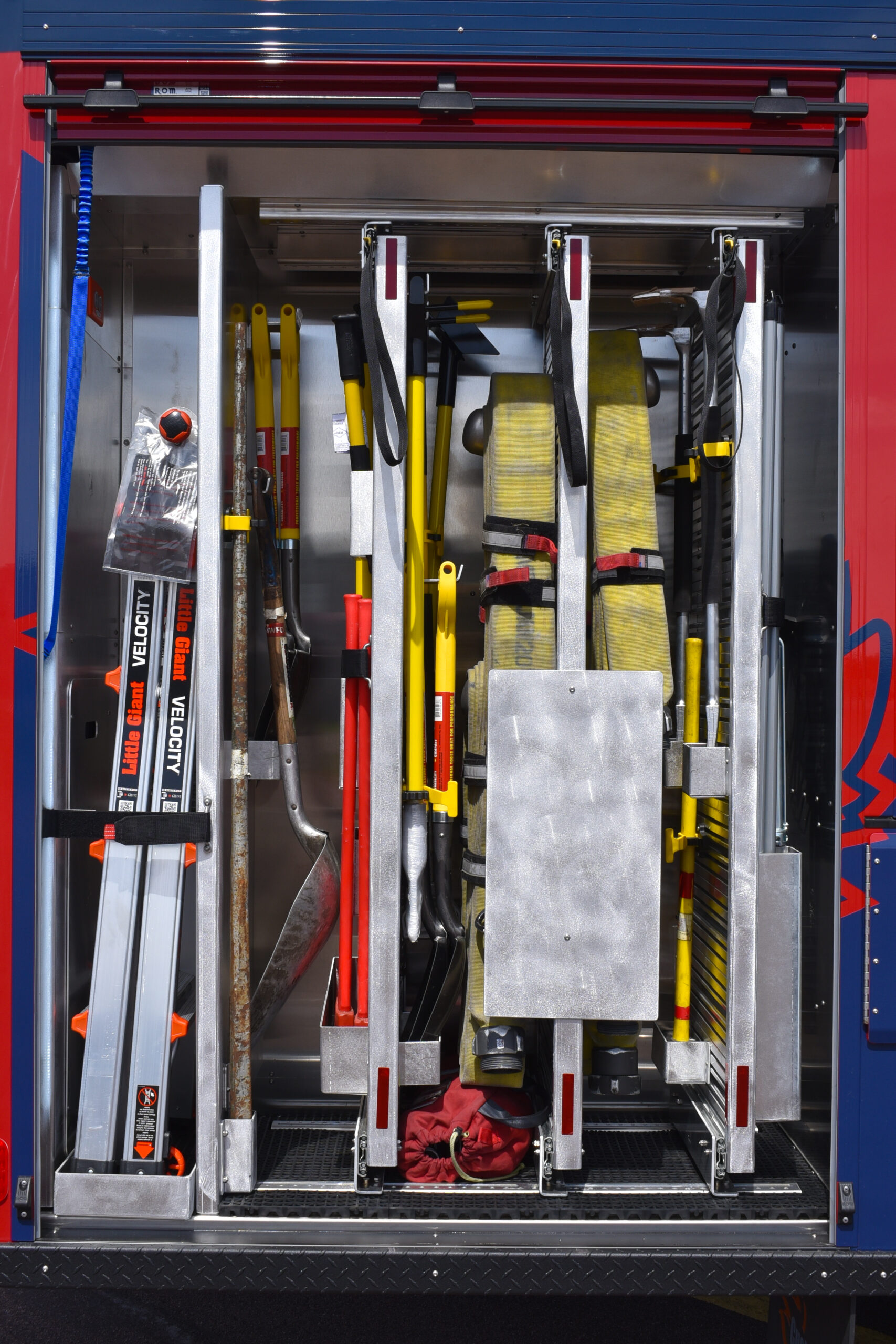

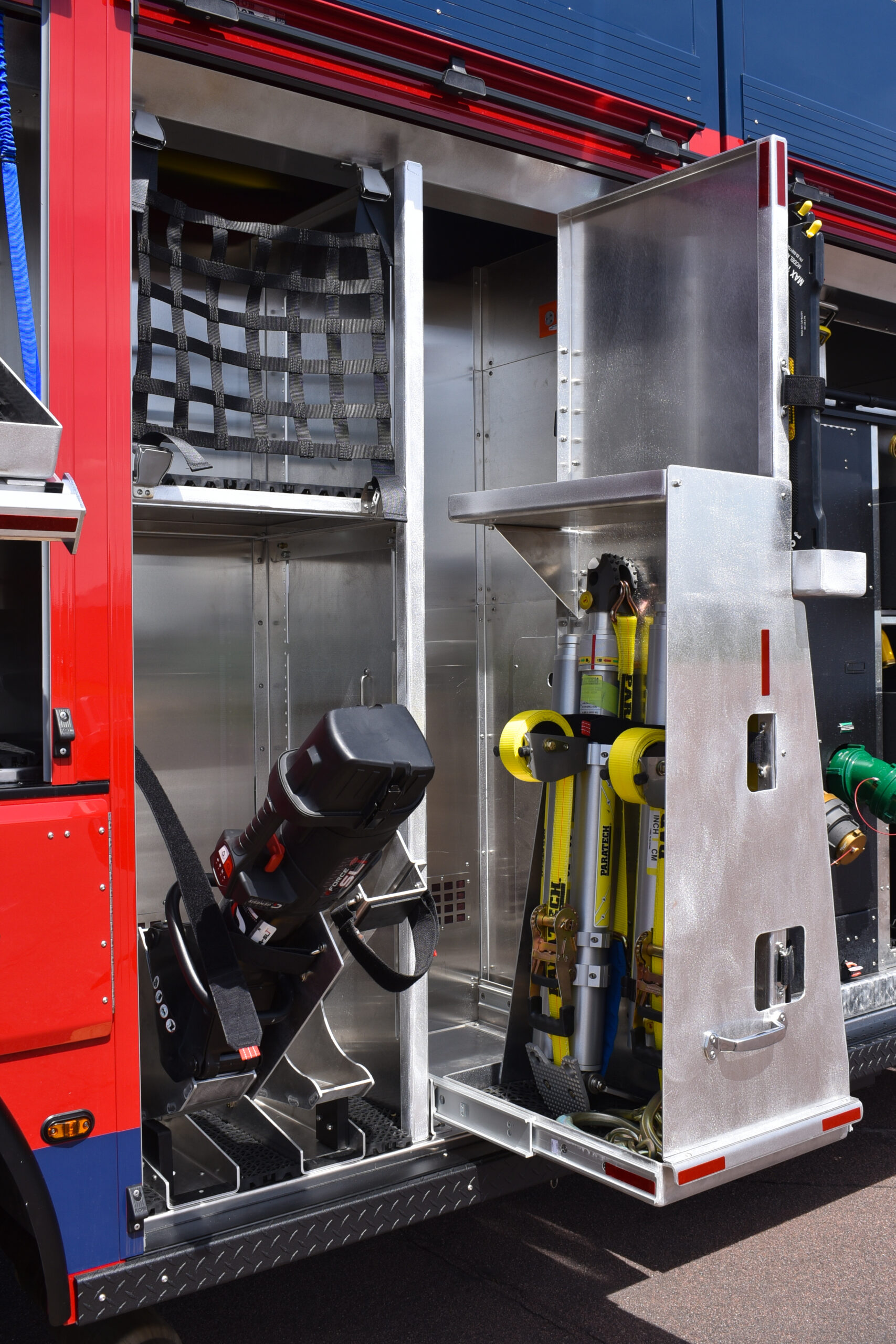

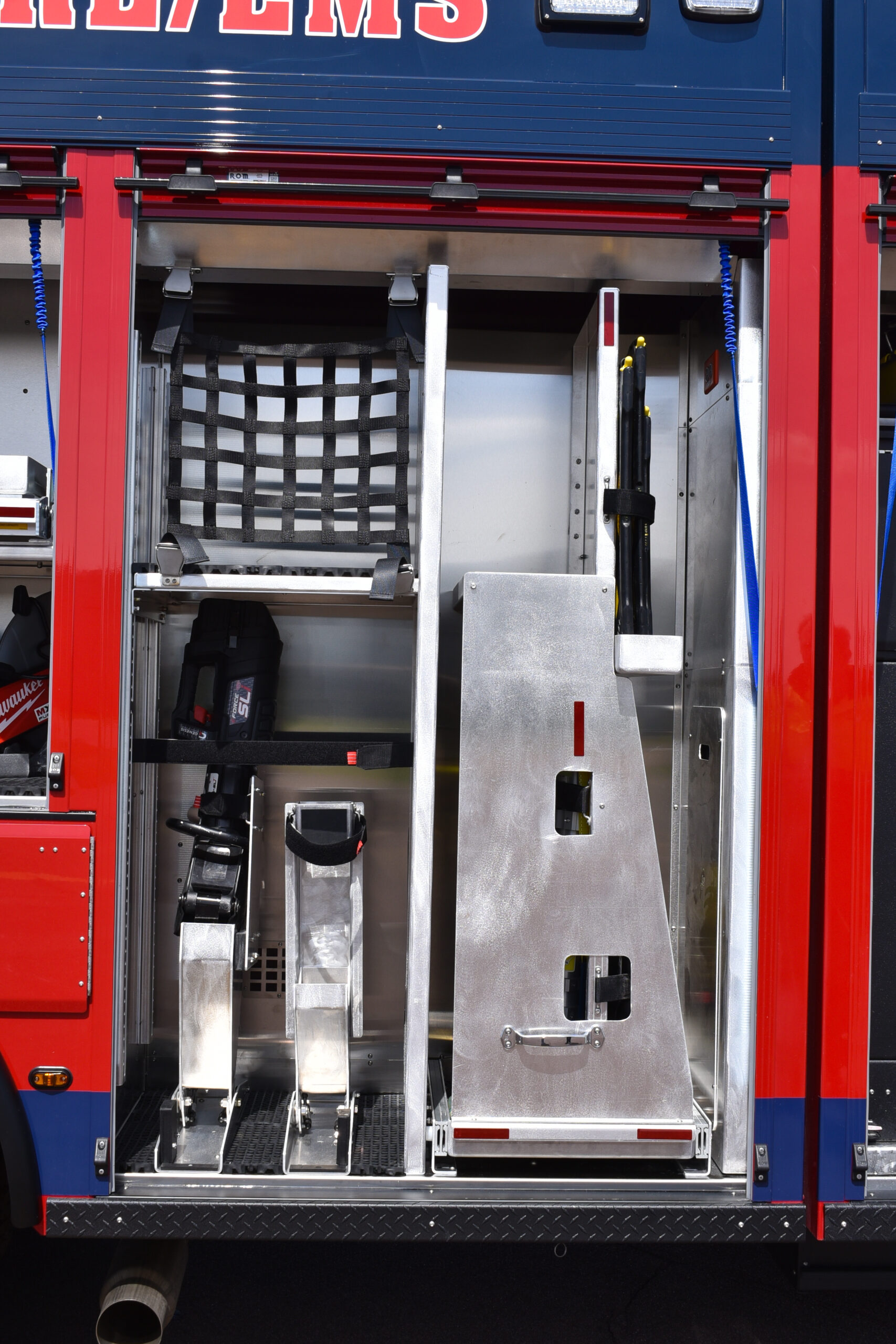

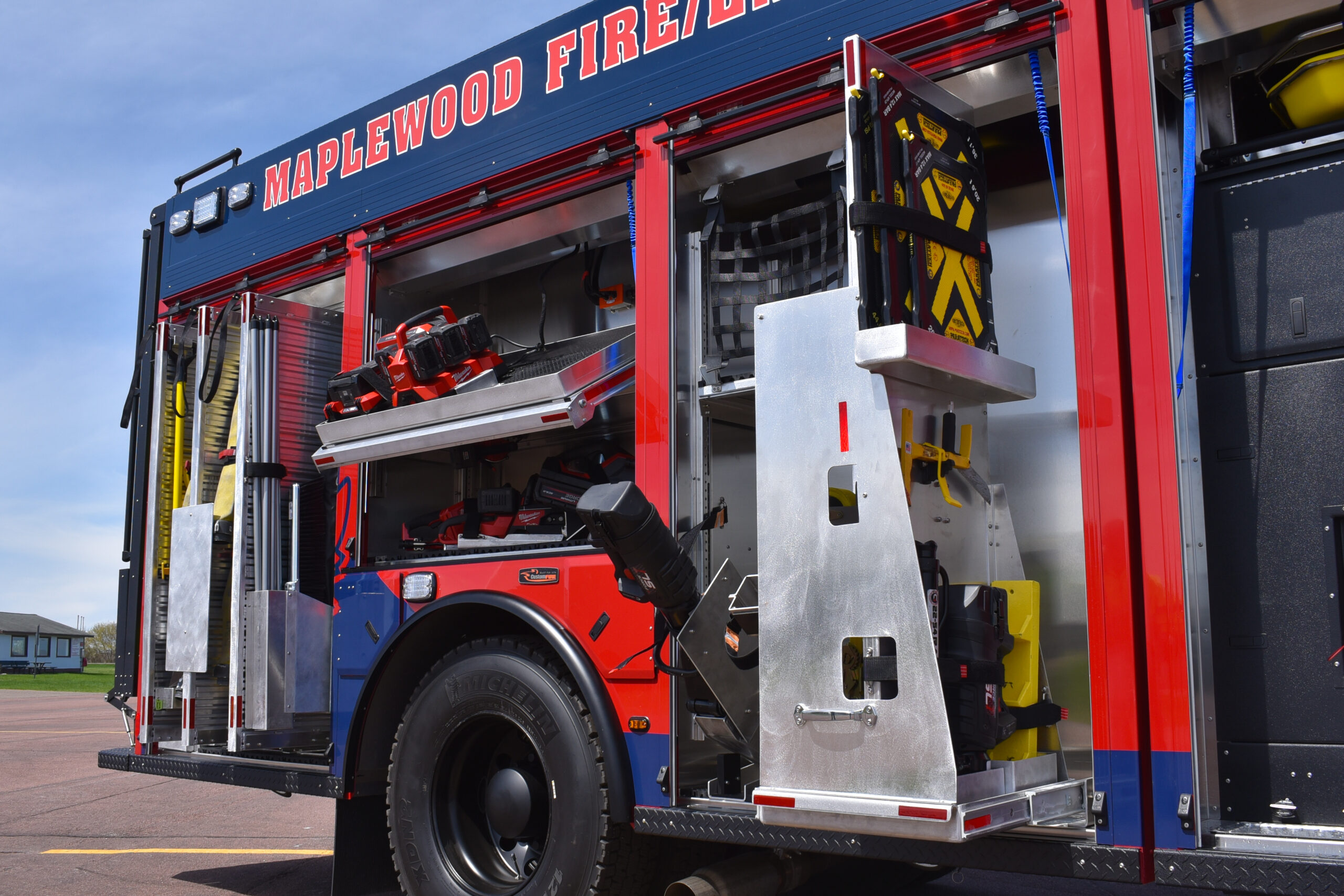

Pull-Out Tool Boards

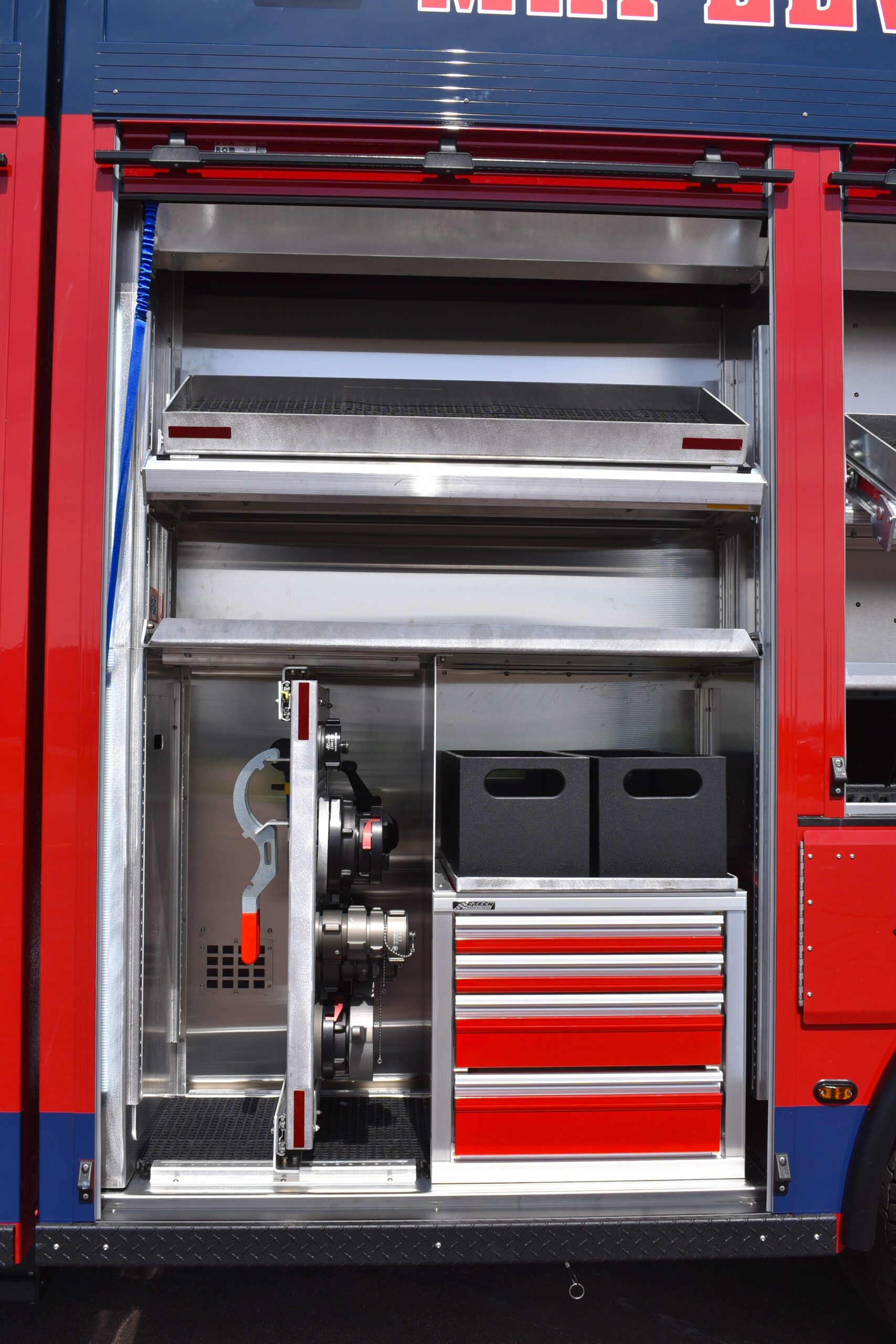

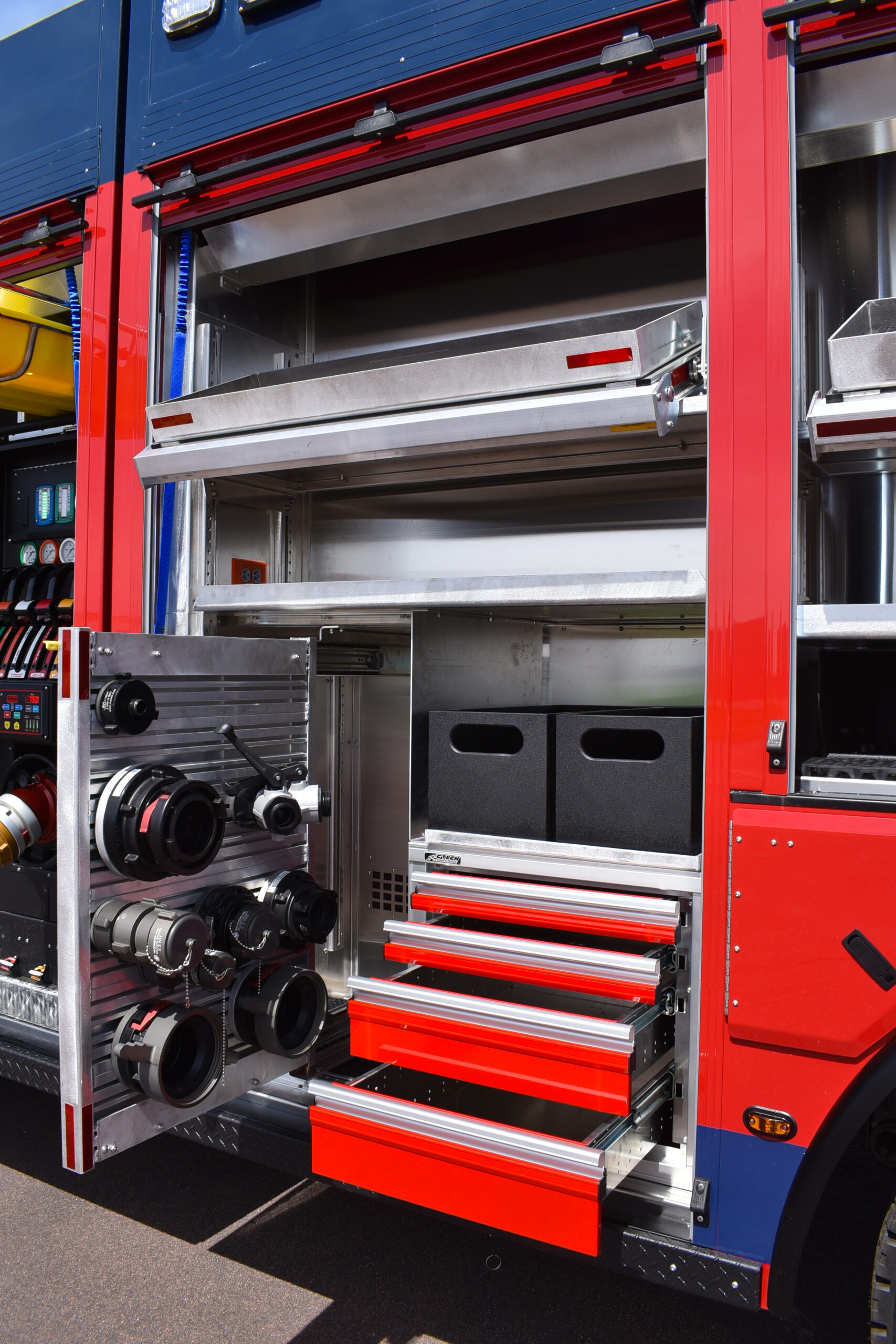

CTECH 4-Drawer Toolbox
SCBA Cylinder Storage Rack

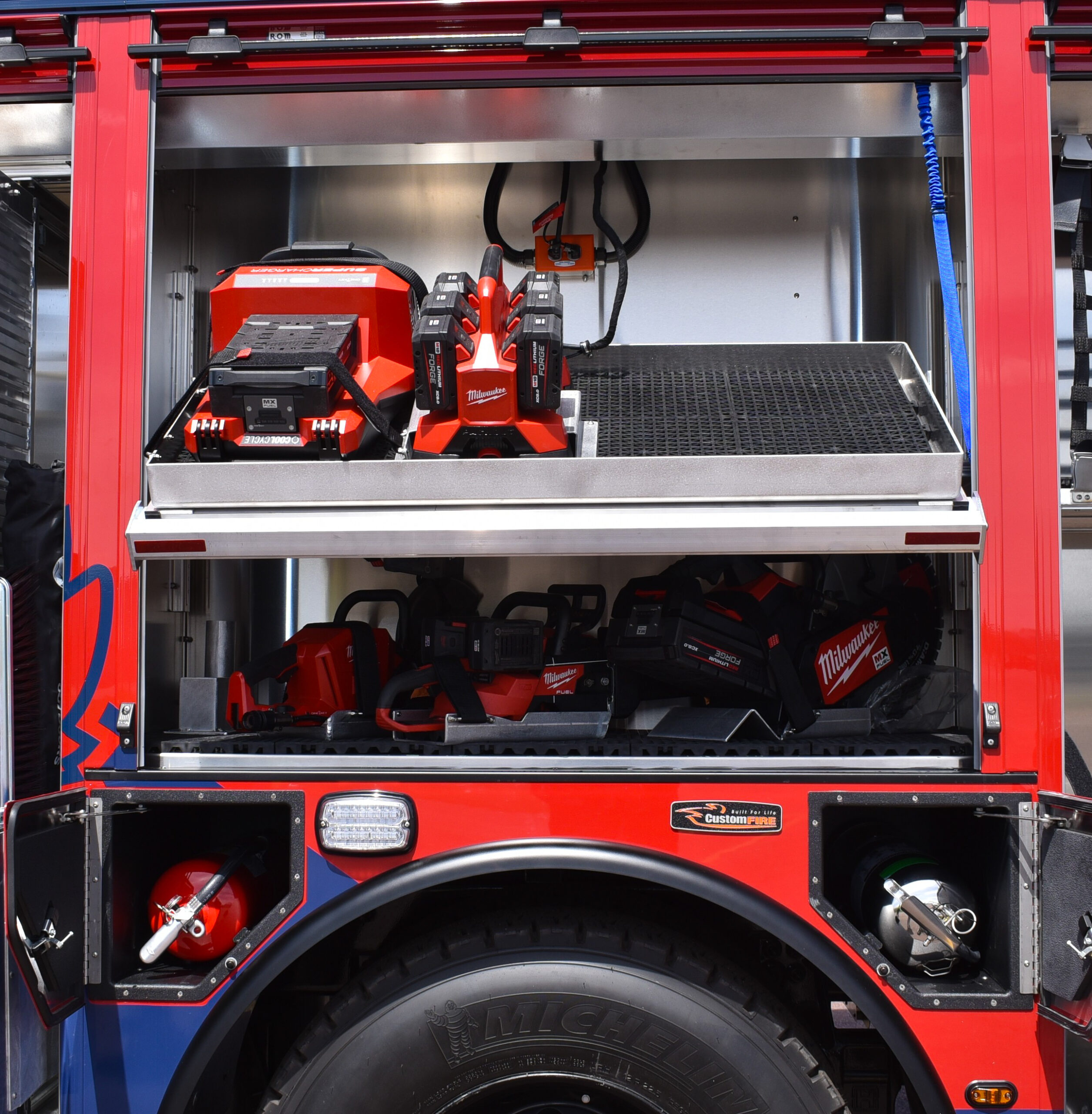

Wheel Well Fire Extinguisher Storage

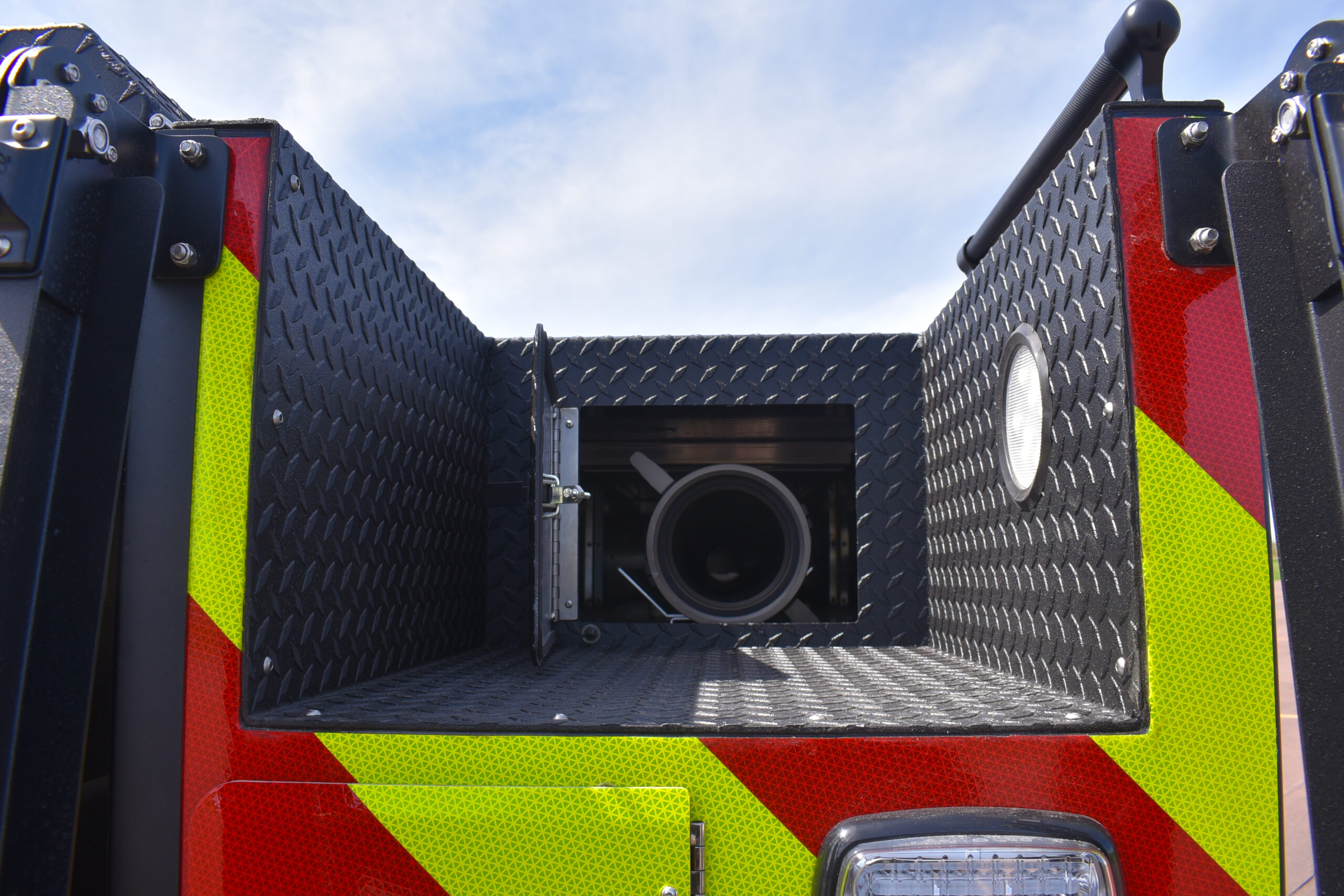

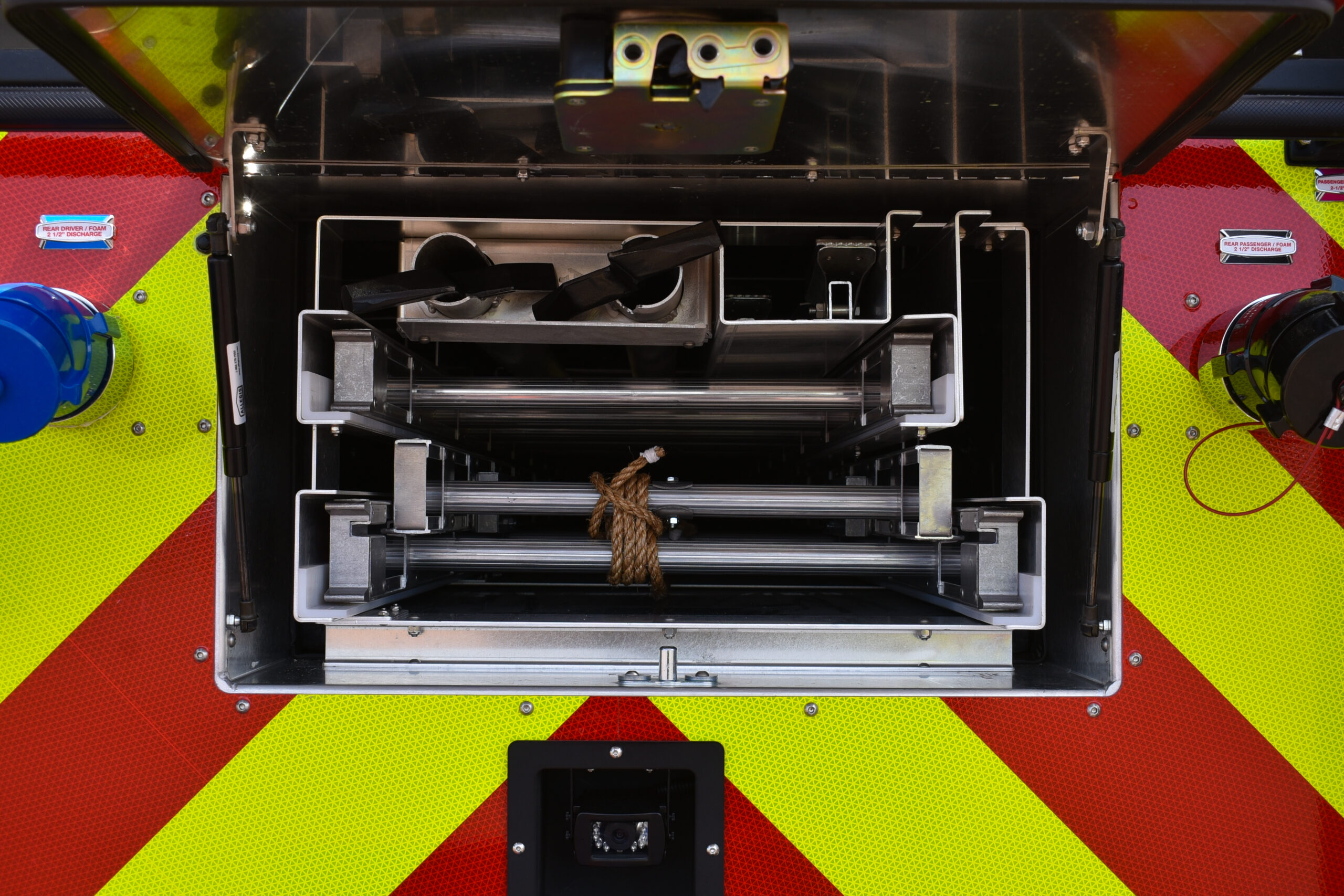

Hard Suction Hose Storage Sleeve
Encapsulated Roll-Up Door Protection

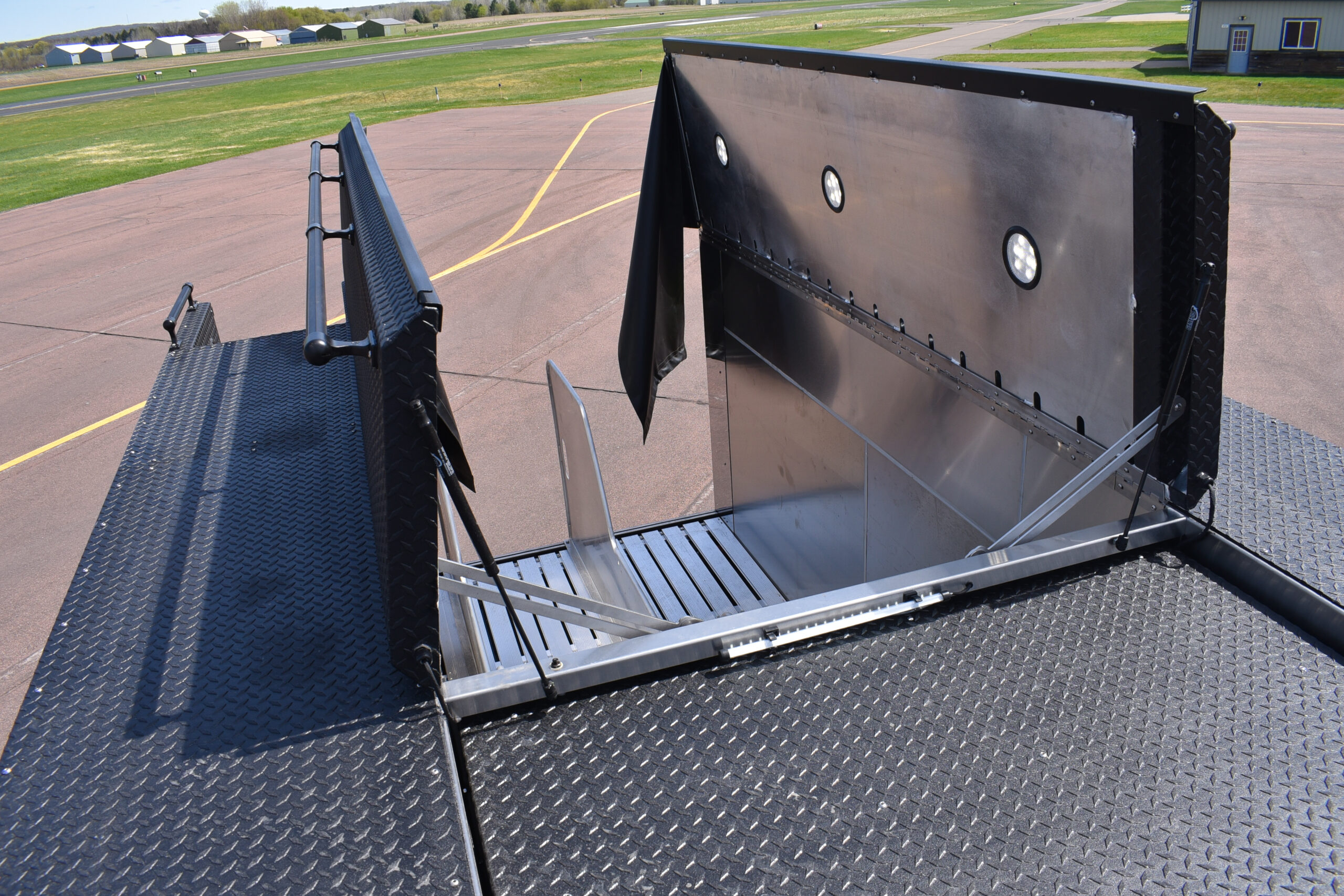

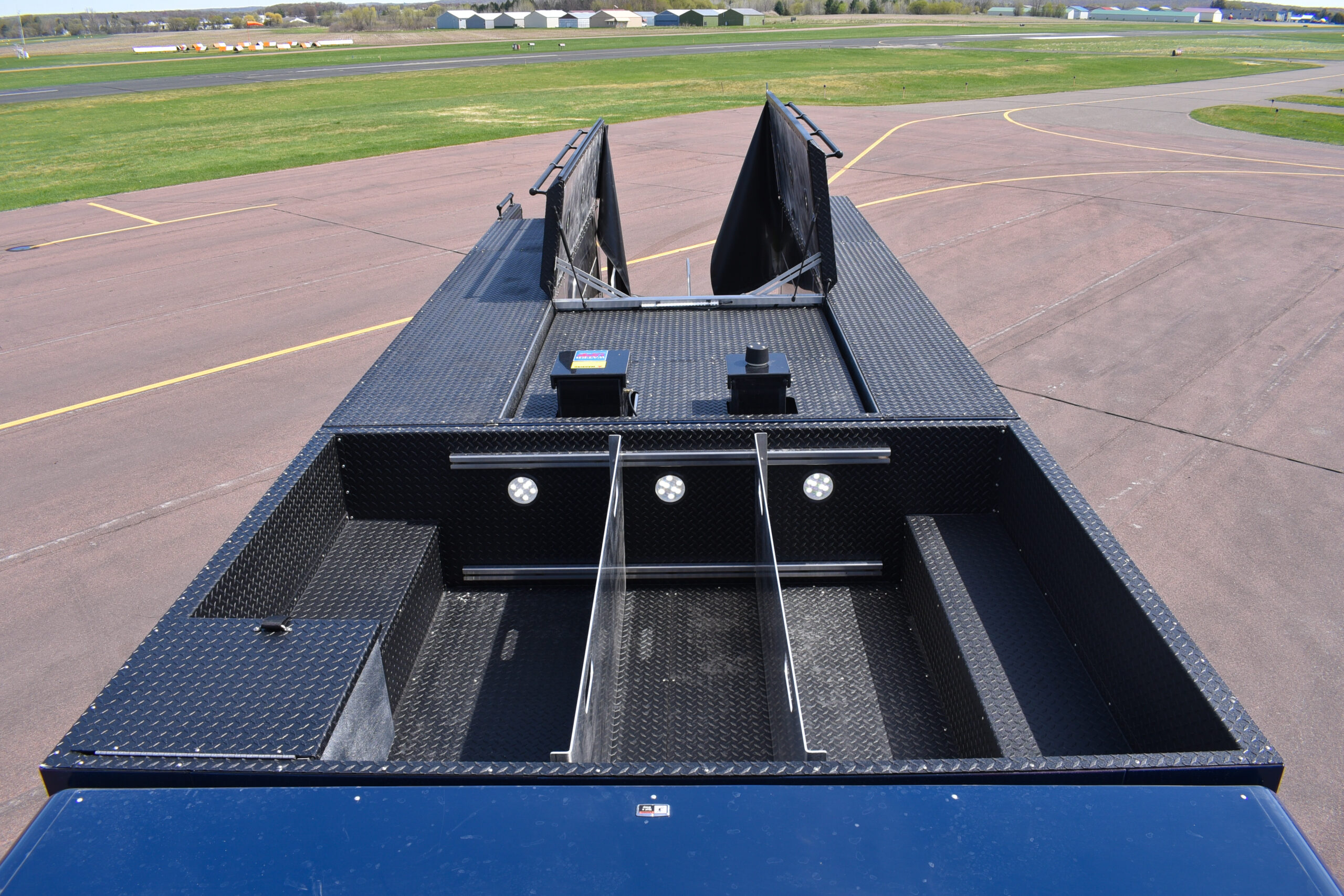

Aluminum Hinged Hosebed Covers
Slide-In Ladder Storage

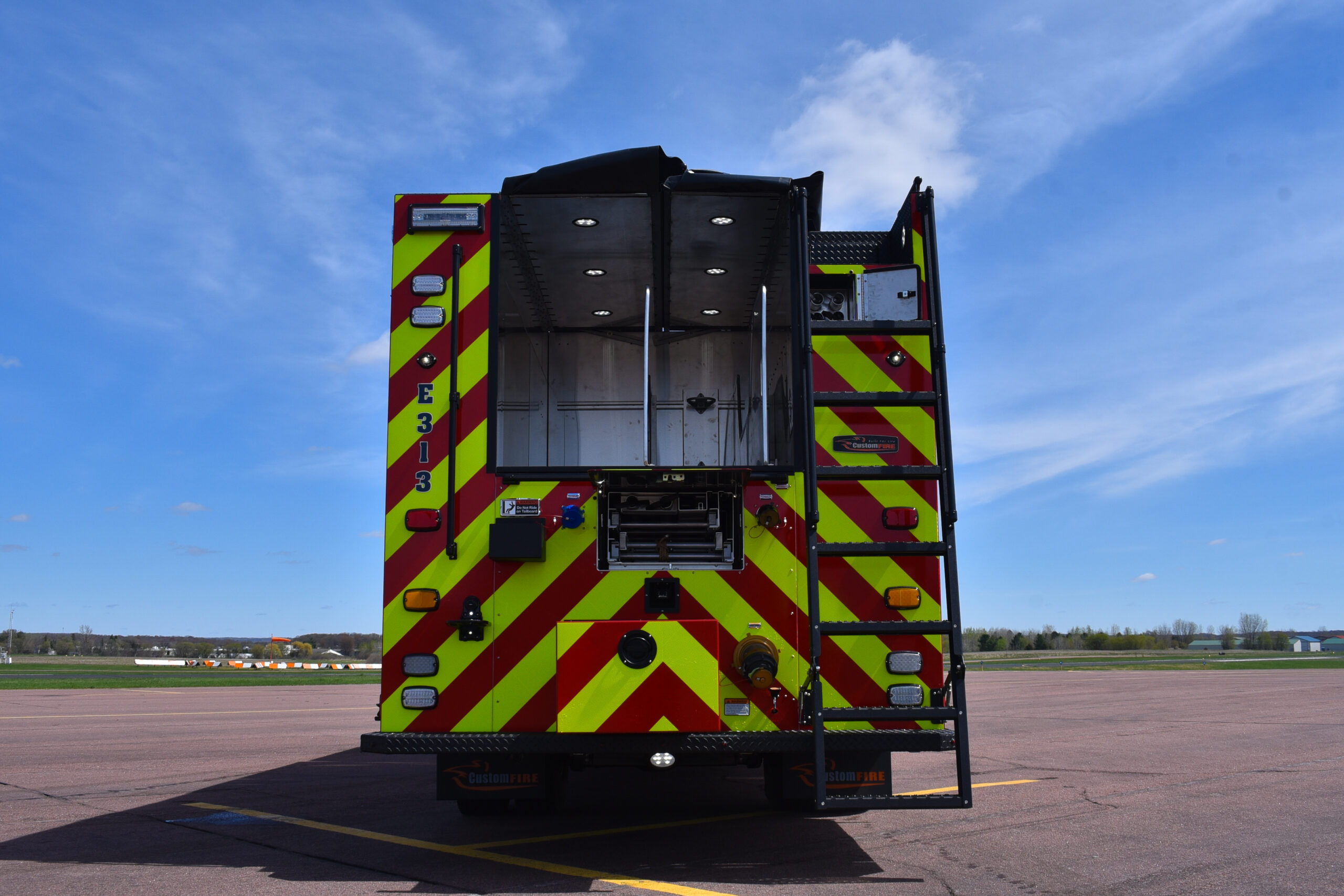

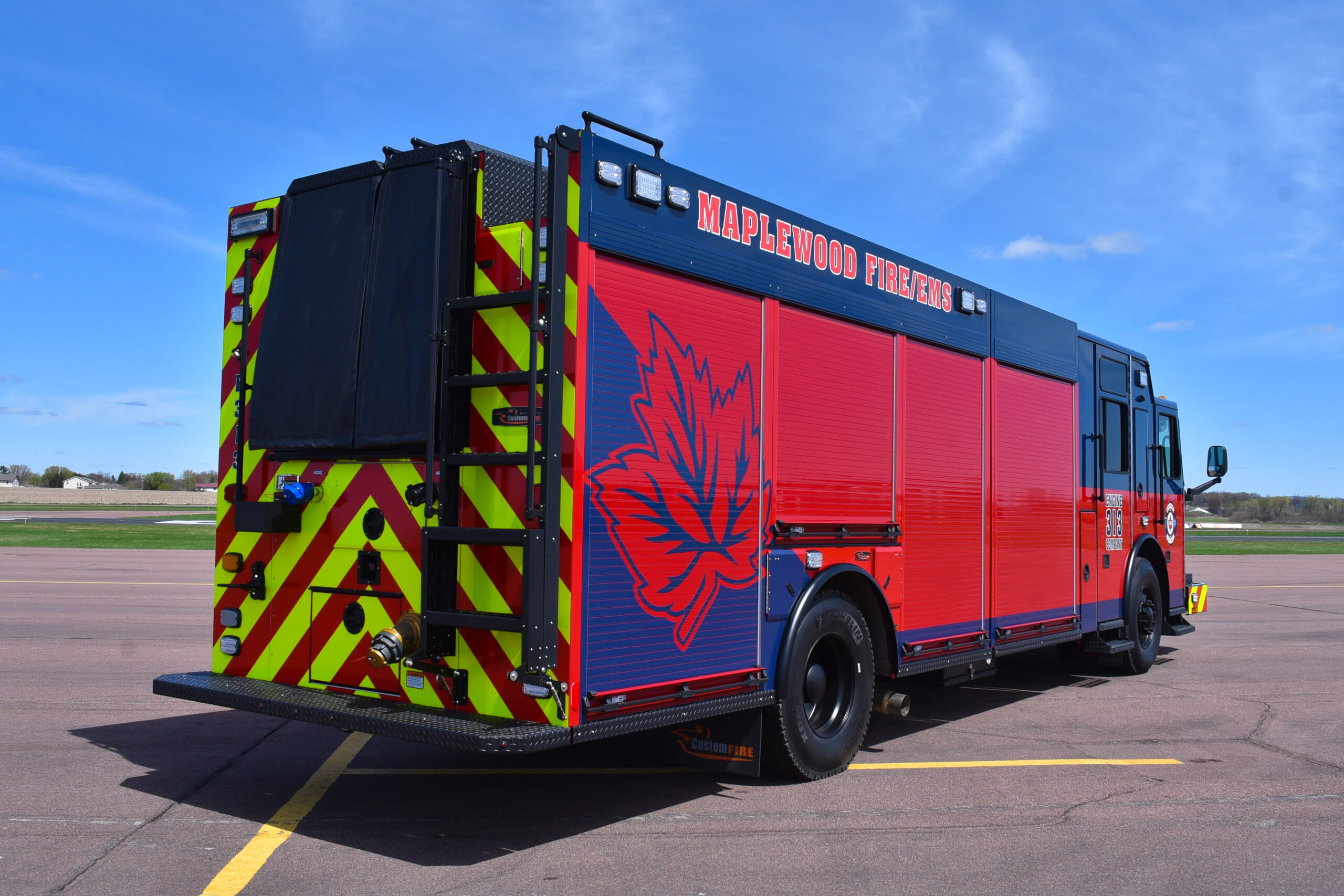

Swing-Out and Down Rear Access Ladder
Rear, Driver, and Officer Side Cameras with Monitor

Emergency Warning Devices

Firetech HI VIZ 72" Light Bar
Whelen LED Warning Lights
Federal Q2B Electro Mechanical Siren

Exterior Lighting

Under Cab and Under Body Lighting
Fire Research Spectra Scene Lighting
Firetech HI VIZ 72" Scene Light
Vertical Strip LED Compartment Lights
Walkway and Step LED Lighting
LED Marker Lights
LED Hosebed Cover Lighting

Vehicle Dimensions

Overall Height: 10' 10"
Overall Length: 37' 3"
Wheelbase: 234"
Weight w/ Water: 42,390 lbs
