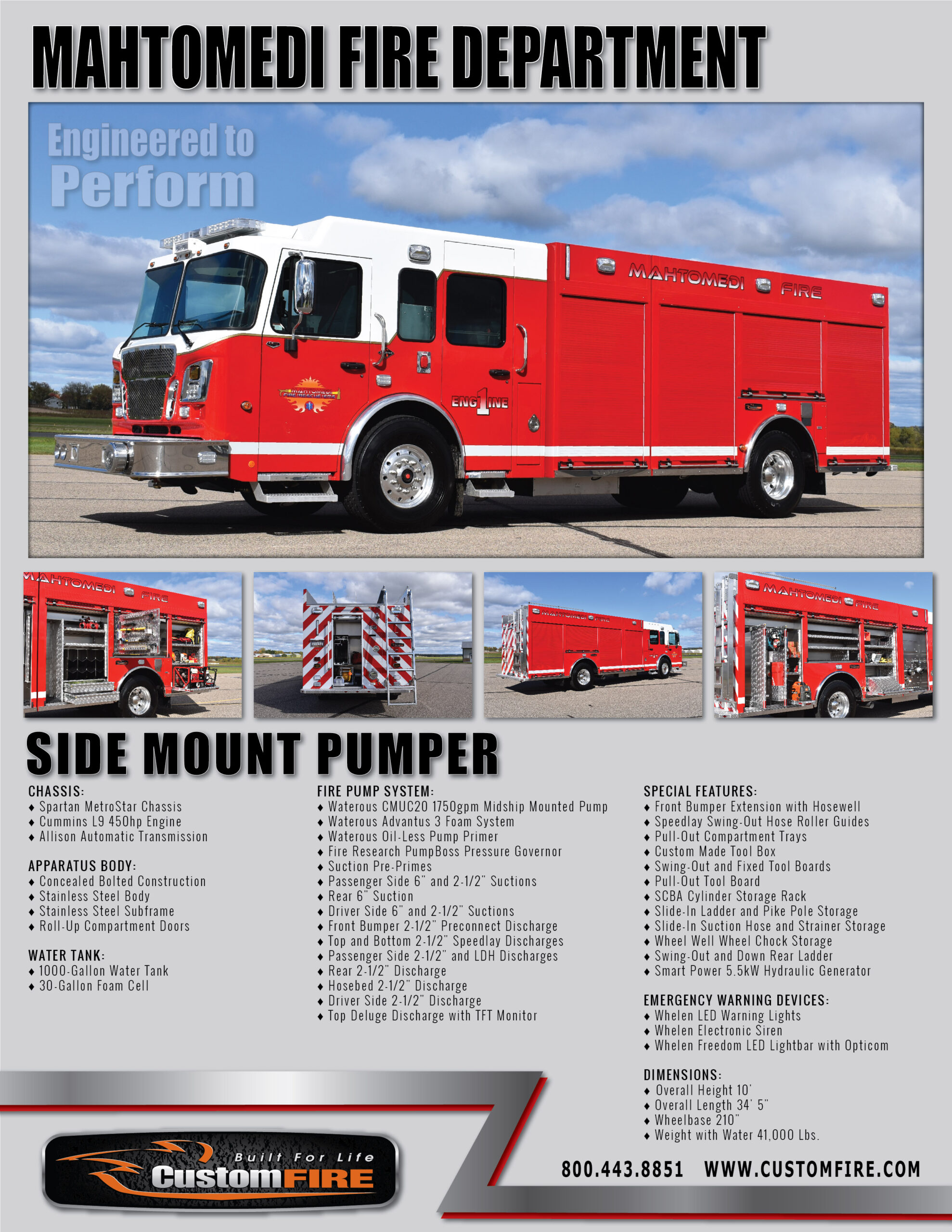

Side Mount Pumper

Custom built for Mahtomedi Fire Department — Mahtomedi, MN

Fire Truck: Spartan MetroStar Chassis, Stainless Steel Bolted Body, Waterous 1750gpm Pump, Waterous Advantus Foam System, 1000-Gallon Water Tank, Adjustable Shelving, Pull-Out Trays, Swing-Out Tool Board, Pull-out Tool Board, SCBA Cylinder Storage, Hydraulic Generator, LED Emergency Lighting


Truck Type : ,
Cab Type : ,

Chassis Model

Spartan MetroStar Chassis
Cummins L9 450hp Engine
Allison Automatic Transmission

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CMUC20 1750gpm Midship Mounted Pump
Waterous Advantus 3 Foam System
Waterous Oil-Less Pump Primer
Fire Research PumpBoss Pressure Governor
Suction Pre-Primes
Passenger Side 6" and 2-1/2" Suctions
Rear 6" Suction
Driver Side 6" and 2-1/2" Suctions
Front Bumper 2-1/2" Preconnect Discharge
Top and Bottom 2-1/2" Speedlay Discharges
Passenger Side 2-1/2" and LDH Discharges
Rear 2-1/2" Discharge
Hosebed 2-1/2" Discharge
Driver Side 2-1/2" Discharge
Top Deluge Discharge with TFT Monitor

Booster Tank

1000-Gallon Water Tank
30-Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewell
Speedlay Swing-Out Hose Roller Guides
Adjustable Compartment Shelving
Pull-Out Compartment Trays
Custom Made Tool Box
Swing-Out and Fixed Tool Boards
Pull-Out Tool Board
SCBA Cylinder Storage Rack
Slide-In Ladder and Pike Pole Storage
Slide-In Suction Hose and Strainer Storage
Wheel Well Wheel Chock Storage
Encapsulated Roll-Up Door Protection
Swing-Out and Down Rear Ladder
Smart Power 5.5kW Hydraulic Generator
Power Rewind Electric Cord Reels

Emergency Warning Devices

Whelen LED Warning Lights
Whelen Electronic Siren
Whelen Freedom LED Lightbar with Opticom

Exterior Lighting

Whelen LED Scene Lights
Pump Panel LED Lighting
LED Marker Lights
Whelen LED Tail Lights
Under Cab and Under Body Lights

Vehicle Dimensions

Overall Height 10'
Overall Length 34' 5"
Wheelbase 210"
Weight with Water 41,000 Lbs.
