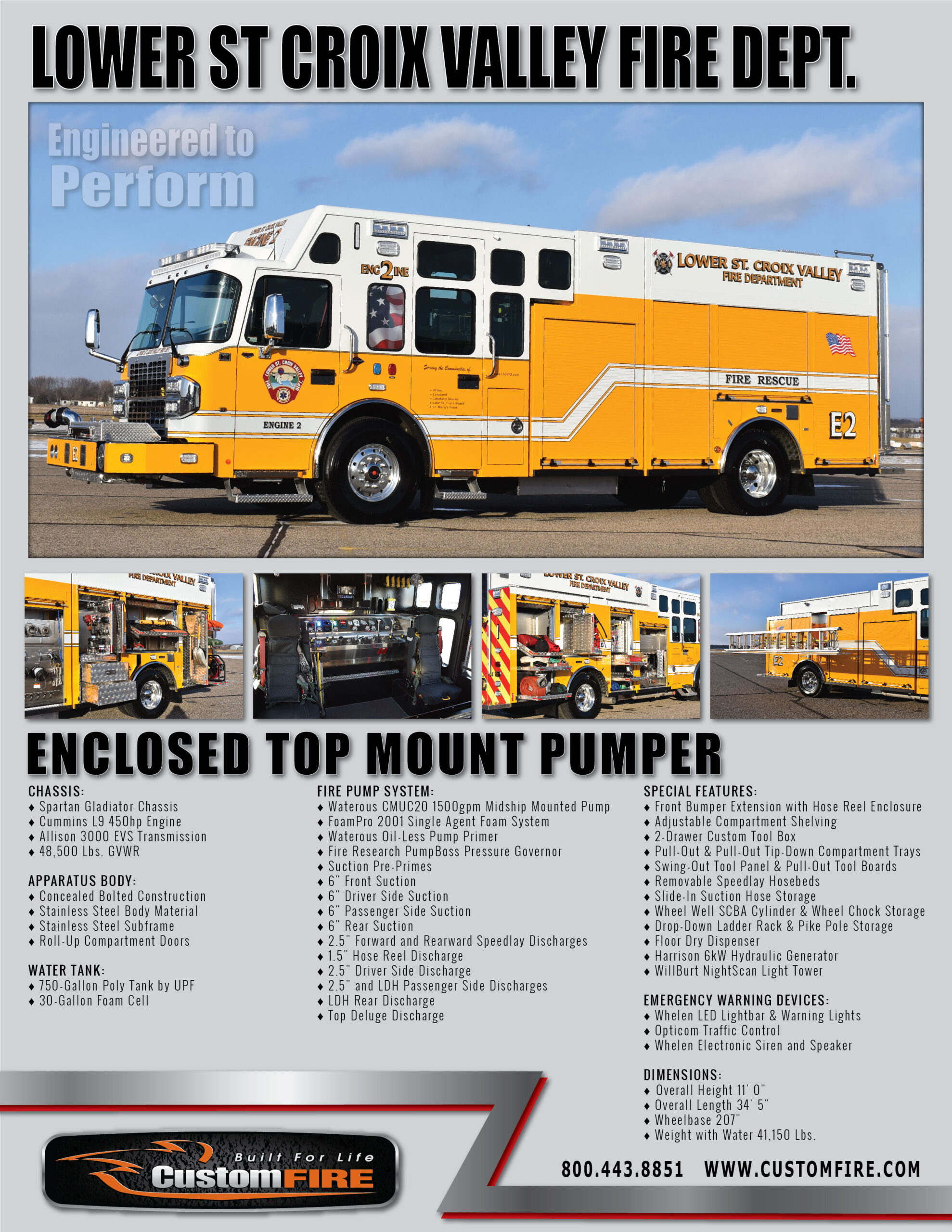

Enclosed Top Mount Pumper

Custom built for Lower St Croix Valley Fire Department — Lakeland, MN

Fire Truck: Spartan Gladiator Chassis, Stainless Steel Bolted Body, Waterous 1500gpm Fire Pump, FoamPro 2001 Foam System, 750-Gallon Water, 30-Gallon Foam Cell

Truck Type : ,
Cab Type : ,

Chassis Model

Spartan Gladiator Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission
48,500 Lbs. GVWR

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CMUC20 1500gpm Midship Pump
FoamPro 2001 Single Agent Foam System
Waterous Oil-Less Pump Primer
Fire Research PumpBoss Pressure Governor
Suction Pre-Primes
6" Front Suction
6" Driver Side Suction
6" Passenger Side Suction
6" Rear Suction
2.5" Forward and Rearward Speedlay Discharges
1.5" Hose Reel Discharge
2.5" Driver Side Discharge
2.5" and LDH Passenger Side Discharges
LDH Rear Discharge
Top Deluge Discharge

Booster Tank

750-Gallon Poly Tank by UPF
30-Gallon Foam Cell

Special Features

Front Bumper Extension w/ Hose Reel Enclosure
Adjustable Compartment Shelving
Pull-Out Tool Boards
2-Drawer Custom Tool Box
Pull-Out Compartment Trays
Pull-Out Tip-Down Compartment Trays
Swing-Out Tool Panel
Removable Speedlay Hosebeds
Slide-In Suction Hose Storage
Wheel Well SCBA Cylinder Storage
Wheel Well Wheel Chock Storage
Drop-Down Ladder Rack w/ Pike Pole Storage
Floor Dry Dispenser
Encapsulated Roll-Up Door Protection
Roll-Up Door Pull-Down Straps
Swing-Out and Down Rear Access Ladder
Harrison 6kW Hydraulic Generator
WillBurt NightScan Light Tower
Power Rewind Electric Cord Reels

Emergency Warning Devices

Whelen LED Lightbar
Whelen LED Warning Lights
Opticom Traffic Control
Whelen Electronic Siren and Speaker

Exterior Lighting

Whelen LED Scene Lighting
Vertical Strip LED Compartment Lights
LED Step Lights
LED Marker Lights
LED Tail Lighting
Under Cab and Under Body Lights

Vehicle Dimensions

Overall Height 11' 0"
Overall Length 34' 5"
Wheelbase 207"
Weight with Water 41,150 Lbs.
