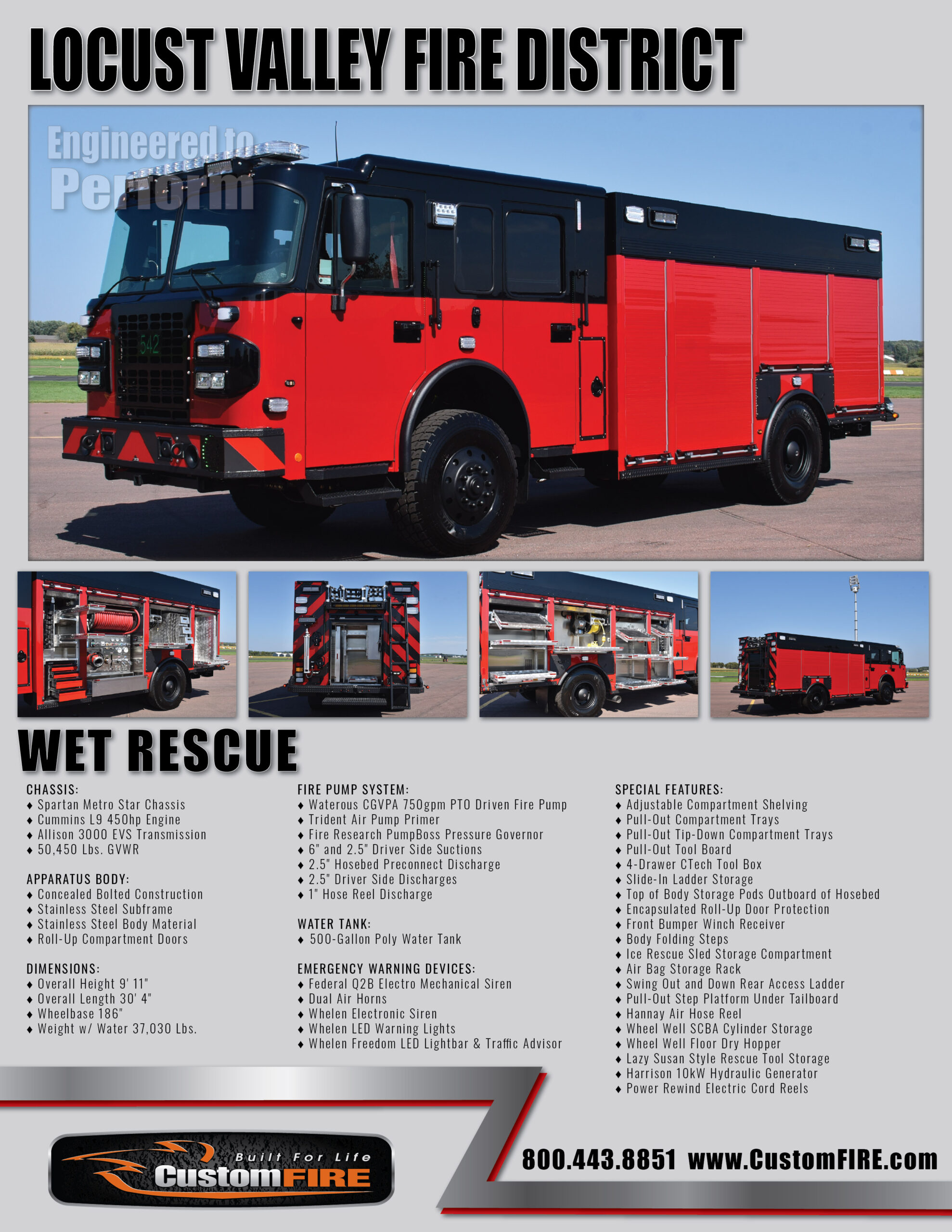

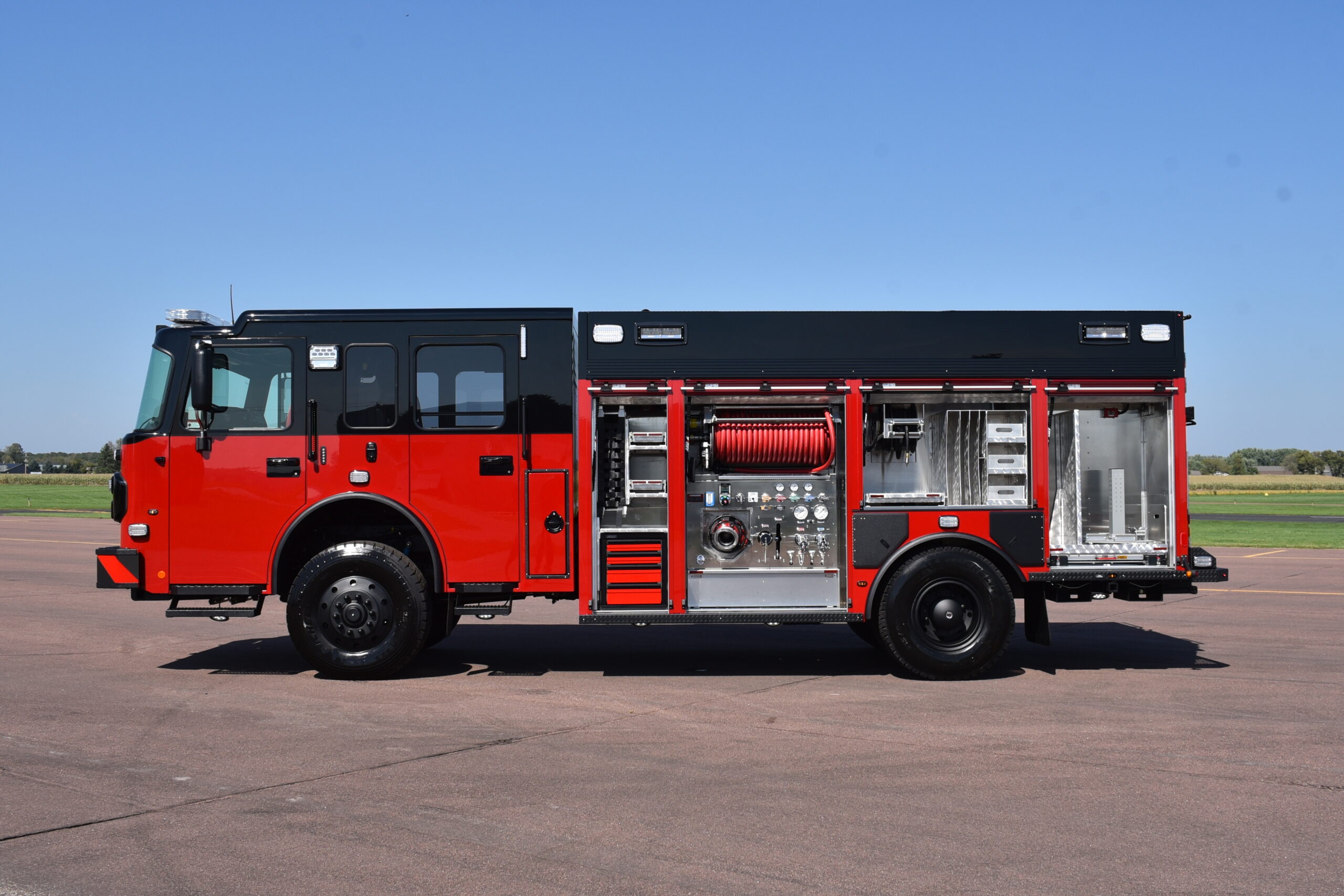

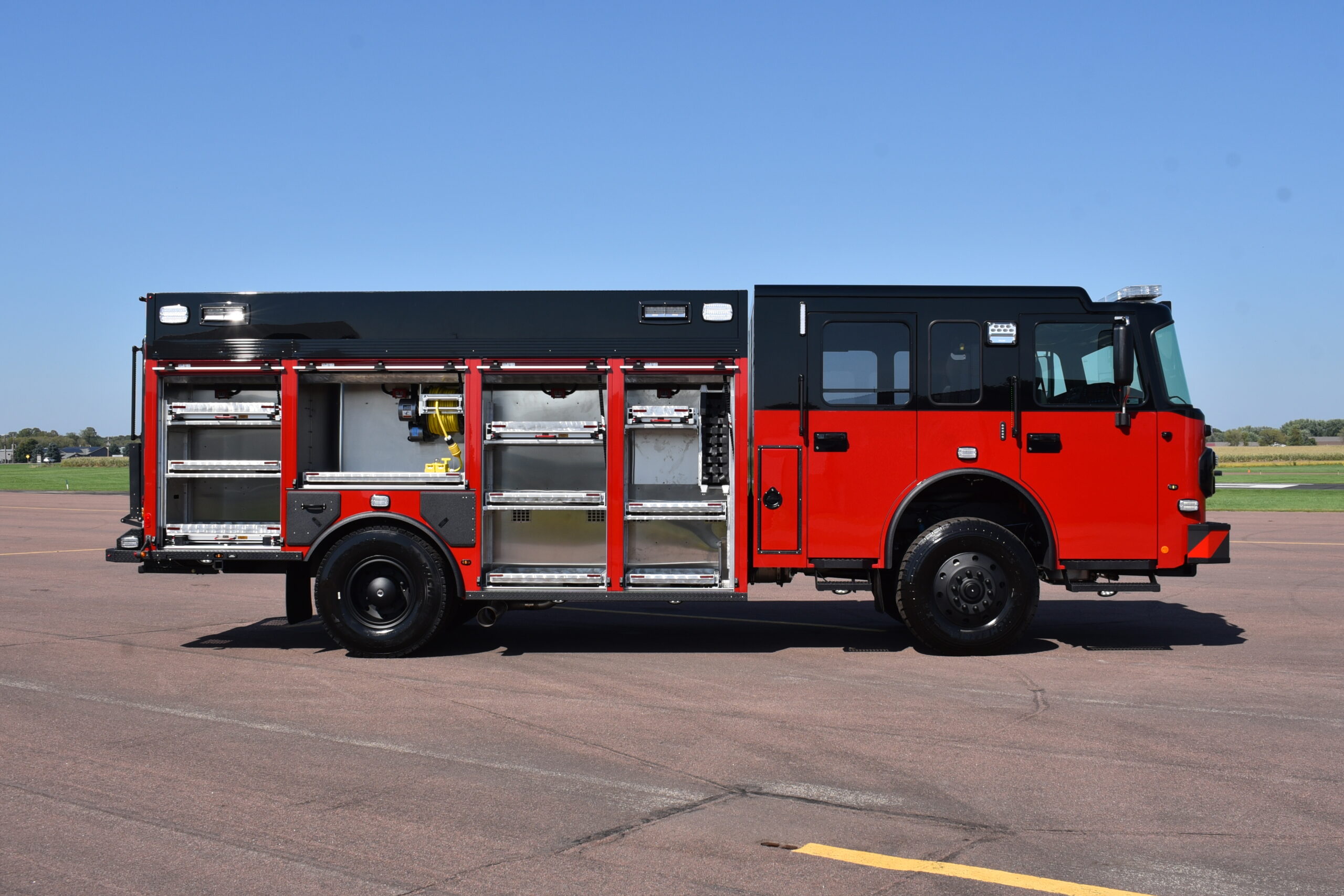

Truck Type : Factory Floor
Cab Type :

Chassis Model

Spartan Metro Star Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission
50,450 Lbs. GVWR

Apparatus Body

Concealed Bolted Construction
Stainless Steel Subframe
Stainless Steel Body Material
Roll-Up Compartment Doors

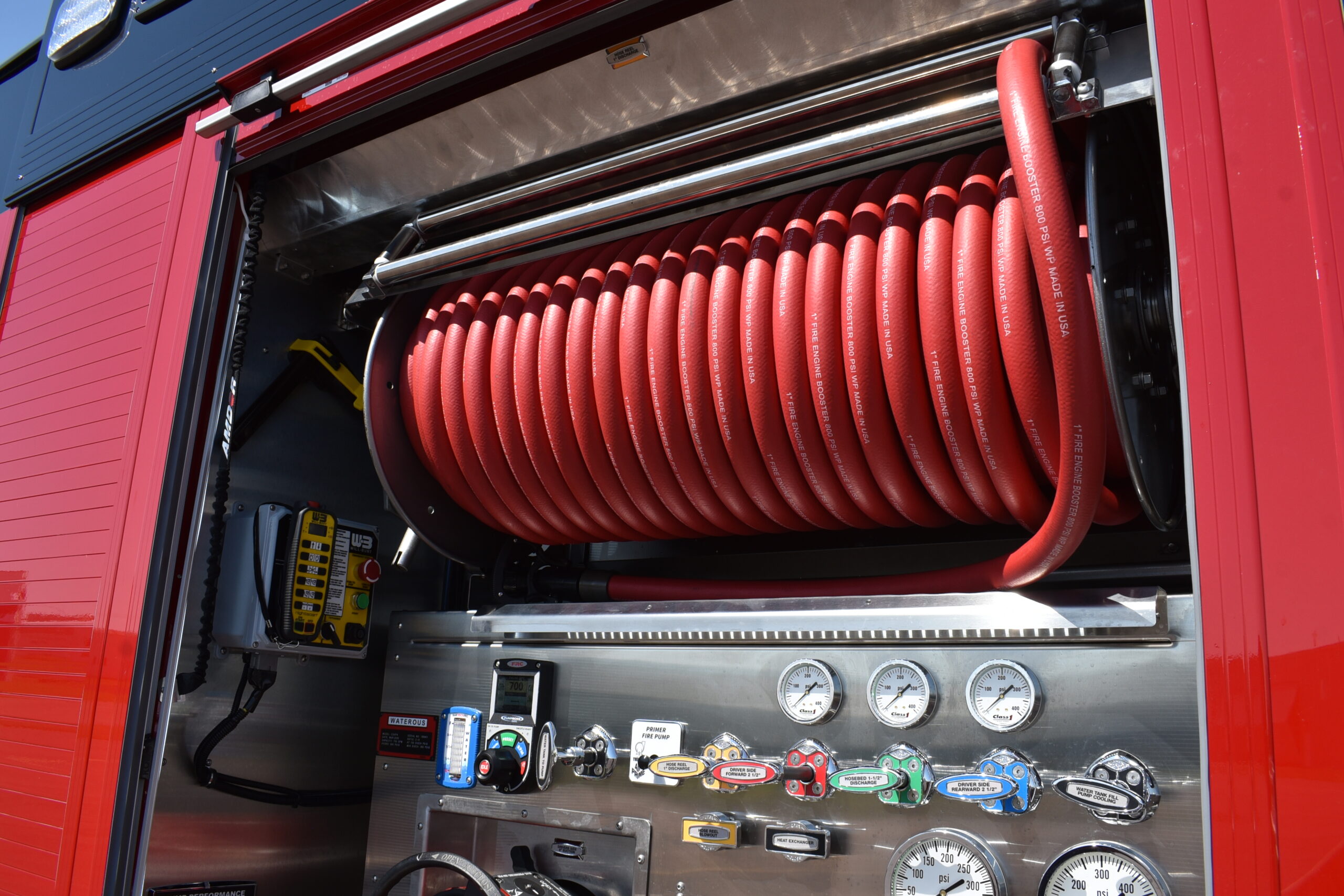

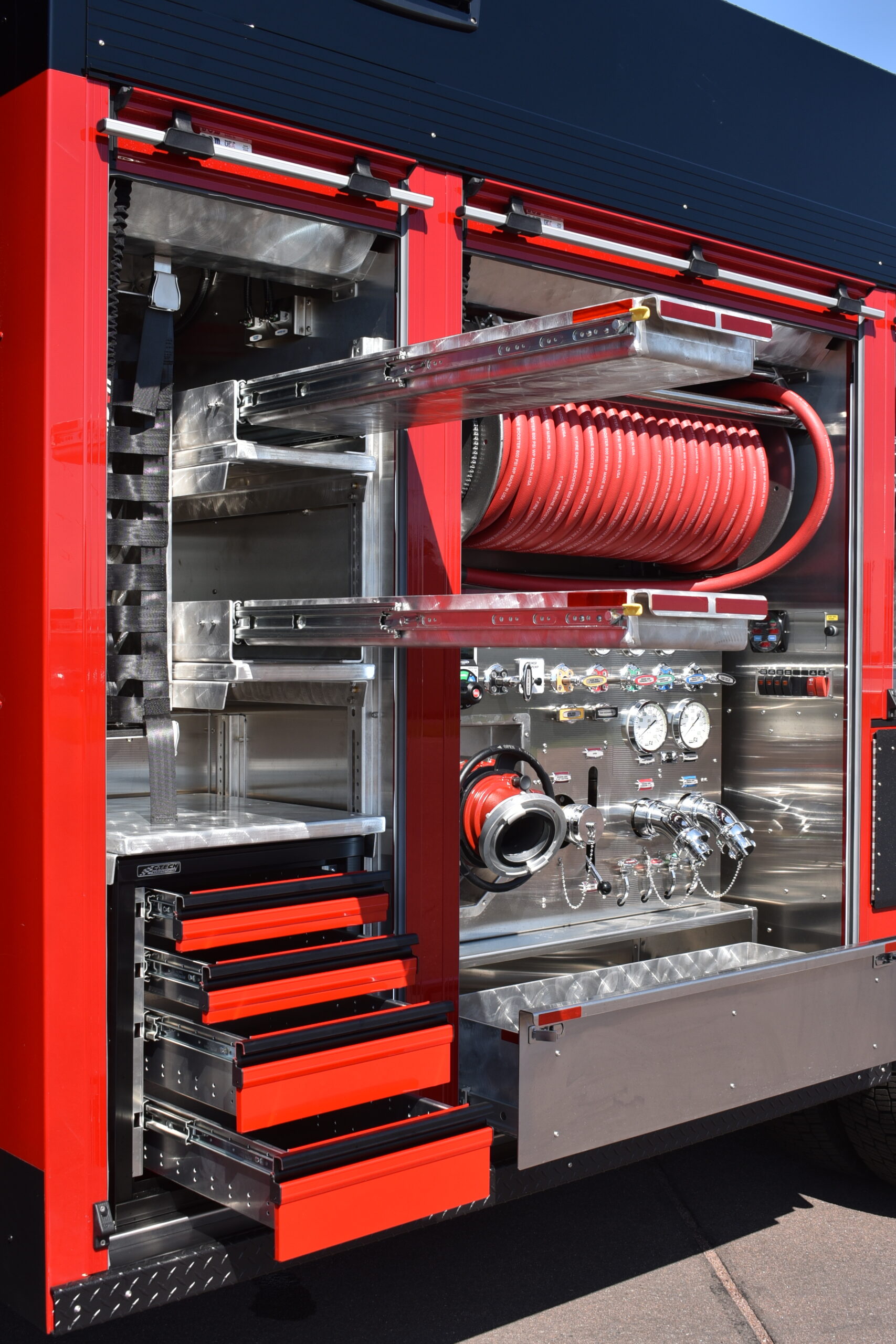

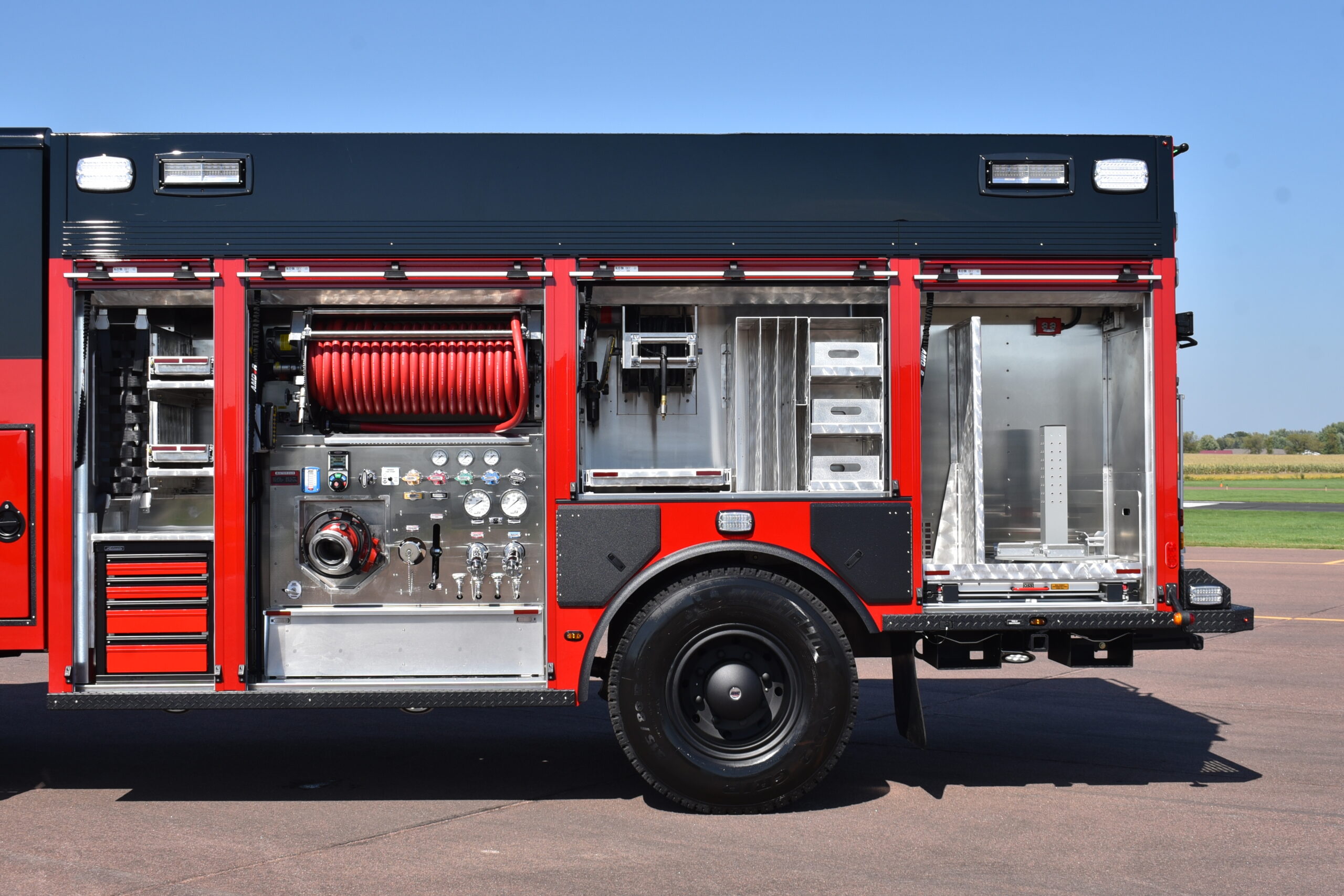

Fire Pump System

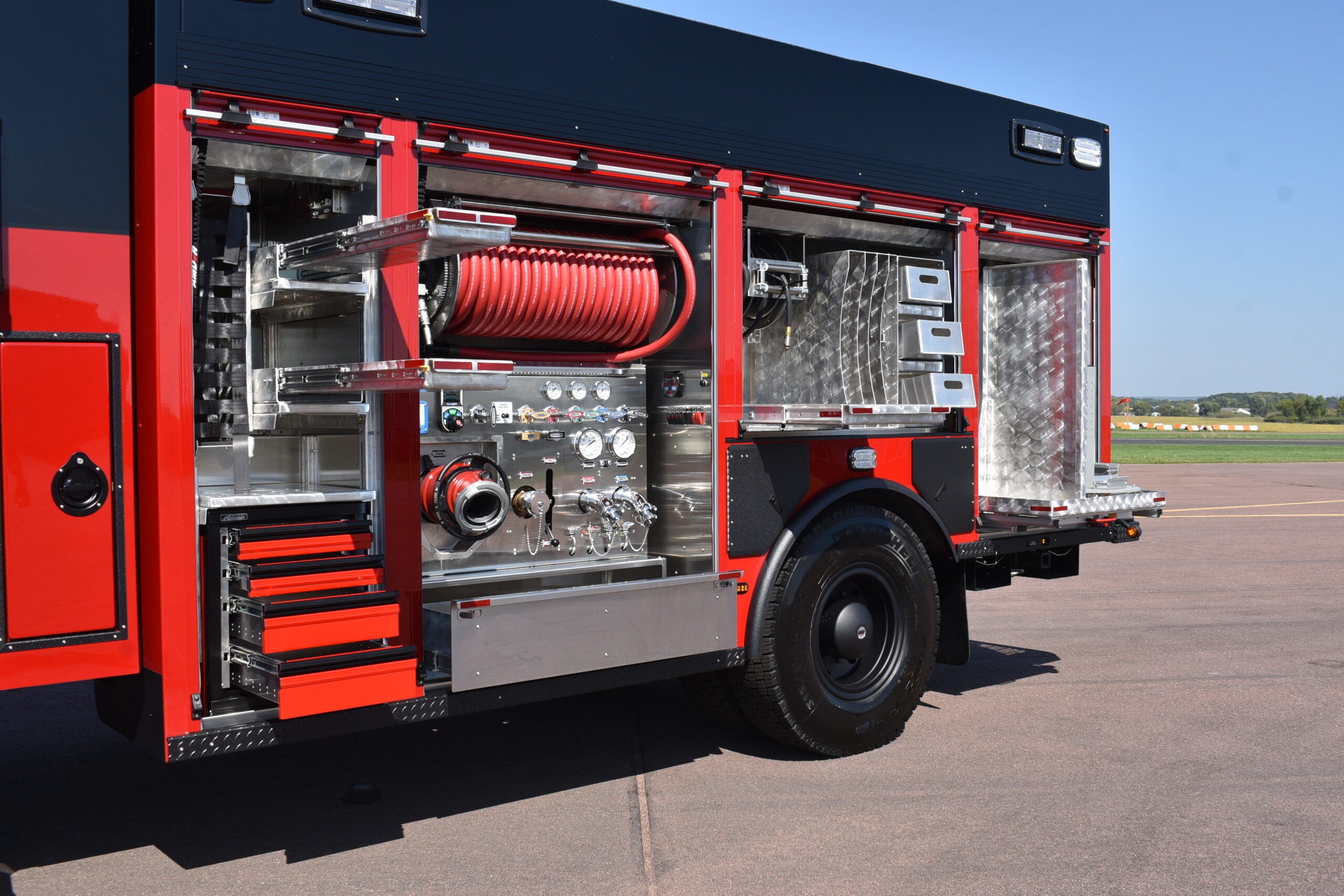

Waterous CGVPA 750gpm PTO Driven Fire Pump
Trident Air Pump Primer
Fire Research PumpBoss Pressure Governor
6" and 2.5" Driver Side Suctions
2.5" Hosebed Preconnect Discharge
2.5" Driver Side Discharges
1" Hose Reel Discharge

Booster Tank

500-Gallon Poly Water Tank

Special Features

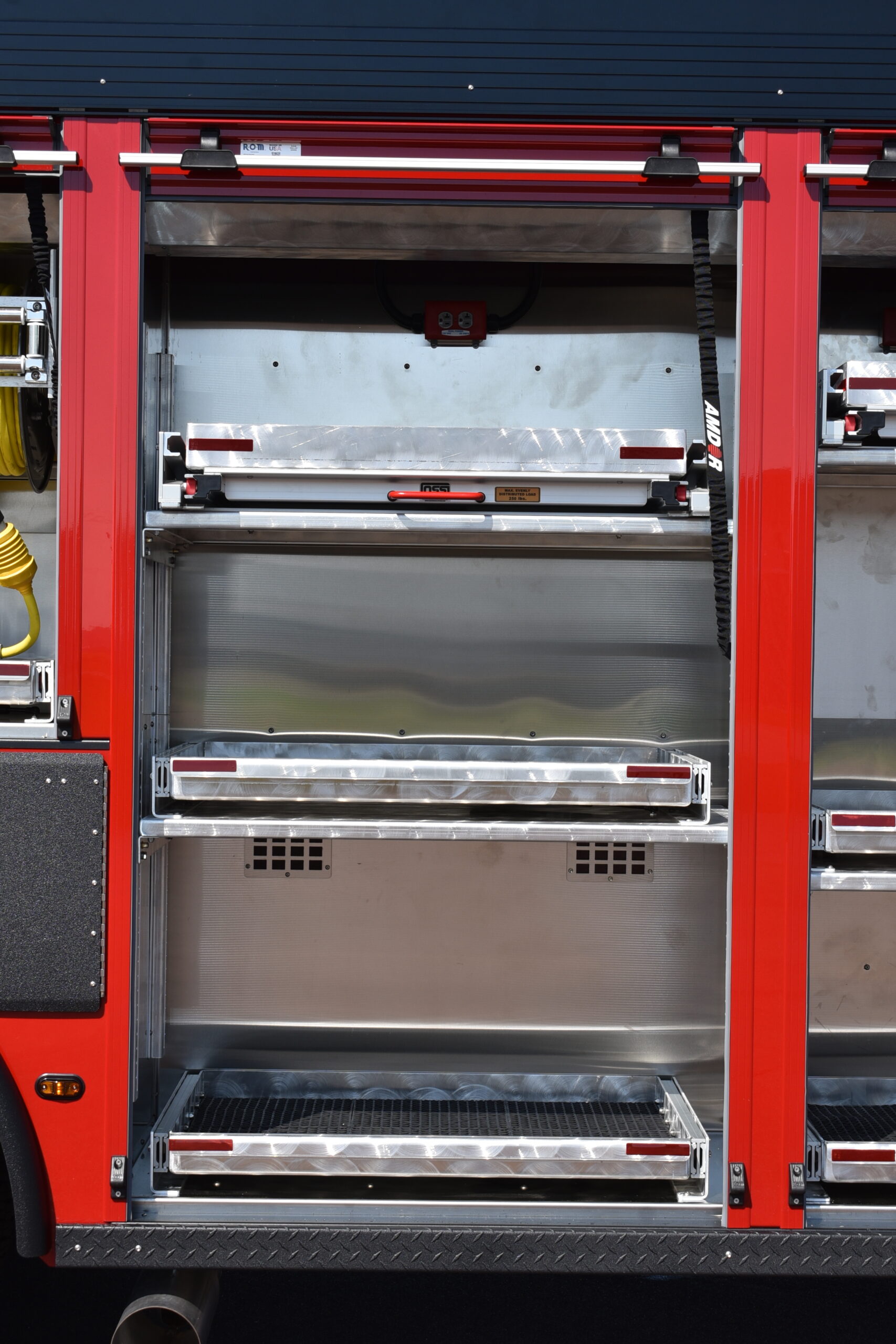

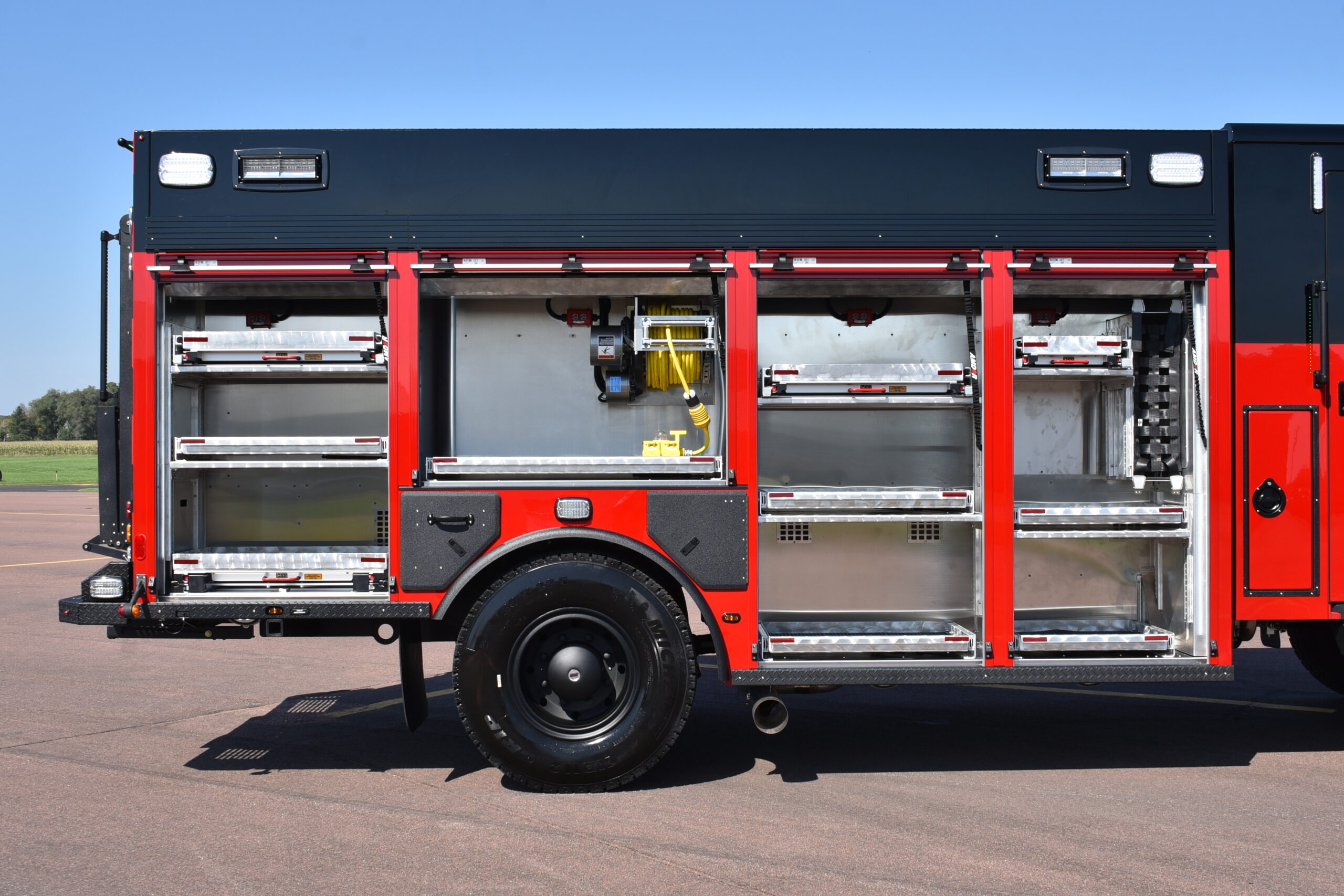

Adjustable Compartment Shelving

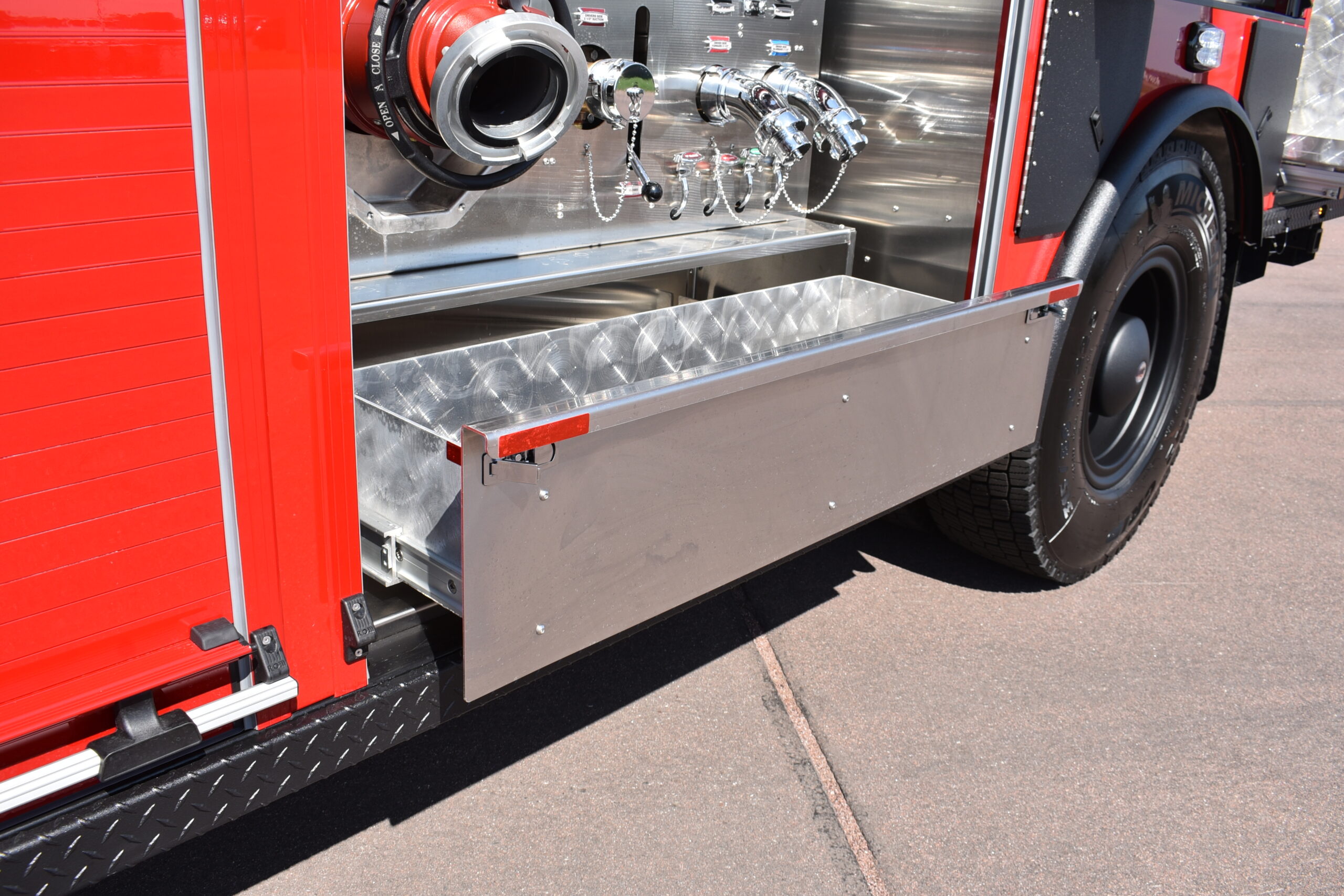

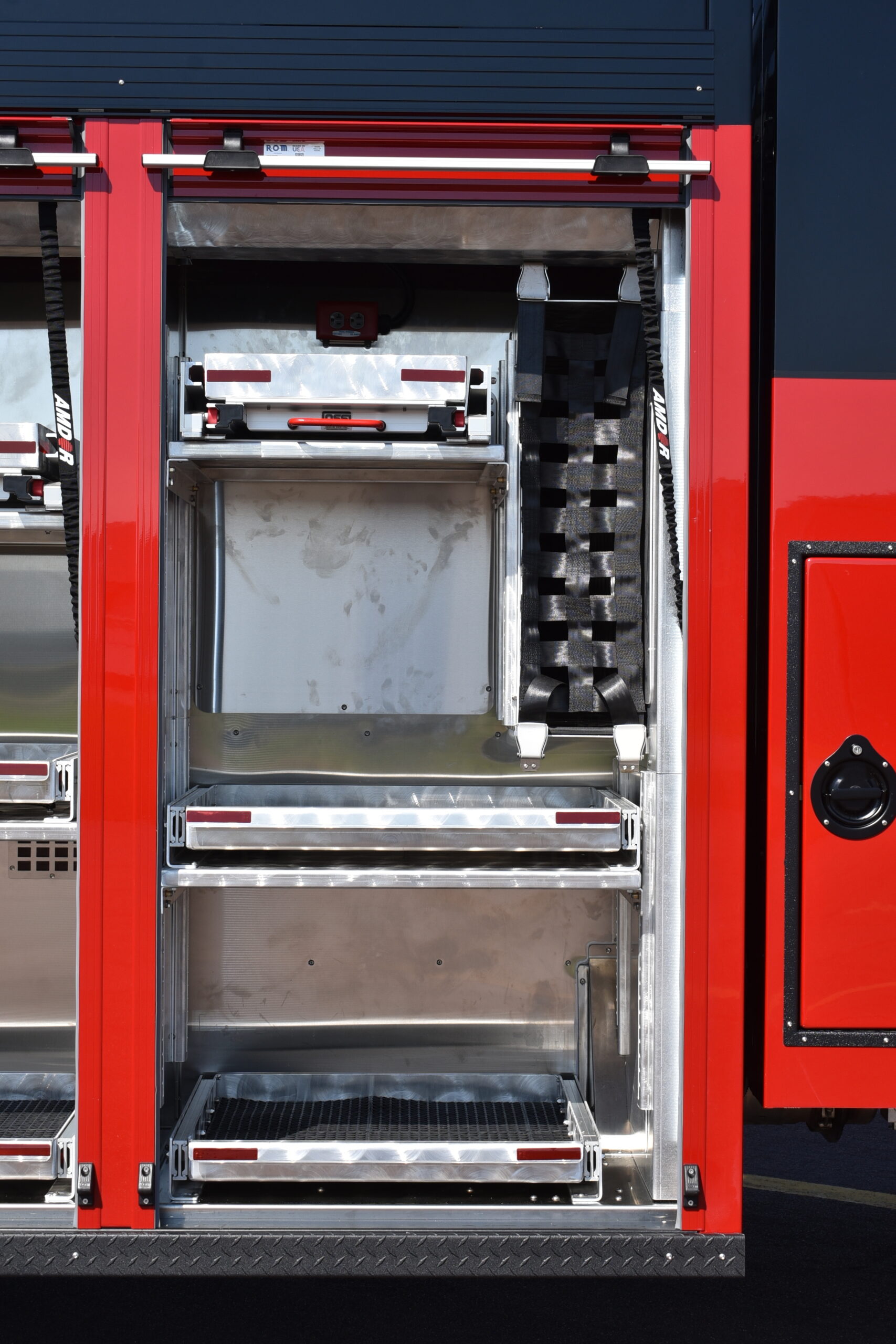

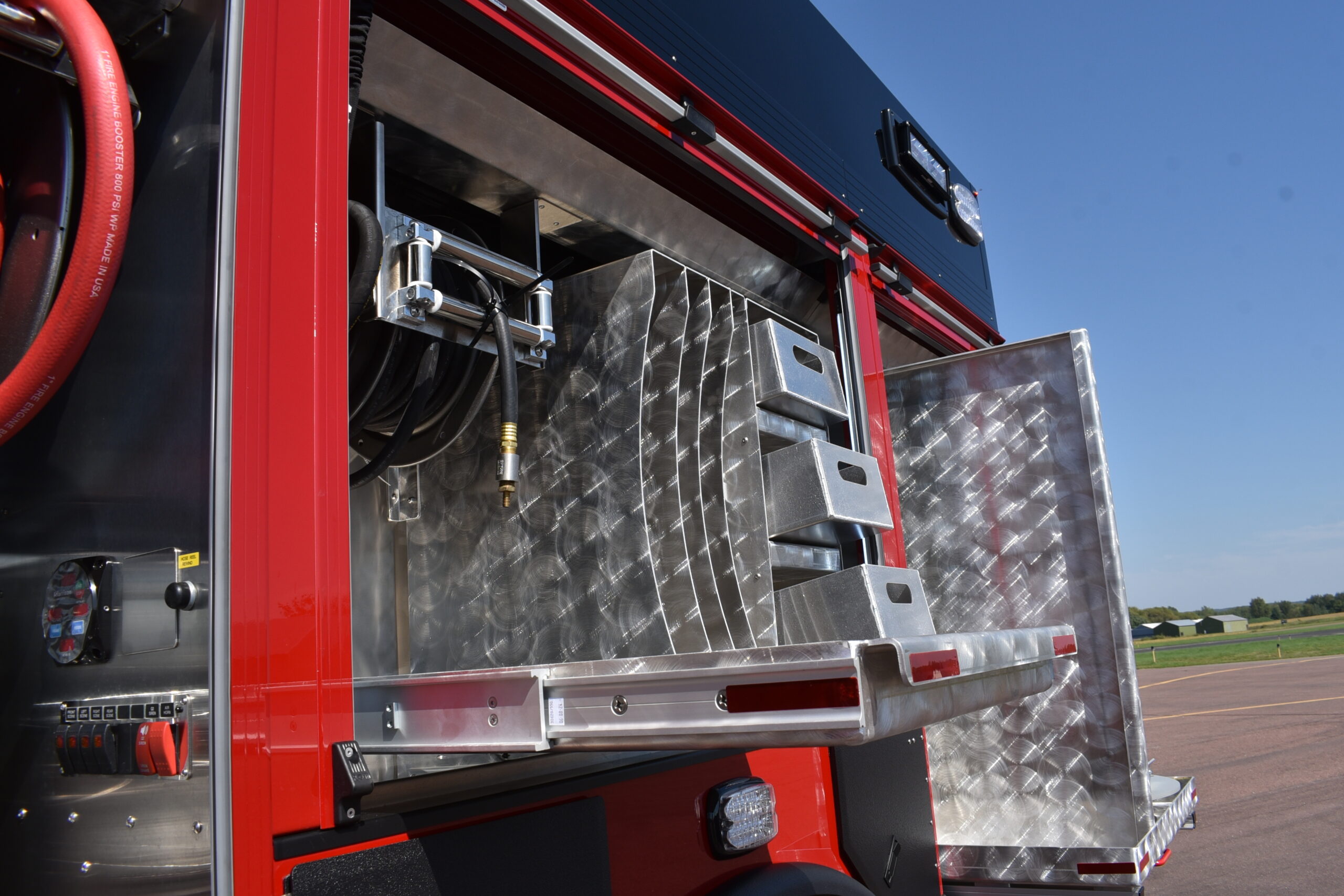

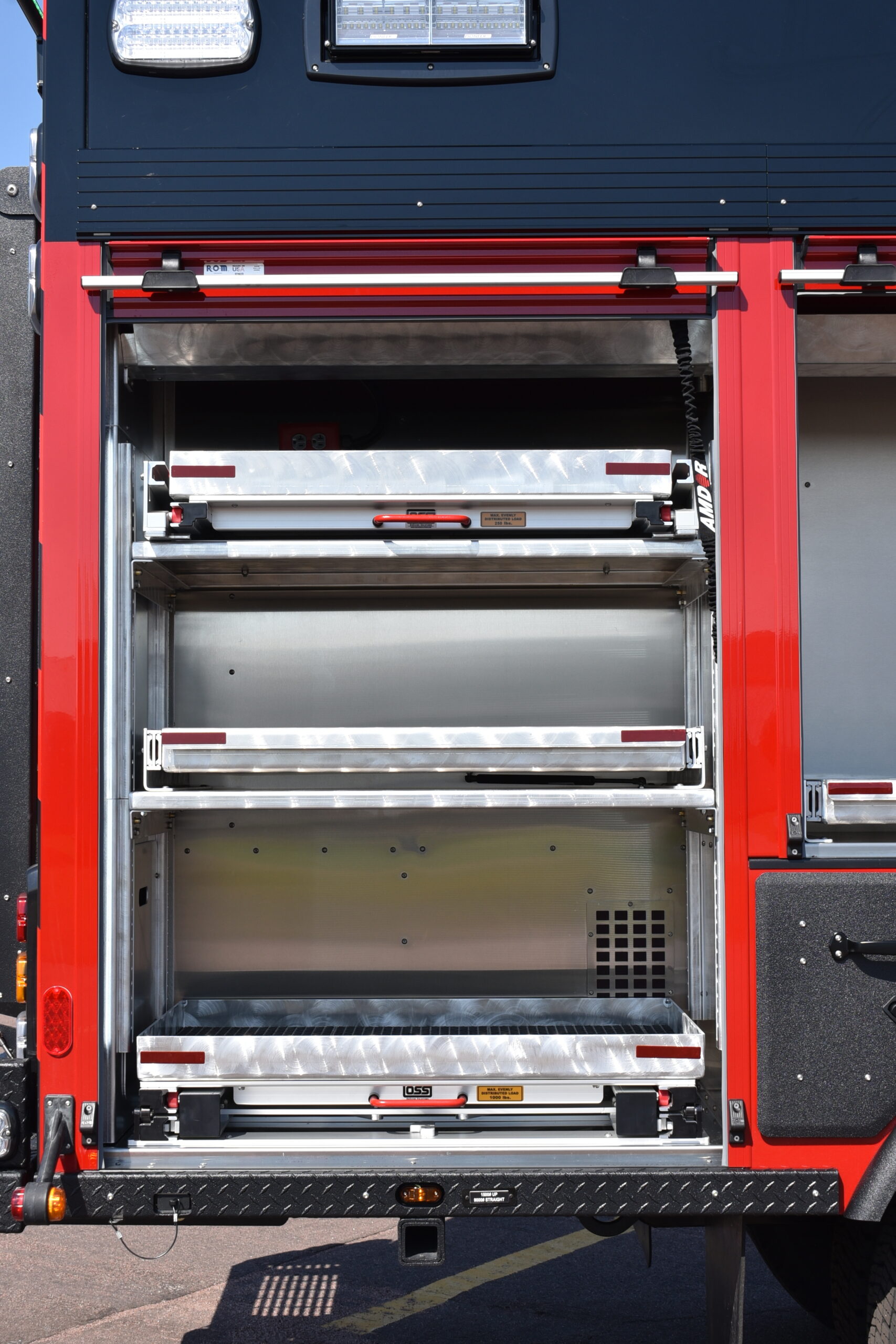

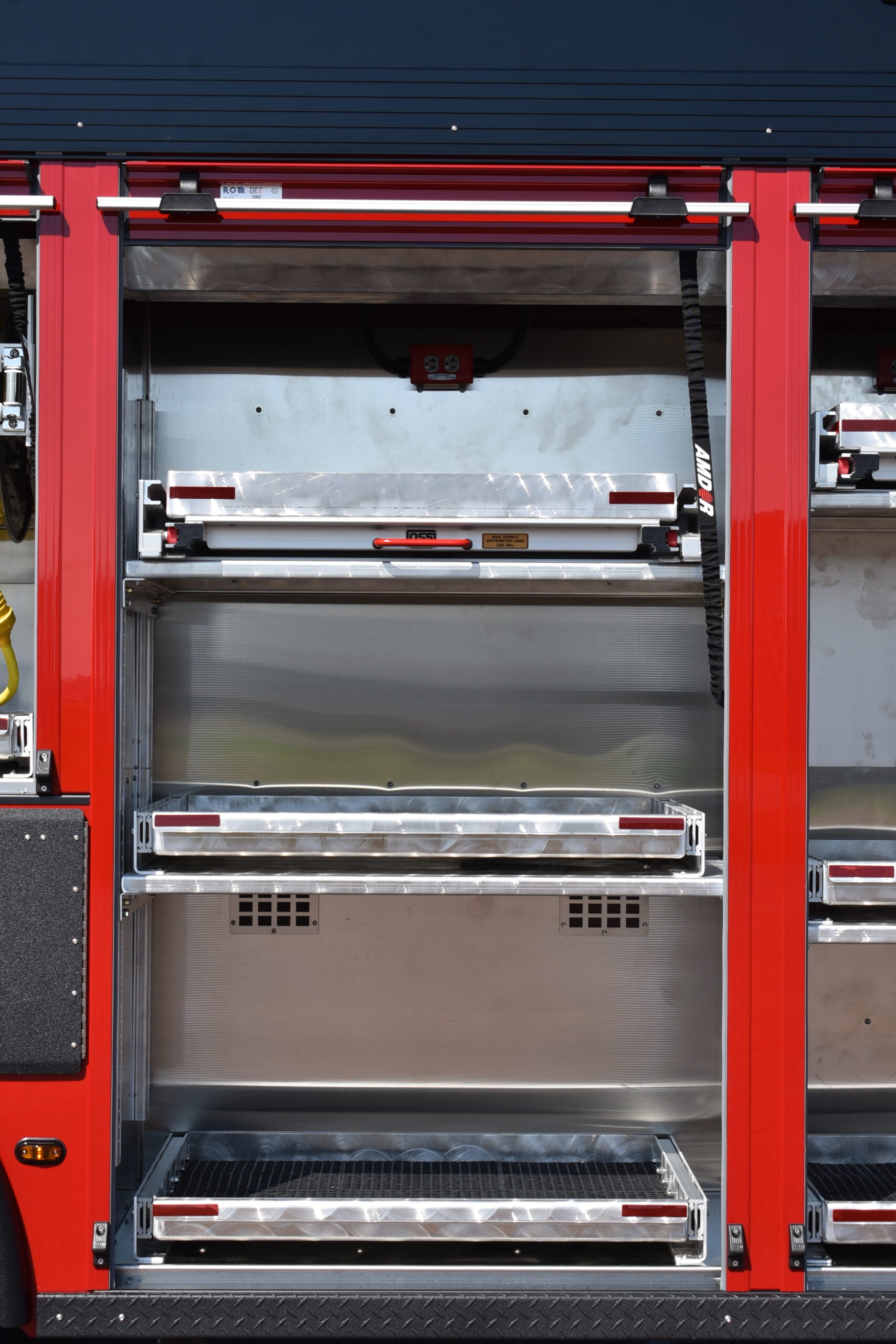

Pull-Out Compartment Trays

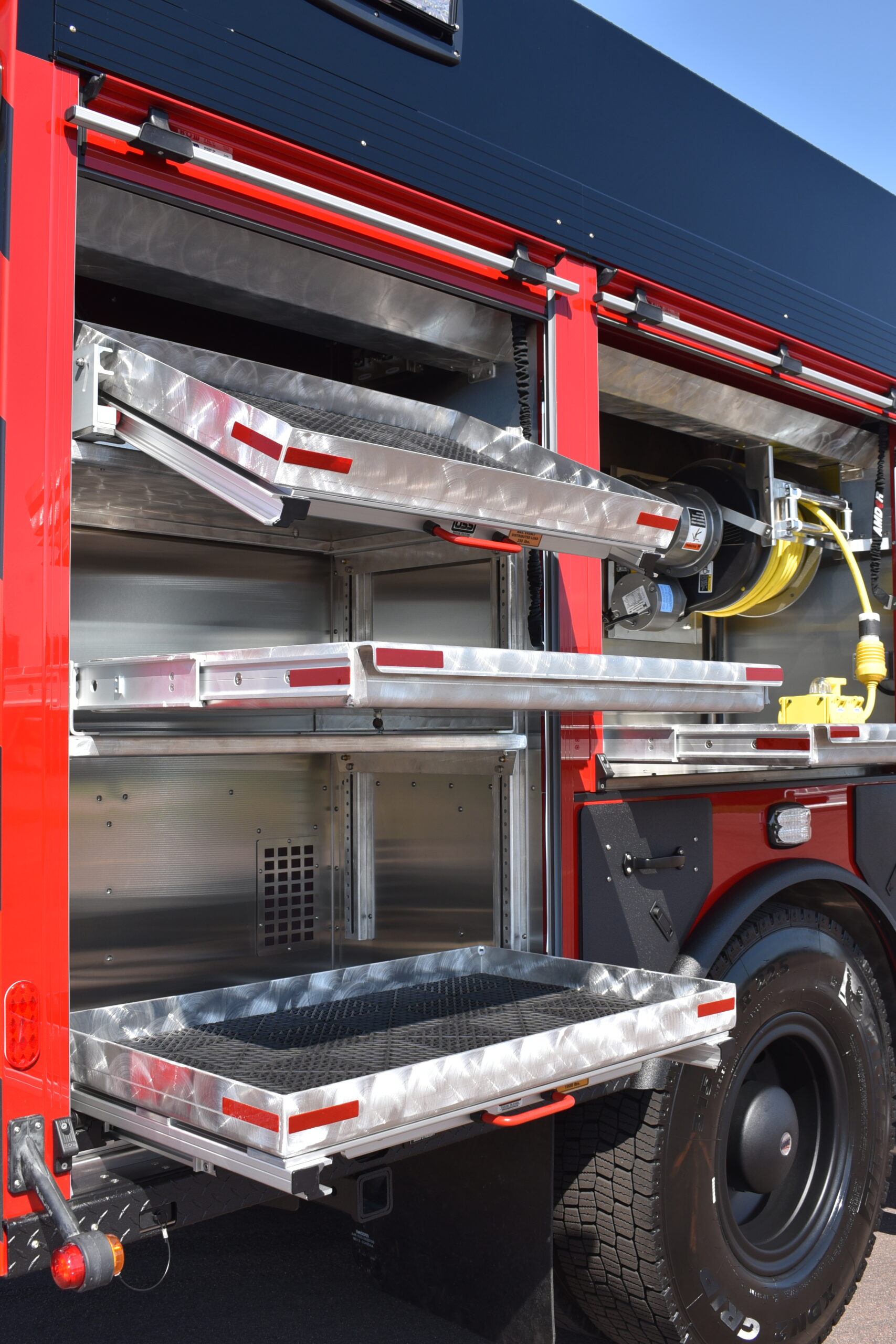

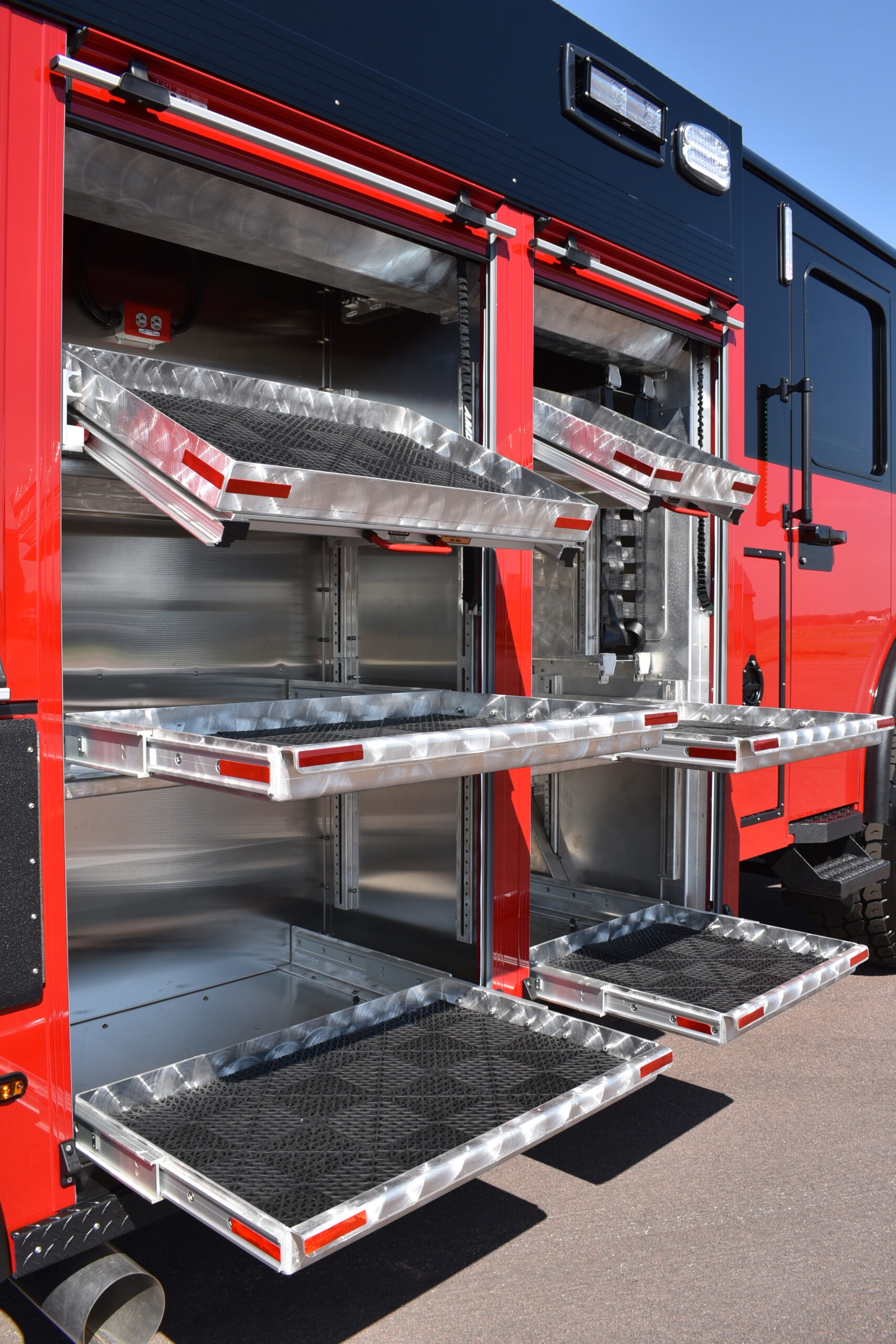

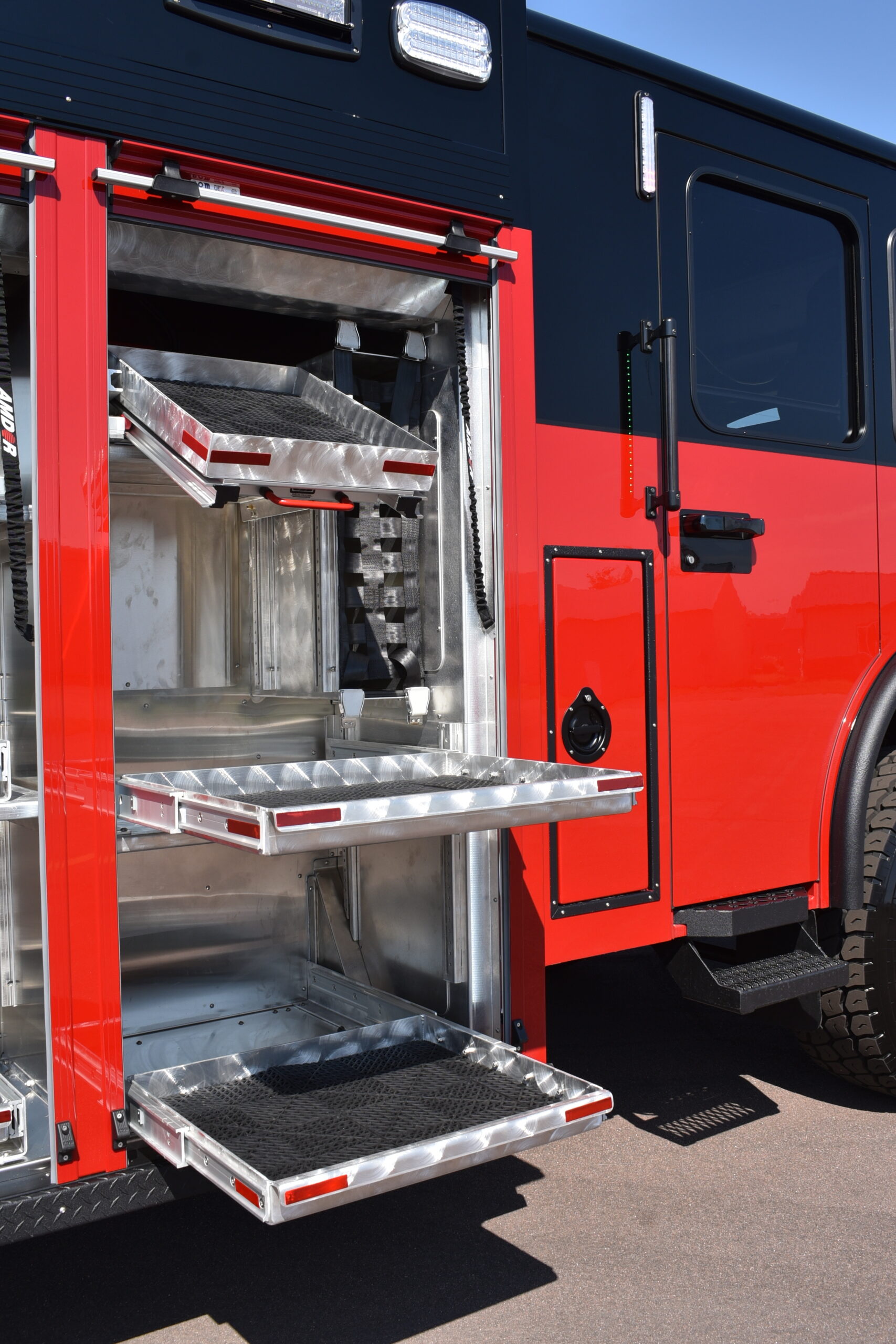

Pull-Out Tip-Down Compartment Trays
Pull-Out Tool Board

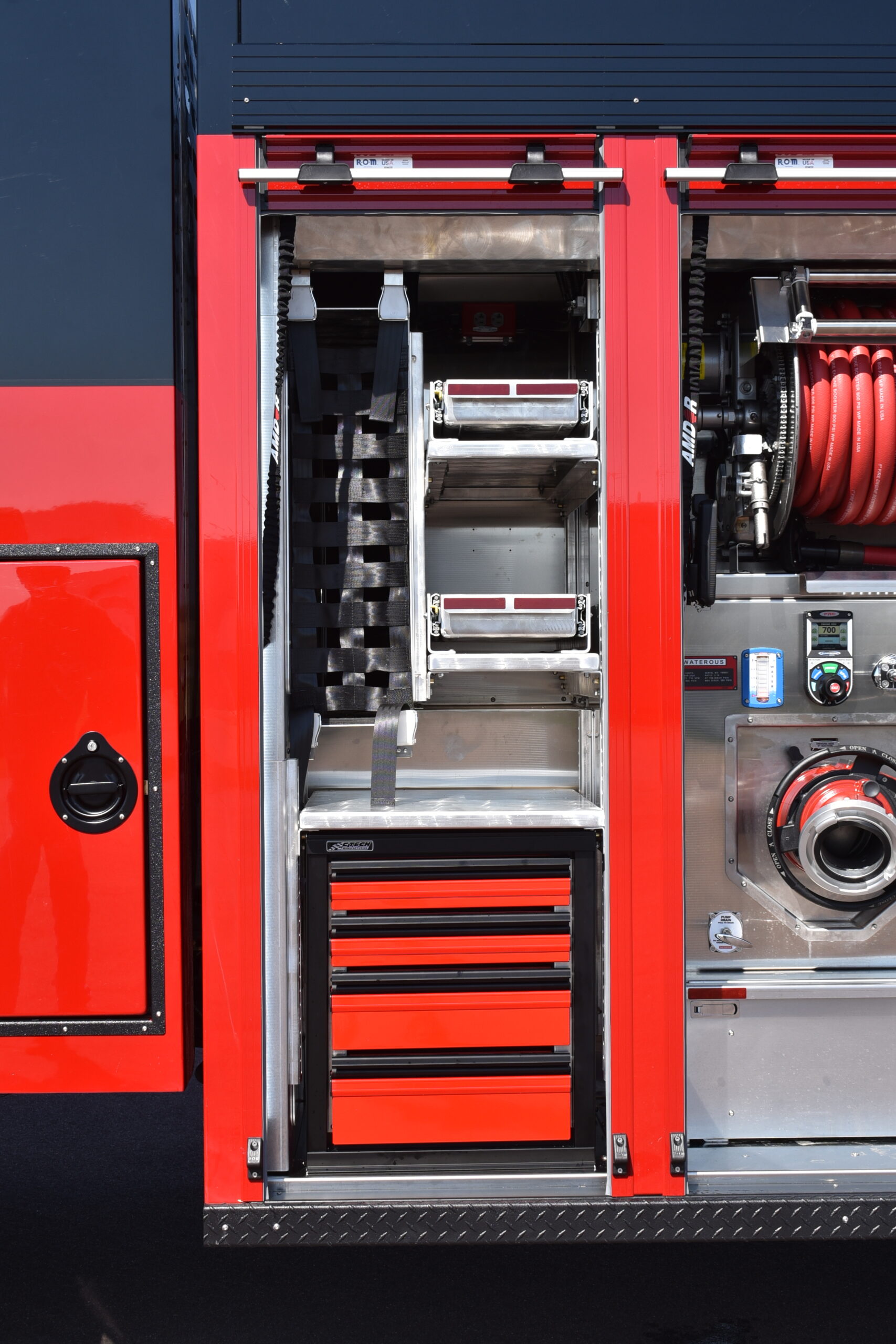

4-Drawer CTech Tool Box
Slide-In Ladder Storage
Top of Body Storage Pods Outboard of Hosebed
Encapsulated Roll-Up Door Protection
Front Bumper Winch Receiver
Body Folding Steps
Ice Rescue Sled Storage Compartment
Air Bag Storage Rack

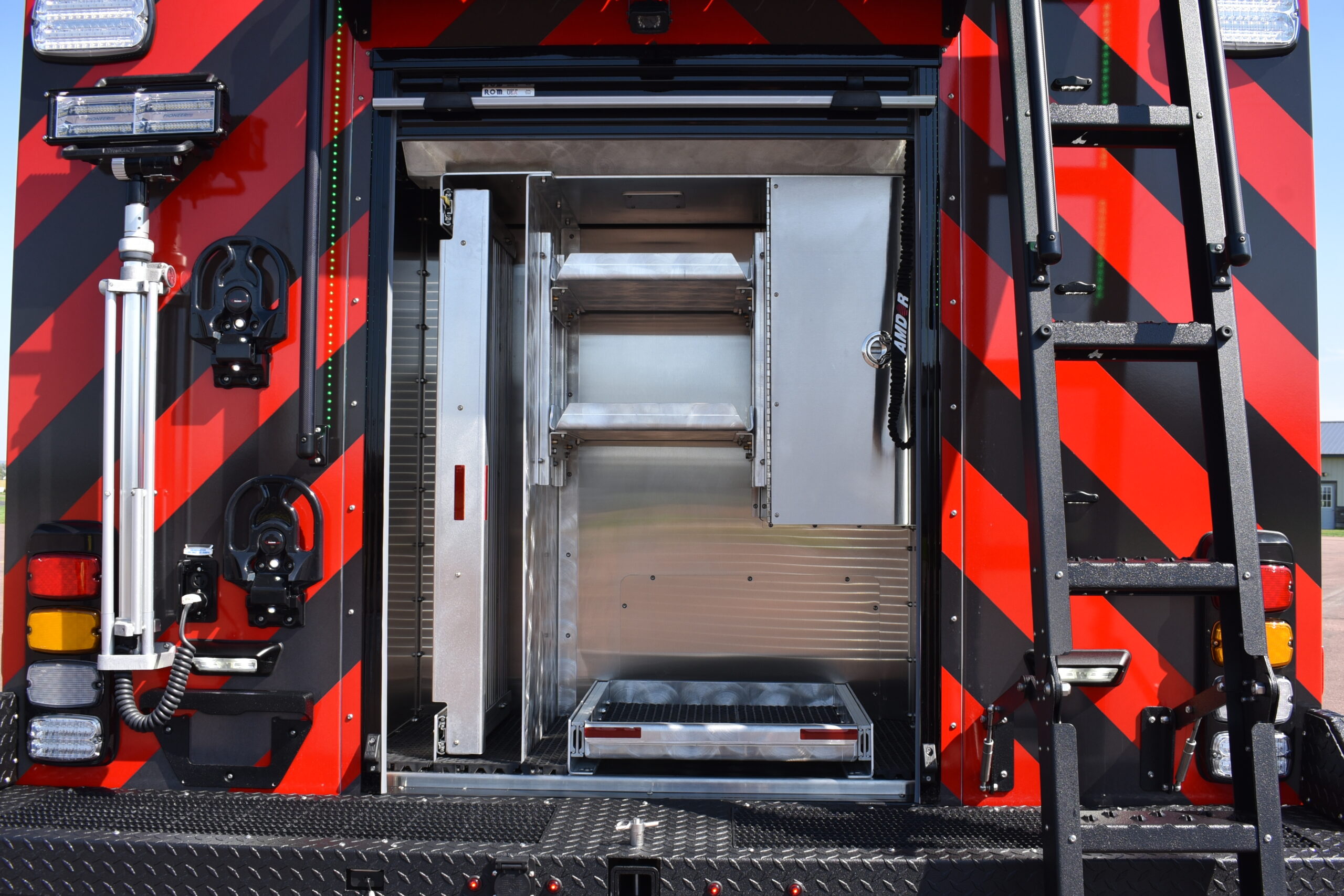

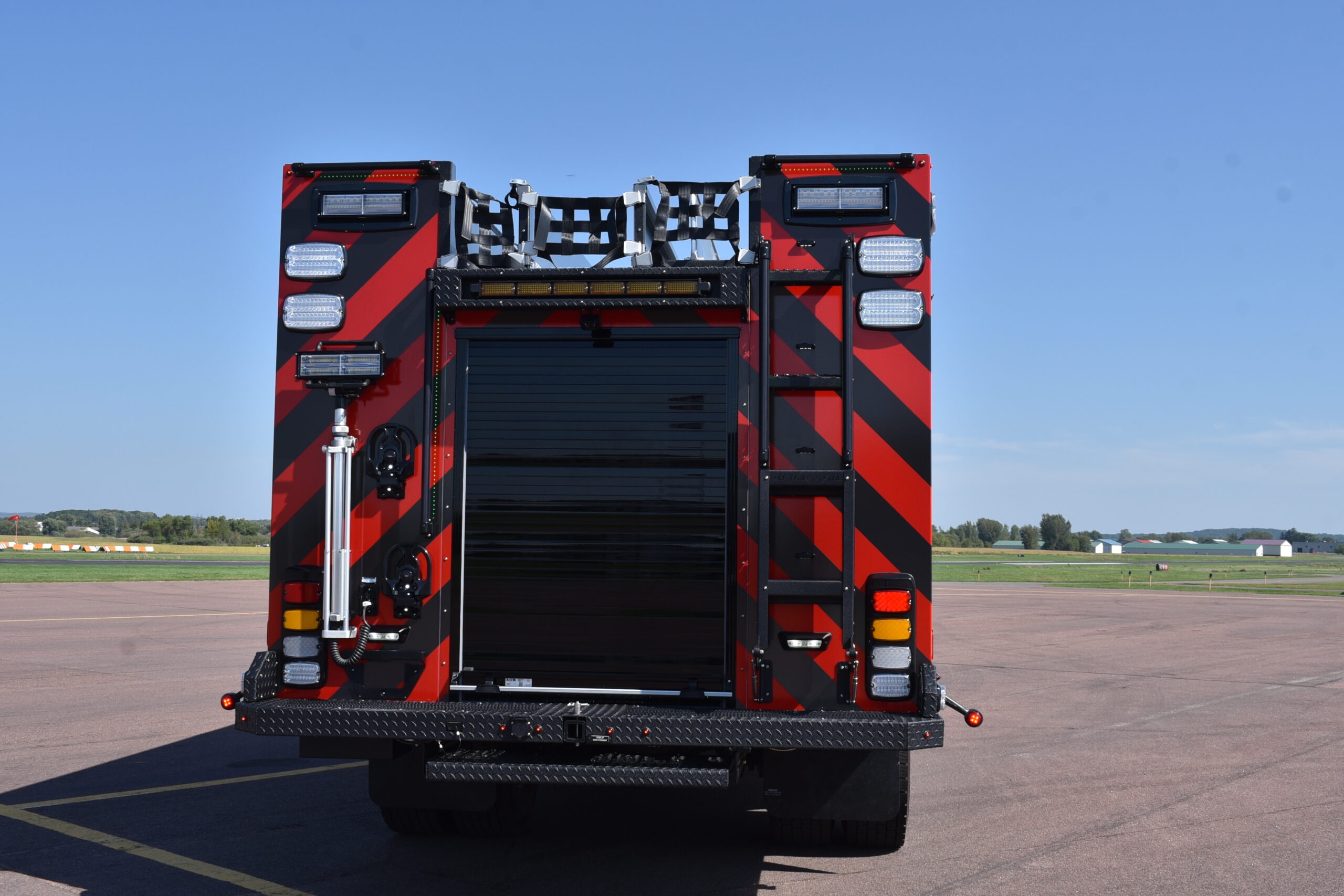

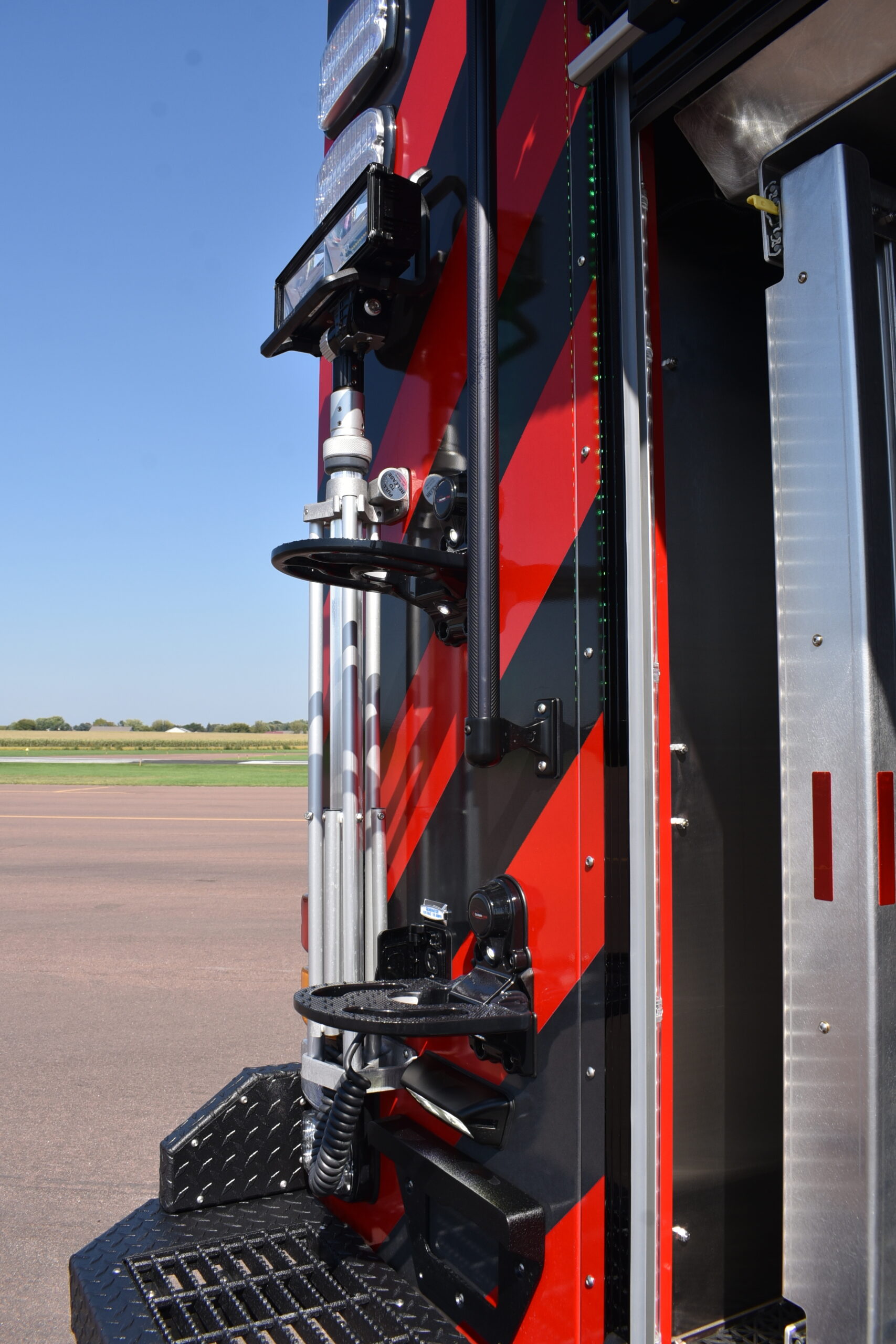

Swing Out and Down Rear Access Ladder

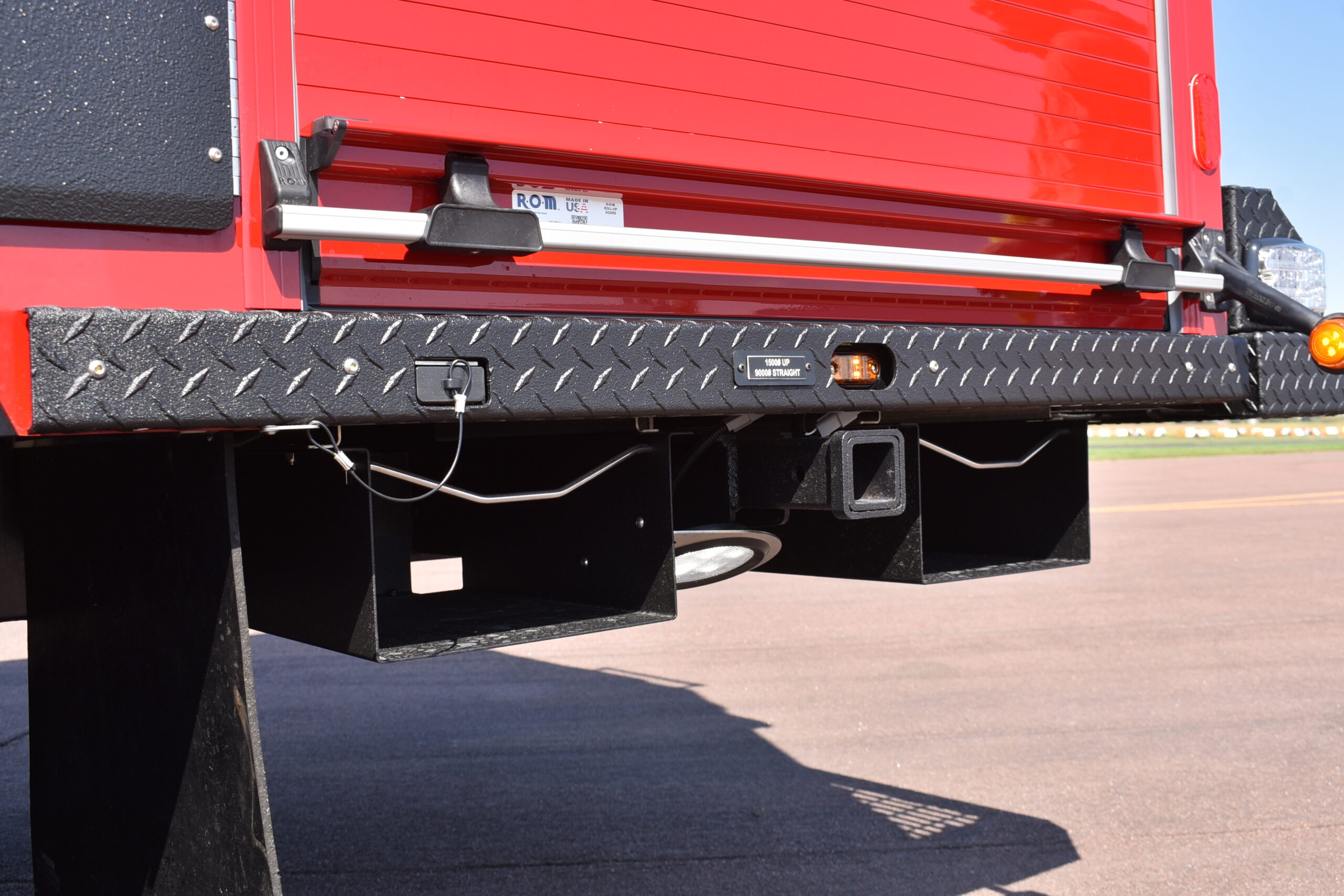

Pull-Out Step Platform Under Tailboard

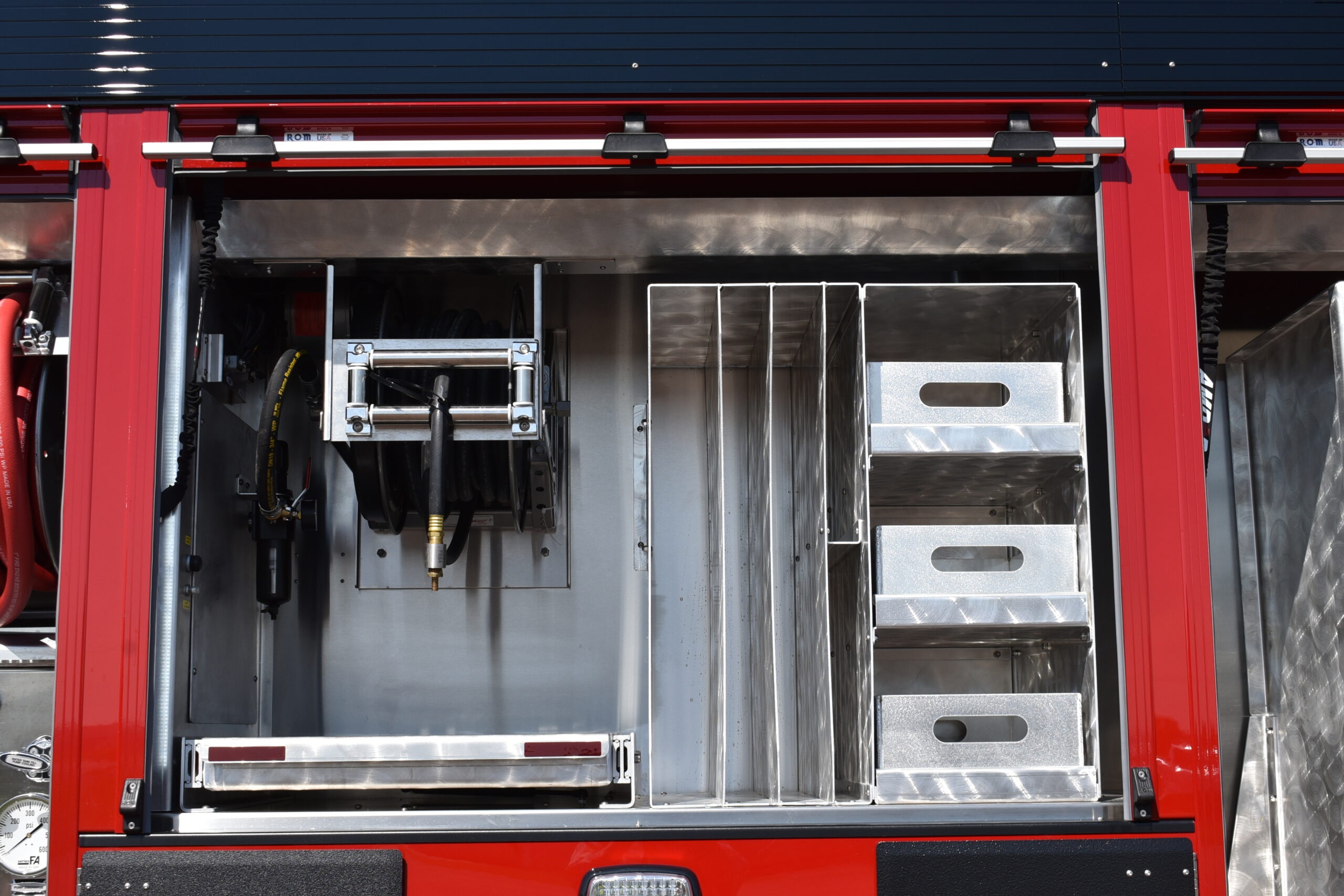

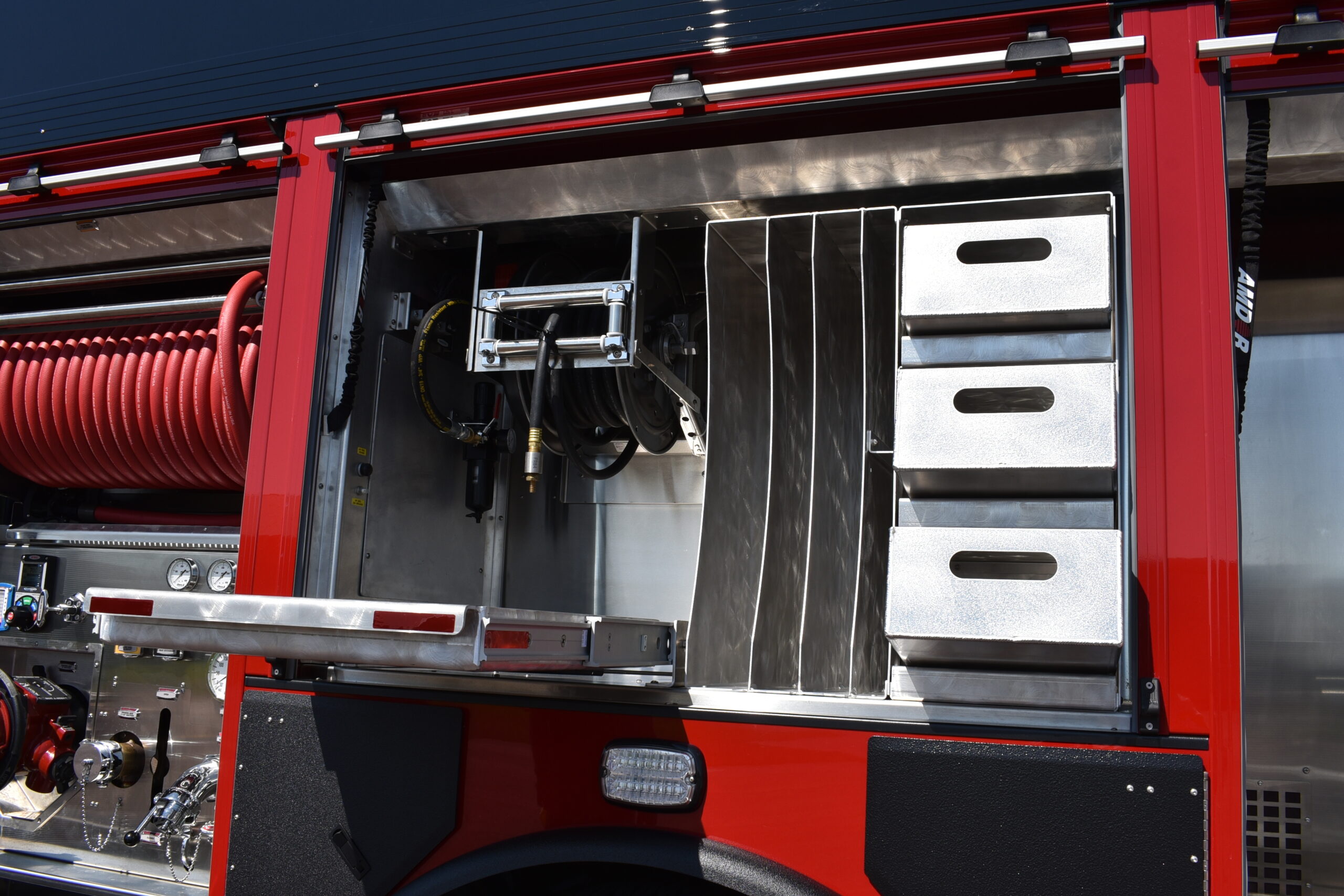

Hannay Air Hose Reel

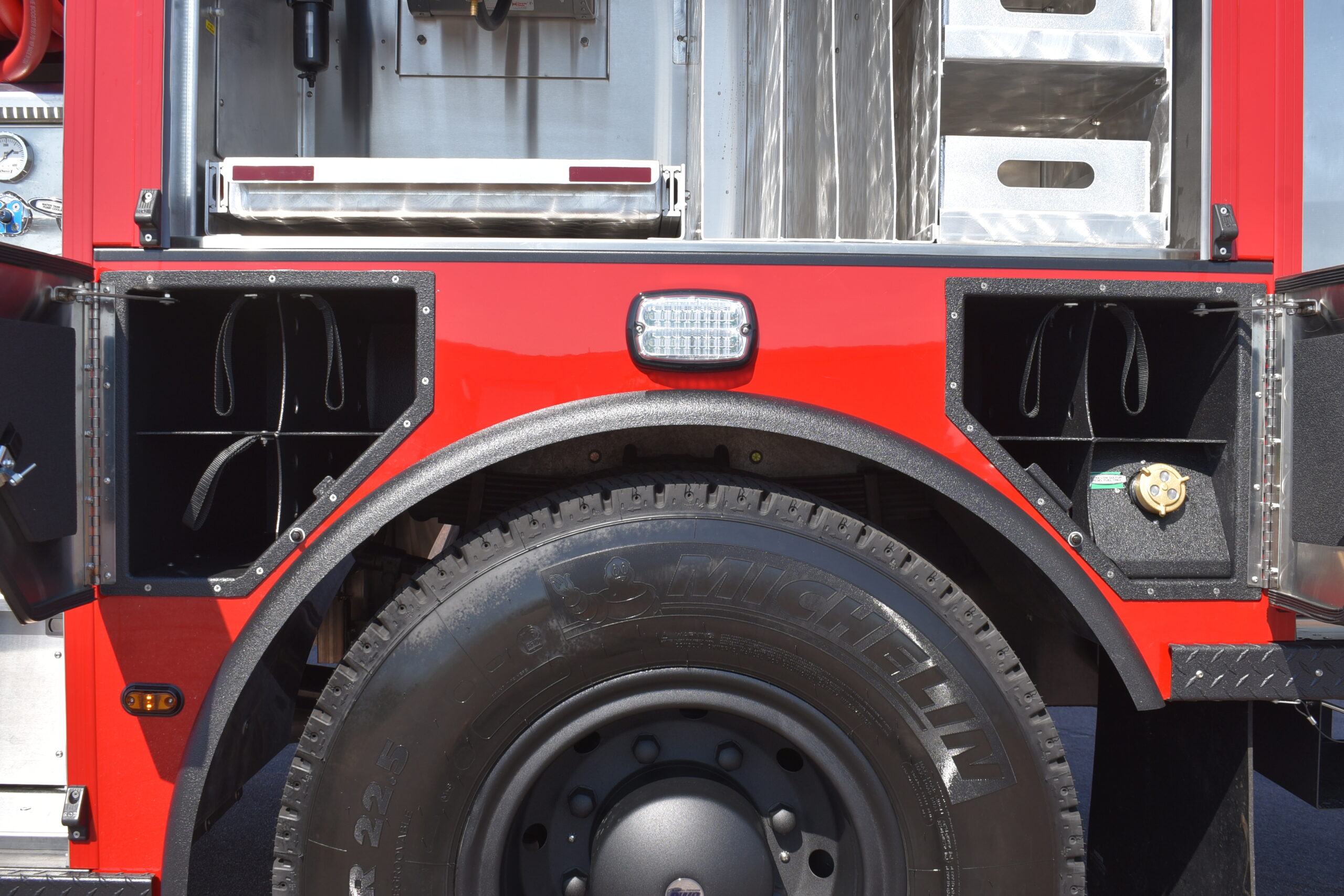

Wheel Well SCBA Cylinder Storage

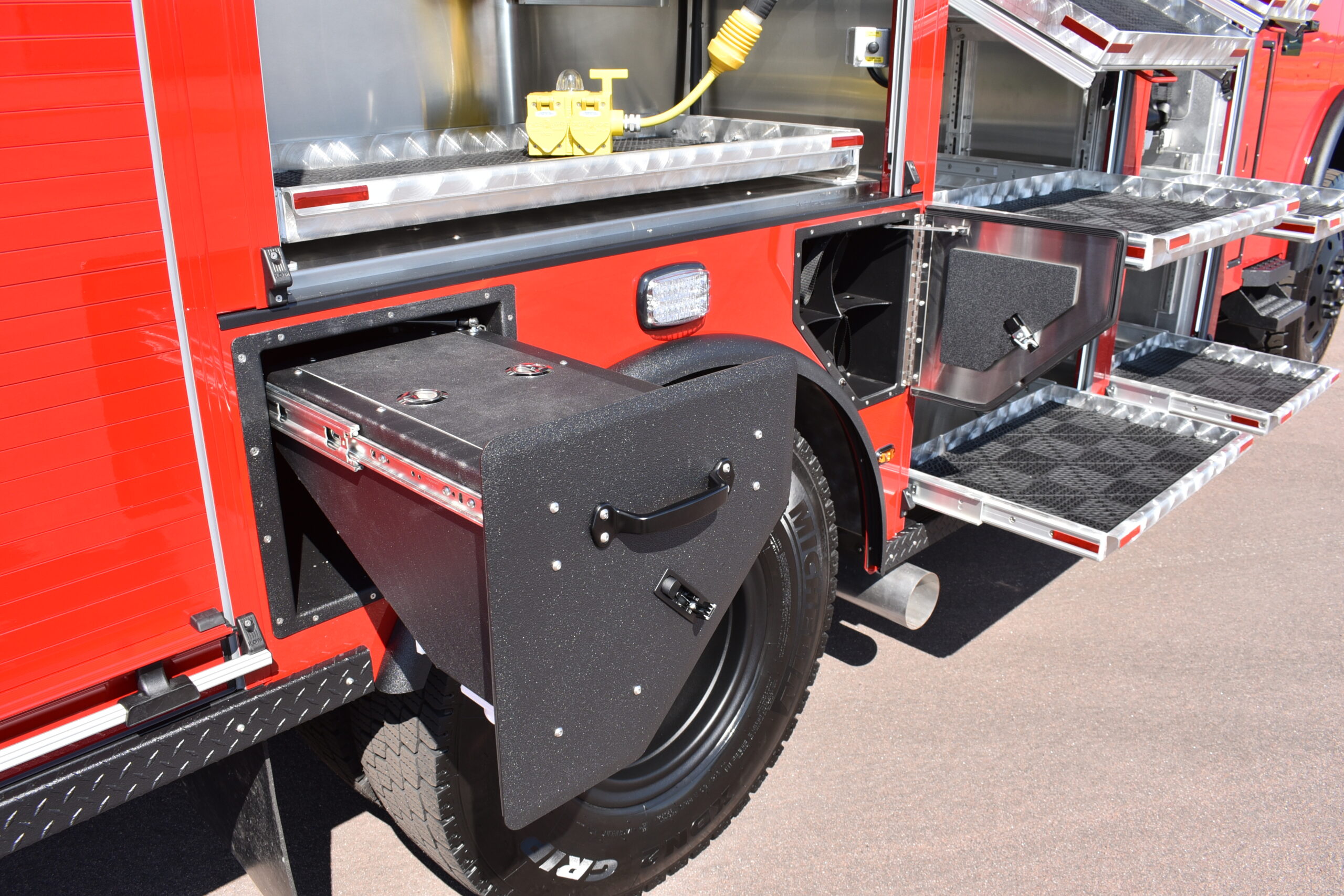

Wheel Well Floor Dry Hopper

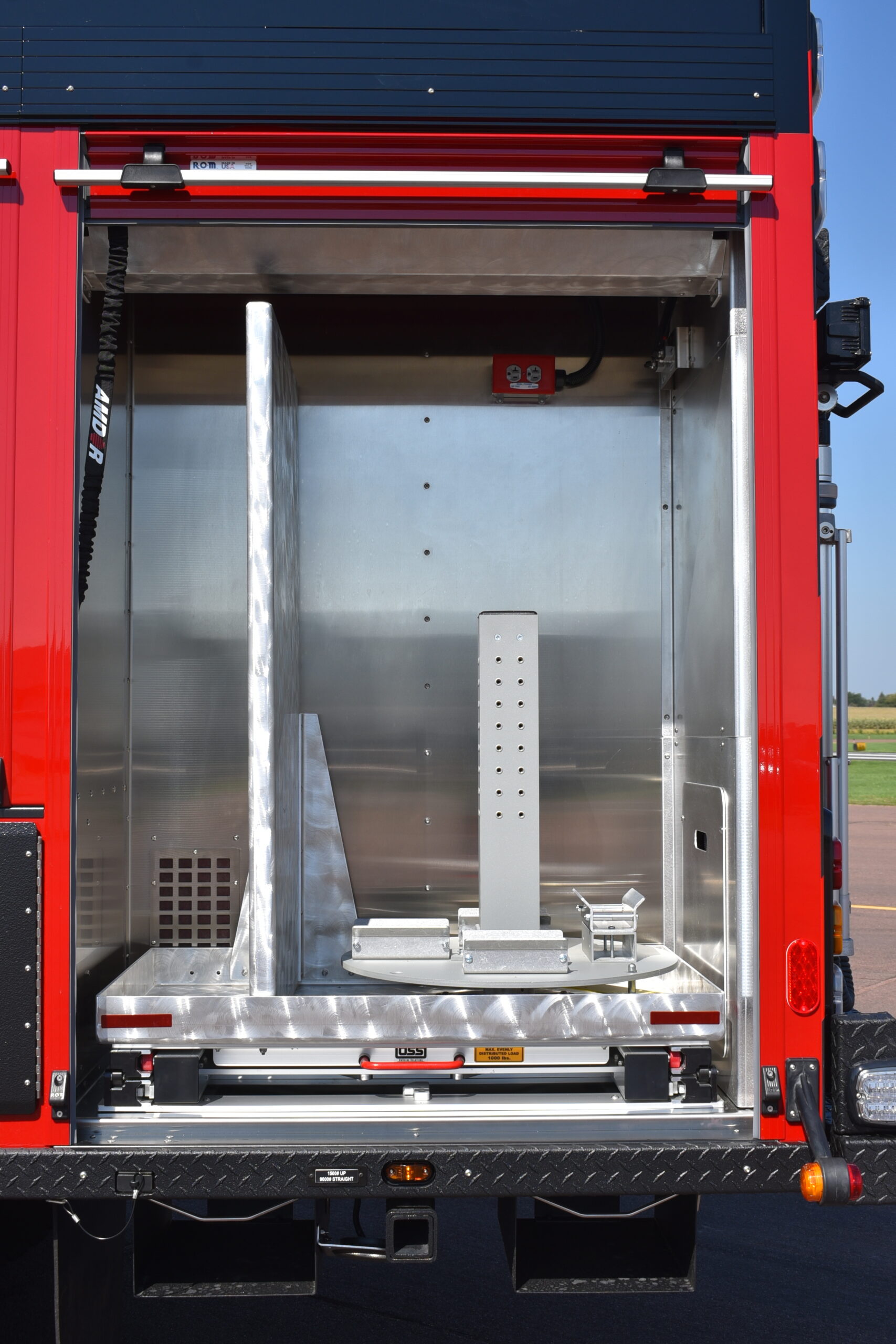

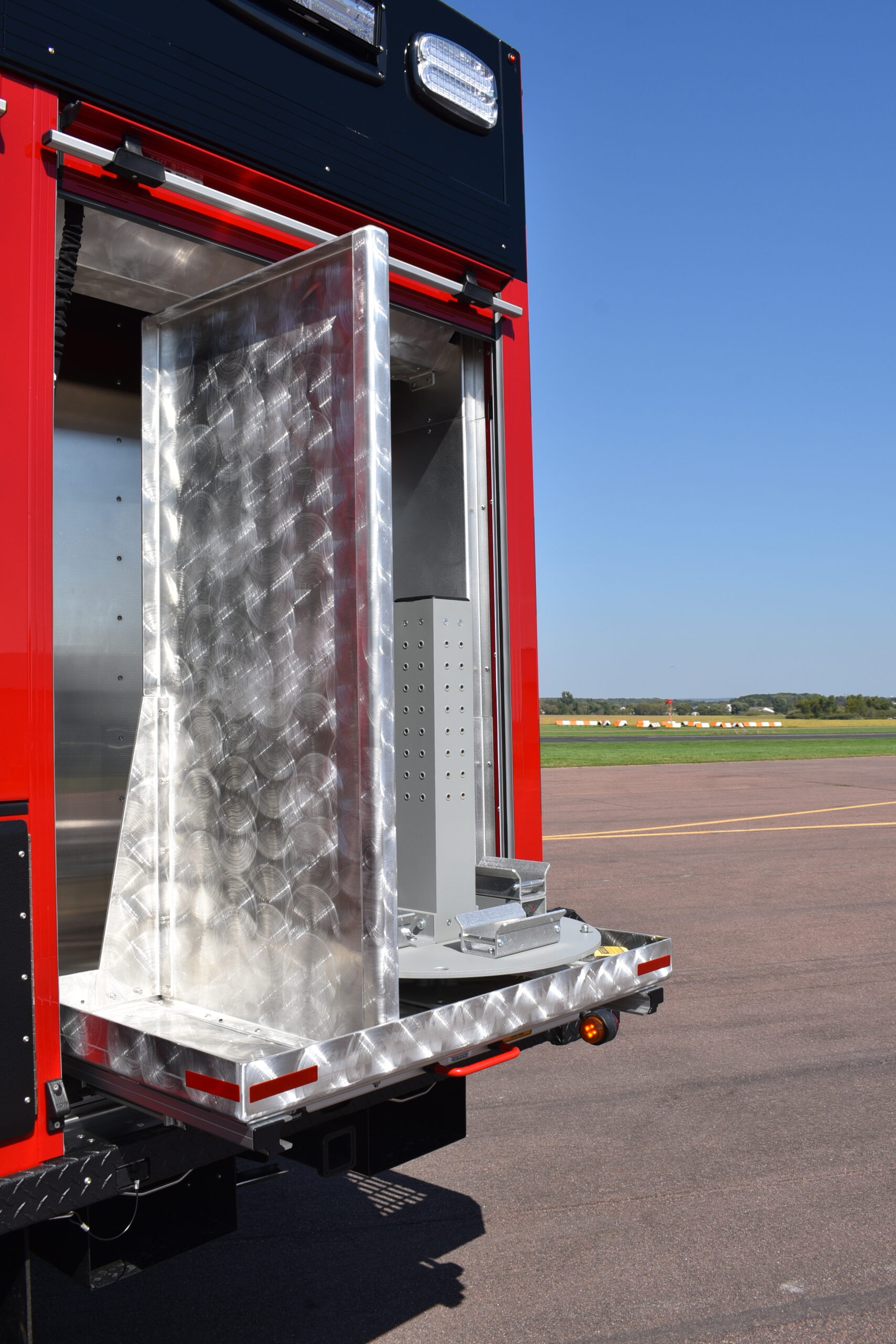

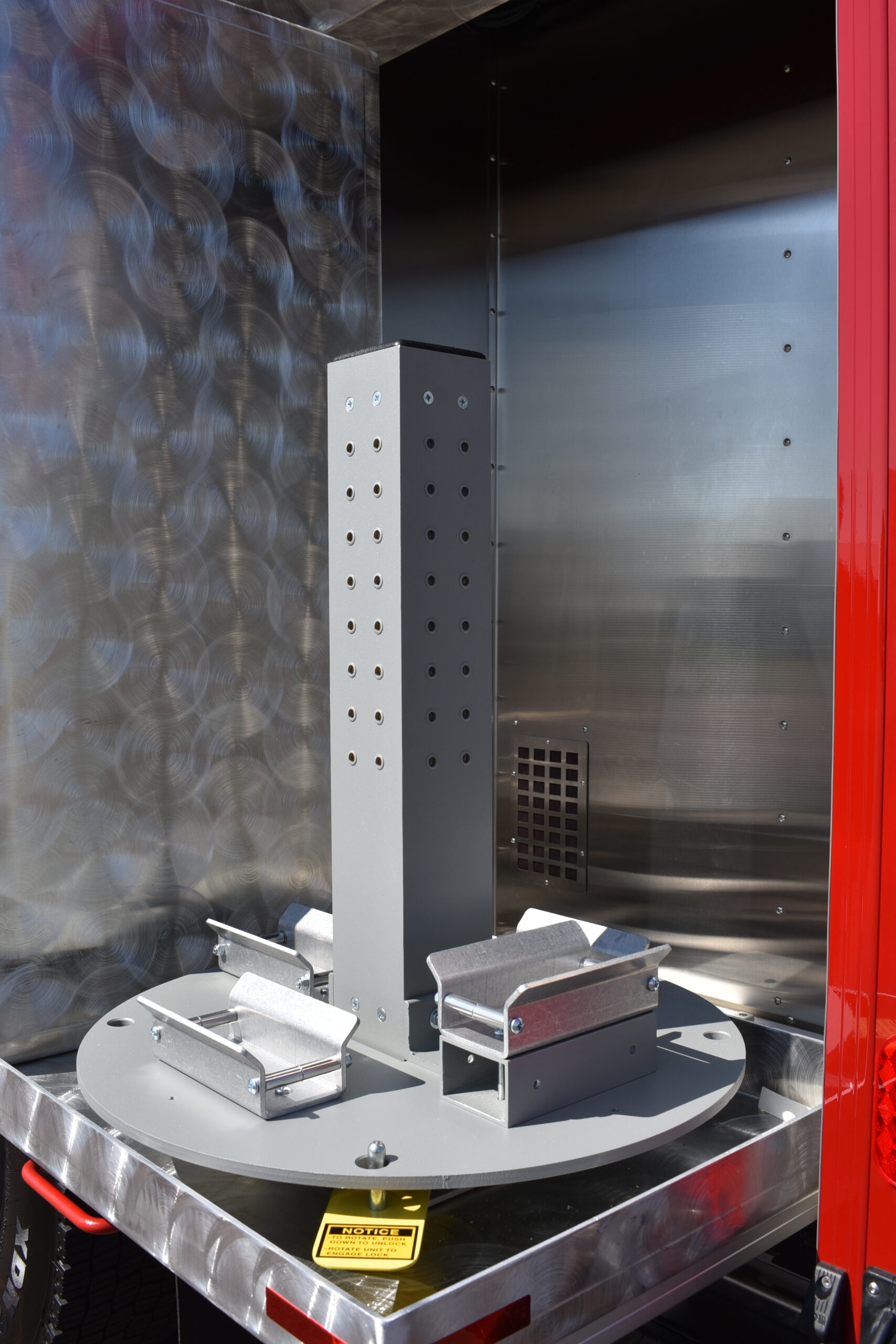

Lazy Susan Style Rescue Tool Storage
Harrison 10kW Hydraulic Generator

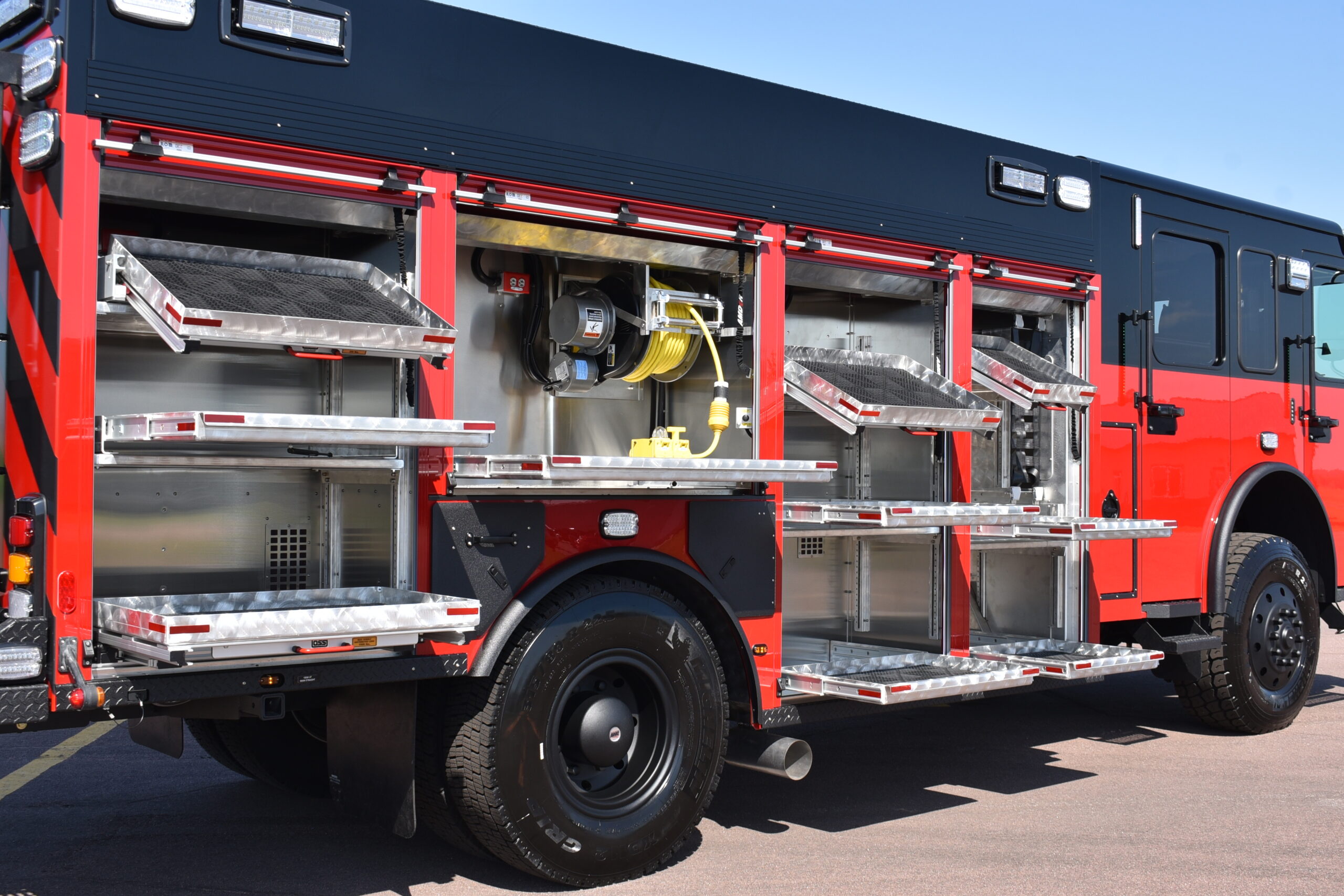

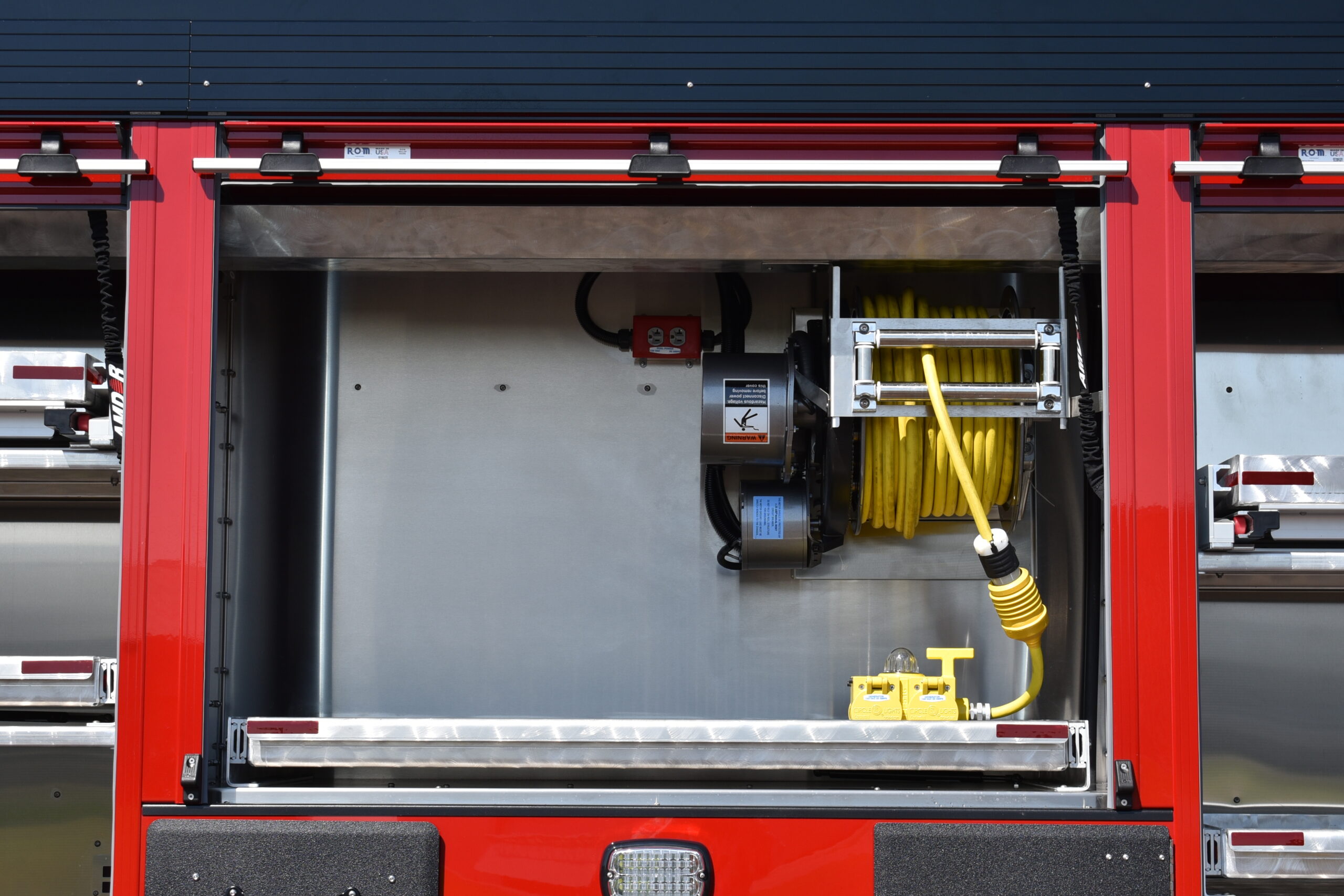

Power Rewind Electric Cord Reels

Emergency Warning Devices

Federal Q2B Electro Mechanical Siren
Dual Air Horns
Whelen Electronic Siren
Cast Products Electronic Siren Speakers
Whelen LED Warning Lights
Whelen Freedom LED Lightbar
Whelen LED Traffic Advisor

Exterior Lighting

Under Cab and Under Body Lighting
Whelen LED Scene Lights
Storage Pods Under Lids Lights
LED Compartment Strip Lighting
Walkway and Step Lighting
LED Marker Lights
Whelen LED Tail Lighting
Whelen Pioneer Removable LED Flood Lights

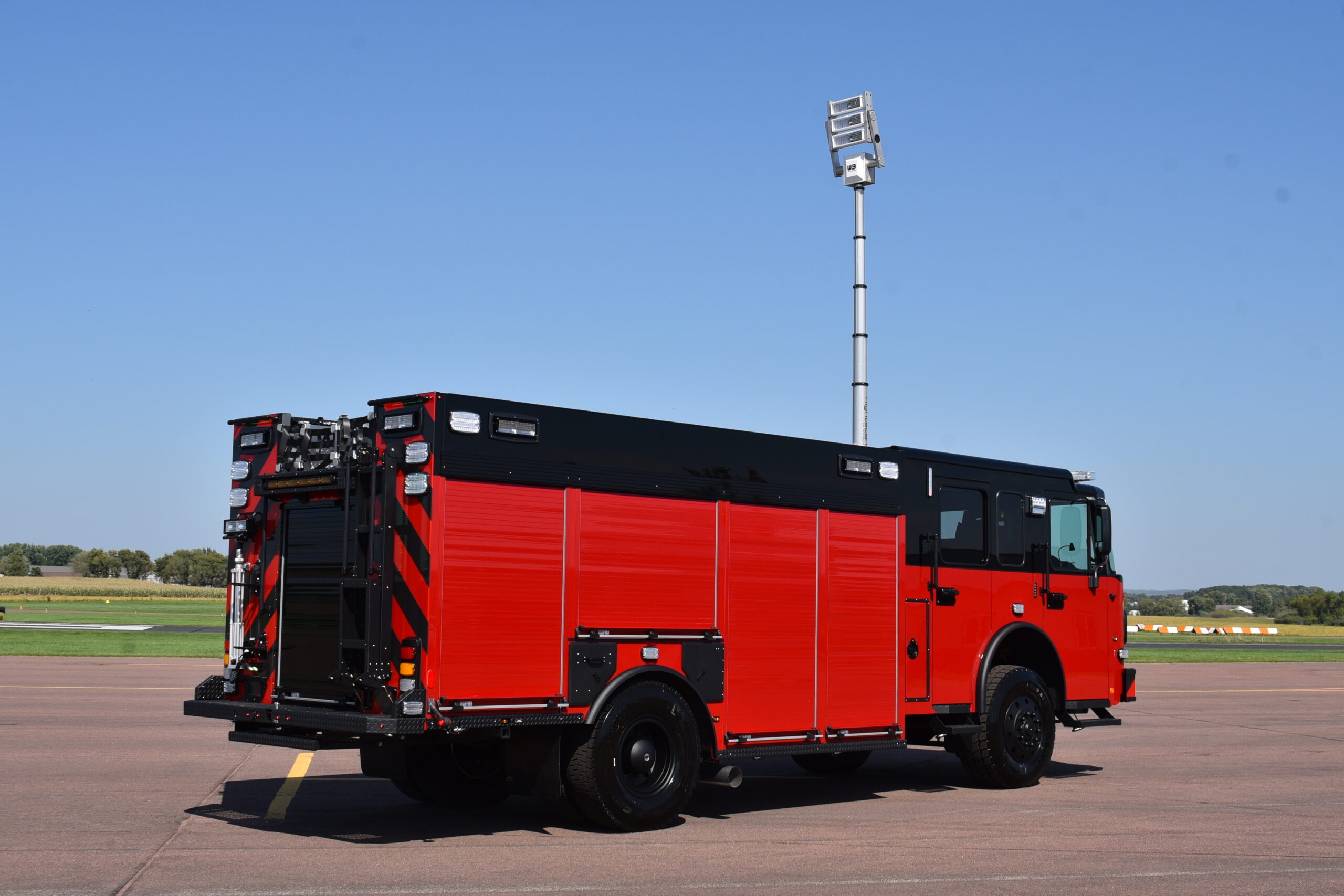

Will-Burt Nightscan Light Tower

Vehicle Dimensions

Overall Height 9' 11"
Overall Length 30' 4"
Wheelbase 186"
Weight w/ Water 37,030 Lbs.
