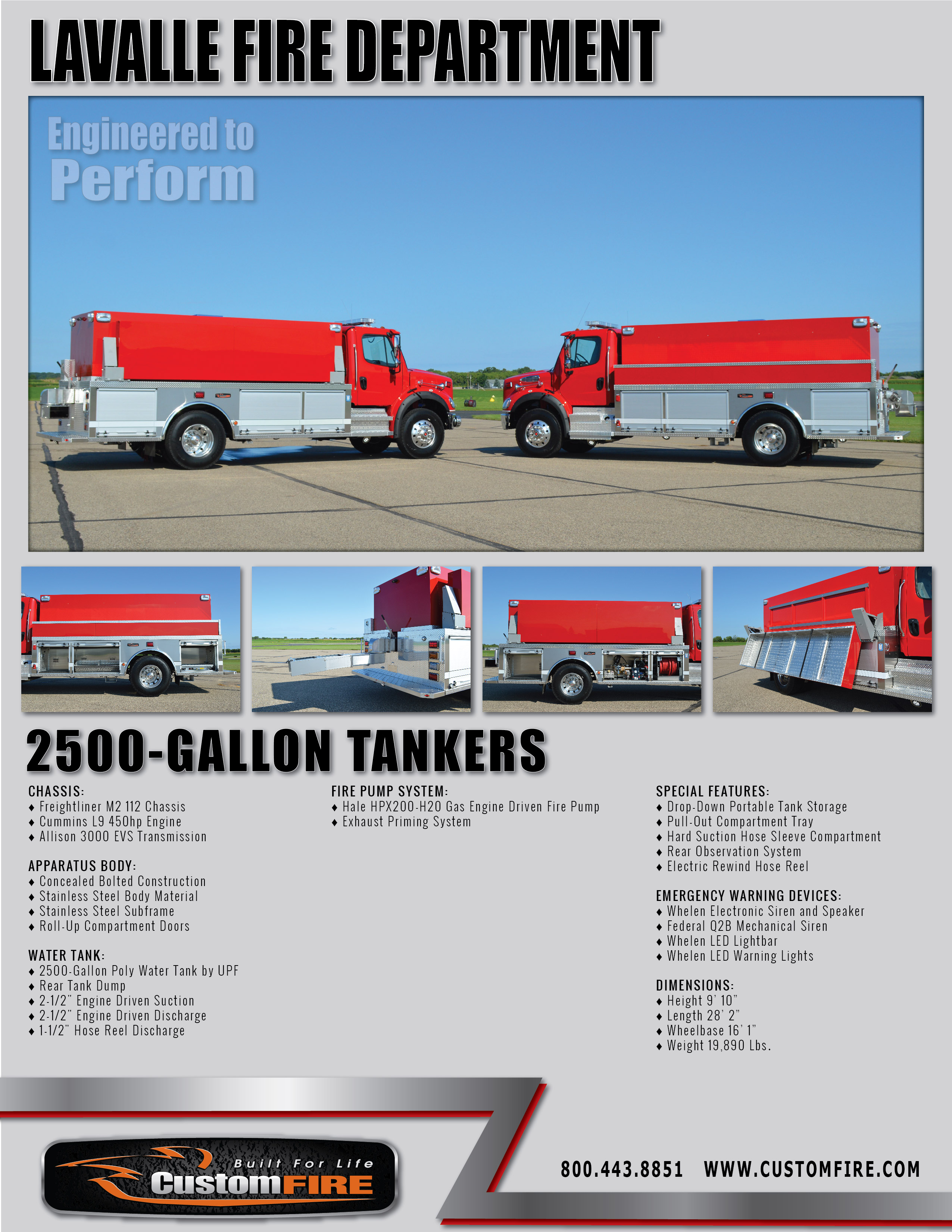

2500-Gallon Tenders
Custom built for La Valle Fire Department — La Valle, WI
Freightliner Chassis, Bolted Stainless Steel Body, Hale Engine Driven Pump, 2500-Gallon Water Tank, Drop-Down Portable Tank Storage, Pull-Out Compartment Tray, Electric Rewind Hose Reel, LED Emergency Lighting
Truck Type : Tenders
Cab Type : 2300 Gallons or More, Commercial Cab
Deployed : August, 2019
Chassis Model
Freightliner M2 112 Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission
Apparatus Body
Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors
Fire Pump System
Hale HPX200-H20 Gas Engine Driven Fire Pump
Exhaust Priming System
Booster Tank
2500-Gallon Poly Water Tank by UPF
Rear Tank Dump
2-1/2" Engine Driven Suction
2-1/2" Engine Driven Discharge
1-1/2" Hose Reel Discharge
Special Features
Drop-Down Portable Tank Storage
Pull-Out Compartment Tray
Hard Suction Hose Sleeve Compartment
Rear Observation System
Electric Rewind Hose Reel
Emergency Warning Devices
Whelen Electronic Siren and Speaker
Federal Q2B Mechanical Siren
Whelen LED Lightbar
Whelen LED Warning Lights
Exterior Lighting
LED Marker Lights
Whelen LED Tail Lighting
Vertical Strip Compartment Lighting
Under Cab and Under Body Lights
Vehicle Dimensions
Overall Height 9' 10"
Overall Length 28' 2"
Wheelbase 16' 1"
Weight 19,890 Lbs.
