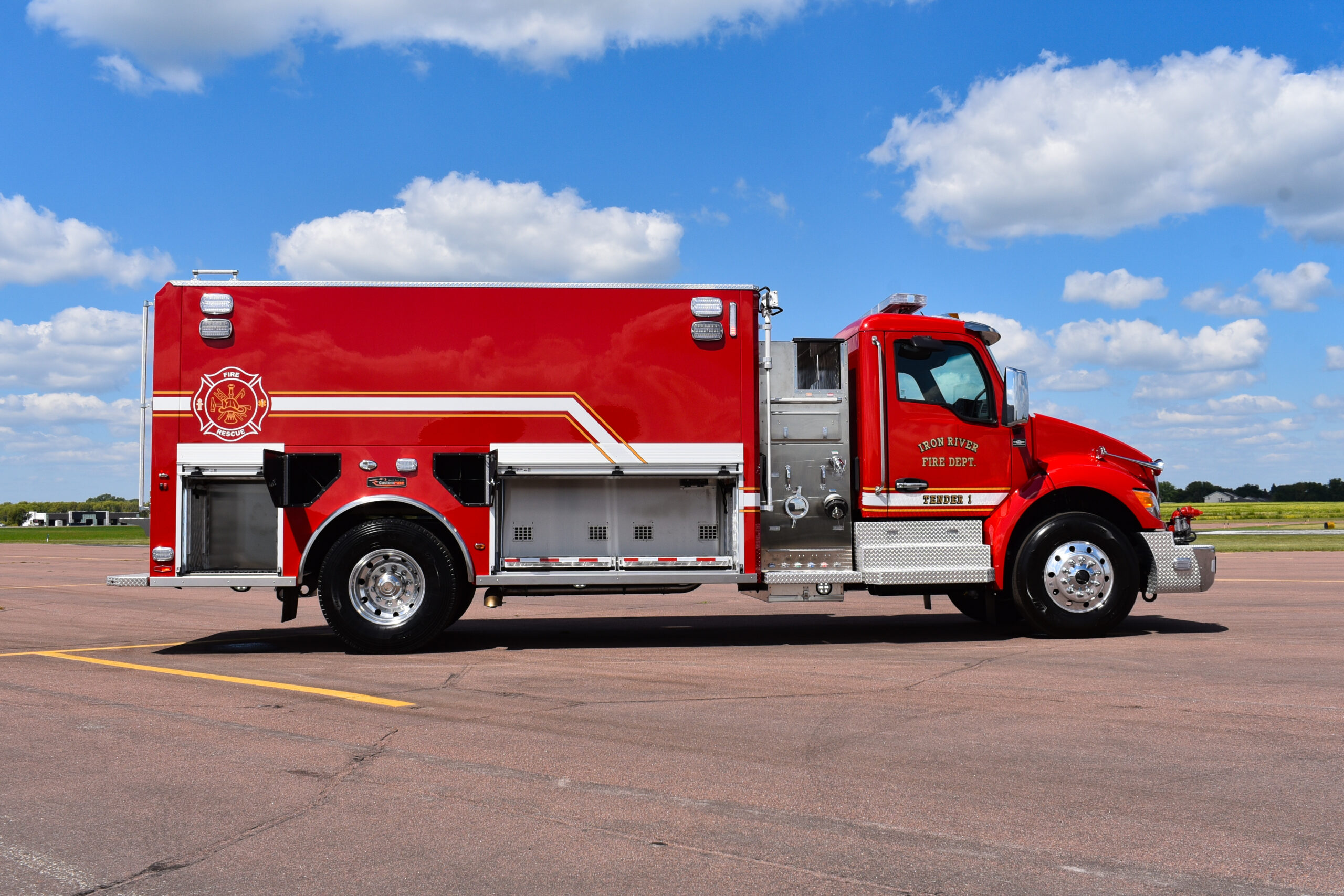

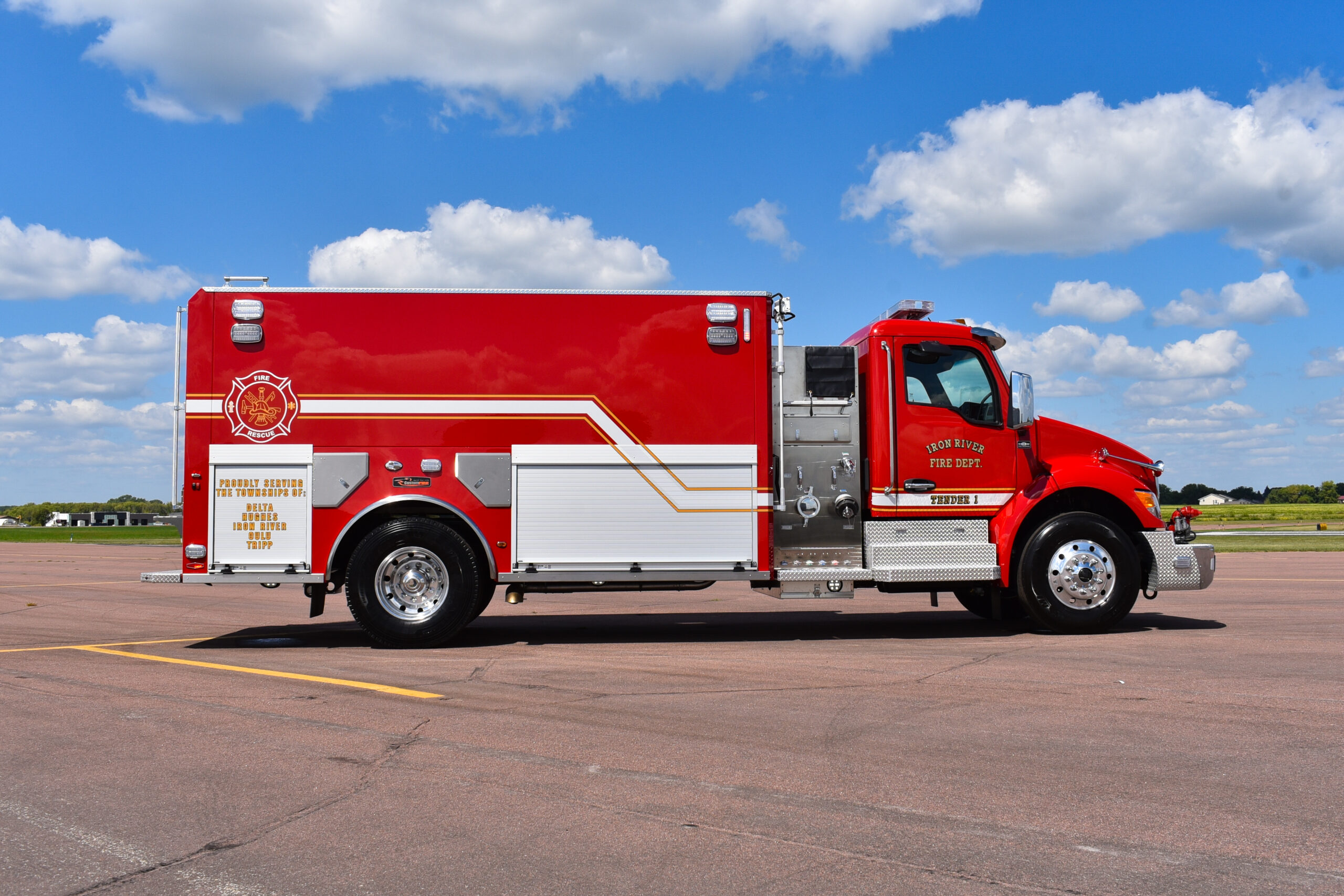

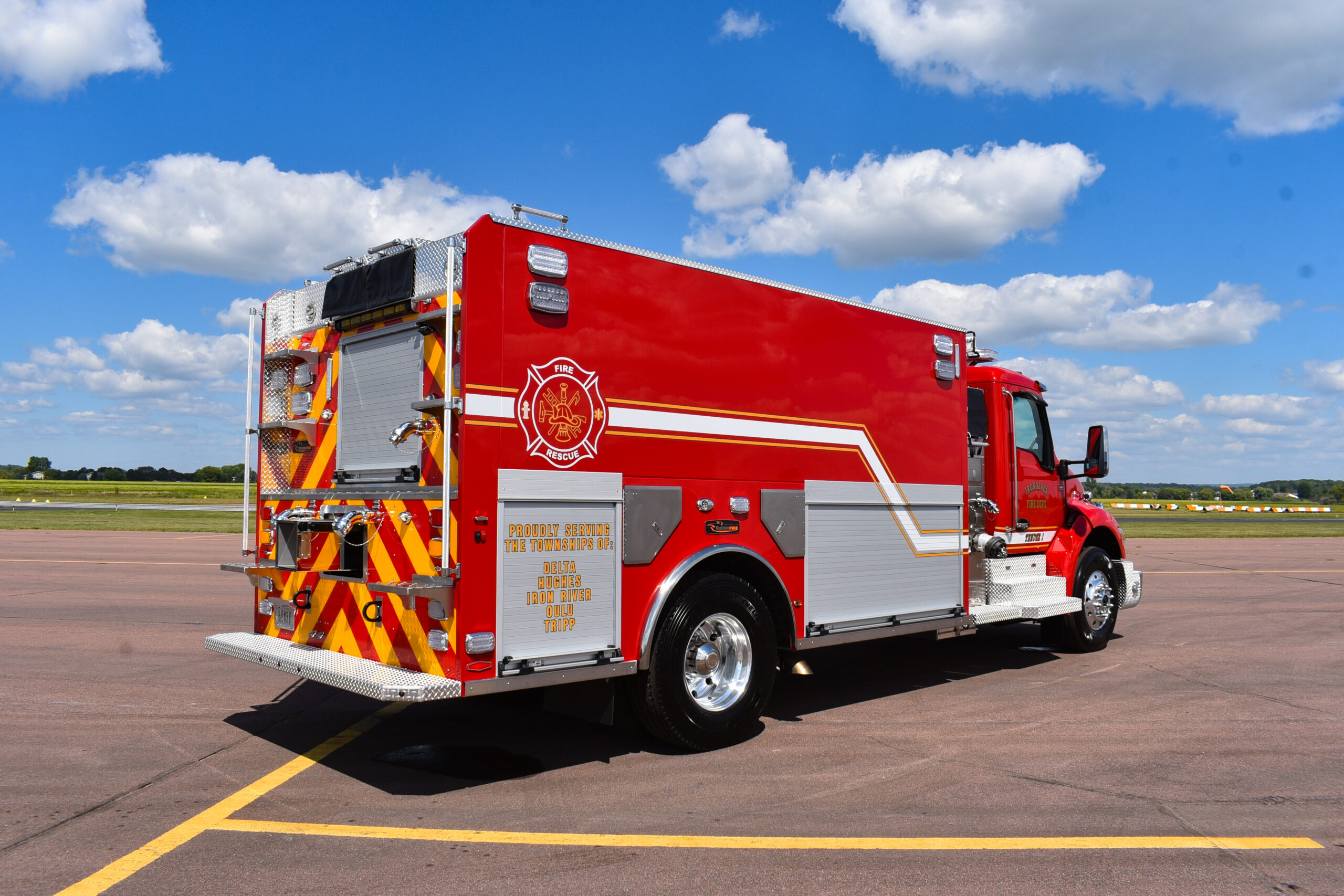

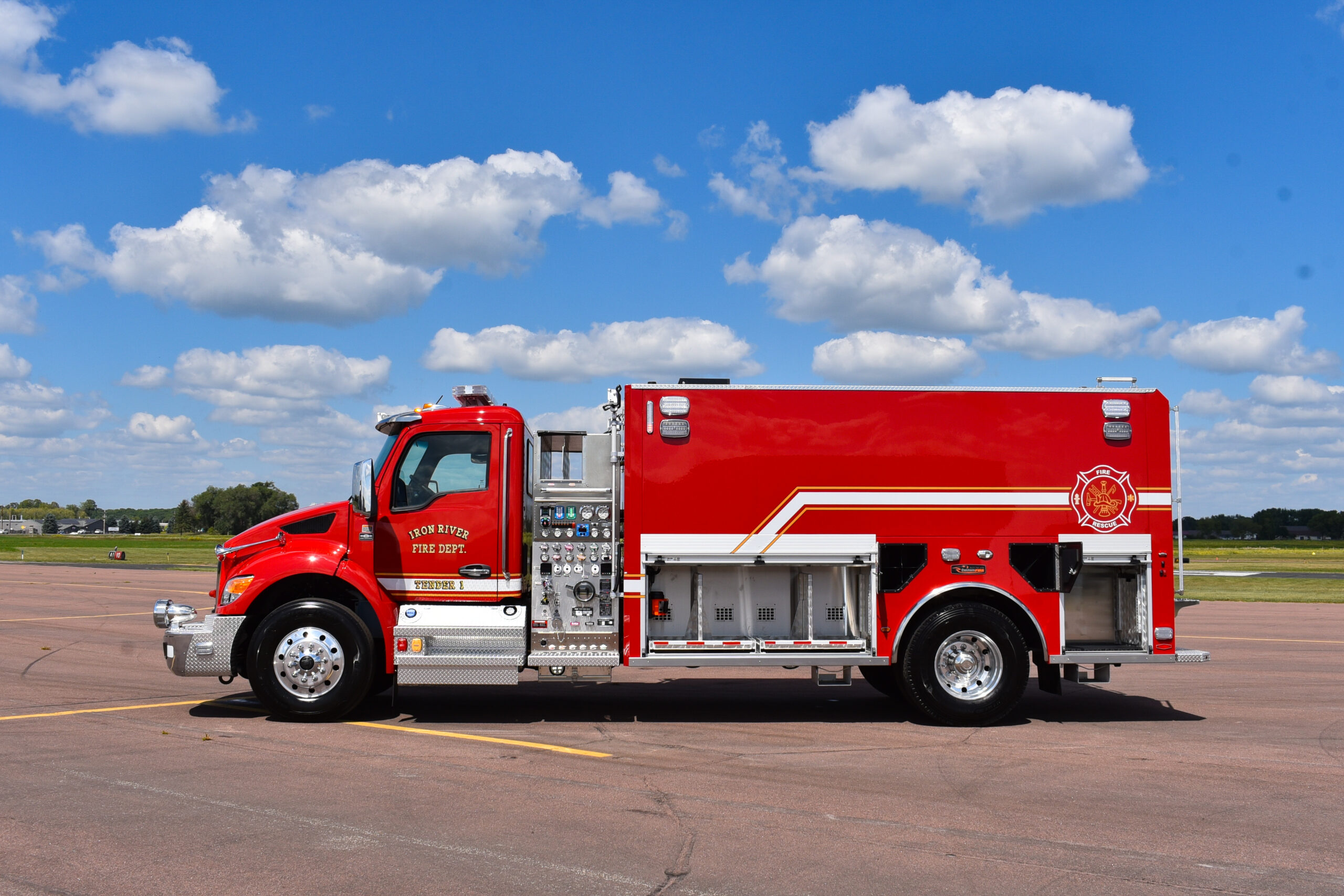

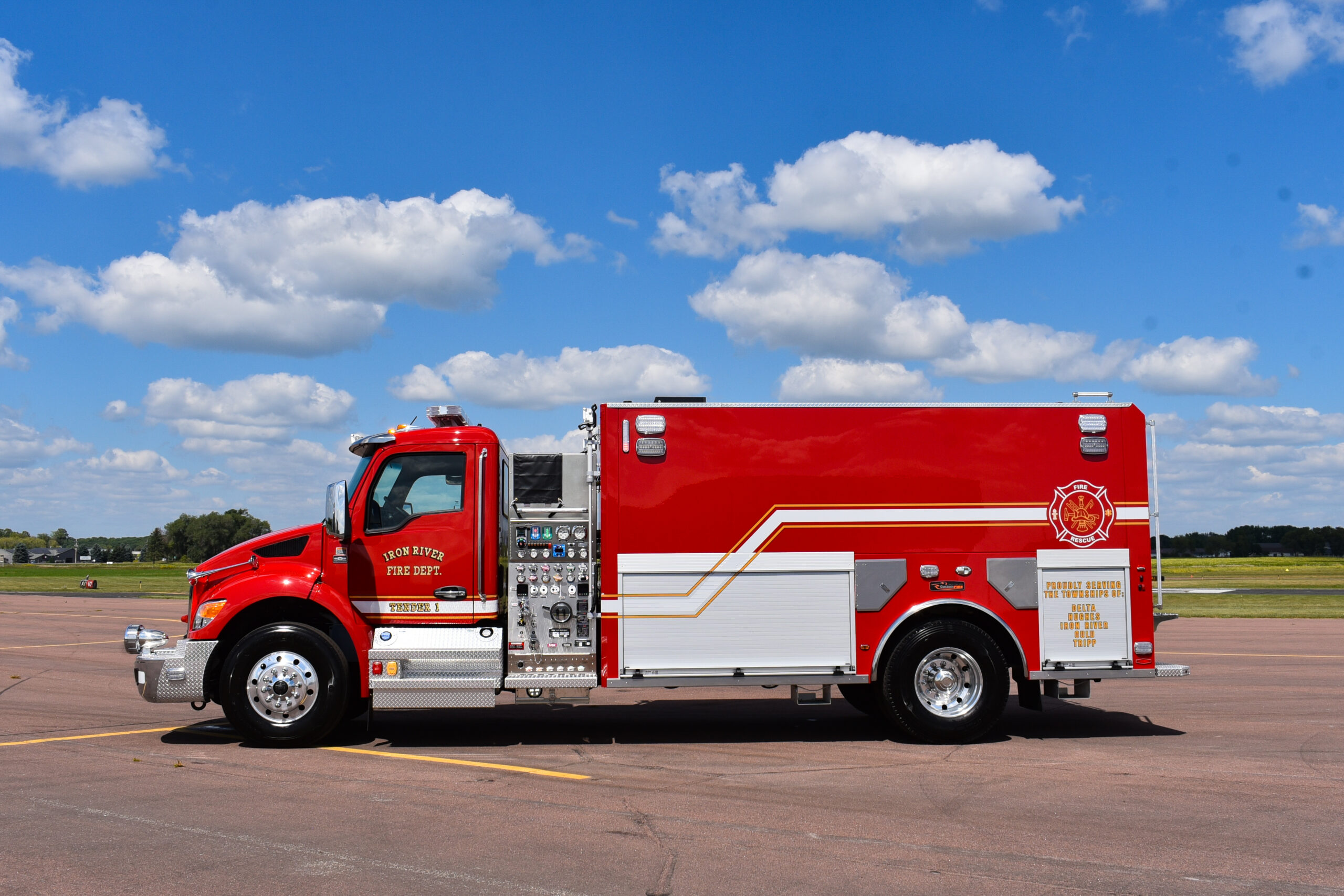

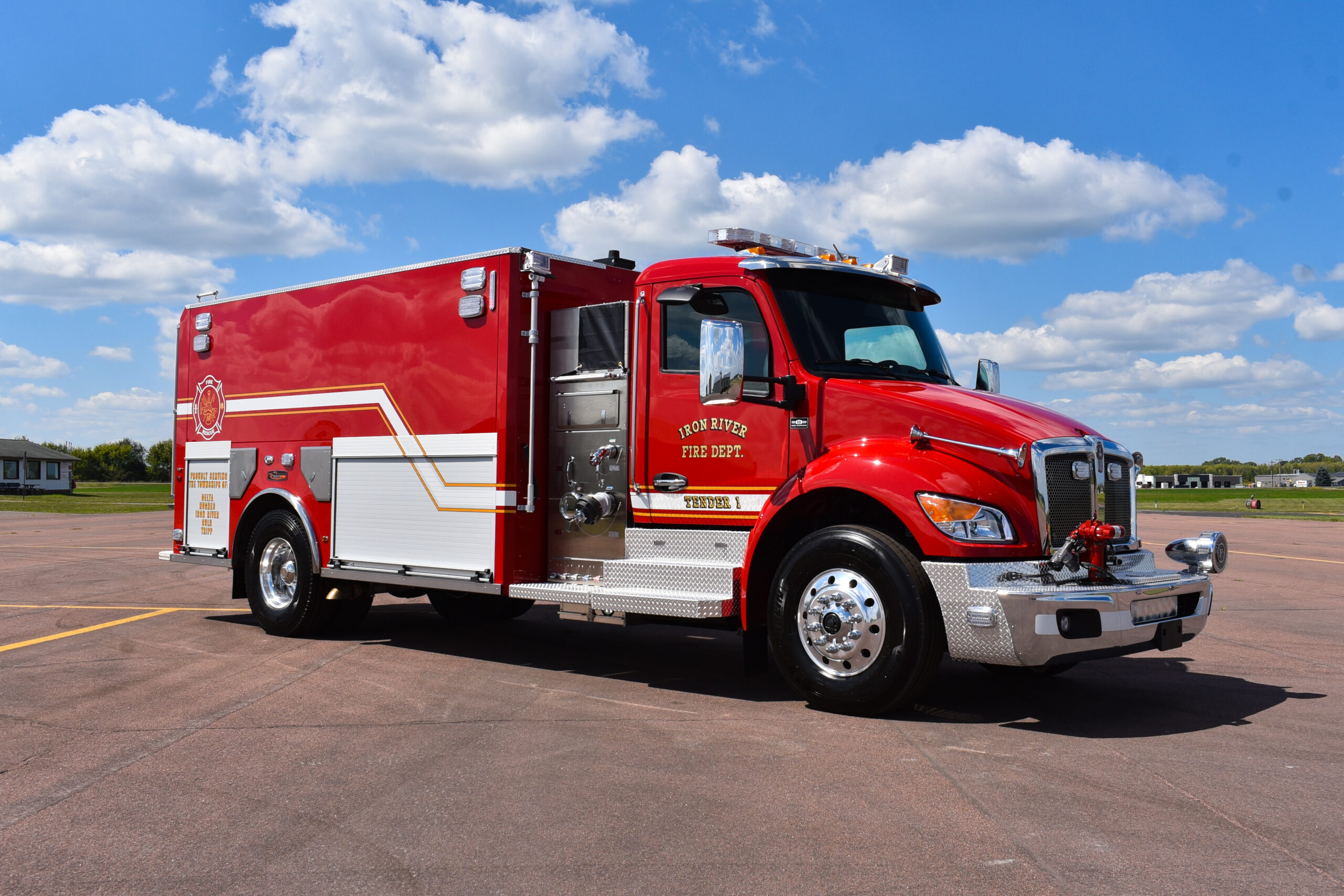

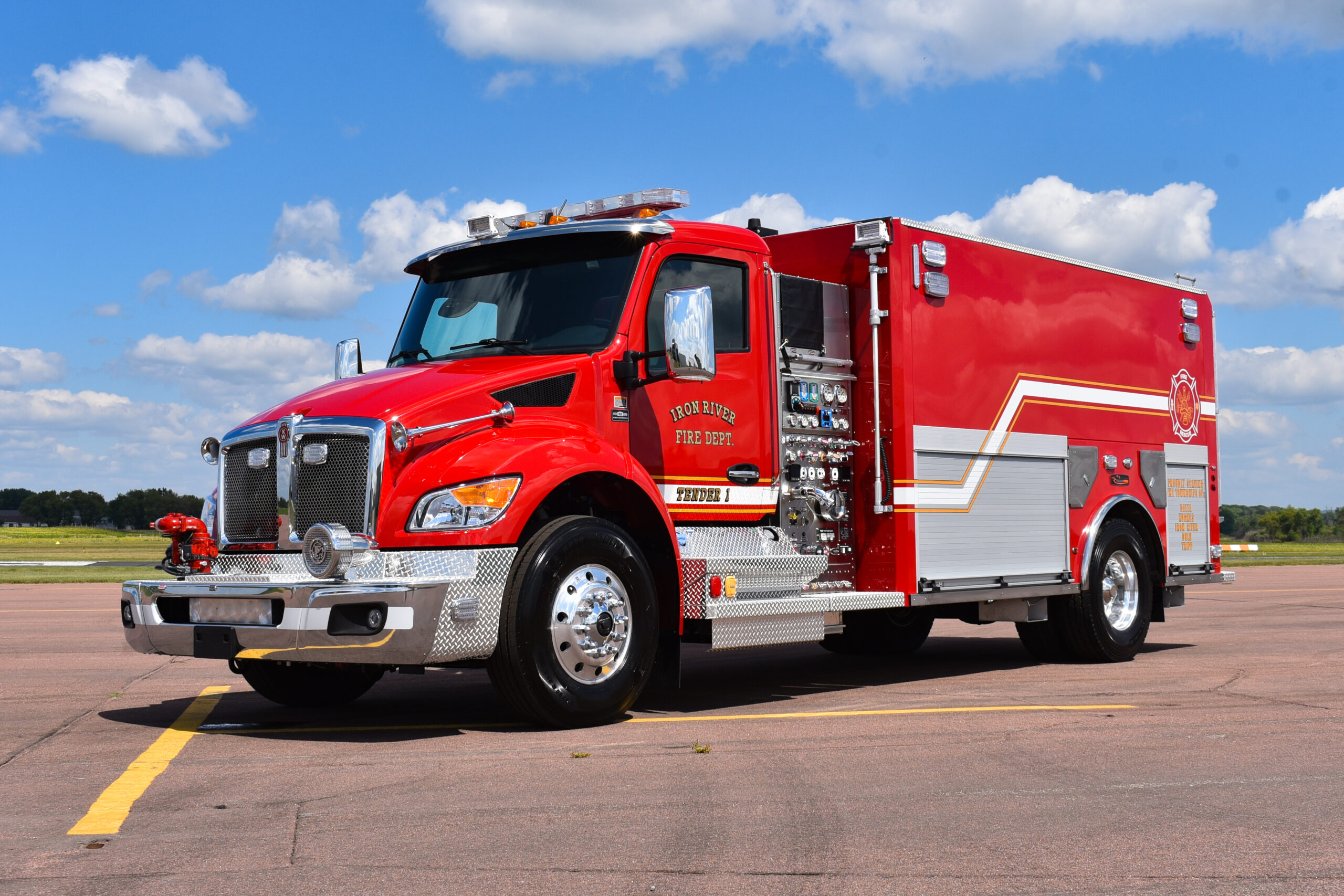

Pumper Tender
Custom built for Iron River Fire Department — Iron River, WI
Fire Truck: Kenworth Chassis, Bolted Stainless Steel Body, Stainless Steel Subframe, Waterous 1250gpm PTO Driven Fire Pump, 2100-Gallon Water Tank, Pull-Out Compartment Trays, Slide-In Portable Tank Storage, Hinged Hosebed Covers, LED Emergency Lighting
Truck Type : Pumpers, Tenders
Cab Type : Commercial Cab, Less Than 2300 Gallons, Pumper Tankers, Side Mount
Chassis Model
Kenworth T480 Chassis
Paccar PX-9 450hp Engine
Allison 3000 EVS Transmission
51,000 Lbs. GVWR
Apparatus Body
Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe

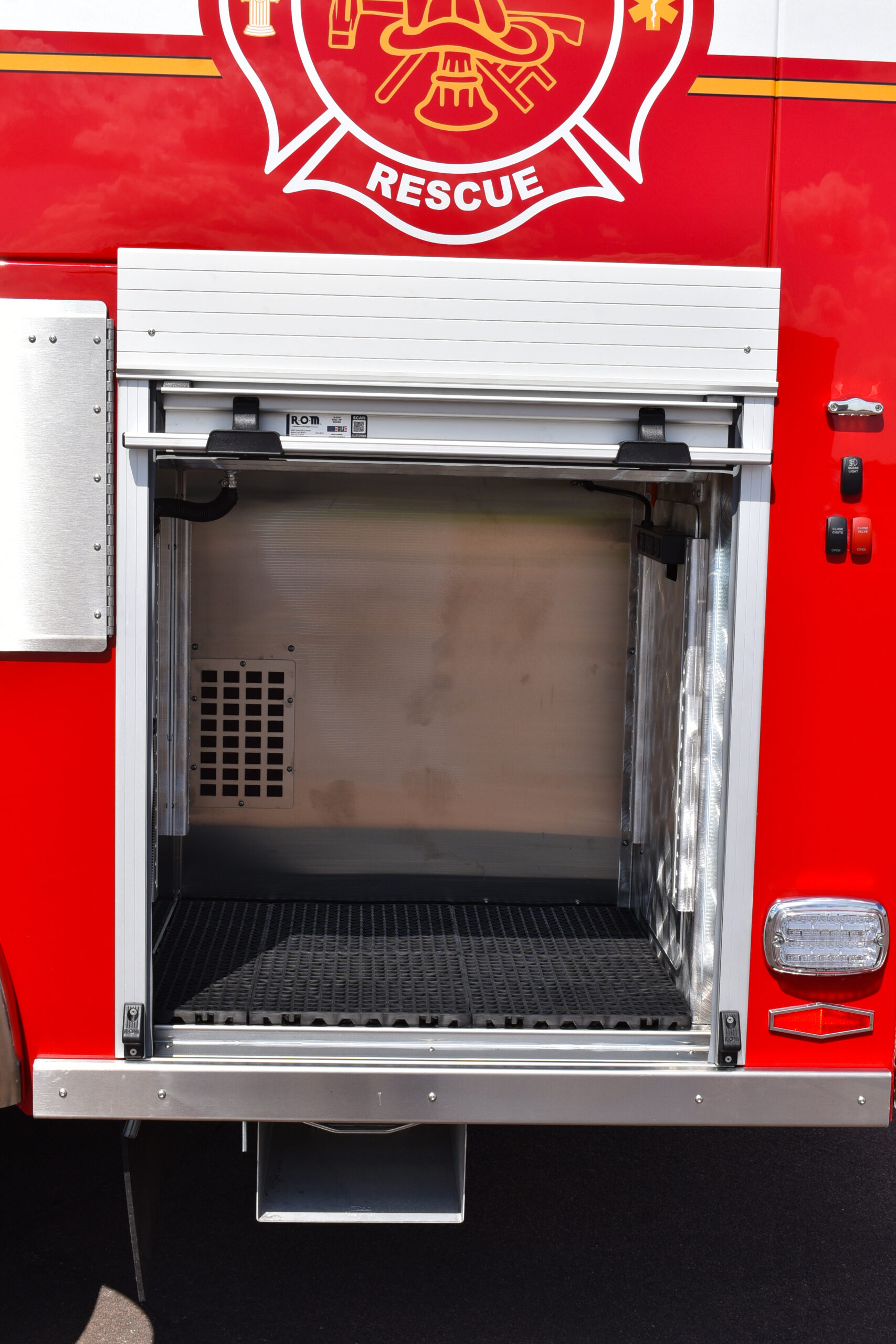

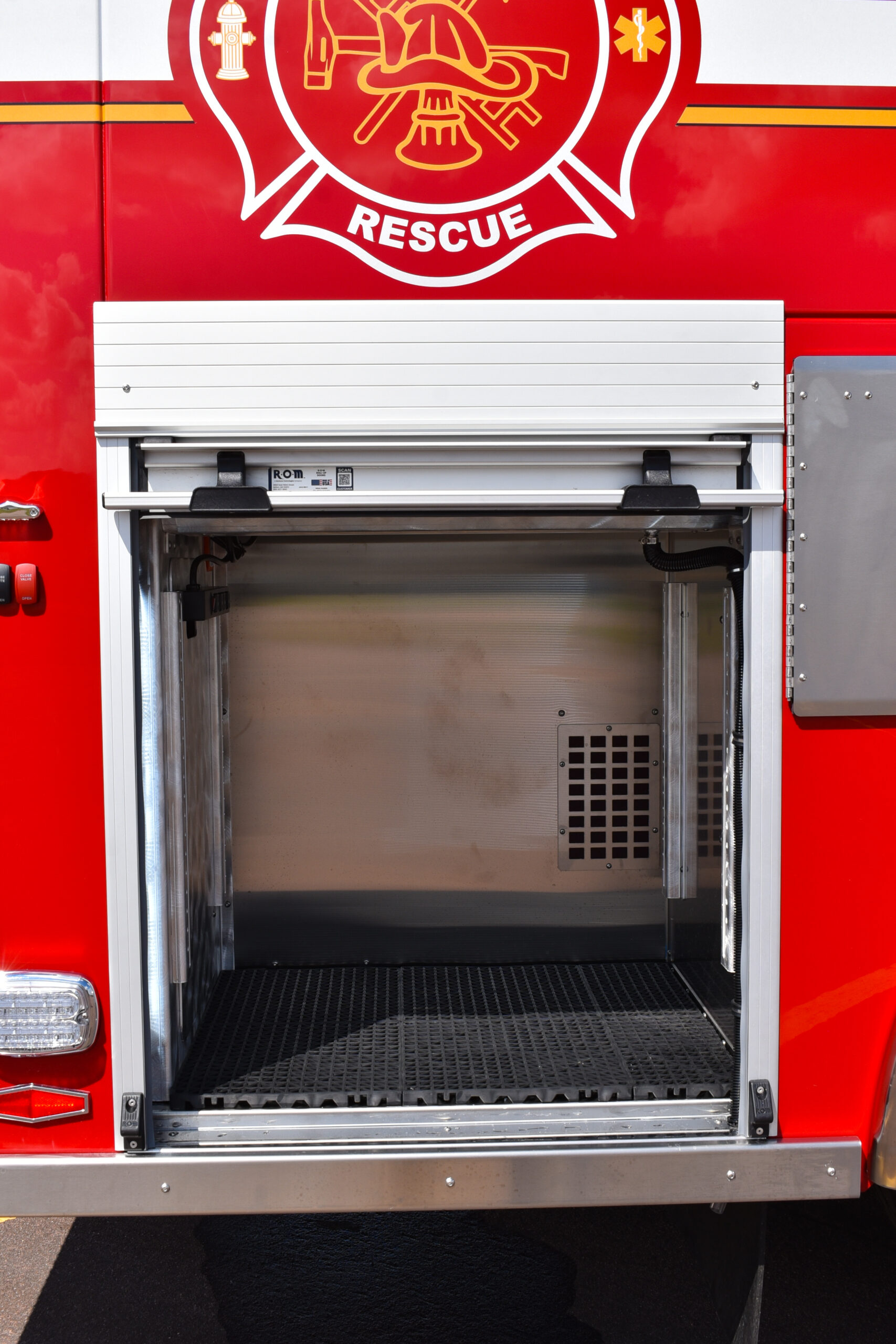

Roll-Up Compartment Doors

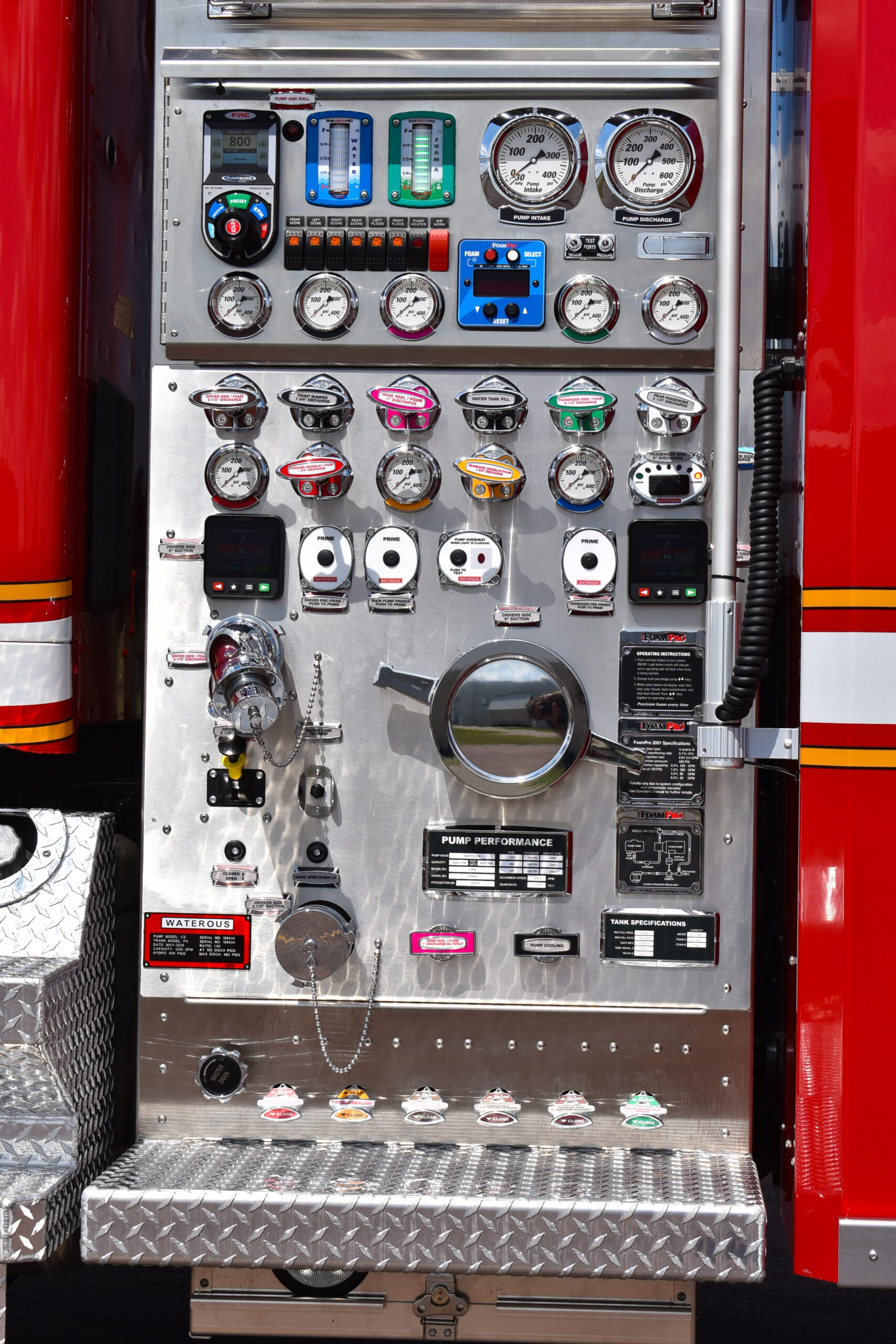

Fire Pump System
Waterous CSPA 1250gpm PTO Driven Pump
Waterous VPO Oil-Less Pump Primer
Fire Research PumpBoss Pressure Governor

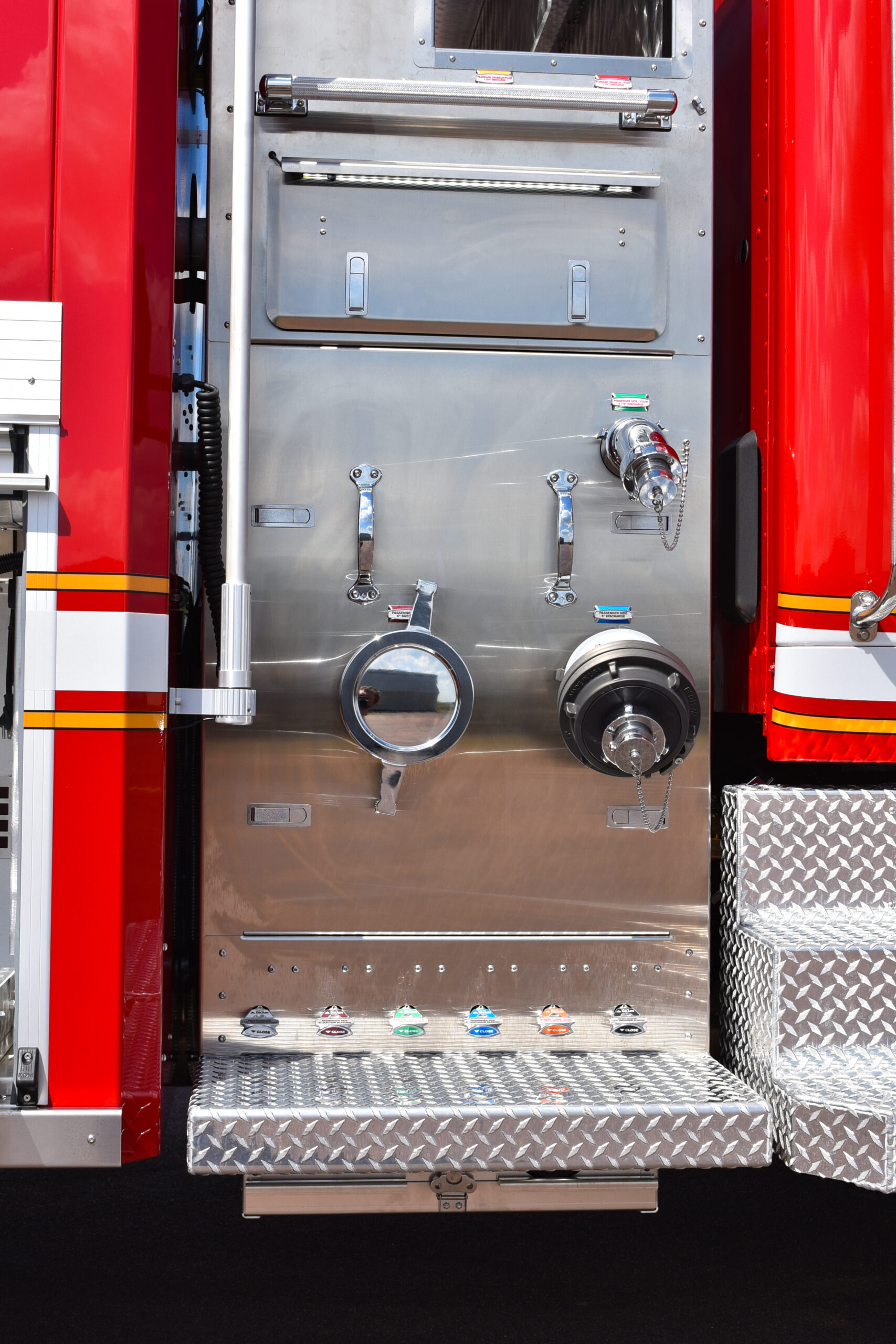

6" Passenger Side Suction
6" and 2.5" Driver Side Suction
2.5" Passenger Side Discharges
4" LDH Passenger Side Discharges
2.5" Rear Passenger Side Discharge
2.5" Driver Side Discharge

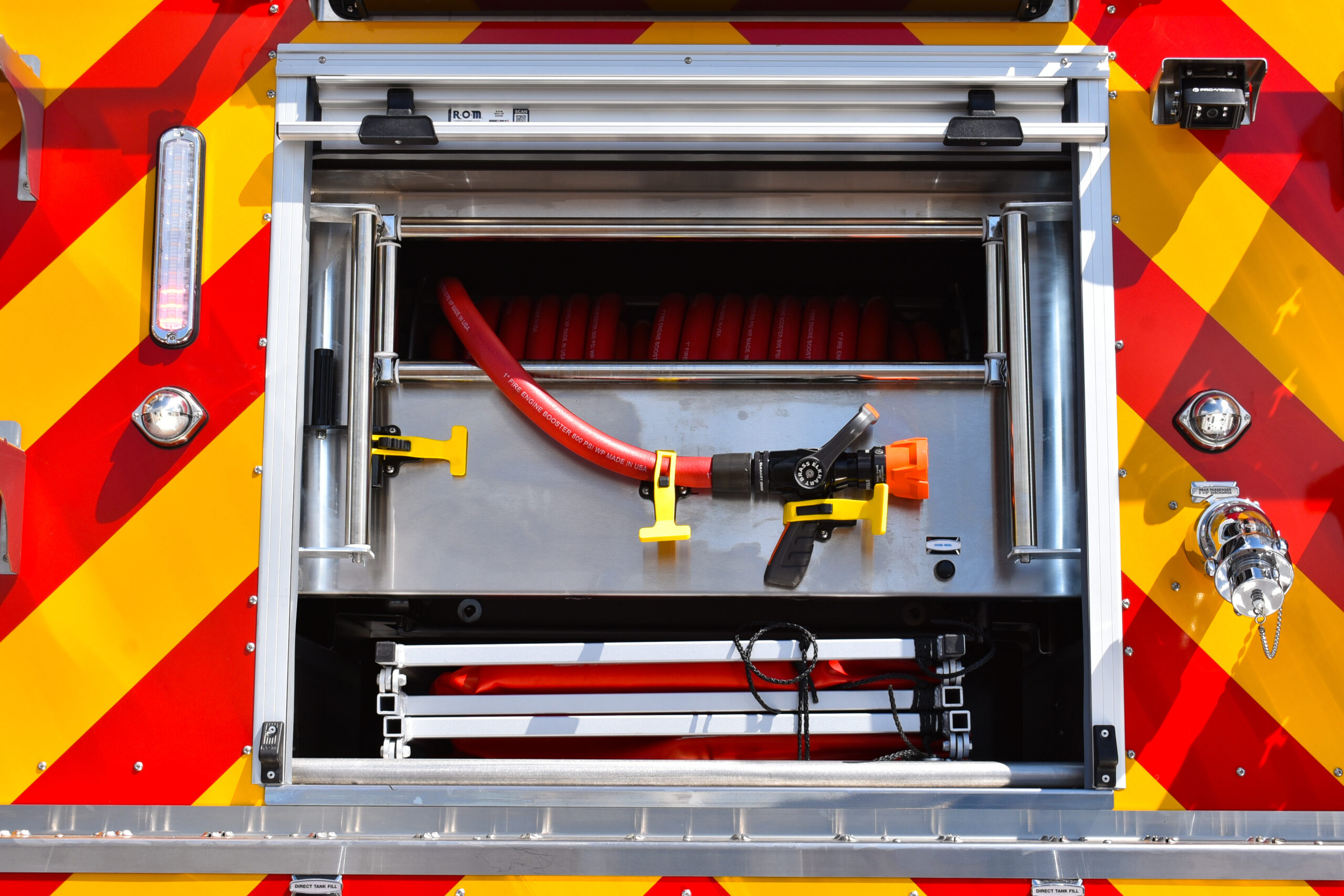

1" Hose Reel Discharge
2" Front Bumper Preconnect Discharge

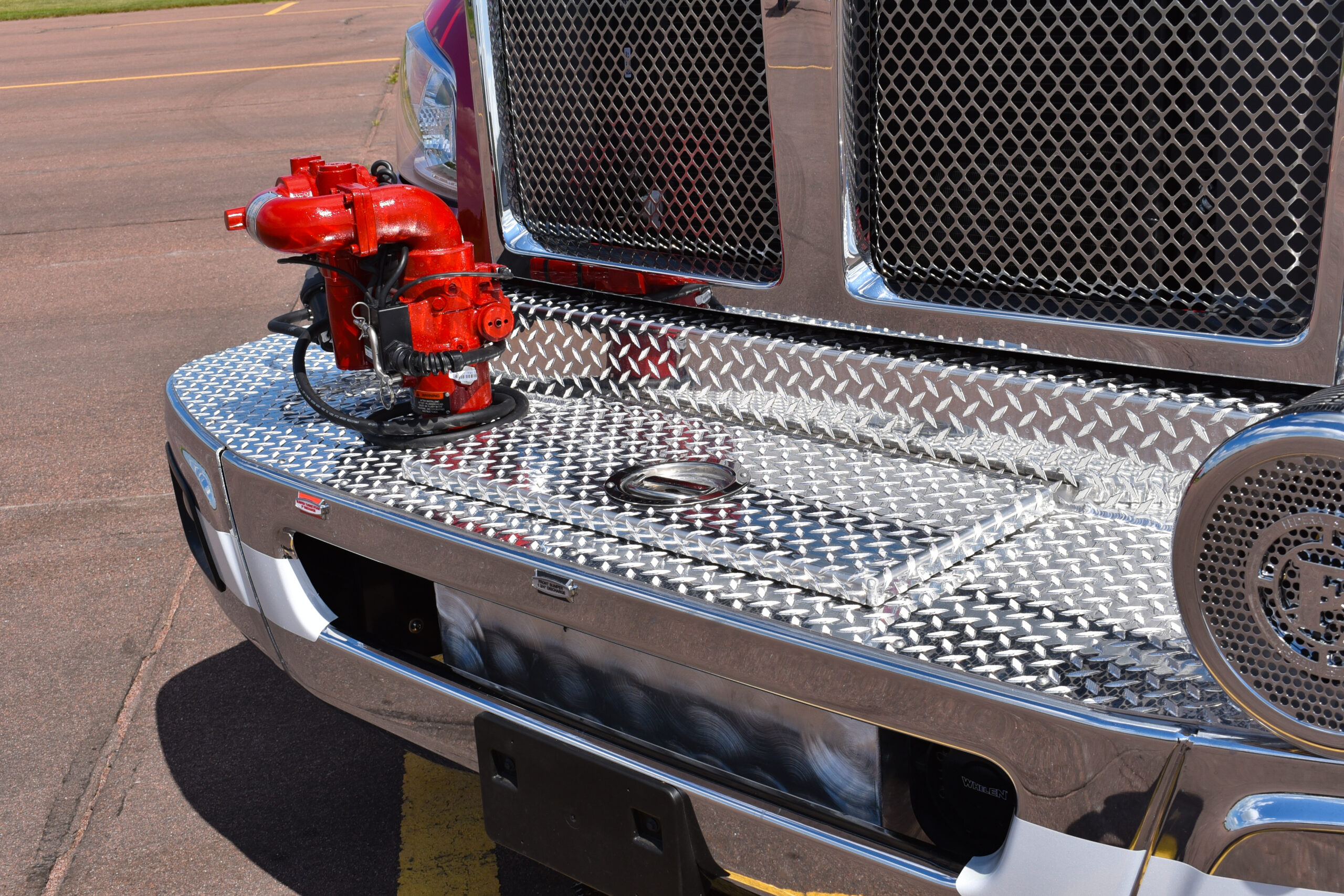

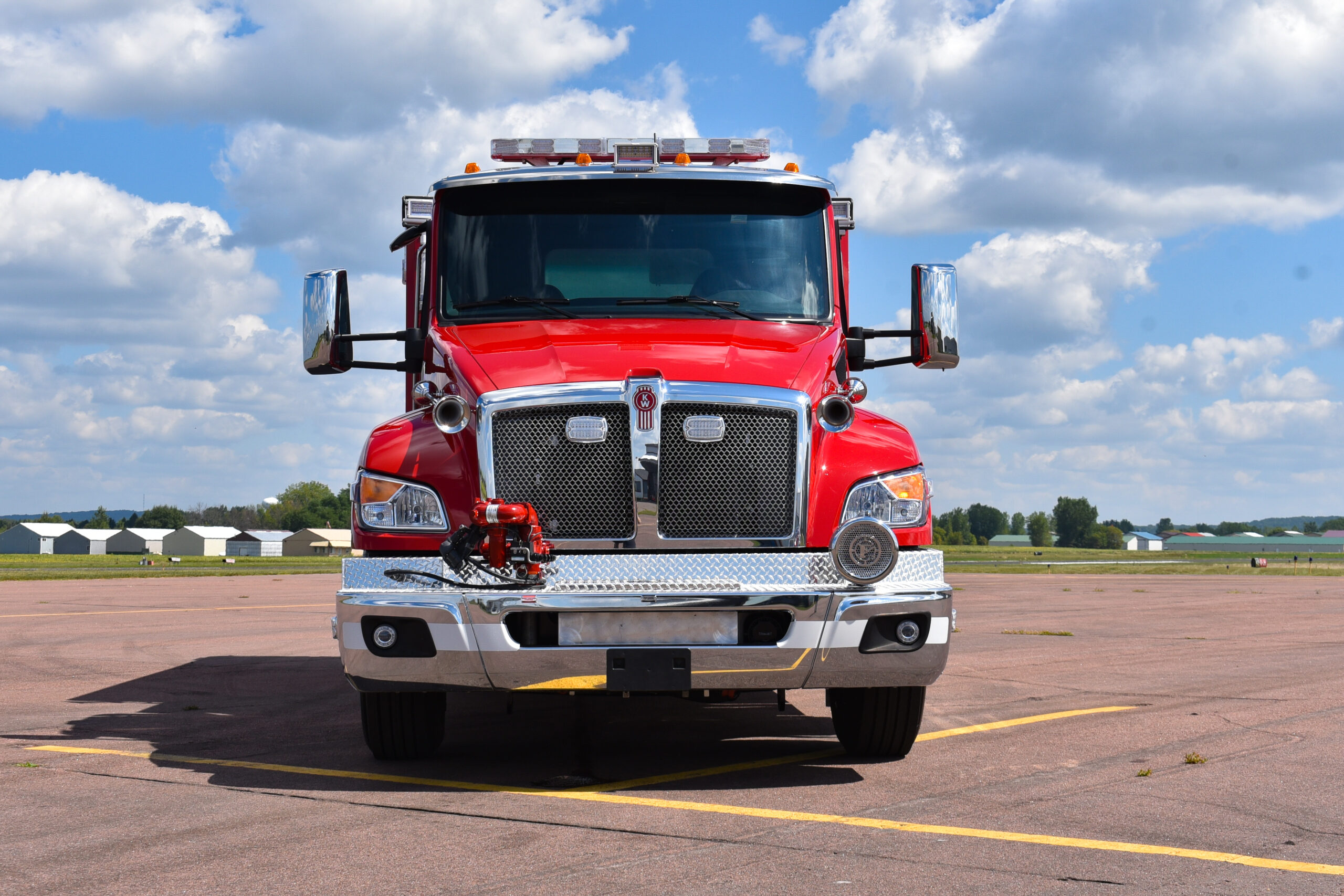

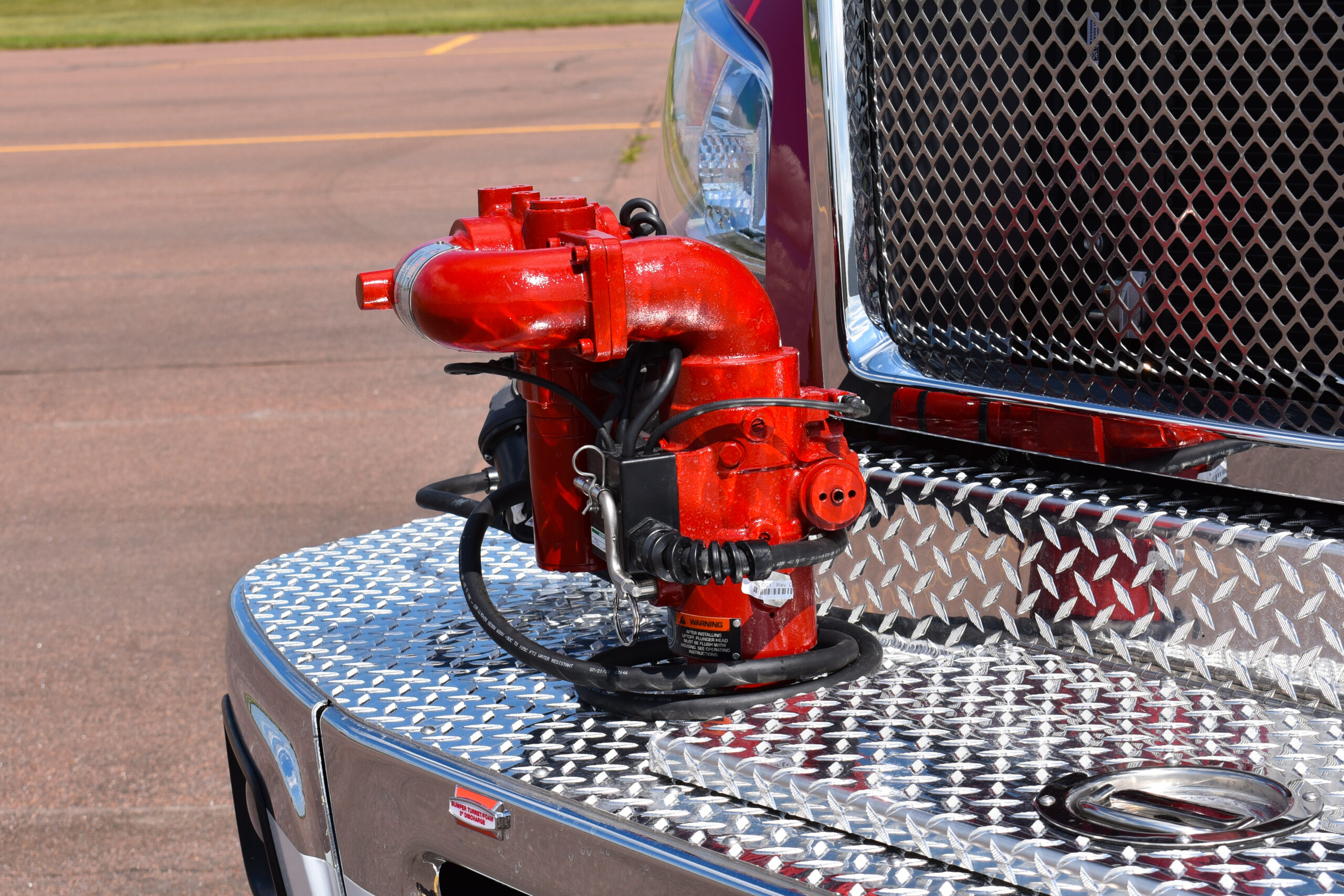

2" Front Bumper Turret Discharge
2.5" Forward Crosslay Discharge
2.5" Rearward Crosslay Discharge
Booster Tank
2100-Gallon Poly Water Tank by UPF
20-Gallon Foam Cell

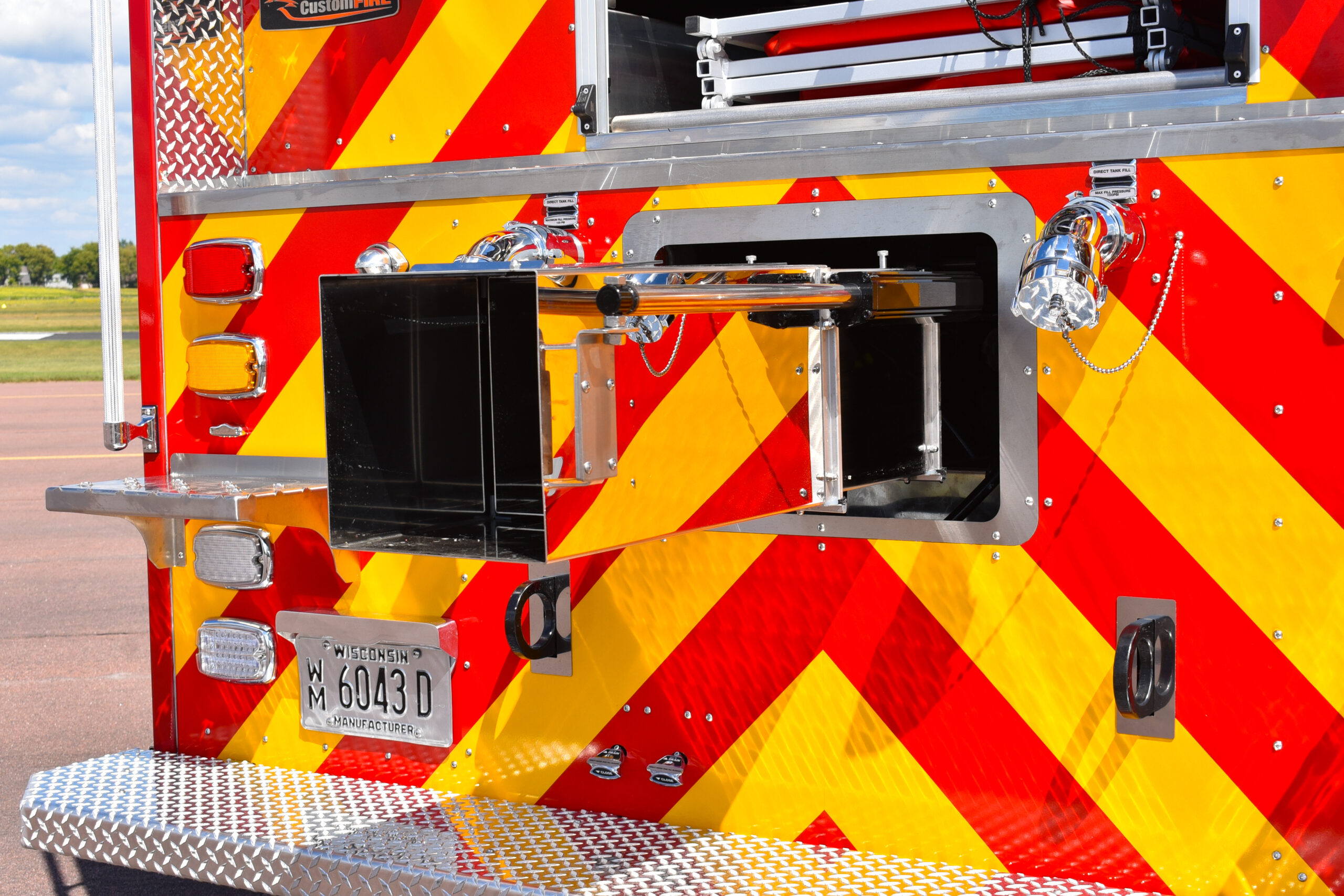

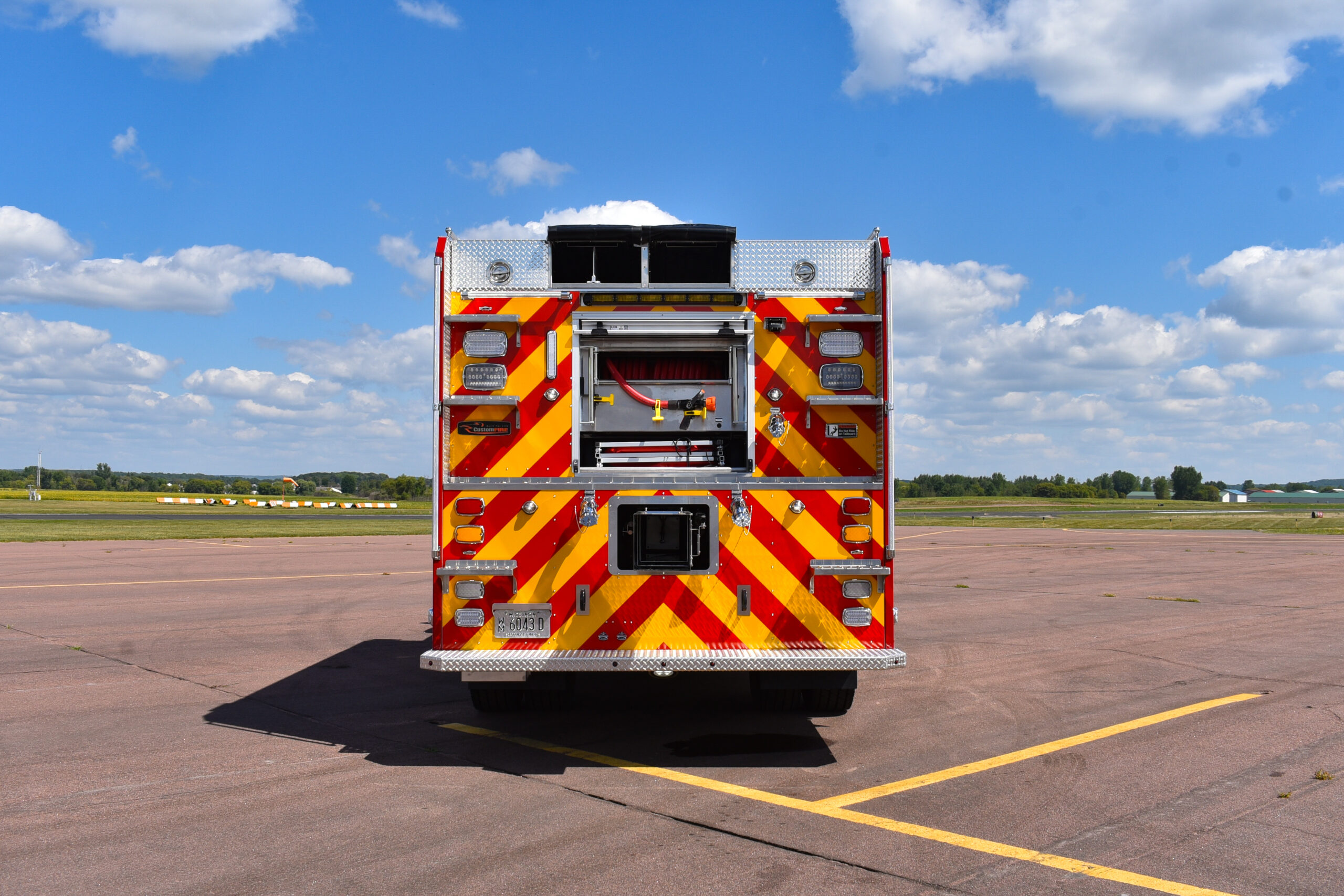

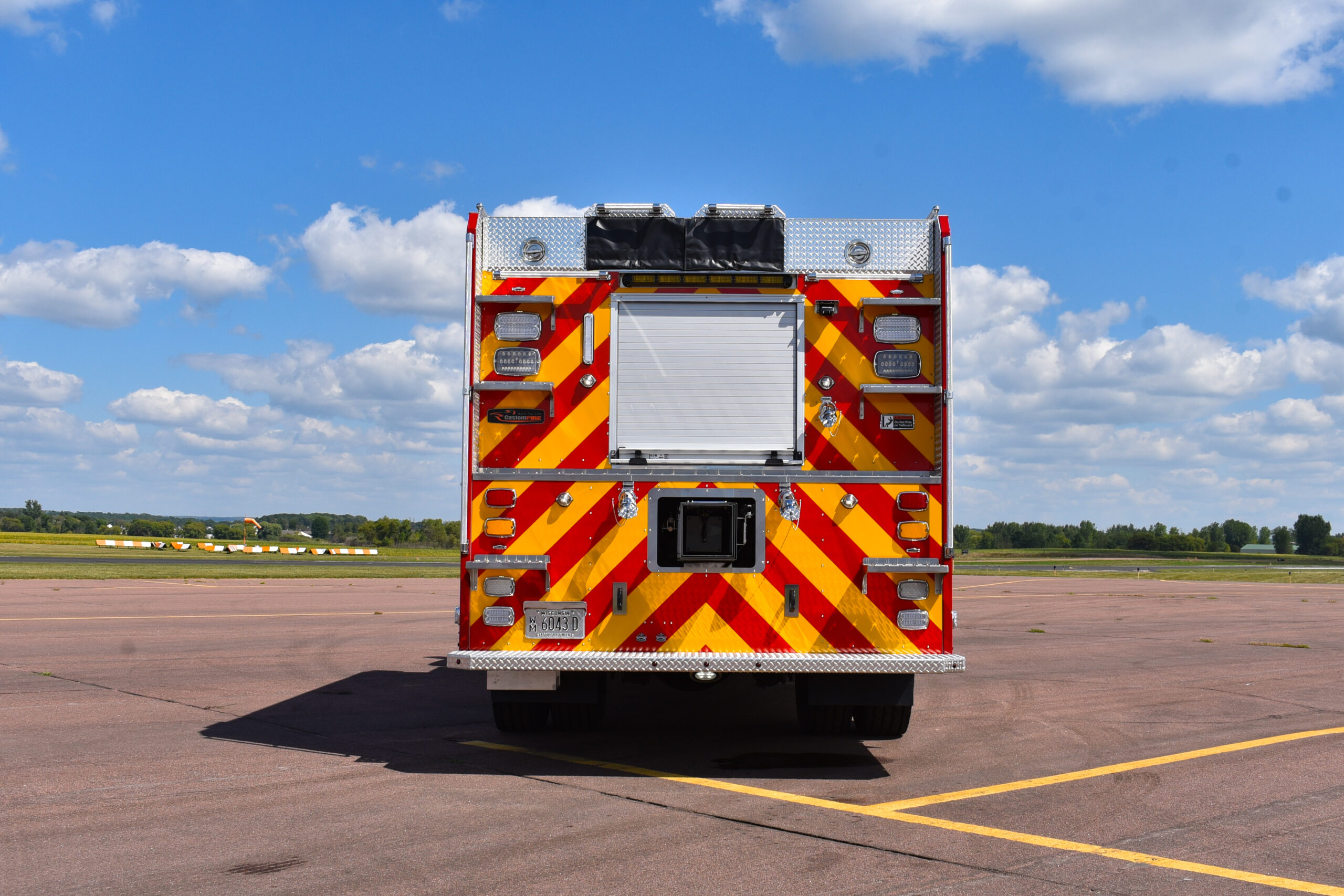

Rear Telescoping Dump Chute
Special Features

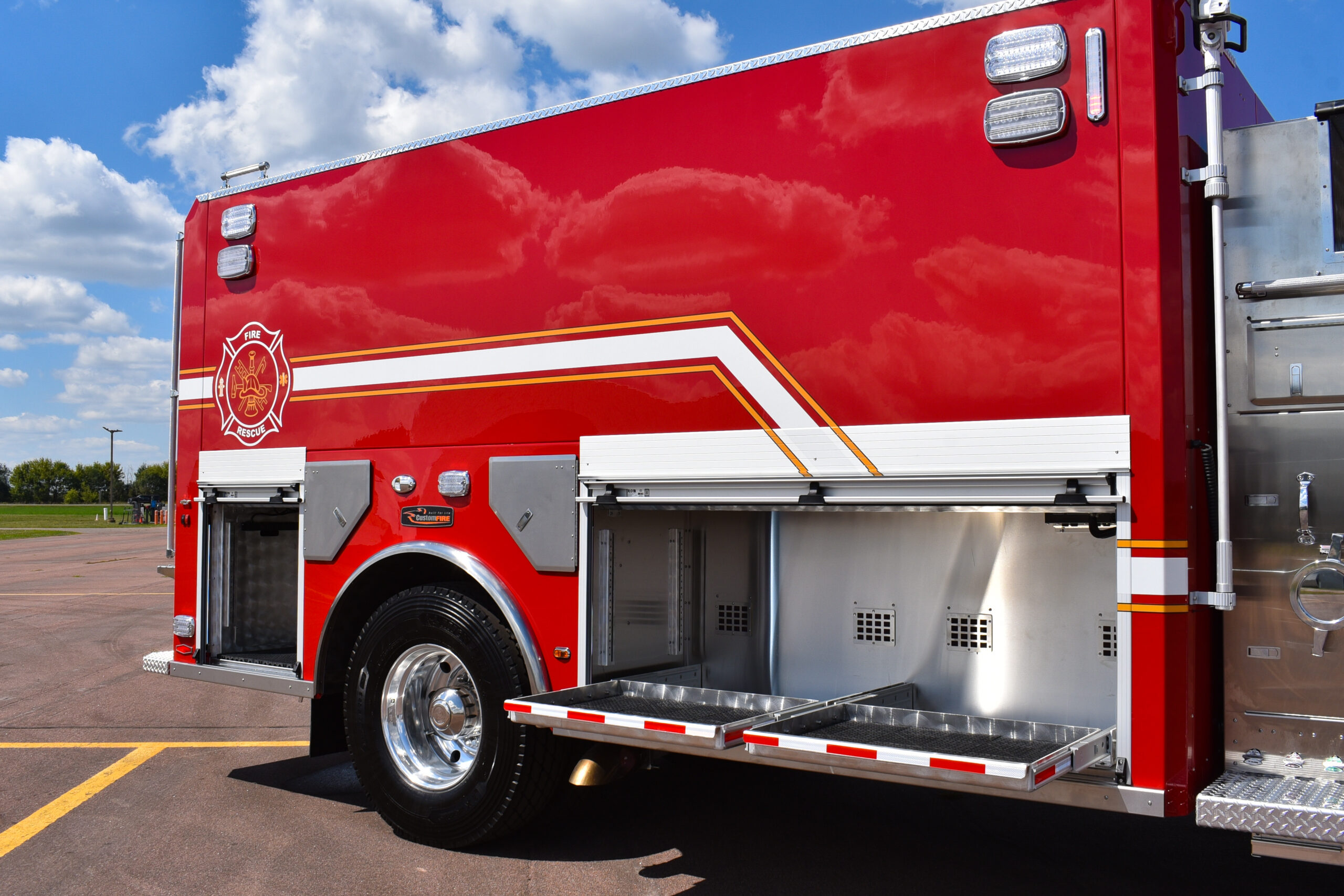

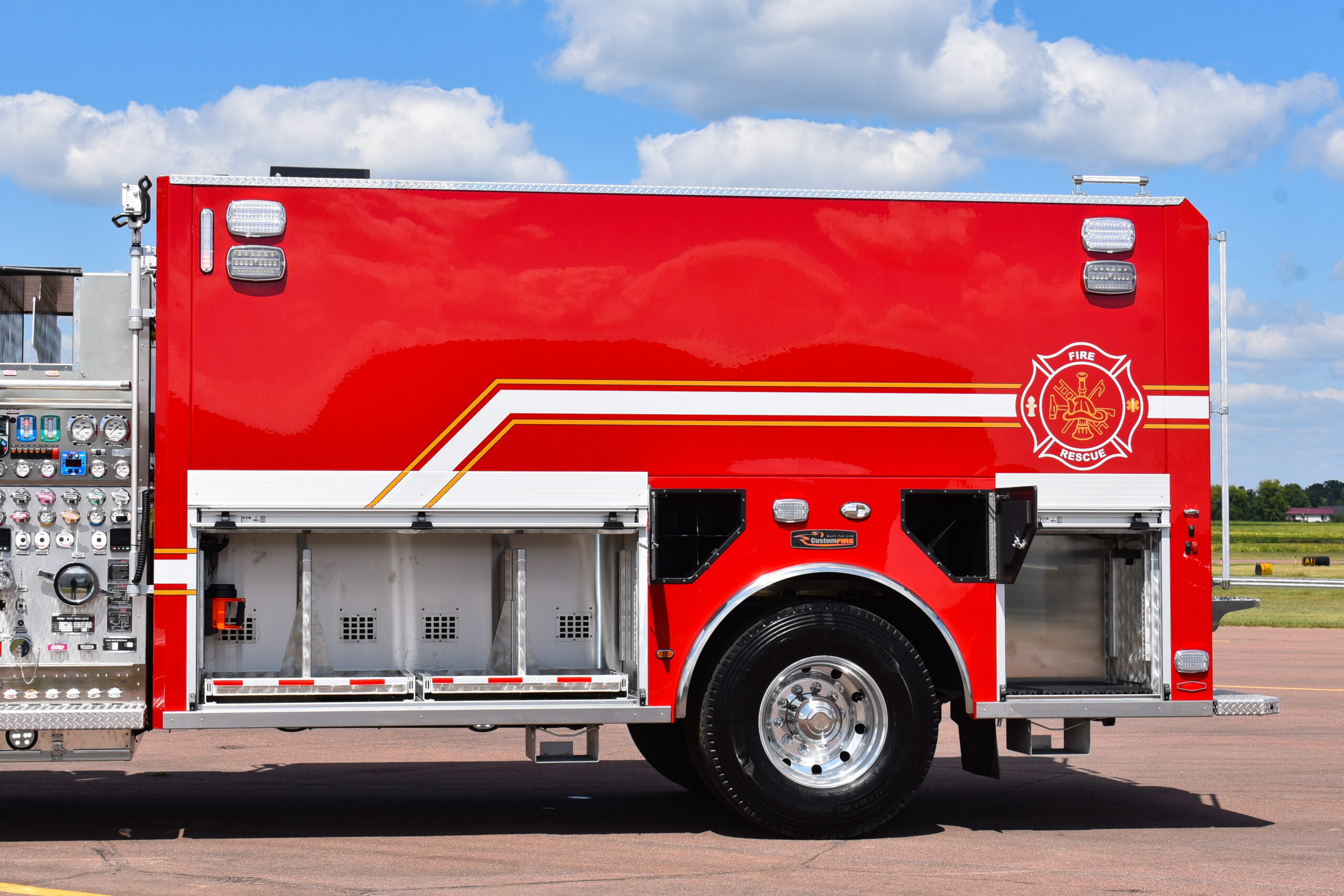

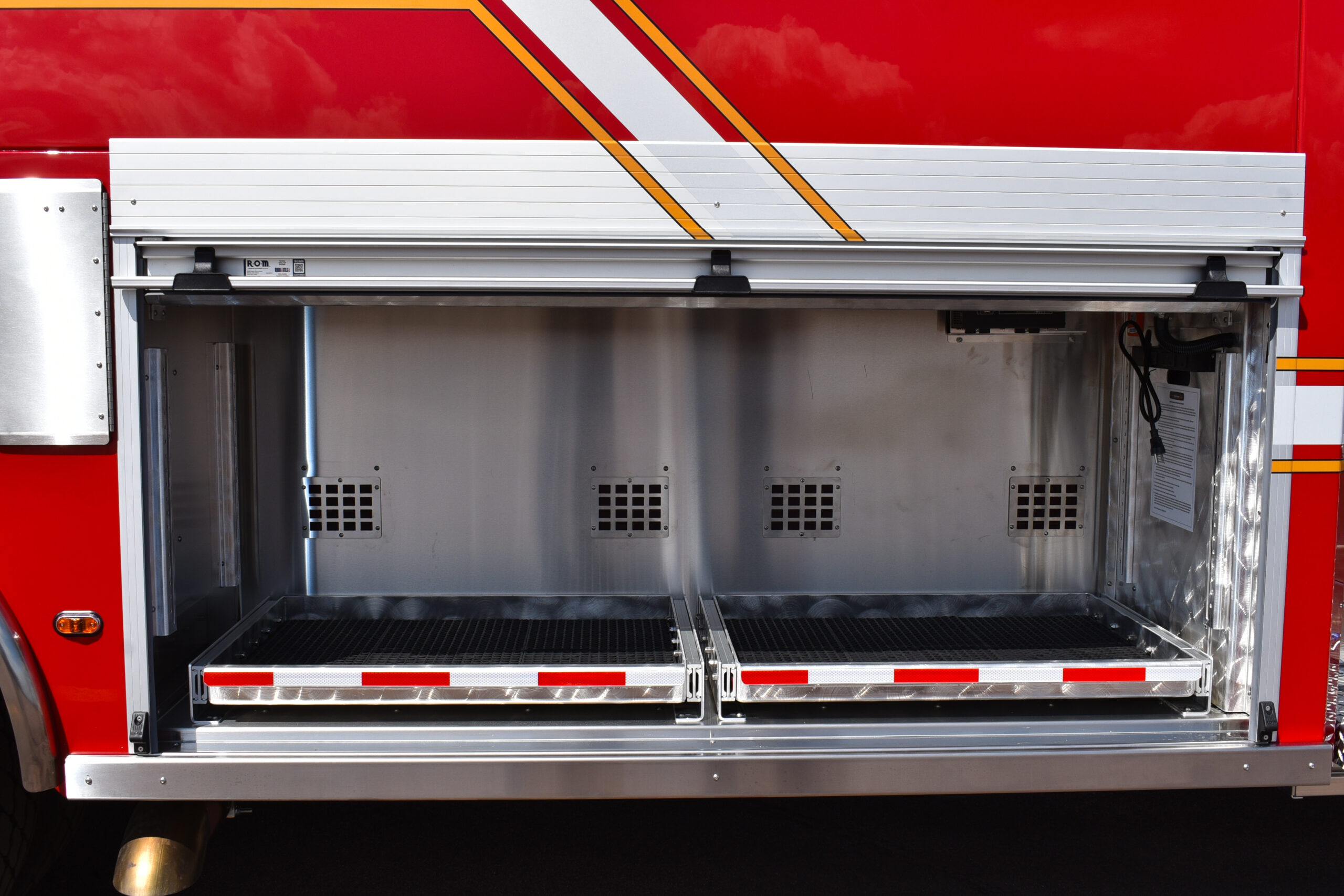

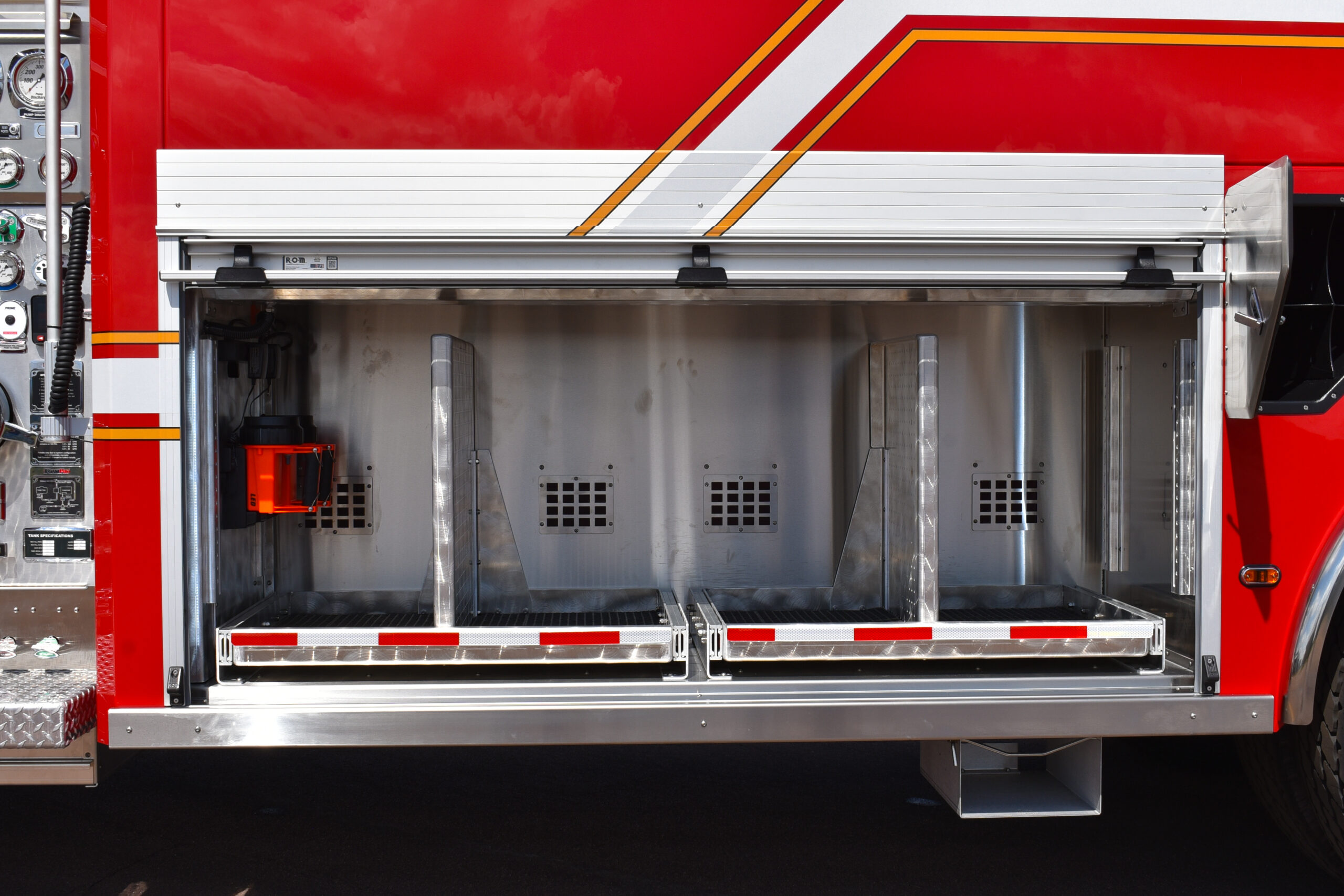

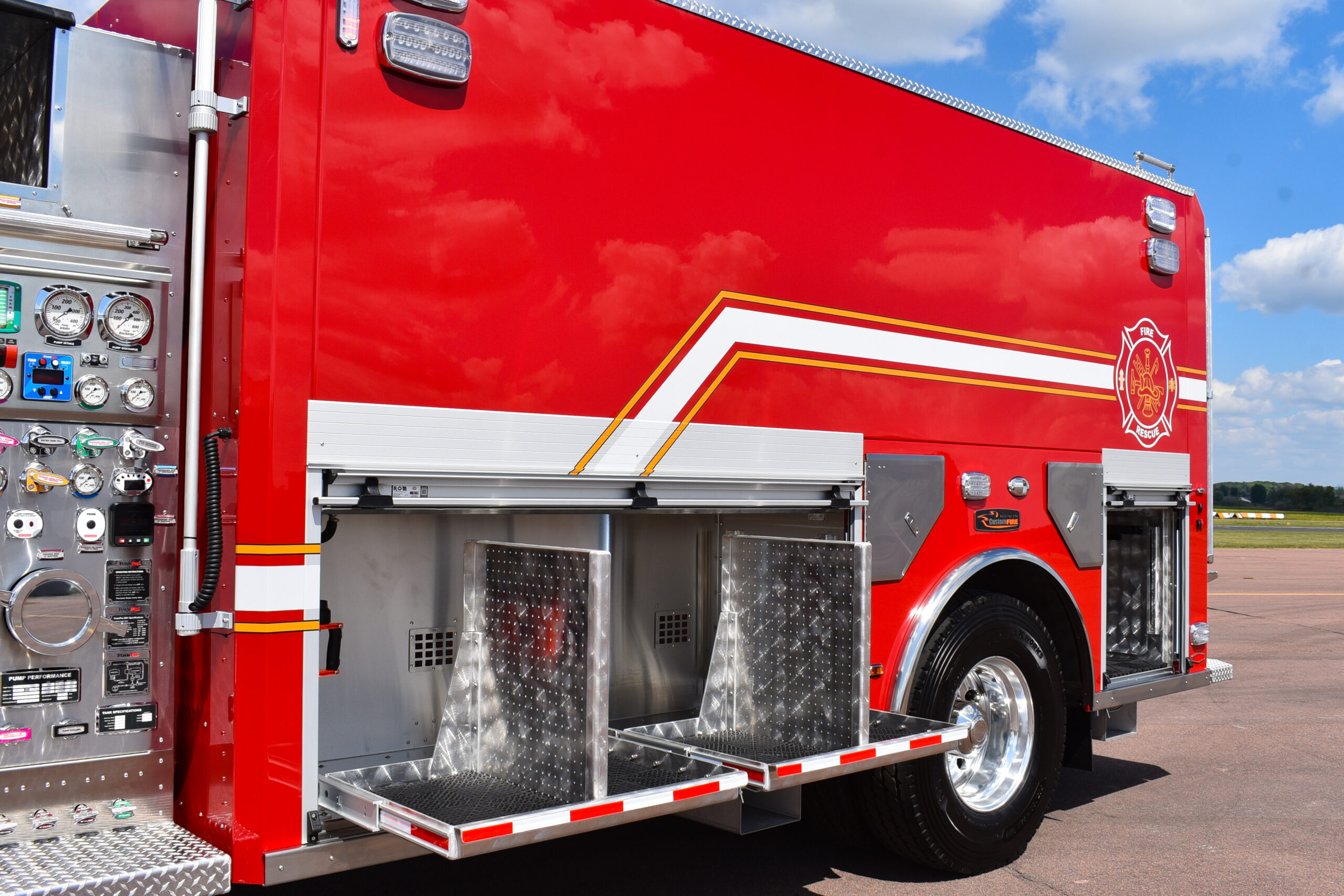

Pull-Out Compartment Trays

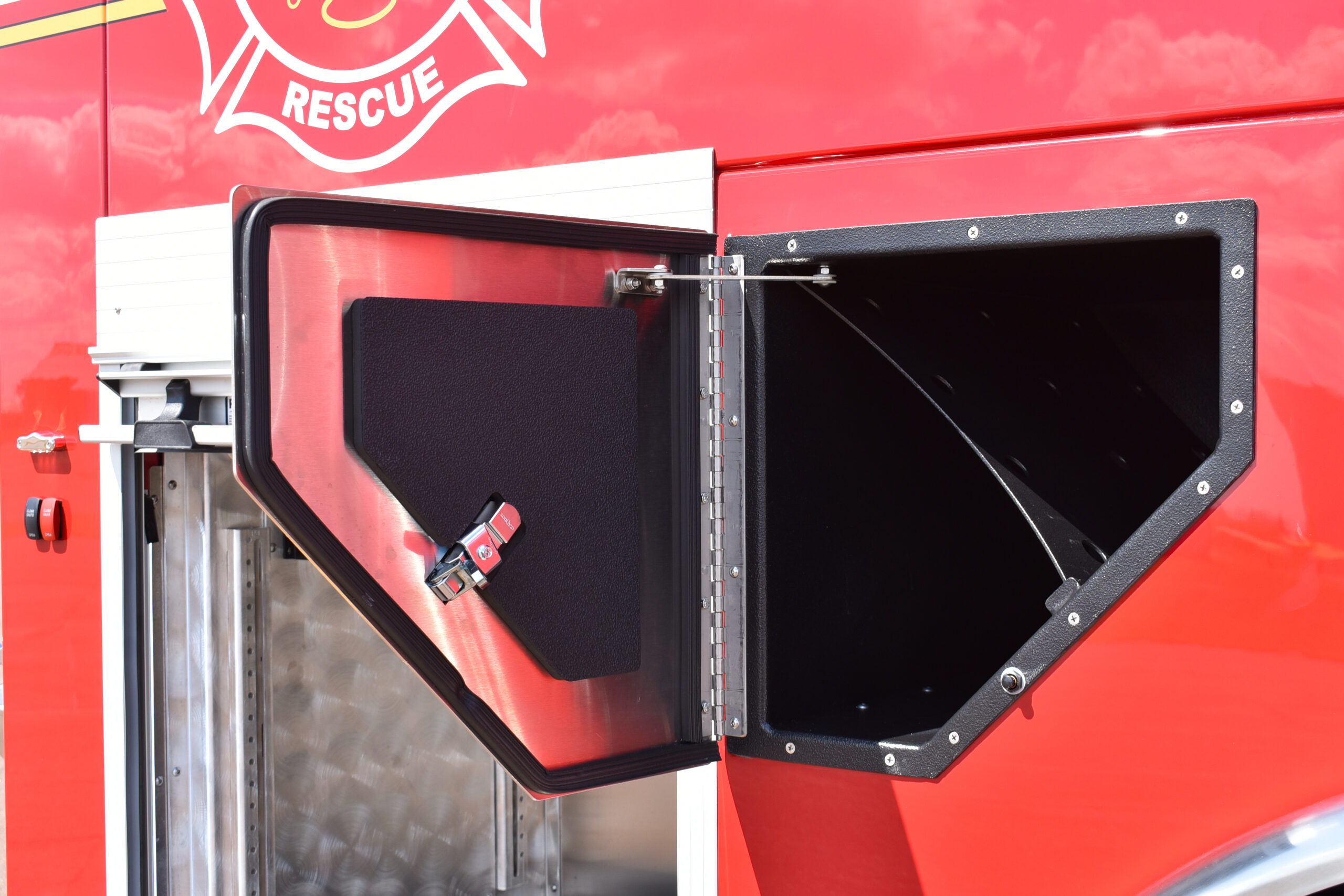

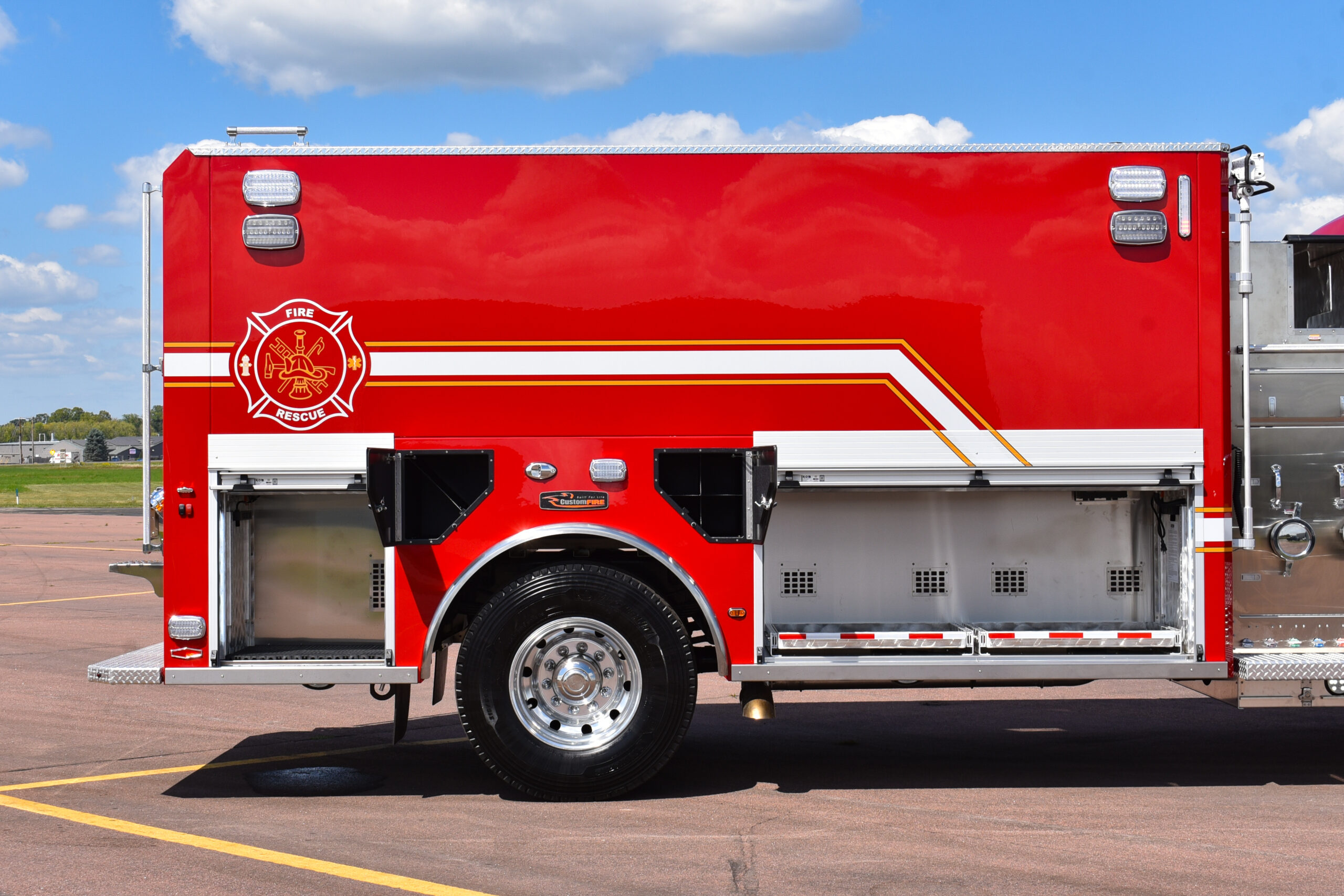

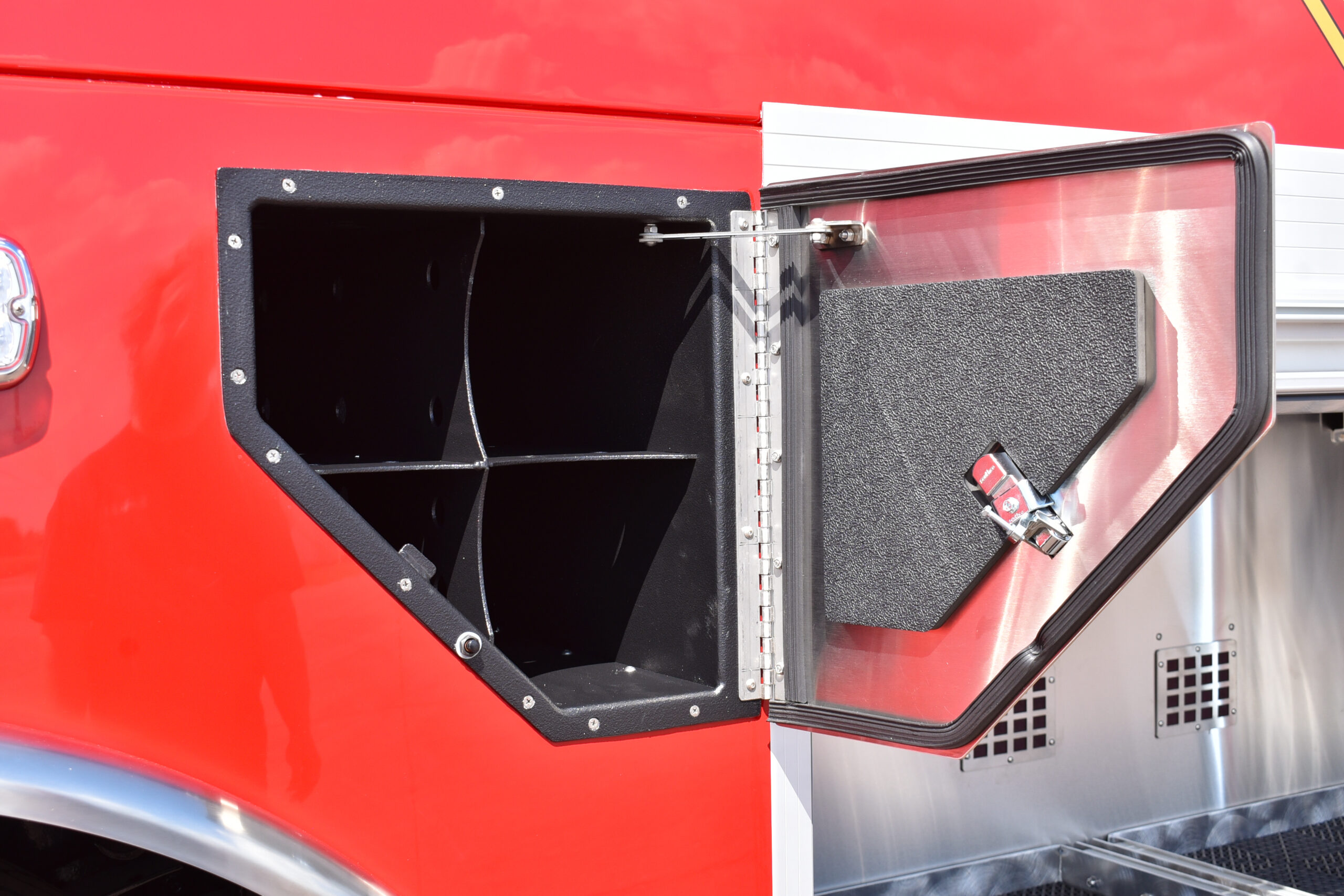

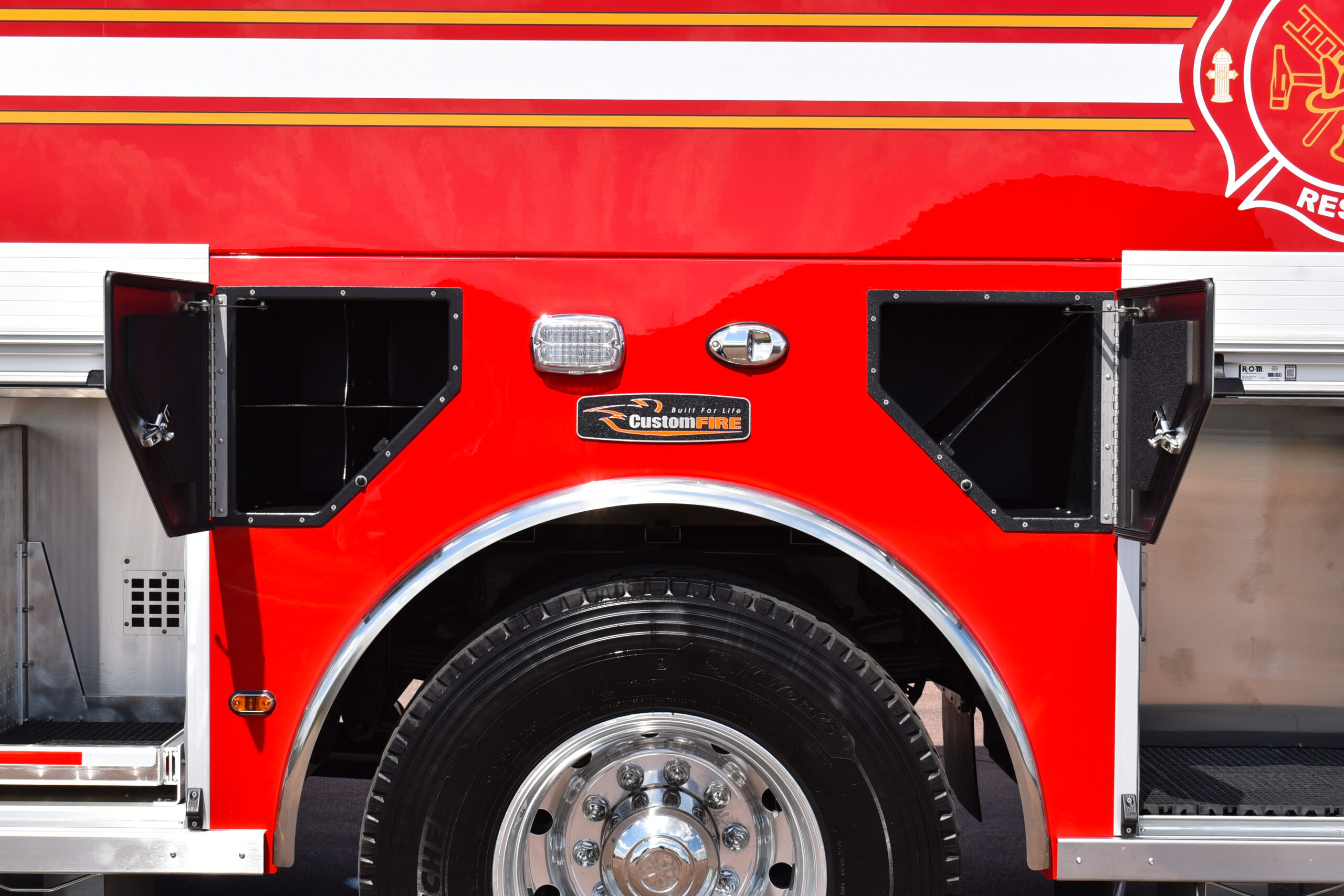

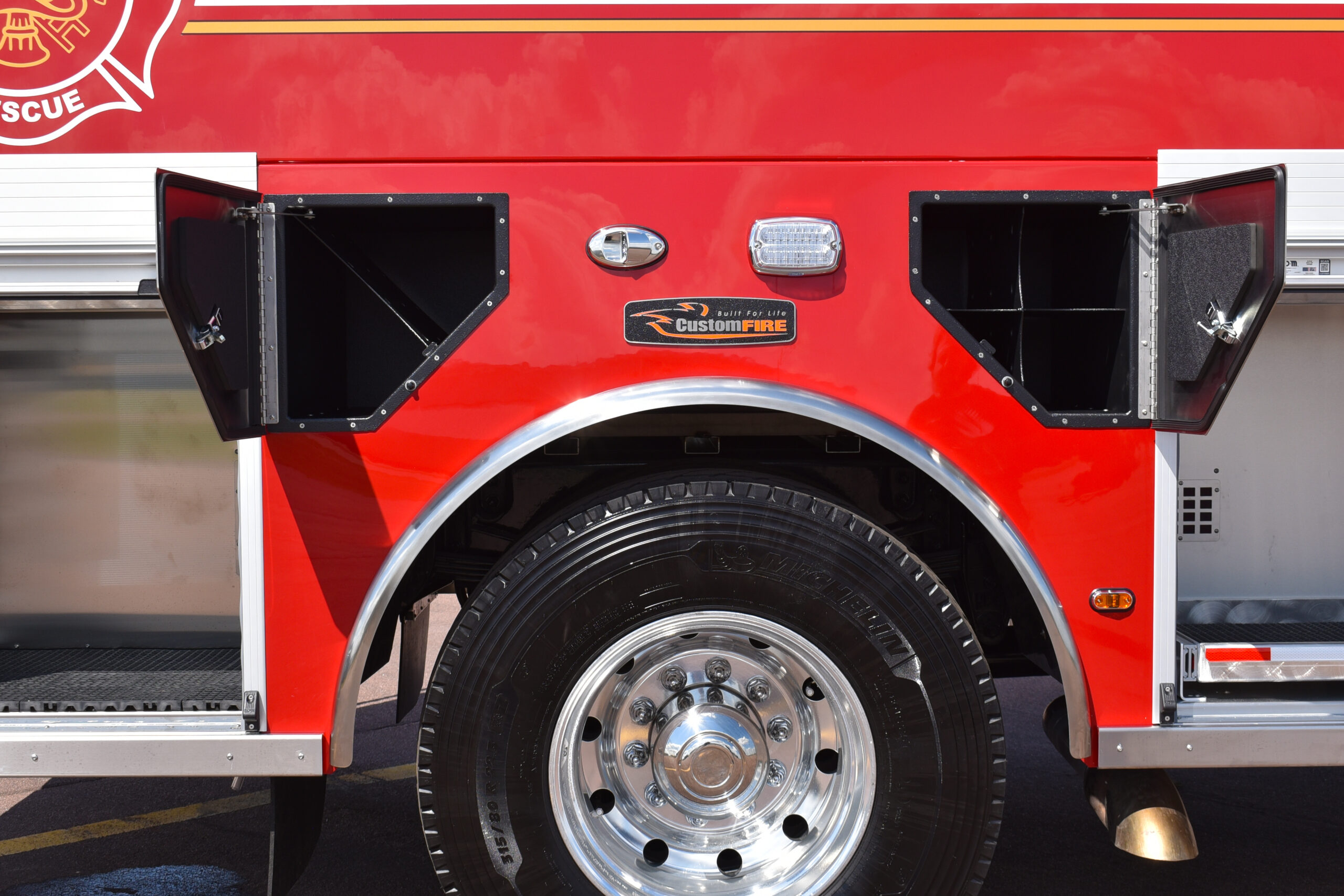

Wheel Well SCBA Cylinder Storage

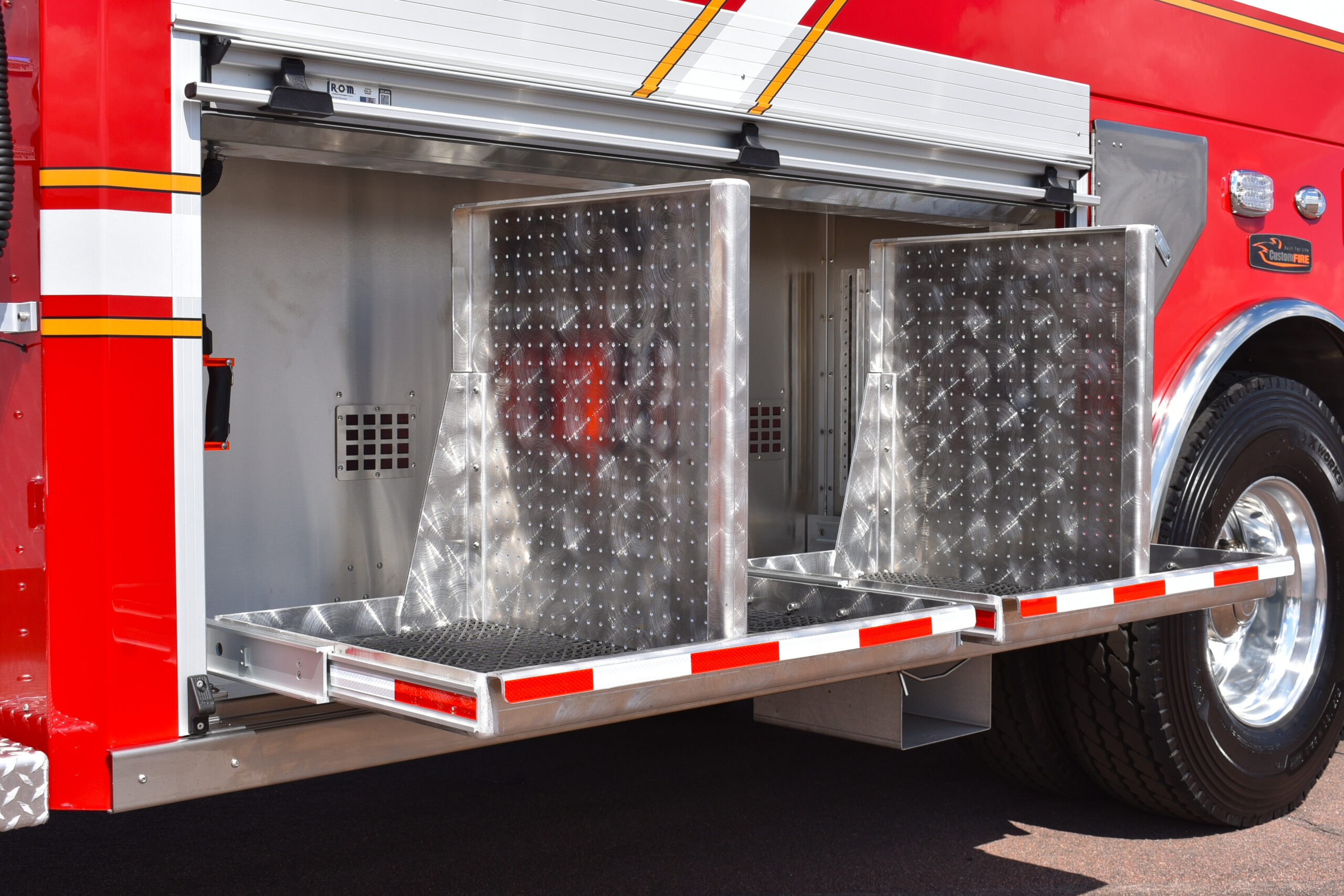

Slide-In Portable Tank Storage
Peg Boards for Tool Storage

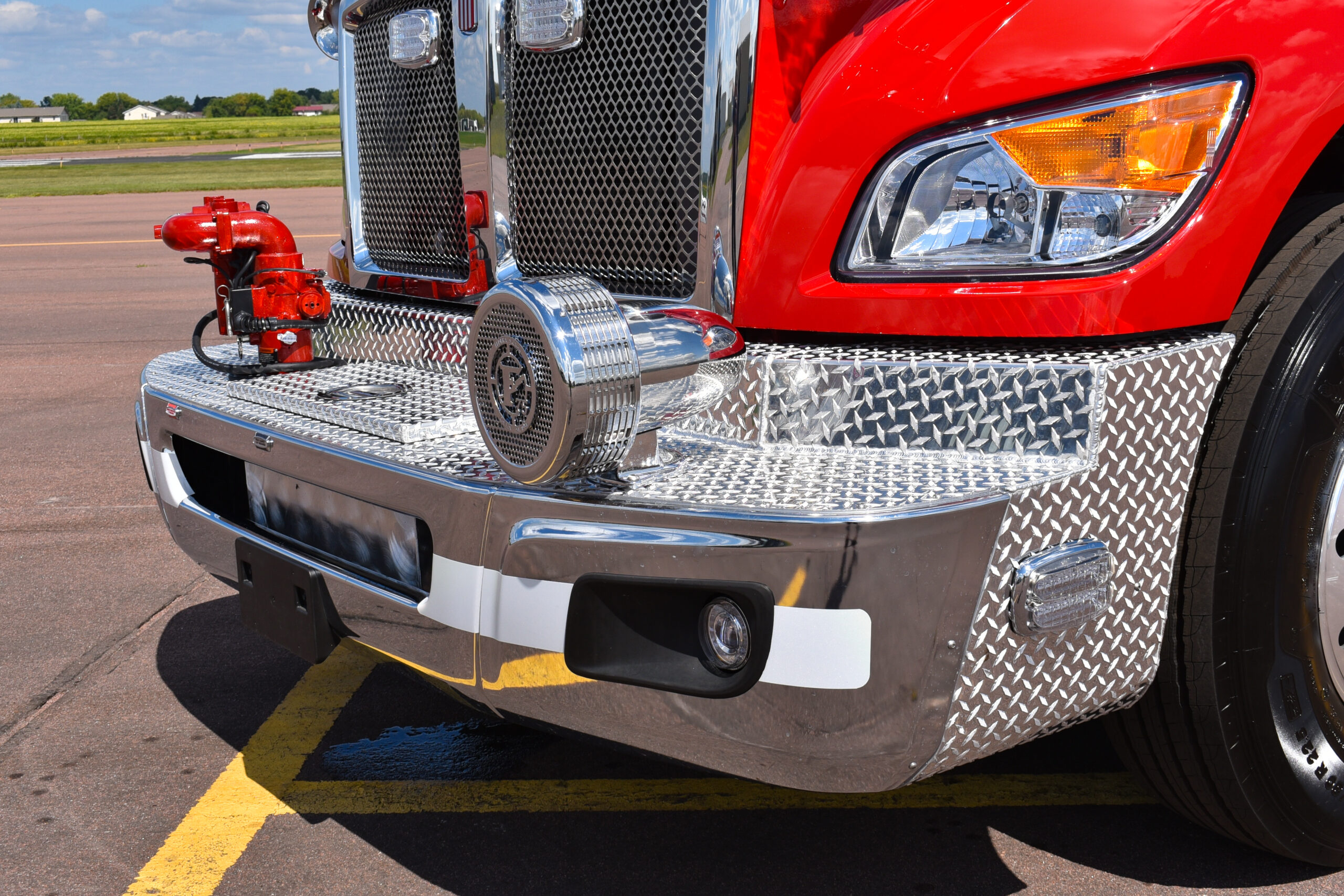

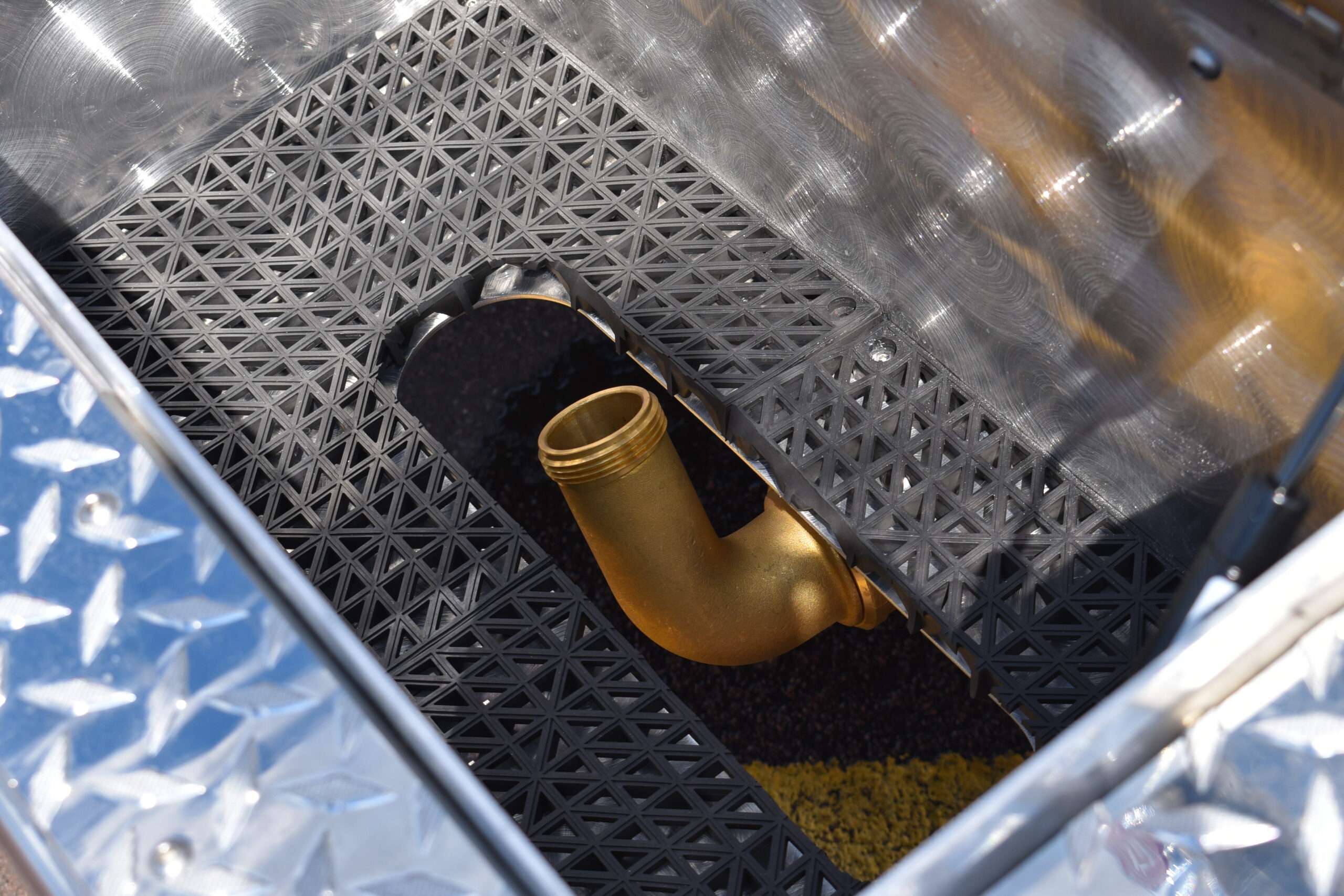

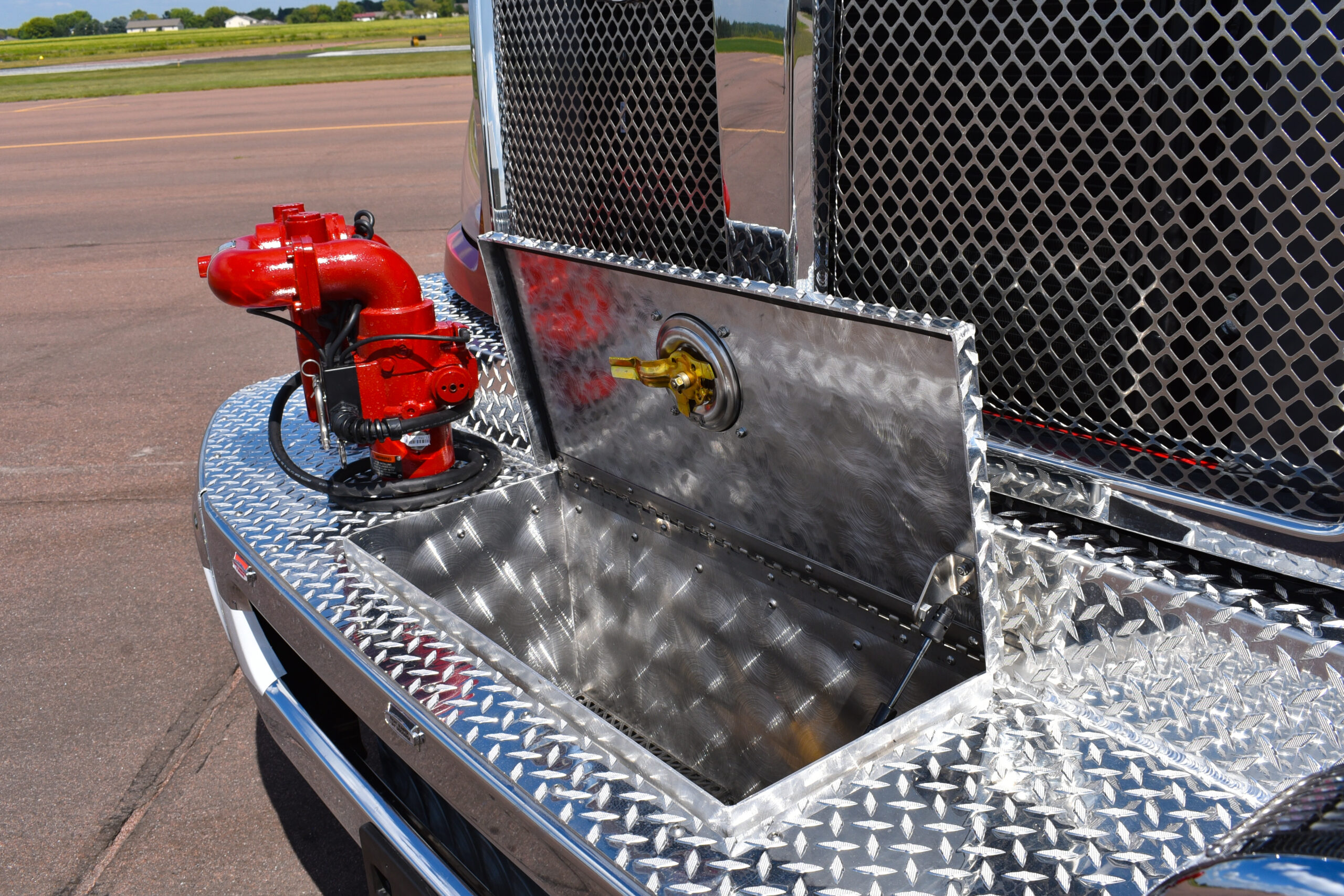

Front Bumper Extension with Hosewell

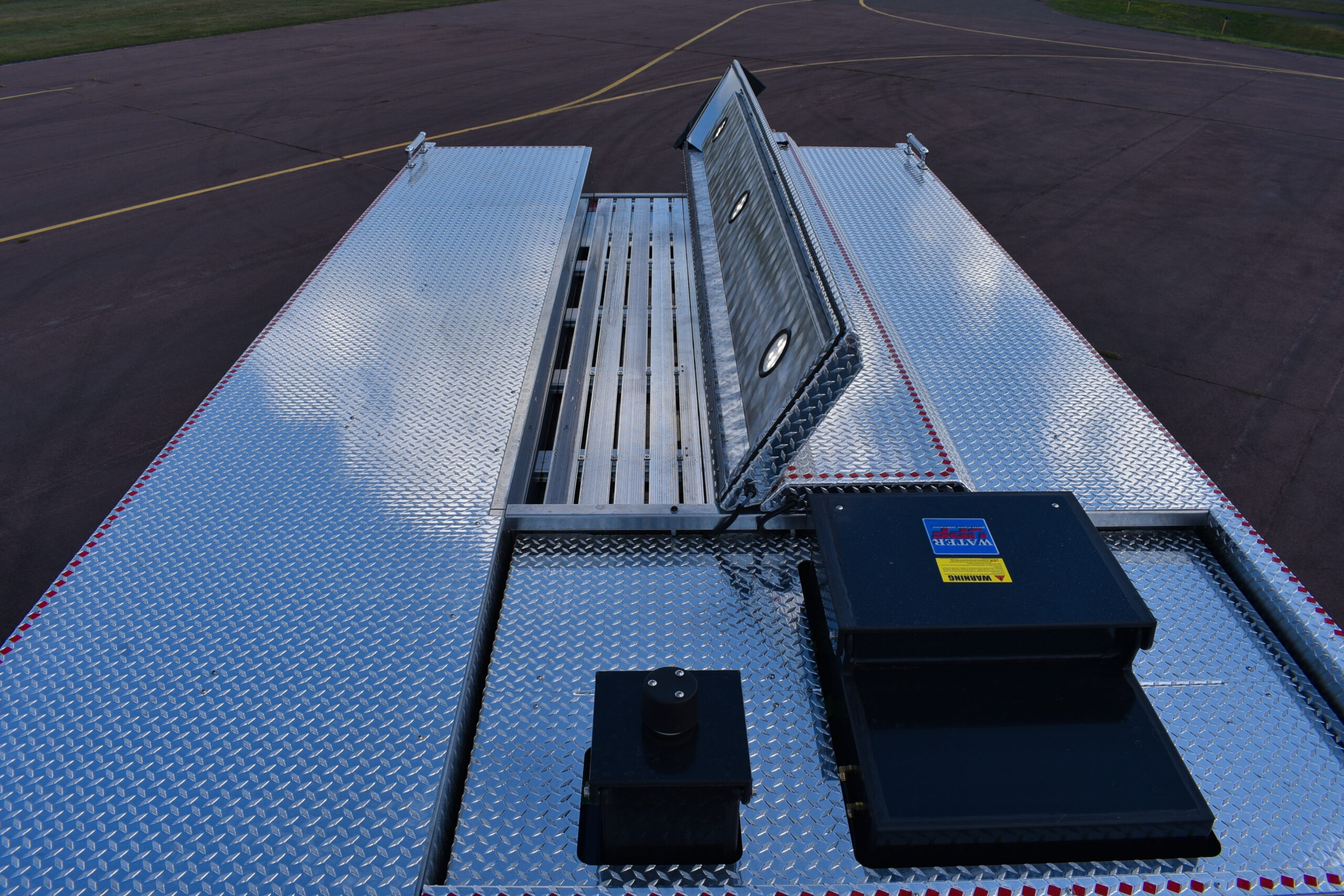

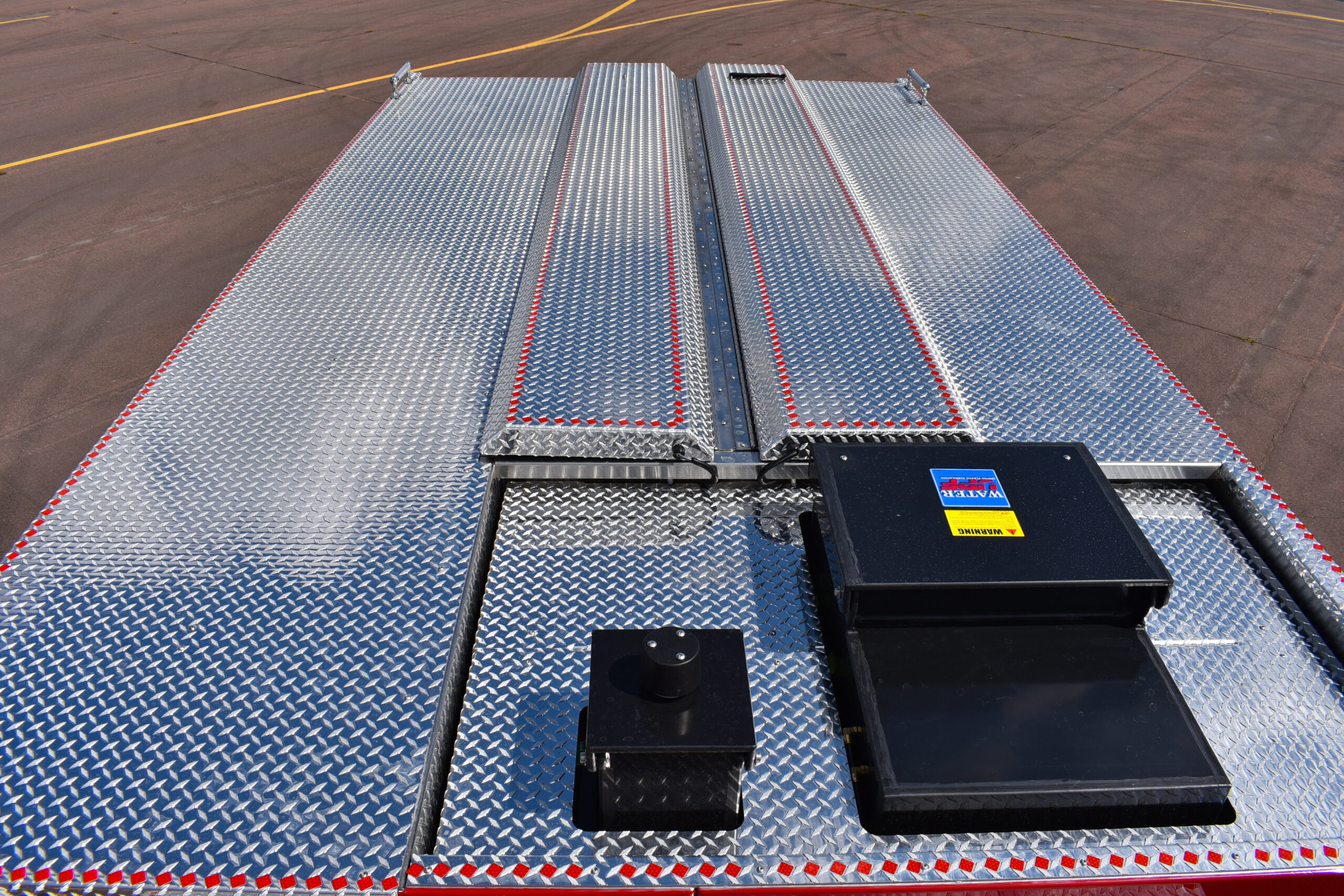

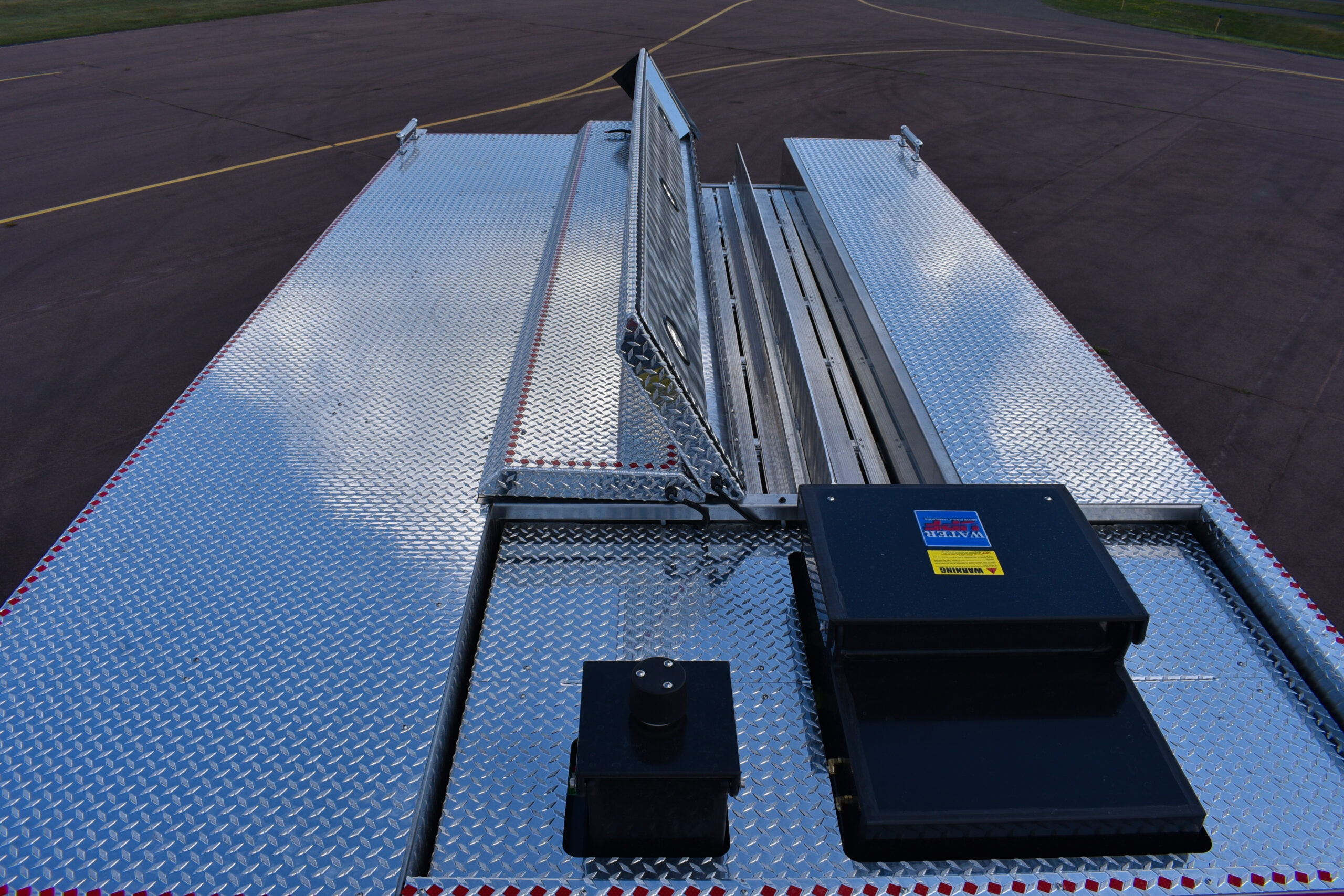

Hinged Hosebed Covers
Vehicle Dimensions
Overall Height 9' 11"
Overall Length 30' 5"
Wheelbase 220"
Weight w/ Water 43,380 Lbs.
