Industrial Pumper

Custom built for LyondellBasell — Corpus Christi, TX

Truck Type :
Cab Type : ,

Chassis Model

Sutphen Monarch Chassis
255” wheelbase, 37’-4” overall length, 12’-4” overall height, 100” overall width,
Cummins ISX-15, 600HP, Jacobs Engine Brake, Primary & Secondary Fuel Filters / Allison 4000 EVS
Dual-110,000 psi Domex coated frame rails, Front Through-Bumper Tow Eyes, 100-gallon stainless steel fuel tank
Front Polished Stainless Bumper Extended-24” with Jump-Line Hose Tray and Aluminum Treadplate Lid
25,500 lb. front axle Ross TAS 85 Power Steering /35,000 lb. rear axle with Air-Ride Suspension, 6” front/7” rear Brakes
445/65R22.5 Front Tires, 315/80R22.5 Rear Tires, Polished Alcoa Aluminum Wheels-Tubeless, Pressure LED’s
Full Air Brake System, WABCO 4-Tanks 6-channel Anti-Lock, 1200 Air Dryer, Electronic Stability Control
98” wide / 130” long (62” aft) 4-door cab with 15” raised roof, Full Length Doors, Extra-Height Rear Doors
3/16” thick aluminum cab with underside box tube sub-frame, Structural Integrity Certification
Air-Ride Driver, Officer and Crew SCBA Seating for three (3), w/ high capacity HVAC
Top Air Intake with Ember Separator, Emergency Engine Shut-Down w/Remote In-Cab Reset
320 Amp Alternator, six (6) Type-31 Interstate 12-volt Batteries, LED Headlights, Turn & Emergency Lights
Vehicle Data Recorder, Power & Ground Studs, Ceiling Red/Clear Lights, Under-Cab LED Ground Lights
Extreme-Duty interior, Power Windows, Aluminum Treadplate Cab Back Exterior Wall
Dual Air Horns, Federal Q-2B Mechanical Siren, Whelen Electronic Siren with Concealed Speaker
LED Spectra: Front Brow and Upper Driver/Officer Sides, 20,000 Lumens each

Apparatus Body

12-Gauge STAINLESS STEEL apparatus hose body and compartments

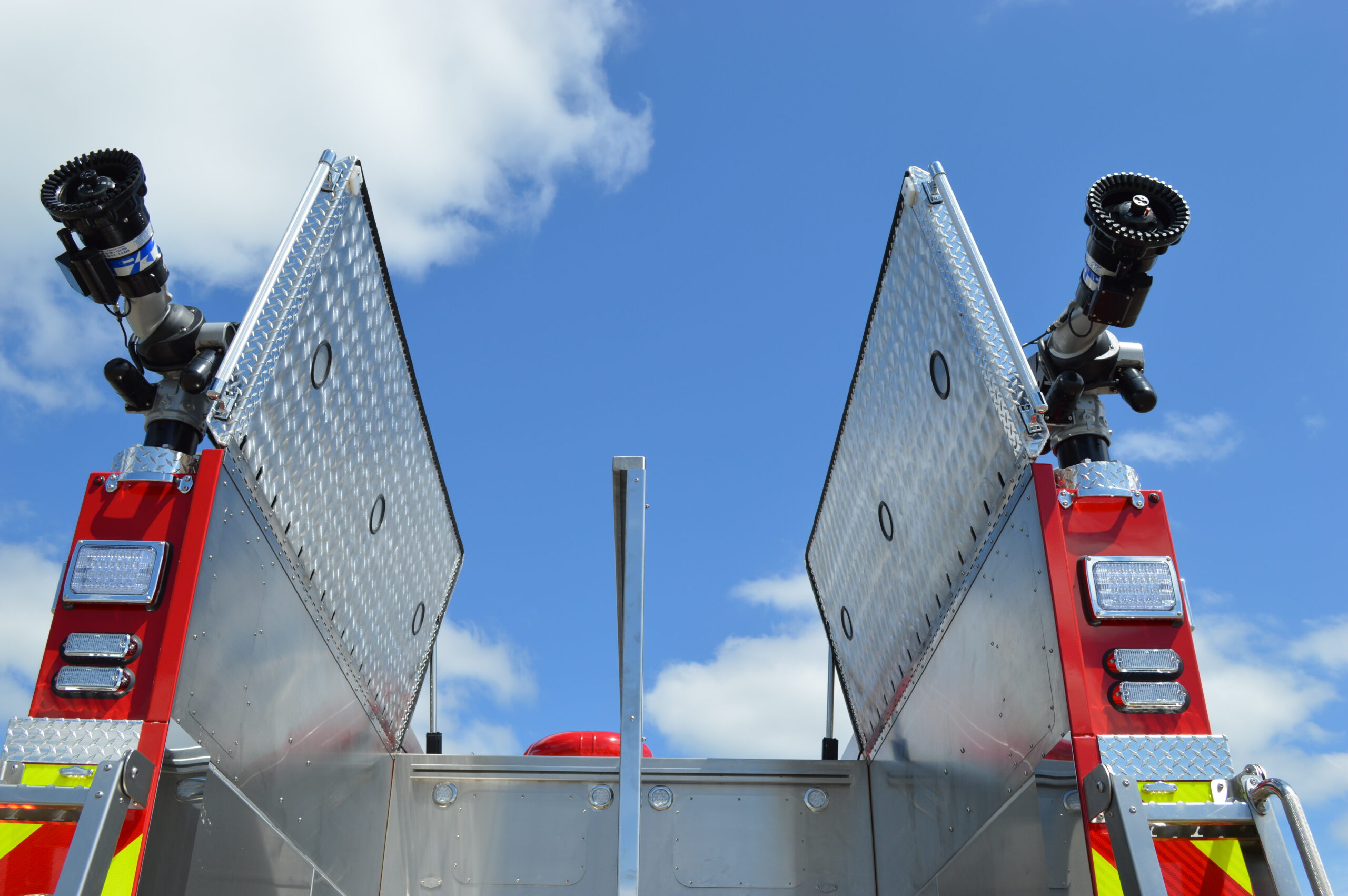

Electric remote-controlled aluminum treadplate hose bed swing-away doors
¾-Height side compartments, 66” high, 25” deep interiors, ROM roll-up Painted doors
Rear centerline compartment, 36” wide, 28” high, 20” deep, ROM roll-up Satin Anodized door
2-fold-down stainless steel climbing ladders, 1-each side at rear of body, 1-each side
Intermediate stainless steel rear step, between ladders
6-suction hoses with Ziamatic Electric Drop-Down storage racks, driver (3), officer (3)
2-roll-out drawer trays
2-pull-out tool boards with poly tracks
9-SCBA tank storage

Fire Pump System

Industrial Waterous-3000 / Williams-300 Hot Shot-II Pump Module
Brushed Stainless Steel “fabricated bolted assembly” Top-Mount Pump Module
Brushed Stainless Steel Runningboards & Operator’s Walkway
Fold-Down Stainless-Steel Climbing Ladder, with Knurled Stainless Handrails
Waterous CRU-2, 3000-gpm Industrial Fire Pump, with Chain-Drive Transmission
Waterous Pneumatic Pump Shift, with Mechanical Shift Override
Waterous Handline Discharge Valves, Akron LDH Discharge Valves, TFT Jumbo Ball Inlet Valves
Waterous Pump Overheat Protection
Trident Dual 2-Barrel Auto-Air-Primers
FRC Engine Electronic Pressure Governor
Contour-Flow 8” x 6” stainless steel discharge waterways, with two (2) Zinc Anodes
Contour-Flow 10” x 8” stainless steel suction manifolds, with two (2) Zinc Anodes
Dual (2) Bronze Pre-Set Suction Manifold Intake Relief Valves
Williams Hot Shot-II, 300-gpm Balanced Pressure Foam System
10-Operator’s Panel Mounted Foam Metering Valves and 10-Bronze Discharge Waterway Ratio Controllers
IC liquid-filled gauges, master intake & “duplex” foam/water pressure
4-Pump suctions, 6” Driver (2), 6” Officer (2), with TFT 12V Remote Controlled Jumbo Ball Valves
2-Gated Pump Suctions, 2-1/2”, 1-Driver and 1-Officer Sides, Swivel Female Inlets
1-3” Water Tank-to-Fire Pump Gated Suction
12-Foam capable gated discharges, Waterous & Akron electric valves with position indicators:
Pavement Cooler Discharge
2-2” Speed-Lays, 1-1/2” NST
1-2-1/2” Bumper, 2-1/2” NST
2-2-1/2” Outlets, 2-1/2” NST: Driver Side
4-6” Outlets, 6” NST: Driver (2), Officer (2), rear (2)
2-4” Rear Body Corner Monitors (dual feed source: fire pump or rear inlets)
1-8” Overhead-Pump Module Monitor
2-Foam pump concentrate gated inlets, driver (1), officer (1), 2-1/2” NST
1-Foam pump concentrate gated off-board outlet, officer (1), 1-1/2” NST
1-Foam gated inlet officer, outlet to overhead monitor, 2-1/2” NST
3-Monitors with combination nozzles:
1-Williams Ambassador 6000-gpm HydroFoam, overhead pump, electric remote + manual crank
2-TFT Monsoon 2000-gpm, overhead rear body corners electric remote
12’-4” overall height, above all three (3) Deluge Monitors

Booster Tank

1000-gallon Foam tank with NFPA foam expansion Fill Tower/300-gallons Water Tank
2-IC MONSTER LED tank level light strips + operator’s panel level indicator
4” Foam tank-to-Foam Pump valve & stainless piping
2” Foam Pump-to-Foam Tank Fill Discharge

Special Features

120-Volt Shoreline
120-Volt Gast Onboard Automatic Air Compressor
120-Volt Powermax Automatic Onboard Battery Charger
14-LED light strips, 2-per compartment

Emergency Warning Devices

Whelen Freedom LED Cab Roof lightbar, M-6 Super LED fixtures, Zones A, B, C, & D; Upper and Lower Levels

Exterior Lighting

14-LED light strips, 2-per compartment
FRC Spectra, LED Scene Lights; 4-Side Facing (2-per upper side), 2-Rear Facing (1-per side)
