Open Top Mount Pumper

Custom built for Hobart Fire Department — Hobart, WI

Spartan Gladiator Chassis, Bolted Aluminum Body, Waterous 1500gpm Pump, FoamPro 2001 Foam System, 1000-Gallon Water Tank, Front Bumper Hosewell, Adjustable Compartment Shelving, Pull-Out Compartment Trays and Tool Boards, Slide-In Ladder and Suction Hose Storage, Swing-Out and Down Rear Ladder, LED Emergency Lighting

Truck Type :
Cab Type : ,
Deployed : August, 2017

Chassis Model

Spartan Gladiator Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Aluminum Material
Roll-Up Compartment Doors

Fire Pump System

Waterous CSUC20 1500gpm Midship Pump
FoamPro 2001 Single Agent Foam System
Fire Research PumpBoss Pressure Governor
Waterous Oil-Less Pump Primer
Front 6" Suction
Passenger Side 6" Suction
Driver Side 6" and 2-1/2" Suctions
Passenger Side 2-1/2" and 3-1/2" Discharges
Rear 2-1/2" Discharges
Driver Side 2-1/2" Discharge
Top Deluge Discharge
Front Bumper 2" Preconnect Discharge
2" and 2-1/2" Speedlay Discharges

Booster Tank

1000-Gallon Poly Water Tank by UPF
30-Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewell
EMS Cabinets in Cab
Adjustable Compartment Shelving

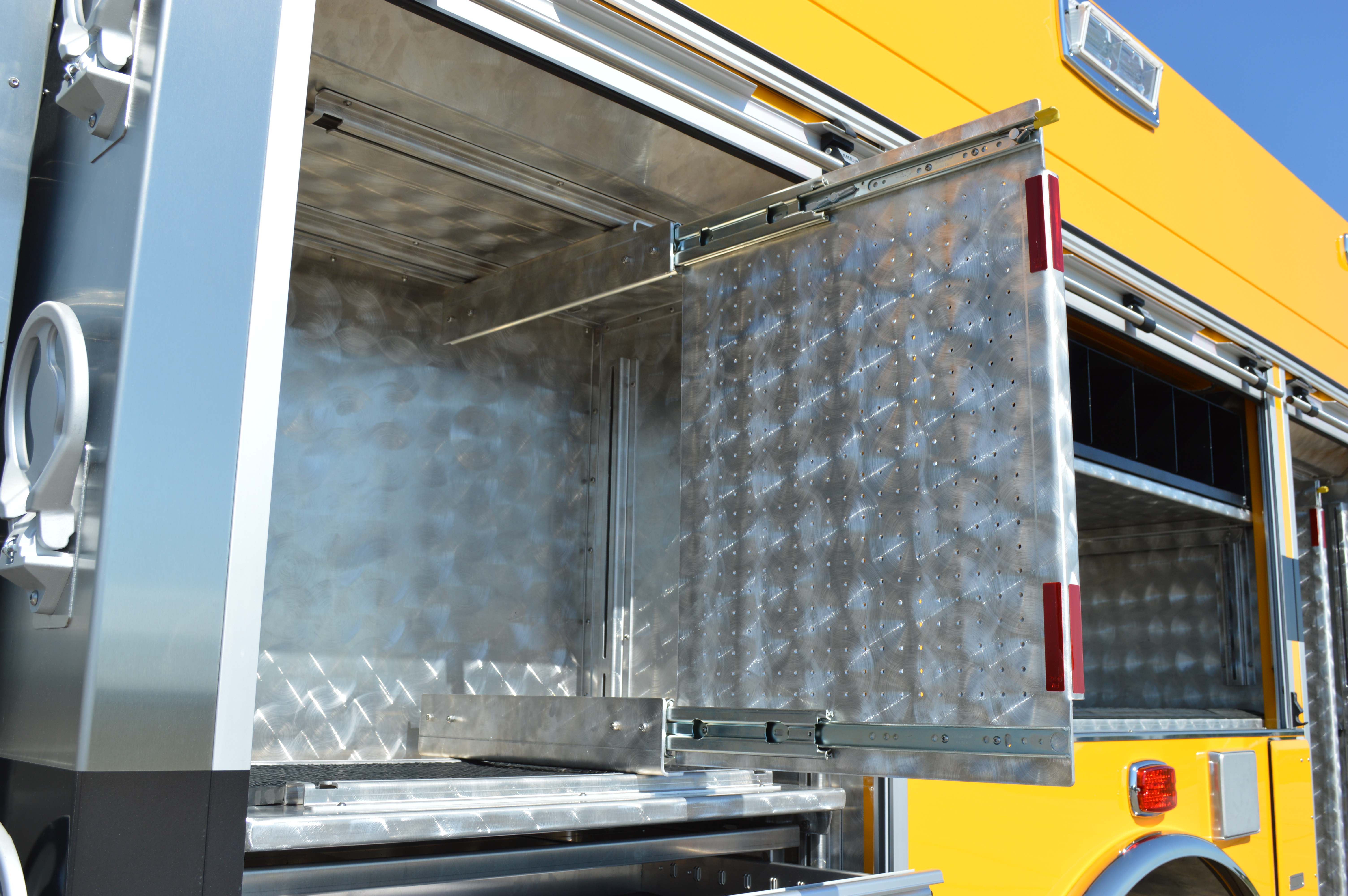

Pull-Out Compartment Trays
Pull-Out Tool Boards
Slide-In Suction Hose Storage
Wheel Well Wheel Chock Storage
Slide-In Ladder Storage
Swing-Out and Down Rear Access Ladder

Emergency Warning Devices

Whelen LED Freedom Lightbar
Whelen LED Warning Lights
Dual Air horns
Federal Signal Electronic Siren
Whelen Siren Speaker
Federal Q2B Mechanical Siren

Exterior Lighting

Whelen LED Scene Lights
LED Marker Lights
Rigid Industries LED Scene Lights

Vehicle Dimensions

Height 9' 11"
Length 34' 7"
Wheelbase 18' 2"
Weight with Water 37,620 Lbs.
