Side Mount Pumper

Custom built for Hellsgate Fire Department — Star Valley, AZ

Spartan Chassis, Bolted Aluminum Body, Waterous 1500gpm Pump, FoamPro 2001 Foam System, 750-Gallon Water Tank, Adjustable Compartment Shelving, Pull-Out Compartment Trays and Tool Boards, Wheel Well SCBA Cylinder Storage, Slide-In Ladder Storage, Overhead Coffin Compartments, Hard Suction Hose Troughs, Emergency Lighting

Truck Type :
Cab Type : ,
Deployed : July, 2012

Chassis Model

Spartan Gladiator Chassis
CAT C13 525hp Engine
Allison 4000 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Aluminum Body
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CSU 1500gpm Midship Pump
FoamPro 2001 Foam System
Fire Research PumpBoss Pressure Governor
Waterous Oil-Less Pump Primer
Passenger Side 6" Suction
Driver 6" and 2-1/2" Suctions
Passenger Side 2-1/2" and LDH Discharges
Rear 2-1/2" Discharges
Driver Side 2-1/2" Discharges
Top Deluge Discharge
Front Bumper Preconnect Discharge
Top and Bottom Speedlay Discharges

Booster Tank

750-Gallon Water Tank
30-Gallon Foam Cell

Special Features

Removable Speedlay Hosebeds
On-Board Air Compressor
Front Bumper Hosewell

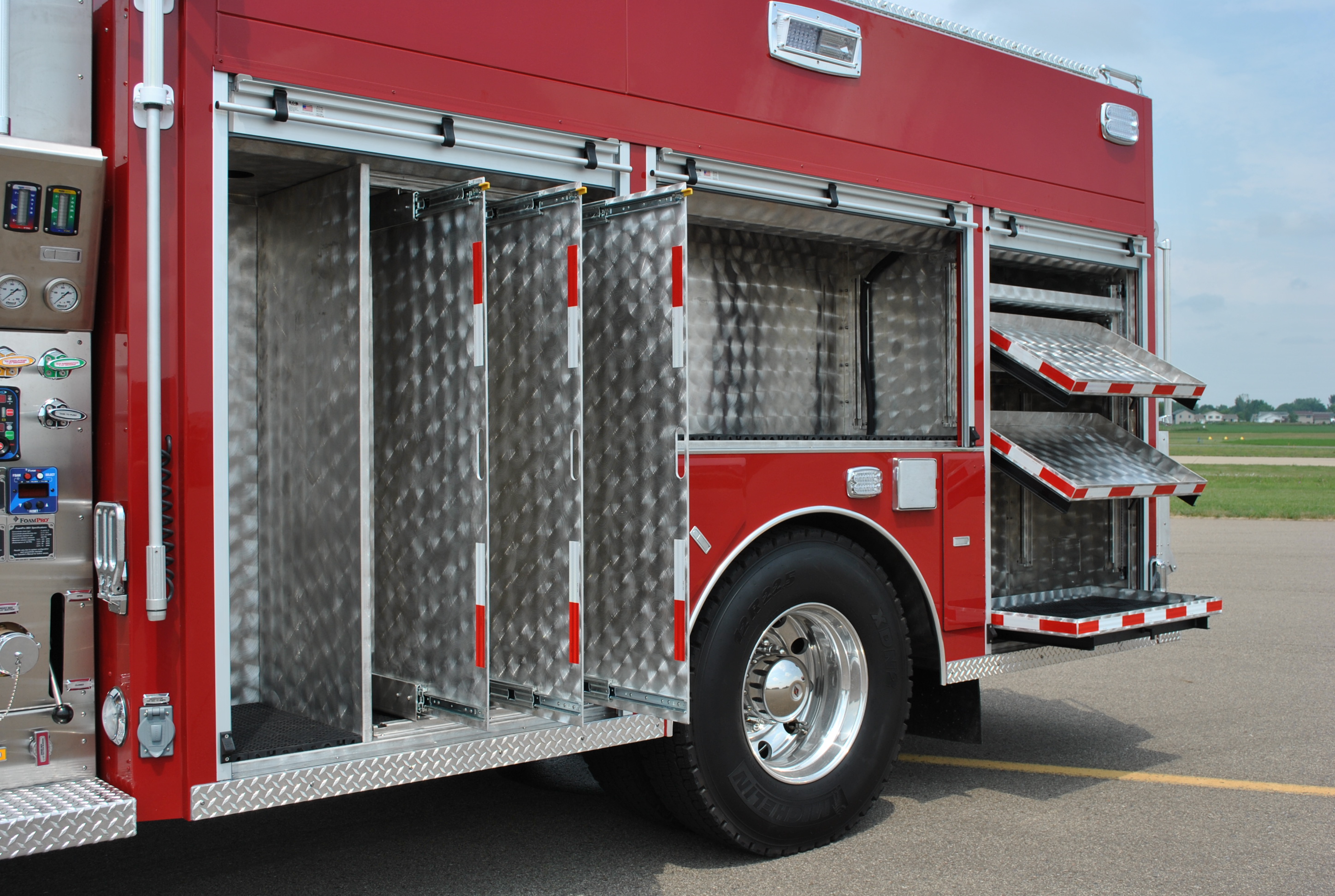

Adjustable Compartment Shelving
Pull-Out Compartment Trays
Pull-Out Drop-Down Trays
Pull-Out Tool Boards
Wheel Well SCBA Cylinder Storage
Slide-In Ladder Storage
Swing-Out and Down Rear Ladder
Overhead Coffin Compartments
Hard Suction Hose Troughs

Emergency Warning Devices

Electronic Siren and Speakers
Mechanical Siren
Whelen Freedom Lightbar
Traffic Directing Lightbar

Exterior Lighting

Under Cab and Under Body Lighting
Marker Lights
Telescoping Flood Lights
Compartment Lights

Vehicle Dimensions

Overall Height 9' 6"
Overall Length 32' 2"
Wheelbase 16' 8"
Weight with Water 35,190 Lbs.
