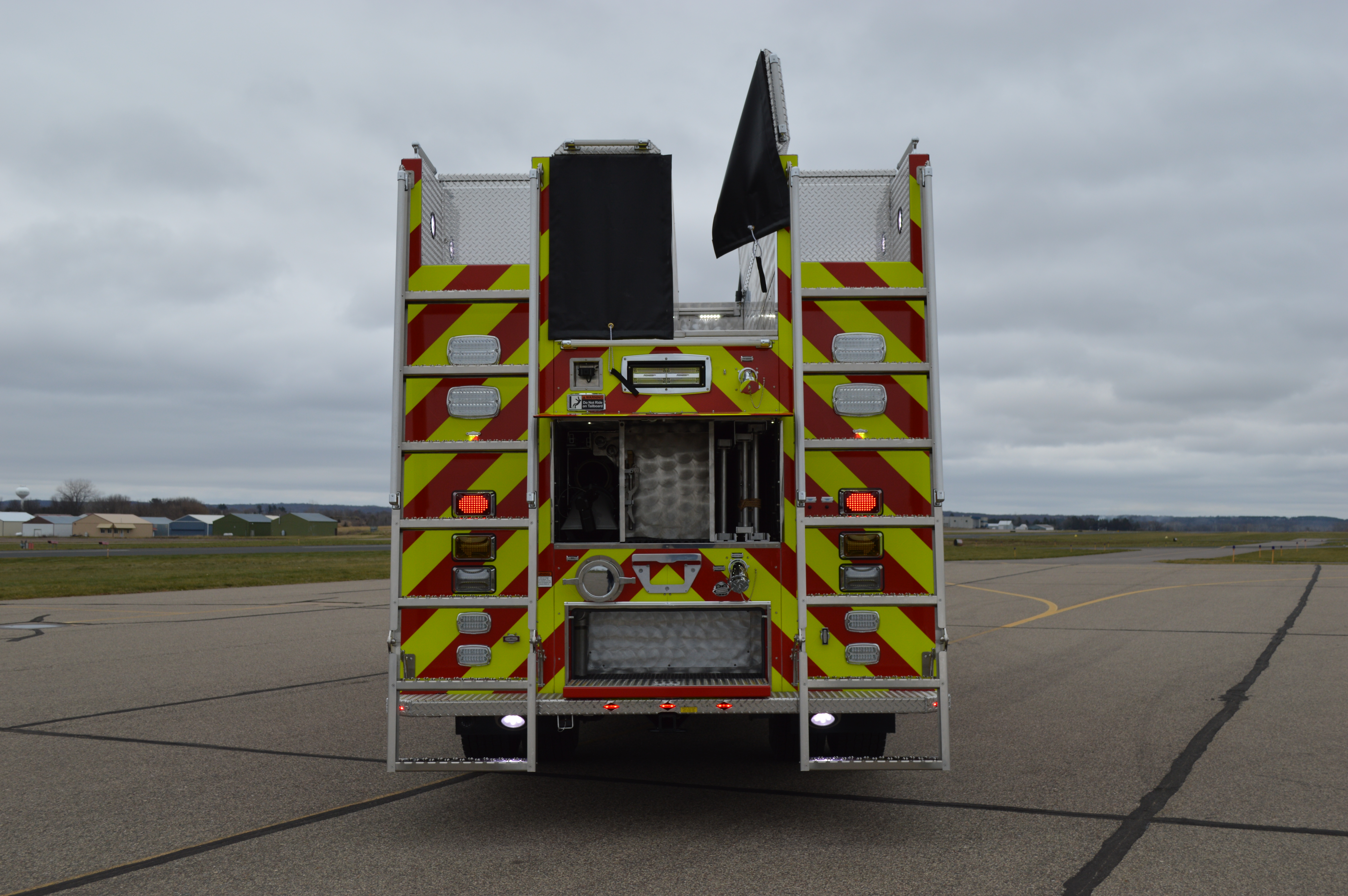

Heavy Rescue Pumper

Custom built for South Area Fire & Emergency Response District — Weston, WI

Spartan Chassis, Bolted Aluminum Body, Waterous 1250gpm Pump, 750-Gallon Water Tank, Adjustable Shelving, Pull-Out Compartment Trays and Toolboards, Slide-Out Helmet Rack, Slide-In Ladder Storage, Power Rewind Electric Cord Reels

Truck Type : ,
Cab Type : , ,
Deployed : December, 2016

Chassis Model

Spartan MetroStar Chassis
Cummins ISL9 450hp Engine
Allison 3000 Transmission

Apparatus Body

Concealed Bolted Construction
Aluminum Material
Roll-Up Doors

Fire Pump System

Waterous CSC20 1250gpm Midship Pump
Fire Research InControl Pressure Governor
Waterous Oil-Less Pump Primer
Passenger Side 6" Suction
Rear 6" Suction
Driver Side 6" Suction
Passenger Side 2-1/2" Gated Discharges
Rear 2-1/2" Discharge
Driver Side 2-1/2" & 3-1/2" Gated Discharges
Top Deluge Discharge
Front Bumper 2-1/2" Preconnect Discharge
Top & Bottom 2" Speedlay Discharges

Booster Tank

750-Gallon Water Tank

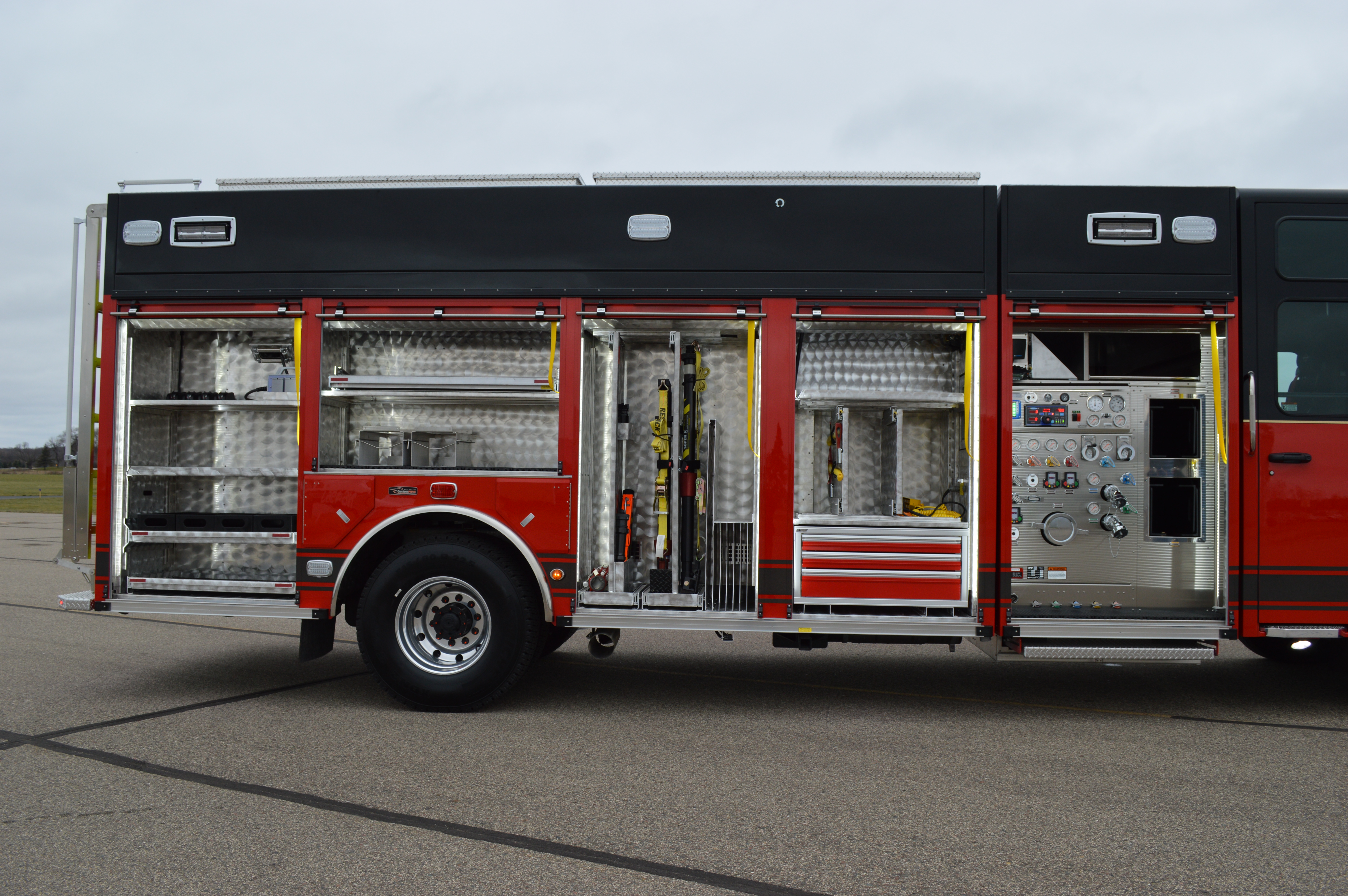

Special Features

Front Bumper Hosewell with Cover & Drop-Down Section
Front Bumper Winch Receiver
Crew Cab Overhead Cabinets
Crew Cab Rear Wall Storage w/ Roll-Up Door
Overhead Coffin Compartments
Transverse Stokes Basket Compartment
Aluminum Hosebed Covers
Encapsulated Roll-Up Door Protection
Rear Compartment Swing-Down Door/Step Combination
Floor-Dry Dispenser
Adjustable Compartment Shelving
Pull-Out Compartment Trays
Pull-Out Tip-Down Compartment Trays
Pull-Out Tool Boards
Slide-Out Helmet Rack
Slide-In Ladder, Pike Pole & Suction Hose Storage
Wheel Well SCBA Cylinder Storage
Folding Ladder Tray
Harrison 6kW Hydraulic Generator
Power Rewind Electric Cord Reels

Emergency Warning Devices

Whelen Electronic Siren & Speaker
Whelen LED Freedom Lightbar w/ Opticom Emitter
Whelen LED Warning Lights

Exterior Lighting

LED Compartment Strip Lights
LED Step Lights
LED Marker Lights
Whelen LED Tail Lighting
Under Body & Under Chassis Lights
WillBurt Telescoping Light Tower

Vehicle Dimensions

Height 11'
Length 37' 3"
Wheelbase 19' 11"
Weight with Water 40,100 Lbs.
