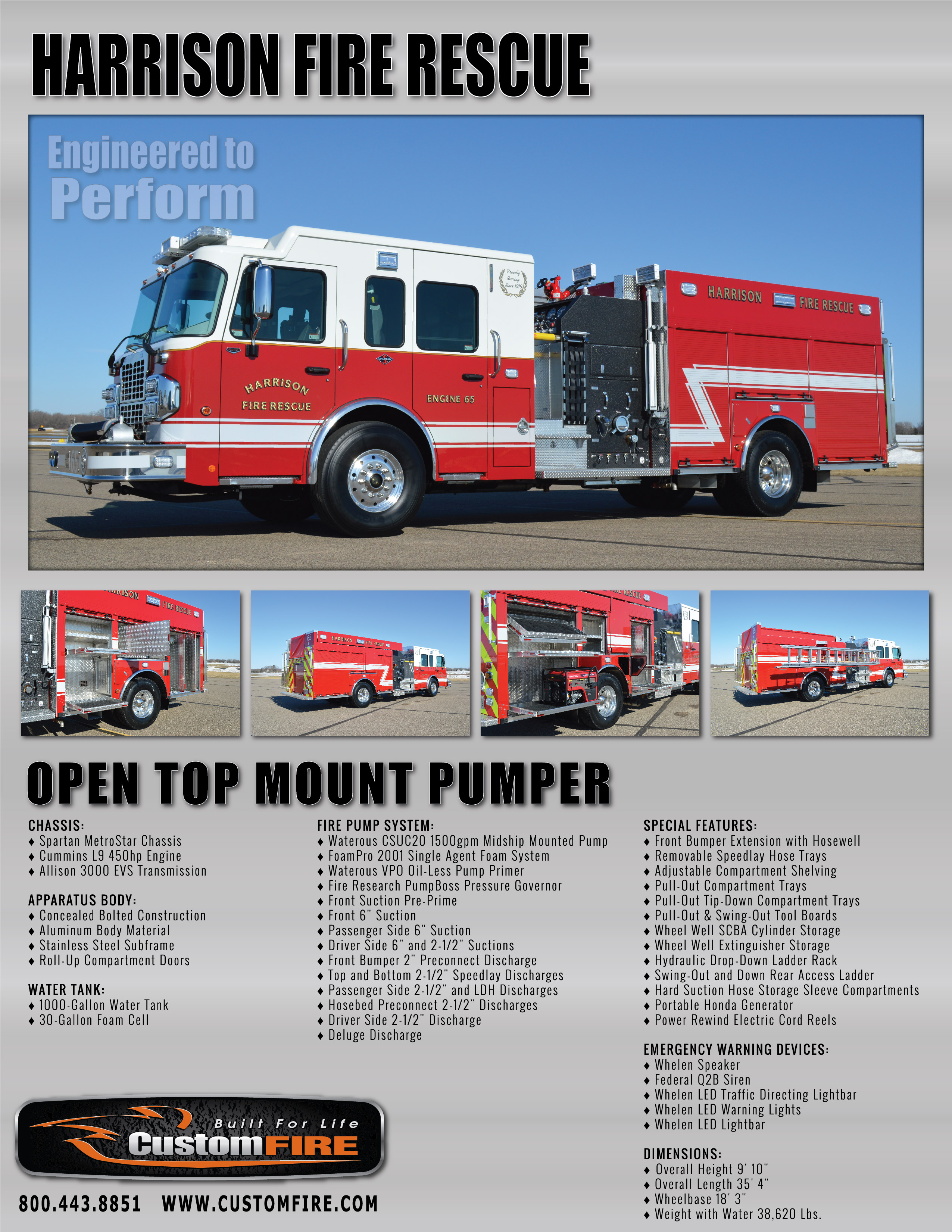

Open Top Mount Pumper

Custom built for Harrison Fire Department — Menasha, WI (Appleton)

Spartan MetroStar, Aluminum Bolted Body, Waterous 1500gpm Pump, FoamPro 2001 Foam System, 1000-Gallon Water Tank, Adjustable Shelving, Pull-Out Compartment Trays, Pull-Out Tip-Down Compartment Trays, Pull-Out Tool Boards, Swing-out Tool Boards, Power Rewind Cord Reels, Portable Generator, LED Emergency Lights

Truck Type :
Cab Type : ,
Deployed : March, 2019

Chassis Model

Spartan MetroStar Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Aluminum Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CSUC20 1500gpm Midship Mounted Pump
FoamPro 2001 Single Agent Foam System
Waterous VPO Oil-Less Pump Primer
Fire Research PumpBoss Pressure Governor
Front Suction Pre-Prime
Front 6" Suction
Passenger Side 6" Suction
Driver Side 6" and 2-1/2" Suctions
Front Bumper 2" Preconnect Discharge
Top and Bottom 2-1/2" Speedlay Discharges
Passenger Side 2-1/2" and LDH Discharges
Hosebed Preconnect 2-1/2" Discharges
Driver Side 2-1/2" Discharge
Deluge Discharge

Booster Tank

1000-Gallon Water Tank
30-Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewell
Removable Speedlay Hose Trays
Adjustable Compartment Shelving
Pull-Out Compartment Trays
Pull-Out Tip-Down Compartment Trays
Pull-Out Tool Boards
Swing-Out Tool Board
Wheel Well SCBA Cylinder Storage
Wheel Well Extinguisher Storage
Hydraulic Drop-Down Ladder Rack
Encapsulated Roll-Up Door Protection
Swing-Out and Down Rear Access Ladder
Hard Suction Hose Storage Sleeve Compartments
Portable Honda Generator
Power Rewind Electric Cord Reels

Emergency Warning Devices

Grover Air Horns
Whelen Speaker
Federal Q2B Siren
Whelen LED Traffic Directing Lightbar
Whelen LED Warning Lights
Whelen LED Lightbar

Exterior Lighting

Vertical Strip Compartment Lighting
LED Step Lights
LED Marker Lights
Whelen LED Tail Lighting
Under Cab and Under Body Lighting
Whelen LED Scene Lighting

Vehicle Dimensions

Overall Height 9' 10"
Overall Length 35' 4"
Wheelbase 18' 3"
Weight with Water 38,620 Lbs.
