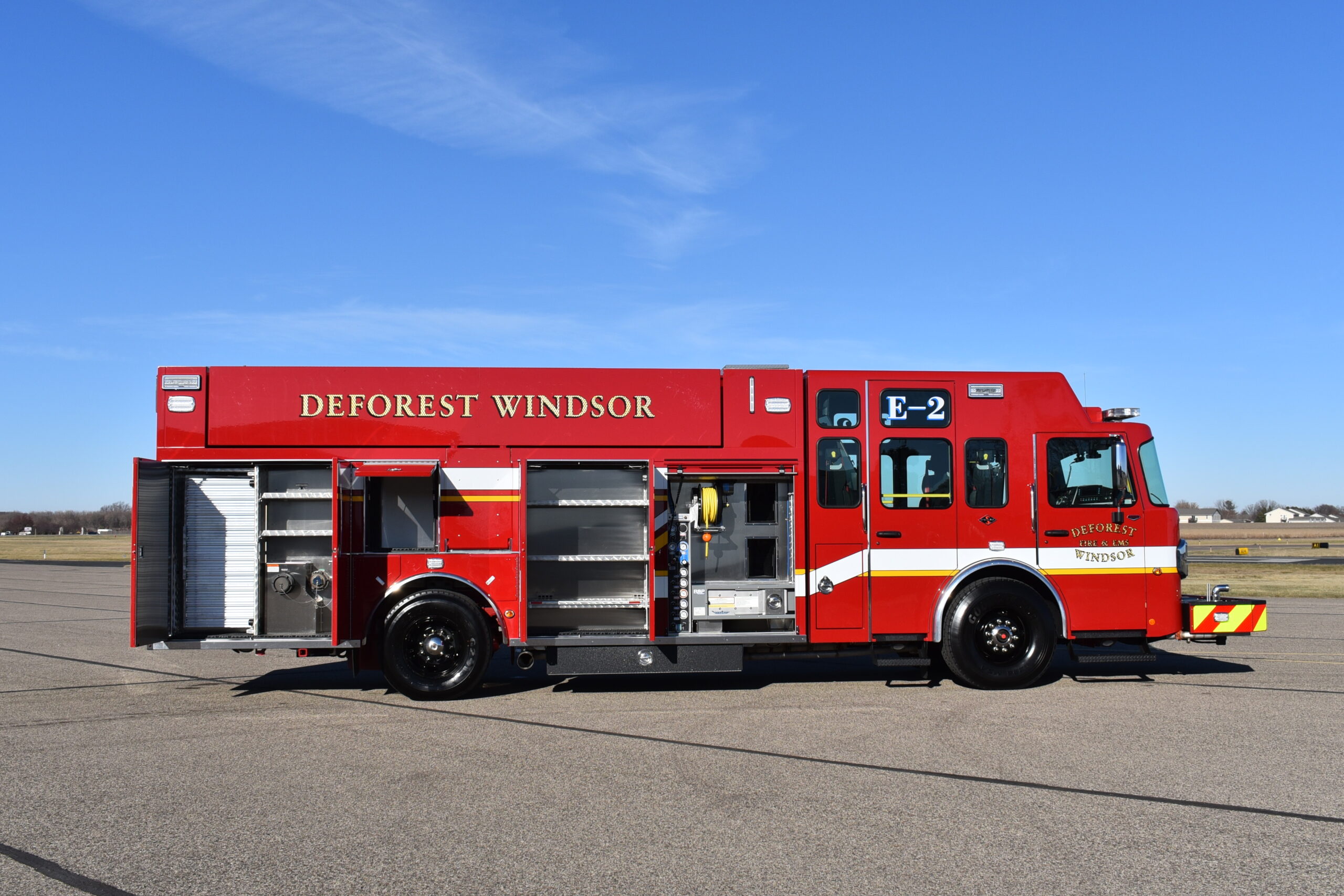

Rear Mount Pumper

Custom built for DeForest Windsor Fire & EMS — DeForest, WI

Fire Truck: Spartan Chassis, Stainless Steel Bolted Body, Waterous 2000gpm Rear Mounted Pump, Waterous CAFS, FoamPro 2002 Foam System, 1000-Gallon Water Tank with 30-Gallon Foam Cell, Adjustable Shelving, Pull-Out Compartment Trays, Swing-Out Tool Panels, Drop-Down Ladder Rack, LED Emergency Lighting


Truck Type :
Cab Type : ,

Chassis Model

Spartan MetroStar Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body
Stainless Steel Subframe
Roll-Up and Hinged Compartment Doors

Fire Pump System

Waterous CSUD 2000gpm Rear Mounted Pump
Waterous 200cfm CAFS
FoamPro 2002 Single Agent Foam System
Trident Air Prime Pump Primer
Fire Research InControl Pressure Governor
Passenger Side 6" Suction
Rear 6" Suction
Front Bumper 2.5" Preconnect Discharges
Passenger Side 2.5" and LDH Discharges
Passenger Side 2.5" Outboard Hosebed Preconnect
Driver Side 2.5" Outboard Hosebed Preconnect
Top Deluge Discharge

Booster Tank

1000-Gallon Poly Water Tank
30-Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewells
Stacked Speedlay Hosebeds
Adjustable Compartment Shelving
Pull-Out Compartment Trays
Pull-Out Tip-Down Compartment Tray
Fixed Mount PAC Tool Panel
Swing-Out PAC Tool Panel
Slide-In Suction Hose Storage Sleeve
Drop-Down Ladder Rack
C-Tech Tool Box
Wheel Well SCBA Cylinder Storage
Floor Dry Dispenser
Coffin Style Storage Pods
Encapsulated Roll-Up Door Protection
Roll-Up Door Pull-Down Straps
Aluminum Hosebed Covers
Front Bumper Winch Receiver
Under Carriage Compartments with Drop-Down Doors
6000 PSI Cascade System
Harrison 3kW Hydraulic Generator

Emergency Warning Devices

Whelen LED Warning Lights
LED Traffic Directing Light
Federal Q2B Mechanical Siren
Grover Air Horns
Cast Products Electronic Siren Speakers

Exterior Lighting

Vertical Strip Compartment Lighting
LED Marker Lights
Whelen Tail Lighting
Under Body and Under Cab Lighting
Rigid Industries Scene Lighting
Fire Research Scene Lighting

Vehicle Dimensions

Overall Height 12' 4"
Overall Length 36' 7"
Wheelbase 217"
Weight with Water 47,340 Lbs.
