Full Response® Pumper

Custom built for Clinton Fire District — Clinton, WI

Freightliner Chassis, Bolted Aluminum Body, Full Response Crew Cab, Waterous 1500gpm Pump, FoamPro 2002 Foam System, 1000-Gallon Water Tank, Adjustable Shelving, Pull-Out Compartment Trays and Tool Boards, Wheel Well SCBA Cylinder Storage, Drop-Down Hydraulic Ladder Rack, Swing-Out and Down Rear Access Ladder

Truck Type : ,
Cab Type : , ,
Deployed : December, 2015

Chassis Model

Freightliner M2 Chassis
Cummins ISL 350hp Engine
Allison 3000 EVS Transmission

Cab Details

Full Response Crew Cab
Lower Level Exterior Compartments
Combo Air Conditioner / Heater
Overhead Cabinets
Overhead Lighting

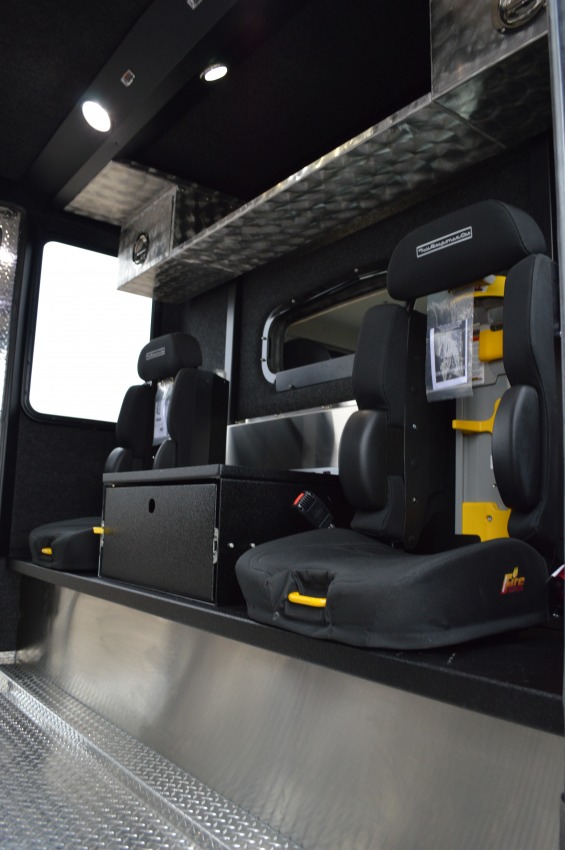

Rear Facing SCBA Seating
Forward Facing SCBA Seating
Stainless Steel Helmet Holders

Apparatus Body

Concealed Bolted Construction
Aluminum Material
Roll-Up Compartment Doors

Fire Pump System

Waterous CSUC20 1500gpm Single Stage Midship Pump
FoamPro 2002 Single Agent Foam System
Fire Research PumpBoss 400 Pressure Governor
Trident Air Prime System
Passenger Side 6" Suction
Rear 6" Suction
Driver Side 6" Suction
Passenger Side 4" Discharge
Rear Driver & Passenger Side 2-1/2" Discharges
Driver Side 4" Discharge
Forward & Rearward 2-1/2" Speedlay Discharges

Booster Tank

1000-Water Tank
20-Gallon Foam Cell

Special Features

Aluminum Hosebed Covers
Roll-Up Door Pull-Down Straps
Adjustable Compartment Shelving
Pull-Out Compartment Trays
Pull-Out Tool Boards
Wheel Well Wheel Chock Storage
Wheel Well SCBA Cylinder Storage

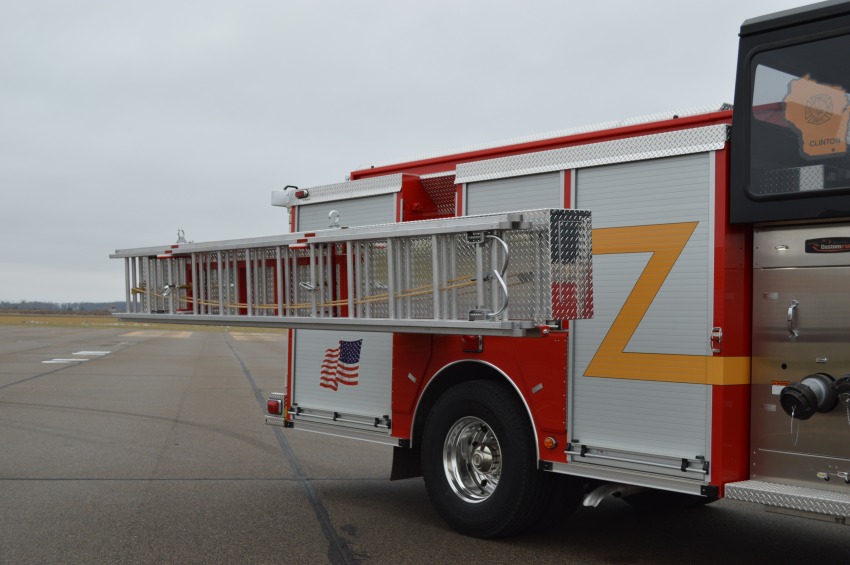

Hydraulic Drop-Down Ladder Rack
Hard Suction Hose Troughs
Pike Pole Storage Sleeves
Folding Ladder Tray
Swing Out & Down Rear Access Ladder
Rear Observation System
Kussmaul On-Board Batter Charger

Emergency Warning Devices

Dual Grover Air Horns
Whelen Electronic Siren & Speaker
Federal Q2B Mechanical Siren
Whelen LED Freedom Lightbar
Whelen LED Traffic Advisor
Whelen LED Warning Lights

Exterior Lighting

Vertical Strip Interior Doorway Compartment Lighting
LED Step Lights
LED Marker Lights
Whelen LED Tail Lighting
Under Cab & Under Body Lighting
Fire Research Scene Lights

Vehicle Dimensions

Height 10' 6"
Length 32' 10"
Wheelbase 20' 7"
Weight with Water 35,380 Lbs.
