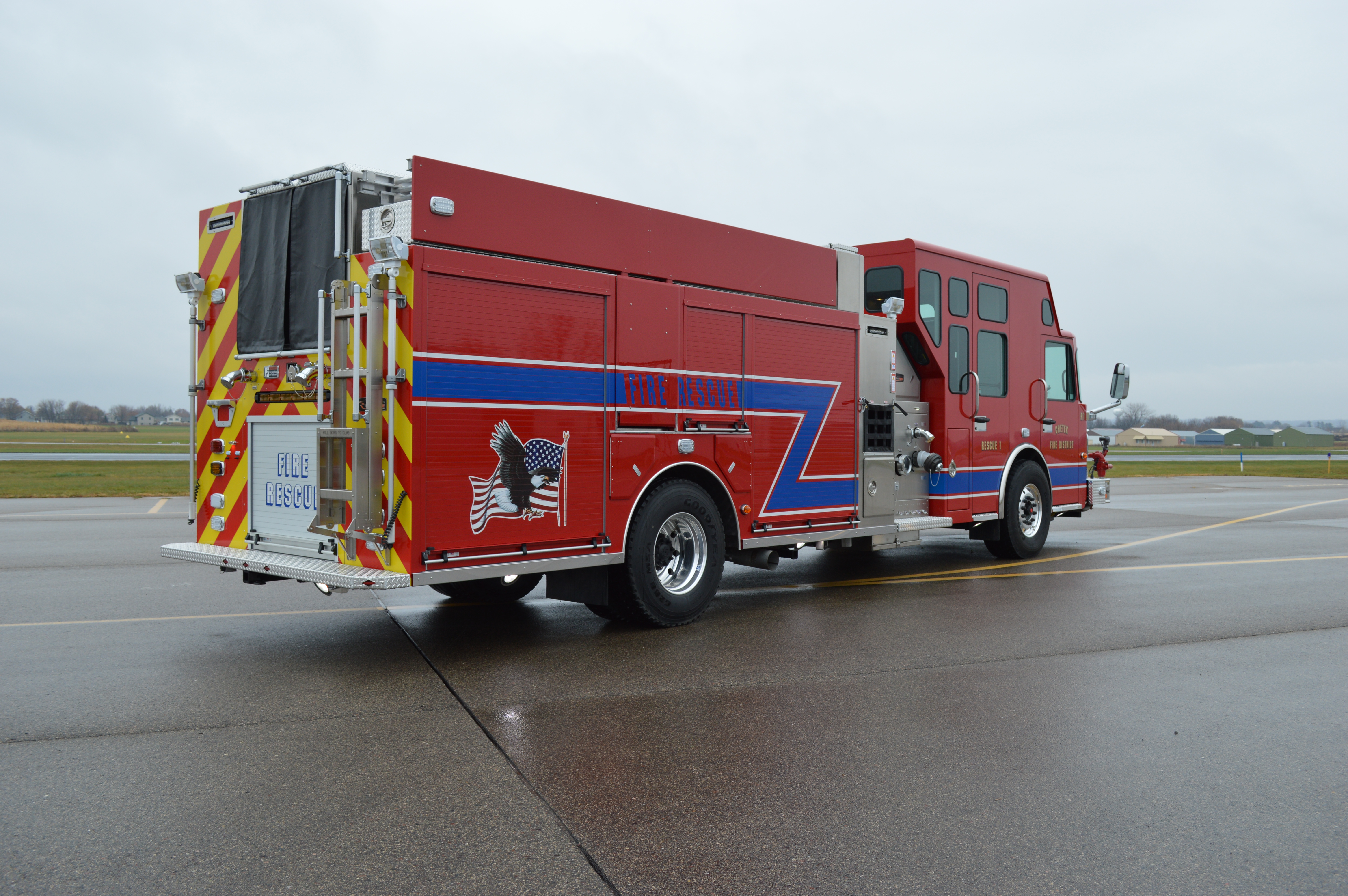

Enclosed Top Mount Pumper

Custom built for Chetek Fire Department — Chetek, WI

Spartan Chassis, Bolted Stainless Steel Body, Waterous 1250gpm Pump, Waterous Advantus Foam System, 1000-Gallon Water Tank, 20-Gallon Foam Cell, Front Bumper Tool & Hose Reel Storage, Adjustable Shelving, Pull-Out Compartment Trays and Tool Boards, Hydraulic Drop-Down Ladder Rack, Onan 15kW Hydraulic Generator

Truck Type :
Cab Type : ,
Deployed : November, 2014

Chassis Model

Spartan MetroStar Chassis
Cummins ISL9 450hp Engine
Allison 3000 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Stainless Steel Material
Roll-Up Compartment Doors

Fire Pump System

Waterous CM 1250gpm PTO Driven Pump
Waterous Advantus Foam System
Fire Research PumpBoss Pressure Governor
Waterous Oil-Less Pump Primer
Passenger Side 6" & 2-1/2" Suctions
Driver Side 6" Suction
Front Bumper 2" Discharge
Passenger Side 2-1/2" & LDH Discharges
Rear 2-1/2" Discharges
Driver Side LDH Discharge
Top & Bottom Speedlay 2-1/2" Discharges

Booster Tank

1000-Gallon Water Tank
20-Gallon Foam Cell

Special Features

Front Bumper Extension w/ Tool and Hose Reel Storage
Removable Speedlay Hosebeds
Aluminum Hosebed Covers
Under Body Winch Receivers

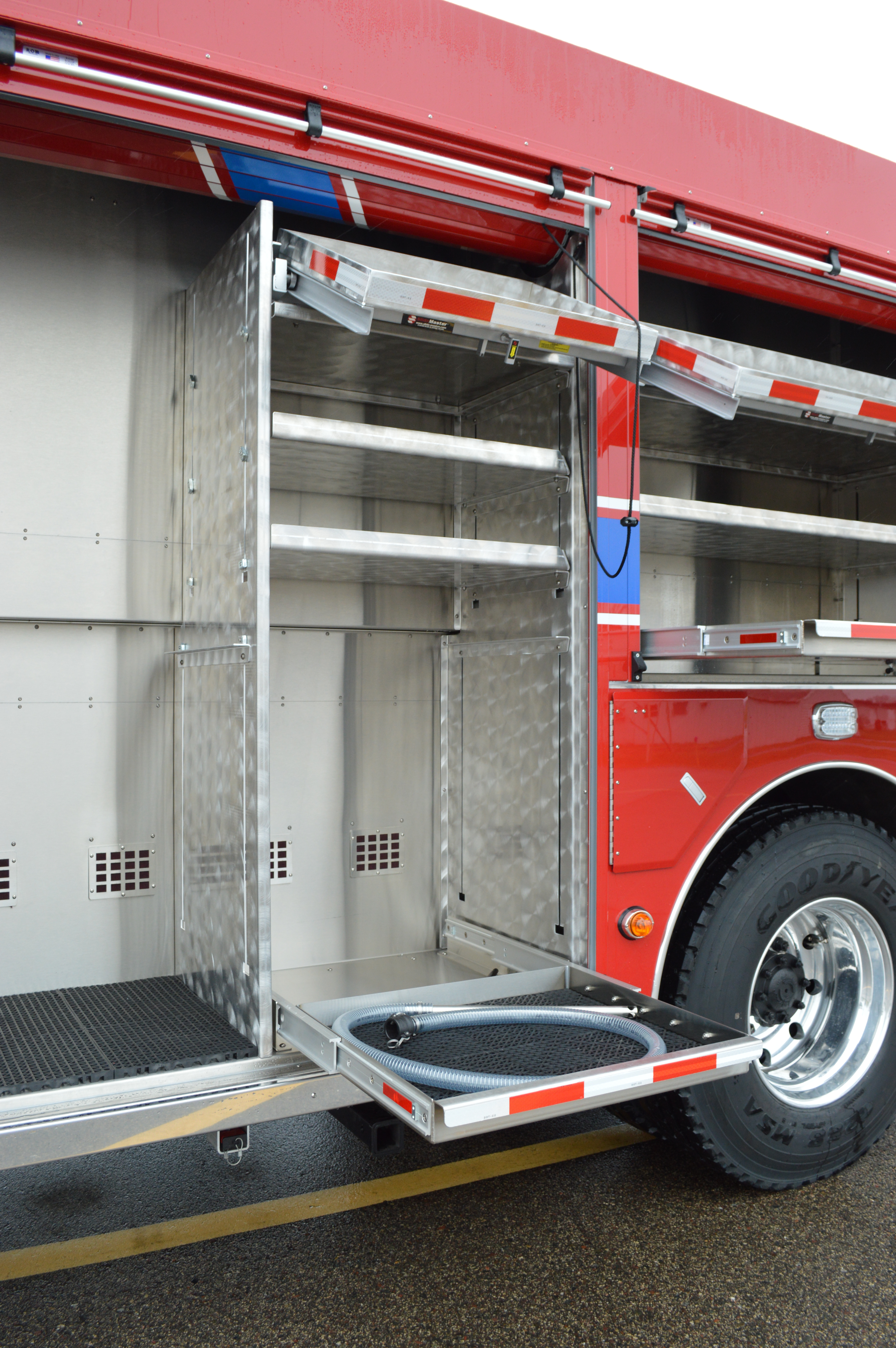

Pull-Out Compartment Trays
Pull-Out Tip-Down Compartment Trays
Pull-Out Tool Boards
Adjustable Compartment Shelving
Slide-In Suction Hose Storage
Wheel Well SCBA Cylinder Storage
Hydraulic Drop-Down Ladder Rack
Folding Ladder Sleeve
Swing-Out and Down Rear Access Ladder
Oil Dri Bin
Rear Observation System
Onan 15kW Hydraulic Generator
Fire Research Telescoping Floodlights
Power Rewind Electric Cord Reels
Will-Burt Telescoping Light Tower

Emergency Warning Devices

Dual Air Horns
Whelen Electronic Siren & Speaker
Code 3 LED Traffic Advisors on Rear of Cab
Whelen LED Traffic Advisor on Rear of Body
Whelen LED Freedom Lightbar

Exterior Lighting

Vertical Strip LED Compartment Lights
LED Step Lights
LED Marker Lights
Whelen LED Tail Lighting
Under Body & Under Cab Lighting
Rigid Industries LED Scene Lights

Vehicle Dimensions

Height 10' 8"
Length 37' 5"
Wheelbase 19' 7"
Weight with Water 42,210 Lbs.
