Rescue Pumper
Custom built for Buffalo Fire Department — Buffalo, MN
Spartan Chassis, Stainless Steel Bolted Body, Waterous 2000gpm Pump, FoamPro 1600 Foam System, 1000-Gallon Water Tank, Adjustable Shelving, Pull-Out Compartment Trays and Tool Boards, Slide-In Suction Hose Storage, Drop-Down Ladder Rack, Hydraulic Generator, Hannay Hose Reels, Will-Burt Nightscan Light Tower
Truck Type : Pumpers, Rescue & Command
Cab Type : Custom Cab, Side Mount, Walk-Around
Deployed : October, 2012
Chassis Model
Spartan MetroStar Chassis
Cummins ISL9 450hp Engine
Allison 3000 EVS Transmission
Apparatus Body
Concealed Bolted Construction
Stainless Steel Body
Stainless Steel Subframe
Roll-Up Compartment Doors
Hinged Compartment Doors
Fire Pump System
Waterous CMUC20 2000gpm Midship Pump
FoamPro 1600 Single Agent Foam System
Fire Research PumpBoss Pressure Governor
Waterous Oil-Less Pump Primer
Front 6" Suction
Passenger Side 6" Suction
Rear 5" Suction
Driver Side 6" and 2-1/2" Suctions
Front Bumper 2" Discharge
Passenger Side 2-1/2" and LDH Discharges
Rear 2-1/2" Discharge
Hosebed 2-1/2" Discharge
Driver Side 2-1/2" Discharge
Deluge Discharge
Hose Reel 1" Discharge
Top 2-1/2" Speedlay Discharge
Bottom Stacked 2" Speedlay Discharges
Booster Tank
1000-Gallon Water Tank
15-Gallon Foam Cell
Special Features
Front Bumper Hose Reel Compartment
Hydraulic Rescue Tool Hose Reel
Front Bumper Hosewell with Hinged Cover
Swing-Out Vertical Hose Rollers
Tool Cabinet
Adjustable Compartment Shelving

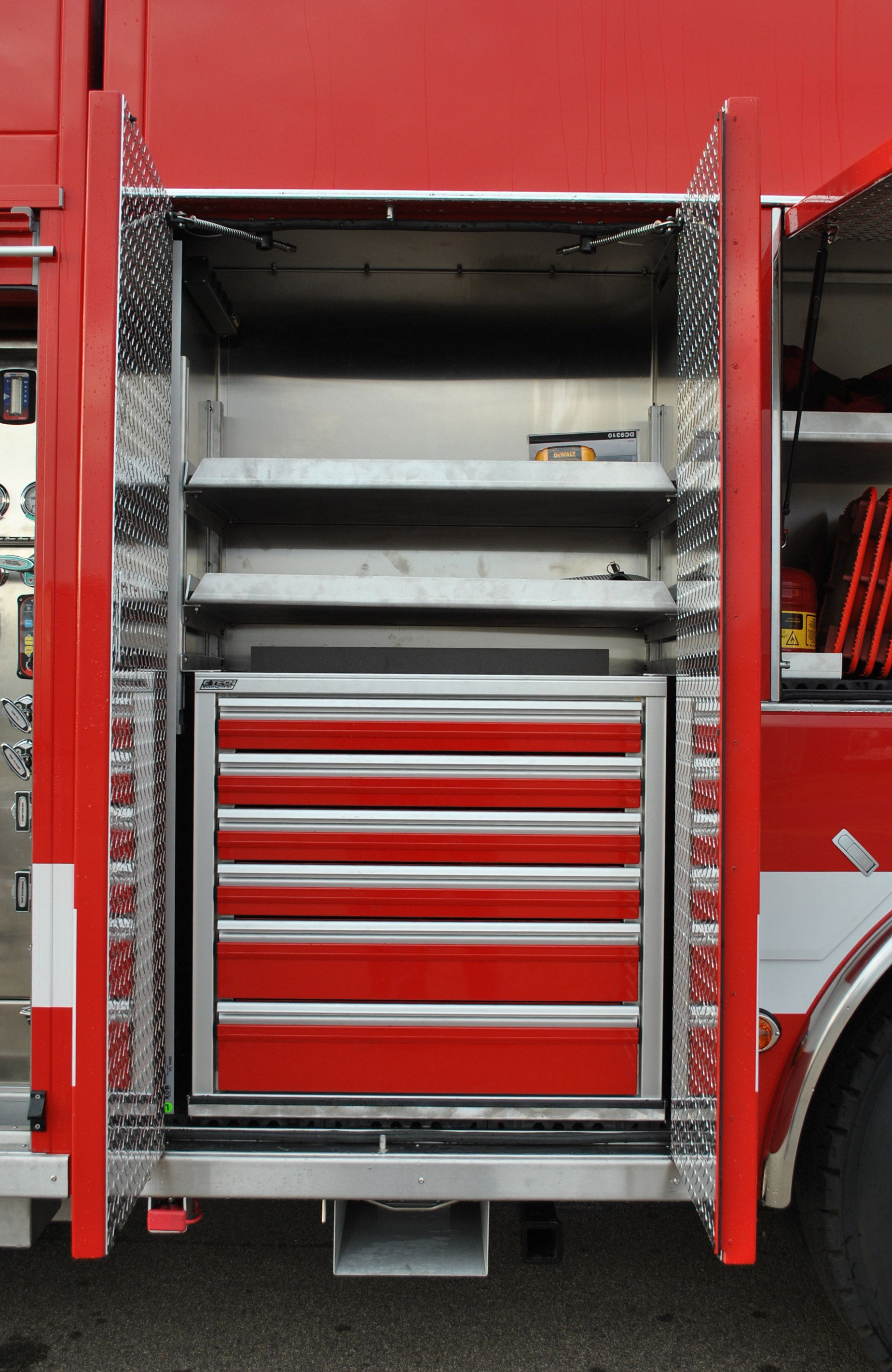

Pull-Out Compartment Trays
Pull-Out Tool Boards
Slide-In Hard Suction Hose Sleeve
Wheel Well SCBA Cylinder Storage
Hydraulic Drop-Down Ladder Rack
Folding Ladder Tray
Onan 15kW Hydraulic Generator
Hannay Hose Reels
Will-Burt Nightscan Light Tower
Emergency Warning Devices
Whelen LED Lightbar
Opticoom Light Emitter
Whelen LED Traffic Advisor
Whelen LED Warning Lights
Exterior Lighting
Marker Lights
Under Cab and Under Body Lighting
Telescoping Floodlights
Vehicle Dimensions
Overall Height 10' 4"
Overall Length 33' 7"
Wheelbase 16' 9"
Weight with Water 42,590 Lbs.
