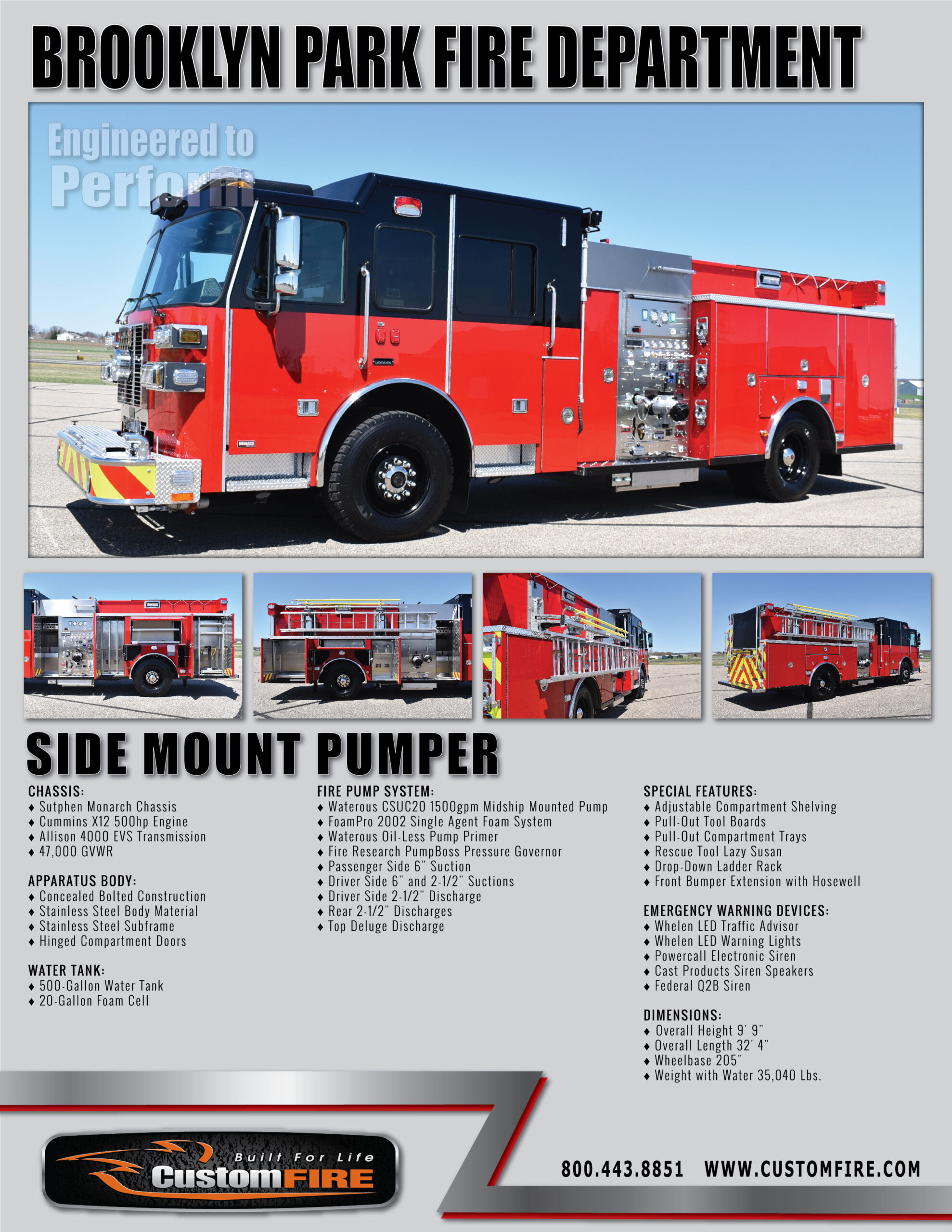

Side Mount Pumper
Custom built for Brooklyn Park Fire Department — Brooklyn Park, MN
Sutphen Monarch Chassis, Bolted Stainless Steel Body, Waterous 1500gpm Pump, FoamPro 2002 Foam System, 500-Gallon Water Tank, Adjustable Shelving, Pull-Out Compartment Trays and Tool Boards, Rescue Tool Lazy Susan, LED Warning Lights
Truck Type : HGACBuy Deliveries, Pumpers
Cab Type : Custom Cab, Side Mount
Deployed : May, 2022
Chassis Model
Sutphen Monarch Chassis
Cummins X12 500hp Engine
Allison 4000 EVS Transmission
Apparatus Body
Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Hinged Compartment Doors
Fire Pump System
Waterous CSUC20 1500gpm Midship Mounted Pump
FoamPro 2002 Single Agent Foam System
Waterous Oil-Less Pump Primer
Fire Research PumpBoss Pressure Governor
Passenger Side 6" Suction
Driver Side 6" and 2-1/2" Suctions
Driver Side 2-1/2" Discharge
Rear 2-1/2" Discharges
Top Deluge Discharge
Booster Tank
500-Gallon Water Tank
20-Gallon Foam Cell
Special Features
Adjustable Compartment Shelving
Pull-Out Tool Boards
Pull-Out Compartment Trays
Rescue Tool Lazy Susan
Drop-Down Ladder Rack
Front Bumper Extension with Hosewell
Emergency Warning Devices
Whelen LED Traffic Advisor
Whelen LED Warning Lights
Powercall Electronic Siren
Cast Products Siren Speakers
Federal Q2B Siren
Exterior Lighting
Vertical Strip Interior Compartment Lighting
Whelen LED Tail Lighting
Under Cab and Under Body Lights
Vehicle Dimensions
Overall Height 9' 9"
Overall Length 32' 4"
Wheelbase 205"
Weight with Water 35,040 Lbs.
