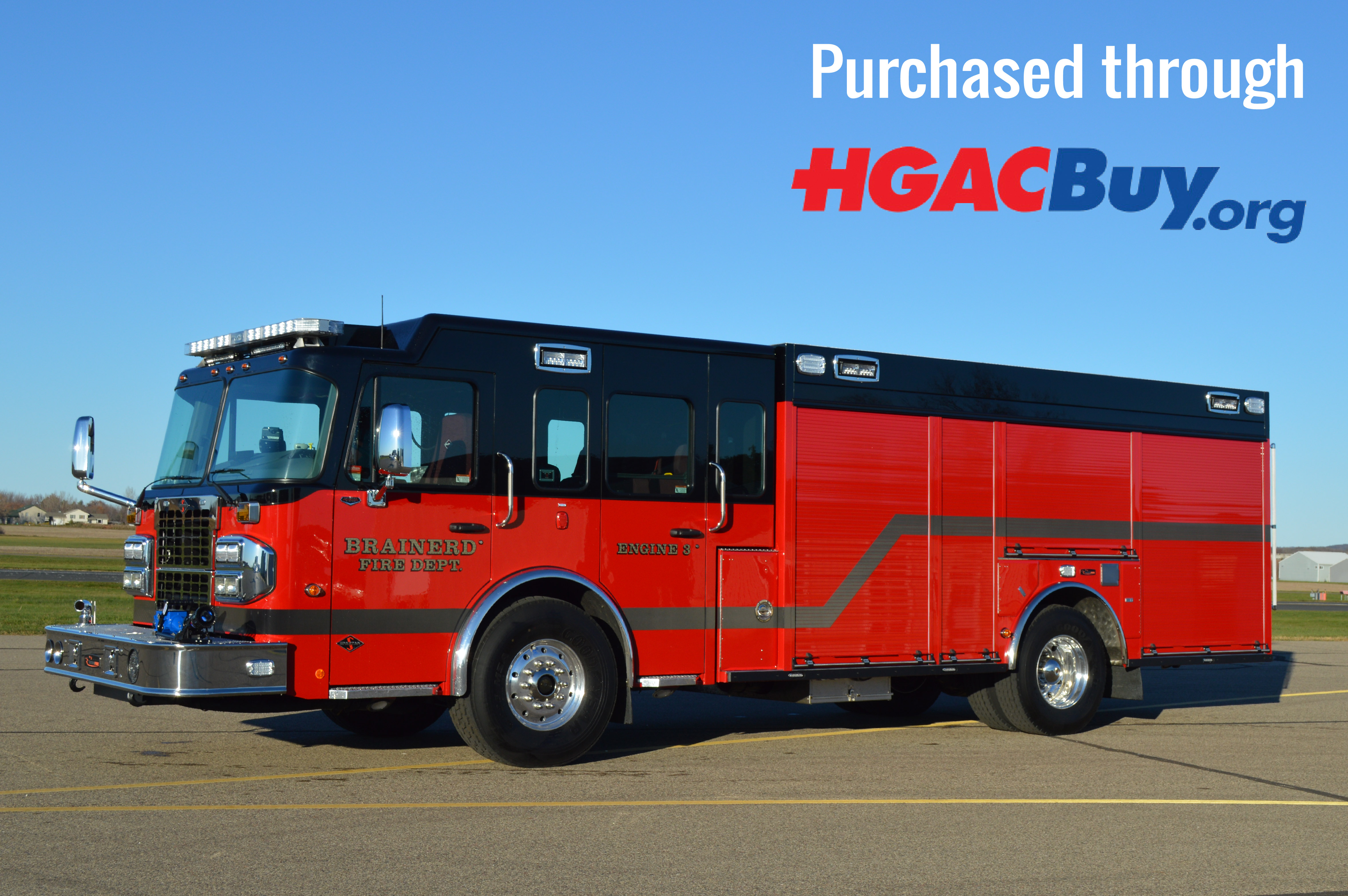

Side Mount Pumper

Custom built for Brainerd Fire Department — Brainerd, MN

Spartan Chassis, Stainless Steel Body, Waterous 2000gpm Pump, FoamPro Foam System, Adjustable Compartment Shelving, Pull-Out Compartment Trays, Pull-Out Tool Boards, Slide-In Suction Hose Storage, Wheel Well SCBA Cylinder Storage, Slide-In Ladder Storage, Swing-Out and Down Rear Access Ladder

Truck Type : ,
Cab Type : ,
Deployed : November, 2016

Chassis Model

Spartan MetroStar Chassis
Cummins ISL9 450hp Engine
Allison 3000 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body
Roll-Up Compartment Doors

Fire Pump System

Waterous CMUC20 2000gpm Midship Pump
FoamPro 2001 Single Agent Foam System
Fire Research InControl Pressure Governor
Waterous Oil-Less Pump Primer
Suction Pre-Primes
Passenger Side 6" and 2-1/2" Suctions
Rear 6" Suction
Driver Side 6" Suction
Passenger Side 2-1/2" and 4" Discharges
Rear 2-1/2" Discharge
Hosebed 2-1/2" Preconnect Discharge
Driver Side 2-1/2" Discharge
Front Bumper 2-1/2" Preconnect Discharge
2" and 2-1/2" Speedlay Discharges

Booster Tank

1000-Gallon Water Tank
30-Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewell
Removable Speedlay Hosebeds
Adjustable Compartment Shelving
Pull-Out Compartment Trays
Pull-Out Tool Boards
Slide-In Suction Hose & Strainer Compartment
Wheel Well SCBA Cylinder Storage
Slide-In Ladder & Pike Pole Storage
Folding Ladder Tray
Swing-Out & Down Rear Access Ladder
WillBurt NightScan Light Tower
On-Board Air Compressor

Emergency Warning Devices

Dual Air Horns
Whelen Freedom LED Lightbar
Whelen LED Warning Lights
LED Marker Lights

Exterior Lighting

Vertical Strip Compartment Lights
LED Step Lights
Under Chassis and Under Body Lights
Rigid Industries Scene Lights

Vehicle Dimensions

Height 9' 11"
Length 32' 2"
Wheelbase 15' 10"
Weight with Water 39,820 Lbs.
