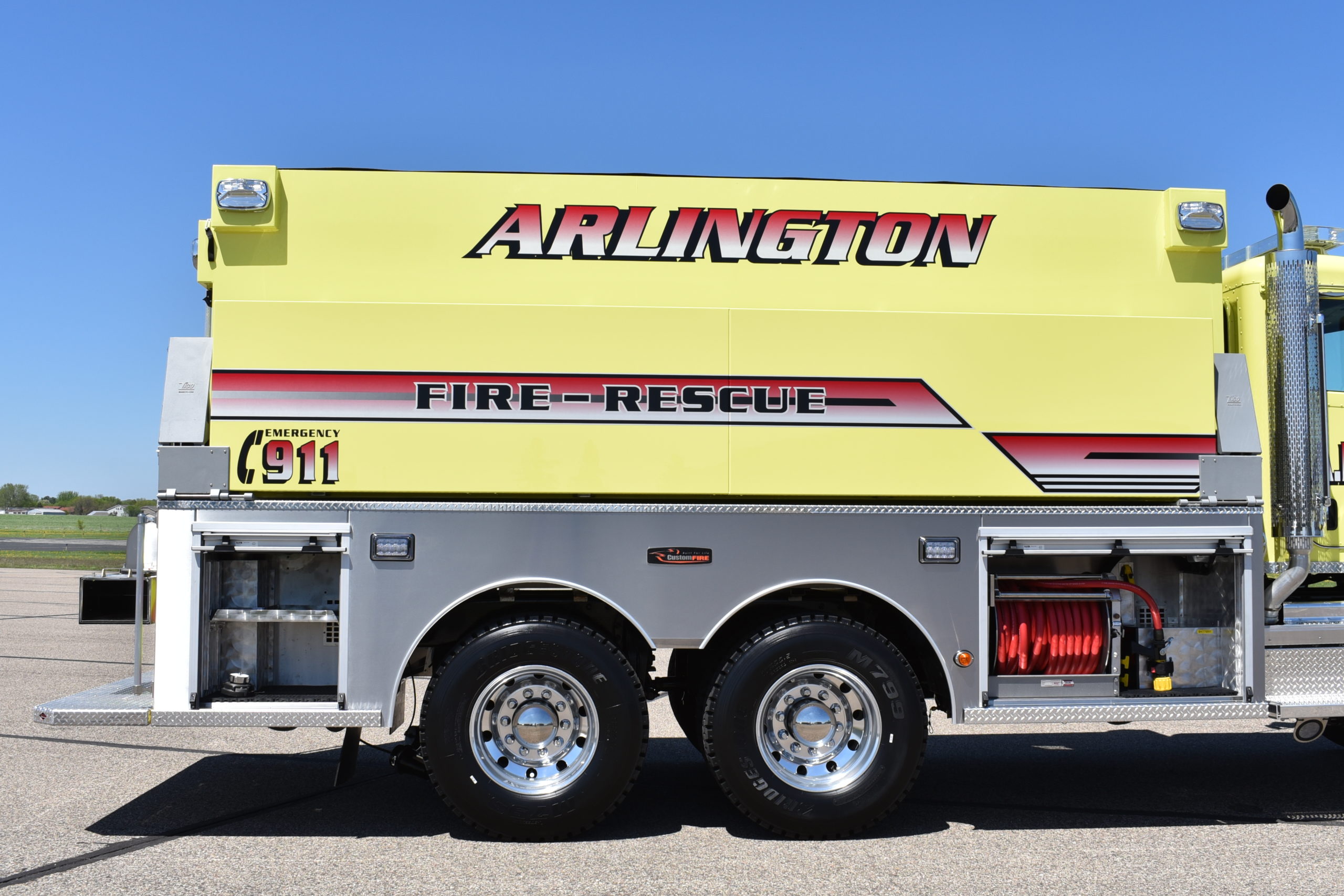

3500-Gallon Tandem Tender

Custom built for Arlington Fire Department — Arlington, MN

Peterbilt Chassis, Bolted Stainless Steel Body, Hale 200gpm Engine Driven Pump, 3500-Gallon Water Tank, 180-Degree Swivel Dump Chute, Wheel Chock Storage, Slide-In Ladder Storage, LED Emergency Lighting

Truck Type : ,
Cab Type :
Deployed : July, 2020

Chassis Model

Peterbilt 348 Chassis
Cummins 380hp Engine
Allison 3000 EVS Transmission
66,000Lbs GVWR

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Hale HPX200-H2O Engine Driven Pump
Honda Gasoline Engine
Exhaust Primer
2-1/2" Suction
2-1/2" Discharge
1-1/2" Hose Reel Discharge

Booster Tank

3500-Gallon Poly Water Tank
Rear Dump Chute with Swivel

Special Features

Drop-Down Portable Tank Storage
Slide-In Ladder and Pike Pole Storage
Adjustable Compartment Shelving
Rear Access Ladder

Emergency Warning Devices

Grover Air Horns
Whelen Siren and Speaker
Whelen LED Warning Lights

Exterior Lighting

LED Step Lights
LED Marker Lights
Techniq LED Tail Lights
Vertical Strip LED Compartment Lights
LED Under Body and Under Cab Lights

Vehicle Dimensions

Overall Height 10' 7"
Overall Length 28' 8"
Wheelbase 191"
Weight with Water 52,860 Lbs.
