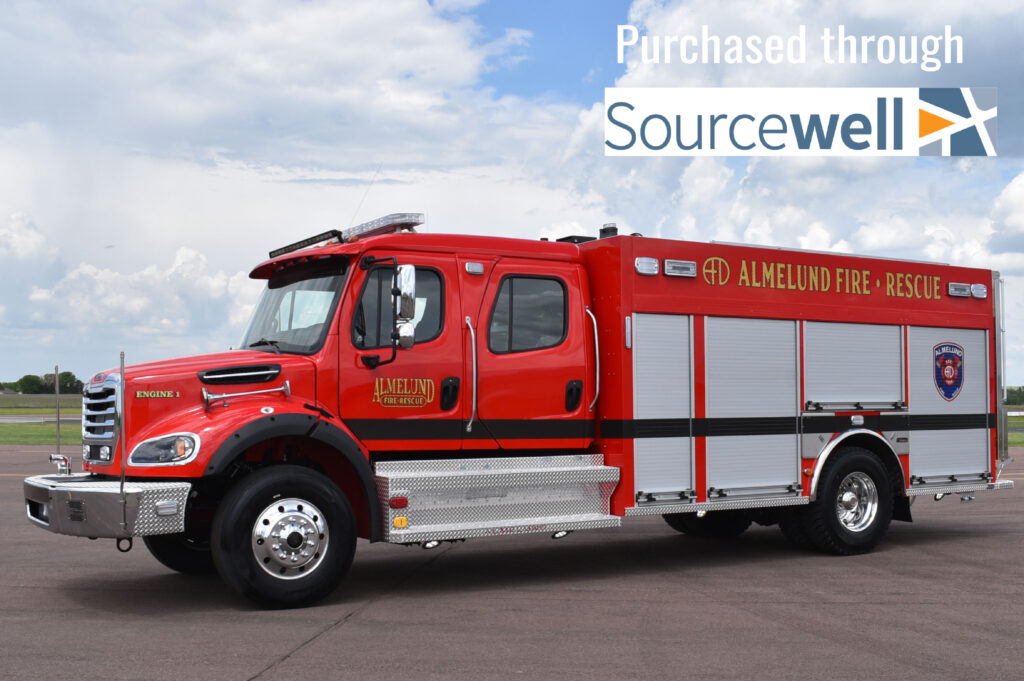

Truck Type : Pumpers, Sourcewell Deliveries
Cab Type : Commercial Cab, Rear Mount

Chassis Model

Freightliner M2 Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission
47,000 Lbs. GVWR

Apparatus Body

Concealed Bolted Construction
Stainless Steel Subframe
Stainless Steel Body Material
Roll-Up Compartment Doors

Fire Pump System

Waterous CSUD 1500gpm Water Pump
FoamPro 2001 Foam System
Powered FoamPro Foam Refill System
Fire Research PumpBoss Pressure Governor
Trident Air Pump Primer
Rear 6" Suction with Pre-Prime
Driver Side 6" Suction
Rear 2.5" and LDH Discharges
Hosebed 2" Preconnect Discharge
Driver Side 2.5" Discharge
Top Deluge Discharge
Front Bumper 2.5" Preconnect Discharge

Booster Tank

1250 Gallon Water Tank
30-Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewell
Adjustable Compartment Shelving
Removable Speedlay Hosebeds
Aluminum Hinged Hosebed Covers w/ Lift Assist
Encapsulated Roll-Up Door Protection
Roll-Up Door Pull-Down Straps
Pull-Out Compartment Trays
Swing-Out Tool Panel
Wall-Mounted Peg Board Panel
Slide-In Suction Hose Storage
Wheel Well SCBA Cylinder and Extinguisher Storage
Wall-Mounted SCBA Cylinder Brackets
Drop-Down Ladder Rack
Swing-Out and Down Rear Access Ladder
Rear Observation and Audio Monitoring System

Emergency Warning Devices

Whelen Electronic Siren and Speaker
Whelen LED Freedom Lightbar
Whelen LED Traffic Directing Lightbar
Whelen LED Warning Lights

Exterior Lighting

LED Marker Lights
Whelen LED Tail Lighting
Under Cab and Under Body Lighting
Whelen LED Scene Lights
Fire Research LED Scene Lights

Vehicle Dimensions

Overall Height 11'
Overall Length 33'
Wheelbase 232"
Weight w/ Water 37,580 Lbs.
