Open Top Mount Pumper

Custom built for Adams County Fire District — Adams, WI

Spartan Chassis, Bolted Stainless Steel Body, Waterous 1500gpm Pump, FoamPro Foam System, 1200-Gallon Water Tank, Adjustable Compartment Shelving, Pull-Out Compartment Trays and Tool Boards, Slide-In Ladder Storage

Truck Type :
Cab Type : ,
Deployed : January, 2019

Chassis Model

Spartan MetroStar Chassis
Cummins L9 450hp Engine
Allison 3000 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CSUC20 1500gpm Midship Pump
FoamPro 2001 Single Agent Foam System
Fire Research PumpBoss Pressure Governor
Trident Air Prime System
Passenger Side 6" and 2-1/2" Suctions
Driver Side 6" Suction
Passenger Side 2-1/2" and LDH Discharges
Rear 2-1/2" Discharge
Driver Side 2-1/2" Discharge
Top Deluge Discharge
Front Bumper 2" Preconnect Discharge
Speedlay 2" and 2-1/2" Discharges

Booster Tank

1200-Gallon Water Tank
15-Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewell
Encapsulated Roll-Up Door Protection
Adjustable Compartment Shelving
Pull-Out Compartment Trays
Pull-Out Tool Boards
Wheel Well SCBA Cylinder Storage
Slide-In Ladder Compartment
Wheel Well Wheel Chock Compartment

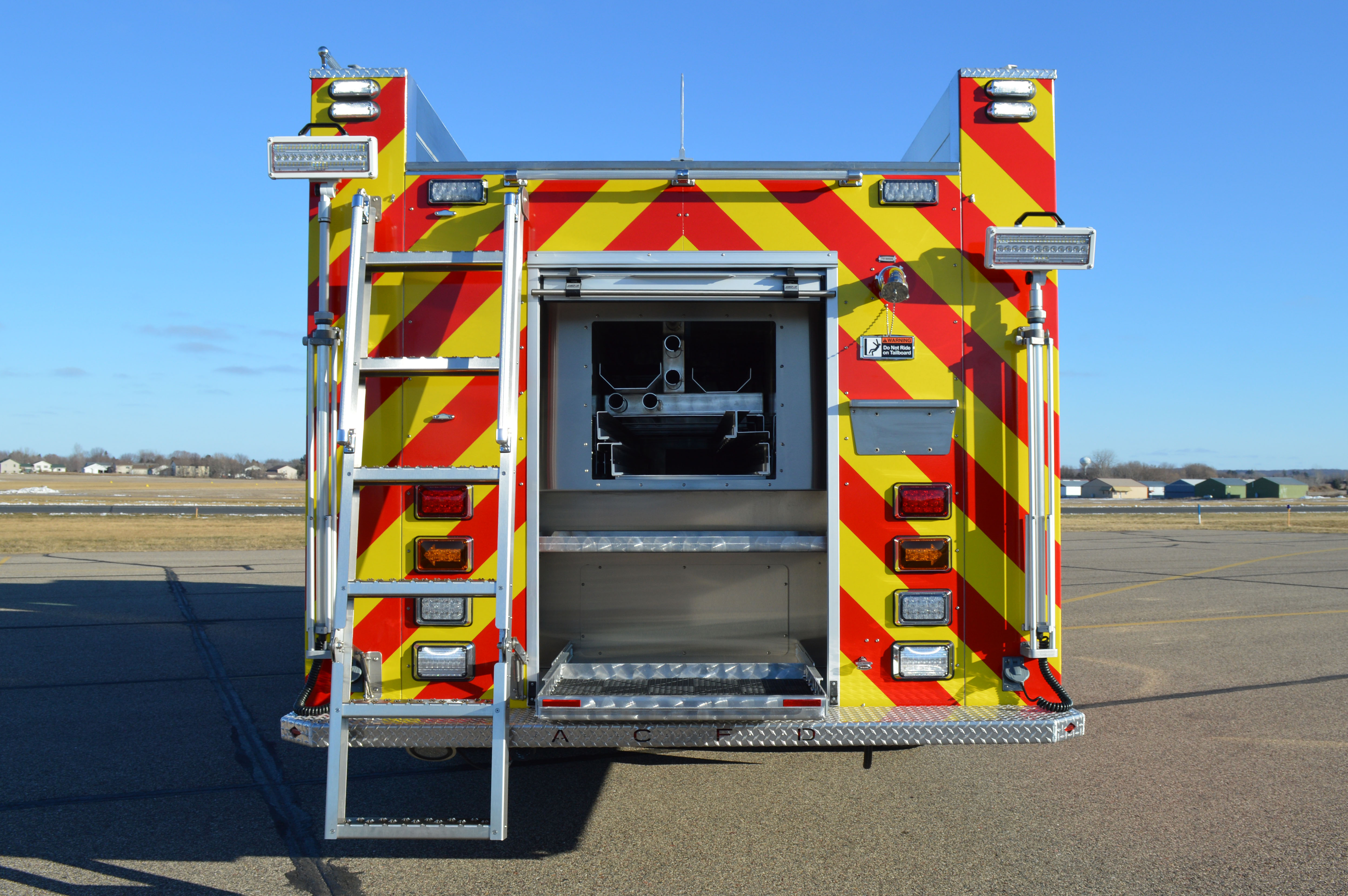

Swing-Out and Down Rear Access Ladder
Harrison 6kW Hydraulic Generator
Power Rewind Electric Cord Reels

Emergency Warning Devices

Whelen Freedom Lightbar
Whelen LED Warning Lights
Whelen Electronic Siren and Speaker

Exterior Lighting

LED Rear Step Lights
LED Marker Lights
Techniq LED Lights
Under Body and Under Cab Lights
Telescoping Floodlights

Vehicle Dimensions

Overall Height 9' 8"
Overall Length 37' 2"
Wheelbase 19' 3"
Weight with Water 41,480 Lbs.
