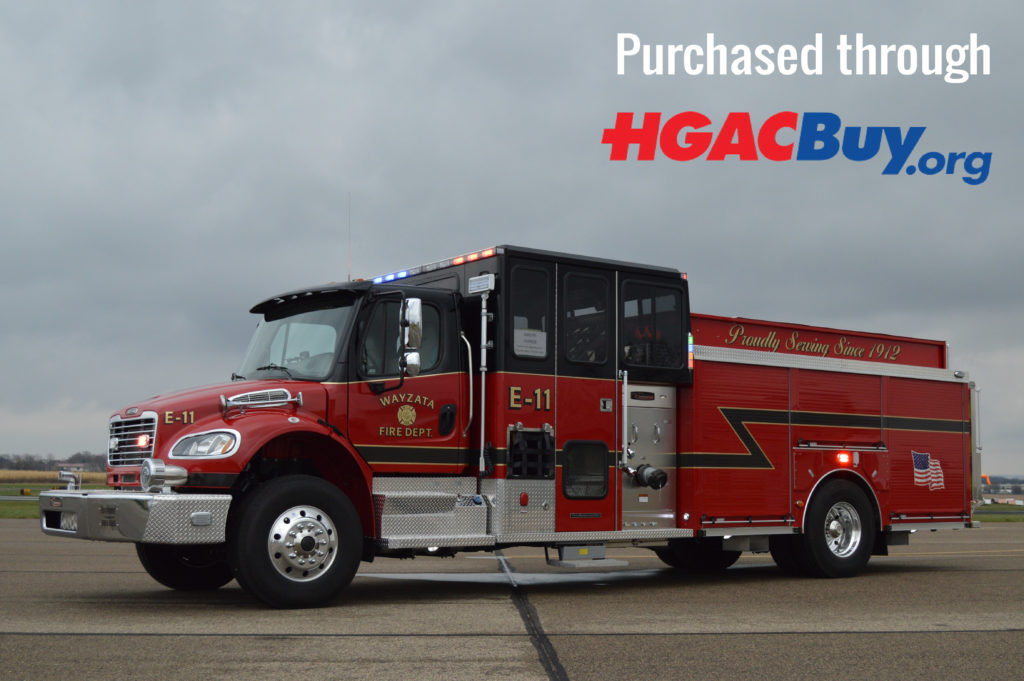

Full Response® Pumper

Custom built for Wayzata Fire Department — Wayzata, MN

Freightliner Chassis, Bolted Stainless Steel Body, Waterous 1500gpm pump, Waterous Aquis Foam System, 1250-Gallon Water Tank, 30-Gallon Foam Cell, Adjustable Compartment Shelving, Pull-Out Compartment Trays and Tool Boards, Slide-In Ladder and Suction Hose Storage, Hydraulic Generator, Electric Cord Reels, LED Emergency Lighting


Truck Type : , ,
Cab Type : , ,
Deployed : November, 2017

Chassis Model

Freightliner M2 Chassis
Cummins ISL 350hp Engine
Allison 3000 EVS Transmission

Cab Details

Full Response® Crew Cab by CustomFIRE
Interior Pump Control Panel

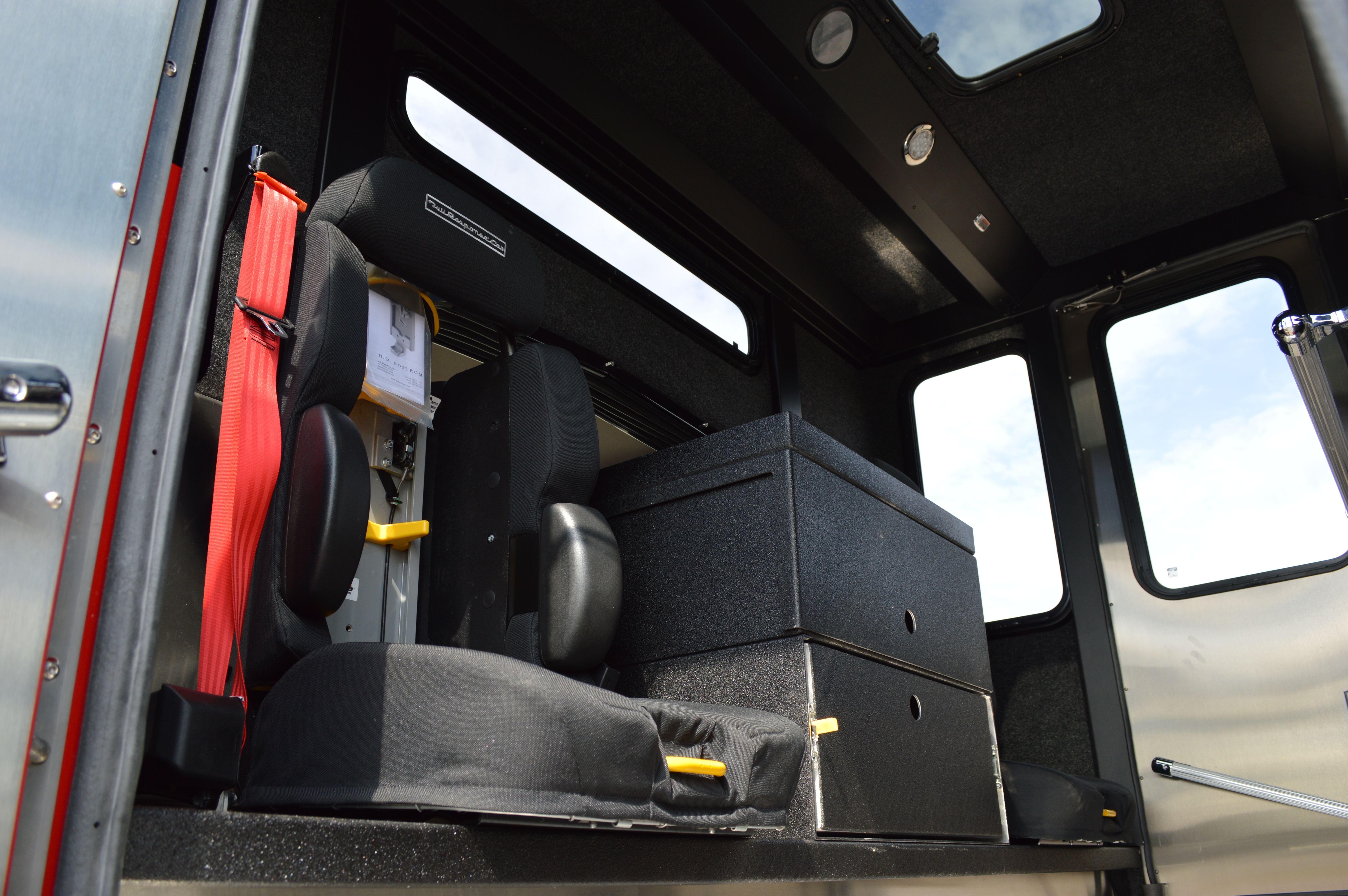

Rear and Forward Facing SCBA Seating

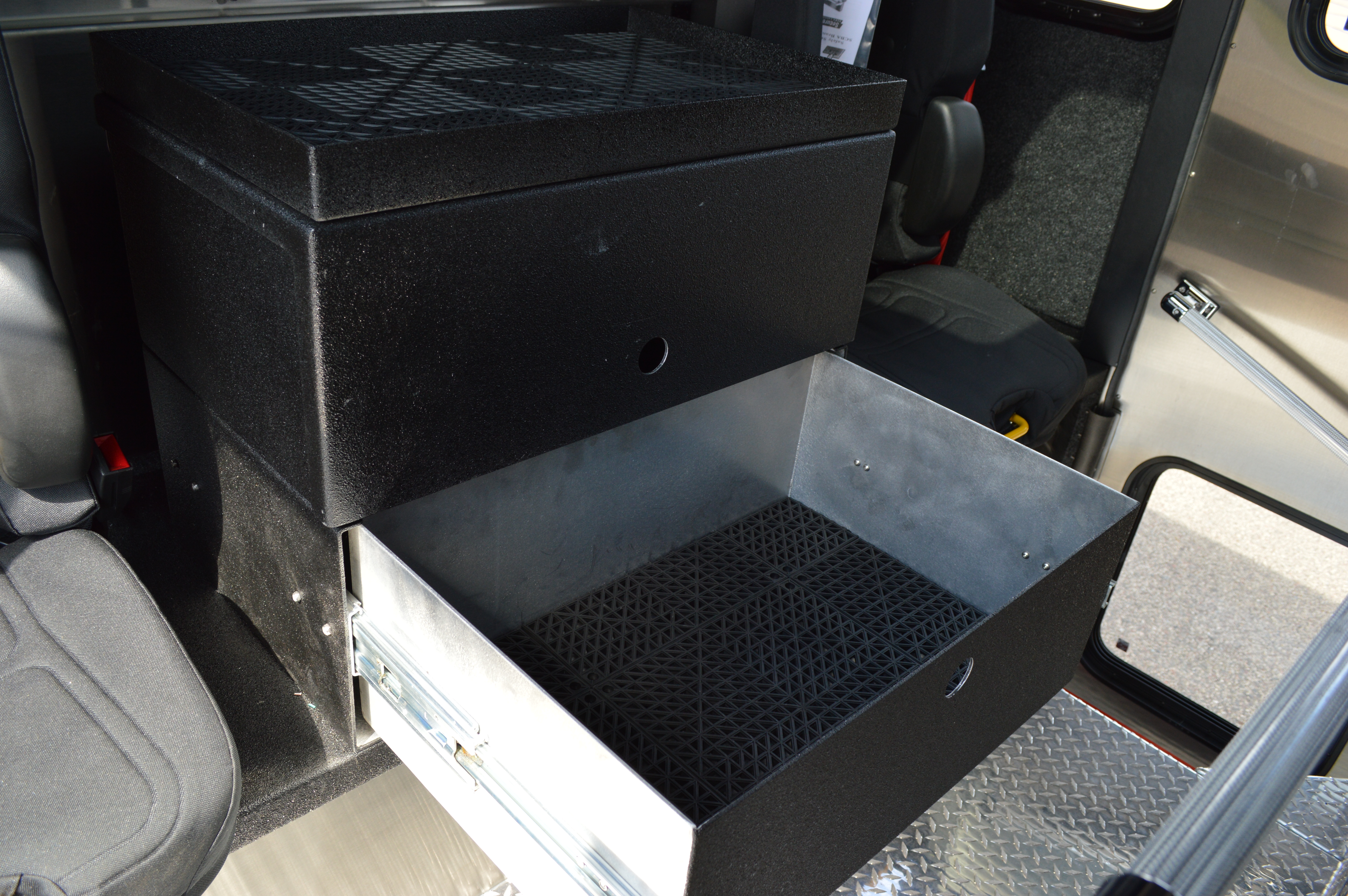

Interior EMS Cabinet
Removable Speedlay Hosebeds
Heating and Air Conditioning
Overhead Dome Lighting

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CSUC20 1500gpm Midship Mounted Pump
Waterous Aquis Single Agent Foam System
Fire Research PumpBoss Pressure Governor
Waterous Oil-Less Pump Primer
Suction Pre-Primes
Passenger Side 6" Suction
Rear 6" Suction
Driver Side 6" Suction
Front Bumper 2-1/2" Preconnect Discharge
Passenger Side 2-1/2" and LDH Discharges
Rear 2-1/2" Discharge
Driver Side 2-1/2" Discharges
Forward and Rearward 2-1/2" Speedlay Discharges

Booster Tank

1250-Gallon Poly Water Tank by UPF
30-Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewell and Cover
Adjustable Compartment Shelving
Pull-Out Compartment Trays
Pull-Out Tool Boards
Wheel Well SCBA Cylinder Storage
Encapsulated Roll-Up Compartment Doors
Slide-In Storage for Suction Hose and Ladders
Swing-Out and Down Rear Access Ladder
Battery Charger with Air Compressor
Onan 6kW Hydraulic Generator
Electronic Cord Reels

Emergency Warning Devices

Air Horn
Whelen Electronic Siren and Speaker
Crew Cab Lightbar
Whelen LED Warning Lights

Exterior Lighting

LED Marker Lights
Whelen LED Tail Lighting
Under Cab and Under Body Lighting
Telescoping LED Scene Light

Vehicle Dimensions

Height 10' 2"
Length 34' 5"
Wheelbase 24' 8"
Weight with Water 38,660 Lbs.
